Record Power 80003 Coronet Cobra User manual

Original Instructions
80003 Coronet Cobra Bandsaw Scroll
Guide System
Important
For your safety read instructions carefully before
assembling or using this product.
Save this manual for future reference.
Always read the instructions
provided before using
woodworking equipment.
Version 3.1
May 2023
Developed in
partnership with
To register this product please visit
www.recordpower.info
It is important to register your product as soon as possible in order to receive efficient after
sales support and be entitled to the full 5 year guarantee. Your statutory rights are not
affected. Please see back cover for contact details.
Always wear safety glasses
when using woodworking
equipment.

2
Contents
1Explanation of Symbols
2Record Power Guarantee
3General Health & Safety Guidance
4Additional Health & Safety Guidance for Bandsaws
5Specifications
6Contents of the Package
7Assembly
8Operation
9Maintenance
10 Dust Extraction
11 Parts Lists & Diagrams

3
1. Explanation of Symbols
THE SYMBOLS AND THEIR MEANINGS SHOWN BELOW MAY BE USED THROUGHOUT THIS MANUAL.
PLEASE ENSURE THAT YOU TAKE THE APPROPRIATE ACTION WHEREVER THE WARNINGS ARE USED.
Mandatory
Instructions
Warning
Read and fully understand the instruction manual before
attempting to use the product
Indicates an instruction that requires particular attention
Wear protective eyewear
Use respiratory protective equipment
Use suitable protective footwear
Use hearing protection
Use protective work gloves
Indicates a risk of severe personal injury or
damage to the machine
Indicates a risk of severe personal injury from
electrical shock
Risk of personal injury from lifting of heavy items
Indicates a risk of severe personal injury from airborne
objects
Risk of fire

4
2. Record Power Guarantee
“Products” means the Products sold by Record Power
subject to these terms and conditions;
“Record Power” is Record Power Limited, whose
company registration number is 4804158 and registered
office address is Centenary House, 11 Midland Way,
Barlborough Links, Chesterfield,
Derbyshire, S43 4XA and sells through a network of
Authorised Dealers;
“Authorised Distributor” is the nominated importer
for your region who will generally sell through a network
of Authorised Dealers. Details of Authorised Distributors
for specific countries can be found in the Product manual
or at www.recordpower.info;
“Authorised Dealer” is a retailer or business
authorised to sell Record Power Products to end users.
1 Guarantee
1.1 Record Power guarantees that for a period of 5
years from the date of purchase the components of
qualifying Products (see clauses 1.2.1 to 1.2.9) will
be free from defects caused by faulty construction
or manufacture.
1.2 During this period Record Power, its Authorised
Distributor or Authorised Dealer will repair or
replace free of charge any parts which are proved
to be faulty in accordance with paragraphs 1.1
above provided that:
1.2.1 you follow the claims procedure set out in clause 2
below;
1.2.2 Record Power, our Authorised Distributor or
Authorised Dealer are given a reasonable
opportunity after receiving notice of the claim to
examine the Product;
1.2.3 if asked to do so by Record Power, its Authorised
Distributor or Authorised Dealer, you return the
Product, at your own cost, to Record Power’s
premises or other approved premises such as
those of the Authorised Distributor or supplying
Authorised Dealer, for the examination to take
place;
1.2.4 the fault in question is not caused by industrial
use, accidental damage, fair wear and tear, wilful
damage, neglect, incorrect electrical connection,
abnormal working conditions, failure to follow our
instructions, misuse, or alteration or repair of the
Product without our approval;
1.2.5 the Product has been used in a domestic
environment only;
1.2.6 the fault does not relate to consumable Products
such as blades, bearings, drive belts or other
wearing parts which can reasonably be expected
to wear at different rates depending on usage
(for full details contact Record Power or your local
Authorised Distributor);
1.2.7 the Product has not been used for hire purposes, by
you or by a previous owner;
1.2.8 the Product has been purchased by you as the
guarantee is not transferable from a private sale.
1.2.9 where the Product has been purchased from a
retailer, the 5 year guarantee is transferable and
begins on the date of the first purchase of the
Product and in the event of a claim under this
guarantee proof of the original purchase date will
be required to validate the warranty period.
2 Claims Procedure
2.1 In the first instance please contact the Authorised
Dealer who supplied the Product to you. In our
experience many initial problems with machines
that are thought to be due to faulty parts are
actually solved by correct setting up or adjustment
of the machines. A good Authorised Dealer should
be able to resolve the majority of these issues
much more quickly than processing a claim under
the guarantee.
2.2 Any damage to the Product resulting in a potential
claim under the guarantee must be reported to the
Authorised Dealer from which it was purchased
within 48 hours of receipt.
2.3 If the Authorised Dealer who supplied the Product
to you has been unable to satisfy your query,
any claim made under this Guarantee should be
made directly to Record Power or its Authorised
Distributor (for details of the Authorised Distributor
in your country please see your Product manual
or check www.recordpower.info for details). The
claim itself should be made in a letter setting out
the date and place of purchase, and giving a brief
explanation of the problem which has led to the
claim. This letter should then be sent with proof of
the purchase date (preferably a receipt) to Record
Power or its Authorised Distributor. If you include
a phone number or email address this will help to
speed up your claim.
2.4 Please note that it is essential that the letter of
claim reaches Record Power or its Authorised
Distributor on the last day of this Guarantee at the
latest. Late claims will not be considered.
3 Limitation of Liability
3.1 We only supply Products for domestic and private
use. You agree not to use the Product for any
commercial, business or re-sale purposes and we

5
2. Record Power Guarantee
have no liability to you for any loss of profit, loss of
business, business interruption or loss of business
opportunity.
3.2 This Guarantee does not confer any rights other
than those expressly set out above and does not
cover any claims for consequential loss or damage.
This Guarantee is offered as an extra benefit and
does not affect your statutory rights as a consumer.
4 Notice
This Guarantee applies to all Products purchased
from an Authorised Dealer of Record Power
within the United Kingdom of Great Britain
and Northern Ireland. Terms of Guarantee may
vary in other countries – please check with the
Authorised Distributor in your country (details of
the Authorised Distributor for your country can be
found in the manual or at www.recordpower.info).

6
3. General Health & Safety Guidance
Ensure that you carefully read and fully
understand the instructions in this manual
before assembly, installation and use of this
product. Keep these instructions in a safe place
for future reference.
WARNING: for your own safety, do not attempt to
operate this machine until it is completely assembled and
installed according to these instructions.
WARNING: When using any machine, basic safety
precautions should always be followed to reduce the risk
of fire, electric shock and personal injury.
Safe Operation
1. Use Personal Protective Equipment (PPE)
• The operation of any machine can result in foreign
objects being thrown into your eyes, which can result
in severe eye damage. Protective eye wear or other
suitable eye protection or face shield should be used
at all times. Everyday spectacles only have impact
resistant lenses. They are not protective eye wear and
do not give additional lateral protection.
• Use respiratory protective equipment (dust mask etc.)
if the machining operation creates dust. Exposure to
high levels of dust created by machining hardwoods,
softwoods and man made composite boards can result
in serious health problems. Some imported hardwoods
give off highly irritating dust, which can cause a
burning sensation. The use of respiratory protective
equipment should not be seen as an alternative to
controlling the risk of exposure at source by using
adequate dust extraction equipment.
• The use of ear plugs or ear defenders is recommended
when the machine is in use, particularly if the noise
level exceeds 85 dB.
• Wear suitable protective gloves when handling cutting
tools or blades. Gloves should NOT be worn when
using the machine as they can be caught in moving
parts of the machine.
• Non-slip safety footwear is recommended when using
the machine and handling large work pieces.
2. Dress appropriately
• Do not wear loose clothing, neckties or jewellery; they
can be caught in moving parts of the machine.
• Roll up long sleeves above the elbow.
• Wear protective hair covering to contain long hair.
3. Safety warnings
• Find and read any warning labels on the machine.
• It is important that any labels bearing health and
safety warnings are not removed, defaced or covered.
Replacement labels can be obtained by contacting our
Customer Service Department.
4. Familiarise yourself with the machine
• If you are not thoroughly familiar with the operation
of this machine, obtain advice from your supervisor,
instructor, or other qualified person or contact your
retailer for information on training courses. Do not
use this machine until adequate training has been
undertaken.
5. Take care when moving or positioning the
machine
• Some machines can be very heavy. Ensure the floor of
the area in which the machine is to be used is capable
of supporting the machine.
• The machine and its various components can be heavy.
Always adopt a safe lifting technique and seek
assistance when lifting heavy components. In some
cases it may be necessary to use mechanical handling
equipment to position the machine within the work
area.
• Some machines have optional wheel kits available to
allow them to be manoeuvred around the workshop
as required. Care should be taken to install these
according to the instructions provided.
• Due to the nature of the design of some machines the
centre of gravity will be high making them unstable
when moved. Extreme care should be taken when
moving any machine.
• If transportation of the machine is required then all
precautions relating to the installation and handling
of the machine apply. In addition, ensure that any
vehicles or manual handling equipment used for
transportation are of adequate specification.
6. The machine should be level and stable at all
times
• When using a leg stand or cabinet base that is
designed to be fitted to the machine, always ensure
that it is securely fastened to the machine using the
fixings provided.
• If the machine is suitable to be used on a workbench,
ensure that the workbench is well constructed and
capable of withstanding the weight of the machine.
The machine should always be securely fastened to the
workbench with appropriate fixings.
• Where possible, floor standing machines should always
be secured to the floor with fixings appropriate to the
structure of the floor.
• The floor surface should be sound and level. All of the
feet of the machine should make contact with the floor
surface. If they do not, either re-locate the machine to
a more suitable position or use packing shims between

7
3. General Health & Safety Guidance
the feet and the floor surface to ensure the machine is
stable.
7. Remove adjusting keys and wrenches
• Ensure that all adjusting wrenches and keys are
removed before switching the machine ‘ON’. There
is a risk of severe personal injury or damage to the
machine from airborne objects.
8. Before switching the machine ‘ON’
• Clear the machine table of all objects (tools, scrap
pieces etc.)
• Make sure there is no debris between the work piece
and the table / work support.
• Ensure that the work piece is not pressed against, or
touching the saw blade or cutting tool.
• Check all clamps, work holding devices and fences to
ensure that they are secure and cannot move during
machining operations.
• Plan the way that you will hold and feed the work
piece for the entire machining operation.
9. Whilst machining
• Before starting work, watch the machine while it runs.
If it makes an unfamiliar noise or vibrates excessively,
switch the machine ‘OFF’ immediately and disconnect
it from the power supply. Do not restart until finding
and correcting the source of the problem.
10. Keep the work area clear
• Working clearances can be thought of as the distances
between machines and obstacles that allow safe
operation of every machine without limitation.
Consider existing and anticipated machine needs, size
of material to be processed through each machine
and space for auxiliary stands and/or work tables.
Also consider the relative position of each machine to
one another for efficient material handling. Be sure to
allow yourself sufficient room to safely operate your
machines in any foreseeable operation.
• Cluttered work areas and benches create the risk of
accidents. Keep benches clear and tidy away tools that
are not in use.
• Ensure that the floor area is kept clean and clear of any
dust and debris that may create trip or slip hazards.
11. Consider the work area environment
• Do not expose the machine to rain or damp conditions.
• Keep the work area well lit and ensure that there is
artificial lighting available when there is insufficient
natural light to effectively light the work area. Lighting
should be bright enough to eliminate shadow and
prevent eye strain.
• Do not use the machine in explosive environments e.g.
in the presence of flammable liquids, gases or dust.
• The presence of high levels of dust created by
machining wood can present a risk of fire or explosion.
Always use dust extraction equipment to minimise the
risk.
12. Keep other persons away (and pets)
• The machine is designed to be used by one person
only.
• Do not let persons, especially children, touch the
machine or extension cable (if used) and keep visitors
away from the work area.
• Never leave the machine running unattended. Turn
the power supply off and do not leave the machine
unattended until it comes to a complete stop.
• If the work area is to be left unattended, all machinery
should be switched ‘OFF’ and isolated from the mains
power supply.
13. Store machines safely when not in use
• When not in use, machines should be stored in a dry
place, out of reach of children. Do not allow persons
unfamiliar with these instructions or with the machine
to operate it.
14. Do not overreach
• Choose a working position that allows your body to
remain balanced and feed the work piece in to the
machine without overreaching.
• Keep proper footing and balance at all times.
15. Electrical supply
• Electrical circuits should be dedicated to each machine
or large enough to handle combined motor amp loads.
Power outlets should be located near each machine
so that power or extension cables are not obstructing
high-traffic areas. Observe local electrical guidelines
for proper installation of new lighting, power outlets,
or circuits.
• The machine must be connected to an earthed power
supply.
• The power supply must be equipped with a circuit
breaker that provides short circuit, overload and earth
leakage protection.
• The voltage of the machine must correspond to the
voltage of the mains power supply.
• The mains plug fitted to the machine should always
match the power outlet. Do not modify the plug in
any way. If a replacement plug is required it should be
fitted by a competent person and of the correct type
and rating for the machine.
• If you are unsure about any electrical connections
always consult a qualified electrician.

8
3. General Health & Safety Guidance
16. Avoid unintentional starting of the machine
• Most machines are fitted with a no-volt release (NVR)
switch to prevent unintentional starting. If in doubt
always ensure the machine switch is in the ‘OFF’
position before connecting it to the power supply. This
means the machine will not automatically start up
after a power cut or switching on of the power supply,
unless you first reset the start switch.
17. Outdoor use
• Your machine should not be used outdoors.
18. Extension cables
• Whenever possible, the use of extension cables is
not recommended. If the use of an extension cable is
unavoidable, then it should have a minimum core cross
section of 2.5mm² and limited to a maximum length of
3 metres.
• Extension cables should be routed away from the
direct working area to prevent a trip hazard.
19. Guard against electric shock
• Avoid body contact with earthed or grounded surfaces
such as pipes and radiators. There is an increased risk
of electric shock if your body is earthed or grounded.
20. Always work within the machine’s intended
capacities
• Operator safety and machine performance are
seriously adversely affected if attempts to make the
machine perform beyond its limits are made.
21. Do not abuse the power cable
• Never pull the power cable to disconnect it from the
power socket. Always use the plug.
• Keep the power cable away from heat, oil and sharp
edges.
• Do not use the power cable for carrying or moving the
machine.
22. Secure the work piece
• Ensure that the work piece is securely held before
starting to machine it.
• When working within 300 mm of the machining area,
always use a push stick to feed the work piece in to
the blade or cutting tool. The push stick should have a
minimum length of 400 mm. If the push stick becomes
damaged, replace it immediately.
• Use extra supports (roller support stands etc.) for any
work pieces large enough to tip when not held down
to the table top.
• Do not use another person as a substitute for a table
extension, or as additional support for a work piece
that is longer or wider than the basic table, or to help
feed, support, or pull the work piece.
• Do not attempt to machine more than one work piece
at a time.
• When feeding the work piece towards the blade or
cutting tool never position your hands in direct line of
the cutting path. Avoid awkward operations and hand
positions where a sudden slip could cause your hand
or fingers to move into the machining area.
23. Stay alert
• Safety is a combination of operator common sense and
alertness at all times when the machine is being used.
• Use all machines with extreme care and do not use the
machine when you are tired or under the influence of
drugs, alcohol or medication.
24. Use the correct tool for the job
• Do not use the machine for any purpose other than
which it was designed.
• When selecting replacement cutting tools and blades,
always ensure that they are designed to cut the
material that you intend to use them for. If in any
doubt seek further advice from the manufacturer.
25. Connect dust extraction equipment
• Always use dust extraction equipment.The dust
extractor should be of suitable size and capacity
for the machine that it is connected to and have a
filtration level appropriate to the type of waste being
collected. Refer to the relevant section of the manual
for details of the specific dust extraction requirements
for this machine.
• The dust extractor should be switched ‘ON’ before
starting the machine that it is connected to. The dust
extractor should be left running for 30 seconds after
the last machining operation is complete in order to
clear any residual waste from the machine.
26. Ensure that the machine is correctly guarded
• Never use the machine if any of the standard safety
guards and equipment are removed or damaged.
• Some machines incorporate safety interlocks to
prevent the machine from being used without the
guards in place. Never attempt to bypass or modify the
interlocks to allow the machine to be used without the
guards in place.
27. Maintain your machine with care
• This manual gives clear instructions on installation, set
up and operation of the machine and also details any
routine and preventative maintenance that should be
performed periodically by the user.
• Remember always to switch off and unplug the
machine from the power supply before carrying out
any setting up or maintenance operations.
• Follow any instructions for the maintenance of

9
accessories and consumables.
• Do not use compressed air to clean the machine.
Always use a brush to dislodge dust in places that are
awkward to reach and a dust extractor to collect the
waste.
• Inspect electric cables periodically and, if damaged,
have them replaced by an authorised service facility or
qualified electrician.
• Inspect extension cables (if used) periodically and
replace if damaged.
28. Keep cutting tools sharp and clean
• Correctly maintained cutting tools are easier to control
and less likely to bind.
• Cutting tools and blades can become hot during use.
Take extreme care when handling them and always
allow them to cool before changing, adjusting or
sharpening them.
29. Disconnect the machine from the power
supply
• When not in use, before servicing, changing blades etc.
always disconnect the machine from the power supply.
30. Check for damaged parts
• Before each use of the machine, it should be carefully
checked to determine that it will operate properly and
perform its intended function.
• Check for alignment of moving parts, binding of
moving parts, breakage of parts and any other
conditions that may affect the operation of
the machine.
• A guard or other part that is damaged should be
properly repaired or replaced by a qualified person
unless otherwise indicated in this instruction manual.
• Do not use the machine if the switch does not turn the
machine ‘ON’ and ‘OFF’.
• Have defective switches replaced by a qualified person.
31. Warning!
• The use of any accessory or attachment, other than
those recommended in this instruction manual, or
recommended by our Company may present a risk
of personal injury or damage to the machine and
invalidation of the warranty.
32. Have your machine repaired by a qualified
person
• This machine complies with the relevant safety rules
and standards appropriate to its type when used in
accordance with these instructions and with all of
the standard safety guards and equipment in place.
Only qualified persons using original spare parts
should carry out repairs. Failure to do this may result
in considerable danger to the user and invalidation of
warranty.
33. Caution! Motor may become hot during use
• It is normal for motors on some machines to become
hot to the touch during use. Avoid touching the motor
directly when in use.
3. General Health & Safety Guidance

10
4. Additional Health & Safety Guidance for
Bandsaws
Safe Operation
1. Familiarise yourself with the machine
• Machining operations using bandsaws have a his-
tory of serious accidents. Most result from contact
with the moving blade while presenting material to
the blade or moving it from the table. Other minor
accidents can occur whilst setting, cleaning, adjust-
ing or maintaining the machine.
• The machine is designed for cutting wood and com-
posite board (plywood, MDF etc.). Certain plastics
can also be cut using a suitable blade.
2. Before switching the machine ‘ON’
• Ensure that the blade is correctly tensioned and
aligned on the band wheels and the blade guides
are correctly adjusted.
• Ensure that the teeth of the blade are pointing
downwards.
• Check the condition of the blade to ensure that no
teeth are missing, damaged or deformed and the
blade is not cracked or split. If any of these condi-
tions apply, replace the blade immediately.
• Ensure that the saw blade type and width are suit-
able for the material to be cut.
• Check that the blade width is within the minimum
and maximum permitted on the machine and that
the thickness of the blade is suitable for the diam-
eter of the wheel.
• Some machines have more than one cutting speed.
For most wood cutting applications the faster of the
speeds should be used.
• Check the condition of the table insert. Replace it
immediately if it is damaged or showing signs of
wear.
• Adjust the guard as close as possible to the work
piece being cut.
• Check that access doors are fully closed and that the
latches are secure.
3. Whilst machining
• Never apply sideways pressure to the blade as this
may cause the blade to break.
• Care must be taken when cutting wood with knots,
nails or cracks in it and / or dirt on it, as these can
cause the blade to get stuck. If this happens, switch
the machine ‘OFF’ immediately and follow the pro-
cedure detailed in the manual to remove the blade
from the work piece.
• If cutting cylindrical timber use a suitable jig to
prevent twisting of the work piece.
4. This machine falls under the scope of the ‘Health
and Safety at Work etc. Act 1974’, and the ‘Provision &
Use of Work Equipment Regulations 1998’. In addition
the elimination or control of risks from wood dust is
included in the above regulations and the ‘Control of
Substances Hazardous to Health (COSHH) Regulations
2002’. We recommend that you study and follow these
regulations.
Further guidance can be found in the ‘Safety in the
use of narrow bandsaws – Woodworking sheet No.31’
and the ‘Safe use of woodworking machinery’ code of
practice booklet (L114) published by Health and Safety
Executive and available from their website www.hse.
gov.uk.

11
5. Specifications
Guide bearing groove thickness: 0.67 mm
Weight: 1.24 kg
Maximum depth of cut (BS300E): 135 mm
Maximum depth of cut (BS350S): 175 mm
Scroll blade thickness compatibilty: 0.44 mm - 0.65 mm

12
6. Contents of the Package
1 Lower scroll guide assembly
2 Upper scroll guide assembly
3 Tool post shaft
4 M6 socket head cap screw
5 Lower safety guard A
6 Lower safety guard B
1
2
3
4
5 6

13
7. Assembly
Before carrying out the assembly process, ensure
that the machine is isolated and disconnected
from the electricity supply.
Removing the Bandsaw Blade from the Machine
Remove the bandsaw blade from the machine by
following the instructions in the main machine manual.
Removing the Bandsaw Blade Guides from the
BS300E/ BS350S
To remove the upper bandsaw blade guides, loosen the
M5 socket head cap screw at the rear of the tool post
using a 4 mm hex wrench as shown in Fig 7.1.
To remove the lower bandsaw blade guides, loosen the
2 M5 socket head cap screws and washers, at either side
of the plastic guarding using a 4 mm hex wrench, and
remove the plastic guarding from the lower blade guide
support, Fig 7.2.
Loosen the 2 M6 socket head cap screws located at the
front of the guide support using a 5 mm hex wrench, but
do not remove the screws fully, Fig 7.3.
Remove the lower guides from the guide support by
pulling the guides away from the guide shafts, as shown
in Fig 7.4.
Fig 7.1
Fig 7.2
4 mm hex
wrench
4 mm
hex
wrench
Lower
blade guide support
Fig 7.3
5 mm hex wrench
Fig 7.4 Lower guide Guide shaft
Upper
guide
assembly

14
Fig 7.7
Fig 7.6 Thrust guide
Adjustment knob
7. Assembly
Remove the guide support from the bandsaw trunnion by
loosening the M6 socket head cap screw, as shown in Fig
7.5, using a 5 mm hex wrench.
The guide support must be removed to allow
sufficient space to fit and adjust the lower
scroll guide assembly. Ensure that the guide
support is re-fitted to the bandsaw trunnion
after the lower scroll guides have been fitted,
to accommodate the lower scroll guide safety
guard prior to use.
Remove the rear thrust guide (Fig 7.6) from the machine
by rotating the adjustment knob located at the rear of
the machine trunnion anti-clockwise, Fig 7.7, and pull
the thrust guide shaft away from the machine.
For fitment to machines featuring a hole for
connectivity on the bandsaw tool post (as
shown in the image below), follow method A on
this page until Fig 7.14. After Fig 7.14, proceed in
fitting the lower guide assembly.
For fitment to machines featuring a threaded
hole for connectivity on the bandsaw tool post
(as shown in the image below), follow method B
on page 16 from Fig 7.15.
To fit the tool post shaft to the upper scroll guide block,
loosen the M6 set screw from the upper scroll guide
assembly, using a 3 mm hex wrench, but do not remove
fully, Fig 7.8.
Fig 7.8
M6 set screw
3 mm hex wrench
Fig 7.5
M6 socket head
cap screw
i
Kg
A
i
Kg
B
i
Kg
A

15
7. Assembly
Insert the lower end of the tool post shaft into the 16 mm
hole within the upper scroll guide block, ensuring that
the threaded hole, located at the top of the shaft (Fig 7.9),
is facing towards the rear of the guide assembly, whilst
also ensuring that the machined flat surface located at
the lower end of the shaft is facing towards the M6 set
screw, Fig 7.10.
Secure the tool post in place by tightening the M6 set
screw, Fig 7.11.
Fitting the Upper Scroll Guide Assembly to the
Machine Tool Post
Loosen the lower of the 2 M5 socket head cap screws
located on the side of the machine tool post, using a 4
mm hex wrench, but do not fully remove, Fig 7.12.
Fig 7.11
Fig 7.12
4 mm hex
wrench
Fig 7.10 Tool post
shaft
16 mm
hole
Fig 7.9
Threaded
hole
Machined
flat surface
i
Kg
A
i
Kg
A
i
Kg
A
i
Kg
A

16
7. Assembly

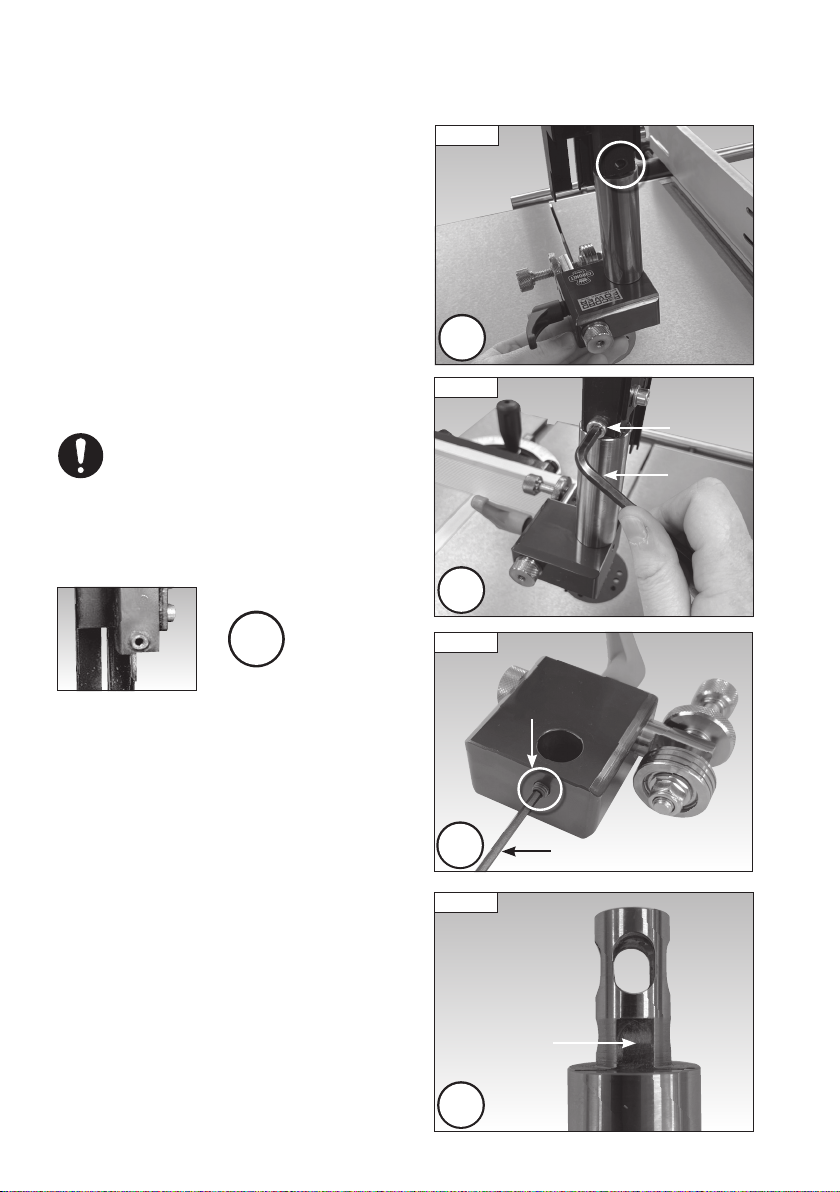

Insert the top end of the tool post shaft (featuring the
threaded hole) into the bandsaw tool post, ensuring that
the threaded hole is facing the rear of the machine and
that the upper thrust guide bearing is facing the machine
front, Fig 7.13.
To secure the tool post shaft into position, fully tighten
the lower M5 socket head cap screw on the machine
tool post, then at the rear, thread the supplied M6 socket
head cap screw through the hole within the machine tool
post, Fig 7.13, and into the threaded hole within the tool
post shaft and fully tighten, using a 5 mm hex wrench,
Fig 7.14.
For fitment to machines featuring a threaded
hole for connectivity on the bandsaw tool post
(as shown in the image below), follow method B
on this page from Fig 7.15.
Loosen the M6 set screw from the upper scroll guide
block, using a 3 mm hex wrench, but do not remove fully,
Fig 7.15.
Insert the lower end of the tool post shaft into the 16 mm
hole within the upper scroll guide block, ensuring that
the machined flat surface (Fig 7.16) located at the top of
the tool post shaft is facing towards the rear of the guide
block, and that the machined flat surface located at the
Fig 7.15
M6 set screw
3 mm hex wrench
Fig 7.16
Machined
flat surface
Fig 7.14 M6 socket
head cap
screw
5 mm hex
wrench
Fig 7.13
Machine
front
i
Kg
B
i
Kg
B
i
Kg
A
i
Kg
A
i
Kg
B

17
Fig 7.18
Fig 7.17 Tool post
shaft
16 mm
hole
Fig 7.19
4 mm hex
wrench
7. Assembly

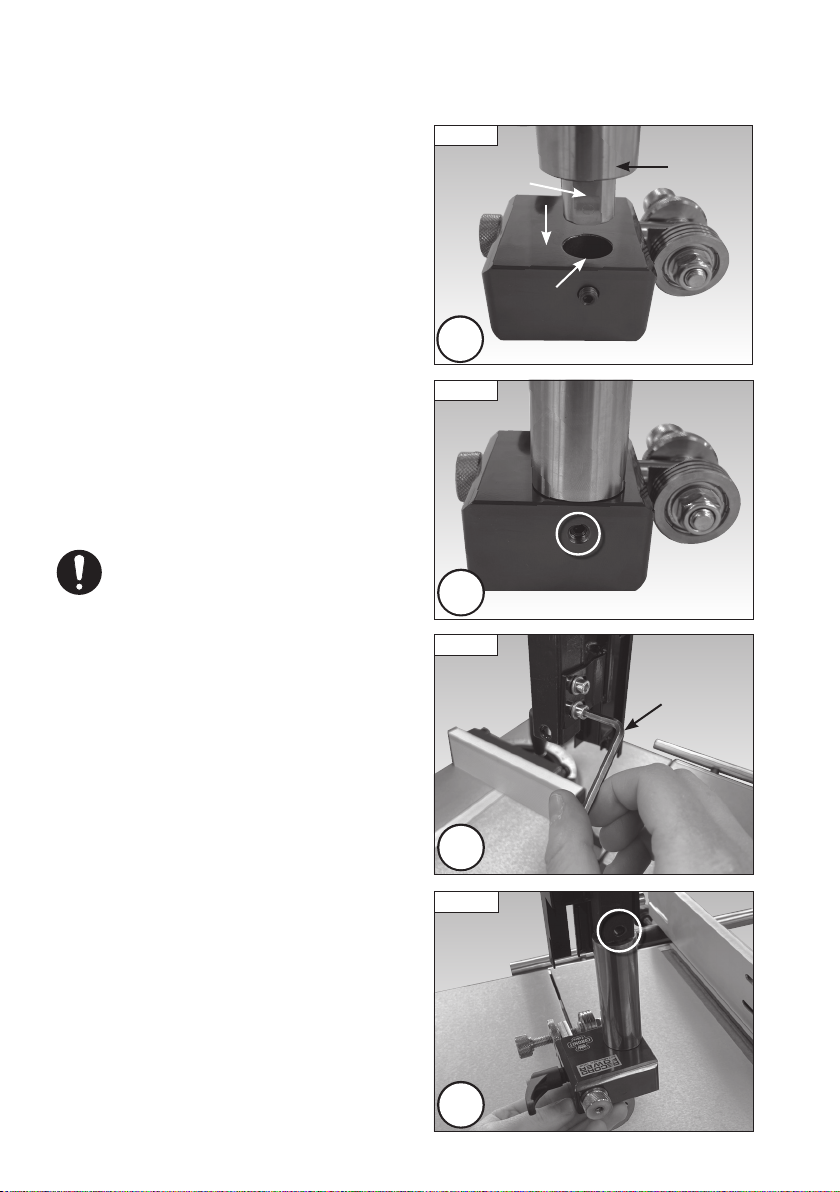

lower end of the shaft is facing towards the M6 set
screw, Fig 7.17.
Secure the tool post in place by tightening the M6 set
screw, Fig 7.18.
Fitting the Upper Scroll Guide Assembly to the
Machine Tool Post
Loosen the lower of the 2 M5 socket head cap screws
located on the side of the machine tool post, using a 4
mm hex wrench, but do not fully remove, Fig 7.19.
Insert the top end of the tool post shaft (featuring the
machined flat surface) into the bandsaw tool post,
ensuring that the thrust guide bearing is facing the
machine front, Fig 7.20.
Note: When fitting the tool post shaft into tool posts
featuring a threaded hole for connectivity, use the M5
socket head cap screw supplied with the original upper
bandsaw blade guide assembly and do not use the
M6 socket head cap screw, supplied with the 80003
Coronet Cobra Bandsaw Scroll Guide System package.
Machined
flat surface
Fig 7.20
Machine
front
i
Kg
B
i
Kg
B
i
Kg
B
i
Kg
B

18
7. Assembly
To secure the tool post shaft into position, fully tighten
the lower M5 socket head cap screw on the machine tool
post, then at the rear, thread the M5 socket head cap
screw, previously removed from the standard bandsaw
blade guides, through the threaded hole within the
machine tool post and onto the machined flat surface on
the tool post shaft and fully tighten, using a 4 mm hex
wrench, Fig 7.21.
Fitting the Lower Scroll Guide Assembly to the
Bandsaw Trunnion
Insert the lower guide thrust housing shaft into the
location on the machine trunnion and secure in place by
rotating the adjustment knob clockwise at the rear, as
shown in Fig 7.22 and Fig 7.23.
Ensure that the guide support is re-fitted to the
bandsaw trunnion to accommodate the lower
scroll guide safety guard.
The lower scroll guide safety guard consists of 2
separate parts, A and B, which work together to
conceal the scroll blade and protect the user.
Fitting the Lower Scroll Guide Safety Guard
Position guard A to the left-hand side of the lower
bandsaw blade guide support, ensuring that it is
positioned as shown in Fig 7.24.
Secure in place by threading an M6 socket head cap
screw (supplied with the lower bandsaw blade guides)
through the threaded hole, using a 5 mm hex wrench,
Fig 7.24.
Fig 7.24
Guard A
Lower
blade guide support
Threaded
hole
5 mm hex
wrench
Fig 7.22
Fig 7.23
Adjustment knob
Fig 7.21 M5 socket
head cap
screw
4 mm hex
wrench
i
Kg
B

19

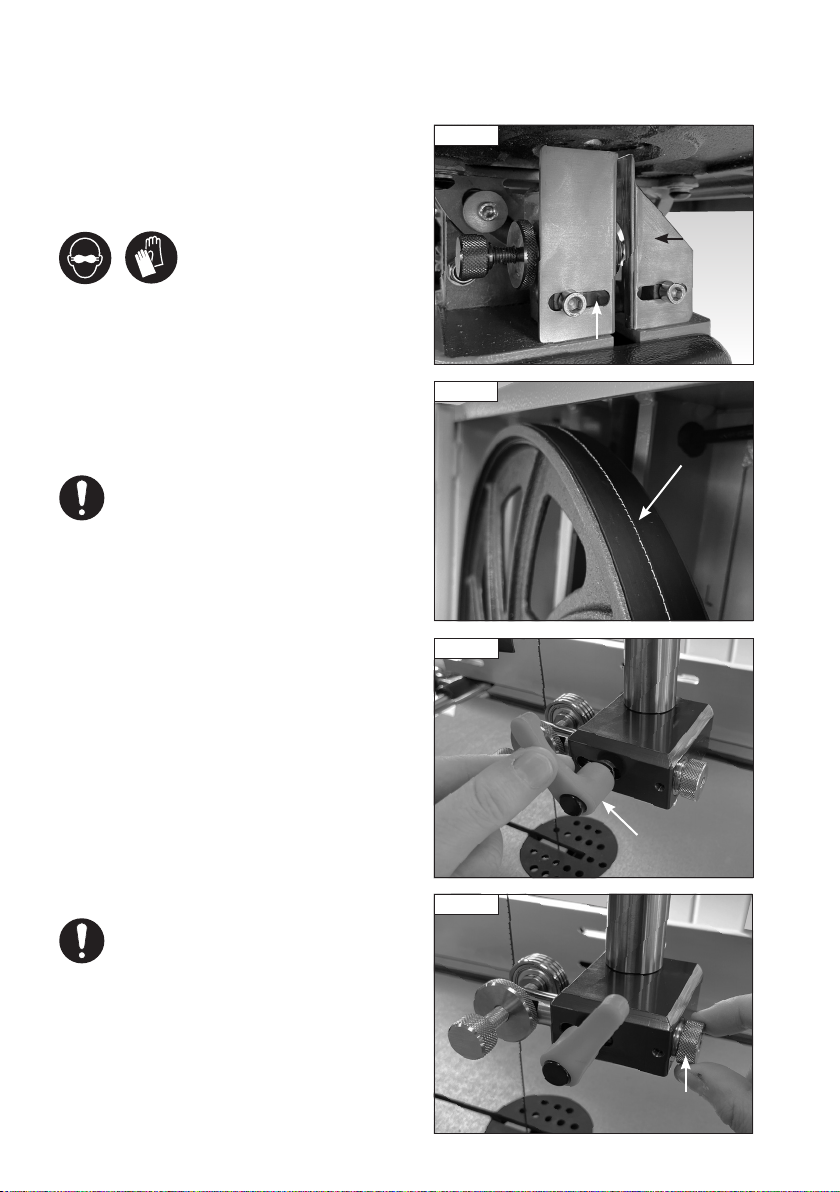

Fig 7.25
Guard B
Connection slot
7. Assembly
Position guard B to the right-hand side of the lower
blade guide support as shown in Fig 7.25, and secure in
position in the same way.
Fitting the Scroll Blade to the Machine
Before fitting the scroll blade ensure that the machine is
fully de-tensioned.
Fit the scroll blade around the top and bottom
band wheels, Fig 7.26.
Before tracking, apply tension to the blade (but
not in full) so that it does not move from the
centre of the band wheel when tracking.
The blade must be tracked into 1 of the 3
location grooves featured on the upper and
lower thrust guides.
Adjusting the Upper Thrust Guide Bearing to
Bring it Towards the Scroll Blade
Loosen the locking handle on the side of the upper guide
block, Fig 7.27, and rotate the thrust guide adjustment
knob, Fig 7.28, clockwise.
Rotate the thrust guide adjustment knob anti-clockwise
to retract.
The upper thrust guide should be positioned
approximately 6 mm/ 1/4" from the rear of the
scroll blade, to allow support for blade tracking.
Fig 7.26
Scroll
blade
Fig 7.27
Locking handle
Fig 7.28
Thrust adjustment
knob

20
7. Assembly
Adjusting the Upper Thrust Guide Bearing Left
and Right
Loosen the thrust guide adjustment lock, as shown in Fig
7.29, and rotate the thrust guide side adjustment knob
clockwise or anticlockwise to correctly align with the
scroll blade, Fig 7.30.
Note: Lower scroll guide safety guard and lower
guide support removed for viewing purposes.
Adjusting the Lower Thrust Guide Bearing to
Bring it Towards the Scroll Blade
Rotate the adjustment knob at the rear of the machine
trunnion, Fig 7.31, clockwise to bring the lower thrust
guide bearing towards the scroll blade, Fig 7.32.
Rotate the adjustment knob anti-clockwise to retract.
The lower thrust guide should be positioned
approximately 6 mm/ 1/4" from the rear of the
scroll blade, to allow support for tracking.
Fig 7.31 Adjustment knob
Fig 7.32
Fig 7.29
Thrust guide side
adjustment lock
Fig 7.30 Thrust guide side
adjustment knob
