Redgum GX200 II Series User manual

Australia’s No.1 Selling Honda Powered Log Splitters
Owner’s Manual
Operating Instructions for
RedGum GX200 Model II
Product Description & Intended Purpose:
This Log Splitter / Wood Splitter is an outdoor product that splits
WARNING: All operators must read this manual,
SPLITTERS
REDGUM
RGLSD-0321 Rev 3
SPLITTER
REDGUMGX200
Series II

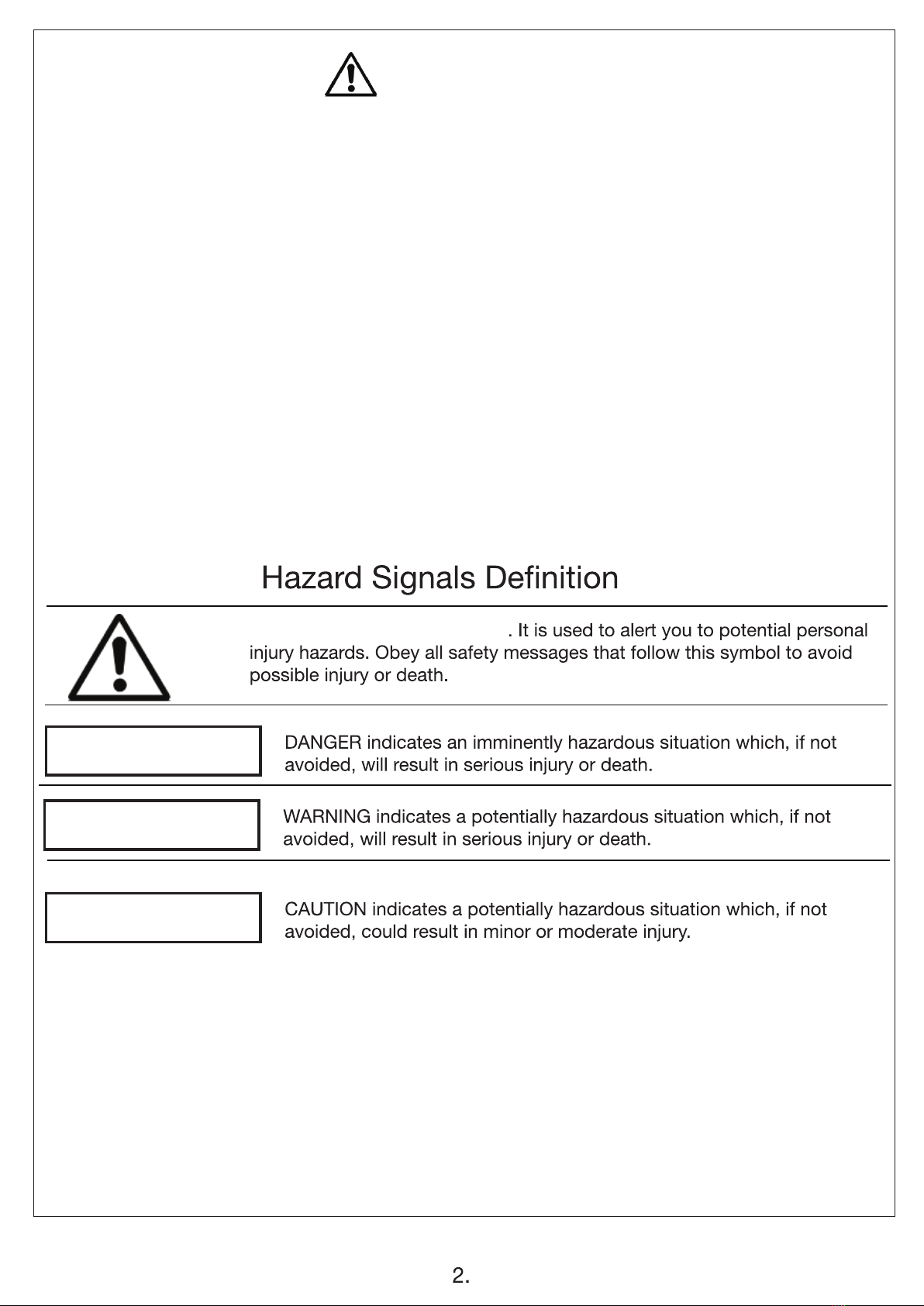

This is the safety alert symbol
DANGER
WARNING
CAUTION
Read and thoroughly understand all instructions contained in
this operations manual before operating the RedGum Splitter.
Serious injury or death can result if safety instructions are not
understood or followed. If you wish to discuss this log splitter’s
operational procedures after reading this manual, please call
our customer service personnel on 1300 039 251. Monday -
Friday 9am - 5pm AEDT
WARNING

Table of Contents
Operation Instructions
Proper Operation of the Log Splitter
How to split a log with slanted surface
Horizontal & Vertical Operating Modes
Vehicle Towing of the Log Splitter
Log Splitter Components
Log Splitter Troubleshooting
Maintenance and Storage
Warranty & Service Information

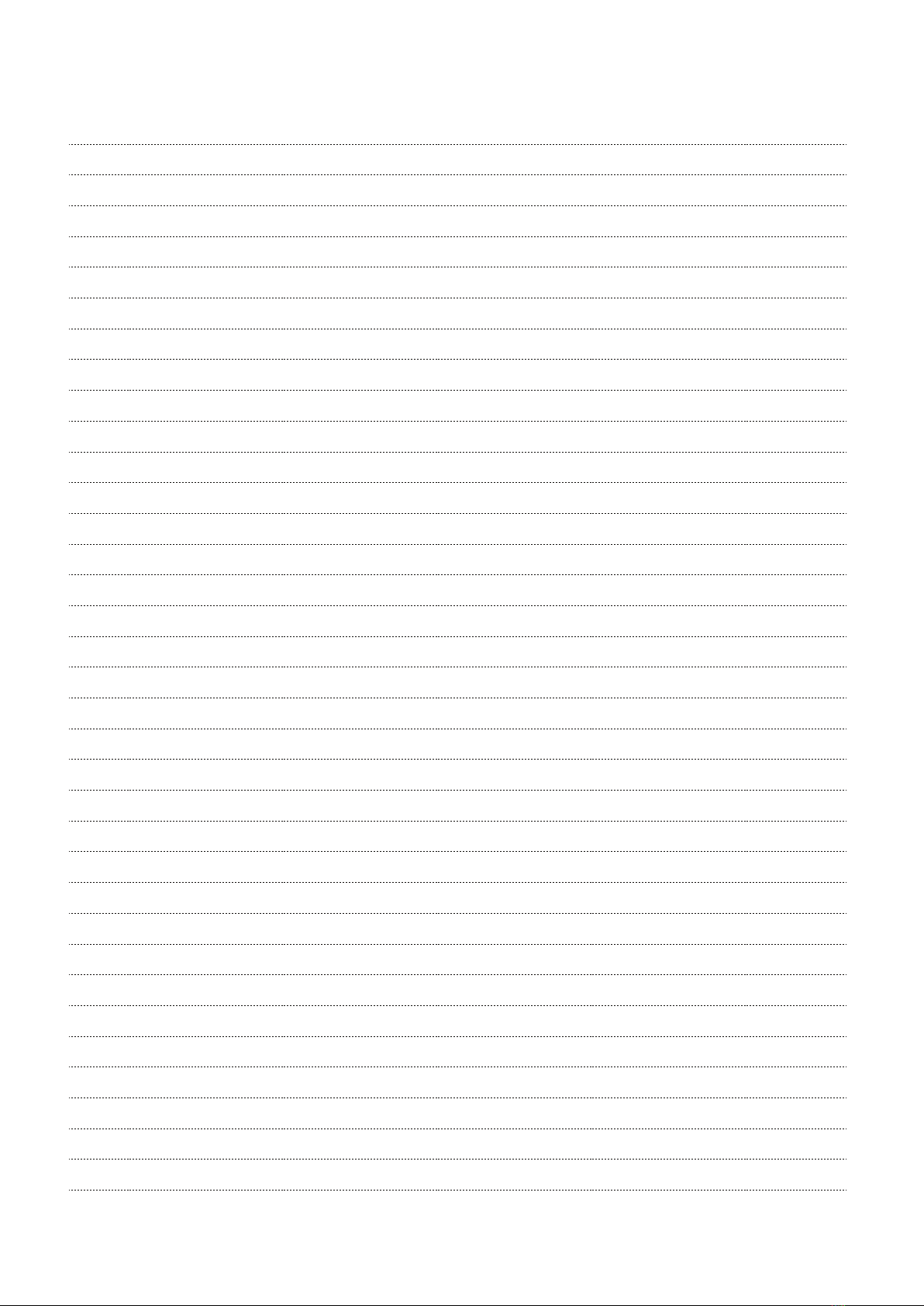

Notes
4-5
7
7
8
9
10
11
12
13
14
15
18
Accessories 20

Important Safety Rules
WARNING
1.) Read this manual completely. -
- You must be 18 or older to operate this machine and in sound
2.) Crush hazard.
The Cush Hazard Zone is between the splitter wedge(5) and the end
Make sure
3.) Flying objects.
- Serious accidents can happen when other people are allowed
4.) Skin injection hazard.
Call 000
-
Important Safety Rules Continued...

Important Safety Rules (continued)
WARNING
- Before adding fuel, stop the engine and keep heat, sparks, and
- During transportation take precautions to make sure machine will
7.) Breathing hazard.

WARNING
Read & thoroughly understand the following Operational Warnings
before operating this RedGum Log Splitter.
Operational Warning
· Intended purpose: This product is designed as an outdoor product to split wood logs to use
splitting wood.
·
· Personal Protective Equipment: Safety glasses are required to be worn at all times. It’s also
· ALWAYS wear suitable clothing, free from hanging strings, jewellery or other items that could
get caught up in moving parts. If you have long hair make sure it is tied back and kept out of
the way of moving parts.
· ALWAYS inspect log splitter before using to ensure it is in good working condition.
· Replace or repair damaged or worn parts immediately.
· ALWAYS check and tighten hardware and assembled parts before operation.
·
· ALWAYS set up a SAFETY ZONE restricting onlookers to at least 3m away from the log
splitter when in use.
· ALWAYS remove split wood from around the log splitter immediately after it’s spilt into
smaller pieces so that you don’t stumble over it.
·
· Do NOT operate the log splitter at night, only during daylight hours.
·
Keep this operations manual for future reference and re-read this manual periodically.
- Check
- Check
inspect
-Always wear safety glasses
Operation Checklist

OPERATION INSTRUCTIONS
Proper Operation of the Log Splitter.
4.) Start Engine by using the following instructions:
5.) Start the splitting procedure by pushing and holding the control valve handle (4) FORWARD.
6.) Clear the split wood from the operator zone.
7.) Repeat above steps as required.
(operating instructions continued...)
3m Safety Zone
3m Safety Zone
WARNING

OPERATION INSTRUCTIONS (continued 2)
How to split a log with slant or uneven surface
Important: If beam or end plate are bent due to incorrect operation, it is not a
(operating instructions continued...)

(operating instructions continued...)
OPERATION INSTRUCTIONS
CORRECT POSITIONING OF
LOCKING PIN FOR VERTICAL USE INCORRECT POSITIONING OF
LOCKING PIN FOR VERTICAL USE
Beam pin (14)
Locking pin
(15)
Step 1: Pull out the beam pin (14) to release the
beam from the tow bar (11
Step 3: Pull and twist the locking pin (15) to the
left and ensure it sits on the inside of the beam
shown below)
Remove the work table before operating in vertical mode.
WARNINGENSURE THE LOCKING PIN IS IN THE
CORRECT POSITION BEFORE OPERATING
For Vertical Use:
For Horizontal Use:

This machine is NOT road towable. Towing incorrectly is a serious risk and can result in
serious injury or death. Please read Towing Warnings below:
Towing the log splitter:
Towing Warnings:
· Serious injury or death can occur if towing safety rules are not followed.
· Review towing safety warnings in your towing vehicle manual.
· Drive safely. Be aware of the added length of the log splitter adds to your vehicle.
·Never ride or transport cargo on the log splitter.
· ALWAYS secure and lock the log splitter to the vehicle hitch before towing.
· Drive the vehicle only after the log splitter is securely attached.
·
· Choose a level surface to operate the log splitter.
· Block the log splitter wheels to prevent unintended movement.
·
medication. AVOID large holes and ditches when towing the equipment.
· ALWAYS tow at reduced speed on rough or uneven terrain, along creeks, ditches and on
hillsides.
· To AVOID personal injury and/or equipment damage DO NOT EXCEED 45 km/h.
· This log splitter is NOT road towable - do not tow on roads.
WARNING
1b.) Rotate jockey wheel
leg up & slide the lock pin
into place to hold jockey
wheel in place.
1a.) Ensure log splitter is secured in horizontal mode.
2.) Ensure log splitter tow
hitch is locked onto vehicle
tow ball. Press handle
down and lock
tightly.
3.) Hook safety
chain to towing vehicle
WARNING
This machine is NOT road towable. Towing incorrectly is a serious risk and can result in
serious injury or death. Please read Towing Warnings below:
Towing the log splitter:

LOG SPLITTER COMPONENTS
15
14
14.) Beam Pin. Refer to page 9 for instructions on using the Log Splitter in Vertical.
15.) Locking Pin. Other side of machine. Refer to page 9 for instructions on using the Log Splitter in Vertical.

LOG SPLITTER TROUBLESHOOTING
Problem
Solution: A, D, E, H, J
extending or retracting
Engine bogs down during splitting Solution: G, L
Engine stalls under low load condition Solution: D, E, L, M
Cause Solution
B - Air in oil
Check pump inlet hose for blockage or
kinks
gauge
gauge
repair
repair
L - Engine control out of adjustment Return for authorised repair
M - Engine is loaded during idle down
mode Use shorter log length (24” or less) to allow engine to speed up before contact
LOG SPLITTER TROUBLESHOOTING

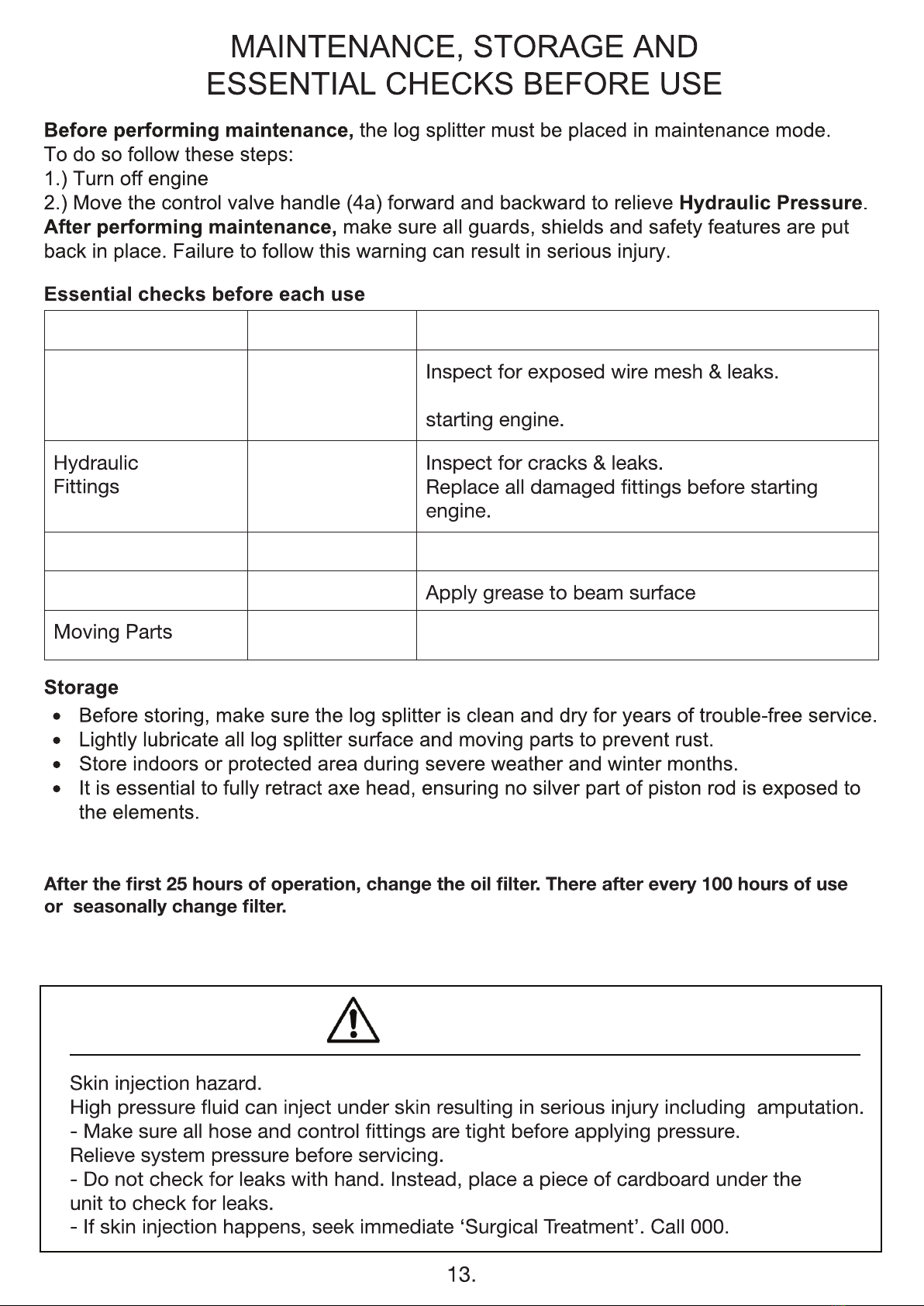

What When How
Hoses Each Use Replace all worn or damaged hoses before
Each Use
Nuts & Bolts Each Use Check for loose bolts
Beam Each Use
Each Use Clear debris
WARNING
Oil Filter:
Refer to engine manual for engine maintenance.
. Tighten before operating.

ENGINE COMPONENTS
2
1
34
5
7
612 11
10
89
For more information on Engine Operation & Engine Maintenance please refer to
engine manual supplied with the log splitter.
Solid Splitting Wedge Size
Coupler Ball Size
Gear Pump
Weight
Height
Width
Length
30000kgs
20 Seconds
20cm(8”)
14 Litres
600mm (24”)
45kgs (100Lbs)
50mm
40mm (16”)
41/2” x 223/4”
3500 psi
10W-AW32 &/or 10W-AW46
2 stage
8 GPM
Detent (auto-return)

ENGINE COMPONENTS
SPECIFICATIONS
15.
Warranty Information
Please note down for future reference
RedGum Splitter Model: GX200 Model Series II
Date of Purchase:..............................................................................................
Serial Number:...................................................................................................
Purchased from: ................................................................................................
The manufacturer reserves the right to make improvements in design and/or changes in
eviously
sold.
Warranty and Service Information
Congratulations on the purchase of your new RedGum product. RedGum products assist
you to complete the “job at hand” in an economical, safe and efficient manner.
This brochure explains the warranty and maintenance information for your product. This
combined with your Owner’s Manual and the knowledge and expertise offered to you by
your RedGum Dealer, should provide you with the confidence that your decision to
purchase a RedGum product was a good one.
STATEMENT OF WARRANTY
This statement of warranty applies to RedGum products and has been offered by the
RedShed. The RedShed provides warranty to the initial purchaser of this product (who has
purchased it from the RedShed directly or an authorised RedGum dealer) for a period
commencing from the date of purchase.
If the product is found to be defective, in the RedShed’s opinion (due to fault of the
manufacturer) within the warranty period, the RedShed will carry out the repair or
replacement to the customer Free of charge, providing;
- The fault is reported directly to the RedShed or place of purchase.
- Proof of purchase is provided.
- The fault is not caused by misuse, neglect or incorrect adjustment by the user.
- The failure has not occurred through normal wear and tear.
- The product has not been serviced, repaired or alterations made by any one not
authorised by the RedShed.

WHAT IS NOT COVERED BY WARRANTY
ENGINE COMPONENTS
SPECIFICATIONS
16.
The following items are not covered by this warranty;
- Normal maintenance items which become worn through
use, including, but not limited to, belts, blades, oil, blade
ropes, clutches and sprockets.
- Natural discoloration of material due to sunlight.
- Engines not manufactured by RedGum, these items
are covered by the respective original equipment
manufacturers’ warranty, all claims must be sent to the
appropriate manufacturer’s agents.
- Using stale or contaminated fuel in the product.
- Damage or failure caused by accident, misuse and/or
neglect, including, ingress of dirt, abrasives, moisture, rust
& corrosion, and damage due as a result of inadequate
maintenance.
- Failure to operate or maintain the unit in accordance
with the Owners/Operators manual, this handbook or
instruction given by a RedGum dealer.
use of the product or affect the product’s performance,
operation, safety or durability, or causes the product to
fail to comply with any applicable laws.
- Damage due to incorrect usage such as incorrect log
placement as shown in the product’s Owners Manual.
- Additional damage to parts or components due to
continued use occuring after any of the above.
The following list is a guide to the types of items for which
a charge will be made (unless failure is caused by a
Service:
replaced in line with the maintenance schedule shown in
this handbook.
Mechanical Adjustments: Including engine tuning,
adjusting brakes, belts & clutches, etc.
Drive System: Sprockets, belts, clutches, pulleys and
.tnemecalpereriuqerlliwdnaraewllasgniraeb
Cutting Equipment: Blades, cutting discs and hammers
wear during use and sharpening/replacement is required
as a matter of normal maintenance.
ITEMS FOR WHICH A CHARGE WILL
BE MADE
YOUR RIGHTS AS A CUSTOMER
The New Product Warranty that is provided by the
RedShed on RedGum products is in addition to the rights
and remedies conferred on consumers by the relevant
authorities and/or legislation. The warranty does not affect
those rights or remedies, except to the extent that their
application may lawfully be excluded.
Any consequential, direct or incidental loss or damage is
not covered by the warranty. Any statutory or other rights or
remedies available in connection with a claim for such loss
or damage should be pursued separately.
Spark Plugs: Periodic replacement is required to ensure
maximum engine performance and best fuel economy.
Induction/Combustion System: The removal of deposits
and cleaning may be required from time to time and should
be performed as necessary.
Tyres: Are subject to wear and with contact from external
not a warrantable
item.
External Surfaces, Paint, Trim and other Appearance
items: Are affected by normal wear and tear and exposure
to environmental conditions. A charge will be made for paint
and trim items that require attention due to causes outside
the manufacturer’s control.
Hydraulics:
The frequency of replacement, repair or adjustment will
depend mainly on where and how you use your product,
weather, atmospheric and environmental conditions and
frequency of use.
CUSTOMER RESPONSIBILITIES
The customer must provide to the Authorised RedGum
Dealer proof of purchase information such as a receipt.
The product must exhibit reasonable care in the
maintenance, operation, storage and general upkeep
pratices as explained in the maintenance section of the
Owners/Operators Manual or this handbook. This includes
the whole product or any general wear item or component
on the product. Any costs incurred to obtain warranty
consideration or services is the customer’s responsibility,
including shipping and handling, travel expenses, lost time,
lost production or pickup and delivery.
NOTES

THE WARRANTY PERIODS
The warranty periods below commence on the date of purchase.
WHERE TO GO FOR WARRANTY REPAIRS
Take your product to any authorised RedGum Dealer if it needs warranty repairs. All authorised
RedGum Dealers will honour the New Product Warranty, and will repair, replace or adjust free of
charge any part of your product that is defective in factory materials or workmanship. Please
note that RedGum is unable to reimburse the cost of repairs carried out during the warranty
period by a repairer other than an Authorised Servicing Dealer.
For your nearest authorised RedGum servicing dealer visit
www.RedGumProducts.com.au or Call Toll Free 1300 136 572
Customer RedGum
Splitter
RedGum
Chipper
Private/Domestic 24 months 12 Months
Commercial 3 months 3 Months
NOTE:
- Engines are covered by the respective original equipment
manufacturers warranty and claims are made direct to the
manufacturer agent.
- Replacement parts and accessories fitted during a repair under
terms of warranty will enjoy cover for the remainder of the warranty
period of the finished product.
- Warranty claims may only be made through an Authorised
RedGum Dealer.
COMPONENT L/S C/S Interval
1 2 3 4
Complete Unit
On Off Switch
Choke/Primer
Engine Oil
Throttle Lever
Cables and
Connections
Fuel Filter
Carburettor
Air Filter
Clutch
Spark Plug
Cooling Fins
Starter Cord
Starter Housing
Vents
Spark Arrestor
All Screws, Nuts &
Linkage
I I I/C I
I I I I
I/A I I/A I
I R R I
I I I I
I/A I I/A I
I I R
T T T
I I C/R I/C
I I I
I I/C R I
I I/C C C
I I I I
I I/C C C
I I I/R I
I I I I
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
MAINTENANCE SCHEDULE
COMPONENT L/S C/S Interval
1 2 3 4
Anti Vibration
Mounts
Hydraulic Oil
Hydraulic Oil Pump
Hoses
Hydraulic Fittings
Beam
Control Valve
Belts
Blades
Flails/Hammers
I I I
I I I/R I
I I I I/A
I I I I
I I I/C I/C
I I I I
I I I I
I I I/A
I I I/R
I I I/R
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
Yes
No
No
No
No
No
No
Yes
Yes
Yes
LEGEND: L/S = Log Splitter, C/S = Chipper Shredder
I = Inspect, T = Tune, R = Replace, C = Clean, S = Sharpen, A = Adjust,
L = Lubricate
INTERVAL:
1 = Pre Delivery, 2 = First Service, 3 = Dealer Service, 4 = Every time the
machine is used
DEALER SERVICE:
17.

18.
NOTES

19.
NOTES

Accessories Available:
3.) RedGum Log Splitter Cover RRP $89
4.) Log TurnTable RRP $329
5.) Timber Jack Lifter RRP $189
6.) Wood pick 40cm RRP $89
7.) Chainsaws
For more information contact your local RedGum Dealer Or
visit www.RedGumProducts.com.au
Phone: [phone]
