Redline RDL-3000 SC User manual

70-00158-01-01 Proprietary Redline Communications © 2011 Page 1 of 138 March 14, 2011

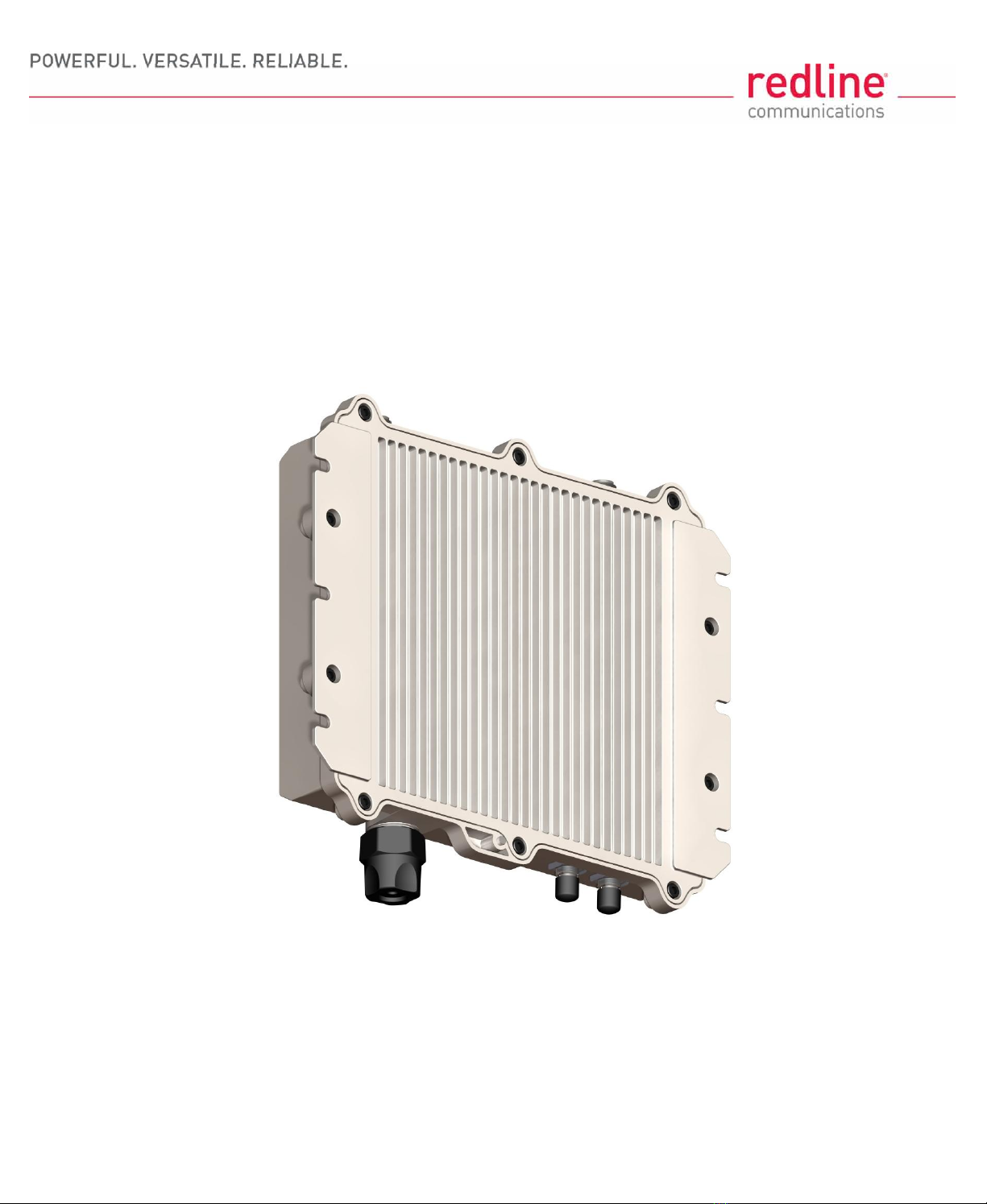

RDL-3000
Broadband Wireless Radio Platform
User Manual
Distributed by Solid Signal www.solidsignal.com 877.312.4547

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 2 of 138 March 14, 2011
Copyright Information
All rights reserved March 14, 2011. The information in this document is proprietary to
Redline Communications Inc. This document may not in whole or in part be copied,
reproduced, or reduced to any medium without prior consent, in writing, from Redline
Communications Incorporated.
Disclaimer
The statements, configurations, technical data, and recommendations in this document
are believed to be accurate and reliable, but are presented without express or implied
warranty. Additionally, Redline makes no representations or warranties, either expressed
or implied, regarding the contents of this product. Redline Communications shall not be
liable for any misuse regarding this product. The information in this document is subject
to change without notice. No part of this document shall be deemed to be part of any
warranty or contract unless specifically referenced to be part of such warranty or
contract within this document.
Software Versions
This manual describes operation using software release v1.xx. This document may
include references to features that are di fferent or unavailable in previous software
releases. Refer to the product Release Notes for information about specific software
releases.

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 3 of 138 March 14, 2011
CONTENTS SUMMARY
1Important Notices .................................................................11
2System Features................................................................... 16
3Functional Description......................................................... 21
4Web Interface........................................................................ 36
5CLI Interface.......................................................................... 92
6Diagnostics & Troubleshooting......................................... 114
7 Security ............................................................................... 121
8 Appendices ......................................................................... 127

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 4 of 138 March 14, 2011
TABLE OF CONTENTS
1Important Notices .................................................................11
1.1 Service & Safety...............................................................................................11
1.1.1 Safety Warnings..............................................................................................11
1.1.2 Warning Symbols ............................................................................................11
1.1.3 Lightning/Surge Protection..............................................................................12
1.2 Regulatory Notices ..........................................................................................13
1.2.1 FCC & IC Notices: Deployment in USA and Canada.......................................13
1.2.2 Avis de la FCC et IC: Déploiement aux Etats-Unis et le Canada.....................14
1.2.3 UL Information ................................................................................................15
1.2.4 WEEE Product Return Process.......................................................................15
1.2.5 Service & Warranty Information ......................................................................15
2System Features................................................................... 16
2.1 RDL-3000 Overview .........................................................................................16
2.2 Ethernet Port ....................................................................................................17
2.3 Synchronization I/O Port (PPS).......................................................................17
2.4 GPS Antenna Port (GPS ANTENNA)...............................................................17
2.5 RF Ports............................................................................................................17
2.6 RF Jumper Cables ...........................................................................................18
2.7 Ground Lug ......................................................................................................18
2.8 Audible Alignment Tool...................................................................................18
2.9 Management Interfaces ...................................................................................18
2.9.1 Web Browser (HTTP)......................................................................................19
2.9.2 Telnet (CLI) .....................................................................................................19
2.9.3 ClearView NMS Application ............................................................................19
2.10 PoE Power Adapter..........................................................................................20
3Functional Description......................................................... 21
3.1 Operational Modes...........................................................................................21
3.2 PMP Mode.........................................................................................................21
3.2.1 Wireless Links.................................................................................................22
3.2.2 Services and Service Groups..........................................................................23
3.2.3 Setting Wireless Rates....................................................................................26
3.2.4 Pass through Mode.........................................................................................27
3.2.5 Subscriber-to-Subscriber Traffic......................................................................28
3.2.6 VLAN Tagged Management............................................................................29
3.2.7 PMP Configurations ........................................................................................30
VLAN Services .............................................................................................30
TLS (Transparent LAN Services) ................................................................. 33

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 5 of 138 March 14, 2011
3.3 PTP Mode .........................................................................................................35
4Web Interface ........................................................................ 36
4.1 Network Connection to RDL-3000...................................................................36
4.2 System Menus and Access Permissions .......................................................38
4.2.1 Main Menus ....................................................................................................38
4.2.2 Access Permissions........................................................................................39
4.3 Dashboard Display ..........................................................................................41
4.3.1 General Information ........................................................................................41
4.3.2 Wireless Leds .................................................................................................41
Link LED ......................................................................................................41
Signal LED ...................................................................................................41
4.3.3 Ethernet LEDs.................................................................................................41
Link LED ......................................................................................................41
100 LED .......................................................................................................41
FD LED ........................................................................................................42
4.4 Status Screens.................................................................................................43
4.4.1 General Information ........................................................................................43
System .........................................................................................................43
Ethernet .......................................................................................................44
4.4.2 System Status.................................................................................................45
Wireless System ..........................................................................................45
Wireless Summary .......................................................................................46
Wireless Ethernet Statistics ..........................................................................46
Ethernet Port Statistics .................................................................................47
4.4.3 Subscriber Links Summary (Sector Controller Only) .......................................48
4.4.4 Subscriber Link Status ....................................................................................49
General ........................................................................................................49
Wireless .......................................................................................................50
Wireless Packets ..........................................................................................50
4.4.5 Subscriber Services Summary (Subscriber Only)............................................51
4.4.6 System Messages (Log) .................................................................................52
4.5 Configuration Screens.....................................................................................55
4.5.1 System Screen................................................................................................55
System Identification ....................................................................................55
Basic Ethernet Configuration ........................................................................56
Advanced Ethernet Configuration ................................................................. 56
4.5.2 RADIUS Setup ................................................................................................59
4.5.3 SNMP Configuration .......................................................................................60
SNMP Community Settings ..........................................................................60
SNMP v3 Security Settings ..........................................................................61
SNMP Trap Destination Settings ..................................................................62
SNMP Trap Settings ....................................................................................63
4.5.4 Wireless Configuration ....................................................................................64
Basic Wireless Configuration........................................................................64

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 6 of 138 March 14, 2011
Advanced Wireless Configuration ................................................................66
Frequency Management Screen ..................................................................68
4.5.5 Wireless Security ............................................................................................70
4.6 Provisioning Screens ......................................................................................72
4.6.1 Subscriber Links .............................................................................................72
4.6.2 Subscriber Link Configuration .........................................................................74
Basic Subscriber Link Configuration .............................................................74
Advanced Subscriber Link Configuration ......................................................74
4.6.3 Service Groups ...............................................................................................76
4.6.4 Service Group Status ......................................................................................77
General ........................................................................................................77
Broadcast Ethernet packets .........................................................................77
4.6.5 Service Group Configuration ...........................................................................78
Basic Service Group Configuration...............................................................78
Advanced Service Group Configuration .......................................................79
4.6.6 Subscriber Service Status...............................................................................80
General ........................................................................................................80
Ethernet Packets ..........................................................................................80
4.6.7 Subscriber Service Configuration ....................................................................81
Basic Service Configuration .........................................................................81
Advanced Service Configuration ..................................................................82
4.7 Utilities Screens...............................................................................................83
4.7.1 Spectrum Sweep.............................................................................................83
Spectrum Sweep Configuration ....................................................................83
Spectrum Sweep Chart ................................................................................84
Performing a Sweep .....................................................................................84
4.7.2 Users Management.........................................................................................85
System Users ...............................................................................................86
Change User Settings ..................................................................................86
Add User ......................................................................................................86
Delete User ..................................................................................................86
4.7.3 Product Options ..............................................................................................87
4.7.4 Antenna Alignment Screen..............................................................................89
4.7.5 Firmware Management Screen .......................................................................90
Firmware Version .........................................................................................90
Firmware Upgrade .......................................................................................90
5CLI Interface.......................................................................... 92
5.1 Telnet Access...................................................................................................92
5.2 Command Summary ........................................................................................92
5.3 Command Set...................................................................................................94
5.3.1 apply ...............................................................................................................94
5.3.2 arp ..................................................................................................................94
5.3.3 chgver.............................................................................................................94
5.3.4 clear................................................................................................................94

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 7 of 138 March 14, 2011
5.3.5 del...................................................................................................................95
5.3.6 enable .............................................................................................................95
5.3.7 freq .................................................................................................................95
5.3.8 generate..........................................................................................................96
5.3.9 get...................................................................................................................96
5.3.10 load.................................................................................................................99
5.3.11 logout............................................................................................................100
5.3.12 new ...............................................................................................................100
5.3.13 ping...............................................................................................................100
5.3.14 reboot ...........................................................................................................100
5.3.15 reset..............................................................................................................100
5.3.16 save ..............................................................................................................101
5.3.17 script .............................................................................................................101
5.3.18 set.................................................................................................................101
5.3.19 show .............................................................................................................109
5.3.20 snmpcommunity............................................................................................110
5.3.21 snmptrap.......................................................................................................111
5.3.22 upgrade.........................................................................................................111
5.3.23 user...............................................................................................................112
5.3.24 whoami .........................................................................................................112
6Diagnostics & Troubleshooting......................................... 114
6.1 Interface Connection Issues .........................................................................114
6.2 Testing Configuration Changes....................................................................114
6.3 Status Code Definitions.................................................................................115
6.4 Working with System Parameters.................................................................115
6.4.1 Parameters Overview....................................................................................115
6.4.2 Factory Default Settings................................................................................116
6.5 Long Reset (Lost Password or IP) ................................................................118
6.5.1 Long Reset Using Telnet...............................................................................118
6.5.2 Restore Default Passwords Only...................................................................119
6.5.3 Restore Factory Configuration ......................................................................119
7 Security ............................................................................... 121
7.1 Overview.........................................................................................................121
7.1.1 Authentication ...............................................................................................121
7.1.2 Management Security ...................................................................................121
7.1.3 Data Security ................................................................................................121
7.1.4 Physical Security...........................................................................................121
7.2 Wireless Authentication ................................................................................122
7.2.1 Out-of-Box Operation....................................................................................122
7.2.2 Generate X.509 Certificate and Key Files .....................................................122
7.2.3 Load Wireless X.509 Certificates and Keys...................................................122
7.2.4 Enabling Authentication ................................................................................122

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 8 of 138 March 14, 2011
7.3 AES Encryption..............................................................................................123
7.3.1 Out of Box Operation ....................................................................................123
7.3.2 Enabling AES................................................................................................123
7.4 SSH for Secure CLI ........................................................................................123
7.4.1 Out-of-Box Operation ....................................................................................124
7.4.2 Enabling SSH................................................................................................124
7.4.3 Loading an SSH Key File ..............................................................................124
7.4.4 SSH Key Generate Utility ..............................................................................124
7.5 HTTPS/SSL for Secure Web ..........................................................................125
7.5.1 Out-of-Box Operation ....................................................................................125
7.5.2 Enabling HTTPS/SSL....................................................................................125
7.5.3 Loading HTTPS/SSL Certificates and Keys ..................................................125
8 Appendices ......................................................................... 127
8.1 Technical Specifications ...............................................................................127
8.2 Classification: Services and Service Groups ..............................................129
8.2.1 Packet Classification at the Sector Controller................................................129
8.2.2 Packet Classification at the Subscriber .........................................................131
8.2.3 VLAN (802.1Q) Field Definitions ...................................................................132
8.3 ID Mapping .....................................................................................................132
8.4 Regional Codes..............................................................................................133
8.5 FCC & IC Certified Antennas.........................................................................135
8.5.1 4.94 - 4.99 GHz Radio: FCC & IC Antennas .................................................135
8.5.2 5.8 GHz Radio: FCC & IC Antennas .............................................................135
9AN-80i Replacement with RDL-3000 .............................................................137
9.1.1 Link IDs.........................................................................................................137
LIST OF TABLES
Table 1: Notices - FCC & IC RF Recommended Safe Separation Distances .................13
Table 2: Notices - FCC & IC RF Distances de séparation sécuritaire recommandées ...14
Table 3: Web - Operation - Traffic Classification ............................................................23
Table 4: Web - Operation - Wireless Rates ...................................................................26
Table 5: Web - Screens and User Access .....................................................................39
Table 6: Web - System Log Messages ..........................................................................52
Table 7: Web - Required FreeRadius Files ....................................................................59
Table 8: Web - Maximum TX Power Settings (dBm) ......................................................66
Table 9: Web - Radio Enable - RF Port Settings ............................................................68
Table 10: Web - Defaults with No Options Key ..............................................................88
Table 11: CLI - Command Summary .............................................................................92
Table 12: CLI - Root Mode Commands .........................................................................93
Table 13: Diag. - Web Interface Diagnostics ................................................................114
Table 14: Diag. - PMP Status Code Bits ......................................................................115
Table 15: Diag. - PMP Status Codes ...........................................................................115
4Gon www.4Gon.co.uk [email protected] Tel: [phone] Fax: [phone]

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 9 of 138 March 14, 2011
Table 16: Diag. - Factory Default Settings ...................................................................116
Table 17: Spec. - RDL-3000 Technical Specifications .................................................127
Table 18: Spec. - Classification: Packet Received on SC Ethernet Port ......................129
Table 19: Spec. - Classification: Packet Received on SC Wireless Interface ...............130
Table 20: Spec. - Classification: Packet Received on SS Ethernet Port .......................131
Table 21: Spec. - Classification: Packet Received on SS Wireless Interface ...............131
Table 22: Spec. - 802.1Q Tag Field .............................................................................132
Table 23: RDL-3000 ID Ranges...................................................................................132
Table 24: Spec. - Regional Identification Codes ..........................................................133
Table 25: Spec. - FCC & IC Antennas: 4.94 - 4.99 GHz PTP Operation ......................135
Table 26: Spec. - FCC & IC Certified Antennas: 5.8 GHz PTP Operation ....................135
Table 27: Spec. - FCC & IC Certified Antennas: 5.8 GHz PTP Band Edge Operation . 136
Table 28: Spec. - FCC & IC Certified Antennas: 5.8 GHz PMP Operation ...................136
Table 29: AN-80i Replacement - RDL-3000 ID Ranges ...............................................137
Table 30: AN-80i Replacement - AN-80i ID Ranges ....................................................137
LIST OF FIGURES
Fig. 1: Notices - WEEE Logo .........................................................................................15
Fig. 2: Site Survey: RDL-3000 System Components .....................................................16
Fig. 3: Features - RDL-3000 - Ethernet and Sync Ports (Bottom View of Radio) ...........17
Fig. 4: Features - RDL-3000 RF Ports (Top View of Radio) ...........................................18
Fig. 5: Features - RDL-3000 - RF Jumper Cables .........................................................18
Fig. 6: Features - Web Login to the RDL-3000 ..............................................................19
Fig. 7: Features - Indoor Power-over-Ethernet (PoE) Module - AC Model ..................... 20
Fig. 8: PMP - RDL-3000 Distributed L2 VLAN-Aware Wireless Switch ..........................21
Fig. 9: PMP - Wireless Subscriber Links ........................................................................22
Fig. 10: PMP - Services and Service Groups ................................................................. 23
Fig. 11: PMP - Services (Subscriber) .............................................................................24
Fig. 12: PMP - Service Groups (Sector Controller) ........................................................25
Fig. 13: PMP - Wireless Rates .......................................................................................26
Fig. 14: PMP - 'Pass through' Mode ..............................................................................27
Fig. 15: PMP - Subscriber-to-Subscriber Unicast Traffic ................................................28
Fig. 16: PMP - VLAN Tagged Management ...................................................................29
Fig. 17: PMP - Operation - VLAN Services - Default Groups and Services ....................30
Fig. 18: PMP - Operation - VLAN Services - VLAN Mapping .........................................31
Fig. 19: PMP - Operation - Strict VLAN Tagging ............................................................32
Fig. 20: PMP - Operation - TLS - Extended TLS and Double Tagging ...........................33
Fig. 21: PMP - Operation - Tagged Traffic - Port-by-Port Tagging ................................. 34
Fig. 22: PTP - RDL-3000 PTP Mode Configuration........................................................35
Fig. 23: Web - Connecting a PC to the RDL-3000 .........................................................36
Fig. 24: Web - Login Screen ..........................................................................................37
Fig. 25: Web - Main Menus for Sector Controller and Subscriber ..................................38
Fig. 26: Web - Dashboard Display .................................................................................41
Fig. 27: Web - General Information Screen ...................................................................43
Fig. 28: Web - SC System Status Screen ......................................................................45
Fig. 29: Web - SS System Status Screen ......................................................................46

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 10 of 138 March 14, 2011
Fig. 30: Web - Subscriber Links Summary Screen ........................................................48
Fig. 31: Web - Subscriber Link Status Screen ...............................................................49
Fig. 32: Web - Services Summary Screen .....................................................................51
Fig. 33: Web - Example of System Event Messages .....................................................52
Fig. 34: Web - Config - PMP SC System Configuration Screen .....................................55
Fig. 35: Web - VLAN Tagged Management ...................................................................58
Fig. 36: Web - VLAN Tagged Management Example ....................................................58
Fig. 37: Web - RADIUS Configuration Screen ...............................................................59
Fig. 38: Web - SNMP Configuration Screen ..................................................................60
Fig. 39: Web - SNMP Community Configuration Screen ................................................61
Fig. 40: Web - SNMP V3 Configuration .........................................................................61
Fig. 41: Web - SNMP v3 Configuration Dialog ...............................................................62
Fig. 42: Web - SNMP Trap Configuration Screen (V2/V3) .............................................63
Fig. 43: Web - Wireless Configuration Screen -- Sector Controller ................................64
Fig. 44: Web - Wireless Configuration Screen -- Subscriber ..........................................65
Fig. 45: Web - Frequency Management Screen ............................................................69
Fig. 46: Web - Wireless Security Screen - Sector Controller ..........................................70
Fig. 47: Web - Wireless Security Screen - Subscriber ...................................................71
Fig. 48: Web - Subscriber Links Screen .........................................................................72
Fig. 49: Web - Subscriber Link Configuration Screen ....................................................74
Fig. 50: Web - Service Groups Screen ..........................................................................76
Fig. 51: Web - Service Group Status Screen ................................................................. 77
Fig. 52: Web - Service Group Configuration Screen ......................................................78
Fig. 53: Web - Subscriber Service Status Screen ..........................................................80
Fig. 54: Web - Subscriber Service Configuration Screen ...............................................81
Fig. 55: Web - Spectrum Sweep Screen ........................................................................83
Fig. 56: Web - Users Management Screen ....................................................................85
Fig. 57: Web - Product Options Screen .........................................................................87
Fig. 58: Web - Antenna Alignment Tool Screen .............................................................89
Fig. 59: Web - Firmware Management Screen ..............................................................90
Fig. 60: Diag: - Saving Parameters in Non Volatile RAM .............................................116
Fig. 61: Diag. - Recovering Lost IP Address ................................................................118

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 11 of 138 March 14, 2011
1 Important Notices
1.1 Service & Safety
1.1.1 Safety Warnings
1. PoE power adapter caution:
Warning to Service Personnel:48 VDC
Customer equipment including personal computers, routers, etc., must be connected
only to the INPUT (DATA) port on the PoE unit.
Only the outdoors Ethernet interface cable connecting to the unit can be safely
connected to the OUTPUT (DATA & POWER) connector. Connecting customer
premises Ethernet equipment directly to the OUTPUT (DATA & POWER) connector
on the Power-over-Ethernet power adapter may damage customer equipment.
2. Installation of the system must be contracted to a professional installer.
3. Read this manual and follow all operating and safety instructions.
4. Keep all product information for future reference.
5. The power requirements are indicated on the product-marking label. Do not exceed
the described limits.
6. Disconnect the power before cleaning, or when the unit is not be in-use for an
extended period.
7. The unit must not be located near power lines or other electrical power circuits.
8. The system must be properly grounded to protect against power surges and
accumulated static electricity. It is the user’s responsibility to install this device in
accordance with the local electrical codes: correct installation procedures for
grounding the unit, mast, lead-in wire and discharge unit, location of discharge unit,
size of grounding conductors and connection requirements for grounding
electrodes.
1.1.2 Warning Symbols
These symbols may be encountered during installation or troubleshooting. These
warning symbols mean danger. Bodily injury may result if you are not aware of the safety
hazards involved in working with electrical equipment and radio transmitters. Familiarize
yourself with standard safety practices before continuing.
Electro-Magnetic Radiation High Voltage
Chapter 1

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 12 of 138 March 14, 2011
1.1.3 Lightning/Surge Protection
WARNING: The information provide in this user manual consists of general
recommendations for installation the system equipment. The wireless equipment must
be installed by a qualified professional installer who is knowledgeable of the
requirements of installing outdoor radio equipment and follows local and national codes
for electrical grounding and safety. Failure to meet safety requirements and/or use of
non-standard practices and procedures may result in personal injury and/or damage to
equipment.
The system must be properly grounded to protect against power surges and
accumulated static electricity. It is the user’s responsibility to install this device in
accordance with the local electrical codes: correct installation procedures for grounding
the unit, mast, lead-in wire and discharge unit, location of discharge unit, size of
grounding conductors and connection requirements for grounding electrodes.
All outdoor wireless equipment is susceptible to surge damage from a direct hit or
current induced from a near strike. A direct lightning strike may cause serious damage
even if recommended guidelines are followed. Installing surge protection and following
grounding practices detailed in local and national electrical codes can minimize
equipment damage, service outages, and chance of serious injury.
The major reasons for surge damage can be summarized as:
- Poorly grounded antenna sites
- Improperly installed surge protection equipment
A lighting protection system provides a means by which the energy may enter earth
without passing through and causing damage to parts of a structure. A good grounding
system disperses most of the surge energy from a lightning strike away from the building
and equipment. Improperly grounded connections are a source of noise that can cause
malfunctions in sensitive equipment. The remaining energy on the Ethernet cable shield
and conductors can be directed safely to ground by installing a surge arrestor in series
with the cable. A surge protection system does not prevent lightning strikes, but protects
equipment by providing a low resistance path for the discharge of energy safely to
ground. If you have determined that surge protection is required for your system, the
following general industry practices are provided as a guideline only:
1. The AC wall outlet ground for the indoor POE adapter should be connected to the
building grounding system.
2. Install a surge arrestor in series with the Ethernet cable at the point of entry to the
building. The grounding wire should be connected to the same termination point
used for the tower or mast.
3. Provide direct grounding connections from the RDL-3000, the mounting bracket, and
the antenna to the common building ground bus. Use the grounding screws provided
for terminating the ground wires.

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 13 of 138 March 14, 2011
1.2 Regulatory Notices
1.2.1 FCC & IC Notices: Deployment in USA and Canada
Read the following notices about deployment in the USA and Canada:
1. The Model RDL-3000 and its antenna must be professionally installed.
2. WARNING -- FCC & IC RF Exposure Warnings
To satisfy FCC and IC RF exposure requirements for RF transmitting devices, the
following distances should be maintained between the antenna of this device and
persons during device operation:
Table 1:Notices - FCC & IC RF Recommended Safe Separation Distances
Frequency (GHz) Deployment Separation Distance
4.9 - 5.3 PTP or PMP 270 cm (107 in) or more
5.8 PMP 20 cm (8 in) or more
PTP 270 cm (107 in) or more
To ensure compliance, operation at closer than these distances is not
recommended. The antenna used for this transmitter must not be collocated in
conjunction with any other antenna or transmitter.
3. FCC Information to Users @ FCC 15.105:
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Where DFS is required by regional regulations, this function is permanently enabled
at the factory and can not be disabled by the installer or end-user.
4. FCC Information to Users @ FCC 15.21:
Warning: Changes or modifications not expressly approved by Redline
Communications could void the user’s authority to operate the equipment.

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 14 of 138 March 14, 2011
1.2.2 Avis de la FCC et IC: Déploiement aux Etats-Unis et le Canada
Lisez les mentions suivantes sur le déploiement aux Etats-Unis et le Canada:
1. Le modèle RDL-3000 et son antenne doivent être installés par un professionnel.
2. AVERTISSEMENT - FCC et IC avertissements d'exposition RF
Pour satisfaire les exigences d’IC et du FCC en ce qui a trait aux expositions aux
RF pour RF dispositifs de transmission, les distances suivantes doit être maintenue
entre l'antenne de ce dispositif et des personnes pendant le fonctionnement du
dispositif:
Table 2:Notices - FCC & IC RF Distances de séparation sécuritaire
recommandées
Fréquence (GHz) Déploiement Distance de Séparation
4.9 - 5.3 PTP ou PMP 270 cm (107 in) ou plus
5.8 PMP 20 cm (8 in) ou plus
PTP 270 cm (107 in) ou plus
Pour assurer la conformité , l’operation à une distance moindre que celles-ci n'est
pas recommandé. L'antenne utilisée pour ce transmetteur ne doit pas être co-
localisé avec une autre antenne ou transmetteur.
3. Informations de la FCC aux utilisateurs @ FCC 15.105:
NOTE:Cet équipement a été testé et démontré conforme aux exigences pour un
dispositif numérique de classe B,conformément à la partie 15 des règles FCC.Ces
exigences sont conçues pour fournir une protection raisonnable contre les
interférences nuisibles dans une installation résidentielle.
Cet équipement génère,utilise et peut émettre des fréquences radio et,s'il n'est pas
installé et utilisé conformément aux instructions,peut causer des interférences
nuisibles aux communications radio. Toutefois, il n'existe aucune garantie que des
interférences ne se produiront pas dans une installation particulière.Si cet
équipement provoque des interférences nuisibles à la réception radio ou télévision,
ce qui peut être déterminé en mettant l'équipement hors tension, l'utilisateur est
encouragé à essayer de corriger l'interférence par un ou plusieurs des mesures
suivantes:
- Réorienter ou déplacer l'antenne de réception.
- Augmenter la distance entre l'équipement et le récepteur.
- Alimenter l'équipement par un circuit différent de celui du récepteur.
- Consulter le revendeur ou un technicien radio / TV pour assistance.
-
Lorsque DFS est requis par les règlements régionaux,cette fonction est activée en
permanence à l'usine et ne peut pas être désactivé par l'installateur ou l'utilisateur
final.
4. Informations de la FCC aux utilisateurs @ FCC 15.21:
Avertissement: Les changements ou modifications non expressément approuvées
par Redline Communications peut annuler l'autorisation de l'utilisateur à utiliser cet
équipement.

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 15 of 138 March 14, 2011
1.2.3 UL Information
1. The suitability of the supplied Ethernet cable is subject to the approval of Authority
Having Jurisdiction and must comply with the local electrical code.
2. The equipment must be properly grounded according with NEC and other local
safety code and building code requirements
3. To meet the over-voltage safety requirements on the telecommunications cables, a
minimum 26 AWG telecommunication line cord must be used.
Pour être en conformance avec les exigences finies de sûreté de sur-tension sur les
câbles de télécommunications un fil de télécommunication ayant un calibre minimum
de 26 AWG doit être utilisé.
4. Reminder to all the BWA system installers: Attention to Section 820-40 of the NEC
which provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to
the point of cable entry as is practical.
5. RDL-3000 must be installed in compliance with relevant articles in National Electrical
Code-NEC (and equivalent Canadian Code-CEC) including referenced articles 725,
800 and 810 in NEC.
6. RF coaxial cable connecting an antenna to the RDL-3000 must comply with the local
electrical code.
1.2.4 WEEE Product Return Process
In accordance with the WEEE (Waste from Electrical and Electronic Equipment)
directive, 2002/96/EC, Redline Communications equipment is marked with the logo
shown above. The WEEE directive seeks to increase recycling and re-use of electrical
and electronic equipment. This symbol indicates that this product should not be disposed
of as part of the local municipal waste program. Contact your local sales representative
for additional information.
Fig. 1: Notices - WEEE Logo
1.2.5 Service & Warranty Information
1. Refer all repairs to qualified Service personnel. Do not remove the cover panel or
modify any part of this device, as this action will void the warranty.
2. Locate the serial numbers and record these for future reference. Use the space
below to affix serial number stickers. Also, record the MAC address identified on the
unit product label.
3. Redline does not endorse or support the use of outdoor cable assemblies: i) not
supplied by Redline, ii) third-party products that do not meet Redline's cable and
connector assembly specifications, or iii) cables not installed and weatherproofed as
specified in the RDL-3000 Installation Guidelines manual. Refer to the Redline
Limited Standard Warranty and RedCare Service agreements.

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 16 of 138 March 14, 2011
2 System Features
2.1 RDL-3000 Overview
The RDL-3000 system is designed and manufactured by Redline Communications -- a
world leader in design and production of Broadband Fixed Wireless (BFW) systems.
Fig. 2: Site Survey: RDL-3000 System Components
Software configured common radio
platform:
PTP and PMP applications
4.9 to 5.8 GHz operation
All outdoor configuration with IEEE
802.3at PoE
Highest capacity system in the industry
Up to 100 Mbps Ethernet throughput
Lowest end-to-end latency
Long-range capabilities
QoS controls to manage traffic groups
Software controlled speed and channel
size selection
Per-link dynamic TDD, ARQ & adaptive
modulation/coding
Synchronization option for collocated
units (internal or GPS)
Operates as a sector controller for AN-
80i PMP subscribers
Chapter 2

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 17 of 138 March 14, 2011
2.2 Ethernet Port
The Ethernet port (RJ-45 / F connector) receives DC power and provides Ethernet
connectivity with the local network. The Ethernet port connects to the PoE adapter using
a weatherproof CAT-5e Ethernet cable.
Note: The maximum total length of the Ethernet cable is 100 m (328 ft). For example, 95
m from the RDL-3000 to the PoE and 5 m from the PoE to the local network equipment.
Fig. 3: Features - RDL-3000 - Ethernet and Sync Ports (Bottom View of Radio)
2.3 Synchronization I/O Port (PPS)
The PPS port (TNC / F connector) is provided to synchronize the RF transmission cycles
of collocated sector controllers. This feature minimizes inter-sector interference by
synchronizing the transmit cycles of collocated RDL-3000 sector controllers.
This port is software configurable: mode = input, output, or disabled, impedance = 50
ohms, 75 ohms, or high impedance. Multiple RDL-3000 units can be synchronized by
using up to 46 m (~150 ft).of interconnecting synchronization cable.
Important: The synchronization feature must be used at any site where two or more
sector controllers are deployed.
A factory-installed protective weatherproof plastic cap is installed on the PPS port. If this
cap is removed to install a synchronization cable or TNC Tee connector, the port must
be adequately weatherproofed. Refer to the RDL-3000 Installation guidelines for detailed
instructions.
2.4 GPS Antenna Port (GPS ANTENNA)
The GPS antenna port (TNC / F connector) conducts RF signals between the RDL-3000
and the antenna system (ordered separately). This port is provided only on units factory-
equipped with GPS hardware. The GPS antenna can be located remotely from the RDL-
3000 unit by using up to 46 m (~150 ft) of high quality antenna cable. The GPS module
does not set the RDL-3000 internal date/time clock.
Important: A GPS receiver must be provided at each sector controller site comprising a
network of geographically collocated cells.
A factory-installed protective weatherproof plastic cap is installed on the GPS antenna
port. If this cap is removed to install an antenna cable, the port must be adequately
weatherproofed. Refer to the RDL-3000 Installation.
2.5 RF Ports
The two RF ports (N-type / F connectors) conduct RF signals between the RDL-3000
and the antenna system (ordered separately). The RDL-3000 can be operated using a
SISO (single antenna) or MIMO (multiple antenna) system.
Important: Version 1.xx operation is limited to port RF-1. Port RF-2must be electrically
terminated (connect antenna or RF terminating device) and must be weatherproofed.

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 18 of 138 March 14, 2011
Important: A factory-installed protective weatherproof plastic cap is installed on the RF
ports. When a cap is removed to install an antenna cable, the port must be adequately
weatherproofed. Refer to the RDL-3000 Installation guidelines for detailed instructions.
Fig. 4: Features - RDL-3000 RF Ports (Top View of Radio)
2.6 RF Jumper Cables
Two RF jumper cables are provided with each RDL-3000 mounting kit. The RF cables
conduct RF signals between the RDL-3000 and the antenna system. The cable length
supplied (230 mm or 400 mm) is based on the type of mounting kit.
Fig. 5: Features - RDL-3000 - RF Jumper Cables
2.7 Ground Lug
A ground-lug is provided on the RDL-3000 chassis. Use this connection to terminate
a grounding wire. All RDL-3000 systems must be properly grounded to protect against
power surges and accumulated static electricity.
2.8 Audible Alignment Tool
The audible alignment tool is provided to assist the installer to perform basic antenna
alignment. When enabled, the audible alignment signal 'chirps' slowly when a low signal
level is detected, and faster when stronger signals are detected. The tool is enabled and
disabled using the Web or CLI interface.
2.9 Management Interfaces
The operator can use a standard Web browser or Telnet client to access all settings and
statistics necessary to configure and monitor the operation of the RDL-3000. The unit
can also be configured monitored using the SNMP-based Redline ClearView NMS .

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 19 of 138 March 14, 2011
2.9.1 Web Browser (HTTP)
To monitor and configure the RDL-3000 using HTTP, open a Web browser (Internet
Explorer 6 or higher recommended) and enter the unit IP address. For new systems, the
default IP address is 192.168.25.2. The following login dialog should be displayed:
Fig. 6: Features - Web Login to the RDL-3000
The default username is 'admin' and the default password is 'admin'.
Note: There is no logout command on the Web interface.
2.9.2 Telnet (CLI)
To monitor and configure the RDL-3000 using CLI, open a Telnet session using the unit
IP address. When the command prompt screen appears, login to the RDL-3000. The
default username is 'admin' and the default password is 'admin'. The RDL-3000 supports
two concurrent Telnet sessions. One session with full read/write capabilities
(administrator) and a second concurrent session with read-only access.
The Telnet session is logged out automatically when no commands are received (idle)
for a period of ten minutes. Use the following command to exit immediately from the CLI:
logout [ENTER]
2.9.3 ClearView NMS Application
The Redline Management Suite is a set of applications designed to assist provisioning,
monitoring and administration of the Redline components deployed in Radio Access
Networks (RANs). Contact your Redline representative or visit the Redline website for
further information about the Redline ClearView NMS application.

RDL-3000 User Manual
70-00158-01-01 Proprietary Redline Communications © 2011 Page 20 of 138 March 14, 2011
2.10 PoE Power Adapter
The PoE power adapter (Standard IEEE 802.3at PoE, 25 W max.) supplies operational
power (48 VDC) to the RDL 3000. Power is injected using four reserved wires in the
Ethernet cable. The RJ-45 / F connectors allow for easy mid-span installation without
opening the Ethernet cables. The power adapter AC input is auto-sensing 110/220/240
VAC 50/60 Hz. Cables are available with NA, EU, or UK plugs.
Fig. 7: Features - Indoor Power-over-Ethernet (PoE) Module - AC Model
Note: The PoE does not amplify the Ethernet signal. The maximum total length of the
Ethernet cable is 91.5 m (300 ft). For example, 90 m (295 ft) from the RDL-3000 to the
PoE and 1.5 m (5 ft) from the PoE to the local network equipment.
Warning to Service Personnel:48 VDC
Customer equipment including personal computers, routers, etc., must be connected
only to the INPUT (DATA) port on the PoE unit. Only the outdoors Ethernet interface
cable connecting to the RDL-3000 can be safely connected to the OUTPUT (DATA &
POWER) connector. Connecting customer premises Ethernet equipment directly to
the OUTPUT (DATA & POWER) connector on the Power-over-
Ethernet power
adapter may damage customer equipment.
