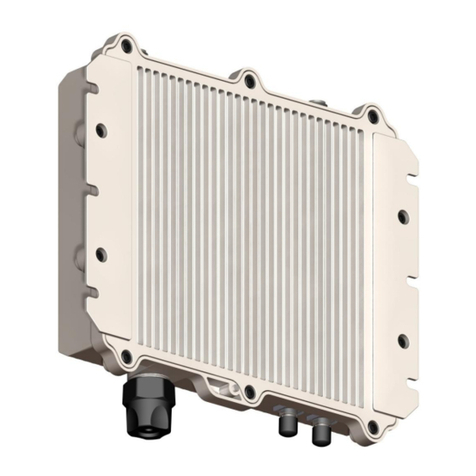

Redline RDL-3000 Series User manual
RDL-3000 M2M Solutions
70-00184-03-02 Proprietary Redline Communications © 2013 Page 1of 50 April 30, 2013
RDL-3000 Family
Broadband Wireless Systems
RDL-3000-RMC/E/F
Radio Modules
Product Manual
1Product Overview...................................................................6
2Conditions of Use...................................................................7
3Module Installation and Service ............................................8
4Final Product Requirements..................................................9
5Regulatory Notices...............................................................41
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 2of 50 April 30, 2013
Copyright Information
All rights reserved April 30, 2013. The information in this document is proprietary to
Redline Communications Inc. This document may not in whole or in part be copied,
reproduced, or reduced to any medium without prior consent in writing from Redline
Communications Incorporated.
Contact Information
Contact Information:
Redline Communications Inc.
302 Town Centre Blvd.
Markham, ON
Canada L3R 0E8
Web site: http://www.rdlcom.com
Document Control:
70-00184-03-01-RDL-3000-RMC-E-F_Module_Product_Manual-
20130430a.doc
Disclaimer
The statements, configurations, technical data, and recommendations in this document
are believed to be accurate and reliable, but are presented without express or implied
warranty. Additionally, Redline makes no representations or warranties, either expressed
or implied, regarding the contents of this product. Redline Communications shall not be
liable for any misuse regarding this product. The information in this document is subject
to change without notice. No part of this document shall be deemed to be part of any
warranty or contract unless specifically referenced to be part of such warranty or
contract within this document.
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 3of 50 April 30, 2013
TABLE OF CONTENTS
1Product Overview...................................................................6
2Conditions of Use...................................................................7
2.1 General Conditions............................................................................................7
2.2 Country of Use...................................................................................................7
2.3 Product Labeling................................................................................................7
3Module Installation and Service ............................................8
3.1 Installation Into a Final Product........................................................................8
3.2 Module Servicing...............................................................................................8
3.3 Professional Installation....................................................................................8
3.4 Safety Precautions.............................................................................................8
3.5 Radio Frequency Safety....................................................................................8
4Final Product Requirements..................................................9
4.1 RDL-3000-RMC...................................................................................................9
4.1.1 RDL-3000-RMC Frequency Bands....................................................................9
4.1.2 RDL-3000-RMC Antenna Use and Transmit Power ..........................................9
4.1.3 RDL-3000-RMC Certified Antennas..................................................................9
4.1.4 RDL-3000-RMC Power & EIRP (MIMO Operation) .........................................10
4.9 GHz: FCC 47 CFR Part 90 Subpart Y......................................................10
4.9 GHz: IC RSS-111 ....................................................................................13
5.8 GHz: FCC 47 CFR Part 15 Subpart C, §15.247/IC RSS-210, Issue 8
Annex 8 ......................................................................................16
5.3 GHz: FCC 47 CFR Part 15 Subpart E, §15.407.......................................19
5.3 GHz: IC RSS-210, Issue 8 Annex 9.........................................................22
5.4 GHz: FCC 47 CFR Part 15 Subpart E, §15.407.......................................25
5.4 GHz: FCC 47 CFR Part 15 Subpart E, §15.407 / IC RSS-210, Issue 8
Annex 9 ......................................................................................28
4.2 RDL-3000-RME.................................................................................................31
4.2.1 RDL-3000-RME Frequency Bands..................................................................31
4.2.2 RDL-3000-RME Antenna Use and Transmit Power ........................................31
4.2.3 RDL-3000-RME Certified Antennas ................................................................31
4.2.4 RDL-3000-RME Power & EIRP (MIMO Operation) .........................................32
4.3 RDL-3000-RMF .................................................................................................40
4.3.1 RDL-3000-RMF Frequency Bands..................................................................40
4.3.2 RDL-3000-RMF Antenna Use and Transmit Power.........................................40
4.3.3 RDL-3000-RMF Certified Antennas.................................................................40
5Regulatory Notices...............................................................41
5.1 FCC Notices: Deployment in USA...................................................................41
5.1.1 RDL-3000-RMC..............................................................................................41
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 4of 50 April 30, 2013
FCC Recommendations to UNII band Users .................................................42
5.1.2 RDL-3000-RMF...............................................................................................44
5.2 Industry Canada Notices: Deployment in Canada.........................................46
5.2.1 RDL-3000-RMC..............................................................................................46
5.2.2 RDL-3000-RME ..............................................................................................48
LIST OF TABLES
Table 1: Approved Antennas...........................................................................................9
Table 2: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for FCC..........10
Table 3: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for FCC..........10
Table 4: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for FCC..........10
Table 5: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for FCC ........11
Table 6: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for FCC ........11
Table 7: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for FCC ........11
Table 8: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for FCC ........12
Table 9: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for FCC ........12
Table 10: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for FCC ......12
Table 11: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for IC............13
Table 12: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for IC............13
Table 13: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for IC............13
Table 14: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for IC..........14
Table 15: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for IC..........14
Table 16: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for IC..........14
Table 17: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for IC..........15
Table 18: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for IC..........15
Table 19: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for IC..........15
Table 20: 5.8 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for FCC/IC....16
Table 21: 5.8 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for FCC/IC....16
Table 22: 5.8 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for FCC/IC....16
Table 23: 5.8 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for FCC/IC..17
Table 24: 5.8 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for FCC/IC..17
Table 25: 5.8 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for FCC/IC..17
Table 26: 5.8 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for FCC/IC..18
Table 27: 5.8 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for FCC/IC..18
Table 28: 5.8 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for FCC/IC..18
Table 29: 5.3 GHz: RF Power: 5 MHz channel & 10 dBi antenna for FCC.....................19
Table 30: 5.3 GHz: RF Power: 5 MHz channel & 19 dBi antenna for FCC.....................19
Table 31: 5.3 GHz: RF Power: 5 MHz channel & 32 dBi antenna for FCC.....................19
Table 32: 5.3 GHz: RF Power: 10 MHz channel & 10 dBi antenna for FCC...................20
Table 33: 5.3 GHz: RF Power: 10 MHz channel & 19 dBi antenna for FCC...................20
Table 34: 5.3 GHz: RF Power: 10 MHz channel & 32 dBi antenna for FCC...................20
Table 35: 5.3 GHz: RF Power: 20 MHz channel & 10 dBi antenna for FCC...................21
Table 36: 5.3 GHz: RF Power: 20 MHz channel & 19 dBi antenna for FCC...................21
Table 37: 5.3 GHz: RF Power: 20 MHz channel & 32 dBi antenna for FCC...................21
Table 38: 5.3 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for IC............22
Table 39: 5.3 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for IC............22
Table 40: 5.3 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for IC............22
Table 41: 5.3 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for IC..........23
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 5of 50 April 30, 2013
Table 42: 5.3 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for IC..........23
Table 43: 5.3 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for IC..........23
Table 44: 5.3 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for IC..........24
Table 45: 5.3 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for IC..........24
Table 46: 5.3 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for IC..........24
Table 47: 5.4 GHz: RF Power: 5 MHz channel & 10 dBi antenna for FCC.....................25
Table 48: 5.4 GHz: RF Power: 5 MHz channel & 19 dBi antenna for FCC.....................25
Table 49: 5.4 GHz: RF Power: 5 MHz channel & 32 dBi antenna for FCC.....................25
Table 50: 5.4 GHz: RF Power: 10 MHz channel & 10 dBi antenna for FCC...................26
Table 51: 5.4 GHz: RF Power: 10 MHz channel & 19 dBi antenna for FCC...................26
Table 52: 5.4 GHz: RF Power: 10 MHz channel & 32 dBi antenna for FCC...................26
Table 53: 5.4 GHz: RF Power: 20 MHz channel & 10 dBi antenna for FCC...................27
Table 54: 5.4 GHz: RF Power: 20 MHz channel & 19 dBi antenna for FCC...................27
Table 55: 5.4 GHz: RF Power: 20 MHz channel & 32 dBi antenna for FCC...................27
Table 56: 5.4 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for IC............28
Table 57: 5.4 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for IC............28
Table 58: 5.4 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for IC............28
Table 59: 5.4 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for IC..........29
Table 60: 5.4 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for IC..........29
Table 61: 5.4 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for IC..........29
Table 62: 5.4 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for IC..........30
Table 63: 5.4 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for IC..........30
Table 64: 5.4 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for IC..........30
Table 65: RDL-3000-RME: Approved Antennas............................................................31
Table 66: 2.5 GHz: RF Power & EIRP: 5 MHz channel for 14.5 dBi antenna for IC.......32
Table 67: 2.5 GHz: RF Power & EIRP: 5 MHz channel for 15 dBi antenna for IC ..........33
Table 68: 2.5 GHz: RF Power & EIRP: 5 MHz channel for 16 dBi antenna for IC ..........34
Table 69: 2.5 GHz: RF Power & EIRP: 5 MHz channel for 17 dBi antenna for IC ..........35
Table 70: 2.5 GHz: RF Power & EIRP: 10 MHz channel for 14.5 dBi antenna for IC .....36
Table 71: 2.5 GHz: RF Power & EIRP: 10 MHz channel for 15 dBi antenna for IC ........37
Table 72: 2.5 GHz: RF Power & EIRP: 10 MHz channel for 16 dBi antenna for IC........38
Table 73: 2.5 GHz: RF Power & EIRP: 10 MHz channel for 17 dBi antenna for IC ........39
Table 74: RDL-3000-RMF: Transmit Power...................................................................40
Table 75: RDL-3000-RMF: Approved Antennas ............................................................40
Table 76: FCC: RDL-3000-RMC Recommended Safe Distances..................................41
Table 77: FCC: RDL-3000-RMC TDWR System Locations ...........................................42
Table 78: FCC: RDL-3000-RME/F Recommended Safe Distances...............................44
Table 79: IC: RDL-3000-RMC Recommended Safe Distances......................................46
Table 80: IC: RDL-3000-RMC distances de sécurité recommandées............................47
Table 81: IC: RDL-3000-RME/F Recommended Safe Distances...................................48
Table 82: IC: RDL-3000-RME/F distances de sécurité recommandées.........................48
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 6of 50 April 30, 2013
1 Product Overview
The RDL-3000-RMC, RDL-3000-RME and RDL-3000-RMF (Fixed TVBD) radio modules
are each comprised of a proprietary Media Access Control (MAC) protocol engine and
Time Division Duplexing (TDD)/ Orthogonal Frequency Division Duplexing (OFDM)
digital radio.
The RDL-3000 modules are not designed for stand-alone operation. The modules are
sold as one component of a packaged system which includes a suitable housing for the
module connectors for required external components including a power supply and
antenna system. This is afterwards referred to as the 'final product'. The final product
may be designed and manufactured by Redline or a licensed third party.
Frequency settings within the specified frequency ranges are software keyed to be
compliant with specific regulatory agency requirements in the region of deployment.
RDL-3000-RMC: 4900 to 5975 MHz
RDL-3000-RME: 2305-2320 MHz and 2345-2360 MHz
RDL-3000-RMF: 470 - 698 MHz
Important: Read this entire document prior to installing or operating these modules.
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 7of 50 April 30, 2013
2 Conditions of Use
2.1 General Conditions
The RDL-3000-RMC/E/F modules are not provided for sale to the general public. These
modules contain a proprietary radio interface and can not be directly connected to any
standard telecommunications or computer devices. This manual is provided as
supplement to technical and operational documentation and training provided by Redline
and its agents. Any operation or use of these modules in any manner not expressly
specified within this manual or approved in writing by Redline (or its agents) is expressly
forbidden and voids the users right to operate the module. This includes, but is not
limited to, any modification of the module hardware or software, installation of the
module in a non approved enclosure, and use with non approved antennas.
2.2 Country of Use
Refer to the regulatory notices in this document before installing or operating any of
these the modules.
RDL-3000-RMC
The RDL-3000-RMC module is certified with limited modular approval for use as an
'intentional radiator' in Canada as IC: 4310A-RDL3000RMC and in the United States as
device FCC ID: QC8-RDL3000RMC.
RDL-3000-RME
The RDL-3000-RME module is certified with limited modular approval for use as an
'intentional radiator' in Canada as device:
IC: 4310A-RDL3000RME
RDL-3000-RMC
The RDL-3000-RMF module is certified with limited modular approval for use as an
'intentional radiator' in the United States as device:
FCC ID: QC8-RDL3000RMF
2.3 Product Labeling
Information labels are applied to the final product. The final product features a label on
the outside surface listing the registration number for the enclosed RDL-3000 module.
Do not to remove any labels from the module or the final product.
RDL-3000-RMC
Contains: IC: 4310A-RDL3000RMC
Contains FCC ID:QC8-RDL3000RMC
RDL-3000-RME
Contains IC: 4310A-RDL3000RME
RDL-3000-RMF
Contains FCC ID:QC8-RDL3000RMF
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 8of 50 April 30, 2013
3 Module Installation and Service
3.1 Installation Into a Final Product
The RDL-3000-RMC/E/F modules must be installed only by trained professional
technicians authorized by Redline or its agents. The module must be installed only into
an approved enclosure (see Conditions of Use) and only at an approved manufacturing
facility or service depot.
3.2 Module Servicing
The RDL-3000-RMC/E/F modules are not intended to be field serviceable, and contains
no field serviceable or field replaceable parts. The module must be serviced only at an
approved manufacturing facility or service depot.
Warning: The RDL-3000-RMC/E/F modules are susceptible to damage from
electrostatic charge. Electrostatic Discharge (ESD) must be avoided to prevent
damaging or destroying the module. The module must always be store in an anti-static
container/bag prior to installation and following removal from the product for servicing.
Observe ESD precautions when handling the module.
3.3 Professional Installation
Devices containing the Redline RDL-3000-RMC/E/F module require professional
installation. It is the responsibility of the installer to understand the product operation
by attending training as required, reading and understanding the product
documentation, and ensuring that all building, safety and regulatory codes are met
and the installation is complete and secure.
3.4 Safety Precautions
Installation and service of RDL-3000-RMC/E/F modules must be performed by
personnel having technical training and experience necessary to be aware of hazards
during installation and/or service of RF equipment. The installation and/or service must
be done using procedures designed to minimize any danger to technical personnel or
any other person.
3.5 Radio Frequency Safety
The installer of this radio equipment must ensure that the antenna is located or pointed
such that it does not emit RF fields in excess of the general population limits as defined
by FCC CFR 47, Part 2.1091, Radio frequency radiation exposure evaluation for fixed
devices & Health Canada limits for the general population; consult Safety Code 6,
obtainable from Health Canada’s website:
http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct-eng.php .
Refer to the regulator statements included in this document.
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 9of 50 April 30, 2013
4 Final Product Requirements
The following requirements apply to all final products incorporating an RDL-3000-RMC,
RDL-3000-RME, or RDL-3000-RMF module.
4.1 RDL-3000-RMC
4.1.1 RDL-3000-RMC Frequency Bands
Operation of the final product requires a software 'key' that is available exclusively from
Redline. This key restricts device operation to the FCC/IC 4940-4990 MHz, 5250-5350
MHz, 5470-5725 MHz, or 5725-5850 MHz band. The professional installer and operator
can not modify or otherwise circumvent these operational restrictions.
4.1.2 RDL-3000-RMC Antenna Use and Transmit Power
The RDL-3000-RMC module supports operation with 2x2 MIMO antenna systems with
two transmit chains and two receive chains. The RDL-3000-RMC module must be used
only with certified antennas and using the channel size and output power level specified
by the FCC/IC regulations.
4.1.3 RDL-3000-RMC Certified Antennas
This device has been designed to operate with the antennas listed in the following table.
Any additional antennas will be used only after authorization is obtained through Class II
permissive change.
Table 1: Approved Antennas
Manufacturer
Part #
Gain (dBi)
Frequency Range
Redline
A3FT3204LTPD
32
4900-5875 MHz
Redline
30-00328-00
19
4900-5875 MHz
L-Com
HG5158DP-10U
10
5100-5800 MHz
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 10 of 50 April 30, 2013
4.1.4 RDL-3000-RMC Power & EIRP (MIMO Operation)
4.9 GHz: FCC 47 CFR Part 90 Subpart Y
Table 2: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4942.5
19.20
19.22
22.22
27.00
4.78
10.00
32.22
53.00
20.78
4965.0
19.80
19.64
22.73
27.00
4.27
10.00
32.73
53.00
20.27
4987.5
20.13
20.02
23.09
27.00
3.91
10.00
33.09
53.00
19.91
QPSK
4942.5
19.41
19.26
22.35
27.00
4.65
10.00
32.35
53.00
20.65
4965.0
19.79
19.36
22.59
27.00
4.41
10.00
32.59
53.00
20.41
4987.5
20.02
19.95
23.00
27.00
4.00
10.00
33.00
53.00
20.00
16-QAM
4942.5
19.38
19.23
22.32
27.00
4.68
10.00
32.32
53.00
20.68
4965.0
19.92
19.33
22.65
27.00
4.35
10.00
32.65
53.00
20.35
4987.5
19.99
20.11
23.06
27.00
3.94
10.00
33.06
53.00
19.94
64-QAM
4942.5
19.35
19.03
22.20
27.00
4.80
10.00
32.20
53.00
20.80
4965.0
20.03
19.53
22.80
27.00
4.20
10.00
32.80
53.00
20.20
4987.5
20.04
20.22
23.14
27.00
3.86
10.00
33.14
53.00
19.86
Table 3: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4942.5
19.20
19.22
22.22
27.00
4.78
19.00
41.22
53.00
11.78
4965.0
19.80
19.64
22.73
27.00
4.27
19.00
41.73
53.00
11.27
4987.5
20.13
20.02
23.09
27.00
3.91
19.00
42.09
53.00
10.91
QPSK
4942.5
19.41
19.26
22.35
27.00
4.65
19.00
41.35
53.00
11.65
4965.0
19.79
19.36
22.59
27.00
4.41
19.00
41.59
53.00
11.41
4987.5
20.02
19.95
23.00
27.00
4.00
19.00
42.00
53.00
11.00
16-QAM
4942.5
19.38
19.23
22.32
27.00
4.68
19.00
41.32
53.00
11.68
4965.0
19.92
19.33
22.65
27.00
4.35
19.00
41.65
53.00
11.35
4987.5
19.99
20.11
23.06
27.00
3.94
19.00
42.06
53.00
10.94
64-QAM
4942.5
19.35
19.03
22.20
27.00
4.80
19.00
41.20
53.00
11.80
4965.0
20.03
19.53
22.80
27.00
4.20
19.00
41.80
53.00
11.20
4987.5
20.04
20.22
23.14
27.00
3.86
19.00
42.14
53.00
10.86
Table 4: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4942.5
17.73
18.14
20.95
21.00
0.05
32.00
52.95
53.00
0.05
4965.0
17.27
17.82
20.56
21.00
0.44
32.00
52.56
53.00
0.44
4987.5
17.48
17.88
20.69
21.00
0.31
32.00
52.69
53.00
0.31
QPSK
4942.5
17.59
17.75
20.68
21.00
0.32
32.00
52.68
53.00
0.32
4965.0
17.37
17.79
20.60
21.00
0.40
32.00
52.60
53.00
0.40
4987.5
17.52
17.87
20.71
21.00
0.29
32.00
52.71
53.00
0.29
16-QAM
4942.5
17.74
17.70
20.73
21.00
0.27
32.00
52.73
53.00
0.27
4965.0
17.35
17.76
20.57
21.00
0.43
32.00
52.57
53.00
0.43
4987.5
17.19
17.90
20.57
21.00
0.43
32.00
52.57
53.00
0.43
64-QAM
4942.5
17.82
17.70
20.77
21.00
0.23
32.00
52.77
53.00
0.23
4965.0
17.22
17.85
20.56
21.00
0.44
32.00
52.56
53.00
0.44
4987.5
17.17
17.98
20.60
21.00
0.40
32.00
52.60
53.00
0.40
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 11 of 50 April 30, 2013
Table 5: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4945.0
19.73
19.13
22.45
30.00
7.55
10.00
32.45
56.00
23.55
4965.0
20.01
19.59
22.82
30.00
7.18
10.00
32.82
56.00
23.18
4985.0
20.33
20.13
23.24
30.00
6.76
10.00
33.24
56.00
22.76
QPSK
4945.0
19.58
19.08
22.35
30.00
7.65
10.00
32.35
56.00
23.65
4965.0
19.81
19.87
22.85
30.00
7.15
10.00
32.85
56.00
23.15
4985.0
20.41
19.99
23.22
30.00
6.78
10.00
33.22
56.00
22.78
16-QAM
4945.0
19.63
19.08
22.37
30.00
7.63
10.00
32.37
56.00
23.63
4965.0
19.82
19.90
22.87
30.00
7.13
10.00
32.87
56.00
23.13
4985.0
20.19
20.00
23.11
30.00
6.89
10.00
33.11
56.00
22.89
64-QAM
4945.0
19.81
19.09
22.48
30.00
7.52
10.00
32.48
56.00
23.52
4965.0
19.81
19.94
22.89
30.00
7.11
10.00
32.89
56.00
23.11
4985.0
20.34
20.00
23.18
30.00
6.82
10.00
33.18
56.00
22.82
Table 6: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4945.0
19.73
19.13
22.45
30.00
7.55
19.00
41.45
56.00
14.55
4965.0
20.01
19.59
22.82
30.00
7.18
19.00
41.82
56.00
14.18
4985.0
20.33
20.13
23.24
30.00
6.76
19.00
42.24
56.00
13.76
QPSK
4945.0
19.58
19.08
22.35
30.00
7.65
19.00
41.35
56.00
14.65
4965.0
19.81
19.87
22.85
30.00
7.15
19.00
41.85
56.00
14.15
4985.0
20.41
19.99
23.22
30.00
6.78
19.00
42.22
56.00
13.78
16-QAM
4945.0
19.63
19.08
22.37
30.00
7.63
19.00
41.37
56.00
14.63
4965.0
19.82
19.90
22.87
30.00
7.13
19.00
41.87
56.00
14.13
4985.0
20.19
20.00
23.11
30.00
6.89
19.00
42.11
56.00
13.89
64-QAM
4945.0
19.81
19.09
22.48
30.00
7.52
19.00
41.48
56.00
14.52
4965.0
19.81
19.94
22.89
30.00
7.11
19.00
41.89
56.00
14.11
4985.0
20.34
20.00
23.18
30.00
6.82
19.00
42.18
56.00
13.82
Table 7: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4945.0
19.73
19.13
22.45
24.00
1.55
32.00
54.45
56.00
1.55
4965.0
20.01
19.59
22.82
24.00
1.18
32.00
54.82
56.00
1.18
4985.0
20.33
20.13
23.24
24.00
0.76
32.00
55.24
56.00
0.76
QPSK
4945.0
19.58
19.08
22.35
24.00
1.65
32.00
54.35
56.00
1.65
4965.0
19.81
19.87
22.85
24.00
1.15
32.00
54.85
56.00
1.15
4985.0
20.41
19.99
23.22
24.00
0.78
32.00
55.22
56.00
0.78
16-QAM
4945.0
19.63
19.08
22.37
24.00
1.63
32.00
54.37
56.00
1.63
4965.0
19.82
19.90
22.87
24.00
1.13
32.00
54.87
56.00
1.13
4985.0
20.19
20.00
23.11
24.00
0.89
32.00
55.11
56.00
0.89
64-QAM
4945.0
19.81
19.09
22.48
24.00
1.52
32.00
54.48
56.00
1.52
4965.0
19.81
19.94
22.89
24.00
1.11
32.00
54.89
56.00
1.11
4985.0
20.34
20.00
23.18
24.00
0.82
32.00
55.18
56.00
0.82
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 12 of 50 April 30, 2013
Table 8: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4950.0
20.57
20.00
23.30
33.00
9.70
10.00
33.30
59.00
25.70
4965.0
20.80
20.45
23.64
33.00
9.36
10.00
33.64
59.00
25.36
4980.0
21.13
20.76
23.96
33.00
9.04
10.00
33.96
59.00
25.04
QPSK
4950.0
20.57
19.98
23.30
33.00
9.70
10.00
33.30
59.00
25.70
4965.0
20.83
20.53
23.69
33.00
9.31
10.00
33.69
59.00
25.31
4980.0
21.09
20.75
23.93
33.00
9.07
10.00
33.93
59.00
25.07
16-QAM
4950.0
20.52
20.26
23.40
33.00
9.60
10.00
33.40
59.00
25.60
4965.0
20.89
20.53
23.72
33.00
9.28
10.00
33.72
59.00
25.28
4980.0
21.03
20.77
23.91
33.00
9.09
10.00
33.91
59.00
25.09
64-QAM
4950.0
20.51
20.32
23.43
33.00
9.57
10.00
33.43
59.00
25.57
4965.0
20.93
20.52
23.74
33.00
9.26
10.00
33.74
59.00
25.26
4980.0
21.08
21.14
24.12
33.00
8.88
10.00
34.12
59.00
24.88
Table 9: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4950.0
20.57
20.00
23.30
33.00
9.70
19.00
42.30
59.00
16.70
4965.0
20.80
20.45
23.64
33.00
9.36
19.00
42.64
59.00
16.36
4980.0
21.13
20.76
23.96
33.00
9.04
19.00
42.96
59.00
16.04
QPSK
4950.0
20.57
19.98
23.30
33.00
9.70
19.00
42.30
59.00
16.70
4965.0
20.83
20.53
23.69
33.00
9.31
19.00
42.69
59.00
16.31
4980.0
21.09
20.75
23.93
33.00
9.07
19.00
42.93
59.00
16.07
16-QAM
4950.0
20.52
20.26
23.40
33.00
9.60
19.00
42.40
59.00
16.60
4965.0
20.89
20.53
23.72
33.00
9.28
19.00
42.72
59.00
16.28
4980.0
21.03
20.77
23.91
33.00
9.09
19.00
42.91
59.00
16.09
64-QAM
4950.0
20.51
20.32
23.43
33.00
9.57
19.00
42.43
59.00
16.57
4965.0
20.93
20.52
23.74
33.00
9.26
19.00
42.74
59.00
16.26
4980.0
21.08
21.14
24.12
33.00
8.88
19.00
43.12
59.00
15.88
T
Table 10: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for FCC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4950.0
20.57
20.00
23.30
27.00
3.70
32.00
55.30
59.00
3.70
4965.0
20.80
20.45
23.64
27.00
3.36
32.00
55.64
59.00
3.36
4980.0
21.13
20.76
23.96
27.00
3.04
32.00
55.96
59.00
3.04
QPSK
4950.0
20.57
19.98
23.30
27.00
3.70
32.00
55.30
59.00
3.70
4965.0
20.83
20.53
23.69
27.00
3.31
32.00
55.69
59.00
3.31
4980.0
21.09
20.75
23.93
27.00
3.07
32.00
55.93
59.00
3.07
16-QAM
4950.0
20.52
20.26
23.40
27.00
3.60
32.00
55.40
59.00
3.60
4965.0
20.89
20.53
23.72
27.00
3.28
32.00
55.72
59.00
3.28
4980.0
21.03
20.77
23.91
27.00
3.09
32.00
55.91
59.00
3.09
64-QAM
4950.0
20.51
20.32
23.43
27.00
3.57
32.00
55.43
59.00
3.57
4965.0
20.93
20.52
23.74
27.00
3.26
32.00
55.74
59.00
3.26
4980.0
21.08
21.14
24.12
27.00
2.88
32.00
56.12
59.00
2.88
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 13 of 50 April 30, 2013
4.9 GHz: IC RSS-111
Table 11: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for IC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4942.5
22.81
23.63
26.25
27.00
0.75
10.00
36.25
53.00
16.75
4965.0
22.77
22.75
25.77
27.00
1.23
10.00
35.77
53.00
17.23
4987.5
23.16
22.94
26.06
27.00
0.94
10.00
36.06
53.00
16.94
QPSK
4942.5
22.63
23.64
26.17
27.00
0.83
10.00
36.17
53.00
16.83
4965.0
22.84
22.96
25.91
27.00
1.09
10.00
35.91
53.00
17.09
4987.5
23.22
23.51
26.38
27.00
0.62
10.00
36.38
53.00
16.62
16-QAM
4942.5
22.78
23.81
26.34
27.00
0.66
10.00
36.34
53.00
16.66
4965.0
23.19
23.07
26.14
27.00
0.86
10.00
36.14
53.00
16.86
4987.5
23.17
22.81
26.00
27.00
1.00
10.00
36.00
53.00
17.00
64-QAM
4942.5
22.54
23.78
26.21
27.00
0.79
10.00
36.21
53.00
16.79
4965.0
23.40
22.72
26.08
27.00
0.92
10.00
36.08
53.00
16.92
4987.5
23.31
23.10
26.22
27.00
0.78
10.00
36.22
53.00
16.78
Table 12: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for IC
Modulation
Frequency
(MHz)
Power at
RF-1
(dBm)
Power at
RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4942.5
22.81
23.63
26.25
27.00
0.75
19.00
45.25
53.00
7.75
4965.0
22.77
22.75
25.77
27.00
1.23
19.00
44.77
53.00
8.23
4987.5
23.16
22.94
26.06
27.00
0.94
19.00
45.06
53.00
7.94
QPSK
4942.5
22.63
23.64
26.17
27.00
0.83
19.00
45.17
53.00
7.83
4965.0
22.84
22.96
25.91
27.00
1.09
19.00
44.91
53.00
8.09
4987.5
23.22
23.51
26.38
27.00
0.62
19.00
45.38
53.00
7.62
16-QAM
4942.5
22.78
23.81
26.34
27.00
0.66
19.00
45.34
53.00
7.66
4965.0
23.19
23.07
26.14
27.00
0.86
19.00
45.14
53.00
7.86
4987.5
23.17
22.81
26.00
27.00
1.00
19.00
45.00
53.00
8.00
64-QAM
4942.5
22.54
23.78
26.21
27.00
0.79
19.00
45.21
53.00
7.79
4965.0
23.40
22.72
26.08
27.00
0.92
19.00
45.08
53.00
7.92
4987.5
23.31
23.10
26.22
27.00
0.78
19.00
45.22
53.00
7.78
Table 13: 4.9 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for IC
Modulation
Frequency
(MHz)
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4942.5
16.90
16.89
19.91
21.00
1.09
32.00
51.91
53.00
1.09
4965.0
16.94
16.51
19.74
21.00
1.26
32.00
51.74
53.00
1.26
4987.5
17.35
17.19
20.28
21.00
0.72
32.00
52.28
53.00
0.72
QPSK
4942.5
17.12
16.98
20.06
21.00
0.94
32.00
52.06
53.00
0.94
4965.0
17.04
16.50
19.79
21.00
1.21
32.00
51.79
53.00
1.21
4987.5
17.33
17.12
20.24
21.00
0.76
32.00
52.24
53.00
0.76
16-QAM
4942.5
17.00
16.34
19.69
21.00
1.31
32.00
51.69
53.00
1.31
4965.0
16.73
16.65
19.70
21.00
1.30
32.00
51.70
53.00
1.30
4987.5
17.54
17.24
20.40
21.00
0.60
32.00
52.40
53.00
0.60
64-QAM
4942.5
16.57
16.38
19.49
21.00
1.51
32.00
51.49
53.00
1.51
4965.0
16.64
16.81
19.74
21.00
1.26
32.00
51.74
53.00
1.26
4987.5
17.44
17.08
20.27
21.00
0.73
32.00
52.27
53.00
0.73
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 14 of 50 April 30, 2013
Table 14: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for IC
Modulation
Frequency
(MHz)
Power at
RF-1
(dBm)
Power at
RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4945.0
26.37
25.87
29.14
30.00
0.86
10.00
39.14
56.00
16.86
4965.0
26.39
26.38
29.40
30.00
0.60
10.00
39.40
56.00
16.60
4985.0
25.62
26.20
28.93
30.00
1.07
10.00
38.93
56.00
17.07
QPSK
4945.0
26.32
26.03
29.19
30.00
0.81
10.00
39.19
56.00
16.81
4965.0
26.41
26.27
29.35
30.00
0.65
10.00
39.35
56.00
16.65
4985.0
25.51
26.27
28.92
30.00
1.08
10.00
38.92
56.00
17.08
16-QAM
4945.0
26.19
25.81
29.01
30.00
0.99
10.00
39.01
56.00
16.99
4965.0
26.40
26.23
29.33
30.00
0.67
10.00
39.33
56.00
16.67
4985.0
25.68
26.24
28.98
30.00
1.02
10.00
38.98
56.00
17.02
64-QAM
4945.0
26.27
26.19
29.24
30.00
0.76
10.00
39.24
56.00
16.76
4965.0
26.49
26.27
29.39
30.00
0.61
10.00
39.39
56.00
16.61
4985.0
25.78
26.35
29.08
30.00
0.92
10.00
39.08
56.00
16.92
Table 15: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for IC
Modulation
Frequency
(MHz)
Power at
RF-1
(dBm)
Power at
RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4945.0
26.37
25.87
29.14
30.00
0.86
19.00
48.14
56.00
7.86
4965.0
26.39
26.38
29.40
30.00
0.60
19.00
48.40
56.00
7.60
4985.0
26.93
27.01
29.98
30.00
0.02
19.00
48.98
56.00
7.02
QPSK
4945.0
26.32
26.03
29.19
30.00
0.81
19.00
48.19
56.00
7.81
4965.0
26.41
26.27
29.35
30.00
0.65
19.00
48.35
56.00
7.65
4985.0
25.51
26.87
29.25
30.00
0.75
19.00
48.25
56.00
7.75
16-QAM
4945.0
26.19
25.81
29.01
30.00
0.99
19.00
48.01
56.00
7.99
4965.0
26.40
26.23
29.33
30.00
0.67
19.00
48.33
56.00
7.67
4985.0
25.68
26.95
29.37
30.00
0.63
19.00
48.37
56.00
7.63
64-QAM
4945.0
26.27
26.19
29.24
30.00
0.76
19.00
48.24
56.00
7.76
4965.0
26.49
26.27
29.39
30.00
0.61
19.00
48.39
56.00
7.61
4985.0
25.78
26.35
29.08
30.00
0.92
19.00
48.08
56.00
7.92
Table 16: 4.9 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for IC
Modulation
Frequency
(MHz)
Power at
RF-1
(dBm)
Power at
RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4945.0
20.82
20.54
23.69
24.00
0.31
32.00
55.69
56.00
0.31
4965.0
19.79
20.52
23.18
24.00
0.82
32.00
55.18
56.00
0.82
4985.0
20.32
20.21
23.28
24.00
0.72
32.00
55.28
56.00
0.72
QPSK
4945.0
20.59
20.48
23.55
24.00
0.45
32.00
55.55
56.00
0.45
4965.0
19.79
20.84
23.36
24.00
0.64
32.00
55.36
56.00
0.64
4985.0
20.05
20.33
23.20
24.00
0.80
32.00
55.20
56.00
0.80
16-QAM
4945.0
20.41
20.21
23.32
24.00
0.68
32.00
55.32
56.00
0.68
4965.0
19.68
20.53
23.14
24.00
0.86
32.00
55.14
56.00
0.86
4985.0
20.17
20.27
23.23
24.00
0.77
32.00
55.23
56.00
0.77
64-QAM
4945.0
20.37
20.29
23.34
24.00
0.66
32.00
55.34
56.00
0.66
4965.0
19.80
20.82
23.35
24.00
0.65
32.00
55.35
56.00
0.65
4985.0
20.20
20.25
23.24
24.00
0.76
32.00
55.24
56.00
0.76
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 15 of 50 April 30, 2013
Table 17: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for IC
Modulation
Frequency
(MHz)
Power at
RF-1
(dBm)
Power at
RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4950.0
27.41
27.64
30.54
33.00
2.46
10.00
40.54
59.00
18.46
4965.0
27.91
27.99
30.96
33.00
2.04
10.00
40.96
59.00
18.04
4980.0
27.90
27.84
30.88
33.00
2.12
10.00
40.88
59.00
18.12
QPSK
4950.0
27.18
27.50
30.35
33.00
2.65
10.00
40.35
59.00
18.65
4965.0
27.64
27.57
30.62
33.00
2.38
10.00
40.62
59.00
18.38
4980.0
28.16
28.32
31.25
33.00
1.75
10.00
41.25
59.00
17.75
16-QAM
4950.0
27.26
27.69
30.49
33.00
2.51
10.00
40.49
59.00
18.51
4965.0
27.67
27.63
30.66
33.00
2.34
10.00
40.66
59.00
18.34
4980.0
28.18
28.08
31.14
33.00
1.86
10.00
41.14
59.00
17.86
64-QAM
4950.0
28.04
28.12
31.09
33.00
1.91
10.00
41.09
59.00
17.91
4965.0
28.12
28.10
31.12
33.00
1.88
10.00
41.12
59.00
17.88
4980.0
28.07
27.99
31.04
33.00
1.96
10.00
41.04
59.00
17.96
Table 18: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for IC
Modulation
Frequency
(MHz)
Power at
RF-1
(dBm)
Power at
RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4950.0
27.41
27.64
30.54
33.00
2.46
19.00
49.54
59.00
9.46
4965.0
27.91
27.99
30.96
33.00
2.04
19.00
49.96
59.00
9.04
4980.0
27.90
27.84
30.88
33.00
2.12
19.00
49.88
59.00
9.12
QPSK
4950.0
27.18
27.50
30.35
33.00
2.65
19.00
49.35
59.00
9.65
4965.0
27.64
27.57
30.62
33.00
2.38
19.00
49.62
59.00
9.38
4980.0
28.16
28.32
31.25
33.00
1.75
19.00
50.25
59.00
8.75
16-QAM
4950.0
27.26
27.69
30.49
33.00
2.51
19.00
49.49
59.00
9.51
4965.0
27.67
27.63
30.66
33.00
2.34
19.00
49.66
59.00
9.34
4980.0
28.18
28.08
31.14
33.00
1.86
19.00
50.14
59.00
8.86
64-QAM
4950.0
28.04
28.12
31.09
33.00
1.91
19.00
50.09
59.00
8.91
4965.0
28.12
28.10
31.12
33.00
1.88
19.00
50.12
59.00
8.88
4980.0
28.07
27.99
31.04
33.00
1.96
19.00
50.04
59.00
8.96
Table 19: 4.9 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for IC
Modulation
Frequency
(MHz)
Power at
RF-1
(dBm)
Power at
RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Power
margin,
dB
Antenna
gain
(dBi)
EIRP
(dBm)
EIRP
limit
(dBm)
EIRP
margin
(dB)
BPSK
4950.0
24.03
23.88
26.97
27.00
0.03
32.00
58.97
59.00
0.03
4965.0
23.48
23.81
26.66
27.00
0.34
32.00
58.66
59.00
0.34
4980.0
23.84
23.91
26.89
27.00
0.11
32.00
58.89
59.00
0.11
QPSK
4950.0
23.49
23.67
26.59
27.00
0.41
32.00
58.59
59.00
0.41
4965.0
23.45
23.74
26.61
27.00
0.39
32.00
58.61
59.00
0.39
4980.0
23.91
23.95
26.94
27.00
0.06
32.00
58.94
59.00
0.06
16-QAM
4950.0
23.99
23.92
26.97
27.00
0.03
32.00
58.97
59.00
0.03
4965.0
23.96
23.87
26.93
27.00
0.07
32.00
58.93
59.00
0.07
4980.0
23.98
23.99
27.00
27.00
0.00
32.00
59.00
59.00
0.00
64-QAM
4950.0
24.08
23.73
26.92
27.00
0.08
32.00
58.92
59.00
0.08
4965.0
23.99
23.92
26.97
27.00
0.03
32.00
58.97
59.00
0.03
4980.0
23.98
23.87
26.94
27.00
0.06
32.00
58.94
59.00
0.06
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 16 of 50 April 30, 2013
5.8 GHz: FCC 47 CFR Part 15 Subpart C, §15.247/IC RSS-210, Issue 8 Annex 8
Table 20: 5.8 GHz: RF Power & EIRP: 5 MHz channel & 10 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5727.5
18.42
18.41
21.43
26.00
4.57
10.00
31.43
36.00
4.57
5790.0
22.34
22.18
25.27
26.00
0.73
10.00
35.27
36.00
0.73
5847.5
20.25
20.55
23.41
26.00
2.59
10.00
33.41
36.00
2.59
QPSK
5727.5
18.42
18.40
21.42
26.00
4.58
10.00
31.42
36.00
4.58
5790.0
22.29
22.18
25.25
26.00
0.75
10.00
35.25
36.00
0.75
5847.5
20.29
20.50
23.41
26.00
2.59
10.00
33.41
36.00
2.59
16-QAM
5727.5
18.43
18.40
21.43
26.00
4.57
10.00
31.43
36.00
4.57
5790.0
22.27
22.17
25.23
26.00
0.77
10.00
35.23
36.00
0.77
5847.5
20.31
20.48
23.41
26.00
2.59
10.00
33.41
36.00
2.59
64-QAM
5727.5
18.43
18.40
21.43
26.00
4.57
10.00
31.43
36.00
4.57
5790.0
22.26
22.18
25.23
26.00
0.77
10.00
35.23
36.00
0.77
5847.5
20.28
20.44
23.37
26.00
2.63
10.00
33.37
36.00
2.63
Table 21: 5.8 GHz: RF Power & EIRP: 5 MHz channel & 19 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5727.5
13.35
13.35
16.36
17.00
0.64
19.00
35.36
36.00
0.64
5790.0
13.77
13.33
16.57
17.00
0.43
19.00
35.57
36.00
0.43
5847.5
13.57
14.35
16.99
17.00
0.01
19.00
35.99
36.00
0.01
QPSK
5727.5
13.96
13.45
16.72
17.00
0.28
19.00
35.72
36.00
0.28
5790.0
13.77
13.33
16.57
17.00
0.43
19.00
35.57
36.00
0.43
5847.5
13.54
14.10
16.84
17.00
0.16
19.00
35.84
36.00
0.16
16-QAM
5727.5
13.89
13.34
16.63
17.00
0.37
19.00
35.63
36.00
0.37
5790.0
13.77
13.34
16.57
17.00
0.43
19.00
35.57
36.00
0.43
5847.5
13.55
14.10
16.84
17.00
0.16
19.00
35.84
36.00
0.16
64-QAM
5727.5
13.91
13.33
16.64
17.00
0.36
19.00
35.64
36.00
0.36
5790.0
13.77
13.33
16.57
17.00
0.43
19.00
35.57
36.00
0.43
5847.5
13.45
14.41
16.97
17.00
0.03
19.00
35.97
36.00
0.03
Table 22: 5.8 GHz: RF Power & EIRP: 5 MHz channel & 32 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5727.5
0.68
1.10
3.91
4.00
0.09
32.00
35.91
36.00
0.09
5790.0
0.77
0.92
3.86
4.00
0.14
32.00
35.86
36.00
0.14
5847.5
0.54
0.98
3.78
4.00
0.22
32.00
35.78
36.00
0.22
QPSK
5727.5
0.84
1.10
3.98
4.00
0.02
32.00
35.98
36.00
0.02
5790.0
0.78
0.91
3.86
4.00
0.14
32.00
35.86
36.00
0.14
5847.5
0.54
0.94
3.75
4.00
0.25
32.00
35.75
36.00
0.25
16-QAM
5727.5
0.82
1.10
3.97
4.00
0.03
32.00
35.97
36.00
0.03
5790.0
0.79
0.92
3.87
4.00
0.13
32.00
35.87
36.00
0.13
5847.5
0.53
0.93
3.74
4.00
0.26
32.00
35.74
36.00
0.26
64-QAM
5727.5
0.86
1.10
3.99
4.00
0.01
32.00
35.99
36.00
0.01
5790.0
0.75
0.92
3.85
4.00
0.15
32.00
35.85
36.00
0.15
5847.5
0.51
0.93
3.74
4.00
0.26
32.00
35.74
36.00
0.26
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 17 of 50 April 30, 2013
Table 23: 5.8 GHz: RF Power & EIRP: 10 MHz channel & 10 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5730.0
21.15
20.70
23.94
26.00
2.06
10.00
33.94
36.00
2.06
5790.0
22.33
22.39
25.37
26.00
0.63
10.00
35.37
36.00
0.63
5845.0
20.34
20.31
23.34
26.00
2.66
10.00
33.34
36.00
2.66
QPSK
5730.0
21.19
20.69
23.96
26.00
2.04
10.00
33.96
36.00
2.04
5790.0
22.33
22.39
25.37
26.00
0.63
10.00
35.37
36.00
0.63
5845.0
20.35
20.35
23.36
26.00
2.64
10.00
33.36
36.00
2.64
16-QAM
5730.0
21.12
20.69
23.92
26.00
2.08
10.00
33.92
36.00
2.08
5790.0
22.30
22.40
25.36
26.00
0.64
10.00
35.36
36.00
0.64
5845.0
20.36
20.26
23.32
26.00
2.68
10.00
33.32
36.00
2.68
64-QAM
5730.0
21.07
20.68
23.89
26.00
2.11
10.00
33.89
36.00
2.11
5790.0
22.24
22.42
25.34
26.00
0.66
10.00
35.34
36.00
0.66
5845.0
20.35
20.26
23.32
26.00
2.68
10.00
33.32
36.00
2.68
Table 24: 5.8 GHz: RF Power & EIRP: 10 MHz channel & 19 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5730.0
14.29
13.57
16.96
17.00
0.04
19.00
35.96
36.00
0.04
5790.0
14.00
13.64
16.83
17.00
0.17
19.00
35.83
36.00
0.17
5845.0
13.49
13.75
16.63
17.00
0.37
19.00
35.63
36.00
0.37
QPSK
5730.0
14.28
13.60
16.96
17.00
0.04
19.00
35.96
36.00
0.04
5790.0
13.99
13.63
16.82
17.00
0.18
19.00
35.82
36.00
0.18
5845.0
13.50
13.34
16.43
17.00
0.57
19.00
35.43
36.00
0.57
16-QAM
5730.0
14.35
13.59
17.00
17.00
0.00
19.00
36.00
36.00
0.00
5790.0
14.00
13.56
16.80
17.00
0.20
19.00
35.80
36.00
0.20
5845.0
13.57
13.33
16.46
17.00
0.54
19.00
35.46
36.00
0.54
64-QAM
5730.0
14.23
13.61
16.94
17.00
0.06
19.00
35.94
36.00
0.06
5790.0
14.00
13.52
16.78
17.00
0.22
19.00
35.78
36.00
0.22
5845.0
13.50
13.27
16.40
17.00
0.60
19.00
35.40
36.00
0.60
Table 25: 5.8 GHz: RF Power & EIRP: 10 MHz channel & 32 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5730.0
1.11
0.43
3.79
4.00
0.21
32.00
35.79
36.00
0.21
5790.0
0.84
1.06
3.96
4.00
0.04
32.00
35.96
36.00
0.04
5845.0
0.37
1.39
3.92
4.00
0.08
32.00
35.92
36.00
0.08
QPSK
5730.0
1.12
0.44
3.80
4.00
0.20
32.00
35.80
36.00
0.20
5790.0
0.64
1.08
3.88
4.00
0.12
32.00
35.88
36.00
0.12
5845.0
0.39
0.96
3.69
4.00
0.31
32.00
35.69
36.00
0.31
16-QAM
5730.0
1.14
0.45
3.82
4.00
0.18
32.00
35.82
36.00
0.18
5790.0
0.81
1.07
3.95
4.00
0.05
32.00
35.95
36.00
0.05
5845.0
0.42
0.92
3.69
4.00
0.31
32.00
35.69
36.00
0.31
64-QAM
5730.0
1.11
0.48
3.82
4.00
0.18
32.00
35.82
36.00
0.18
5790.0
0.77
1.06
3.93
4.00
0.07
32.00
35.93
36.00
0.07
5845.0
0.47
0.90
3.70
4.00
0.30
32.00
35.70
36.00
0.30
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 18 of 50 April 30, 2013
Table 26: 5.8 GHz: RF Power & EIRP: 20 MHz channel & 10 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5735.0
22.30
22.74
25.54
26.00
0.46
10.00
35.54
36.00
0.46
5790.0
22.59
22.72
25.67
26.00
0.33
10.00
35.67
36.00
0.33
5840.0
21.53
21.65
24.60
26.00
1.40
10.00
34.60
36.00
1.40
QPSK
5735.0
22.31
22.76
25.55
26.00
0.45
10.00
35.55
36.00
0.45
5790.0
22.66
22.72
25.70
26.00
0.30
10.00
35.70
36.00
0.30
5840.0
21.63
21.66
24.66
26.00
1.34
10.00
34.66
36.00
1.34
16-QAM
5735.0
22.30
22.79
25.56
26.00
0.44
10.00
35.56
36.00
0.44
5790.0
22.76
22.74
25.76
26.00
0.24
10.00
35.76
36.00
0.24
5840.0
21.56
21.67
24.63
26.00
1.37
10.00
34.63
36.00
1.37
64-QAM
5735.0
22.29
22.73
25.53
26.00
0.47
10.00
35.53
36.00
0.47
5790.0
22.77
22.77
25.78
26.00
0.22
10.00
35.78
36.00
0.22
5840.0
21.53
21.67
24.61
26.00
1.39
10.00
34.61
36.00
1.39
Table 27: 5.8 GHz: RF Power & EIRP: 20 MHz channel & 19 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5735.0
13.45
13.94
16.71
17.00
0.29
19.00
35.71
36.00
0.29
5790.0
14.19
13.79
17.00
17.00
0.00
19.00
36.00
36.00
0.00
5840.0
13.92
13.49
16.72
17.00
0.28
19.00
35.72
36.00
0.28
QPSK
5735.0
13.55
13.91
16.74
17.00
0.26
19.00
35.74
36.00
0.26
5790.0
14.18
13.78
16.99
17.00
0.01
19.00
35.99
36.00
0.01
5840.0
13.93
13.51
16.74
17.00
0.26
19.00
35.74
36.00
0.26
16-QAM
5735.0
13.54
13.88
16.72
17.00
0.28
19.00
35.72
36.00
0.28
5790.0
14.12
13.77
16.96
17.00
0.04
19.00
35.96
36.00
0.04
5840.0
13.36
13.50
16.44
17.00
0.56
19.00
35.44
36.00
0.56
64-QAM
5735.0
13.50
13.89
16.71
17.00
0.29
19.00
35.71
36.00
0.29
5790.0
14.15
13.80
16.99
17.00
0.01
19.00
35.99
36.00
0.01
5840.0
13.98
13.50
16.76
17.00
0.24
19.00
35.76
36.00
0.24
Table 28: 5.8 GHz: RF Power & EIRP: 20 MHz channel & 32 dBi antenna for FCC/IC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
Antenna
gain (dBi)
EIRP
(dBm)
EIRP limit
(dBm)
EIRP
margin
(dB)
BPSK
5735.0
1.34
0.60
4.00
4.00
0.00
32.00
36.00
36.00
0.00
5790.0
1.02
0.37
3.72
4.00
0.28
32.00
35.72
36.00
0.28
5840.0
0.81
0.33
3.59
4.00
0.41
32.00
35.59
36.00
0.41
QPSK
5735.0
1.33
0.54
3.96
4.00
0.04
32.00
35.96
36.00
0.04
5790.0
1.03
0.37
3.72
4.00
0.28
32.00
35.72
36.00
0.28
5840.0
0.72
0.34
3.54
4.00
0.46
32.00
35.54
36.00
0.46
16-QAM
5735.0
1.35
0.55
3.98
4.00
0.02
32.00
35.98
36.00
0.02
5790.0
1.05
0.36
3.73
4.00
0.27
32.00
35.73
36.00
0.27
5840.0
0.66
0.33
3.51
4.00
0.49
32.00
35.51
36.00
0.49
64-QAM
5735.0
1.37
0.56
3.99
4.00
0.01
32.00
35.99
36.00
0.01
5790.0
1.11
0.37
3.77
4.00
0.23
32.00
35.77
36.00
0.23
5840.0
0.69
0.38
3.55
4.00
0.45
32.00
35.55
36.00
0.45
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 19 of 50 April 30, 2013
5.3 GHz: FCC 47 CFR Part 15 Subpart E, §15.407
Table 29: 5.3 GHz: RF Power: 5 MHz channel & 10 dBi antenna for FCC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
BPSK
5252.5
8.51
7.53
11.06
13.70
2.64
5300.0
8.45
8.66
11.57
13.70
2.14
5345.0
7.68
7.51
10.61
13.70
3.10
QPSK
5252.5
8.50
7.55
11.06
13.70
2.64
5300.0
8.44
8.66
11.56
13.70
2.14
5345.0
7.62
7.63
10.64
13.70
3.07
16-QAM
5252.5
8.52
7.56
11.08
13.70
2.63
5300.0
8.46
8.68
11.58
13.70
2.12
5345.0
7.62
7.77
10.71
13.70
3.00
64-QAM
5252.5
8.44
7.57
11.04
13.70
2.67
5300.0
8.49
8.68
11.60
13.70
2.11
5345.0
7.55
7.86
10.72
13.70
2.98
Table 30: 5.3 GHz: RF Power: 5 MHz channel & 19 dBi antenna for FCC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
BPSK
5252.5
-1.44
-1.38
1.60
4.70
3.10
5300.0
-0.46
-1.22
2.19
4.70
2.52
5345.0
-0.50
-1.42
2.07
4.70
2.63
QPSK
5252.5
-1.49
-1.33
1.60
4.70
3.10
5300.0
-0.50
-1.01
2.26
4.70
2.44
5345.0
-0.46
-1.38
2.11
4.70
2.59
16-QAM
5252.5
-1.47
-1.30
1.63
4.70
3.08
5300.0
-0.50
-0.92
2.31
4.70
2.40
5345.0
-0.49
-1.38
2.10
4.70
2.60
64-QAM
5252.5
-1.50
-1.28
1.62
4.70
3.08
5300.0
-0.51
-0.84
2.34
4.70
2.36
5345.0
-0.43
-1.37
2.14
4.70
2.57
Table 31: 5.3 GHz: RF Power: 5 MHz channel & 32 dBi antenna for FCC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
BPSK
5252.5
-14.50
-14.38
-11.43
-8.30
3.13
5300.0
-13.47
-13.26
-10.35
-8.30
2.06
5345.0
-14.34
-14.41
-11.36
-8.30
3.07
QPSK
5252.5
-14.53
-14.25
-11.38
-8.30
3.08
5300.0
-13.50
-13.25
-10.36
-8.30
2.07
5345.0
-14.35
-14.40
-11.36
-8.30
3.07
16-QAM
5252.5
-14.51
-14.11
-11.30
-8.30
3.00
5300.0
-13.44
-13.26
-10.34
-8.30
2.04
5345.0
-14.38
-14.33
-11.34
-8.30
3.05
64-QAM
5252.5
-14.52
-14.13
-11.31
-8.30
3.01
5300.0
-13.51
-13.25
-10.37
-8.30
2.07
5345.0
-14.52
-14.34
-11.42
-8.30
3.12
RDL-3000 RMC/E/F MODULE PRODUCT MANUAL
70-00184-03-02 Proprietary Redline Communications © 2013 Page 20 of 50 April 30, 2013
Table 32: 5.3 GHz: RF Power: 10 MHz channel & 10 dBi antenna for FCC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
BPSK
5255.0
10.54
10.49
13.53
16.68
3.16
5300.0
10.46
10.81
13.65
16.68
3.03
5342.5
10.69
11.54
14.15
16.68
2.54
QPSK
5255.0
10.50
10.51
13.52
16.68
3.17
5300.0
10.48
10.80
13.65
16.68
3.03
5342.5
10.63
11.55
14.12
16.68
2.56
16-QAM
5255.0
10.33
10.55
13.45
16.68
3.23
5300.0
10.49
10.81
13.66
16.68
3.02
5342.5
10.62
11.55
14.12
16.68
2.56
64-QAM
5255.0
10.37
10.67
13.53
16.68
3.15
5300.0
10.54
10.79
13.68
16.68
3.01
5342.5
10.63
11.55
14.12
16.68
2.56
Table 33: 5.3 GHz: RF Power: 10 MHz channel & 19 dBi antenna for FCC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
BPSK
5255.0
1.52
1.91
4.73
7.68
2.95
5300.0
1.58
1.83
4.72
7.68
2.97
5342.5
2.60
2.77
5.70
7.68
1.99
QPSK
5255.0
1.61
1.89
4.76
7.68
2.92
5300.0
1.60
1.84
4.73
7.68
2.95
5342.5
2.61
2.64
5.64
7.68
2.05
16-QAM
5255.0
1.60
1.87
4.75
7.68
2.94
5300.0
1.57
1.84
4.72
7.68
2.97
5342.5
2.58
2.53
5.57
7.68
2.12
64-QAM
5255.0
1.61
1.86
4.75
7.68
2.94
5300.0
1.64
1.85
4.76
7.68
2.93
5342.5
2.59
2.44
5.53
7.68
2.16
Table 34: 5.3 GHz: RF Power: 10 MHz channel & 32 dBi antenna for FCC
Modulation
Frequency
MHz
Power
at RF-1
(dBm)
Power
at RF-2
(dBm)
Combined
output
power
(dBm)
Output
power
limit
(dBm)
Output
power
margin
(dB)
BPSK
5255.0
-11.56
-11.33
-8.43
-5.32
3.12
5300.0
-11.57
-11.08
-8.31
-5.32
2.99
5342.5
-11.43
-11.50
-8.45
-5.32
3.14
QPSK
5255.0
-11.56
-11.31
-8.42
-5.32
3.11
5300.0
-11.59
-11.06
-8.31
-5.32
2.99
5342.5
-11.47
-11.49
-8.47
-5.32
3.15
16-QAM
5255.0
-11.59
-11.31
-8.44
-5.32
3.12
5300.0
-11.58
-11.07
-8.31
-5.32
2.99
5342.5
-11.33
-11.45
-8.38
-5.32
3.06
64-QAM
5255.0
-11.60
-11.30
-8.44
-5.32
3.12
5300.0
-11.51
-11.02
-8.25
-5.32
2.93
5342.5
-11.27
-11.47
-8.36
-5.32
3.04
Other manuals for RDL-3000 Series
3
This manual suits for next models
3
Table of contents
Other Redline Radio manuals
