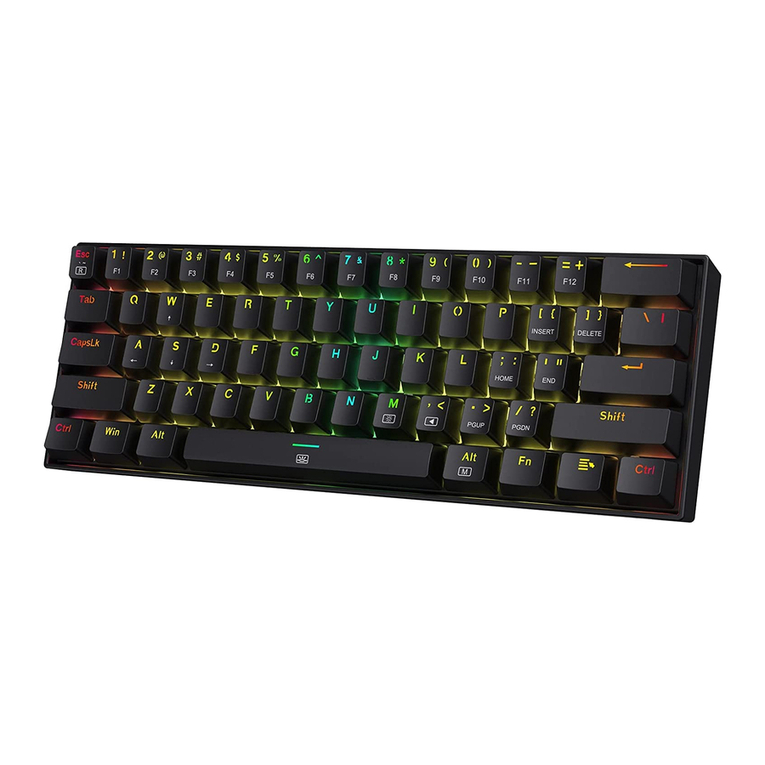

REDRAGON K628 RGB POLLUX PRO User manual

V)
REDRAGON
POLLU PRO
WIRED/2.4G/BT 78 KEYS GAMIN& KEYBOARD
Mechanical Gaming Keyboard
Please scan here to . .
download
user
manual
Operating
Instructions

Dear user
Thank you for choosing REDRAG@N product. To protect your rights and for
better customer service, please read the following warranty rules carefully.
1. Within 18 months of purchase date, repair is guaranteed for failure due to
electrical circuit problems. Other damages, such as disassembly, hard impacts,
submersion into water, plugging into improper current or voltage, and damage
caused by natural disasters such as fire, flood, or earthquake are not included.
2. Consumable parts (such as foot pads) and spare parts replacement are not
included in our warranty.

OS Support
WinXP/Vista/Win7/Win8/Win10
How to connect the keyboard with a computer
Wired Connection
1. Slide the 2.4G/OFF/BT switch on bottom of keyboard to OFF.
2. Take out the USB A to USB Type C cable in the package and connect the keyboard with
your computer.
3.The computer will recognize and configure the keyboard automatically.
4.The keyboard will be ready for use when the configuration is finished.
5. Once the keyboard is powered up, charging begins. The LED marked with M light is in
white.
2.4G Wireless Connection
1. Slide the 2.4G/OFF/BT switch on bottom of keyboard to 2.4G.
2. Take out the nano USB receiver and plug it into an available USB port on your
computer. The computer will recognize and configure the keyboard automatically.
3.The keyboard will be ready for use when the configuration is finished.
4.In some cases, you may need to pair the keyboard. Turn on the keyboard and press
[FN]+[2.4G] for about 3 seconds, the LED marked with M flashes in yellow, plug the
USB receiver into any available USB port on your computer within 20 seconds. The
keyboard will be paired automatically. Make sure the keyboard has enough power
before doing so.
5.The indicator will flash when the battery is low. Please recharge the keyboard in time
or it will turn off automatically soon.
Bluetooth Connection
1. Slide the 2.4G/OFF/BT switch on bottom of keyboard to BT.
2. Press [FN]+[BT1](or [BT2]/[BT3] for other Bluetooth devices), the LED marked with M
flashes in blue (or cyan/Purple for the others)
3.Turn on Bluetooth and scan for available devices on your computer or smart phone. It
will find “BT3.0KB or BT5.0 KB” device. Select it and it will connect automatically.
2

Function Introduction
1. With standard USB and 2.4G/BT connections, the keyboard can be used on computers
without any software or driver installation.
2.There are 20 backlight effects: FN+"R_Alt"key(marked M on the key)
3. Commands of key combinations with [FN] key
[FN+ESC] :
[FN+1]:F
[FN+2]
[FN+3]:F
[FN+4]:F4
[FN+5]:F
[FN+6]:F
[FN+71:F
[FN+8]:F
[FN+9]:F
[FN+0]: F1 0
[FN+"-_":F11
[FN+"=+"1:F12
[FN] + [Win]-L: Disable or enable the [Win] key.
[ [Q]: Select Bluetooth device one (for Bluetooth connection).
[ [W]: Select Bluetooth device two (for Bluetooth connection).
[ [E]: Select Bluetooth device three (for Bluetooth connection).
[ [R]: Change to 2.4G wireless connection. Press and hold the [FN]+[4] for 3
seconds to pair the keyboard with its receiver.
FN+P=PRTSC
FN+{[=SCRLK
FN+]}=PAUSE
FN+L=INS
FN+;:=HOME
FN+"=END
FN+,<=DEL
FN+.>=PGUP
FN+/?=PGDN
FN] +
FN] +
FN] +
FN] +

FN+R_CTRL=APP
FN+ R_ALT : Switch in 20 backlighting patterns
FN + TAB: Set the keyboard to default setting.
FN+Caps: All key in white color by one click
FN+SPACE: Change backlight color.
FN+ 1/ | : Decrease/increase the backlight brightness,total 5 levels.
FN+ <—/—: Change light running speed, total 5 levels.
FN+Backspace:Turn ON/OFF the backlight
How to charge keyboard
Find the USB A to USB type C cable in the packaging ,plug the keyboard and connect it
with computer for charging, the LED indicator of keyboard will be turn to red.
Remark: The LED indicator will be turn to red when keyboard is out of battery.
Indicators on the top left of the keyboard
“A"is for Captals lock indication
“M"is for Mode & Charging status indication
FAQ
1.1f the keyboard doesn't respond, please check if the keyboards USB cable is correctly
inserted into the corresponding USB port on the computer, or try another USB port on
the computer.
2. If you spill liquid on the keyboard, please unplug the keyboards USB cable from the
computer immediately. Wipe off excess liquid and put the keyboard in a dry and
ventilated place. Make sure the keyboard is dried naturally before the next use
END! THE FORM IS AS SAME AS OTHER EDITED MANUAL,
GO
QUALITY
ASSURED

FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occurin a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions (1)this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
California Proposition 65
AWARNING: Risk of Cancer from [Name of one or more chemicals known to cause
cancer] And Reproductive Harm From [Name of one or more chemicals known to
cause reproductive toxicity] Exposure - www.P65Warnings.ca.gov
