RedShark Bikes ADVENTURE User manual

UNBOXING &ASSEMBLY instructions
Before anything, read user's manuals of this water bike to ensure correct usage through understanding. After reading, store them in a safe place for future
reference. Incorrect handling of this product could possibly result in personal injury or physical damage. The manufacturer assumes no responsibility for any damage caused by
mishandling that is beyond normal usage defined in these manuals of this water bike
GB: WARNING If you don't understandsomething pleasecontact to Red Shark bikes.
ES: IMPORTANTE Si no entiendealgo, por favor contacte con Red Shark Bikes.
F: IMPORTANT Si vousne comprenezpas quelque chose, veuillezcontacterRed Shark Bikes.
DE: ACHTUNG Wenn Sie etwasnicht verstehen,wenden Sie sich bitte an Red Shark Bikes.
I: IMPORTANTE se non capisci qualcosa,contatta Red Shark Bikes.
P: IMPORTANTE Se vocênão entender algumacoisa, entre em contato com a Red Shark Bikes.
RUS: ВАЖНО Если вы что-то не понимаете, пожалуйста, свяжитесьс Red Shark Bikes.
NL: BELANGRIJK als u iets niet begrijpt, neem dan contact op met Red Shark Bikes
S: VIKTIGT Om du inte förstår något, vänligenkontakta Red Shark Bikes.
JP: 重要なことがわからない場合は、RedShark Bikesにお問い合わせください。
BIKE SURF
(Personal Water Craft)
IF YOU DO NOT AGREE FULLY TO ALL OF THESE PROVISIONS, YOU SHOULD NOT USE RED SHARK BIKES PRODUCTS.

ASSEMBLY INSTRUCTIONS
ENJOYmodel
FITNESSmodel
ADVENTURE model

1. Please open the 2 boxes (from top side) and carefully remove
all parts from the box.
2. Remove all plastic bags and protections carefully.
WARNING: Plastic bagscan be dangerous,to avoiddanger of suffocation,keepall the bags
away from all babies, children, and house pets. Do not use in cribs, beds, carriages or
playpens. Tear up bag beforethrowingaway.
3. Read the Packing List (outside the box)
and check if there are all the elements
ASSEMBLY INSTRUCTIONS

ENJOY model
1. FRAME
5. Seat post CLAM
7. BOARD
3. FIN
2. BOTTLE
3. BOTTLE cage
4. Black metal plates
(level plates)
6. TRANSMISSION
9. GRIPS
10. STEM
11. SADDLE
12. Seat POST
13. RUDDER
14. Rudder POST
22. REPAIR kit
15. Rudder CLAM
16. PEDALS:
LEFT
RIGHT
8. HANDLE bar17. PEDAL CRANK :
LEFT
RIGHT
18. PROPELLER B
21. AIR PUMP
20. MULTI-TOOL KIT
7. BOARD BELT
0. PACKING list
PARTS & elements
31. Frame straps
30. Metal D RINGS
33. SADDLE cover
34. Pulling hand grip
22.1 Valve tool

FITNESS model

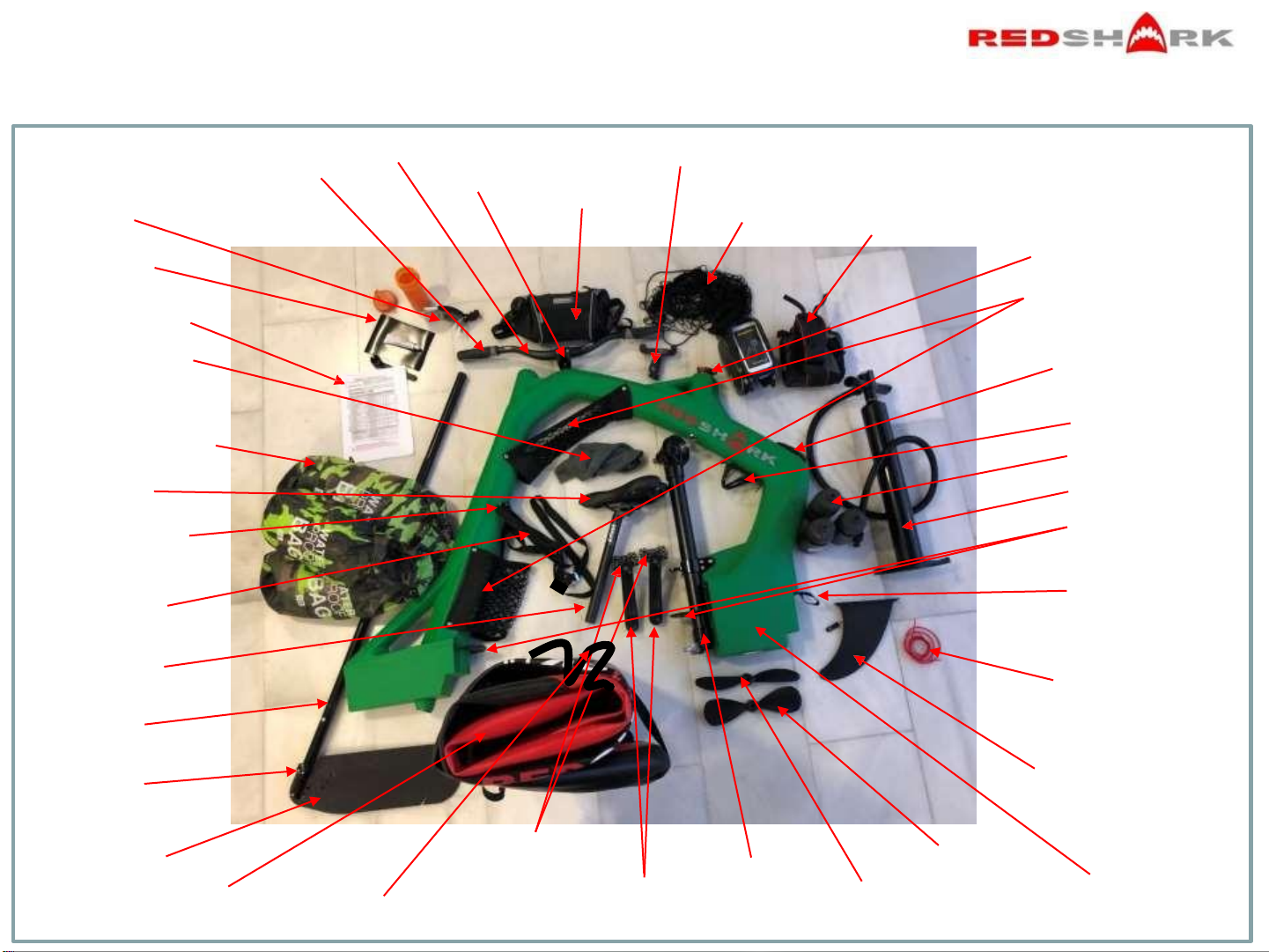

PARTS & elements
1. FRAME
5. Seat post CLAM
7. BOARD
3. FIN
2. BOTTLE
3. BOTTLE cage
6. TRANSMISSION
8. HANDLEbar
9. GRIPS (Red or Black) 10. STEM
11. SADDLE
13. RUDDER
22.REPAIR
kit
14.Rudder
POST
15.Rudder
CLAM
16. PEDALS:
LEFT / RIGHT
17. PEDAL CRANK:
LEFT / RIGHT
18. PROPELLER B
21. AIR PUMP
20. MULTI-TOOLKIT
7. BOARD BELT
0. PACKING list
19. PROPELLER A
25. Bungee NET for
the dry bag (already
in the fame)
35. DRY BAG
12. Seat POST
31. Frame straps
30. Metal D RINGS
32. Elastic cord
33. SADDLE cover
34. Pulling hand grip
4. Black metal plates
(level plates)

ADVENTURE model
PARTS & elements
1. FRAME
7. BOARD inflatable
29. BOARD FIN
2. BOTTLES (1 units)
3. BOTTLE cage
6. TRANSMISSION
8. HANDLE bar
9. GRIPS
11. SADDLE
13. RUDDER
14. Rudder
POST
22.REPAIR
kit board
15. Rudder
CLAM
16. PEDALS:
Hand LEFT Hand RIGHT
17. PEDAL CRANK :
LEFT / RIGHT
18. PROPELLER B
(comfort)
20. MULTI-TOOLKIT
23. BOARD BELT
0. PACKING list
19. PROPELLER A
(Training)
25.1 & 25.2 Bungee NET to
secure dry bag (on the fame)
37. DRY BAGS
(3 different units )
12. Seat POST
31. Frame straps
30. Metal D RINGS
32. Elastic cord (front
board)
21. AIR PUMP
33. SADDLE cover
34. Pulling hand grip
35. Smart phone holder (forhandlebar)
36. NET board
10. STEM 34. Handlebar BAG
33. Saddle BAG 5. Seat post CLAM
38. Fishing ROD holder
4. Black metal plates
(level plates)

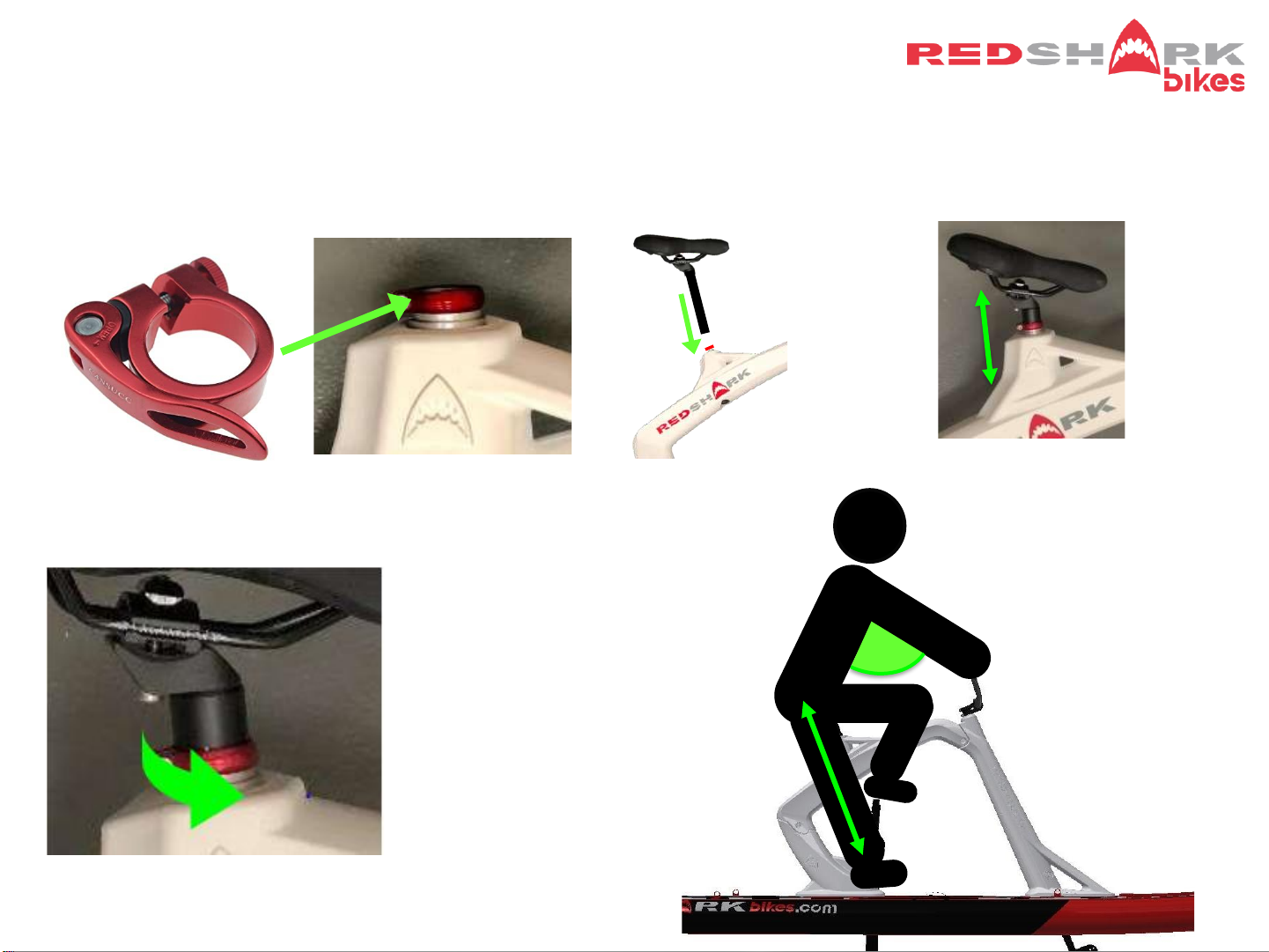

4. SADDLE assembly
4.1 Untight the bolt, adjust the seat to your
positionand tight the bolt. 4.2 SADDLEpositionadjustment (horizontal)
ASSEMBLY INSTRUCTIONS
TORQUE SPECIFICATIONS:
7 Newtons

4.4 Check yourheight
4. SADDLE assembly in the frame C
4.3 Openandadjustseat Post CLAMP position
4.5 TIGHT the post clamp
Adjustment recommendations
ASSEMBLY INSTRUCTIONS
4.6. Check your position
45º

A
B
A
B
B
A
ASSEMBLY INSTRUCTIONS
5. RUDDER assembly 5.1.Insertthe rudderBAR in to the frame
5.2. Pull the ruderpost up to the
screw

ASSEMBLY INSTRUCTIONS
5. RUDDER assembly
5.1Insert the rudderBAR in to the frame
7.2. Pull the ruderpost
up to the screw
TOP hole
BOTTOM hole

ASSEMBLY INSTRUCTIONS

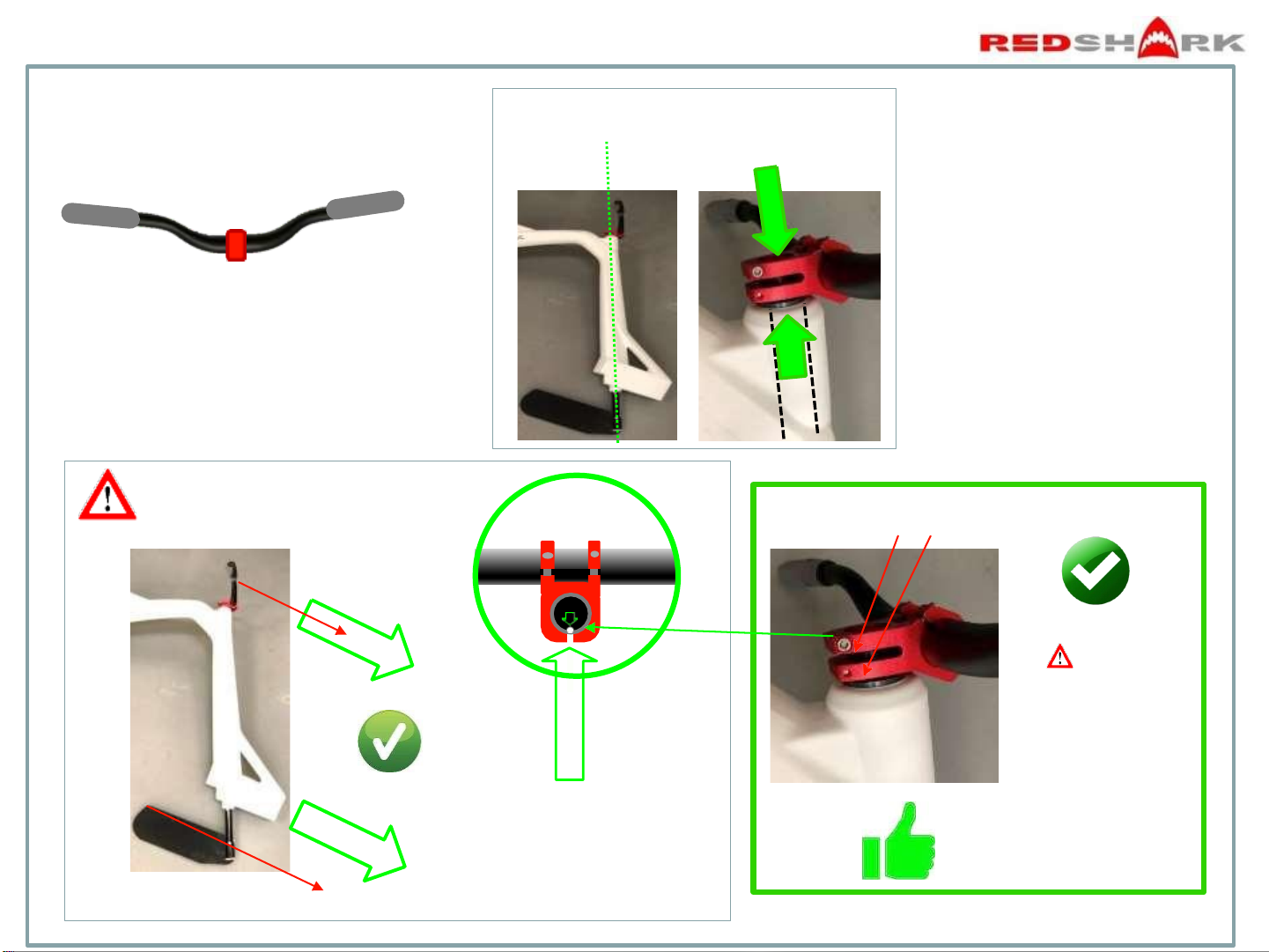

6. HANDLEBAR assembly
6.1 Insert the handlebar in the STEM
6.2 TIGHTthe 4 screws:
TORQUE SPECIFICATIONS:
6 Newtons

ASSEMBLY INSTRUCTIONS
6. HANDLE BAR assembly 6.1.Insertthe rudderpost to the STEM
6.2.Lineup the handlebar with the rudder. 6.3. Tightthe 2 screws
Handle Bar
Stem
ALIGNMENT WITHTHE RUDDER bar
Withthe white mark in the center of the stem.
TORQUE SPECIFICATIONS
6 Newtons

7. TRANSMISSION assembly
7.4.Align with the centralmarkedline
7.1.Untight the 3 bolts 7.2.Lower the shaftdown
until it stops7.3.Correct position
7.5.Tightenall the 3 screws
1. Tighten top bolt 2. Tighten bottom bolt
ASSEMBLY INSTRUCTIONS
TORQUE SPECIFICATIONS
•6 Newtons
3. Bolt & Locknut
Please use a tool 13
(NOT INCLUDED)
From bottom side From top side

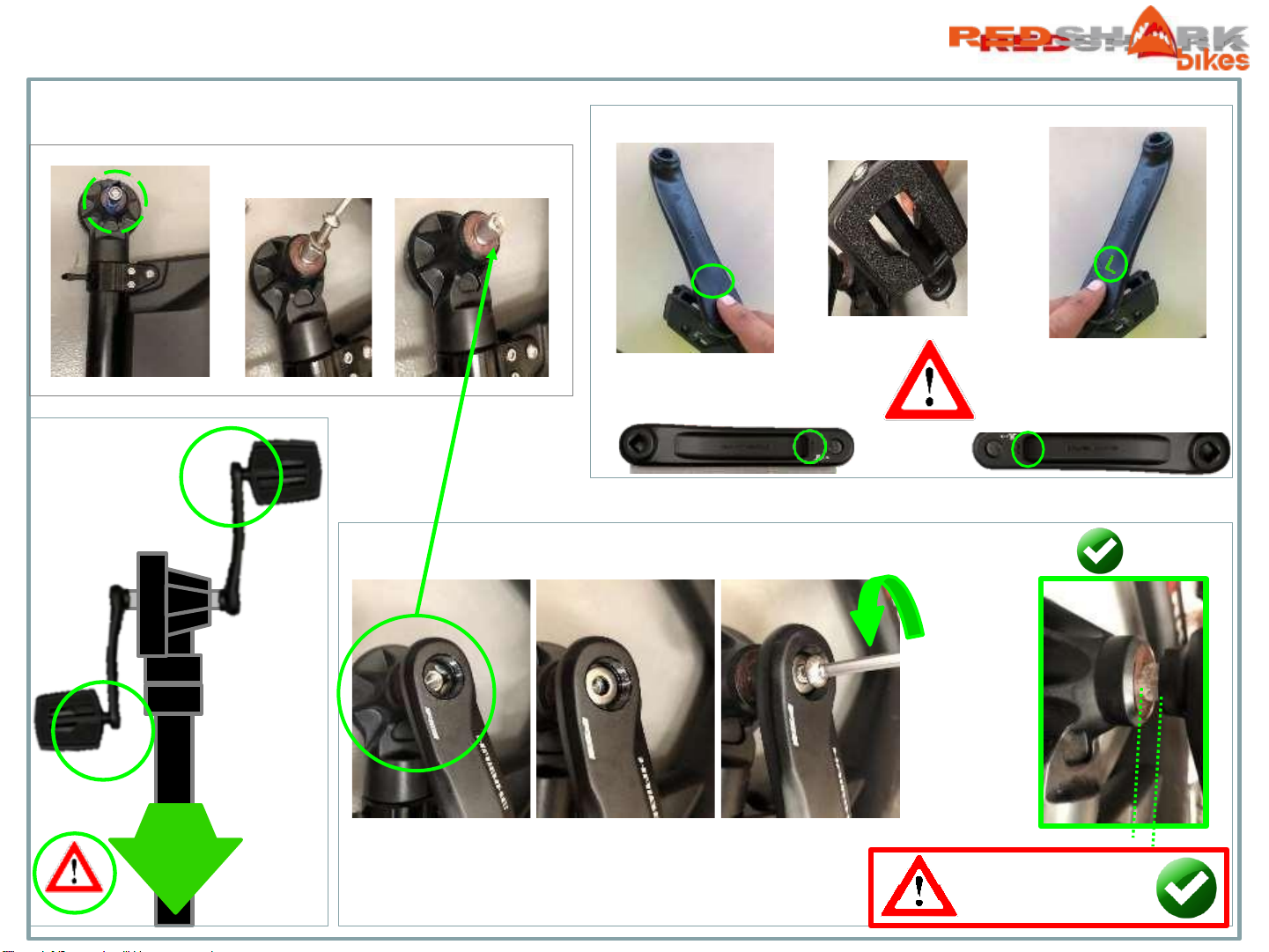

8. PEDALS assembly
8.1 RemoveBold and washer
8.2 Find the pedalsSIDE
ASSEMBLY INSTRUCTIONS
8.3Screw the bold with the washer in to the transmisión axel
L
R
R
RIGTHcrank mark LEFTcrankmark
a. Insert the PEDAL crank b. Insert the WASHER b. Tight the BOLD
TORQUE
SPECIFICATIONS
10 Newtons
RIGTH
side
LEFT
side
L
R
front
direction TORQUE SPECIFICATIONS:
10 Newtons

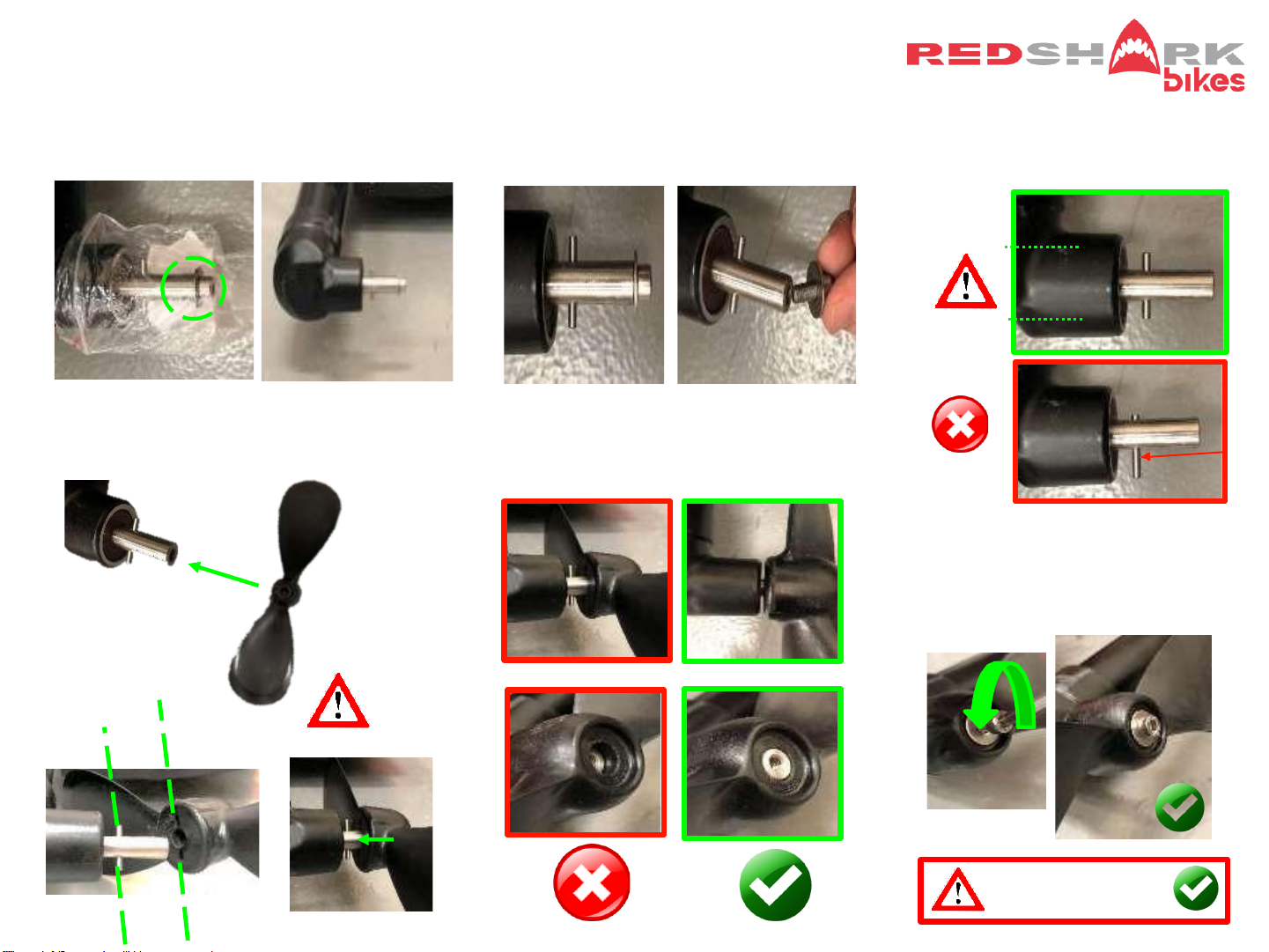

9. PROPELLER assembly
9.1Remove carefullythe plastic protection9.2.Removethebold and washer 9.3Needleplacement
9.4PROPELLERplacement
ASSEMBLY INSTRUCTIONS
9.5Tight the bolt and the washer
A
A
TORQUE SPECIFICATIONS:
4 Newtons

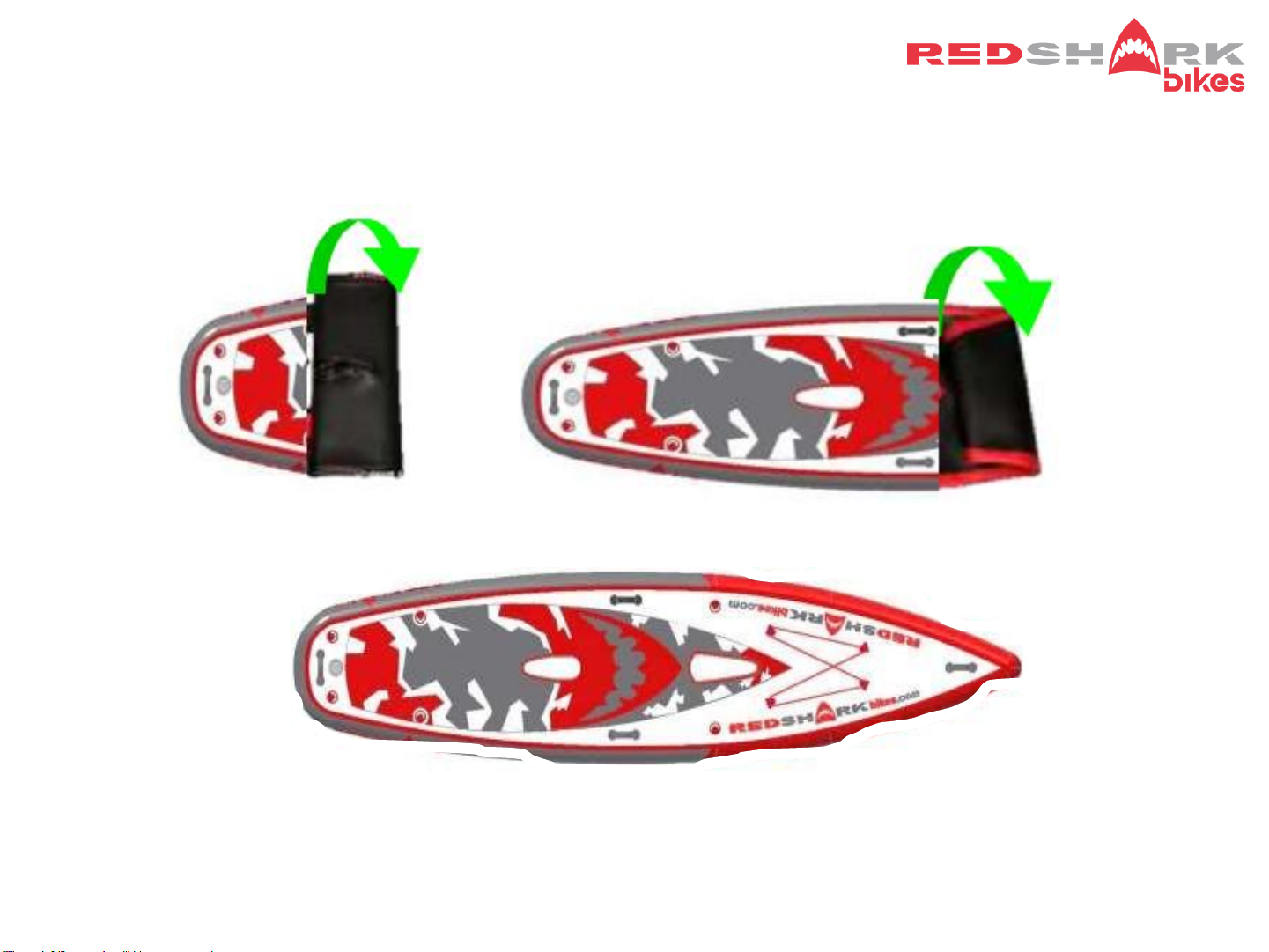

10.BOARD assembly
10.1.Extendthe board
ASSEMBLY INSTRUCTIONS

10.BOARD assembly (Puff up /step 1 from 2)
10.2Use the AIR PUMP to haveonly a LITTLE PRESSURE to get the basic shape.
ASSEMBLY INSTRUCTIONS
KEEP ATTENTION:
T h e A & B H o l e s s u r f a c e : m u s t be
c o m p l e t e l y c l e a n f r o m d u s t , s a n d a n d
o t h e r d i r t y e l e m e n t s . If not it c o u l d
d a m a g e on t h e board s k i n .
If y o u f i n d a i r l e a k a g e on t h e v a l v e ,
u s e t h e b l a c k t o o l ( i n c l u d e d on t h e
r e p a i r k i t t o o l s ) to t i g h t or to
d i s a s s em b l e t h e v a l v e a n d c h e c k if is
d i r t y and y o u c a n c l e a n it .
B. Board HOLE(rear) A. Board Rudder HOLE (front)
Inflate to 1psi(approx.)
Unscrew the cap. Check the position of the valve spout
Press 1 time or 2 times Insert the air
pump Puff up the air to 1 psi Remove the air pump

10. BOARD assembly
10.5.RUDDER in vertical
position
10.3.TURN THE FRAME UPSIDE DOWN
10.4.PROPELLERin vertical position
ASSEMBLY INSTRUCTIONS
KEEP ATTENTION to protect these elements (handlebars and saddle):
To avoid damage to the handlebars and saddle with rough or abrasive flooring (please protect these elements with the SADDLE COVER or putting a rag or towel on the floor where
you are going to perform this action ...)

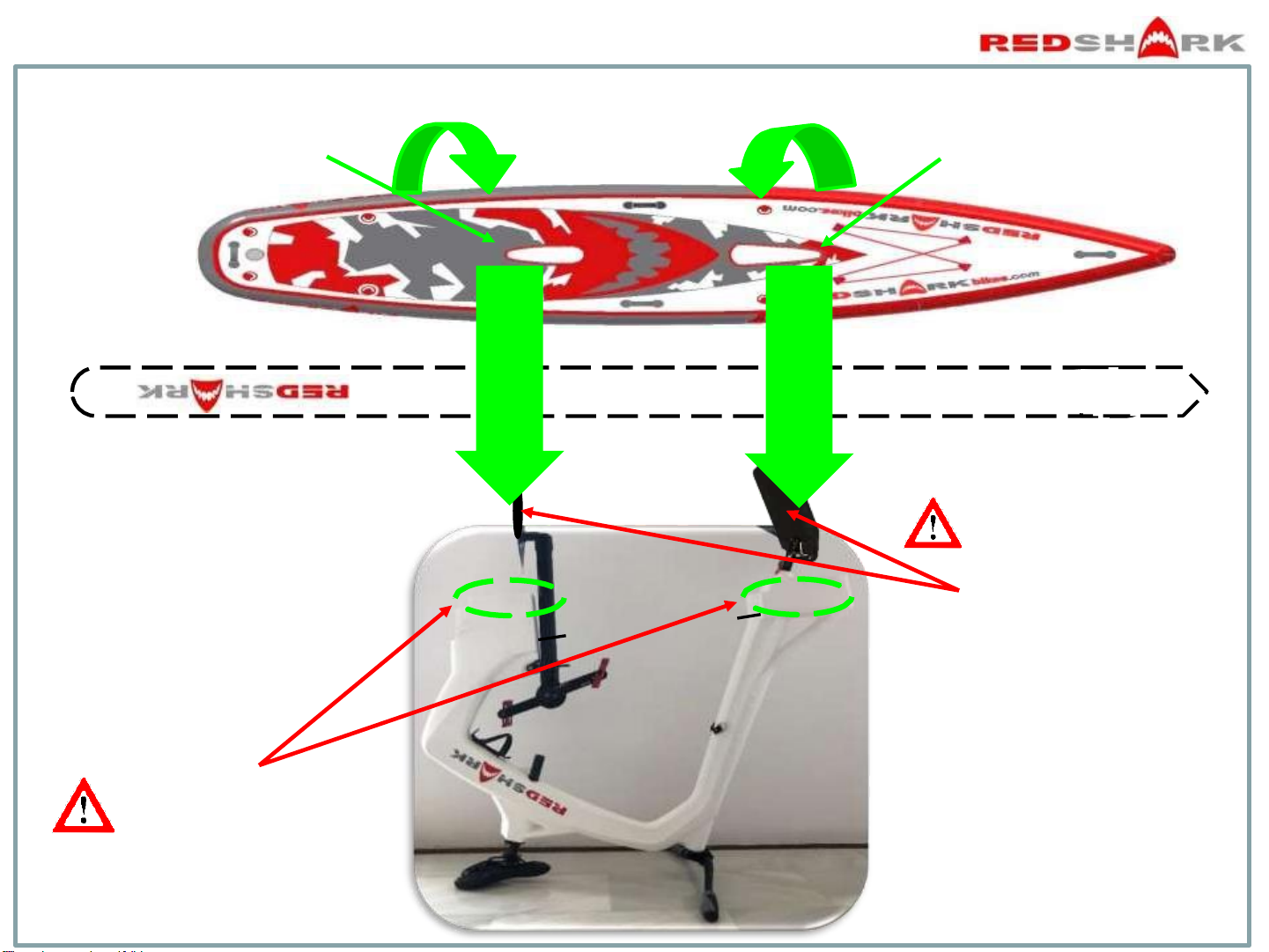

A. Board Rudder HOLE A (front)
10. BOARD assembly
B. Boardpropeller HOLE B (rear)
ASSEMBLY INSTRUCTIONS
BA
KEEP ATTENTION:
AVOID THE INTERFERENCES from
the rudder and propeller with the board
surface (holes A and B) if not it could
generate damages on the board.
Suggestion: You can use a cloth rag to
cover this two elements.
KEEPATTENTION:
The A&BHoles surface, must be
completely clean from dust, sand and
other dirty elements. If not it could
generate damages on the board skin.
Please clean always before.
Flip the table
BA

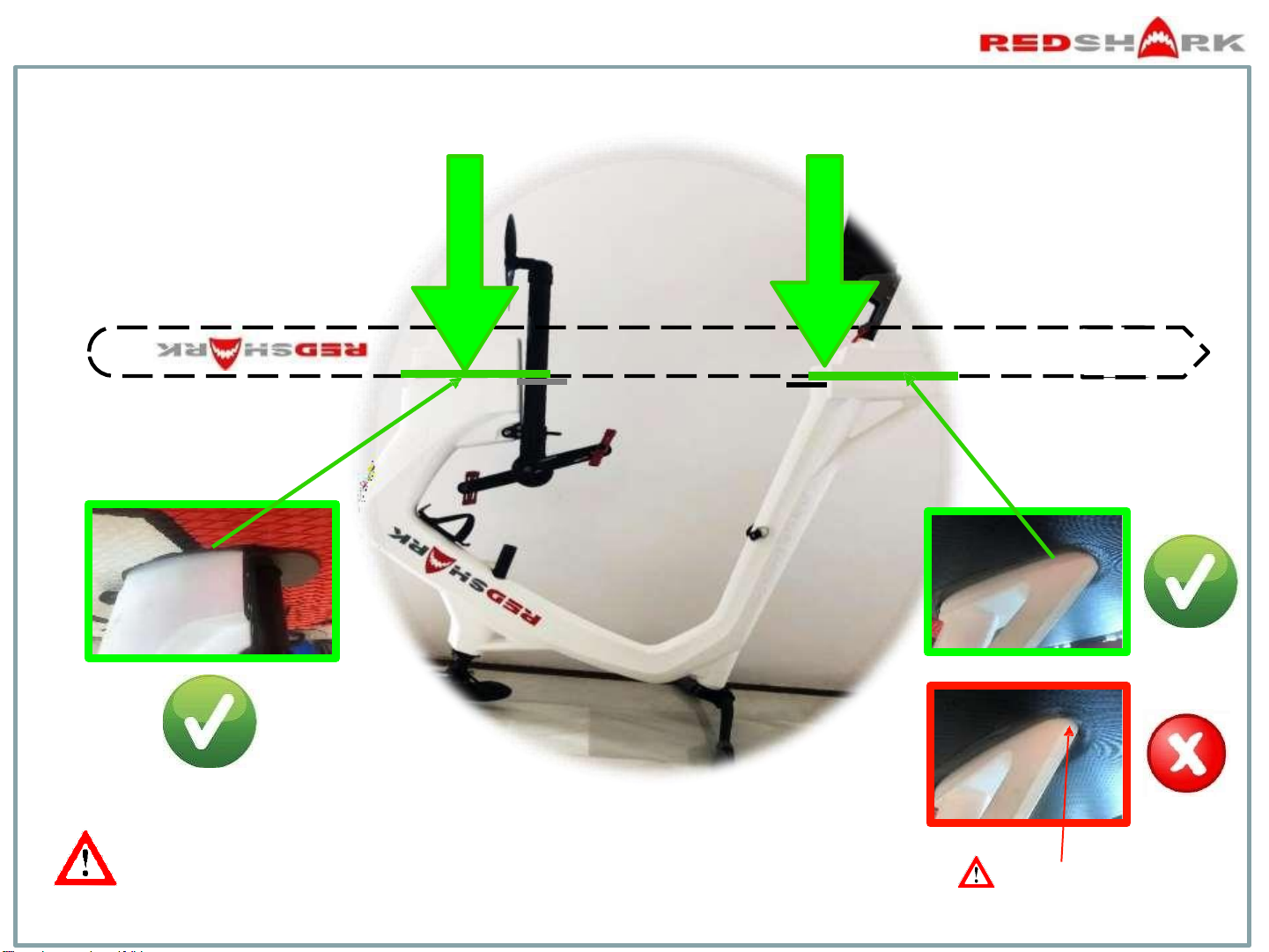

a. Move theboard in to theframe
10. BOARD assembly
ASSEMBLY INSTRUCTIONS
Toodeep!
KEEPATTENTION:
The A & B Holes surface: must be completelyclean from
dust, sand and other dirty elements. If not it could
generate damages on the board skin.
Rear BFront A
