Redx RX Series User manual

Rev 20220606
RX2505AC
Page 1of 35
User Manual
RX SERIES ALL IN ONE
RX-2505AC

Rev 20220606
RX2505AC
Page 2of 35

Rev 20220606
RX2505AC
Page 3of 35
All Rights Reserved
No part of this document can be reproduced in any form or by any means without the prior written
permission of Redx.
Trademarks
and other Redx trademarks used in this manual are owned by Redx.
All other trademarks or registered trademarks mentioned in this document are owned by their
respective owners.
Software Licenses
It is prohibited to use data confirmed in firmware or software developed by Redx, in part or in full,
for commercial purposes by any means.
It is prohibited to perform reverse engineering, cracking, or any other operations that compromise
the original program design of the software developed by Redx.
Contact Us
Redx Technology Australia Pty Ltd
Address: U2 /21 Millennium Circuit, Helensvale, Australia 4212
Tel: [phone]
Email: [e-mail]
Website: www.redxenergy.com.au
ABN: 76614340546

Rev 20220606
RX2505AC
Page 4of 35
About This Manual
This manual mainly describes the product information, installation, operation, and maintenance guidelines
of the Redx energy storage system. Please read this manual carefully before using this product and store
the manual in asafe place. Redx will not notify the user of any changes to this manual.
This manual applies to the RX-2505AC all in one energy storage integrated system. The system must be
installed by aqualified/licensed technician. The battery chemistry in the all-in-one energy storage system is
lithium iron phosphate. We strongly recommend that installers read this manual carefully. The manual includes
the guidance on product installation, troubleshooting, communication and other aspects.

Rev 20220606
RX2505AC
Page 5of 35
Table of Contents
1Safety ...............................................................................................................7
1.1 Important Safety instructions........................................................................7
2Product Introduction ........................................................................................9
2.1 System diagram.............................................................................................9
2.2 Product Information ......................................................................................9
2.2.1 Appearance and dimensions.....................................................................9
2.2.2 Dimensions and weight...........................................................................10
2.3 LED Indicator Panel and Switches ................................................................11
2.4 Name Plate Labelling...................................................................................12
2.4.1 Product benefits .......................................................................................12
2.5 Scope of Delivery .........................................................................................13
2.6 Storage ........................................................................................................13
3Installation .....................................................................................................13
3.1 Installation preparation...............................................................................13

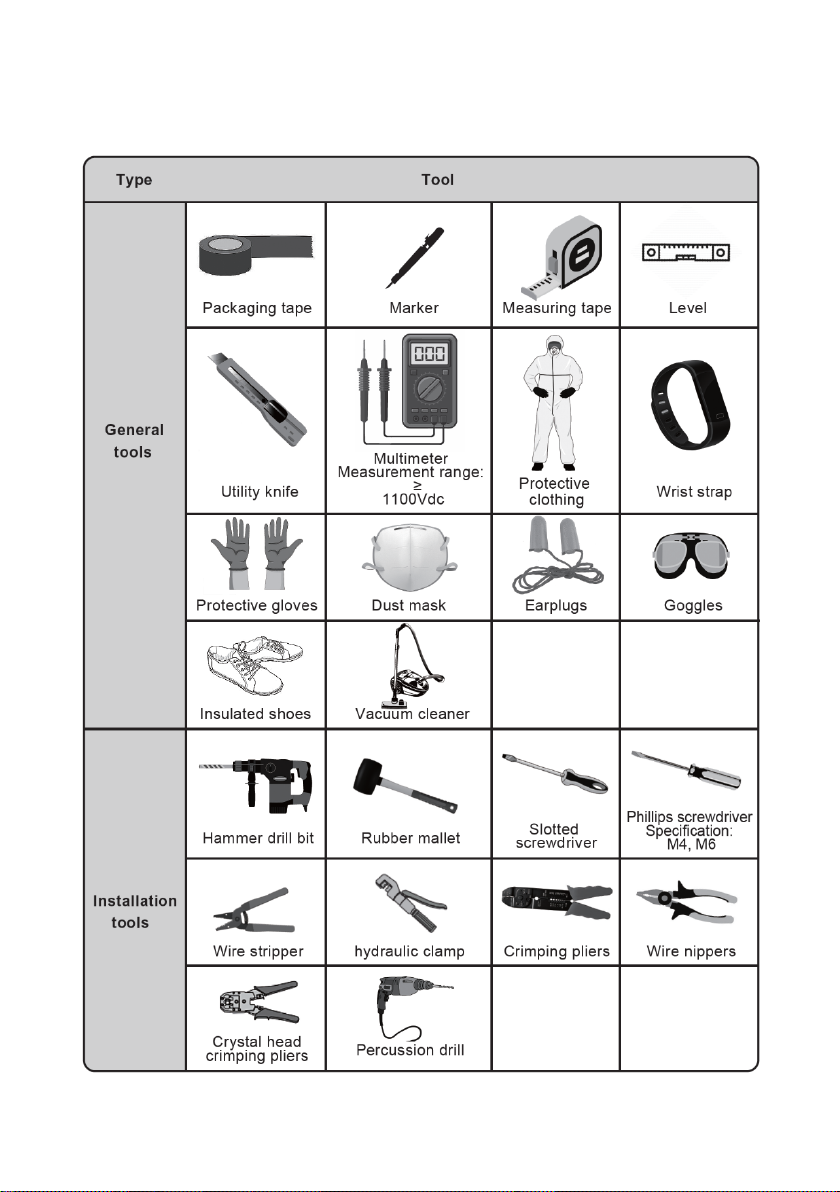

3.2 Installation Tools ...........................................................................................15
4Installation guide............................................................................................16
4.1 System wiring diagram ................................................................................16
4.2Installation procedure .................................................................................17
4.3 Earth Connection.........................................................................................17
5Cable Connection............................................................................................ 18
5.1 Connect cables to the AC grid side and off-grid side....................................18
5.2 CT/METER Connection ....................................................................................22
5.3 External RS 485 Connection .........................................................................23
5.4 Connection of DRM0 terminal (Australia only) ............................................23

Rev 20220606
RX2505AC
Page 6of 35
6Operation .......................................................................................................24
6.1 Checklist before operation...........................................................................24
6.2 Operation checks.........................................................................................25
6.3 Operation modes.........................................................................................25
6.3.1 Operating modes.....................................................................................25
6.3.2 Fault state................................................................................................26
6.3.3 Firmware update.....................................................................................26
6.3.4 Self-check Status .....................................................................................26
6.3.5 Standby Status.........................................................................................26
6.3.6 Protection Mode .....................................................................................26
6.3.7 Shutdown Status .....................................................................................26
6.4 Communication ...........................................................................................27
7RX-2505AC System turn on and turn off..........................................................27
7.1 Turn on RX-2505AC system ..........................................................................27
7.2 Turn off RX-2505AC system..........................................................................27
8Troubleshooting & Maintenance ....................................................................27
8.1 Troubleshooting...........................................................................................27
8.2 Maintenance ...............................................................................................30
8.3 Routine Maintenance ..................................................................................31
9Redx Technology App .....................................................................................31
10 Quality Assurance.......................................................................................31
11 Appendix ....................................................................................................32
11.1 Product Specification...................................................................................32
11.2 Optional accessories ......................................................................................34
12 Contact .......................................................................................................35

Rev 20220606
RX2505AC
Page 7of 35
1Safety
1.1 Important Safety instructions
The Energy storage system has been designed and tested strictly according to international
safety regulations. Read all safety instructions carefully prior to any work and always observe
them when working with the energy storage system.
Incorrect Operation or Work may cause:
•Injury or death to the operator or third party; or
•Damage to the inverter and other property or third party.
Safety Instructions
a) Do not open the case as risk of electric shock is present
b) Maintenance should be carried out by aprofessional licensed technician
c) Read this manual before operating the system. Redx is not responsible for any failure or
loss arising out of improper operation.
d) All wiring, installation, commissioning, and other work should be done by a professional
licensed technician
e) Ensure that the storage unit is not installed or used in the following locations:
•Poorly ventilated room
•Places with inflammable gases or corrosive materials and large amounts of dust
•High or low Environment temperature (above 50°C or below 0°C), or high humidity
(greater than 90%)
•In direct sunlight or near heating equipment
●Outdoors, (indoor installation only)
•Do not use anything to cover the inlet and exhaust of the module
In case of fire, use dry powder fire extinguishers instead of liquid fire extinguishers.
All electrical connections are subject to the local grid safety regulations and the storage system
should be reconnected to the grid under conditions of approval.

Rev 20220606
RX2505AC
Page 8of 35
Danger!
Removal of any protection, incorrect use, incorrect installation, or incorrect
Operation may result in death/serious personal injury or device damage.
Transportation, loading and unloading, installation, start-up and maintenance
Must be carried out by qualified or trained engineer/technician.
60S
Danger!
Before maintenance or touching any parts, or installation, make sure that the
Energy storage unit is disconnected and wait 60 seconds to ensure that the
Internal capacitors are discharged.
Danger!
Do not connect the grid cable to the EPS output, otherwise it may cause
Serious damage to the system and load.
Warning!
Installation must be in full compliance with national and local laws and
regulations.
Warning!
Ensure that the system is positioned correctly and is not allowed to roll
sideways nor is upside down.
Warning!
Do not change the internal circuit of the machine without permission.
Warning!
Before connecting to the grid, system the must be connected to the Ground.
Follow the instructions. Improper operation may cause serious damage.
Notice
There is a 4G/WIFI device inside the system, do not place the system in an
Environment where there is no 4G/WIFI signal.
Table 1-1 - Warnings

Rev 20220606
RX2505AC
Page 9of 35
Figure 2-2 – Battery system components
2Product Introduction
2.1 System diagram
The RX-2505AC system uses the grid and battery to ensure the continuous power supply to important
loads. The system allows users to store the energy from grid into the battery, and send the stored energy to
the grid when needed. It can also provide backup power during apower outage.
Figure 2-1 shows the application of the RX-2505AC all-in-one energy storage system. RX-2505AC
contains the inverter and battery storage modules. It is important to keep the installation environment well
ventilated and take necessary measures to control the ambient temperature to avoid the risk of explosion
caused by excessive battery temperature.
2.2 Product Information
2.2.1 Appearance and dimensions
Figure 2-1 – System block diagram

Rev 20220606
RX2505AC
Page 10 of 35
Figure 2-3 – Battery system dimensions
2.2.2 Dimensions and weight
A(mm)
B(mm)
C(mm)
Weight
145
600
900
75kg
Items
Name
1
Main power Switch
2
Battery air circuit-breaker
3
DRM0 RJ45 Terminal
4
RS485(USB)
5
CT/METER Terminal
6
EPS Terminal
7
AC Terminal
8
Battery status indicator
9
Run Indicator light
10
VPP Indicator light
11
Grid Indicator light
12
Battery Indicator light
13
Mounting bracket
Table 2-1 – Battery components details
Table 2-2 – Battery systems dimensions details

Rev 20220606
RX2505AC
Page 11 of 35

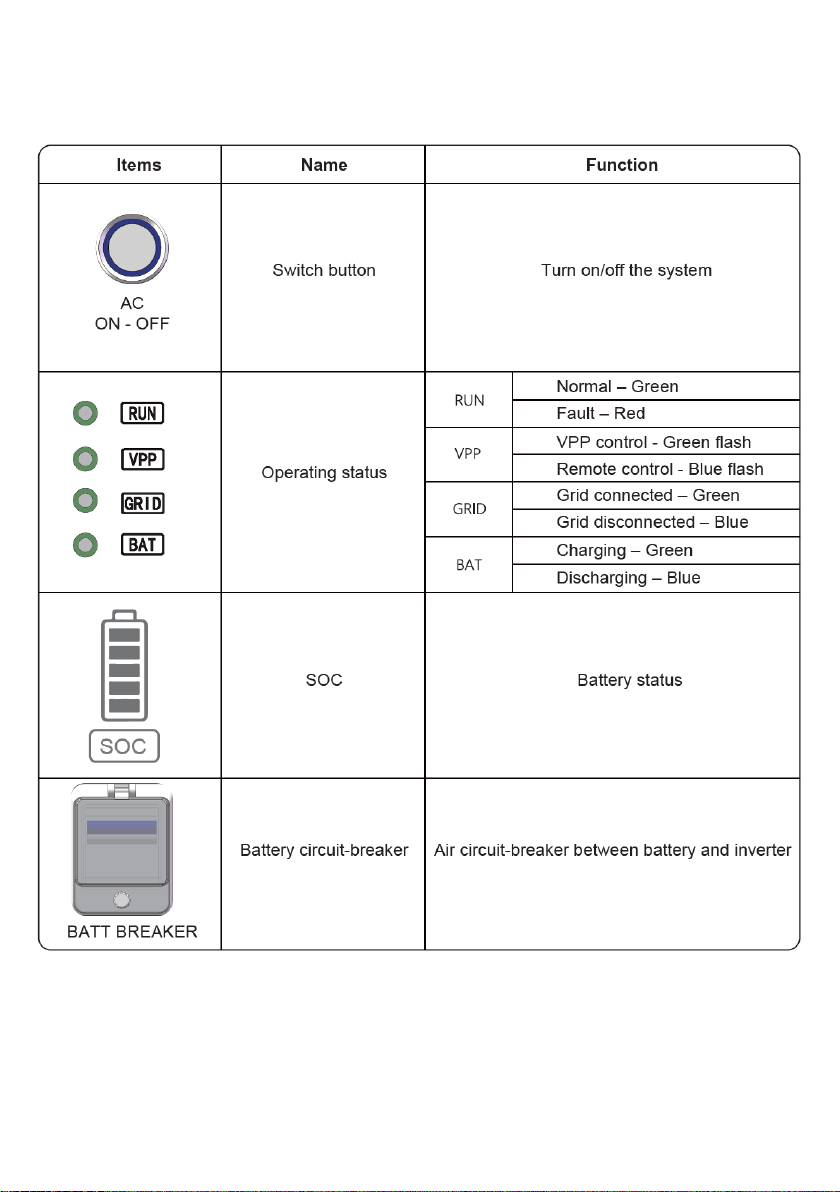

2.3 LED Indicator Panel and Switches
Table 2-3 – Battery interface details

Rev 20220606
RX2505AC
Page 12 of 35
2.4 Name Plate Labelling
RX-2505AC label contains the following information.
2.4.1 Product benefits
a. Backup power supply, peak shaving, asset management
b. Integrated design, save installation time and costs
c. Smart management, different operating modes
d. Battery safety management system
e. Remote scheduling, intelligent management
f. Multiple protection
Table 2-4 – Battery label specifications

Rev 20220606
RX2505AC
Page 13 of 35
Figure 2-4 - Packaging
2.5 Scope of Delivery
Please check the condition of the packaging before unpacking. If any parts are damaged or missing,
contact your local supplier for help.
2.6 Storage
Store the unit properly when the unit is not installed immediately
•Store the unit in the original packaging box
•Storage temperature should be always between 0°Cand 50°C+
•Package dimensions 1025x755x330(mm), weight 101.5kg.
•Maximum stacking 5 pallets
3Installation
3.1 Installation preparation
a. Indoor installation only, IP32
b. Vertically mount only
c. Install in aventilated location. There must be enough clearance to ensure that the
module operates in the optimal heat dissipation state.

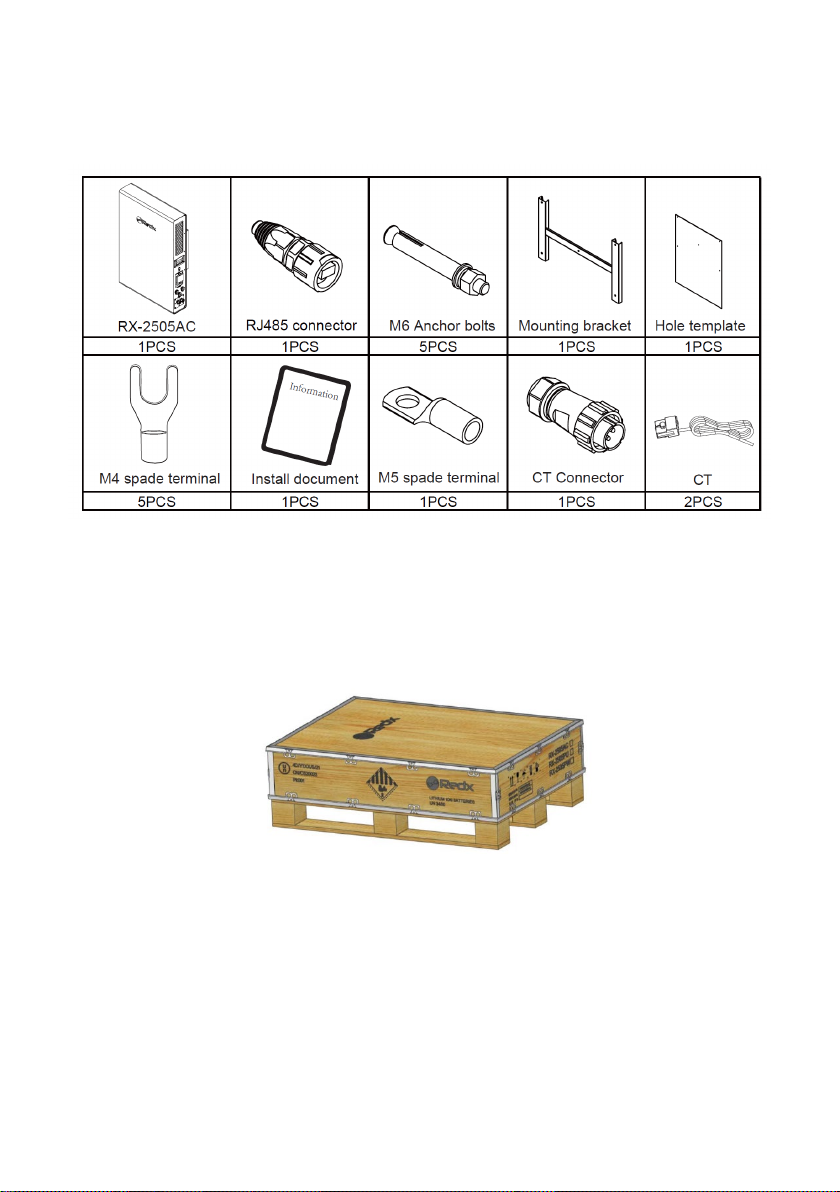

Table 2-5 – Parts in the box

Rev 20220606
RX2505AC
Page 14 of 35

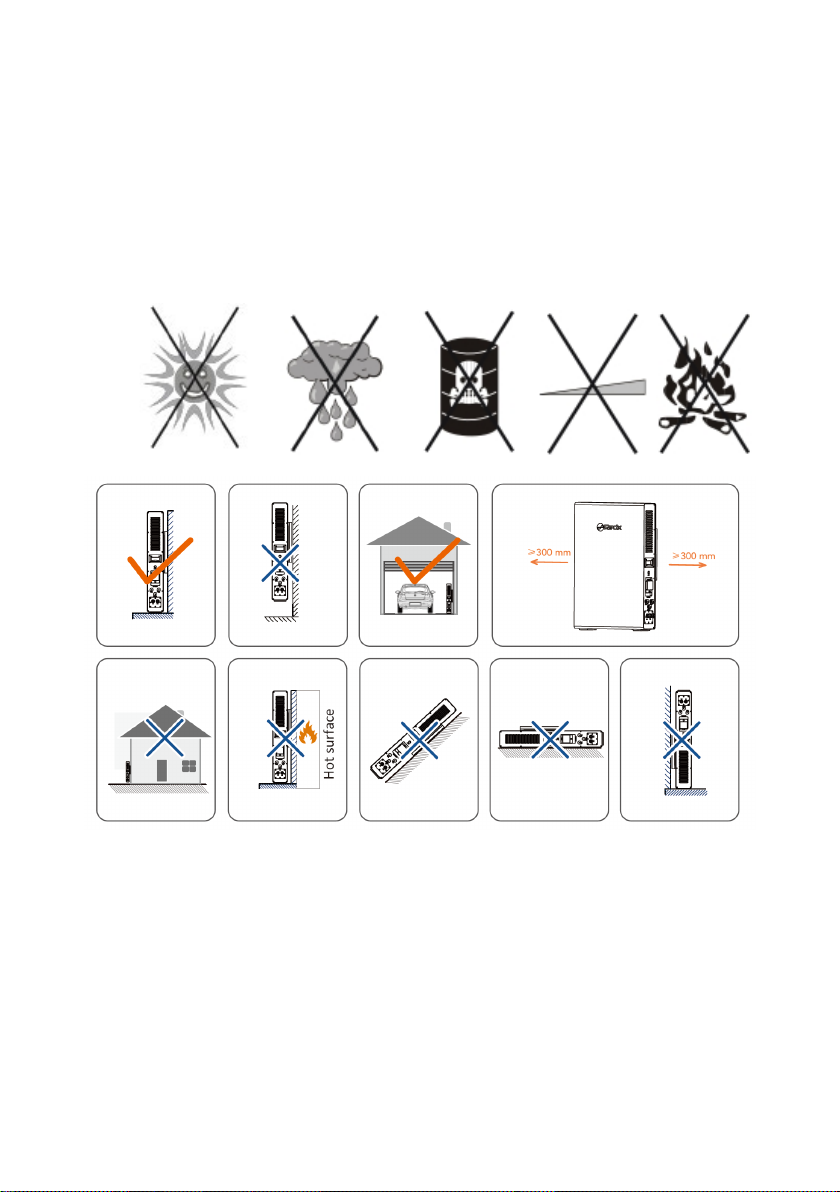

Figure 3-1 – Installation locations
d. Install at suitable distance from any restricted areas, please review Standard ASNZS5139
e. Install on asturdy supported surface
f. The location must support the weight and size of the module
g. The environmental temperature must be between 0°C and +50 °C, and the relative humidity
between 0% and 90% (without condensation)
h. Check the fans in the unit regularly
i. Location shall be dry with adequate air flow (pollution level <2) and without excessive dust
j. Wiring terminals require protective covers
k. Installation is prohibited in any of the following environments:
high temperature rain corrosion slope fire
The minimum clearance on the sides must be maintained at least 300mm
a. Installation location of the system should be easy for operator to turn off at any time.
b. Do not install the system near signal transmitters.
c. Do not install the system in the living area.
d. Do not install the system at location where children can easily access.

Rev 20220606
RX2505AC
Page 15 of 35
Table 3-1 – Installation tools
3.2 Installation Tools
Prepare the following tools before installation:

Rev 20220606
RX2505AC
Page 16 of 35
Figure 4-1 – Battery system connections topology
4Installation guide
4.1 System wiring diagram
Figure 4-1 shows the wiring topology (dashed boxes indicate optional components) of the RX-2505AC all-in-
one energy storage system. The RX-2505AC can be connected to amaximum of two wired CTs, please
note that the CT cable length should not exceed 10m.
Red indicates apower cable, blue indicates asignal cable，green indicates wireless communication.
The details are as follows:
Number
Name
A
RX-2505AC
B
AC switch
C
Switchboard
D
Load
E
Smartmeter/CT
F
Grid
G
Optional 4G Module
H
Auxiliary WLAN-FE Module
I
APP
J
Management system
Table 4-1 – Battery connection details

Rev 20220606
RX2505AC
Page 17 of 35

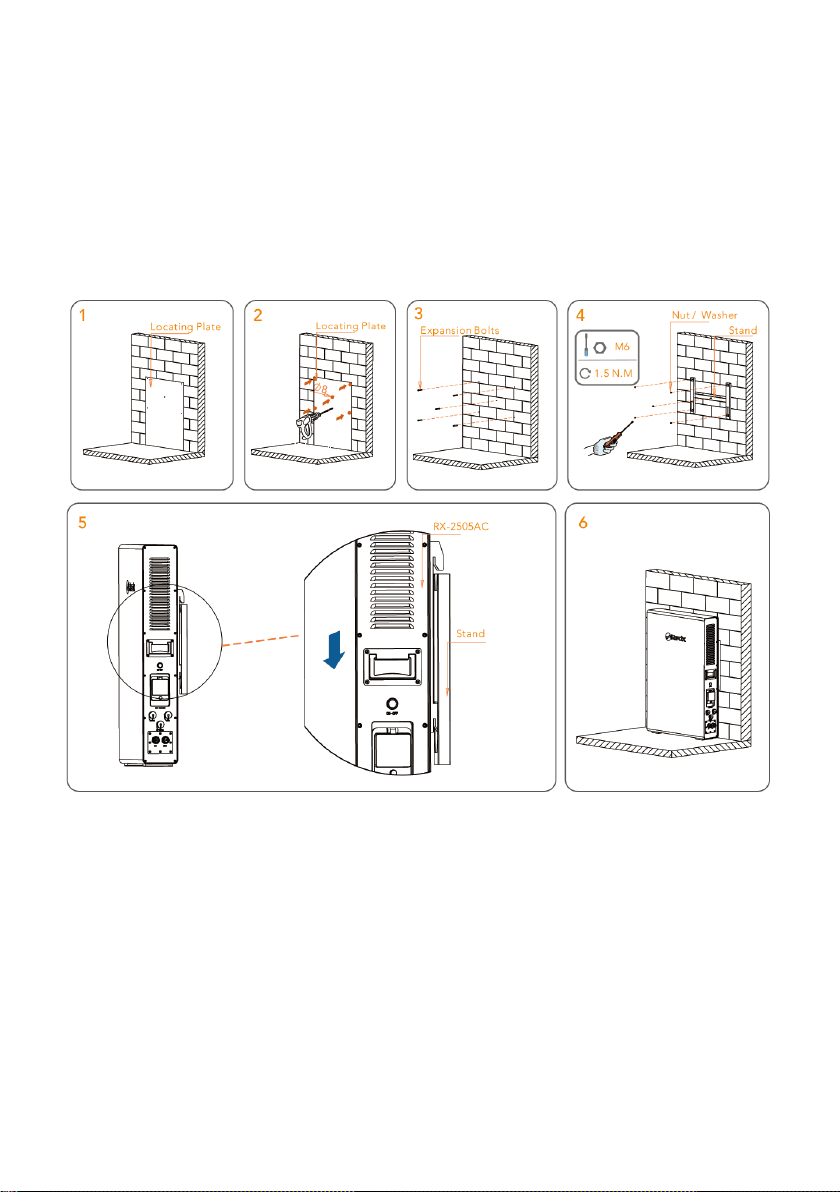

Figure 4-2 – Battery unit mounting steps
4.2 Installation procedure
1. Align the hole template (locating plate)with the ground and place it flat on the wall.
2. Align the hole template on the installation surface and drill holeswith adiameter of 8mm and adepth of
40mm on the wall.
3. Install the m6x60 expansion screwsinto the previously drilled holes.
4. Secure the fixing bracket to the wall using asocket wrench and tighten the expansion bolts.
5. Align the unit with the fixing bracket on the wall and lift the unit on to the bracket by lowering it into the
holes.
6. Prepare the unit for installation of cabling.
4.3 Earth Connection
A secondary protection grounding terminal can be found on the system. Ensure that the grounding
resistance is less than 10 Ω and the grounding cable diameter is not greater than 10mm2.

Rev 20220606
RX2505AC
Page 18 of 35
Figure
5-1 – Battery 240V terminals and covers
5Cable Connection
5.1 Connect cables to the AC grid side and off-grid side
RX-2505AC has terminals for on and off-grid. As shown in Figure 5-1, the left terminal is the off-grid
terminal (EPS) and the right terminal is the on-grid terminal. An independent AC circuit breaker must be
configured for each circuit to safely disconnect then system. When selecting the external cable, consider
the hole in the cable gland.The table below is a recommendation for cable selection. Engineers should
refer to local standards to select cables. Cable length is generally 2 to 10 meters, long cable will lead to
voltage drop from the rated value, consequently requiring an increase of the cross-sectional area.
Recommended specifications of AC circuit breaker:
The following table lists the recommended specifications of AC cables:
Model
AC circuit breaker recommendation
RX-2505AC
25A
Model
Cross-sectional area (mm2)
Cable outer diameter(mm2)
Range
Best
Range
Best
RX-2505AC
4-6
4
10-14
14
1
2
RX-2505AC terminals
GRID/EPS wiring cover
Table 5-1 – Circuit breaker sizing
Table 5-2 – Cable sizing
Table 5-3 – Battery 240V terminal cover details

Rev 20220606
RX2505AC
Page 19 of 35
Figure 5-3 - Terminal cover
Figure 5-2 – Cable crimping instructions
Figure
5-4 - Wiring terminals
Requirements
1.Install anAC circuit breaker between the inverter and the grid before connecting the system to the grid.
2. Grid voltage and grid frequency should be within the allowable range of inverter operation.
Steps
1. First, prepare the required connecting wires according to the following. It is recommended that
the live wire be red, the ground wire be black, and the safety earth wire be yellow and green.
2. Remove the cover of the terminal
3.Note the wiring terminals

Rev 20220606
RX2505AC
Page 20 of 35
4.Connect the cable to the corresponding terminal according to the marking and tighten the screws:
5. Follow similar steps to connect the off-grid side, ensure that all wires are securely connected and
reinstall the cover plate.
The recommended connection is as follows:
This diagram is an example for an installation where Neutral connects to PE in the switchboard.
Example countries that have this regulation: Australia, New Zealand. Please follow local wiring regulations!
Note:
The battery inverter does not have an internal RCD as it is isolated. If an external RCD breaker is mandatory
in the country of installation, it must be a type A RCD with the rating residual current not more than 30mA.
1
2
3
4
5
6
Nuts
GRID
3 core cable
EPS
3 core cable
Rubber seal
Rubber seal
Cover
Table 5-4 – Cable and cover details
Figure 5-6 – 240V connection diagram Off-grid and On-grid
Figure 5-5 – Cable cover guide
