Regal SC401 Supplement

MODEL SC401
DUAL CYLINDER SCALE
INSTALLATION/SERVICE MANUAL
The entire contents of this manual MUST be read and understood
prior to installing and operating this equipment.
Do not discard this manual upon completion of the installation as this manual contains information
essential to the safe handling, operation, and maintenance of this equipment.
1044 SE Dixie Cutoff Road, Stuart, FL 34994 USA
Instruction Bulletin 401

Chlorinators Incorporated (hereinafter called "C.I.") sets forth the
following warranties with respect to its REGAL Model SC401 Dual
Cylinder Scale. This warranty does not apply to the purchase of spare
parts or other services performed by C.I. or its authorized Dealers. This
represents the entire agreement between C.I. and Buyer (also referred
to as "end-user") and shall apply unless modified in writing and signed
by a C.I. Officer, and this warranty and its intended terms shall supersede
any prior negotiations, correspondence, understandings, or agreements,
written or oral. The Buyer agrees to and accepts all terms of this
warranty by its contracting for or acceptance of C.I.'s products, and
forms or other documents or statements issued by Buyer or any other
person shall not modify or otherwise affect any of the following terms.
Buyer should be aware that reseller must rely entirely upon Chlorinators
Incorporated's warranties, or assume their own responsibility.
The following states C.I.’s entire warranty and
represents Buyer's exclusive remedy with
respect to its product. Such warranties are
expressly given in lieu of any other warranty,
expressed or implied, including but not limited
to those of merchantability and fitness for a
particular purpose. This expressed warranty
or any other warranty implied by law shall not
cover defects due to accident, improper use,
or non-compliance with C.I.'s operating and
maintenance, assembly, installation manual
and instructions.
Recommendations and advice as to specifications, capabilities,
design, installation, engineering, application, and use of products are
provided as an accommodation, and are intended only as suggestions.
C.I. assumes no liability for such recommendations and advice, and
they are not to be construed as constituting any warranty, expressed
or implied.
TERMS OF WARRANTY
C.I. warrants its REGAL Model SC401 Dual Cylinder Scale for a period
of one (1) year from date of shipment from C.I. Date of shipment from the
factory shall be determined solely on the basis of the serial code affixed
to the SC401’s enclosure. The serial number contains a date code. All
serial numbers are also registered by Chlorinators Incorporated as to
date of shipment, model number, accessories, options, and billing name.
If the serial number is missing, defaced, changed, or in any way
rendered unreadable, Chlorinators Incorporated shall, at its option, have
the right to declare the warranty void. If the serial number does not match
the registered model number as to, but not limited to, such items as
accessories or options, the same shall apply.
The warranty shall apply against material defects in components and
workmanship occurring in the course of manufacture. Buyer's sole
remedy for breach of said warranty shall be, at C.I.'s option, either repair
or replacement of any unit which is received by C.I. at its plant in Stuart,
Florida, (shipping charges prepaid by buyer) within the time period set
forth above and which is found by C.I. to be defective by reason of
manufacture.
Notwithstanding the foregoing, C.I. shall not
be liable to Buyer for damages, including
personal injury or death to any person or
persons, or claims of any kind by a third
party, or property damage, or loss of business
or profits. In no event shall C.I. be liable to
Buyer for consequential or accidental dam-
ages of any kind, even if C.I. was aware of the
possibility of such damages. There are no
remedies except those set forth. Further, that
there are no other authorized warranty repair
facilities other than those at the Chlorinators
Incorporated factory in Stuart, Florida.
EXCLUSIONS
The following are considered external environmental factors beyond
the control of C.I., and which may cause damage and/or need for service
which will be specifically excluded from this warranty (i.e., not a material
defect in components and workmanship occurring in the course of
manufacture).
1. Damage by extraneous causes such as fire, water, lightning,
chemical or galvanic attack, etc.
2. Physical damage due to force, dropping, misuse, or other abuse.
3. Use other than that as described in this Instruction Manual
(misapplication).
4. Repair by someone other than Chlorinators Incorporated.
5. Improperly installed.
The exclusions listed above are provided for purposes of clarification,
and are not intended to, in any way, limit or eliminate other possible
exclusions.
NO OTHER WARRANTIES
Unless otherwise explicitly agreed in writing, and signed by a C.I.
officer, it is understood that this is the only written warranty given by C.I.
for the systems and components stated.
The dealers or representatives of C.I. may not
make verbal representations that add, modify
or change the written warranties contained
herein or change the extent and nature of C.I.’s
liability. In no event shall C.I. be liable for direct,
consequential, special, incidental or punitive
damages of any kind, with respect to the
product, including but not limited to those which
may allegedly arise out of breach of warranty,
breach of contract, negligence, strict liability, or
any other law, governmental regulation, or
court decision, except as provided herein.
CHLORINATORS INCORPORATED ONE (1) YEAR LIMITED WARRANTY
2

The REGAL Model SC401 Dual Cylinder Scale has been
specifically designed for the water and waste water industry
for the weighing of 150 lb. chlorine gas cylinders.
The REGAL Model SC401 Dual Cylinder Scale can
accommodate any gas cylinder not exceeding 12" diameter
and 150 lbs. net weight.
Accuracy: ±1% F.S.
Resolution: 1 lb.
Scale Readability: 1/2 lb.
Scale Capacity: 300 lbs.
Safe Overload Capacity: 400 lbs.
1. Simultaneously weighs two cylinders independently and
displays the net weight on separate indicators.
2. Adjustable cross bar and chains adapt to different size
cylinders.
3. All scales are assembled, tested, and calibrated at the
factory. Simple assembly on the job site is all that is
required.
4. Easy to read 5" scale length with 150 graduations that
allow for 1/2 lb. readability.
GENERAL
SPECIFICATIONS
FEATURES

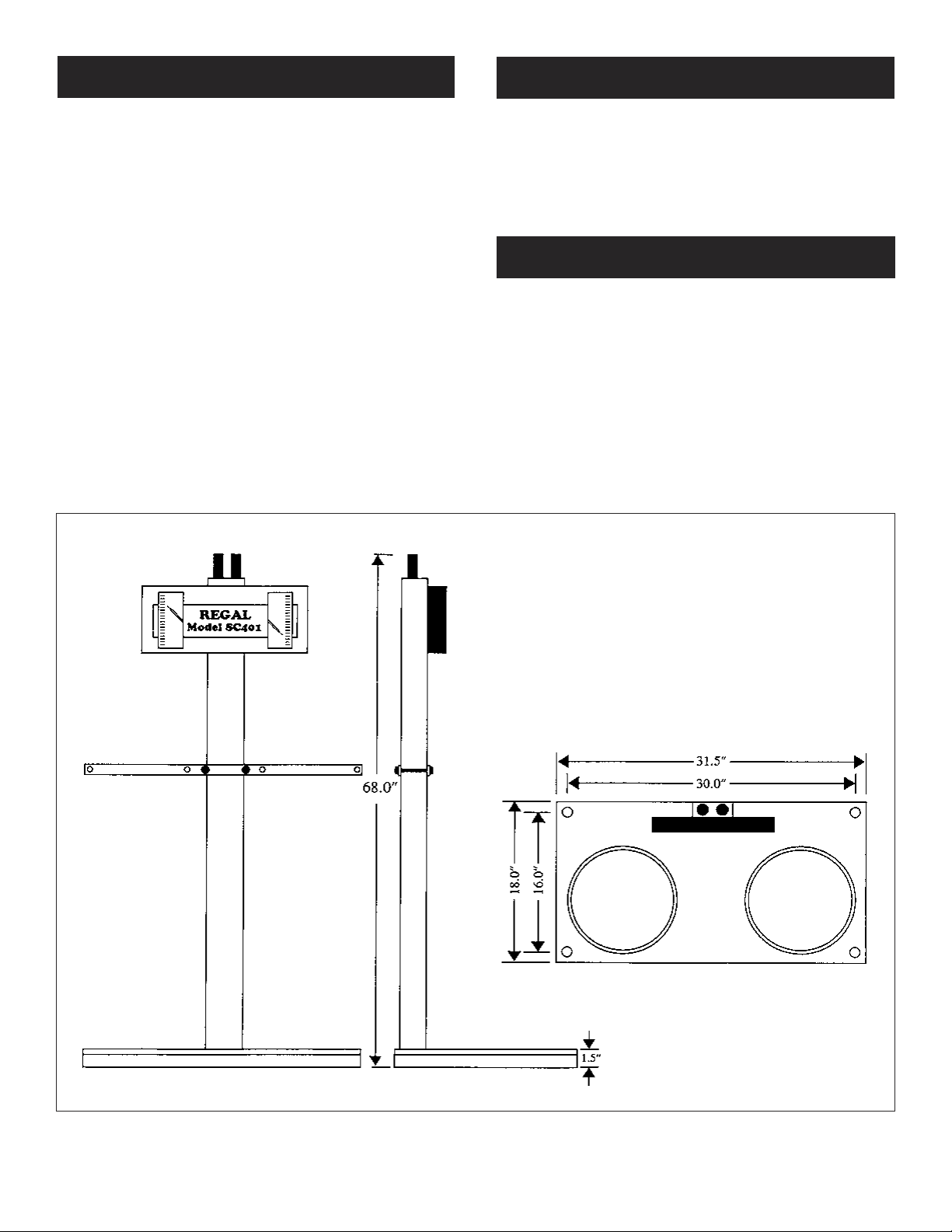

DRAWING NO. 1
REGAL MODEL SC401
Dimensions
3

PARTS LIST
Item Quantity Part No. Description
1 2 SC601 Zero Knob
2 1 SC602 Overlay
3 1 SC603 Backplate
4 1 SC604 Support Arm Strap
5 1 SC605 Support Arm
6 2 SC606 5/16-18 x 4 Hex Bolt
7 2 SC607 5/16 Hex Nut
8 2 SC608 5/16 Lock Washer
9 2 SC609 Cylinder Chain
10 1 SC610 Post
11 1 SC611 Post Clamp
12 12 SC612 10B x 5/8 Self Tap
13 6 SC613 Pivot Screw
14 2 SC614 Disc
15 1 SC615 Deck
16 2 SC616 Stop “E” Ring
17 2 SC617 Steelyard Stop
18 2 SC618 Steelyard
19 2 SC619 Adjusting Nut
20 2 SC620 Jam Nut
21 2 SC621 Clevis
22 2 SC622 Clevis Bushing
23 2 SC623 Link
24 2 SC624 Tension Spring
25 2 SC625 Zero Adjustment Link
26 2 SC626 Socket Set Screw
27 1 SC627 Post Cap
28 2 SC628 Link “E” Ring
29 2 SC629 Dial Scale
30 2 SC630 Pointer Crank Axle
31 2 SC631 Pointer “E” Ring
32 2 SC632 Pointer
33 2 SC633 Axle Bushing
34 2 SC634 Pointer Axle
35 2 SC635 Lock Nut
36 6 SC636 Disc Washer
37 6 SC637 Perimeter Flexure
38 6 SC638 Perimeter Clamp
39 2 SC639 Center Clamp
40 2 SC640 Center Flexure
41 4 SC641 Short Lever
42 2 SC642 Long Lever
43 4 SC643 6A-3/8 Self Tap Hex
44 8 SC644 10-24 x 3/8 Hex Head
45 12 SC645 10B-5/8 Self Tap Phillips
46 8 SC646 10A-3/8 Self Tap Hex
47 3 SC647 10-32 x 3 1/4 Bolt
48 2 SC648 5/16-18 x 2 1/2" Long Hex Head Bolt
49 2 SC649 5/16" Lock Washer

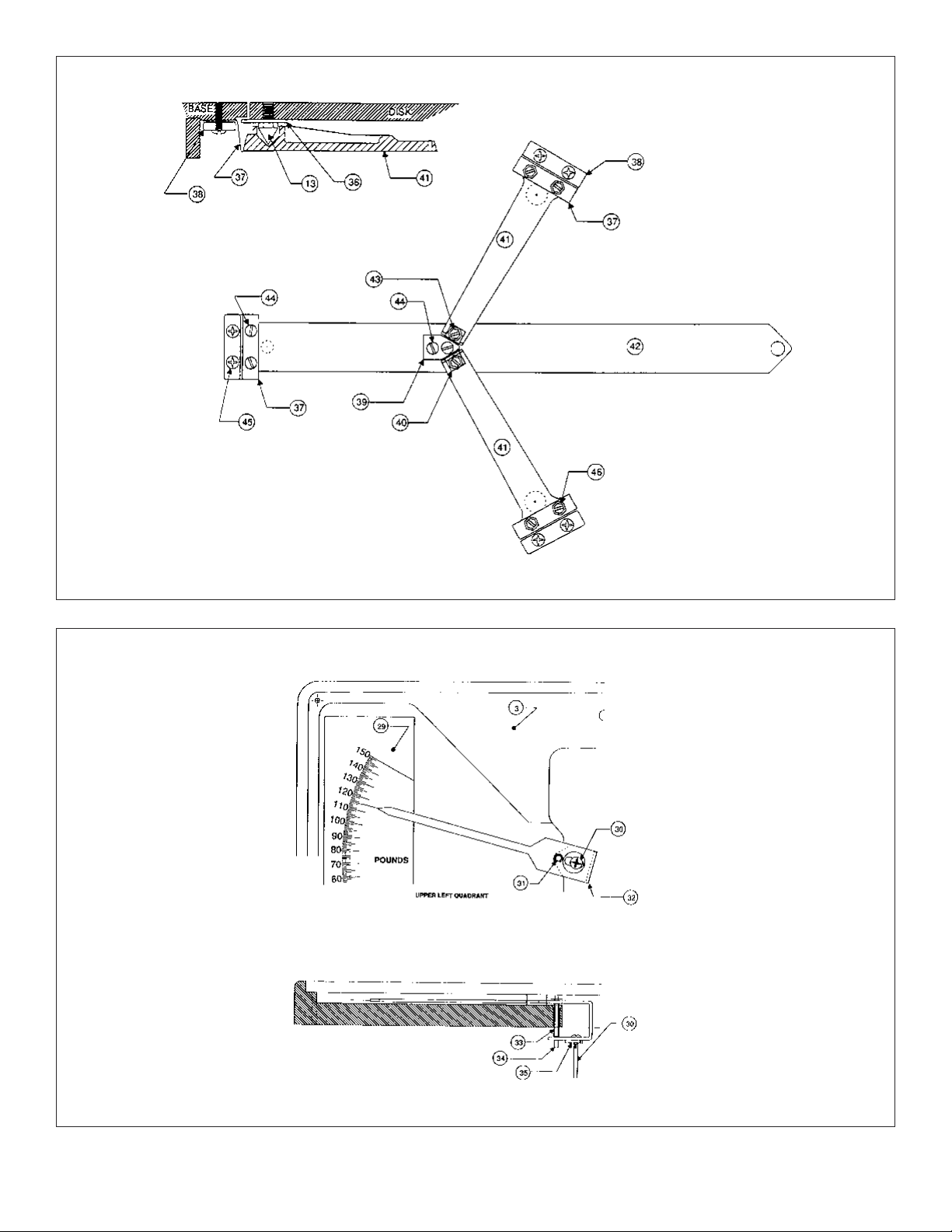

DRAWING NO. 2
4

ASSEMBLY & INSTALLATION CHECKING CALIBRATION

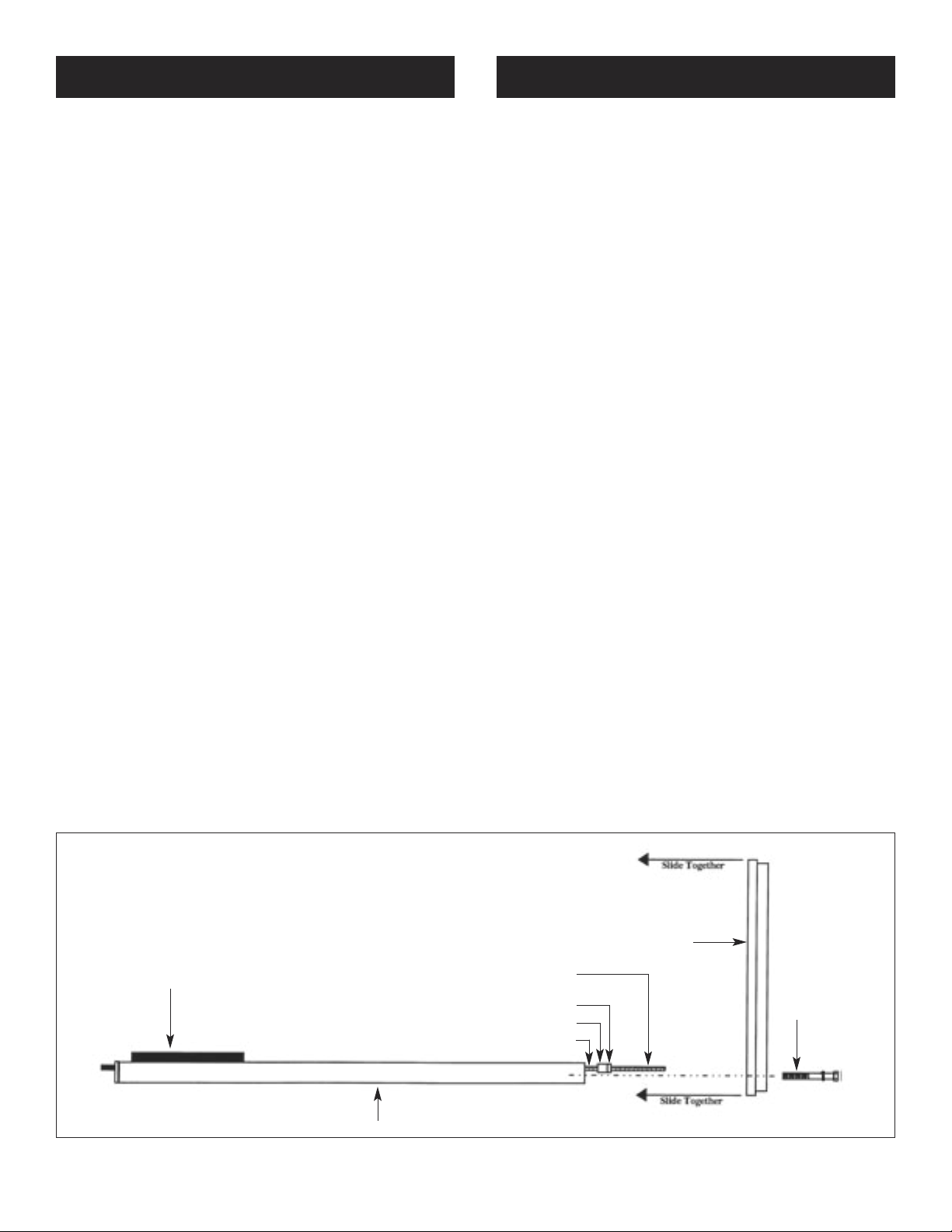

DRAWING NO. 3
REGAL MODEL SC401
Assembly Instructions
1. Upon receipt of the scale, immediately unpack
and remove all scale parts and inspect for shipping
damage. (Refer to Drawing No. 3 below).
2. Place the POST ASSEMBLY on a flat surface (floor)
with the INDICATOR face up. Screw the threaded
EXTENSION RODS into the BRASS BOTTOM STOPS.
CAUTION: DO NOT STAND THE POST VERTICAL AS
DAMAGE TO THE STEELYARD CAN RESULT.
3. Remove the plastic tie wraps from the SCALE
DECK (base) and stand the SCALE DECK on its
back skirt.
4. Slide the SCALE DECK and the POST ASSEMBLY
together while using the EXTENSION RODS to
guide the BRASS BOTTOM STOPS through the
DECK and levers located under the DECK.
5. Screw the two 5/16" x 2 1/2" long bolts with lock
washers through bottom of DECK and into bottom of
POST assembly. Tighten securely.
6. Pull the EXTENSION RODS through the lever holes
and insert the “E” RINGS into the snap groove of the
BRASS BOTTOM STOPS.
7. Release the EXTENSION RODS and allow the
BRASS BOTTOM STOPS to rest back into the lever
holes under the DECK assembly.
8. Unscrew the EXTENSION RODS and stand the scale
upright. It is IMPORTANT to note that the scale MUST
be installed on a FLAT, LEVEL surface (floor). Anchor
(bolt) the deck to the floor while being careful NOT to
over-tighten the bolts. Doing so will distort the deck
causing inaccuracy and possible damage.
9. Finally, mount the support arm to the Post and attach
the cylinder safety chains.
The scales are fully calibrated before they are packaged
and shipped from the factory. However, once installed, the
following test should be performed to ensure proper
operation.
1. Remove all weight from the platforms.
2. Using one foot, press separately on the circular disc
located on each side of the platform while observing
the pointer(s) to make sure they move smoothly without
interference.
3. Remove the Front Cover.
4. Correct any interference to the pointer(s).
5. With the front cover still removed, rotate the left Tare
Knob (#1) counter-clockwise until there is no tension
on the spring. The pointer should indicate approximately
60-70 pounds. If so, continue on to Step #6. If the
pointer reads outside the 60-70 pound range, the
steelyard length needs to be adjusted. See page 6.
6. Now, turn the Tare Knob clockwise and the pointer will
start to drop.
7. Continue to turn the knob slowly until the pointer just
reaches the top of the number text (below the indicator
dial) that reads #100602. (See photo on page 6.)
8. This completes calibration for the left side of the scale.
Repeat Steps #5 thru 7 for the right side. Once both
sides are completed, the scale is ready for OPERATION.
5
Scale Indicator (FACE UP)
Extension Rod
Brass Bottom Stop
Steelyard
SC401 Post and Column Assembly
Scale Base
5/16" Bolt with Lock Washer
E-Ring

6

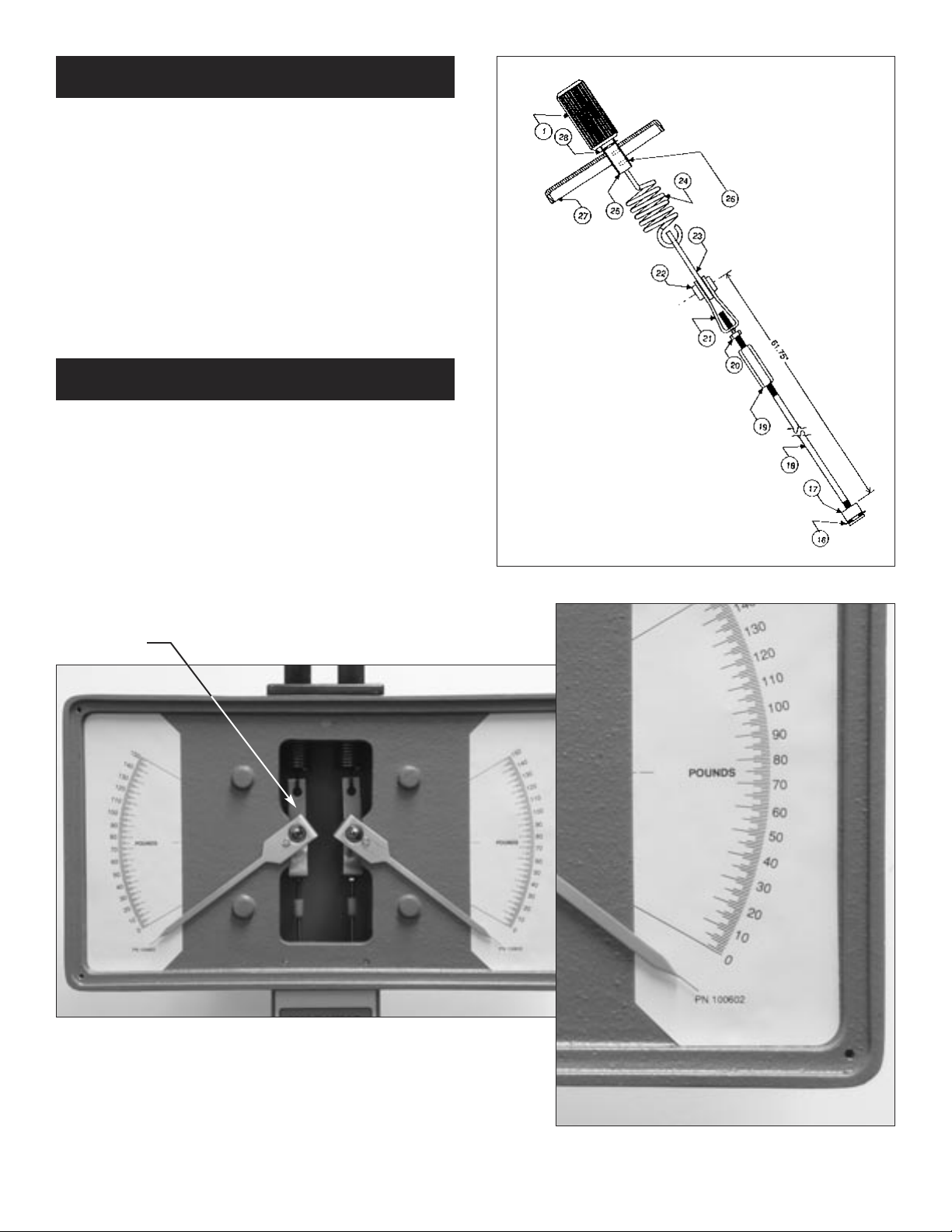

DRAWING NO. 4
REGAL
MODEL SC401
Steelyard/Clevis
Assembly
OPERATION
1. Place a full chlorine cylinder in the center of the
circular disc on each side of the platform and connect
the safety chains to hold the cylinder in place.
2. Mount the REGAL Gas Feed Regulator to the cylinder
and make the required connections.
3. Use the tare weight adjusting knobs to set each scale
pointer to the net weight (150 lbs. for Chlorine) of each
cylinder. The scale is now ready to monitor the weight
of chemical remaining as it is being drawn from each
cylinder.
ADJUSTING THE STEELYARD
1. Use a 9/16" open end wrench to hold the clevis (#21)
in place.
2. Loosen the jam nut (#20) and turn the Plastic Steelyard
Nut (#19) until the pointer is in its correct position
(between 60 and 70 lbs.).
3. Tighten the Jam Nut. Return to Step 6 on Page 5 to
complete the calibration test.
REGAL MODEL SC401
Pointers Set to Zero
STEELYARD

DRAWING NO. 5
REGAL MODEL SC401
Spider Assembly
DRAWING NO. 6
REGAL
MODEL SC401
Pointer Assembly
7

Copyright 2008 Chlorinators Incorporated Printed in U.S.A.
Pub. No. 208-9
1044 SE Dixie Cutoff Road, Stuart, Florida 34994 USA
REGAL GAS CHLORINATORS: PURE WATER. PURE AND SIMPLE.
Table of contents
Other Regal Scale manuals
