Regency FireGenie PG121-NG1 Quick start guide

01/09/14
Zero Clearance Room
Sealed Gas Fireplace
FOR YOUR SAFETY
What to do if you smell gas:
Donottrytolightanyappli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplierfromaneighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the fire
department.
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorized installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
byan authorizedinstaller, service agency or
the gas supplier.
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Owners &
Installation
Manual
LISTINGS AND CODE APPROVALS
Thesegasapplianceshavebeentested
in accordance withAS4553, NZS 5262
andhavebeencertifiedbytheAustralian
GasAssociation for installation and op-
erationasdescribedintheseInstallation
and Operating Instructions.
Your unit should be serviced annu-
allybyanauthorisedserviceperson.
918-648c

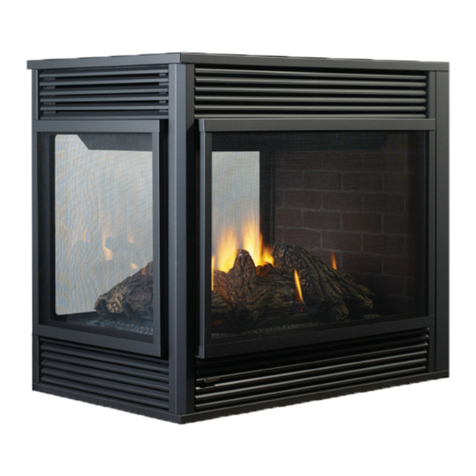

STYLE MODEL
See Thru PG121-NG1 PG121-LPG1
Left Corner PG121LC-NG1 PG121LC-LPG1
Right Corner PG121RC-NG1 PG121RC-LPG1
Pier PG131-NG1 PG131-LPG1

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY. The PG121-1 / PG121LC-1 /
PG121RC-1/PG131-1hasbeendesignedtoprovideyouwithall thewarmthandcharmofawood
fireplace at the flick of a switch. The model PG121-1 / PG121LC-1 / PG121RC-1 / PG131-1 has
been approved by the Australian Gas Association for both safety and efficiency. As it also bears
our own mark, it promises to provide you with economy, comfort and security for many trouble free
years to follow. Please take a moment now to acquaint yourself with these instructions and the
many features of your Regency Fireplace.
IMPORTANT:
If the unit is to be installed into a bathroom, optional Neo ceramic glass Part# 360-946 (Front) or
Part# 360-948 (Side) must be purchased and installed in place of the tempered glass supplied
with the unit.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 3
TABLE OF CONTENTS
OPERATING INSTRUCTIONS
Operating Instructions .............................................. 30
Lighting Procedure ................................................... 30
Shutdown Procedure................................................ 30
First Fire ................................................................... 30
Normal Operating Sounds of
Gas Appliances.................................................. 30
Aeration Adjustment ................................................. 30
Lighting Plate Instructions ........................................ 31
MAINTENANCE
Maintenance Instructions ......................................... 31
General Flue Maintenance....................................... 31
Log Replacement ..................................................... 32
Thermopile/Thermocouple........................................ 32
Glass Gasket............................................................ 32
Door Glass................................................................ 32
Gold-Plated Accessories .......................................... 32
Valve Tray Replacement........................................... 32
Manual Control Replacement................................... 34
PARTS LIST
Electronic Components List...................................... 35
Replacement/Spare Parts List.................................. 36
WARRANTY
Warranty................................................................... 43
DATA BADGE
Data Badge................................................................. 4
INSTALLATION
Important Message..................................................... 5
Before You Start ......................................................... 5
General Safety Information......................................... 5
Installation Checklist................................................... 5
Specifications ............................................................. 6
Locating Your Fireplace.............................................. 8
Clearances ................................................................. 9
Combustible Mantel Clearances ................................ 9
Framing and Finishing.............................................. 10
Facing and Finishing Requirements..........................11
Unit Assembly Prior to Installation
Top Standoff Assembly........................................11
Flueing Introduction...................................................11
Exterior Flue Termination Locations......................... 12
Flueing: Direct Vent System (Flex)........................... 13
Flueing: Simpson Dura-Vent Direct Vent GS ........... 14
Flueing: Simpson Dura-Vent Components List......... 14
Flueing Arrangements
Horizontal Terminations ..................................... 15
Vertical Terminations.......................................... 17
Flueing - Dura-Vent Horizontal Installations............. 19
Flueing - Dura-Vent Vertical Termination.................. 20
Flueing - Installation Procedures for Direct Vent
System (Flex)..................................................... 21
Conversion from NG to LPG..................................... 22
System Data............................................................. 23
Gas Line Installation................................................. 24
Pilot Adjustment........................................................ 24
Gas Pipe Pressure Test............................................ 24
SIT Valve Description ............................................... 24
Log Set Installation................................................... 25
Glass Door Removal ................................................ 27
Finishing Trim........................................................... 27
Louvers and Grills..................................................... 27
Remote Control (optional) ........................................ 28
Remote Wall Switch (optional) ................................. 28
Wall Thermostat (optional)........................................ 28
Wiring Diagram......................................................... 28

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
4
SAFETY LABEL
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NO T
908-602a
Thisisacopyofthelabelthataccompanieseach
PG121-1/PG121LC-1/PG121RC-1/PG131-1
Zero Clearance Room Sealed Gas Fireplace.
We have printed a copy of the contents here
for your review. The safety label is located on
the front inside base of the unit, visible when
the bottom louver is open.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 5
INSTALLATION
INSTALLATION
CHECKLIST
1) Locate appliance;
a) Room location
b) Clearances to Combustibles
c) Mantle Clearances
d) Framing & Finishing Requirements
e) Flueing Requirements
2) AssembleTopStandoffs. (NOTE: mustbe
done before installing unit into fireplace.)
3) Install flue.
4) Makegasconnections.Testthepilot.Must
be as per diagram in "Pilot Adjustment"
section.
5) Install log set.
6) Install Glass Door, Louvers or Grills , and
Finishing Trim.
7) Final check.
Before leaving this unit with the customer,
the installer must ensure that the appliance is
firing correctly and operation fully explained
to customer.
This includes:
1) Clockingtheappliancetoensurethecorrect
firingrate(ratenotedonlabel40,000Btu/h
NG, and 39,000 Btu/h LPG) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to
ensure that the flame does not carbon.
First allow the unit to burn for 15-20 min.
to stabilize.
CAUTION:Anyalterationtotheproductthat
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The Regency PG121/PG121LC/PG121RC/
PG131-NG1 or PG121/PG121LC/PG121RC/
PG131-LPG1RoomSealedGasFireplacemust
beinstalledinaccordanceAG601andNZS5261
and with these instructions. Carefully read all
the instructions in this manual first. Consult the
"authority having jurisdiction" to determine the
needforapermitpriortostartingtheinstallation.
Itistheresponsibilityoftheinstallertoensurethis
fireplace is installed in compliance with manu-
facturer's instructions and all applicable codes.
BEFORE YOU START
Safeinstallationandoperationofthisappliance
requires common sense, however, we are
required to make you aware of the following:
GENERAL SAFETY
INFORMATION
1) The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions, local gas fitting regulations,
municipal building codes, water supply
regulations, electrical wiring regulations,
with AS5601-2004 (AGA gas installation
code) NZS 5261 (New Zealand)
2) See general construction and assembly
instructions. The appliance and flue should
be enclosed.
3) This appliance must be connected to the
specified flue and termination cap to the
outsideofthebuildingenvelope.Never flue
to another room or inside a building. Make
sure that the flue is fitted as per Flueing
instructions.
4) Inspect the flueing system annually for
blockage and any signs of deterioration.
5) Flueingterminalsshallnotberecessedinto
a wall or siding.
6) Anysafetyglassremovedforservicingmust
bereplacedpriortooperatingtheappliance.
7) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
8) Wear gloves and safety glasses for protec-
tion while doing required maintenance.
9) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
10) Under no circumstances should this ap-
pliance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
11) Installationandanyrepairstothisappliance
should be done by a authorized service
person.Aauthorizedservicepersonshould
becalledtoinspectthisapplianceannually.
Make it a practice to have all of your gas
appliances checked annually.
12) Do not slam shut or strike the glass door.
13) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
14) The appliance area must be kept clear and
INSTALLATIONANDREPAIRSHOULD
BEDONEBYAAUTHORIZEDSERVICE
PERSON. THE APPLIANCE SHOULD
BEINSPECTEDBEFOREUSEANDAT
LEASTANNUALLYBYAAUTHORIZED
SERVICEPERSON.MOREFREQUENT
CLEANING MAY BE REQUIRED DUE
TO EXCESSIVE LINT FROM CAR-
PETING, BEDDING MATERIAL, ETC.
IT IS IMPERATIVE THAT CONTROL
COMPARTMENTS, BURNERS AND
CIRCULATING AIR PASSAGEWAYS
OFTHEAPPLIANCEBEKEPTCLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING:FAILURETOINSTALLTHIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIALSHOULDNOTBEPLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF
HIGHSURFACETEMPERATURES,ES-
PECIALLY THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TOAVOID
BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE. Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.
NOTE:
Not intended for
fireplace insert.
These units are
non-load bearing.
free of combustible materials, (gases and
other flammable vapours and liquids).

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
6
INSTALLATION
SPECIFICATIONS
PG121-1 - See Thru
PG131-1 - Pier
Note: These units are
non-load bearing.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 7
PG121LC-1 - Left Corner Unit
PG121RC-1 - Right Corner Unit
INSTALLATION
Note: These units are
non-load bearing.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
8
LOCATING YOUR
GAS FIREPLACE
1) When selecting a location for your stove,
ensure that the clearances are met as
outlined in the "Clearances" section.
2) Provideadequateclearancesforservicing.
3) The appliance must be installed on a flat,
solid,continuoussurface(e.g.wood,metal,
concrete).Thismaybethefloor,orraisedup
on a platform to enhance its visual impact.
If the appliance is going to be installed
on carpeting, combustible linoleum tile or
othercombustiblematerialotherthanwood
flooring,theappliancemustbeinstalled on
a metal or wood panel extending the full
width and depth of the appliance.
4) The Room Sealed Gas Fireplace can be
installed as follows:
Model # Position
A) PG121-1: See Thru
B) PG131-1: Pier
C) PG121LC-1: Left Corner
D) PG121RC-1: Right Corner
5) ThisapplianceisListedforbedroom instal-
lations when used with a Listed Millivolt
Thermostat.Someareas mayhave further
requirements, check local codes before
installation.
6) The PG121-1 / PG121LC-1 / PG121RC-1
/ PG131-1 Room Sealed Gas Fireplace is
approved for alcove installations, which
meet the clearances listed on this page.
7) We recommend that you plan your instal-
lationon paperusingexact measurements
for clearances and floor protection before
actually installing this appliance. Have a
authorized inspector, dealer, or installer
review your plans before installation.
Note: For Exterior Flue Termination
Locationssee"ExteriorFlueTermina-
tion" section.
.
INSTALLATION
A) PG121-1 - See Thru
B) PG131-1 - Pier
C) PG121LC-1 - Left Corner
D) PG121RC-1 - Right Corner

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 9
INSTALLATION
COMBUSTIBLE MANTELS
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated (refer to diagrams in "Locating Your Gas Fireplace" section):
WARNING:
Fire hazard is an extreme risk
if these clearances (air space)
to combustible materials are
not adhered to. It is of greatest
importance that this fireplace
and flue system be installed
only in accordance with these
instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
CAUTION REQUIREMENTS: The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoffs may NOT be recessed into combustible
construction.
Determine the total thickness of the finished floor (eg. tile, carpet, slate) to allow the
finished surface to be flush with the base of the unit.
Ceiling Height from Floor 72" (1828mm)
Mantel Height from Base of Unit:
39" min. (991mm)
Horizontal Flue Clearances:
Top 2-1/2"(64mm)
Side 1-1/2"(38mm)
Bottom 1-1/2"(38mm)
Vertical Flue Clearances 1-1/4" (32mm)
Duetotheextremeheatthisfireplaceemits,themantelclearances
are critical. Combustiblemantelclearances fromtop ofunitare shown
in Diagram to the right.
Note: A non-combustible mantel may be installed at a lower
height if the framing is made of metal studs covered with
a non-combustible board.
This drawing is to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using this
scale.
Caution: Ensure the paint that is used on the mantel and the
facing is "heat resistant" or the paint may discolour.
* If the 3" (76mm) metal extension trim is removed it must be replaced
with a 8" (203mm) non-combustible material.
Mantel Clearances

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
10
B
C
A
FRAMING AND FINISHING
CAUTION: The unit does not have to be completely enclosed in a
chase. The clearance on top of the unit is 0" to the standoffs so
combustible building materials can be laid directly on top of the
standoffs.Youmustmaintain clearancefromthefluetocombustible
materials for both rigid and flex.
PG121-1 - See Thru
PG131-1 - Pier
Framing Dimensions
PG121 (See Thru) PG131 (Pier) PG121LC / PG121RC
(Corner Unit)
A25"(635mm) 25"(635mm) 26-13/13"(660mm)
minus two times minus two times minus two times
the finishing the finishing the finishing
material thickness* material thickness* material thickness*
B42-1/2"(1080mm) 42-1/2"(1080mm) 42-1/2"(1080mm)
C46-3/4"(1187mm) 45" (1143mm) 45"(1143mm)
minus one time minus one time
the finishing the finishing
material thickness* material thickness*
Note: These units are
non-load bearing.
PG121LC-1 - Corner Unit
* Finish material thickness includes: drywall, ceramic tile, slate, etc.
1) Forease ofinstallation, frameyour fireplaceafter itis positionedand
the flue system is installed. Remember to install the top standoffs.
Use 2x4's and frame to local building codes.
2) When locating your appliance on an exterior wall or in a chase, apply
a vapour barrier and drywall, as per local building codes. DO NOT
INSULATE THE FIREPLACE ITSELF.
CAUTION: Verify your fireplace dimensions, framing methods and
finishedwallfacingdetailsbeforeframing.Determinethetotalthick-
ness of facing material - drywall plus ceramic tiles, slate, etc.Allow
the finish surface to be flush with the front or side of the unit. Total
facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm) thick.
PG121RC-1 - Corner Unit
INSTALLATION

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 11
FLUEING
INTRODUCTION
The PG121-1 / PG121LC-1 / PG121RC-1 /
PG131-1 uses the "balanced flue" technology
CoAxialsystem.Theinnerlinerflueproductsof
combustion to the outside while the outer liner
draws outside combustion air into the combus-
tion chamber thereby eliminating the need to
use heated room air for combustion and losing
warm room air up the chimney.
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and flue system must be
flueed directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Eachdirectfluegasappliancemustuseit'sown
separate flue system. Common flue systems
are prohibited.
INSTALLATION
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The 4 Top Standoffs must be correctly positioned and attached to the top before unit is slipped
into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position and must be folded into shape and attached.
1) Remove the standoffs from the fireplace
top.
2) Take each standoff and bend into the cor-
rect shape. Bend up at the bend lines until
the screw holes in the standoff and the
pre-punched screw holes on the fireplace
top line up.
3) Attach the standoff securely to the top with
4screwsperstandoff(onoppositecorners).
FACING & FINISHING REQUIREMENTS
This fireplace is supplied with a 3" metal extension trim above the fireplace. The extension trim may be replaced if the framing is faced with a non-
combustible material placed flush with the front and side face of the unit and extending from the top of the unit. (ie. tile, slate, etc.)

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
12
INSTALLATION
EXTERIOR FLUE TERMINATION LOCATIONS
Minimum clearances required for balanced flue terminals or
the flue terminals of outdoor appliances
according to AS5601-2004 (AGA gas installation code) or NZS 5261 (New Zealand)
Minimum
Clearance (mm)
a Below eaves, balconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
b From the ground or above a balcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse box (P) 500
f From a drain or soil pipe 150
g Horizontal from any building structure (unless appliance is approved
for closer installation) or obstruction facing a terminal 500
h From any other flue terminal, cowl or combustion air intake 500
j Horizontally from an openable window, door, or non-mechanical air inlet, or
any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically below an openable window, door, or non-mechanical air inlet,
or any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)): see table below
Clearance 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h Up to 50 MJ/h input Over 50 MJ/h input Over 150 MJ/h input
input to 150 MJ/h input
150 500 1000 1500
NOTES:
(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.
(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par to of the terminal.
(III)Prohibited area below electricity meter or fuse box extends to ground level.
(IV)A flue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on at least two sides and a
free flow of air at the appliance is achieved.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 13
FLUEING ARRANGEMENT - HORIZONTAL TERMINATIONS
Regency Direct Vent System (Flex) Horizontal Terminations Only
These flueing systems, in combination with the PG121-1 / PG121LC-1 / PG121RC-1 / PG131-1 Direct Vent Gas Fireplace, have been tested and
listed as a direct flue heater system by Warnock Hersey. The location of the termination cap must conform to the requirements in the Flue Terminal
Locations diagram.
Regency Direct Vent (Flex) System Termination Kit (Part# 946-513) includes all the parts needed to install the PG121-1 / PG121LC-1 /
PG121RC-1 / PG131-1 with a maximum run of 2 feet.
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" drill point, stainless steel (4)
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex installations.
3) Regency Direct Vent System (Flex) is only approved for horizontal terminations.
INSTALLATION

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
14
Simpson
Dura-Vent
Direct Vent GS
SIMPSON DURA-VENT FLUEING COMPONENTS LIST
All Simpson Dura-Vent components are available directly from Regency.
SIMPSON DURA-VENT FLUEING
Horizontal or Vertical Terminations
The Simpson Dura-Vent Direct Vent System offers a complete line of component parts for installation of both horizontal and vertical installations.
Many items are offered in decorative black, as well as galvanized finish. We recommend using the galvanized finish for installation with the PG121-1
/ PG121LC-1 / PG121RC-1 / PG131-1.
The minimum components required for a
basic horizontal termination are:
1 Simpson Duravent Adaptor
1 Horizontal Termination Cap
1 45oElbow
1 Flue Adaptor
1 Wall Thimble
1 Length of pipe to suit wall
thickness (see chart)
Wall thickness is measured from the back
standoffs to the inside mounting surface
of termination cap. For siding other than
971 Horiz.TerminationKit includes:
90oblackelbow,wallthimblecover,horiz.square
termination cap, 24" black pipe, and 11" -14"
5/8" adjustable black pipe
970Basic Horiz. Termination. Kit includes:
90
oblack elbow, wall thimble cover,
horiz. square termination cap
978Vert. Termination Kit includes 0/12 -
6/12 pitch adjustable flashing, storm
collar, low profile term. cap
908B 6" Pipe Length - Black
907B 9" Pipe Length - Black
90612" Pipe Length - Galv.
906B 12" Pipe Length - Black
90424" Pipe Length - Galv.
904B 24" Pipe Length - Black
90336" Pipe Length - Galv.
903B 36" Pipe Length - Black
90248" Pipe Length - Galv.
902B 48" Pipe Length - Black
911B 11"-14 5/8" Adjustable Pipe Length -
Black
917B 17"- 24" Adjustable Length - Black
94545O Elbow - Galv.
945B 45OElbow - Black
945G 45O Elbow - Swivel - Galv.
945BG 45OElbow - Swivel - Black
99090O Elbow - Galv.
990B 90OElbow - Black
990G 90O Elbow - Swivel - Galv.
990BG 90OElbow - Swivel - Black
991High Wind Termination Cap (Vertical)
980Vertical Termination Cap
984Horizontal Square Termination Cap
985Horiz. SquareHighWindTermination Cap
982Snorkel - 14" Rise Termination Cap
981Snorkel - 36" Rise Termination Cap
940Wall Thimble - Support/Box
941Cathedral/Ceiling - Support/Box
3951 BrassTrimforWallThimble/CeilingSup.
963Firestop Spacer
943Flashing 0/12-6/12
943S Flashing 7/12-12/12
953Storm Collar
950Vinyl Siding Standoff
988Wall Strap
942Wall Thimble
Parts not supplied by Dura-Vent
946-506/P Vent Guard (Optional)
510-994 Dura-Vent Flue Adaptor
640-530/P Riser Vent Terminal
946-205 VinylSidingShieldforRiserVent
Terminal
946-206 AstroCap Standoff
vinyl furring strips may be
used, instead of the vinyl sid-
ing standoff, to create a level
surface to mount the vent ter-
minal.TheTerminalmustnotbe
recessed into siding. Measure
the wall thickness including
furring strips.
If a Vinyl Siding Standoff is
required (it must be used with
vinylsiding),measuretooutside
surface of wall without siding
and add 2 inches.
Part # Description Part # Description Part # Description
INSTALLATION
Flat Wall Installation
Wall Thickness Vent Length
(mm) Required (mm)
102 - 140 152
178 - 216 229
254 - 292 305
229 - 368 279 - 356 Adj. Pipe
381 - 597 432 - 610 Adj. Pipe
TheRegencyAstroCapTMiscertifiedforinstallationsusingFPIvent-
ingsystems aswellas Simpson Dura-Vent® andDirectVent GS.
RegencyTM, and Regency AstroCapTM are the proprietary trade-
marks of FPI Fireplace Products International Ltd.
Dura-Vent®andDirectVentGSareregisteredand/orproprietary
trademarks of Simpson Dura-Vent Co. Inc.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 15
INSTALLATION
FLUEING ARRANGEMENTS - HORIZONTAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM
Thediagrambelowshowsexamplesofhorizontalterminationarrangementsusingone,two,orthree90oelbows(two 45oelbowsequalone90oelbow).
Note:
1) A maximum of three 90oelbows are permitted.
2) Minimum distance between elbows is 1 ft. (305mm).
• Maintain clearances to combustibles.
• Horizontal flue must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
• Must use optional flue adapter (Part# 510-994) when using Simpson Dura-Vent pipe.
• A vent guard should be used whenever the termination is lower than the specified minimum or as per local codes.
Simpson Dura-Vent
4" inner diameter
6-5/8" outer diameter
Straight Out Horizontal Flueing Horizontal Flueing with One (1) 90oElbow
Option VH
A) 1' (305mm) Minimum 3' (914mm) Maximum
B) 2' (610mm) Minimum 6' (1.86m) Maximum
C) 3' (914mm) Minimum 9' (2.7m) Maximum
D) 4' (1.22m) Minimum 12' (3.6m) Maximum
E) 5' (1.5m) Minimum 15' (4.5m) Maximum
F) 6' (1.86m) Minimum 17' (5.1m) Maximum
Diagram 1
Diagram 2
With the above options, maximum total pipe length if 37 feet with
minimumof6feettotalverticalandmaximum17feettotalhorizontal.
Please note minimum 1 foot between 90oelbows is required.
Please note the minimum centerline for
basic install shown above.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
16
INSTALLATION
Diagram 3
Horizontal Flueing with Two (2) 90oElbows
Option V H + H1
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 5' (1.5m) Maximum
C) 3' (914mm) Minimum 8' (2.4m) Maximum
D) 4' (1.22m) Minimum 11' (3.35m) Maximum
E) 5' (1.5m) Minimum 14' (4.27m) Maximum
F) 6' (1.86m) Minimum 15' (4.5m) Maximum
Horizontal Flueing with Two (2) 90oElbows
Option V H H + H1
A) 1' (305mm) Min. 1' (305mm) Max. 3' (914mm) Max.
B) 2' (610mm) Min. 3' (0.91m) Max. 6' (1.86m) Max.
C) 3' (914mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.
Horizontal Flueing with Three (3) 90oElbows
Horizontal Flueing with Three (3) 90oElbows
Diagram 5
Diagram 4 Diagram 6
With the above options, maximum total pipe length if 37 feet with
minimumof6feettotalverticalandmaximum15feettotalhorizontal.
Please note minimum 1 foot between 90oelbows is required.
Option V H H + H1 + H2
A) 2' (610mm) Min. 1' (305mm) Max. 3' (914mm) Max.
B) 3' (914mm) Min. 3' (914mm) Max. 6' (1.86m) Max.
C) 4' (1.22mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 7' (2.13m) Max. 12' (3.6m) Max.
With the above options, maximum total pipe length if 37 feet with
minimumof5feettotalverticalandmaximum12feettotalhorizontal.
Please note minimum 1 foot between 90oelbows is required.
With the above options, maximum total pipe length if 37 feet with
minimumof 5feettotal verticalandmaximum 12feettotalhorizontal.
Please note minimum 1 foot between 90oelbows is required.
Option V + V1 H + H1
A) 2' (610mm) Minimum 3' (914mm) Maximum
B) 3' (914mm) Minimum 6' (1.86m) Maximum
C) 4' (1.22m) Minimum 9' (2.7m) Maximum
D) 5' (1.5m) Minimum 12' (3.6m) Maximum
With the above options, maximum total pipe length if 37 feet with
minimumof 5feettotal verticalandmaximum12feet totalhorizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 17
INSTALLATION
FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM
• Flue must be supported at offsets
• Maintain clearances to combustibles.
• Firestops are required at each floor level and whenever passing through a wall.
• Must use optional flue adapter when using Simpson Dura-Vent pipe (Part# 510-994).
The PG121-1 / PG121LC-1 / PG121RC-1 / PG131-1 is approved for a maximum 35 ft. (10.7m) straight vertical, with Simpson Dura-Vent Direct
Vent GS flue systems for LPG and NG.
Diagram 7
Diagram 8
Straight Up Vertical Flueing
Maximum 35'(10.7m)
Minimum 6' 6”(2.0m)
45° Elbow
Rigid Pipe Adapter
Part # 510-994
Vertical Flueing with One (1) 90oElbow
Option V H
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum
With the above options, maximum total pipe length if 37 feet with
minimum of 4 feet total vertical and maximum 8 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
18
INSTALLATION
Vertical Flueing with Two (2) 90oElbows
Option V H
A) 1' (305mm) Minimum 4' (1.22m) Maximum
B) 2' (610mm) Minimum 6' (1.86m) Maximum
C) 3' (914mm) Minimum 9' (2.7m) Maximum
D) 4' (1.22m) Minimum 12' (3.6m) Maximum
E) 5' (1.5m) Minimum 15' (4.5m) Maximum
F) 6' (1.86m) Minimum 17' (5.1m) Maximum
Vertical Flueing with Two (2) 90oElbows
Vertical Flueing with Three (3) 90oElbows
Diagram 9 Diagram 10
Diagram 11
Option V + V1 H H + H1
A) 2' (610mm) Min. 1' (305mm) Max. 2' (610mm) Max.
B) 3' (914mm) Min. 4' (1.22m) Max. 5' (1.5m) Max.
C) 4' (1.22mm) Min. 6' (1.86m) Max. 8' (2.4m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.
With the above options, maximum total pipe length if 37 feet with
minimumof 6feettotal verticalandmaximum17feet totalhorizontal.
Please note minimum 1 foot between 90oelbows is required.
Option V H + H1
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum
With the above options, maximum total pipe length if 37 feet with
minimumof4 feettotal verticalandmaximum 8feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.
With the above options, maximum total pipe length if 37 feet with
minimum of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace 19
INSTALLATION
HORIZONTAL
INSTALLATIONS
Install the flue system according to the
manufacturer's instructions included with
the components.
1) Set the unit in its desired location. Check to
determine if wall studs or roof rafters are in
thewaywhentheflueingsystemisattached.
If this is the case, you may want to adjust
the location of the unit. Rough in the gas.
2) DirectFluepipeandfittingsaredesignedwith
specialtwist-lockconnectionstoconnectthe
flueingsystemtotheappliance flueoutlet.A
twist-lock appliance adaptor is an available
option that must be used in conjunction
with the Simpson Dura-Vent Direct Vent GS
system.
3) Putabeadofsiliconeinsidetheoutersection
of the adapter and a bead of Mill Pac on the
innercollar.Sliptheadapterovertheexisting
inner and outer flue collar and fasten to the
outer collar only with the 3 supplied screws
(drilling pilot holes will make this easier).
Level the fireplace and fasten it to the fram-
ingusingnails or screwsthrough the nailing
strips.
4) Assemble the desired combination of pipe
and elbows to the appliance adaptor and
twist-lock for a solid connection.
Note:
a) Twist-lockprocedure:Fourindentations,
locatedon thefemaleendsofpipesand
fittings, are designed to slide straight
onto the male ends of adjacent pipes
and fittings, by orienting the four pipe
indentations so they match and slide
in to the four entry slots on the male
ends,Diagram1.Pushthepipesections
completely together, then twist-lock
Diagram 1
portedeverythree feet.Wallstraps are
available for this purpose.
5) Mark the wall for a 10" x 10" square hole.
The center of the square hole should line
up with the centerline of the horizontal
pipe. Cut and frame the 10 inch square
hole in the exterior wall where the flue will
be terminated. If the wall being penetrated
isconstructedofnon-combustiblematerial,
i.e.masonryblockorconcrete,a7"(178mm)
dia. (7-1/2"(191mm) dia. for flex) hole is
acceptable.
Note: With Dura-Vent, the minimum height
isachievedbyinstallinga45oelbowdirectly
to the flue adaptor.
Note:
a) Thehorizontalrunoffluemustbelevel,
or have a 1/4 inch rise for every 1 foot
of run towards the termination. Never
allow the flue to run downward. This
Diagram 2
could cause high temperatures and
may present the possibility of a fire.
b) Thelocationofthehorizontalfluetermi-
nationonan exterior wallmust meet all
local and national building codes, and
mustnotbeblockedor obstructed. For
External Flue Terminal Locations, see
diagram on page 12.
6) Thearrowonthefluecapshouldbepoint-
ing up. Insure that the 1-1/2" clearances
to combustible materials are maintained
(Diagram3onpage16).Installthetermina-
tion cap.
The four wood screws provided should
be replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.
Note: If installing termination on a siding
covered wall, a vinyl siding standoff
or furring strips must be used to
ensure that the termination is not
recessed into the siding.
7) Beforeconnecting thehorizontalrunofflue
Note: Applysealant"Mill-Pac"toinnerpipe
andhightemperaturesiliconesealant
toouterpipeoneverytwist-lockjoint.
b) Horizontal runs of flue must be sup-
Diagram 12
Vertical Flueing with Three (3) 90oElbows
Option V + V1 H + H1
A) 2' (610mm) Minimum 3' (914mm) Maximum
B) 3' (914mm) Minimum 6' (1.86m) Maximum
C) 4' (1.22m) Minimum 9' (2.7m) Maximum
D) 5' (1.5m) Minimum 12' (3.6m) Maximum
one section clockwise approximately
one-quarter turn, until the two sections
arefullylocked.Thefemalelockinglugs
will not be visible from the outside, on
the Black Pipe or fittings. They may be
located by examining the inside of the
female ends.
With the above options, maximum total pipe length if 37 feet with
minimum of 5 feet total vertical and maximum 12 feet total horizontal.
Please note minimum 1 foot between 90oelbows is required.

Regency PG121/PG131 Zero Clearance Room Sealed Gas Fireplace
20
Diagram 3
Diagram 5
Diagram 1
Diagram 2
Note: Applysealant"Mill-Pac"toinnerpipe
and high temperature silicone seal-
ant to outer pipe on every twist-lock
joint.
TERMINATION
1) Maintain the 1-1/4" clearances (air spaces)
tocombustibleswhenpassingthroughceil-
ings, walls, roofs, enclosures, attic
rafter, or other nearby combustible
surfaces. Do not pack air spaces
withinsulation.Checkpages17-19
forthe maximumvertical riseof the
flueing system and the maximum
horizontal offset limitations.
2) Set the gas appliance in its desired
location. Drop a plumb bob down
from the ceiling to the position of
in the ceiling, and mark the spot where the
fluewillpenetratetheroof.Determineifceil-
ing joists, roof rafters or other framing will
obstructtheflueingsystem.Youmaywishto
relocatetheapplianceortooffset,asshown
in Diagram 2 to avoid cutting
load bearing members.
3) A Firestop
spacer must be
installed in the
floor or ceiling
of every level.
To install the
Firestop spacer
in a flat ceiling or wall, cut a 10 inch square
hole. Frame the hole as shown in Diagram
3 and install the firestop.
4) Assemble the desired lengths of pipe and
elbows.Ensurethatallpipesandelbowcon-
nectionsareinthefullytwist-lockedposition
and sealed.
5) Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The
hole should be of sufficient size to meet
the minimum requirements for clearance
to combustibles of 1-1/4". Slip the flashing
underthe shingles(shingles shouldoverlap
half the flashing) as per Diagram 4.
6) Continue to assemble pipe lengths.
Roof Pitch Minimum Vent Height
Feet Meters
flat to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44
Diagram 4: The upper half of the flashing is
installed under the roofing material and not
nailed down until the chimney is installed. This
allows for small adjustments.
Note: If an offset is necessary in the attic
toavoid obstructions, itisimportant
to support the flue pipe every 3 feet,
to avoid excessive stress on the el-
bows,andpossibleseparation. Wall
straps are available for this purpose
(Diagram 2).
Galvanized pipe is desirable above the roof-
line due to its higher corrosion resistance.
Continue to add pipe sections through the
flashinguntiltheheightof thefluecap meets
theminimumheightrequirementsspecified
in Diagram 5 or local codes. Note that for
steep roof pitches, the vertical height must
beincreased. Apoordraft,ordowndrafting
theapplianceflueexit,and
mark the location where
the flue will penetrate the
ceiling. Drill a small hole
at his point. Next, drop a
plumbbobfromtheroofto
the hole previously drilled
Diagram 3
Diagram 4
Diagram 5
pipe to the flue termination, slide the Wall
Thimble (Part # 942) over the flue pipe.
8) Slide the appliance and flue assembly
towards the wall carefully inserting the flue
pipeintothefluecapassembly.Itisimportant
that the flue pipe extends into the flue cap
sufficient distance so as to result in a mini-
mum pipe overlap of 1-1/4 inches. Secure
the connection between the flue pipe and
thefluecapbyattachingthetwosheetmetal
stripsextendingfrom thefluecapassembly
into the outer wall of the flue pipe. Use the
twosheetmetalscrewsprovidedtoconnect
the strips to the pipe section. See Diagram
4.
9) Install wall thimble in the center of the 10"
square and attach with wood screws (Dia-
gram 5). VERTICAL
INSTALLATION
