Regency Panorama P40 User manual

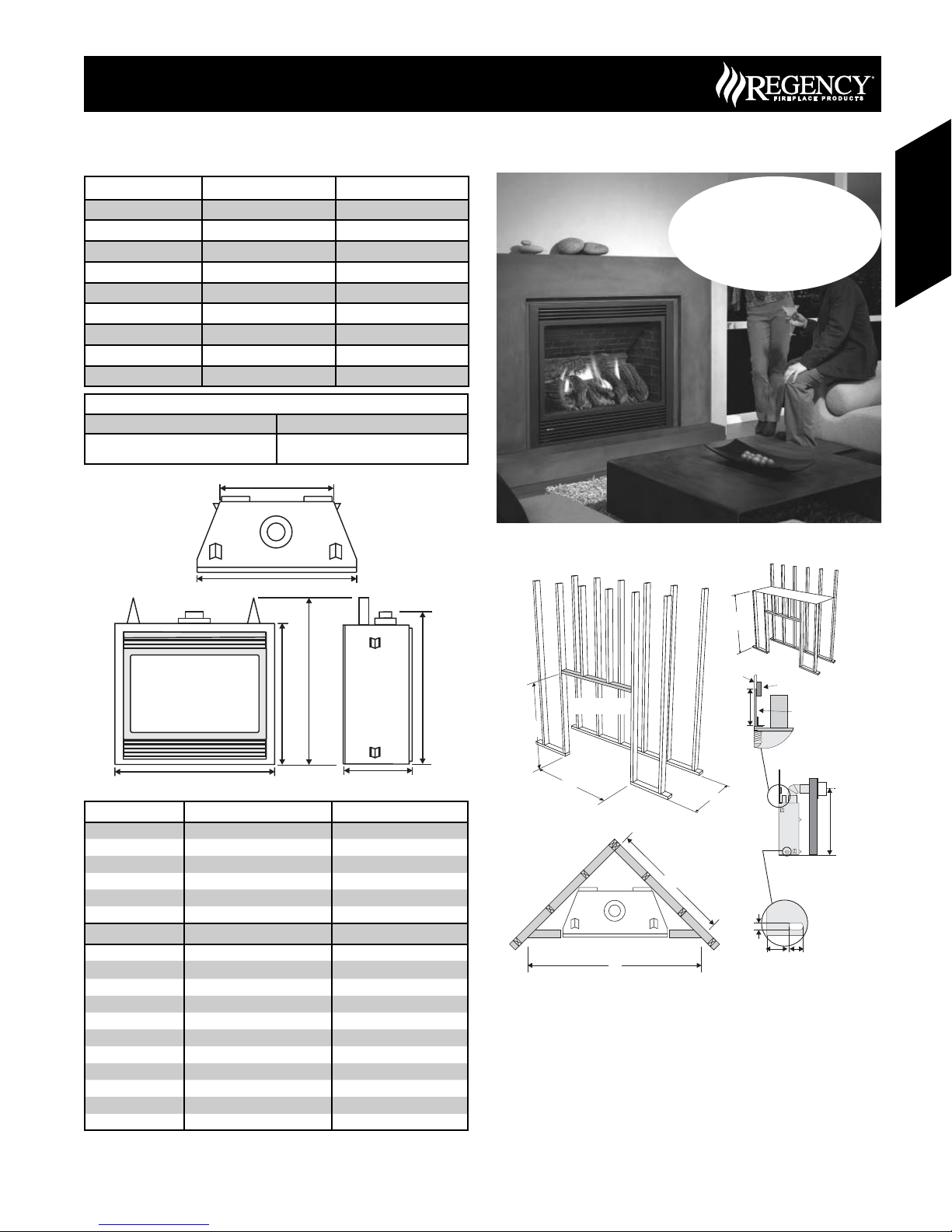

P40 Direct Vent Gas Fireplace
Model P40-NG1 P40-LP1
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (3.00 kPa)
Manifold Pressure - High 3.5” W.C. (0.87 kPa) 10” W.C. (2.49 kPa)
Manifold Pressure - Low 1.6” W.C. (0.39 kPa) 3.6” W.C. (0.89 kPa)
Orifice Size - Front Burner #44 DMS #55 DMS
Orifice Size - Rear Burner #35 DMS #53 DMS
Minimum Input 13,000 BTU/h (3.81 kW) 12,000 BTU/h (3.51 kW)
Maximum Input 45,000 BTU/h (13.19 kW) 43,000 BTU/h (12.60 kW)
Vent Sizing 5” Inner / 8” Outer 5” Inner / 8” Outer
Approved Venting Systems
Flex Vent Systems: FPI AstroCap™ Flex Vent
Rigid Pipe Vent Systems: Simpson Dura-Vent® Direct Vent GS
Selkirk Direct-Temp
A
B
A
D
CF
E
Unit Dimensions Description P40
A Front Face Width 40” (1016mm)
B Rear Firebox Width 33-7/16” (889mm)
C Front Face Height 34” (864mm)
D Height w/ Standoff 42-1/2” (1080mm)
E Unit Depth 20-1/16” (508mm)
F Height to Vent 35-1/4” (826mm)
Framing Dimensions Description P40
G Framing Width 40-1/2” (1029mm)
H*** Framing Height*** 42-1/2” (1080mm)*** + Hearth
I Framing Depth 20-1/16” (508mm)
J Corner Wall Length 50-5/8” (1286mm)
K Corner Facing Wall Width 71-5/8” (1524mm)
L Minimum Height to Combustibles 51-7/8” (1318mm)
M Vent Centerline Height 45-3/8” (1153mm)
N Non-Combustible Facing Height 10-1/4” (260mm)
O Gas Connection Height 1-1/2” (38mm)
P Gas Connection Inset 4-3/4” (121mm)
Q Gas Connection Width 3-1/4” (102mm)
***Important: Framing height requires consideration of the hearth
depth. Dimension H = H + the thickness of installed hearth.
G
H
I
K
J
L
P
Q
O
M
11" (279mm)
dia. Hole through
wall Vent.
Opening for gas
connection
Top Header
(non-combustible)
Drywall
(or other
facing)
N
Top Header
(non-combustible) Non-Combustible Facing
P40 Gas Fireplace
Please refer to Page 11 (Exterior Vent Terminations)
for additional guidelines on vent locations.
Unit requires
120V to operate. See
“Wiring Diagram,” on page 17,
for more details. Receptacle is
included with manual.
45June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

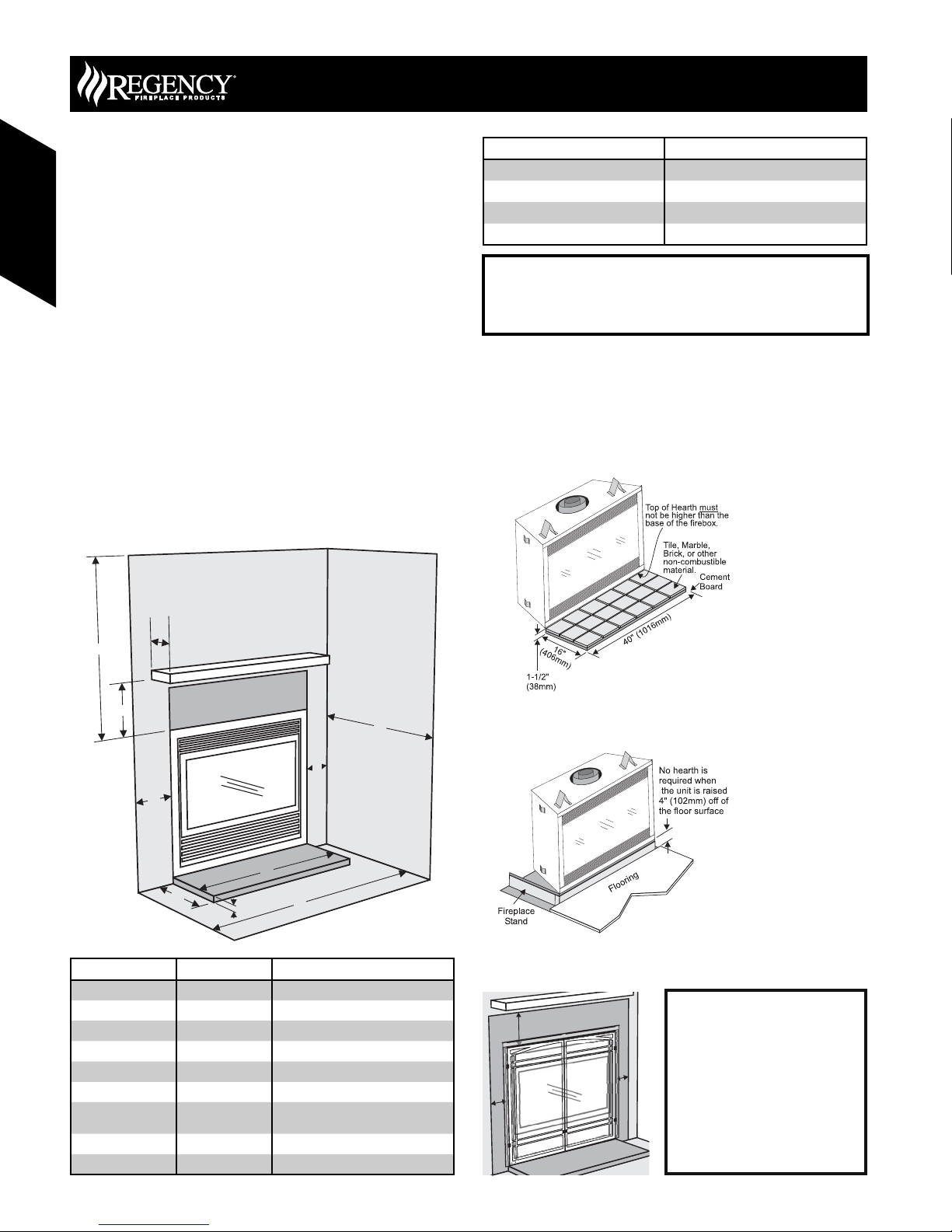

Framing and Finishing
1) Frame the enclosure for the unit with framing material. Use the
determined total thickness of facing material (e.g. drywall plus
ceramic tiles) to adjust the framing depth to allow the finished
surface to be flush with the front of the unit. Total facing thickness
can vary from 1/2” (13mm) to 1-1/4” (32mm) thick.
Note: Header for the P40 must be non combustible.
2) For exterior walls, insulate the enclosure to the same degree as
the rest of the house, apply vapor barrier and drywall, as per local
installation codes. (Do not insulate the fireplace itself.)
3) Ensure that all of the clearances listed below are met. Combustible
material may be brought up to the sides of the unit and be covered
with ceramic tiles, bricks, rock or other suitable combustible
finishing materials. Non-combustible facing is required above
the unit. (See Dimension “N” on page 41)
Note: You must maintain proper clearances from the vent to
combustible materials (See Below).
4) Use metal studs for framing where the minimum clearance from
the vent to combustible material cannot be maintained.
WARNING
Failure to maintain required clearances is a major cause of
chimney related fires. Installation of this fireplace must comply
with these clearances.
Clearance: Dimension Measured From:
A: Mantel Height 12” (305mm) Minimum (Additional on this page)
B: Sidewall 8” (203mm) Side of installed front
C: Ceiling 39” (991mm) Top of installed unit
D: Mantel Depth 13” (330mm) Maximum (Additional on this page)
E: Alcove Width 56” (1422mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36” (914mm) Front to back wall (Maximum)
G: Hearth Height 1-1/2” (39mm) Floor to top of Hearth. (Hearth must
not be higher than base of firebox.)
H: Hearth Width 40” (1016mm) Edge to Edge of Hearth
I: Hearth Depth 16” (406mm) Front of Hearth to Wall
Vent Clearances Clearance Dimension
Horizontal - Top 2-1/2” (64mm)
Horizontal - Side 1-1/2” (38mm)
Horizontal - Bottom 1-1/2” (38mm)
Vertical (Flex or Rigid) 1-1/4” (32mm)
P40 Gas Fireplace
I
GE
B
B
H
A
C
D
F
Hearth Requirements
A 40" (1016mm) wide x 16" (406mm) deep x 1-1/2" (38mm) thick hearth
is required, unless the unit is raised 4" (102mm).
All measurements are from the bottom of the unit. Therefor the
bottom of the unit would be flush with the top of a non-combustible
hearth or 4” above the surface of a combustible floor.
Floor Mounted Fireplace
Raised Fireplace
Clearance Requirements
Required hearth must be non-combustible. (Page 43)
Required non-combustible facing above unit. (See Dimension
“N” on page 41)
10-1/4” Above Fireplace
6”
6”
WARNING: When installing the
Full Screen Doors
The Full Screen Front requires
additional non combustible facing
and non-combustible framing.
Ensure the 10-1/4" above the
fireplace, 6" on both sides and
both the header and side studs
are non-combustible materials.
All other clearances, including
mantel, remain the same.
Full Screen Door Facing Requirements
46 June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

8" dia.
Flue pipe
5” dia. flue pipe
spring spacer
(Part# 946-623/P)
AstroCap XL
Wall Thimble
(required in Canada only)
Vinyl Siding
Standoff

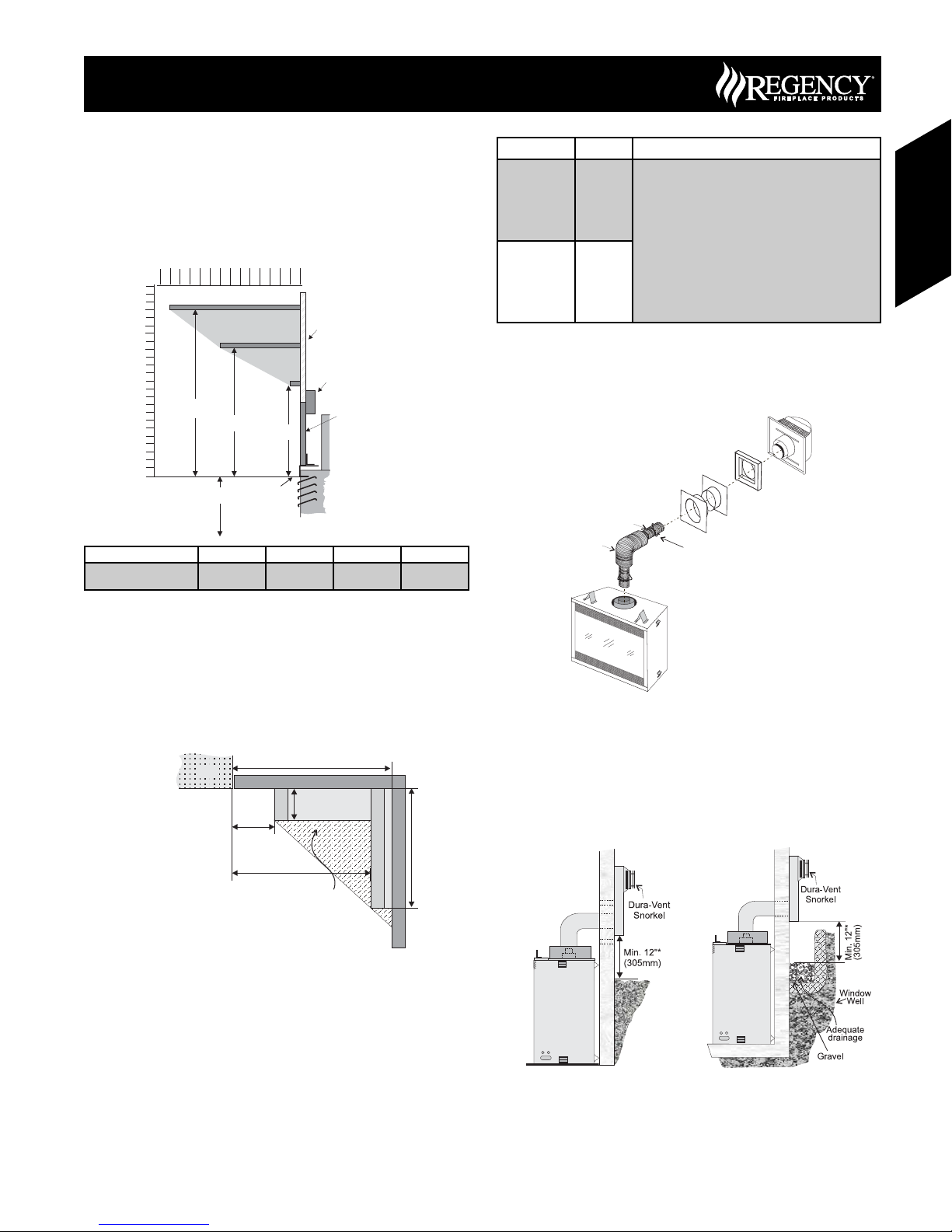

Regency Direct Vent System (Flex)
Horizontal Terminations Only
These venting systems, in combination with the P40 Direct Vent Gas
Fireplace, have been tested and listed as a direct vent heater system
by Warnock Hersey. The location of the termination cap must conform
to the requirements in the Vent Terminal Locations diagram.
FPI Direct Vent (Flex) System Termination Kits include all the parts
needed to install the P40 using a flexible vent.
Snorkel Terminations
Snorkel Terminations:
For installations requiring a vertical rise on the exterior of the building, 14-
inch and 36-inch tall Snorkel Terminations are available. Follow the same
installation procedures as used for standard Horizontal Termination.
NEVER install the snorkel upside down.
Below Grade Snorkel Installation (Dura-Vent Only)
If the Snorkel Termination must be installed below grade, i.e. basement
application, proper drainage must be provided to prevent water from
entering the Snorkel Termination. Refer to Rigid Pipe Installation
instructions for details. Do not attempt to enclose the Snorkel within the
wall, or any other type of enclosure.
Drywall
Mantel Clearances
2
0
12 64
810
0
Side View
Top o f
Louvers
13" (330mm)
1" (25mm)
8”(203mm)
A
Standoff
BCD
Non-Combustible
Header
Non-Combustible
Facing
14
To Floor
Note: If desired a non-combustible mantel may be installed at a
lower height.
Note: Ensure the paint that is used on the mantel and the facing
is “heat resistant” or the paint may discolour.
8” Side Wall
7¼”
2"
Mantel leg
Mantel leg
P40
Allowable mantel leg
projection.
6”
1-1/2"
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram below:
Clearances are from the finished edge of the unit or installed front.
Maximum
1-1/2” projection at 2”
minimum clearance.
Mantel Clearances ABCD
Front 33” (838mm) 21” (356mm) 17” (254mm) 12” (178mm)
P40 Gas Fireplace
Combustible Mantels
Because of the extreme heat this fireplace emits, the mantel
clearances are critical. Combustible mantel clearances from top of
the louvers are shown in the diagram below. Mantel may be installed
anywhere in the shaded area or higher.
FPI Kit # Length Contains:
#946-618 6 Feet 1) 8” flexible outer liner (Kit length)
2) 5” flexible inner liner (Kit length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) S.S. screws #8 x 1-1/2” drill point, (4)
10) vinyl siding standoff
#946-616 10 Feet
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex
installations.
3) Horizontal sections must be supported every 3 feet.
47June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

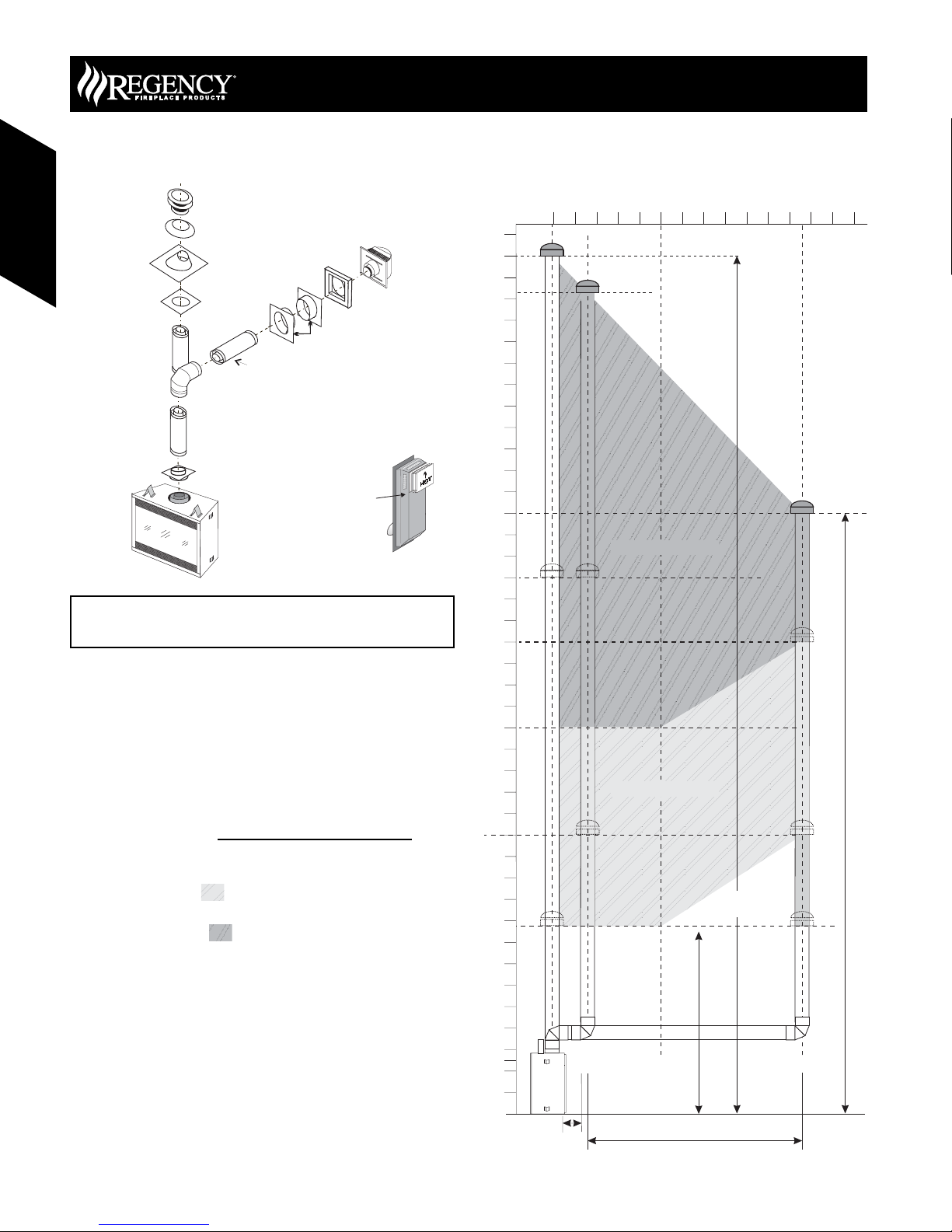

Rigid Pipe Venting
Horizontal or Vertical Terminations
Venting Arrangements - Vertical
Terminations
Rigid Pipe System
(Propane & Natural Gas)
Two 45° elbows = One 90° elbow
The P40 is approved for a maximum 40 ft. straight vertical, with Rigid
Pipe vent systems for Propane and Natural Gas.
The diagram to the right shows allowable combinations of straight vertical
and offset to vertical terminations with Rigid Pipe vent systems for
Propane and Natural Gas. Maximum two 90° elbows allowed.
The unshaded area in the diagram shows allowable venting
configurations with the Vent Restrictor Factory Set.
The lightly shaded area,
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
68
2
0
410 12 16 18 14 20 26 28 22 24 30
, in the diagram shows all allowable venting
configurations with the Vent Restrictor on Set 1.
The darker shaded area,
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
68
2
0
410 12 16 18 14 20 26 28 22 24 30
, in the diagram shows allowable venting
configurations with the Vent Restrictor on Set 2.
• Vent must be supported at offsets.
• Horizontal sections must be supported every 3 feet
• Firestops are required at each floor level and whenever
passing through a wall.
• Maintain clearances to combustible materials.
• Minimum of 1’ pipe section between any elbows.
Note: Must use optional rigid pipe adapter when using Rigid Pipe
(Part # 770-994).
Maximum: 40 ft. (12.2m)
Minimum 8’9” (2.6m)
Max. 10’ (3m)(centerline to centerline)
Minimum 12” (305mm)
Maximum: 28 ft. (8.5m)
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
Vertical Height (Feet)
32
34
36
38
68
2
0
410 12
12 16 18
14
20 26 28
22 24 30
Vent Restrictor on Set 1
Vent Restrictor on Set 2
Vent Restrictor
Factory Set
Rigid Pipe Adapter
(770-994)
Pipe Length
Vertical
Terminal
Storm Collar
Flashing
Ceiling Firestop
24" Pipe
Length
Adj.Pipe Length
11" - 14-5/8"
90 Elbow
o
AstroCap XL
Termination Cap
(946-623/P)
Wall Thimble
(required in Canada only)
Vinyl Siding
Standoff
P40 Gas Fireplace
If required by the external termination location the listed
alternate termination caps may be used. (Refer to Page 11)
Alternate Horizontal
Termination Caps
Alternate Snorkel
Termination Cap
Part #1282 (14”)
Part #1281 (36”)
48 June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

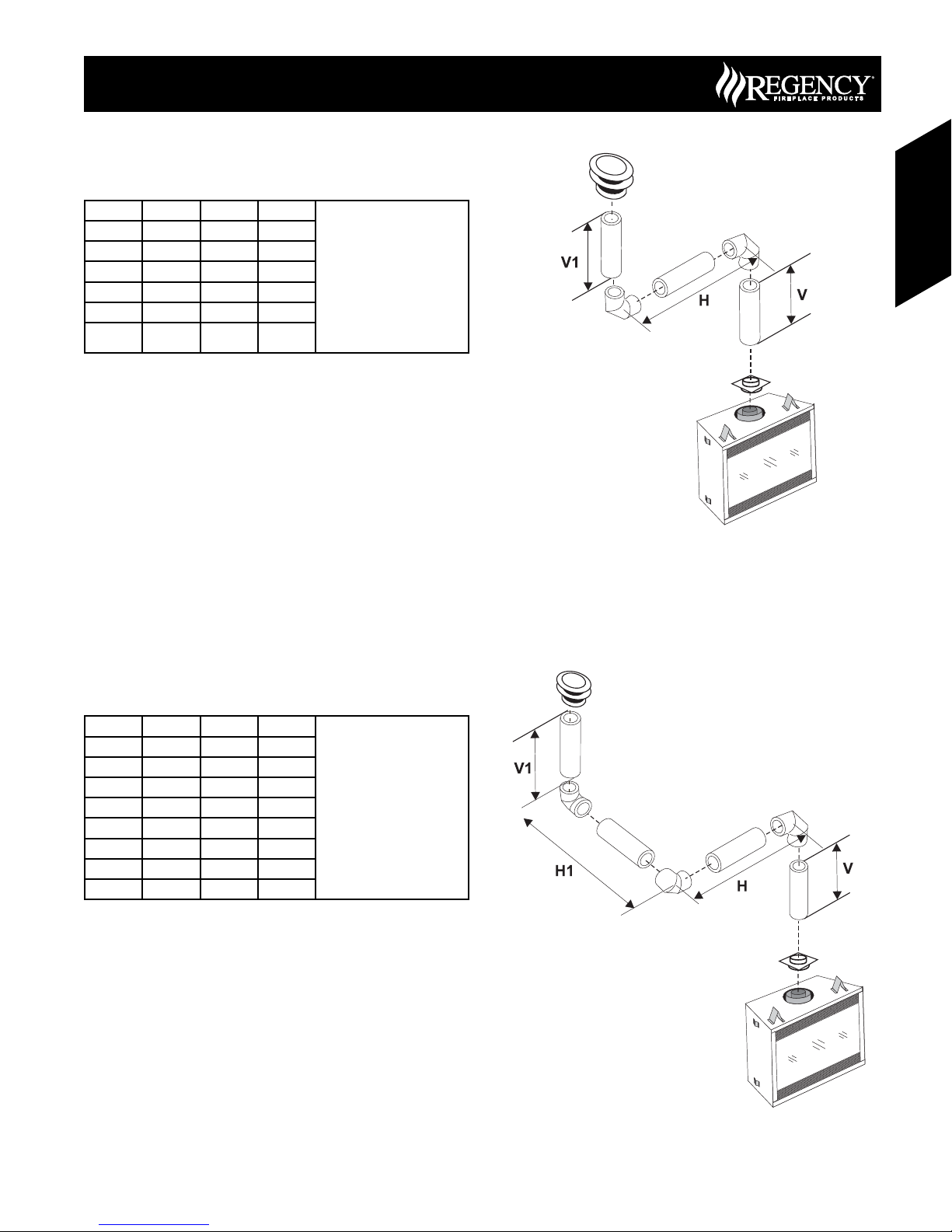

Vertical Venting
with Two (2) 90° Elbows
Two 45° elbows = One 90° elbow
Option V H V+ V1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1’ pipe section
between any elbows.
When the total vertical
exceeds total horizontal by
2x then the vent restrictor
must be set to 1.
A) 0’ Min. 2’ Max. 1’ Min.
B) 1’ Min. 4’ Max. 2’ Min.
C) 2’ Min. 5’ Max. 3’ Min.
D) 3’ Min. 6’ Max. 4’ Min.
E) 4’ Min. 7’ Max. 5’ Min.
F) 5’ Min. 8’ Max. 6’ Min.
Vertical Venting
with Three (3) 90° Elbows
Two 45° elbows = One 90° elbow
Option V H + H1 V+ V1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1’ pipe section
between any elbows.
When the total vertical
exceeds total horizontal by
3x then the vent restrictor
must be set to 1.
A) 0’ Min. 2’ Max. 3’ Min.
B) 1’ Min. 2’ Max. 3’ Min.
C) 2’ Min. 3’ Max. 4’ Min.
D) 3’ Min. 4’ Max. 6’ Min.
E) 4’ Min. 5’ Max. 7’ Min.
F) 5’ Min. 6’ Max. 8’ Min.
G) 6’ Min. 7’ Max. 9’ Min.
H) 7’ Min. 8’ Max. 10’ Min.
P40 Gas Fireplace
49June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

2 0
10
12 20
4
6 14
2
45-3/8”
(1143mm)
Minimum
Height
Requirement
4
12
6
8 16
8
10 18
Vertical Height (Feet)
Horizontal (Feet)
Vent Restrictor
on Set 1
Vent Restrictor
Factory Set
Vent Restrictor
on Set 2
14
0
Venting Arrangements - Horizontal
Terminations
Two 45° elbows = One 90° elbow
This diagram shows all allowable combinations of vertical runs with
horizontal terminations, using one 90° elbow
The unshaded area in the diagram shows allowable venting
configurations with the Vent Restrictor Factory Set.
The lightly shaded area,
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
68
2
0
410 12 16 18 14 20 26 28 22 24 30
, in the diagram shows allowable venting
configurations with the Vent Restrictor on Set 1.
The darker shaded area,
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
68
2
0
410 12 16 18 14 20 26 28 22 24 30
, in the diagram shows allowable venting
configurations with the Vent Restrictor on Set 2.
Note: Must use optional rigid pipe adapter (Part # 770-994) when
using Rigid Pipe.
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Minimum of 1’ pipe section between any elbows.
• Firestops are required at each floor level and whenever passing
through a wall.
A vent guard may be required as per local codes, refer to page 11 for
“Exterior Vent Termination Locations”.
Note: FPI Direct Vent System (Flex) is only approved for horizontal
terminations.
Please refer to Page 11 (Exterior Vent Terminations)
for additional guidelines on vent locations.
P40 Gas Fireplace
50 June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

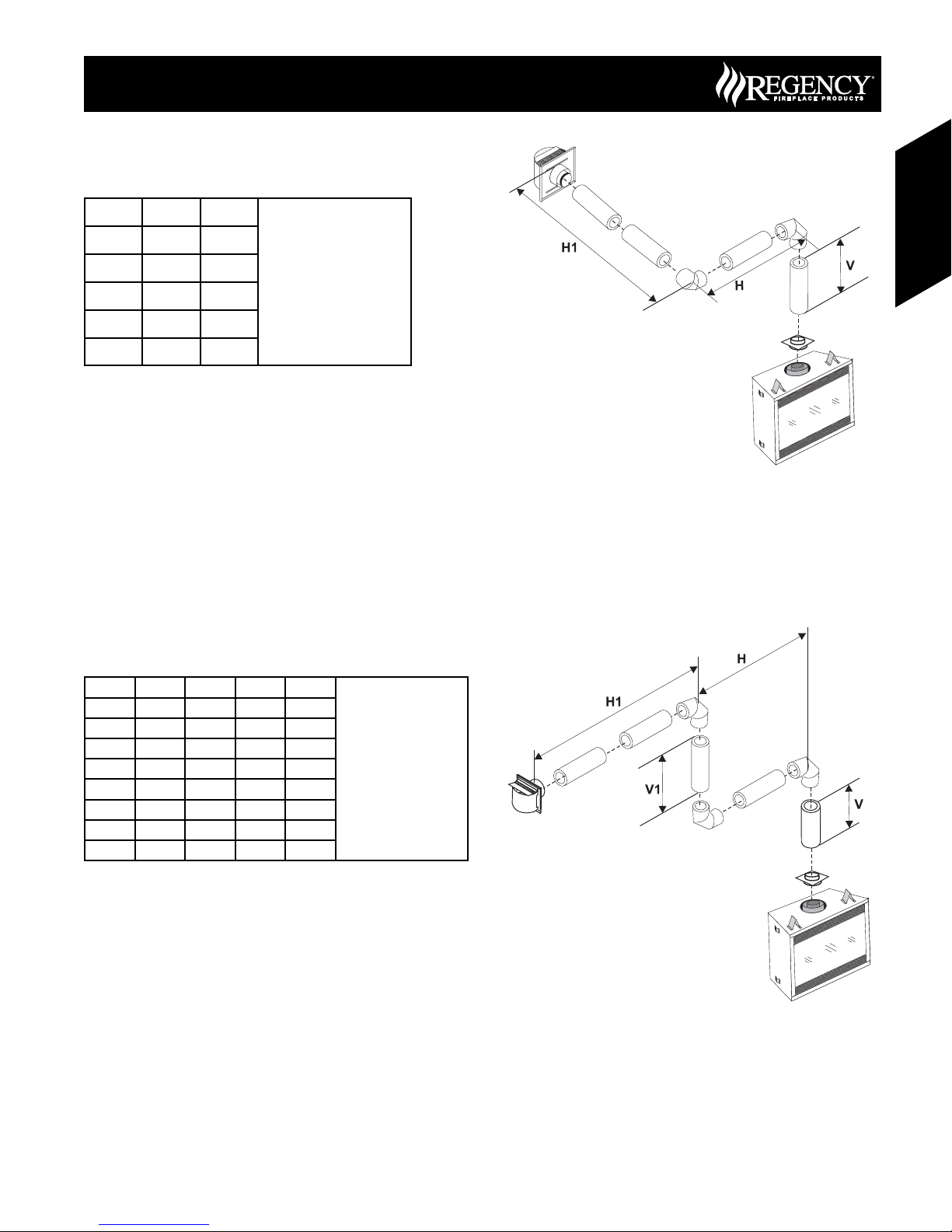

Horizontal Venting
with Two (2) 90° Elbows
Two 45° elbows = One 90° elbow
Option V H+ H1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1’ pipe section
between any elbows.
When the total vertical
exceeds total horizontal by
2x then the vent restrictor
must be set to 1.
A) 2’ Min. 2’ Max.
B) 3’ Min. 5’ Max.
C) 4’ Min. 6’ Max.
D) 5’ Min. 7’ Max.
E) 6’ Min. 8’ Max.
Horizontal Venting
with Three (3) 90° Elbows
Two 45° elbows = One 90° elbow
Option V H V+ V1 H + H1 Maximum total pipe:
length, of all sections,
must not exceed 30 feet.
Total horizontal sections
must not exceed 9 feet.
Minimum of 1’ pipe
section between any
elbows.
When the total vertical
exceeds total horizontal
by 3x then the vent
restrictor must be set
to 1.
A) 0’ Min. 1’ Max. 1’ Min. 1’ Max.
B) 1’ Min. 2’ Max. 3’ Min. 3’ Max.
C) 2’ Min. 2’ Max. 5’ Min. 4’ Max.
D) 3’ Min. 2’ Max. 7’ Min. 5’ Max.
E) 4’ Min. 3’ Max. 9’ Min. 6’ Max.
F) 5’ Min. 4’ Max. 10’ Min. 7’ Max.
G) 6’ Min. 5’ Max. 11’ Min. 8’ Max.
H) 7’ Min. 6’ Max. 12’ Min. 9’ Max.
P40 Gas Fireplace
51June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces
