Regency Liberty LRI6E-NG11 Quick start guide

MODELS: LRI6E-NG11 Natural Gas LRI6E-LP11 Propane
HRI6E-NG11 Natural Gas HRI6E-LP11 Propane
Liberty®LRI6E / Regency Horizon®HRI6E
Gas Insert
Owners &
Installation Manual
www.regency-re.com
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
919-936d FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4 10.05.21
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Certified to/Certifié pour: CSA 2.17-2017
ANSI Z21.88-2017
CSA 2.33-2017
Tested by:

2| LRI6E / HRI6E-11 Direct Vent Gas Insert
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art Gas Insert by Regency.
The Regency Gas Insert Series of hand crafted appliances has been designed to provide you with all the
warmth and charm of a fireplace, at the flick of a switch. The models LRI6E / HRI6E of this series have been
approved by Warnock Hersey for both safety and efficiency. As it also bears our own mark, it promises to
provide you with economy, comfort and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the many features of your
Regency Fireplace.
ON DEMAND PILOT LIGHT (SEVEN DAY SAFETY TIMER)
Important information if using the appliance in CPI (continuous pilot mode) only.
This appliance is a ProFlame 1 system fitted with the “On Demand” Pilot, a safety feature which will shut down the gas valve com-
pletely by extinguishing the pilot light in the event of a continuous full seven days of inactivity.
This only applies if the CPI (continuous pilot) switch is in the “on” position.
Each time the main burner shuts down, manually or through the call from the thermostat, the seven day timer starts again.
The seven day inactivity timer is controlled within the circuit board. Therefore, if in CPI mode and when the pilot light is extinguished
after seven straight days of inactivity, the IPI/CPI rocker switch will remain in the “on” position. Therefore, all that is required to relight
the pilot would be to press the on/off button on the remote control transmitter from “on” to “off” and back to “on”. Once the pilot has
re-established operation will resume as normal. There is no requirement to do anything with the IPI/CPI rocker switch.
If the unit never goes as long as seven full days without a call for heat, the pilot will remain lit until it is manually shut-off.
If the unit is being operated in IPI (intermittent pilot) mode, neither the above instructions nor the seven day timer will apply.
See the instructions in this manual and on the Lighting Instructions plate on the appliance to light or re-light the pilot.

LRI6E / HRI6E-11 Direct Vent Gas Insert | 3
table of contents
Flue / Vent Installation .................................................22
Levelling Leg Adjustment .............................................23
Air Shutter Adjustment .................................................24
System Data ................................................................25
High Elevation ..............................................................25
Gas Line Installation ....................................................25
Gas Pipe Pressure Testing ..........................................25
885 S.I.T. Valve Description .........................................25
Optional Wall Thermostat Installation ..........................26
Conversion from NG to LP .........................................27
Proflame Remote System GTMF with Fan ..................29
Glass Crystal / Optional Stone Installation ..................30
Optional Pebbles / Glass Crystal Installation for Firebox
Base (around Burner) ..................................................30
HRI6E Optional Log Set Installation ............................32
LRI6E Log Set Installation ..........................................35
Standing Pilot & Heat Exchange Return/Flue Restrictor .
.....................................................................................37
Brick Panel Installation ................................................38
Enamel/Steel Panel Installation ...................................39
Glass Door Removal / Installation ...............................40
Vignette Faceplate with Safety Screen Installation ......41
Inlay Installation ...........................................................42
4 Sided Faceplate with Safety Screen Installation .......43
Spacer Installation .......................................................44
Backing Plate Installation ............................................45
Optional Arched Vignette Faceplate Installation ..........46
Optional Spacer Installation .........................................47
Optional Backing Plate Installation ..............................48
Optional Mantel Deflector Installation - vignette ..........49
Optional Hearth Trim Installation .................................50
Operating Instructions ................................................51
First Fire ......................................................................51
Automatic Convection Fan Operation ..........................51
Lighting Procedure ......................................................52
Shutdown Procedure ...................................................52
On Demand Pilot Light ................................................52
Copy Of Lighting Instruction Plate ...............................53
Normal Operating Sounds Of Gas Appliances ............53
Maintenance Instructions ...........................................54
Door Glass ..................................................................54
Pilot Adjustment ...........................................................55
General Vent Maintenance ..........................................55
Log Replacement ........................................................55
Glass Gasket ...............................................................55
Glass Crystal Burner Removal / Installation - HRI6E . . 56
Glass Burner Removal ................................................56
Glass Burner Install .....................................................56
LRI6E Ceramic Burner Removal / Installation .............57
Fan Maintenance - with GTMF Remote Control ..........58
Valve Replacement ......................................................59
Gas Maintenance ........................................................61
Main Assembly ............................................................62
Vignette Faceplate .......................................................64
Arched Vignette Faceplate...........................................65
Warranty ......................................................................66
Unit dimensions with Vignette faceplate ........................4
Unit dimensions with Vignette faceplate + small 3-sided
backing plate .................................................................4
Unit dimensions with Vignette faceplate + small backing
plate + spacer ................................................................5
Unit dimensions with 4 sided Vignette faceplate + backing
plate ...............................................................................6
Unit dimensions with arched Vignette faceplate (optional)
7
Unit dimensions with arched Vignette faceplate + backing
plate ...............................................................................7
Unit dimensions with arched Vignette faceplate + spacer 8
Unit dimensions with arched Vignette faceplate + spacer +
backing plate .................................................................8
For Your Safety ............................................................18
Specifications ..............................................................18
Gas Pressure Testing ..................................................18
Installation Into A Solid Fuel Burning Fireplace Or Factory
Built Fireplace ..............................................................18
Before You Start ...........................................................18
Factory-Built (Metal) Wood-Burning Fireplace
Requirements ..............................................................18
Installation Checklist ....................................................19
Materials Required ......................................................19
Minimum Fireplace Dimensions ..................................19
Minimum Clearances to Combustibles ........................20
Gas Connection ...........................................................21
Venting .........................................................................21
On Demand Pilot Light (seven day safety timer) ...................3
Copy of Safety Decals ...................................................9
MA Code - CO Detector ..............................................10
Important Message ....................................................11
Before You Start ...........................................................11
General Safety Information ..........................................11
Lighting Procedure ......................................................12
Shutdown Procedure ...................................................12
Copy of Lighting Plate Instructions ..............................13
Proflame I Remote Control Operating Instructions ......14
Warranty .....................................................................66

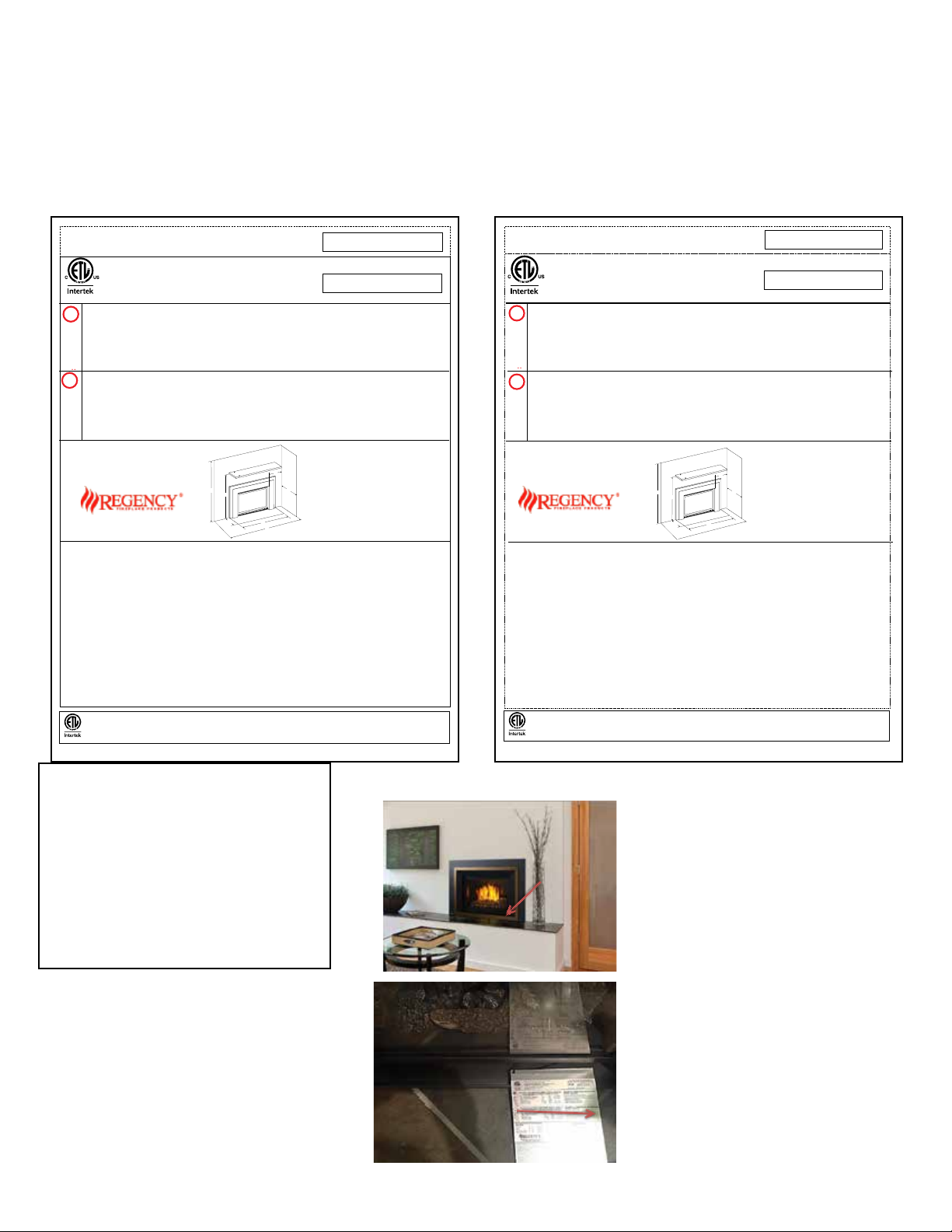

OWNER'S INFORMATION
INSTALLER'S INFORMATION

4| LRI6E / HRI6E-11 Direct Vent Gas Insert
dimensions
40 1
16
"
1018
26 13
16
"
680
28 3
16
"
715
18 5
16
"
466
1 1
16
"
28
19 3
16
"
487
24 1
2
"
623
33
15
16
"
862
23 5
8
"
600
14 11
16
"
373
28 3
16
"
715
18 5
16
"
466
41 1
16
"
1043
27 13
16
"
706
24 1
2
"
623
33 15
16
"
862
19 1
16
"
485
1 3
16
"
30
23 5
8
"
600
14 9
16
"
370
UNIT DIMENSIONS WITH VIGNETTE FACEPLATE
UNIT DIMENSIONS WITH VIGNETTE FACEPLATE + SMALL 3 SIDED BACKING PLATE

LRI6E / HRI6E-11 Direct Vent Gas Insert | 5
dimensions
(1156mm)
(1041mm)
(425mm)
(262mm)
(705mm)
(94mm)
(600mm)
(770mm)
VIGNETTE FACEPLATE AND SMALL SPACER
41
27 3
4
UNIT DIMENSIONS WITH VIGNETTE FACEPLATE + SMALL BACKING PLATE + SPACER
Not shown:
Regular backing plate - 47-3/8" W. x 30-1/2" H.
Oversize backing plate - 48-3/8" W. x 33" H.
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.
