SC1000R 1000 WATT

STANDLIGHT WITH

CAGE AND RADIO

Congratulations! You have purchased a Regent 1000-watt stand light. This

versatile light is perfect for many different applications, which require either a

portable light fi ture or a stand light. The built-in protective cage also serves as

a stand for the light fi ture and a durable carrying case for transport and stor-

age. The built-in radio allows you to listen to your favorite music while working

around the house or at the jobsite.

Required for Installation (Not Supplied)

• Phillips screwdriver

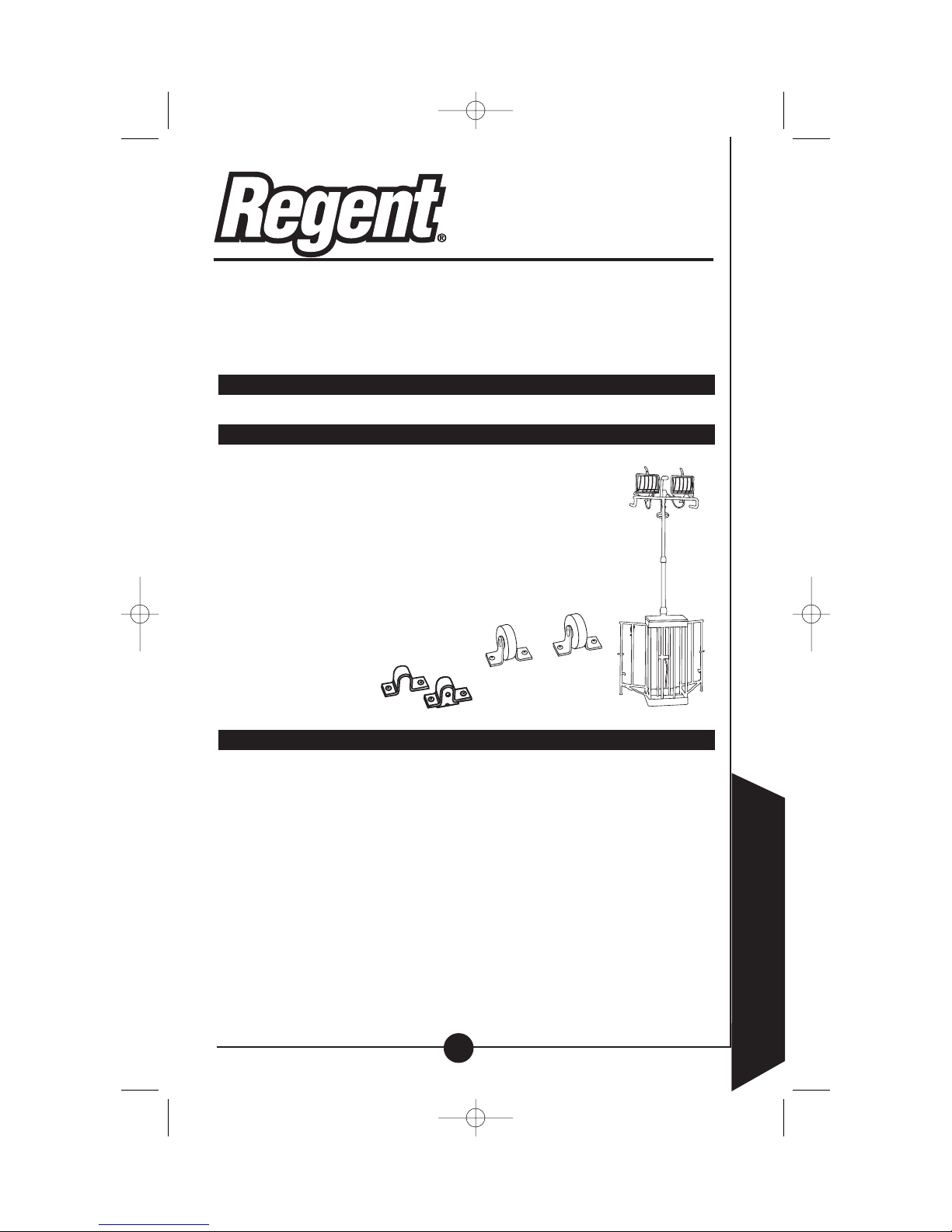

What’s included

• (2) Light fi tures

• Sled crossbar

• Protective cage/stand

• Adjustable pole

• AM/FM radio built into cage/stand

• (3) 500 Watt halogen bulbs – (one located in each fi ture, plus

bonus bulb stored in handle)

• (8) M5 14mm round head machine screws with lock washers

(pre-installed in correct hole of the cage)

• Hardware bag

Upper bracket

Lower bracket

• (2) Wheels

What to know

NOTE: When using worklights, basic safety precautions should always be fol-

lowed to reduce the risk of fire, electric shock, and personal injury including the

following:

IMPORTANT SAFETY INSTRUCTIONS

READ THESE INSTRUCTIONS:

KEEP THESE INSTRUCTIONS: HEED ALL WARNINGS

FOLLOW ALL INSTRUCTIONS

• Use only three wire e tension cords that have three-prong grounding

plugs and grounding receptacles that accept the appliance’s plug.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided

on the circuit(s) or outlet(s) to be used for the portable lamps.

Receptacles are available having built-in GFCI protection and are

able to be used for this measure of safety.

• Use only with an e tension cord such as type S, S-A, SO, SO-A, ST,

ENGLISH

Call for customer service and/or missing or damaged parts (800-334-6871)

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 2

ENGLISH

ST-A, STO, STO-A, SJ, SJ-A, SJO, SJO-A, SJT-A, SJTO, OR

SJTO-A.

• This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Under Part 15 of the FCC Rules, any changes or modifications to the

motion detector described in this instruction sheet that are not

e pressly approved by Cooper Lighting could void the user’s authori-

ty to operate the equipment.

NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and if

not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular

installation.

SAVE THESE INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC

SHOCK, EXPOSURE TO EXCESSIVE UV RADIATION, OR

INJURY TO PERSONS

Lighted lamp is HOT!

To reduce the risk of FIRE, ELECTRIC SHOCK, EXPOSURE

TO EXCESSIVE UV RADIATION, OR INJURY TO PERSON:

• Do not block any ventillation openings. Install in accordance with the

manufacturer’s instructions.

• Unplug and allow to cool before replacing bulb.

• Bulb gets HOT quickly! Only contact switch/plug when turning on.

• Do not touch hot lens, guard, or enclosure.

• Do not remain in light if skin feels warm.

• Do not look directly at lighted bulb

• Keep bulb away from materials that may burn.

• Use only a 500 watt, or lower wattage halogen type “T” bulb. Use of

any other bulb will damage the fi ture and void the warranty.

Installing a higher wattage bulb could create a fire hazard.

• Do not touch the bulb at any time. Use a soft cloth or gloves. Oil from

skin may damage bulb.

• Risk of e posure to e cessive ultraviolet (UV) radiation. Do not oper-

ate unit with a missing or damaged guard, lamp containment barrier

or UV filter.

• Do not direct light at persons.

• Fi ture must be connected to a 120 Volt, 60 Hz power source. Any

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 3

other connection voids the warranty.

• The electrical system, and the method of electrically connecting the

fi ture to it, must be in accordance with the National Electric Code

and local building codes.

• Do not use this apparatus near water.

• WARNING: Risk of electric shock. Do not use with e tension cord

near water or where water may accumulate. Keep lamp at least 16

feet from pools and spas. Keep plugs and receptacles dry. For use

only on GFCI protected circuits.

• Disassembly of the fi ture will void the warranty.

• If lens is replaced, use only tempered safety glass of equal thick-

ness.

• For ma imum bulb life, position light so that the halogen bulb

remains within 4° of horizontal.

• For dry location use.

• Clean only with dry cloth.

• Do not install near any heat sources such as radiators, heat regis-

ters, stoves, or other apparatus (including amplifiers) that produce

heat.

• Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other

does. A grounding type plug has two blades and a third grounding

prong. The wide blade or the third prong is provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician

for the replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they e it from

the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Unplug this apparatus during lightning storms or when unused for

long periods of time.

• Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been

e posed to rain or moisture, does not operate normally, or has been

dropped.

SAVE THESE INSTRUCTIONS

NOTE: Deviation from the assembly instructions may result in a risk of fire or

electric shock.

Assembling your fixture

Step 1: Carefully remove the cage from bo and place on floor in an upright

position. The bottom of the cage contains the legs and hinge assem-

bly for the doors.

Step 2: Release the light fi ture from the cage door by carefully unlatching

ENGLISH

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 4

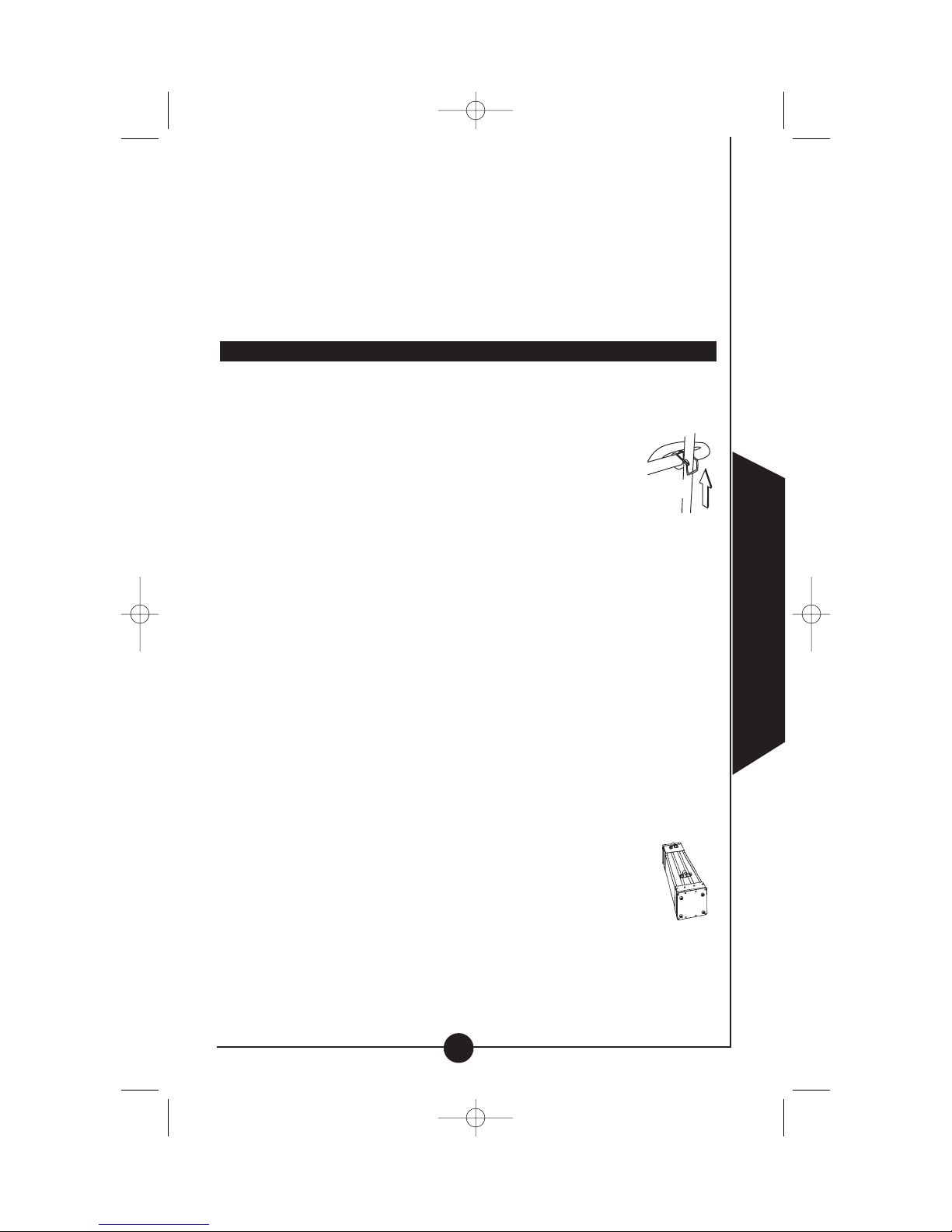

the locking clamp on the center pole of the door (Figure A). This is

done by pulling up on the lock lever and disengaging the top hook

end. The portable unit will remain supported by the lower hook.

Step 3: Open the door opposite the locking clamp. To open the

door, first release the spring loaded door locks by pulling

the lock knob towards the center of the door until the latch

pin clears the hole. Rotate the door until it stops with

the knee action locking bars fully e tended.

Step 4: Remove the portable light fi ture by first raising the unit

off of the hook. Lower the portable fi ture to the floor of the cage, and

lean the top of the unit towards the open door. Pull the portable fi -

ture out of the cage and place it upright on the ground. Remove verti-

cal pole and all other loose parts from the cage including all packing

material. Open the door on the other side of the cage

using the same procedure as in Step 3.

Step 5: Remove all of the hardware from its packaging and check

the “What’s included” list in the owners manual to be sure

that all of the components are available for assembly.

Step 6: Carefully lay cage on the front face so that the rear of the

cage in facing up, for pole bracket and wheel attachment.

Remove screws from the bracket mounting holes on the

back of the cage and attach bottom pole bracket and top

pole bracket to cage leaving the screws slightly loose.

(Figure B).(NOTE: Bottom pole bracket is the bracket with

one end closed to prevent tube from falling through.)

Remove screw from bottom of adjustable pole and slide

adjustable pole down through the two pole brackets and

align notch in tube with formed metal tab inside of the bottom bracket.

Attach pole to bottom bracket using the screw that was

removed (Figure C). Securely tighten all (4) bracket

mounting screws after bottom pole screw has been

secured.

Step 7: Remove wheel mounting screws on back/side of the

cage and secure wheels in place using the screws

that were just removed (Figure D).

Step 8: Pick up cage and set it in an upright position.

Use as a stand light

Step 1: Release the light fi ture from the cage door by carefully unlatching

the locking clamp on the center pole of the door. (Figure A) This is

done by pulling up on the lock lever and disengaging the top hook

end. The portable unit will remain supported by the lower hook. Open

the door opposite the locking clamp. To open the door, first release

the spring loaded door locks by pulling the lock knob towards the

center of the door until the latch pin clears the hole. Rotate the door

until it stops with the knee action locking bars fully e tended. Remove

the portable light fi ture by first raising the unit off of the hook. Lower

the portable fi ture to the floor of the cage, and lean the top of the

unit towards the open door. Pull the portable fi ture out of the cage

ENGLISH

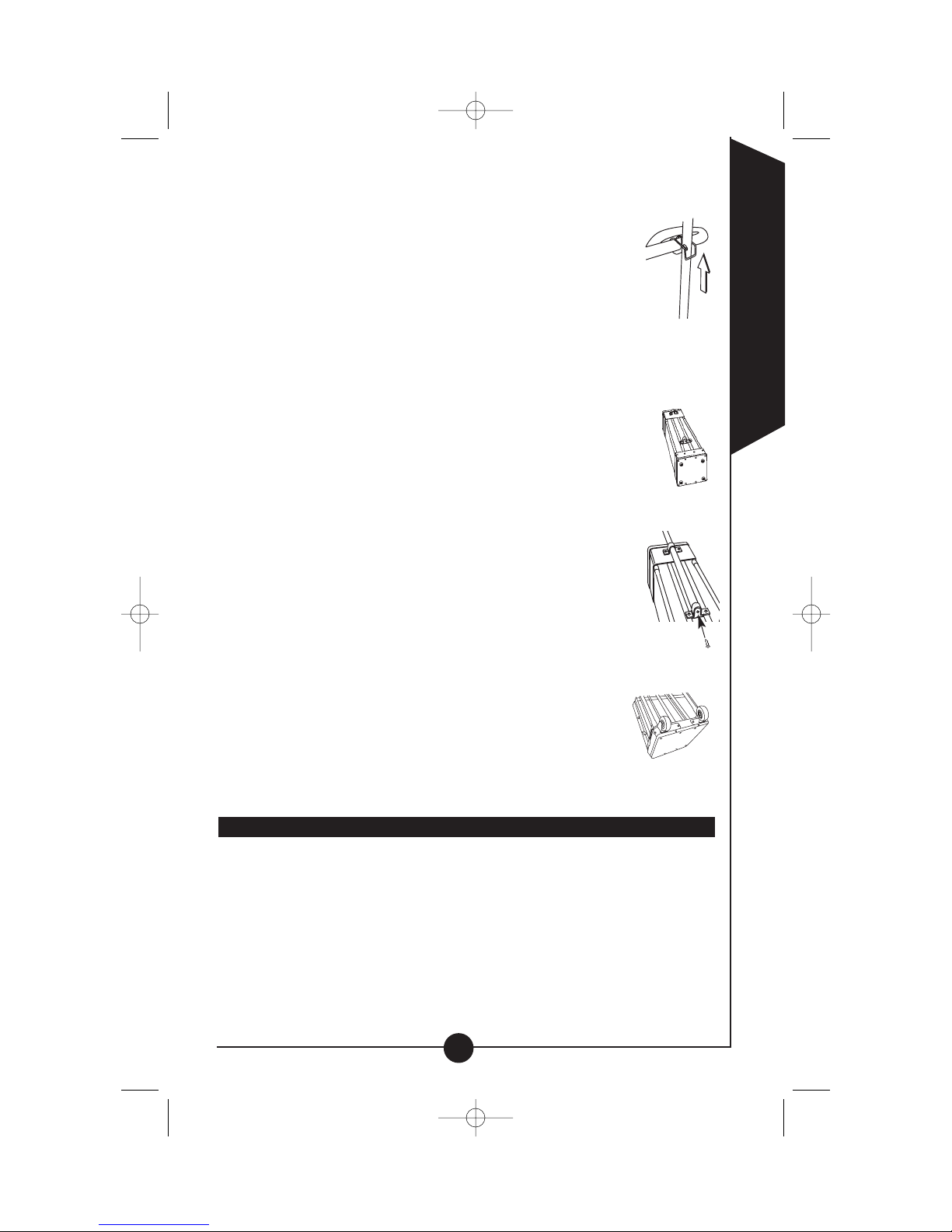

FIG. D

FIG. C

FIG. B

FIG. A

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 5

and place it upright on the ground. Loosen the wing nuts holding the

tab handles and raise the handles to an upright posi-

tion. Open the door on the other side of the cage

using the same procedure as above. Stabilizing legs

on both doors must be lowered down to stabilize

and level cage/stand prior to attaching portable fi -

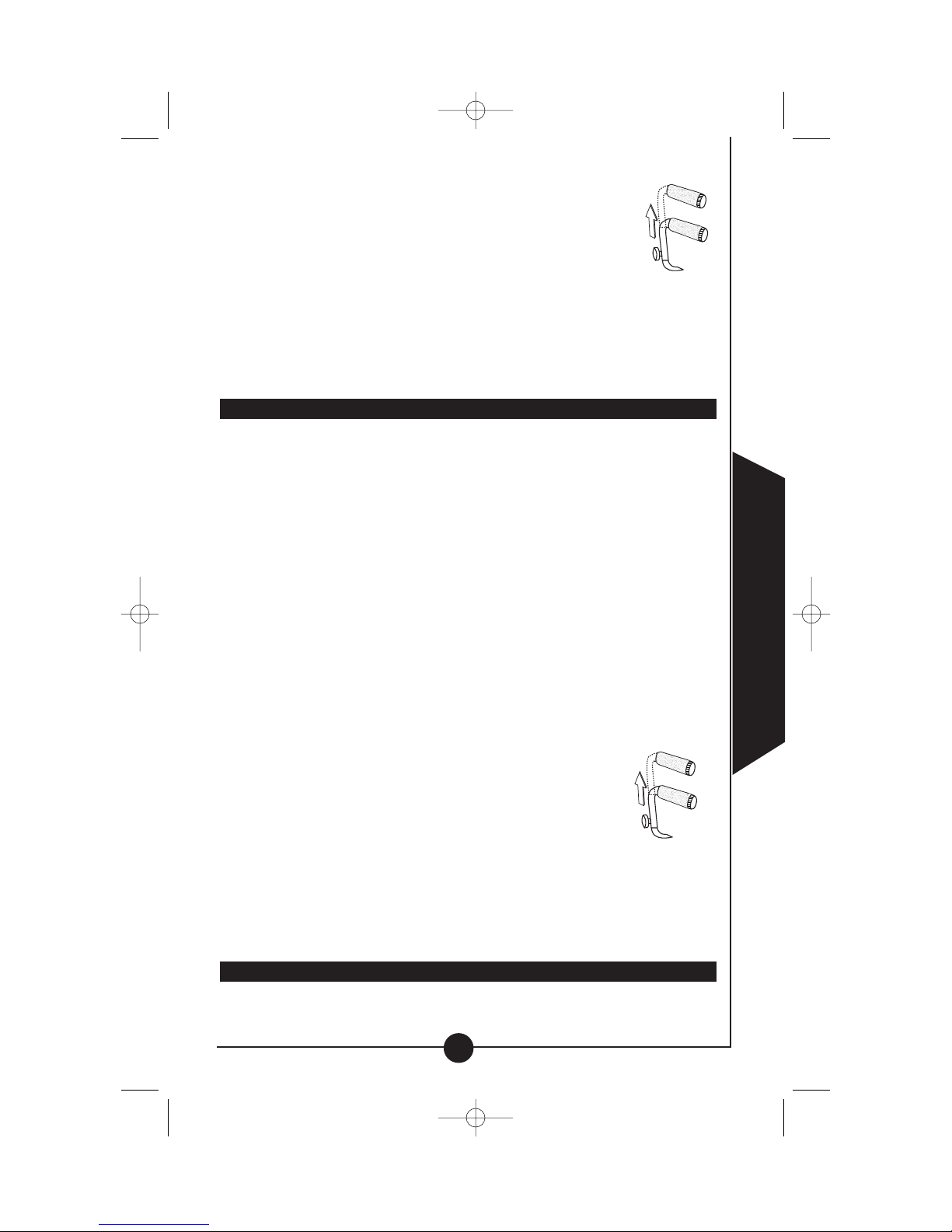

ture to the pole. Lower the stabilizing legs by loosen-

ing the oval knobs and pulling down on the legs until

the desired length has been achieved. Lock legs in the desired posi-

tion by tightening the oval knobs (Figure E).

Step 2: Adjust the vertical pole to the desired height by loosen-

ing and tightening the collars on the pole (Figure F).

Lower the travel handle by pushing out and down on

the handle.

Step 3: Lift center handle of fi ture by loosening the knob on

the back of the handle’s vertical tube and raising the

handle. (Figure G) Tighten the knob to hold handle in

“up” position. NOTE: Handle must be in “up” position

before using handle to avoid contacting the housing

when carrying portable unit. Attach portable fi ture to

the vertical pole by placing the Quick-ReleaseTM collar

over the top of the tube. Tighten the knob on the collar

until the screw is secure.

Step 4: Plug light into a GFCI protected 120-volt receptacle. To

turn light ON, or OFF, push red switch on the back of

each fi ture.

NOTE: Cage must be secured with sand bags or other suitable

weight:

• When used on uneven or rocky surfaces

• When used in windy areas

• Anytime e tra stability is required.

Use as a portable light

Step 1: Release the light fi ture from the cage door by carefully unlatching

the locking clamp on the center pole of the door. This is done by

pulling out on the lock lever and disengaging the top hook end. The

portable unit will remain supported by the lower hook. Open the door

opposite the locking clamp. To open the door, first release the spring

loaded door locks by pulling the lock knob towards the center of the

door until the latch pin clears the hole. Rotate the door until it stops

with the knee action locking bars fully e tended. Remove the portable

light fi ture by first raising the unit off of the hook. Lower the portable

fi ture to the floor of the cage, and lean the top of the unit towards

the open door. Pull the portable fi ture out of the cage. Loosen the

wing nuts holding the tab handles and raise the handles to an upright

position. Tighten the wing nuts.

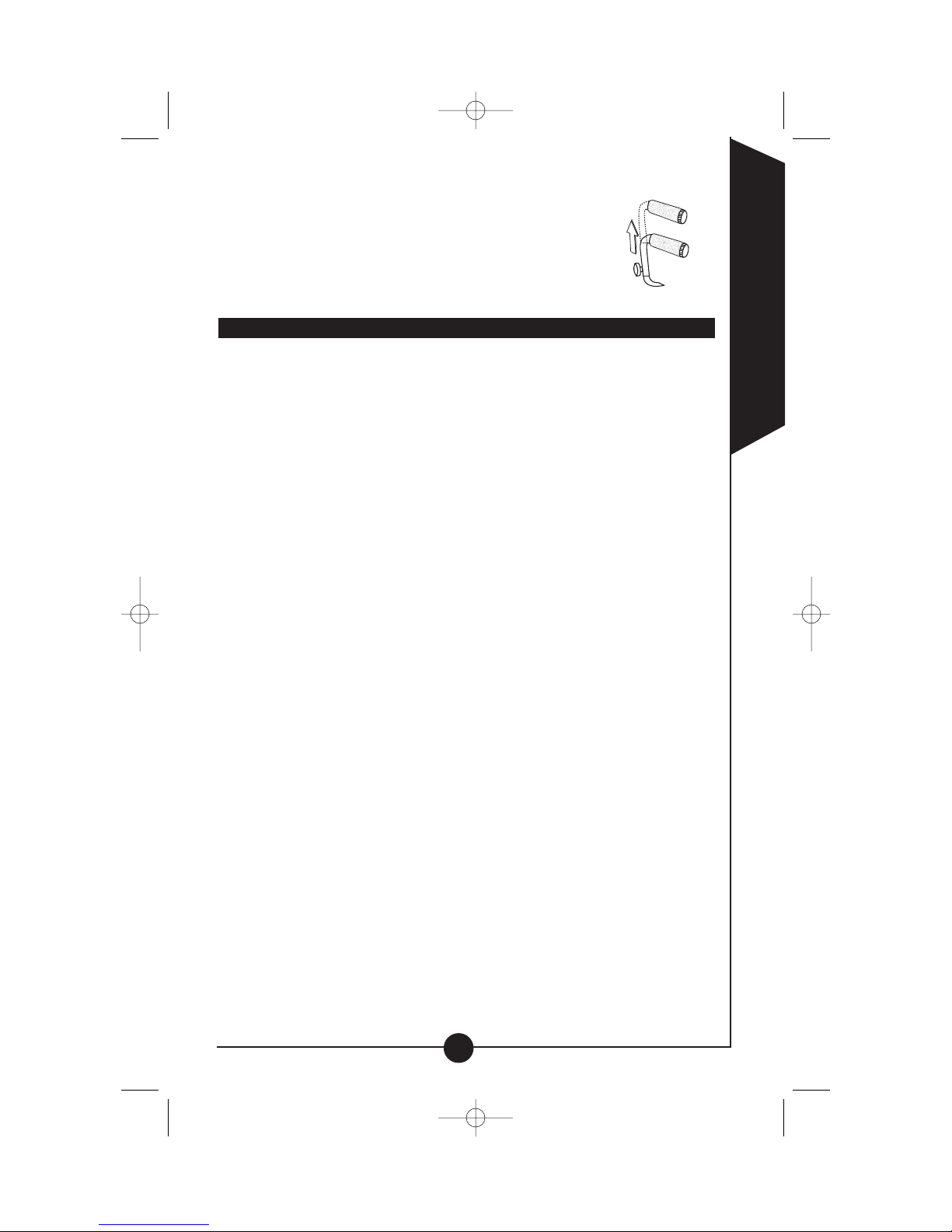

Step 2: Lift center handle of fi ture by loosening the knob on the back of the

handle’s vertical tube and raising the handle. (Figure H) Tighten the

ENGLISH

FIG. E

FIG. F

FIG. G

FIG. A

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 6

knob to hold handle in “up” position. NOTE: Handle must be in “up”

position before using handle to avoid contacting the

housing when carrying portable unit. Use the light fi -

tures by setting the built-in stand on any flat surface.

Step 3: For ma imum safety, portable light fi tures should

always be plugged into a GFCI (Ground Fault Circuit

Interrupter) protected, 120-volt circuit.

Step 4: To turn light ON, or OFF, push red switch on the back of each fi ture.

How to store after use

Step 1: Make sure fi tures are cool. If used as a standlight, loosen the Quick-

ReleaseTM knob and raise the portable fi ture off of the pole using the

center handle.

Step 2: Lower adjustable pole by loosening the upper locking collar and low-

ering the pole until it stops. Tighten the locking collar to secure it in

place. Repeat this step using the lower locking collar to lower the ne t

section of the adjustable pole.

Step 3: Raise the stabilizing legs on both of the doors by loosening the knobs

on the door and pushing up on the leg until it is fully seated against

the bottom of the door. Retighten the knobs to hold them in place.

Push on the center joint of the knee action bracket on left door (door

with fi ture hook) to allow door to start to close. Continue to rotate

door until almost closed. Pull out the latch knob until door is closed.

Release tension on the latch knob once pin is centered over the hole

in vertical tube of cage to lock door closed.

Step 4: Lower the center handle of fi ture by loosening the knob on the back

of the handle’s vertical tube. Tighten the knob to hold handle in the

“storage” position. Loosen the wing nuts holding the tab handles and

fold the handles to the side of the fi ture. Tighten the wing nuts. Place

the portable unit in the cage stand legs first, starting with the lower

section of the portable unit. Once the lower section is in the cage and

resting on the bottom, lean the entire portable unit into the cage and

rest fi ture on lower locking

bracket. Place the upper bracket arm over the end of the lower brack-

et and push down on the outer arm to lock fi ture in place.

Step 5: Push on the center joint of the knee action bracket on opposite door

to allow door to start to close. Continue to rotate door until almost

closed. Pull out the latch knob until door is closed. Release tension

on the latch knob once pin is centered over the hole in vertical tube

of cage to lock door closed.

Step 6: To transport the cage to another location, raise and lock the travel handle

on the top vertical tube into position, grab the handle and lean the unit

back onto the wheels at the bottom of the cage to roll away.

ENGLISH

FIG. H

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 7

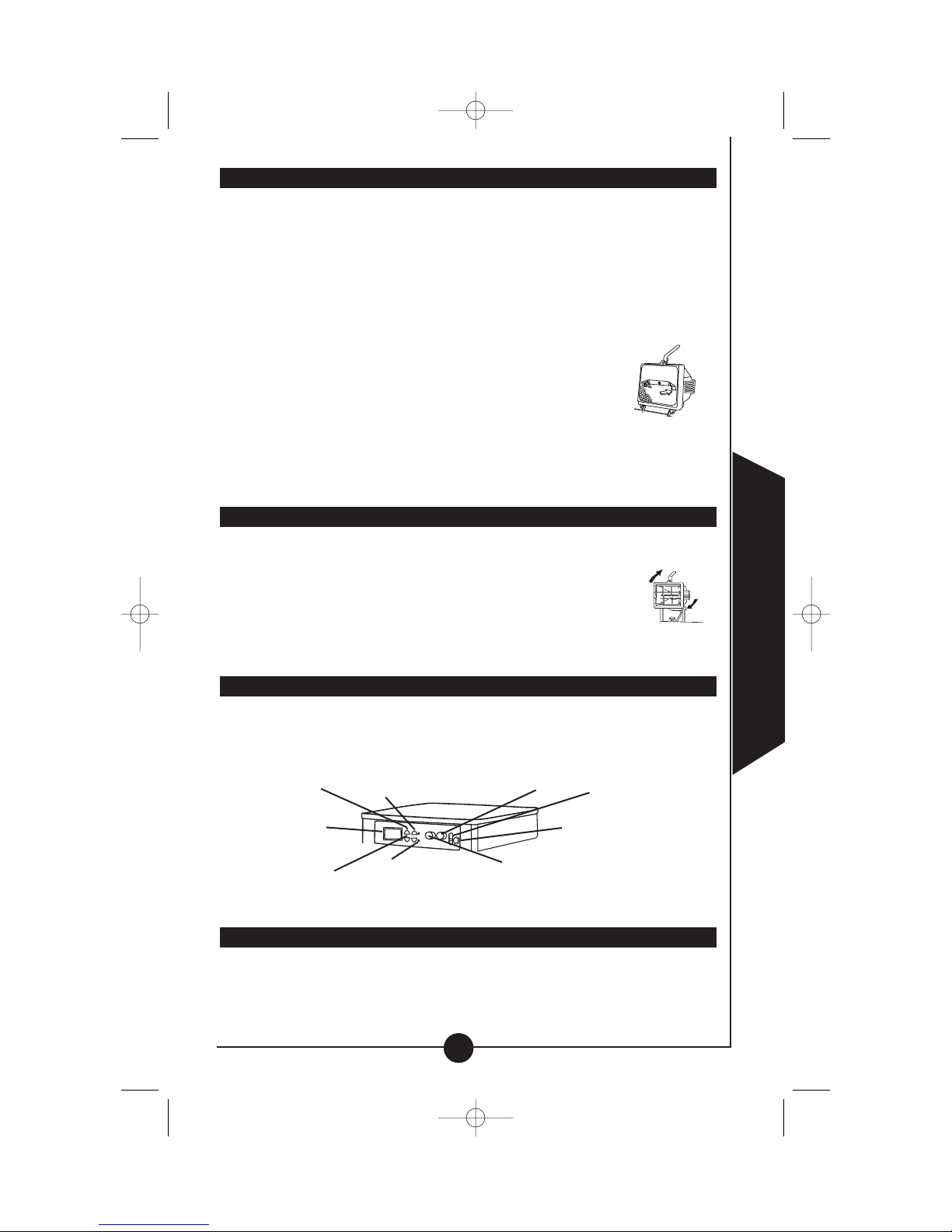

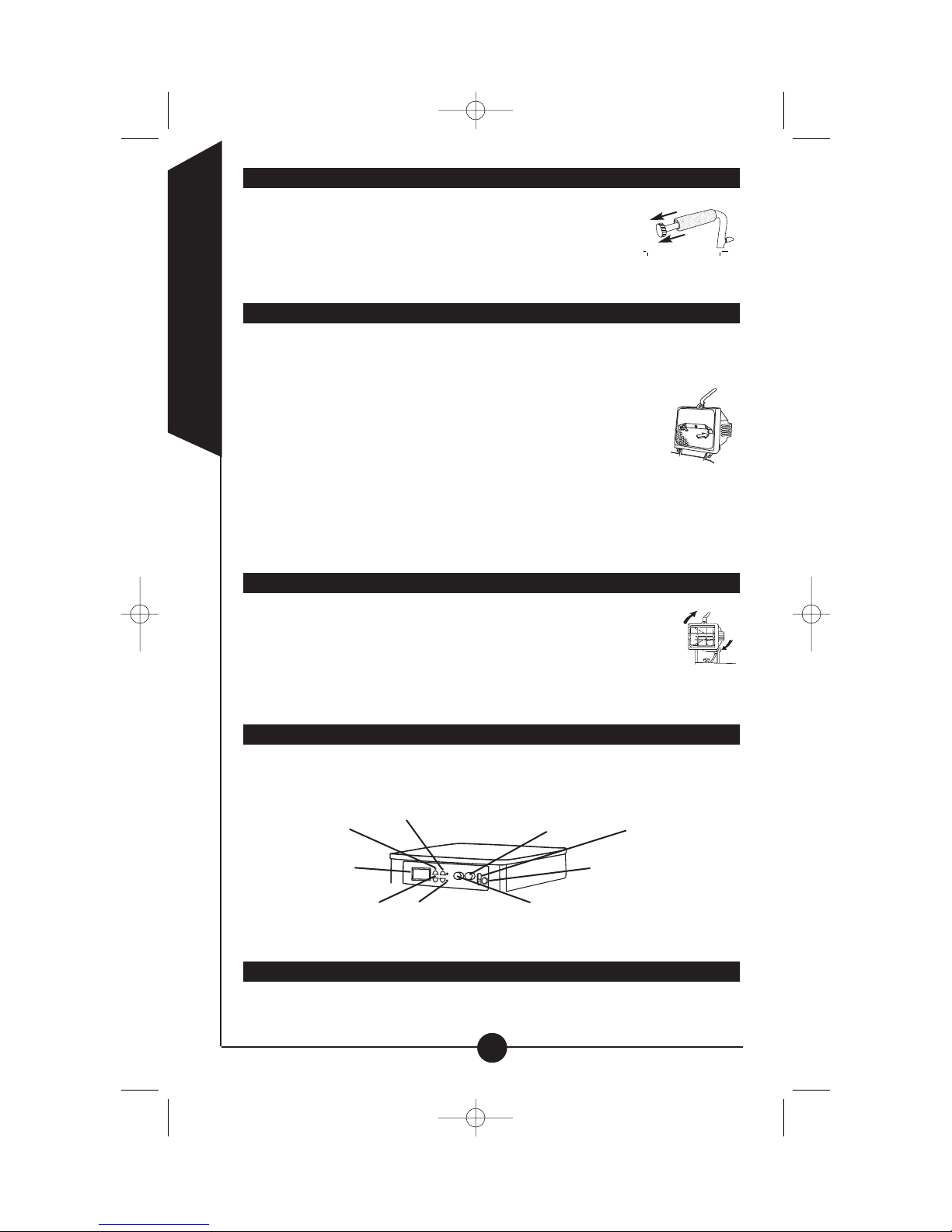

Bonus bulb included

This fi ture includes a spare bulb, which insures that you can

always finish your job or project without interruption due to bulb

failure. The spare bulb and holder are located in the center han-

dle of the portable fi ture (Figure I) NOTE: Always handle

halogen bulbs with gloves or with a clean soft cloth. Oil from your

skin can cause premature failure of the bulb.

Replacing the bulb

Step 1: Make sure fi ture is turned OFF and unplugged.

Step 2: Turn wing nut on back of handle counterclockwise to remove handle.

Using a Phillips screwdriver loosen the screw on the front of the door.

Step 3: The door frame and lens assembly will swing down

allowing access to the bulb.

Step 4: Using gloves or soft cloth, press the old bulb to one side

of the spring loaded socket as indicated on the metal

reflector. Remove opposite end of bulb from the other

side of the socket. Remove the new bulb from its package

making sure not to touch bulb with bare hands. Reverse this proce-

dure to install a new replacement bulb (Figure J).

Step 5: Replace the door frame and lens assembly and secure it using a

phillips screwdriver.

Aiming the fixture

Make sure the light fi ture is in the OFF position and cool. Loosen

the knob located on the side of the light fi ture housing. Using the

tab handle on the light fi ture, tilt to desired position then retighten

knobs (Figure K). There is a stop that restricts the downward and

inward movement of the fi ture for safety reasons. To prevent over-

heating and risk of burns or fire, do not aim the fi ture down at an

angle of more than 10 degrees from horizontal.

AM/FM Radio Operation

Electrical cord located on the back of the cage/stand must be plugged

into power source for radio to operate.

Two year limited warranty

Cooper Lighting (“the Company”) warrants this product (“the product”) against

defects in material or workmanship for a period of two years from date of origi-

ENGLISH

FIG. K

FIG. J

98.5

Displays radio

station selected

Selects AM/FM

radio stations

LED light indicates

station reception

LED light indicates

stereo reception

LED light indicates

stereo/mono

selection

Selects radio

station by turning

knob left or right

Adjusts volume to

be louder by turning

knob to the right

Allows e ternal

CD player to be

used with radio

Turns radio on/off

with press of button

FIG. I

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 8

nal purchase, and agrees to repair or, at the Company’s option, replace a

defective product without charge for either replacement parts or labor during

such time. This does not include labor to remove or install fi tures.

This warranty is e tended only to the original purchaser of the product. A pur-

chaser’s receipt or other proof of date of original purchase acceptable to the

Company is required before warranty performance shall be rendered.

This warranty only covers product failure due to defects in materials or work-

manship which occurs in normal use. It does not cover the bulb or failure of the

product caused by accident, misuse, abuse, lack of reasonable care, alteration,

faulty installation, subjecting the product to any but the specified electrical serv-

ice or any other failure not resulting from defects in materials or workmanship.

Damage to the product caused by separately purchased, non Company brand

replacement bulbs and corrosion or discoloration of brass components are not

covered by this warranty.

There are no e press warranties e cept as described above.

THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PROD-

UCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL

IMPLIED WARRANTIES, IF ANY, INCLUDING IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED IN DURATION TO THE DURATION OF THIS EXPRESS WARRANTY.

Some states do not allow the e clusion or limitation of incidental or consequen-

tial damages, or limitations on how long an implied warranty lasts, so the above

e clusions or limitations may not apply to you.

No other warranty, written or verbal, is authorized by the Company. This war-

ranty gives you specific legal rights and you may also have other rights which

vary from state to state.

To obtain warranty service, please write to Cooper Lighting, 1121 Highway 74

South, Peachtree City, GA 30269. Enclose product model number and prob-

lems you are e periencing, along with your address and telephone number.

You will then be contacted with a solution, or a Return Goods Authorization

number and full instructions for returning the product. All returned products

must be accompanied by a Return Goods Authorization Number issued by the

Company and must be returned freight prepaid. Any product received with-

out a Return Goods Authorization Number from the Company will be

refused.

Cooper Lighting is not responsible for merchandise damaged in transit.

Repaired or replaced products shall be subject to the terms of this warranty

and are inspected when packed. Evident or concealed damage that is made in

transit should be reported at once to the carrier making the delivery and a

claim filed with them.

ENGLISH

Customer First Center • 1121 Highway 74 South, Peachtree City, GA 30269 USA

Call for customer service and/or missing or damaged parts (800-334-6871)

www.cooperlighting.com

Reproductions of this document without prior written approval of Cooper Lighting are strictly prohibited.

Printed in China

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 9

ESPAÑOL

¡Felicitaciones! Usted ha comprado una lámpara de pedestal Regent de 1000

watts. Esta versátil lámpara es perfecta para muchas diferentes aplicaciones,

que requieren un porta-bombilla portátil o una lámpara de pedestal. La jaula

protectora incorporada también sirve como pedestal para el porta-bombilla, y

un durable estuche sirve para transporte y almacenamiento. El radio incorpo-

rado le permite escuchar su música favorita mientras trabaja alrededor de la

casa o en el lugar de trabajo.

Requerido para Instalación (No Suministrado)

• Atornillador Phillips

Qué se incluye

• (2) porta-bombilla

• Travesaño de trineo

• Jaula protectora / pedestal

• Poste ajustable

• Radio AM/FM incorporada en la jaula/pedestal

• (3) bombillas halógenas de 500 Watts – [una (1) ubicada en

cada porta-bombilla, más bombilla adicional guardada en la

manija]

• (8) tornillos de cabeza redonda M5 14mm con arandelas de

seguridad (pre-instalados en el respectivo agujero de la jaula)

• Bolsa de herrajes

Soporte superior

Soporte inferior

• (2) Ruedas

Qué se debe saber

NOTA: Cuando las lámparas de trabajo se utilizan, siempre deben seguirse

precauciones de seguridad básicas para reducir el riesgo de incendio, choque

eléctrico, y lesiones personales, incluyendo lo siguiente:

Instrucciones Importantes de Seguridad

LEA TODAS LAS INSTRUCCIONES

CONSERVE ESTAS INSTRUCCIONES : PRESTE

ATENCIÓN A TODAS LAS ADVERTENCIAS

Siga Todas las Instrucciones

• Sólo utilice cables de e tensión para e teriores de tres alambres con

enchufe de tres patas incluyendo la pata de cone ión a tierra y

tomacorrientes con cone ión a tierra que acepten el enchufe del

aparato.

SC1000R 1000

VATIOS LUZ DE PEDESTAL

CON JAULA Y RADIO

Llame para solicitar servicio al cliente y/o piezas faltantes o dañadas (800-334-6871)

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 10

ESPAÑOL

• Debe suministrarse protección mediante Interruptor de Circuito por

Falla a Tierra (GFCI) en el circuito(s) o tomacorriente(s) que se uti-

lizará para conectar las lámparas portátiles en sitios húmedos. Los

tomacorrientes están disponibles con protección por GFCI incorpora-

do y pueden utilizarse para esta medida de seguridad.

• Sólo utilice con cables de e tensión para uso en e teriores, tales

como los cables de e tensión tipo S, S-A, SO, SO-A, ST, ST-A, STO,

STO-A, SJ, SJ-A, SJO, SJO-A, SJT-A, SJTO, ó SJTO-A.

• Este dispositivo cumple con la Parte 15 de las Reglas de la

Comisión Federal de Comunicaciones (FCC) de los E. U. de A. La

operación está sujeta a las dos condiciones siguientes: (1) Este dis-

positivo no puede causar interferencia dañina, y (2) este dispositivo

debe aceptar toda interferencia recibida, incluyendo la interferencia

que pueda causar un funcionamiento indeseado. Según la Parte 15

de las Reglas de la FCC, todo cambio o modificación al detector de

movimiento descripto en esta hoja de instrucciones que no esté

e presamente aprobado por Cooper Lighting, podría anular la autor-

ización del usuario para operar el equipo.

NOTA: Este equipo ha sido probado, y se ha verificado que cumple

con los límites de un dispositivo digital Clase B, de acuerdo con la

parte 15 de las Reglas de la FCC. Estos límites están diseñados a

fin de proveer una protección razonable contra la interferencia dañi-

na en una instalación residencial. Este equipo genera, usa y puede

irradiar energía de radio frecuencia, y si no se instala y utiliza de

acuerdo con las instrucciones, puede causar interferencia dañina en

las comunicaciones de radio. Sin embargo, no se garantiza que no

vaya a producirse interferencia en una instalación en particular.

GUARDE ESTAS INSTRUCCIONES

INSTRUCCIONES RELACIONADAS CON RIESGO DE INCEN-

DIO, CHOQUE ELÉCTRICO, EXPOSICIÓN A EXCESIVA

RADIACIÓN UV, ó LESIONES A PERSONAS.

¡La lámpara encendida está CALIENTE!

Para reducir el riesgo de INCENDIO, CHOQUE ELÉCTRICO,

EXPOSICIÓN A EXCESIVA RADIACIÓN UV, ó LESIONES A

PERSONAS:

• No bloquee ninguna abertura de ventilación. Instálelo de acuerdo

con las instrucciones del fabricante.

• Desenchufe y permita enfriar antes de reemplazar la bombilla.

• ¡La bombilla se CALIENTA rápidamente!. Sólo haga contacto con el

interruptor/ enchufe en el momento de encender la lámpara.

• No toque los lentes, protector, o cubierta calientes.

• No permanezca cerca de la lámpara si la piel siente calor.

• No mire directamente a la bombilla encendida.

• Mantenga alejada la bombilla de materiales que pudieran

incendiarse.

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 11

ESPAÑOL

• Sólo utilice bombilla halógena tipo “T” de 500 watts o menos. El uso

de cualquier otra bombilla dañará el porta-bombilla y anulará la

garantía. La instalación de una bombilla de mayor vatiaje (watts)

podría crear un riesgo de incendio.

• No toque la bombilla en ningún momento. Utilice una tela suave o

guantes. La grasa de la piel podría dañar la bombilla.

• Riesgo de e posición a e cesiva radiación ultravioleta (UV). No

opere la unidad sin un protector, barrera de contención de lámpara o

filtro de UV.

• No dirija la lámpara a las personas.

• El porta-bombilla debe conectarse a una fuente de energía de 120

Voltios, 60 Hz. Cualquier otra cone ión anula la garantía.

• El sistema eléctrico, y el método de cone ión eléctrica del porta-

bombilla con este sistema eléctrico, deben estar de acuerdo con el

Código Eléctrico Nacional y los códigos de construcción locales.

• No utilice este aparato cerca del agua.

•ADVERTENCIA: Riesgo de choque eléctrico. No utilice con cable de

e tensión cerca del agua o donde el agua pudiera acumularse.

Mantenga la lámpara a una distancia mínima de 16 pies de piscinas

y fuentes de agua. Mantenga secos los enchufes y tomacorrientes.

Para uso sólo en circuitos protegidos con Interruptor de Circuito por

Falla a Tierra.

• El desarme del porta-bombilla anulará la garantía.

• Si se reemplazan los lentes, sólo utilice vidrio de seguridad templa-

do de igual espesor.

• Para lograr má ima vida de servicio de la bombilla, coloque la lám-

para de manera que la bombilla halógena permanezca a 4° con

respecto a la horizontal.

• Apto para ubicaciones secas

• Límpielo únicamente con un paño seco

• No lo instale cerca de ninguna fuente de calor, como radiadores,

rejillas de aire caliente, estufas u otros aparatos (incluídos amplifi-

cadores) que produzcan calor.

• No anule el objetivo de seguridad del enchufe polarizado o con

puesta a tierra. Un enchufe polarizado tiene dos láminas, una más

ancha que la otra. Un enchufe con puesta a tierra tiene dos láminas,

y una tercera espiga para la puesta a tierra. La lámina ancha, o la

tercera espiga, se han provisto para su seguridad. Si el enchufe pro-

visto no se adapta a su tomacorriente, consulte con un electricista

para el reemplazo del tomacorriente anticuado.

• Proteja el cordón de alimentación eléctrica para evitar que lo pisen o

lo estrujen, particularmente en su unión con enchufes y tomacorri-

entes, y en el punto en que sale del aparato.

• Utilice únicamente aditamentos y accesorios especificados por el

fabricante.

• Desenchufe este aparato durante tormentas eléctricas o cuando no

se lo vaya a utilizar por períodos de tiempo prolongados.

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 12

ESPAÑOL

• Confíe todas las tareas de reparación a personal de servicio califica-

do. La reparación es necesaria si el aparato ha sido dañado de

cualquier modo, como por ejemplo si se ha dañado el cordón de ali-

mentación eléctrica o el enchufe, si se ha derramado líquido o han

caído objetos dentro del aparato, o si el aparato ha sido e puesto a

la lluvia o a la humedad, no funciona normalmente o se ha caído.

GUARDE ESTAS INSTRUCCIONES

NOTA: No seguir estrictamente las instrucciones de ensamblaje podría resul-

tar en un peligro de incendio o choque eléctrico.

Ensamblaje de su porta-bombilla

Paso 1: Remueva cuidadosamente la jaula de la caja y colóquela sobre el

piso en posición vertical. El fondo de la jaula contiene las patas y el

conjunto de bisagra para las puertas.

Paso 2: Libere el porta-bombilla de la puerta de jaula removiendo

cuidadosamente el pasador de la abrazadera de sujeción

en la barra central de la puerta (Figura A). Esto se hace

halando la palanca de sujeción y desenganchando el

e tremo del gancho superior. La unidad portátil per-

manecerá soportada por el gancho inferior.

Paso 3: Abra la puerta opuesta a la abrazadera de sujeción. Para abrir la

puerta, primero libere las cerraduras resortadas de puerta halando la

perilla de la cerradura hacia el centro de la puerta hasta que el

pasador de cierre despeje el agujero. Gire la puerta hasta que se

detenga con las barras de sujeción de acción articulada totalmente

e tendidas.

Paso 4: Remueva el porta-bombilla portátil levantando primero la unidad

fuera del gancho. Baje el porta-bombilla portátil al piso de la jaula, e

incline la parte superior de la unidad hacia la puerta abierta. Saque

de la jaula el porta-bombilla portátil y colóquelo verticalmente sobre

el piso. Remueva el poste vertical y todas las otras piezas sueltas de

la jaula incluyendo todo el material de empaque. Abra la puerta

sobre el otro lado de la jaula utilizando el mismo procedimiento del

Paso 3.

Paso 5: Saque todos los herrajes de su empaque y verifique con la lista de

“Qué se incluye” incluida en el manual del propietario para asegu-

rarse que todos los componentes están disponibles para ensamblaje.

Paso 6: Coloque cuidadosamente la jaula sobre la cara delantera

de manera que la parte trasera de la jaula quede dirigida

hacia arriba, para cone ión del soporte de poste y las

ruedas. Remueva los tornillos de los agujeros de monta-

je del soporte ubicados en la parte trasera de la jaula y

fije el soporte inferior y el soporte superior del poste a la

jaula dejando los tornillos ligeramente flojos (Figura B).

(NOTA: El soporte inferior del poste es el soporte que tiene un

e tremo cerrado para evitar que el tubo caiga a través). Remueva el

tornillo del fondo del poste ajustable y deslice hacia abajo el poste

FIG. A

FIG. B

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 13

ESPAÑOL

ajustable a través de los dos soportes del poste y alinee

la ranura en el tubo con la lengüeta metálica conforma-

da ubicada dentro del soporte inferior. Fije el poste al

soporte inferior utilizando el tornillo que se removió

(Figura C). Apriete firmemente todos los (4) tornillos de

montaje del soporte después de haber asegurado el

tornillo inferior del poste.

Paso 7: Retire los tornillos de montaje de las ruedas ubicados en

la parte trasera/ lateral de la jaula y asegure las ruedas

en su sitio utilizando los tornillos que se acaban de

retirar (Figura D).

Paso 8: Levante la jaula y colóquela en posición vertical con la

parte superior del poste dirigida hacia arriba.

Uso como lámpara de pedestal

Paso 1: Libere el porta-bombilla de la puerta de jaula removiendo cuidadosa-

mente el pasador de la abrazadera de sujeción en la barra central de

la puerta. Esto se hace halando la palanca de sujeción y desengan-

chando el e tremo del gancho superior. La unidad portátil per-

manecerá soportada por el gancho inferior. Abra la puerta opuesta a

la abrazadera de sujeción. Para abrir la puerta, primero libere las

cerraduras resortadas de puerta halando la perilla de la cerradura

hacia el centro de la puerta hasta que el pasador de cierre despeje el

agujero. Gire la puerta hasta que se detenga con las barras de suje-

ción de acción articulada totalmente e tendidas. Remueva el porta-

bombilla portátil levantando primero la unidad fuera del gancho. Baje

el porta-bombilla portátil al piso de la jaula, e incline la parte superior

de la unidad hacia la puerta abierta. Saque de la jaula el porta-bom-

billa portátil y colóquelo verticalmente sobre el piso. Afloje las tuercas

tipo mariposa que sostienen las manijas tipo orejeta y levante las

manijas a una posición vertical. Abra la puerta del otro lado de la

jaula utilizando el mismo procedimiento anterior. Deben

bajarse las patas de estabilización en ambas puertas

para estabilizar y nivelar la jaula/pedestal antes de fijar el

porta-bombilla portátil al poste. Baje las patas de estabi-

lización aflojando las perillas ovaladas y halando hacia

abajo las patas hasta lograr la longitud deseada.

Asegure las patas en la posición deseada apretando las

perillas ovaladas (Figura E).

Paso 2: Ajuste el poste vertical a la altura deseada aflojando y

apretando los collares en el poste (Figura F). Baje la

manija de transporte presionando y bajando la manija.

Paso 3: Levante la manija central aflojando la perilla ubicada en

la parte posterior del tubo vertical de manija y levantando

la manija (Figura G). Apriete la perilla para sostener la

manija en posición “hacia arriba”. NOTA: La manija debe

estar en la posición “hacia arriba” antes de utilizar la manija para evi-

tar hacer contacto con la caja cuando se transporta la unidad portátil.

FIG. E

FIG. F

FIG. C

FIG. D

SC1000R I.S 325-1439 6/4/04 4:12 PM Page 14

ESPAÑOL

Fije el porta-bombilla portátil al poste vertical colocando

el collar de cone ión rápida sobre la parte superior del

tubo. Apriete la perilla sobre el collar hasta que el tornillo

esté seguro.

Paso 4: Enchufe la lámpara en un tomacorriente de 120 voltios

protegido por GFCI. Para encender ó apagar la lámpara,

presione el interruptor rojo ubicado en la parte trasera de cada porta-

bombilla.

NOTA: La jaula debe asegurarse mediante bolsas de arena u otro peso apropiado:

• Cuando utilice la lámpara sobre superficies desiguales o rocosas

• Cuando se utiliza en áreas con viento

• Cada vez que se requiera estabilidad adicional.

Uso como lámpara portátil
