OPERATOR’S MANUAL

REI MP–1000

MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

6534 L Street

Omaha, Nebraska 68117

(402) 339-2200

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Precautions

¾Do not expose the Multimedia Player to excessive heat or cold. The

storage temperature of this device is -40~+85°C, and the operating

temperature is -20~+80°C with a max humidity of 90%

¾Never use this device in environments with excessive moisture, dust or

smoke.

¾Avoid dropping or striking this device.

¾Never puncture, scratch or use abrasive cleaning materials on this

device.

¾Do not place cables where they may be pinched or tampered with.

¾The Multimedia Player is not designed to be waterproof and will be

damaged if any liquid is spilled or dropped on the player.

¾The Multimedia Player is designed to be powered by either a +12V or

+24V switched DC negative ground system. Do not attempt to use it in

any other system. Doing so could cause serious damage.

¾This unit is made of precision electronic components that are present

within the Multimedia Player. Do not attempt to disassemble or repair

any parts. For repair please consult the manufacturer.

¾Your product is designed and manufactured to ensure a minimum of

maintenance. Use a soft cloth for routine exterior cleaning. Never use

benzine, thinner or other solvent.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Specifications (continued)

GENERAL

Power Supply 9 – 32 Volts DC

Power Consumption 6 Watts

Dimensions

(W X H X D)

5.3 in. x 1.2 in. x 4.9 in.

(135 mm x 30 mm x 124 mm

Operation

Temperature

-20° C to +80°C

Storage Temperature -40° C to +85°C

Operating Humidity 10% to 90%

Weight 0.7 lbs. (11.2 oz.)

Storage Media External SD Card or USB up to 32 GB

PLAYBACK DECODING

Video *.AVI ( MPEG4: divx3.10-divx5.0 and xivd

encoded), *.MPG (MPEG 1 OR 2), *.VOB

(MPEG 2) and *.DAT (MPEG 1)

Audio MP3, WMA, WAV AND MP2

Photos JPEG

Max Resolution 720 X 480 (NTSC) 720 X 576 (PAL)

INPUTS / OUTPUTS

Inputs Composite Video (RCA), Audio left / right

(RCA).

Outputs Composite Video (RCA and BNC), Audio left /

right (RCA)

MISCELLANEOUS

Accessories External remote connection, for controlling

with remote control. External control for

Optional priority play button with LED

indicator. High and low outputs w/priority

video.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Specifications

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Table of Contents

Introduction………………………..…………………….………...………….....3

Remote Control………………………………………….…………….………4-5

Multimedia Menu Adjustments……………………………..…………..……6-12

Main Page and General Setup………………..………………..…….6-7

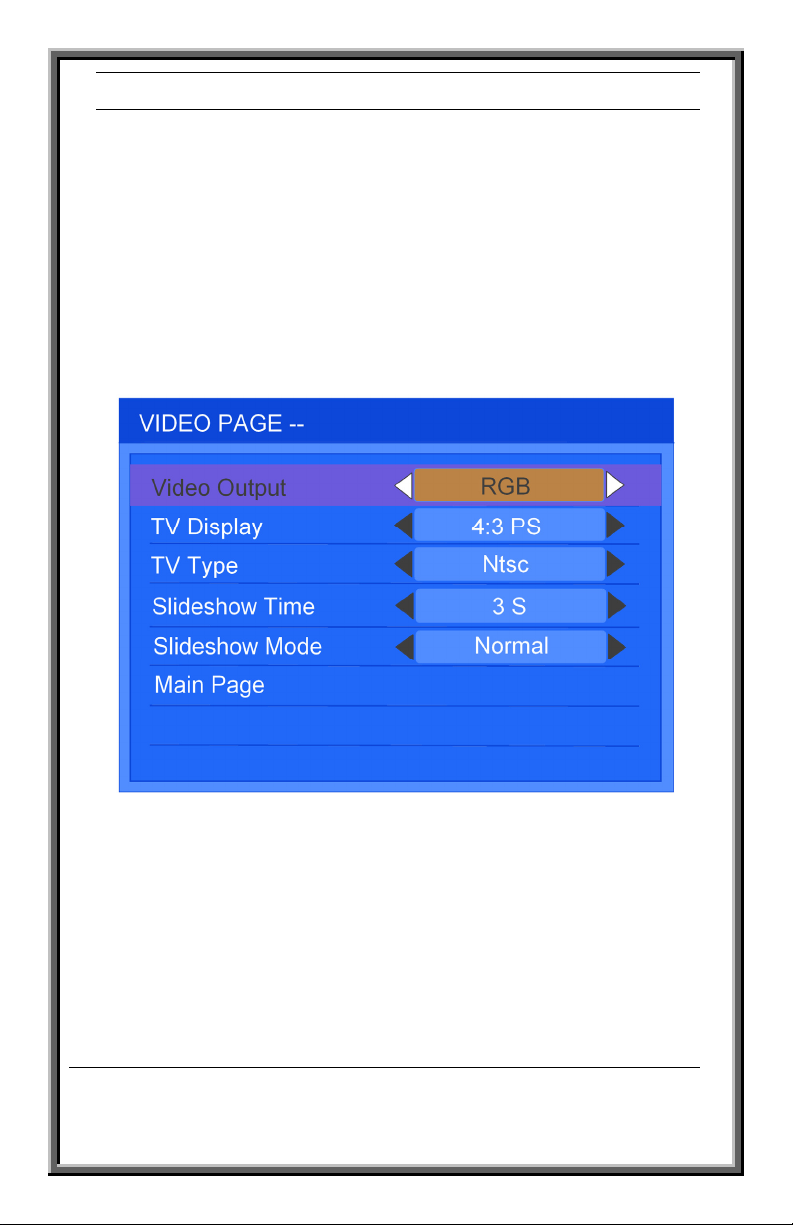

Video Setup..………………………………………….…...…..………7

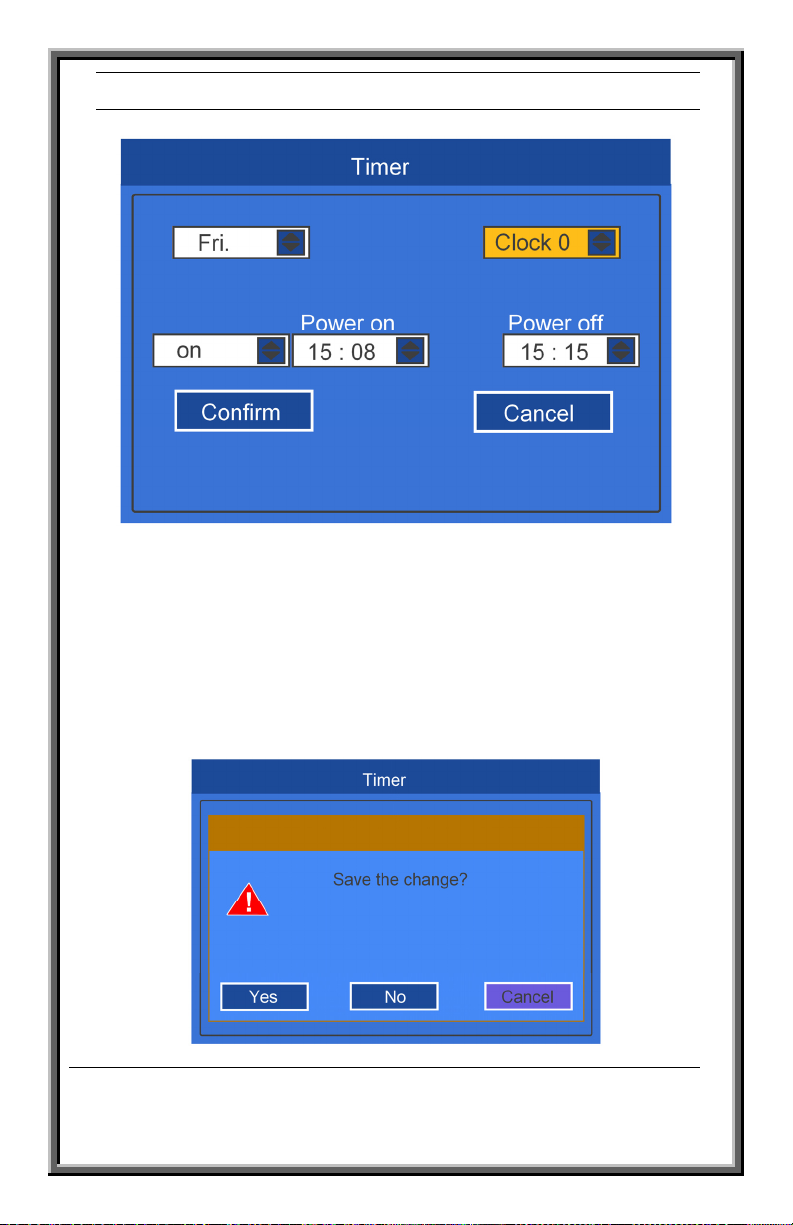

Calendar and Timer Setup ………….……..…………………….....8-10

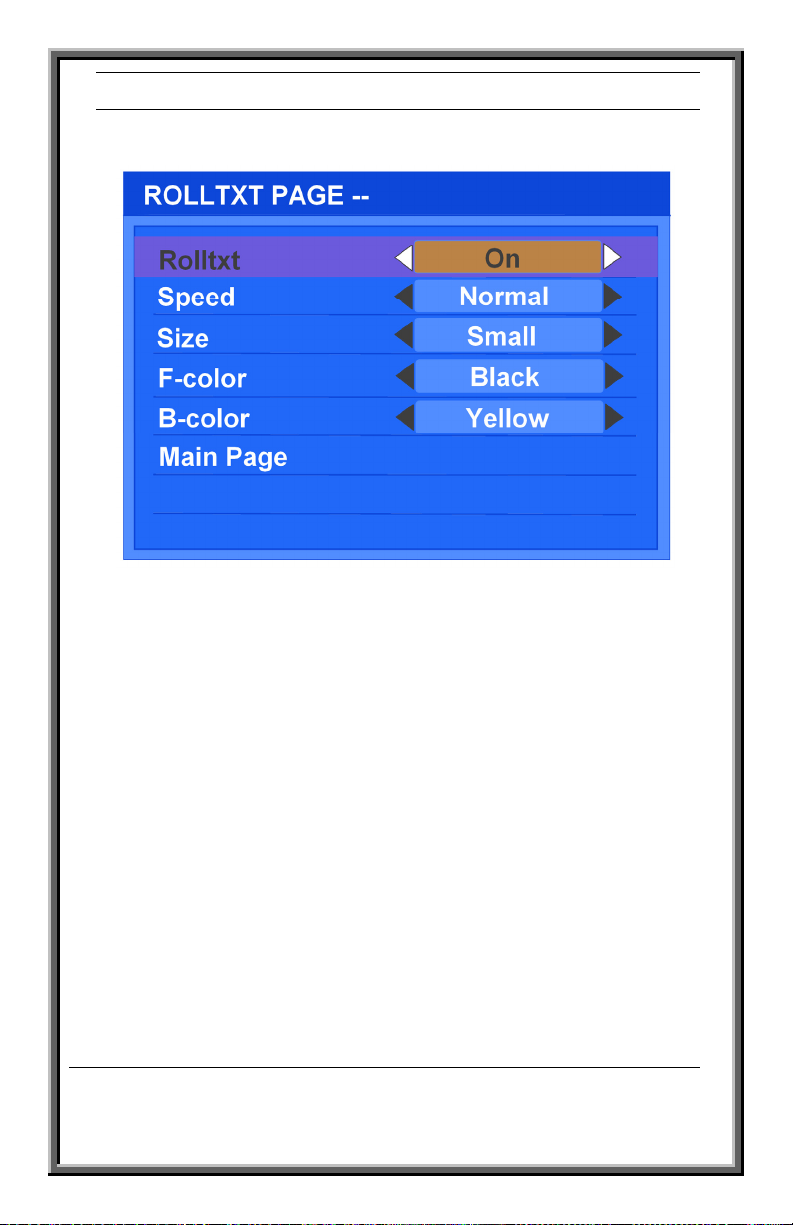

Rolling Text Setup…..……………….……………………………….11

Custom Setup…..………………….………………………………….12

Storage Device and Rolling Text Structure….……………………………..….13

Copying Files………………………...……………………………………..14-15

Auxiliary Input………….…………………………....……………………….. 15

Troubleshooting Guide…………………..……………………………......……16

Specifications…………………………………………………..……..…….17-18

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Introduction

Thank you for purchasing the MP-1000 Multimedia Player by Radio

Engineering Industries, Inc. This manual is intended to provide the user with

the information required for proper installation and operation. If you have any

questions or need assistance, please call the:

SERVICE HOT LINE

1-877-726-4617 Toll Free USA & CANADA

1-800-228-9275 USA

1-402-339-2200

Features

•Compact size.

•Wide voltage operating range (9-32 Volts).

•Low power consumption.

•Auxiliary composite input with priority message override.

•Priory message logging.

•Administrator password.

•Supports most common media files.

•Scheduled timer settings.

•Scrolling text function.

•External high and low outputs (when priority message is playing) for

triggering external devices.

•Supports dual storage devices with multi-way file copy.

•Supports photo slideshow with background music.

•Excellent operating temperature range.

•Light weight.

•Made of durable materials.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Troubleshooting Guide

•The symptoms described below do not necessarily mean there is a

failure within the Multimedia Player. Please check the following items

before contacting Technical Support.

Symptom Possible Caused / Solutions

Power light

does not turn on

¾Check for proper power connection

¾Check that source voltage is present.

No video out on

monitors

¾Ensure video device is properly

connected and turned on.

¾Inspect video cable connections going

to monitor.

¾Ensure Aux Video switch on unit is in

the proper position. “ON” if Aux

video device is present or “OFF” if it

is not present.

¾Inspect Aux device and connections.

Digital media

won’t play or it

is skipped.

¾Encode media with a supported file

type and verify storage device file

structure as described in the manual.

Unit doesn’t

respond to

remote control

commands.

¾Inspect remote control’s batteries.

¾Ensure “Priority Video” is not

currently playing (keys are disabled

during “Priority Video” Playback).

¾Ensure keys are not disabled through

the units “Cust Setup” menu.

Rolltxt or other

functions are

not displayed.

¾Check for proper function formatting

and name as described previously in

the manual.

•If you have checked all items on the troubleshooting guide and are still

experiencing difficulties please contact REI’s technical support:

REI SERVICE HOT LINE

1-877-726-4617 Toll Free USA & CANADA

1-800-228-9275 USA

1-402-339-2200

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Copying Files To and From Storage Media

(continued)

**Note** Coping large files using the MP – 1000 Multimedia Player may

take a long time. It is recommended to use a computer when copying large

media files.

Auxiliary Input

The MP – 1000 is also equipped with an auxiliary composite video and audio

input. This input allows the Multimedia Player to be used with existing video

and audio entertainment devices. The auxiliary input will pass through the

Multimedia Player and out of the players, component output. When the onboard

or optional external “Priority Video” buttons are pressed, the unit will then

override the auxiliarys’ video and audio; the player will then output the priority

media file. Once the priority file has concluded that player will then return to the

auxiliary input. To use the auxiliary input follow these steps.

•Ensure MP – 1000 “AUX VIDEO” switch is in the “ON” position.

•Connect the auxiliary device to the Multimedia’s input and the

Multimedia’s output to the monitors or entertainment system inputs.

•Power up both units and ensure auxiliary video is passed through the

Multimedia Player and displayed on the monitors.

•Press the Multimedia’s “Priority Video” button and ensure that the

player switches and that the priority file is displayed on the monitors

(the video should return to the auxiliary device once the priority file

has concluded).

REI MP–1000 MULTIMEDIA PLAYER

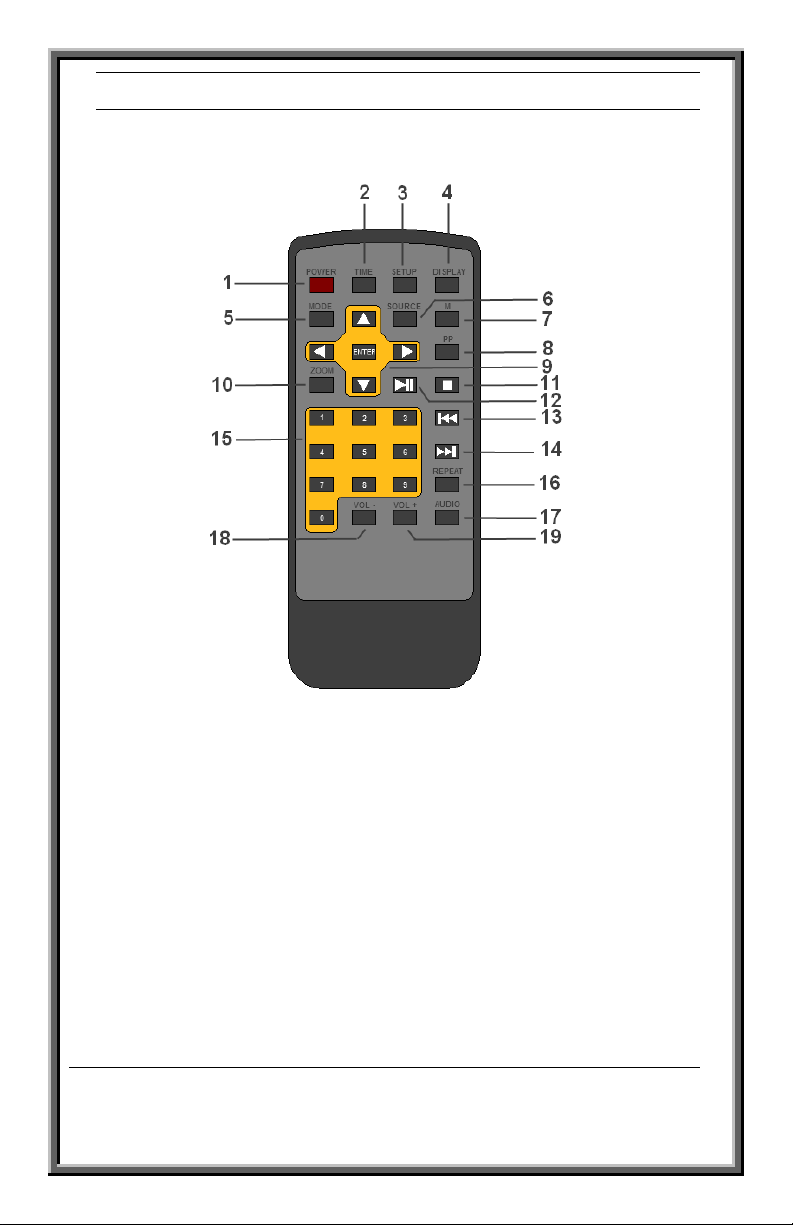

Remote Control

1) POWER – Turns the Multimedia Player on and off (Multimedia Player will

automatically power up when voltage is applied).

2) TIME – Allows for Music & Photo files to be played together; to use, select

desired photo file, once displayed press the “TIME” button, music will then

begin to play with the slideshow (Note: Photos and music must be in the same

directory for this function to work).

3) SETUP – Used to access content setup options.

4) DISPLAY – Used to change displays resolution (480P, 480I and 720P).

5) MODE – Used to adjust unit’s brightness, contrast, and color controls.

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Remote Control (continued)

6) Source – Used to select between USB and SD Card.

7) M– Can be used to view media properties or to rename the media file name.

8) PP – Used to copy file from one device to another, when two media devices

are present. To use: press setup to access the media file, select the

source using the “SOURCE” button on the remote, navigate to the

desired file, press “PP” on the remote and select the destination when

prompted.

9) ▲,▼,◄,►and ENTER – Used for navigating and selecting media files.

10) ZOOM – Not used.

11) ■– Used to stop a media file being played.

12) ►▐▐ – Used to begin or pause media file playback.

13) ▐◄◄ – Used to select previous media file.

14) ►►▐ – Used to select next media file.

15) 0, 1~9 – Used to jump to a specific file in the media list, such as pressing 5

will jump to the 5th file in the media list.

16) REPEAT – Not used.

17) AUDIO – Not used.

18) VOL- Used to decrease the unit’s volume.

19) VOL+ Used to increase the unit’s volume.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Copying Files To and From Storage Media

Another great feature of the MP – 1000 Multimedia Player is its ability to copy

files to and from different storage media. This feature can be used for updating

files without removing storage media from the Multimedia Player. Additionally

this feature can be used for retrieving log files that are stored in storage media

on the unit. To use this function follow the instruction shown below:

•Automatic File Copying – To have the files automatically copied from

a USB drive to the secured SD card:

oEnsure that “Auto Copy” mode is enabled (on) in the “Cust

Setup” menu.

oInsert the USB device into the USB port.

oUnit will prompt for confirmation.

Choose “Update Rolltxt” to overwrite scrolling text

file only (option will only be displayed if

“ROLLTXT.ROL” file exist on USB device).

Choose “Add Files” to keep existing files and write

additional USB device files.

Chose “Overwrite Files” to erase existing SD card

files and overwrite with USB devise file.

oTo skip the confirmation page

Create a new blank text document.

Save or rename the blank text file as “ZZZ.FLG”

Upon USB device insertion, Multimedia Player will

overwrite SD card files with those on the USB

device.

oUpon completion, the Multimedia Player will prompt to

remove the USB device. The unit will than reset and begin

playing updated files.

•Manual File Copying – To manually copy the files from one source to

the other follow these steps.

oEnsure that “Auto Copy” mode is disabled (off) in the “Cust

Setup” menu.

oInsert the USB device into the USB port.

oPress “SETUP” to access files.

oPress “SOURCE” to select the desired source.

oHighlight desired file (a folder or entire device (Root) can also

be selected).

oPress “PP” and select destination when prompted.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Storage Device File Structure

In order to take full advantage of the Multimedia Player’s capabilities and for

correct operation, the storage media must include the following folders on the

root of the storage media: “AUTO PLAY” and “PRIORITY” (folder names

must be in capital letters and have the exact spelling as shown). Media files

places in the “AUTO PLAY” folder will continuously play and loop for as long

as Multimedia Player is powered up. Media files places in the “PRIORITY”

folder will only play when triggered by the front media player’s button or an

external event button. Additionally, the following notes must be considered for

correct operation:

•At least one media file must be included in the “AUTO PLAY” folder.

If the unit will only be used for priority video playback, place the

priority video in the “PRIORITY” folder and an image file (such as a

logo) in the “AUTO PLAY” folder.

•Remote control commands will be disabled while any priority media

file is playing.

Rolltxt Structure

One of the Multimedia Player’s functions is a scrolling text message at the

bottom of the page. To use this function follow the following steps.

1. Ensure that the Rolltxt function is enabled (On) in the menu settings.

2. Select the Rolltxt desired Speed, Size, Font Color, and Background

color.

3. Using Notepad, open a new document and use the following format:

a. The first line must be a number which will tell the Multimedia

Player how often the message will be shown (in seconds).

Enter a number and press enter to proceed to the next line. In

the example shown below the message will be displayed every

20 seconds.

b. The second line can be used for the message.

c. Example:

This is my message.

4. Save the file as “ROLLTXT.ROL” (exactly as shown) in the root

directory of the storage media.

REI MP–1000 MULTIMEDIA PLAYER

Multimedia Player Menu Adjustments

Main Page

General Setup

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

General Page (continued)

•OSD Language Used to select the unit’s OSD Language (the default

language is English).

•Auto Play Can be set on/off to automatically start playing files

in the “AUTO PLAY” folder upon power up.

•Defaults Used to restore factory default settings.

•Main Page Used to return to the main page.

Video Setup

•Video Output RGB and YpbPr output (RGB is default).

•TV Display 4:3 PS, 4:3LB and Wide (4:3 PS is default).

•TV Type NTSC, PAL and Auto (NTSC is default).

•Slideshow Time Time (in seconds) to display pictures on the screen:

1, 3, 5, 8, 10, 15, 20 or 25 Sec (3 Sec is default).

•Slideshow Mode Picture effects: Normal, T->B, B->T, T/B->C,

C->T/B, BLD:T->B, L->R, R->L, L/R->C, C->L/R,

Implode, BLD:L->R, FADE, or Random (Normal is

default).

•Main Page Used to return to the main page.

REI MP–1000 MULTIMEDIA PLAYER

Cust Setup

•Set Passkey Used to set an administrator password to access

the unit,s menu.

•Lock Key Used to lock all remote control buttons with the

exception of the “Setup” button.

•Playlist Record Used to enable or disable priority video logging.

This function will generate a text log file on the root

directory of the SD card. The file will be

automatically be named “date.HHH”, for example:

“20101019.HHH”. The file can be opened with

notepad or similar program and will have the

following information: date, start time, file name, end

time and total file duration.

•Record Storage Used to set the number of days the log file should

be saved (25 days is the default).

•Auto copy Used to enable or disable auto copy mode. When

enabled (On) the unit will automatically prompt to

copy files from USB device to SD card (when SD

card is present and USB device is first inserted). If

disabled unit will not perform any action (on is the

default).

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

•Main Page Used to return to the main page.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Rolltxt Setup

•Rolltxt Used to enable or disable rolling text function

(enabled “On” is the default)

•Speed Used to control the text scrolling speed between:

Normal, Fast or Slow (Normal is the default).

•Size Used to adjust the size of the text between: Small,

Big or Normal (Small is the default).

•F-color Used to set the text color between: Black, Yellow,

Red, Grey, Magenta or White (Black is the default).

•B-color Used to set the texts background color between:

Yellow, Red, Grey, Magenta, Trans, H (half)-Trans,

White, Black or Blue (Yellow is the default)

•Main Page Used to return to the main page.

REI MP–1000 MULTIMEDIA PLAYER

Calendar Setup

•Calendar Use to adjust time and date. Press ◄or ►to access

and configure the date and time. Use the navigation

keys to change the current date, use ▐◄◄ and

►►▐ to tab over to the time, month and year

(see calendar image below for reference).

•Time Display Use to turn the time displayed on the screen and

Off (On is default).

•Alarm Mode Use to change between every day and every week

alarm. “Every day” will allow up to 5 alarms that will

be triggered every day. “Every week” will allow

up to 5 individual alarms for each day of the week

(every day is default).

•Timer The Multimedia Player supports up to 5 different

timers per day.

Timers are triggered depending on the “Alarm mode”

set up. The timers can be triggered every day or

individually each day (“every week” mode).

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

•Main Page Used to return to the main page.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Calendar

Timer with “Alarm mode” set to “Every Day”.

REI MP–1000 MULTIMEDIA PLAYER

Timer with “Alarm mode” set to “Every Week”.

Calendar Setup (continued)

To set a timer use ◄and ►or ▐◄◄ and ►►▐ cursors to chose a field, use

▼and ▲cursors to modify the selected field. Once completed press “Confirm”

to save and exit or “Cancel” to discard changes and exit. Pressing “setup” will

also exit the timer (user will be prompted to save or discard changes, as shown

below). **Note** do not set the same time for a day more than once per day.

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Calendar

Timer with “Alarm mode” set to “Every Day”.

REI MP–1000 MULTIMEDIA PLAYER

Timer with “Alarm mode” set to “Every Week”.

Calendar Setup (continued)

To set a timer use ◄and ►or ▐◄◄ and ►►▐ cursors to chose a field, use

▼and ▲cursors to modify the selected field. Once completed press “Confirm”

to save and exit or “Cancel” to discard changes and exit. Pressing “setup” will

also exit the timer (user will be prompted to save or discard changes, as shown

below). **Note** do not set the same time for a day more than once per day.

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

Rolltxt Setup

•Rolltxt Used to enable or disable rolling text function

(enabled “On” is the default)

•Speed Used to control the text scrolling speed between:

Normal, Fast or Slow (Normal is the default).

•Size Used to adjust the size of the text between: Small,

Big or Normal (Small is the default).

•F-color Used to set the text color between: Black, Yellow,

Red, Grey, Magenta or White (Black is the default).

•B-color Used to set the texts background color between:

Yellow, Red, Grey, Magenta, Trans, H (half)-Trans,

White, Black or Blue (Yellow is the default)

•Main Page Used to return to the main page.

REI MP–1000 MULTIMEDIA PLAYER

Calendar Setup

•Calendar Use to adjust time and date. Press ◄or ►to access

and configure the date and time. Use the navigation

keys to change the current date, use ▐◄◄ and

►►▐ to tab over to the time, month and year

(see calendar image below for reference).

•Time Display Use to turn the time displayed on the screen and

Off (On is default).

•Alarm Mode Use to change between every day and every week

alarm. “Every day” will allow up to 5 alarms that will

be triggered every day. “Every week” will allow

up to 5 individual alarms for each day of the week

(every day is default).

•Timer The Multimedia Player supports up to 5 different

timers per day.

Timers are triggered depending on the “Alarm mode”

set up. The timers can be triggered every day or

individually each day (“every week” mode).

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

•Main Page Used to return to the main page.

REI MP–1000 MULTIMEDIA PLAYER

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

General Page (continued)

•OSD Language Used to select the unit’s OSD Language (the default

language is English).

•Auto Play Can be set on/off to automatically start playing files

in the “AUTO PLAY” folder upon power up.

•Defaults Used to restore factory default settings.

•Main Page Used to return to the main page.

Video Setup

•Video Output RGB and YpbPr output (RGB is default).

•TV Display 4:3 PS, 4:3LB and Wide (4:3 PS is default).

•TV Type NTSC, PAL and Auto (NTSC is default).

•Slideshow Time Time (in seconds) to display pictures on the screen:

1, 3, 5, 8, 10, 15, 20 or 25 Sec (3 Sec is default).

•Slideshow Mode Picture effects: Normal, T->B, B->T, T/B->C,

C->T/B, BLD:T->B, L->R, R->L, L/R->C, C->L/R,

Implode, BLD:L->R, FADE, or Random (Normal is

default).

•Main Page Used to return to the main page.

REI MP–1000 MULTIMEDIA PLAYER

Cust Setup

•Set Passkey Used to set an administrator password to access

the unit,s menu.

•Lock Key Used to lock all remote control buttons with the

exception of the “Setup” button.

•Playlist Record Used to enable or disable priority video logging.

This function will generate a text log file on the root

directory of the SD card. The file will be

automatically be named “date.HHH”, for example:

“20101019.HHH”. The file can be opened with

notepad or similar program and will have the

following information: date, start time, file name, end

time and total file duration.

•Record Storage Used to set the number of days the log file should

be saved (25 days is the default).

•Auto copy Used to enable or disable auto copy mode. When

enabled (On) the unit will automatically prompt to

copy files from USB device to SD card (when SD

card is present and USB device is first inserted). If

disabled unit will not perform any action (on is the

default).

Radio Engineering Industries, Inc.

640423

Rev 0 10/20/10

•Main Page Used to return to the main page.
