ECVR-6700T

AM/FM/WB/CD/DVD/USB/BT

Motor Coach Radio User’s Guide

User’s Guide 2

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

1Introduction 5

Features 5

1.1 Radio Dimensions 6

1.2 Radio Installation 6

2Controls and Indicators 7

2.1 Reset Switch 7

2.2 Rear Inputs 7

3Cable Connection Points 8

3.1 Rear Driver’s USB Jack 8

3.2 Driver’s AUX Input Jack 8

3.3 P.A. Inputs 1-3 8

3.4 External Amplifier Audio Output 8

3.5 External Audio Input 8

3.6 External IR Input 8

3.7 RS485 Communication 8

3.8 Antenna Input 8

3.9 Type E HDMI Output 8

3.10 Back-Up Camera Video Input BNC 8

3.11 Composite Video Output BNC 8

3.12 Rear Passenger’s USB Jack 8

3.13 CAN BUS 8

3.14 Dimmer Trigger 8

3.15 Video Disable 8

User’s Guide 3

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

3.16 Back-up Camera Trigger 8

3.17 Handbrake input 8

4Drivers Operation/Functions 9

4.3 Service Menu 17

4.4 Power and Mute Function 20

5Driver’s Section 21

5.1 Driver’s VOL/SEL Selection 21

5.2 Driver’s BASS/TREBLE Selection 21

5.3 RAD button 21

5.4 Auto Store Key 23

5.5 SCAN Key 24

5.6 Weather Band 24

5.7 SRC Button 25

5.8 Drivers USB 25

5.9 Bluetooth Connection 27

5.10 Using a Bluetooth Device as a Phone Source 30

5.11 Using a Bluetooth Device as an Audio Source 32

5.12 Listening to a Passengers Audio Source in the Drivers Area 32

5.13 Split Screen Source 33

5.14 AUX Source 33

5.15 Rear Camera 34

6Passenger’s Section 35

6.1 Passenger’s VOL/SEL Selection 35

6.2 RAD button 35

6.3 Passenger’s USB 38

User’s Guide 4

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

6.4 USB iPod®/iPhone® Operation 40

6.7 Passenger’s SRC button 45

6.8 Passenger’s VID button 45

6.9 Passengers Internal Disc playback 46

6.10 DVD OPERATION: 47

6.11 DVD MENU 47

6.12 Ejecting the disc 48

6.13 Passenger’s EMS-1000 OPERATION 49

6.14 Passengers External DVD2 49

6.15 Front IR input for Remote Control 50

6.16 Public Address System (P.A.) 50

7Remote Control 51

7.1 Remote Control Functionality 52

7.2 Remote Control Setup Display 54

7.3 Troubleshooting 56

7.4 Verifying Communication with other devices 57

7.5 MP-1000 Media Player 57

8Specifications: 58

Radio Engineering Industries, Inc. 60

User’s Guide 5

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

1Introduction

This document outlines the full step-by-step process for using the ECVR-6700T. The REI ECVR-6700T

is an SAEJ1939-compliant, double din, electronically tuned radio designed for use with commercial

road vehicles.

If you have any questions or need assistance, call the Service Hot Line: 1-877-726-4617 Toll Free USA

& CANADA.

Features:

•6.2” Capacitive Touch Screen Operation

•Amber LED Button backlighting

•All in one Automotive DVD player supports playback of CD, DVD, MPEG, and compressed

audio/video files with HD 1080p upscaling via Type-E HDMI connection.

•Locking BNC Composite video Output for non-HD systems

•Drivers & Passengers Analog Auxiliary audio inputs

•Independent AM/FM Digital tuners w/RDS for Driver and Passenger Zones

•Drivers Weather band tuner

•Presets for up to 24 Radio Stations (18 FM, 6 AM)

•Three Dynamic Passenger microphone inputs

•Passenger subwoofer level and LPF controls

•Built-in Drivers/Passengers audio amplifier with 2V RMS Passengers line output

•Dual Zone USB inputs supports 1.5A Charging

•Apple iPod®, iPhone®, and iPad® compatibility and control from Passengers USB input

•Independent Bluetooth®modules, supports HFP (Drivers only), AVRCP, and A2DP Profiles

•Built in front panel Bluetooth microphone and optional External input

•Back-up Camera input w/ Reverse Trigger

•SAE J1939 CAN Bus interface

•Serial RS-485 Communication with external REI devices

•Remote Control

User’s Guide 6

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

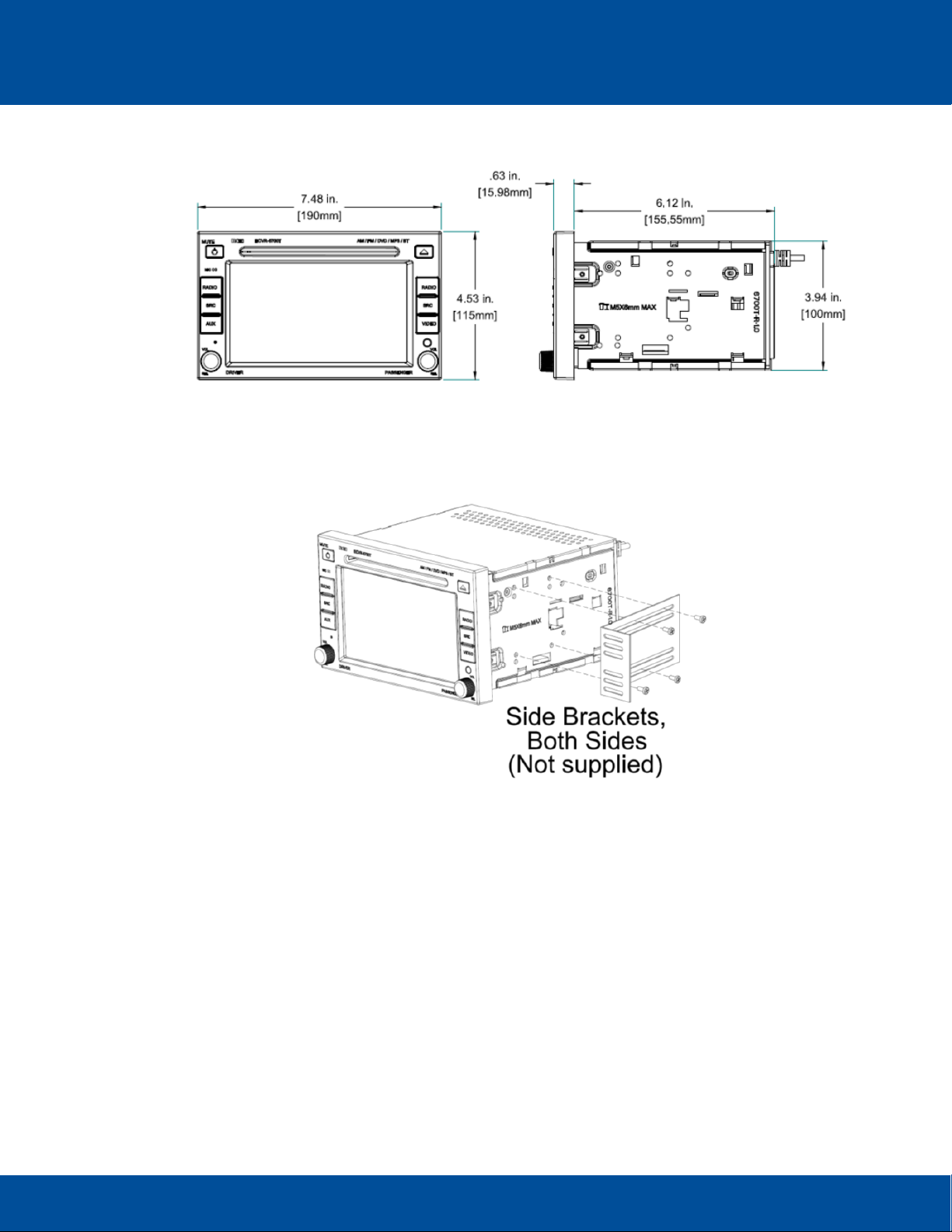

1.1 Radio Dimensions

1.2 Radio Installation

ISO INSTALLATION:

The radio has threaded holes in the chassis side panels for ISO mount applications. If necessary, eight

M5x10mm screws are included with the hardware pack.

User’s Guide 7

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

2Controls and Indicators

1. Power/Mute 2. Bluetooth Microphone (internal) 3. Driver’s Radio 4. Driver’s SRC 5. Driver’s AUX

6. Reset 7. Driver’s Select Knob 8. EJECT 9. Passenger’s Radio 10. Passenger’s SRC 11. Passenger’s

VID 12. IR Sensor 13. Passenger’s Select Knob

2.1 Reset Switch

If the Control head is not operating correctly, press the RESET button to restart the operating system.

The RESET button must also eject a disc if inserted, or simply cycle eject without a disc inserted.

2.2 Rear Inputs

User’s Guide 8

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

3Cable Connection Points

3.1 Rear Driver’s USB Jack

Access to compressed audio files and device charging for the DRIVER’S USB.

3.2 Driver’s AUX Input Jack

Access to the driver’s stereo RCA analog inputs.

3.3 P.A. Inputs 1-3

Public Address Microphone inputs for Passenger announcements.

3.4 External Amplifier Audio Output

Line output for connection to REI amplifier.

3.5 External Audio Input

Input for audio from either the external REI HDMI switcher or separate external REI DVD player.

3.6 External IR Input

External wireless remote-control input for control head, works with front IR.

3.7 RS485 Communication

Input for communication of external REI devices using an RS485 link.

3.8 Antenna Input

Antenna input for both driver and passenger tuner modules.

3.9 Type E HDMI Output

Provides 1080P HD video output from the digital media.

3.10 Back-Up Camera Video Input BNC

Input connection for a back-up camera.

3.11 Composite Video Output BNC

Outputs composite video from digital media sources.

3.12 Rear Passenger’s USB Jack

Access to compressed audio/video files and device charging for the passenger’s USB.

3.13 CAN BUS

Optional SAEJ1939 CAN bus connections.

3.14 Dimmer Trigger

Optional LCD dimmer option, when connected to +12V and AUTO is selected, the LCD display with

automatically change to the NIGHT level intensity.

3.15 Video Disable

When connected to chassis ground, this input disables the PLAY/STOP/FF/REW/MENU button

operation from the front of the unit. The remote must be used for DVD playback operation.

3.16 Back-up Camera Trigger

When connected to +12/24V, the unit will default to the back-up camera input source.

3.17 Handbrake input

When connected to chassis ground, the unit will display video from the driver’s USB source.

User’s Guide 9

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

4Drivers Operation/Functions

4.1 Setup Menu

From the HOME page select the Setup option. Users can select the following settings: CONTROL, DISPLAY,

CLOCK, INFO, WALLPAPER, CAMERA, and FACTORY setup options. To exit at any time, use the

Home/Previous Keys.

Setup on Home page

Home/Previous Navigation Keys

Control Screen

User’s Guide 10

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Brightness Mode

Scroll Operation

Brightness Mode

Select Brightness Mode Auto when the dimmer wire is connected to the headlamp switch. If set to Auto, the

display will dim automatically from DAY to NIGHT. If set to Day mode, the backlight will appear 100%

continuously. The NIGHT mode will dim the display to 50%.

Brightness Mode

User’s Guide 11

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

CD HDMI ON/OFF

Select to display CD track information on the HDMI output as shown on the right when set to ON. To display a

blank screen, set to OFF.

CD HDMI ON CD HDMI Output

Wireless Mix On/Off

When Mic 3 is connected to an REI Wireless Microphone system, the user can talk simultaneously with the

source audio when Wireless Mix is set to ON. This will automatically mute the passenger’s source by -3dB

when the microphone is keyed, and the volume of both sources can be controlled using the passenger’s volume

control. When the microphone is released, it will return to the previous listening level. Use the volume control

on the wireless device, if necessary, for further adjustment. When the mode is set to OFF, the source audio is

muted, and only Mic 3 audio will be heard.

Wireless Mix Setting

User’s Guide 12

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Subwoofers ON/OFF

Setting the SUBWOOFERS to either ON or OFF enables or disables the audio for the subwoofer output

channels on the radio.

Subwoofer Setting

Subwoofer LPF

The SUBWOOFER LPF setting gives the user the option to adjust the Low Pass Filter on the subwoofer audio

output channels. The settings options are 50, 60, 80, 100, and 120Hz.

Subwoofer LPF Setting Subwoofer LPF Options

User’s Guide 13

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Subwoofer Gain

The SUBWOOFERS GAIN control provides the option to increase the SUBWOOFERS GAIN decibel level (dB)

on the Subwoofers audio output channels.

Subwoofer Gain Setting

BT MIC

The BT MIC Internal/External option allows the user to use a separate Bluetooth microphone in an alternate

location. When set to Internal, the internal microphone on the face of the radio becomes operational. When

External is selected, the user can plug in an external microphone into the rear of the unit for hands free calling.

BT MIC Setting

User’s Guide 14

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Reset to Default

Select RESET TO DEFAULT to return to the default user settings. Press Confirm to complete the process.

Reset to Default Restore Default Confirmation

4.2 Clock

Time can be displayed in 12 or 24-hour format. To change to 24-hour mode, select 24H. To return to 12-hour

format, select 12H. To set the Time/Date, select Modify, and adjust the sliders to select the Time/Date settings.

Confirm the setting as AM/PM by pressing AM or PM. Click Confirm to accept.

Clock Set to 12-hour Format Clock Set to 24-hour Format

When the user presses the POWER button on the front of the radio, the ECVR-6700T is displayed on the radio

screen when the radio is manually powered off.

Clock Setting Confirmation Clock Display

User’s Guide 15

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

MCU FIRMWARE VERSION

Indicates the firmware version present on the radio.

MCU Firmware Version Display

Wallpaper selection

Displays wallpaper options for the radio.

Wallpaper Settings

User’s Guide 16

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Back-Up Camera settings

Camera image mirrored ON/OFF provides the option to mirror the camera image depending on the back-up

camera used.

Back up Camera Setting

Mute When Triggered

Mutes the driver’s audio when the Back-Up camera is active. Select to turn ON/OFF.

Mute When Triggered Setting

User’s Guide 17

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

4.3 Service Menu

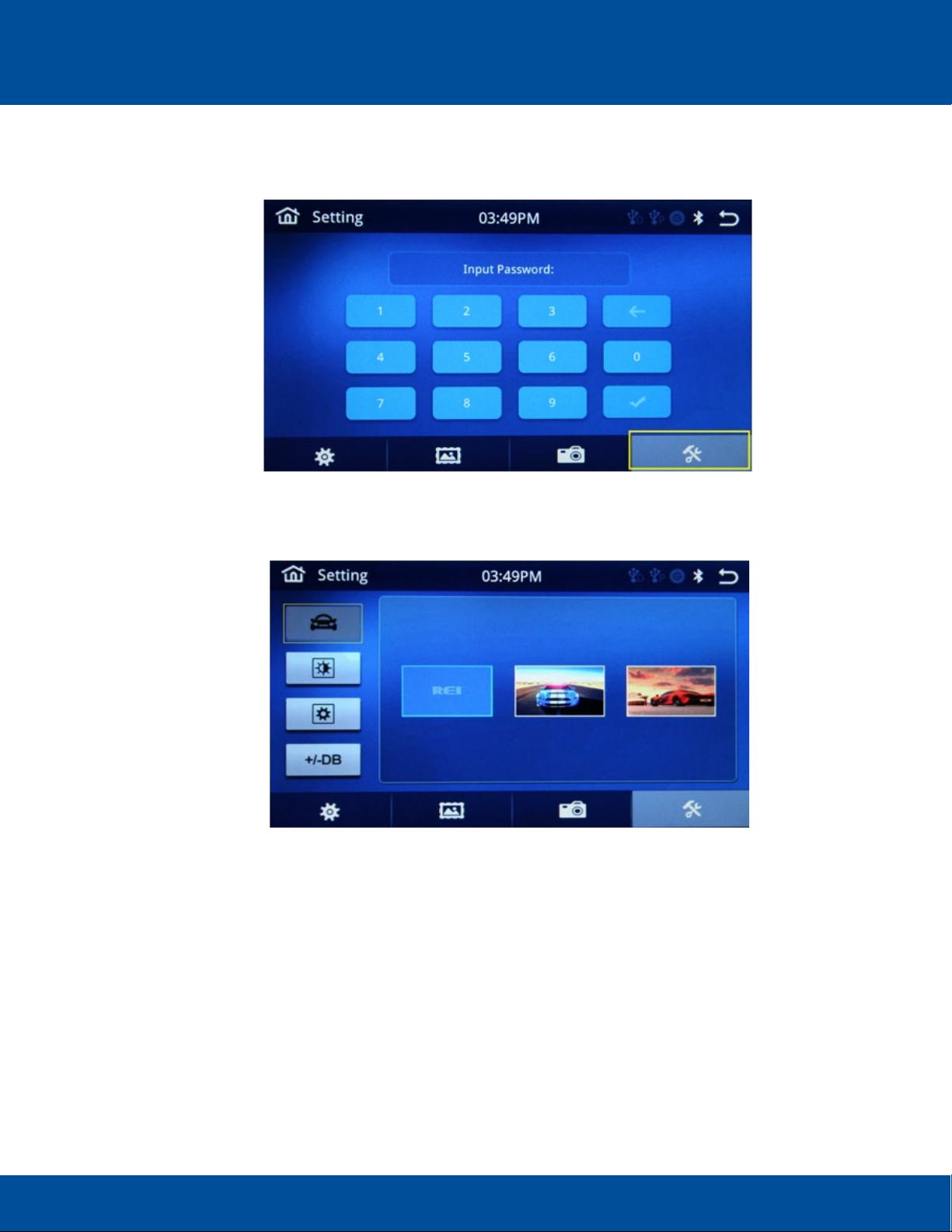

Enter 3368 and press the Check icon.

Enter Service Menu Password

Boot Logo Screen

Provides the user to select Boot Logo options for the radio.

Boot Logo Selection

User’s Guide 18

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Display Control Tab

Use to change the LCD display and button backlighting to the radio. The Brightness setting provides

the user control of the LCD intensity by increasing or decreasing the slider controls until the desired

setting is reached. The contrast, saturation, and button brightness display can be adjusted by moving

the slider control until the desired outcome is achieved.

Display Control Setting

Options

The Radio Area enables the user select USA or EURO for radio frequency steps.

FM (USA) 87.5 – 107.9 MHz (Europe) 87.50 – 108.00 MHz

AM (USA) 530 – 1,710 kHz (Europe) 522 – 1,620 kHz

Radio Area Setting

USA or Europe

User’s Guide 19

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Driver’s and Passenger Bluetooth

The user can customize the Driver and Passengers Bluetooth Source options. Driver’s Bluetooth

settings are Music & Phone, Music, or OFF. When set to Music and Phone, both the HFP and A2DP

profiles are active. When set to Music, only the A2DP profile is active. When set to OFF the source

disappears from the Home Page. The Passenger Bluetooth settings are Music and OFF. When set to

Music, only the A2DP profile is active. When set to OFF the source disappears from the Home Page.

Driver’s Bluetooth

Passenger Bluetooth

User’s Guide 20

ECVR-6700T AM/FM/WB/CD/DVD/USB/BT Motor Coach Radio User’s Guide Radio Engineering Industries, Inc. | 6534 L Street | Omaha, NE 68117

Passenger Source Gain

The Source Gain Tab provides the option of changing the gain of the passenger’s sources if necessary.

Typically, the default setting of “0” is acceptable, but in some cases a source may be too loud or too

quiet. Pressing the UP or DOWN arrows can increase or decrease the input gain of the source in

question to the desired level.

Passenger Source Gain

4.4 Power and Mute Function

Press the Power button to turn the unit ON or hold to turn the unit OFF. The button will illuminate RED

when OFF and BLUE when ON. After the unit turns on, the Boot Logo screen will display while

establishing communication with all devices. When ON, press to MUTE the driver’s and passenger’s

audio and again to un-mute.

Table of contents

Other REI Radio manuals

REI

REI ST-4000 Owner's manual

Popular Radio manuals by other brands

Ocean Digital

Ocean Digital WR-100F user manual

Audiovox

Audiovox GMRS6000-2 owner's manual

TechniSat

TechniSat DigitRadio 370 CD BT Nero manual

Denver

Denver TR-43C operating instructions

PURE

PURE Evoke D4 Mio manual

Albrecht

Albrecht AE 6190 HD -X operating manual

Innovative Technology

Innovative Technology ITBB-600 instruction manual

Binatone

Binatone MARINA 300 user guide

Reflexion

Reflexion HRA19INT user manual

PRESIDENT

PRESIDENT WALKER ASC Classic owner's manual

Nautilus Lifeline

Nautilus Lifeline DIVER quick start guide

Audiovox

Audiovox GMRS1262CH owner's manual

Sirius Satellite Radio

Sirius Satellite Radio ST2C STARMATE REPLAY User and installation guide

Johnson

Johnson LTR 8640 Service manual

COMO AUDIO

COMO AUDIO Duetto owner's manual

GME

GME G-COM GX660 instruction manual

Harman Kardon

Harman Kardon CODA Operation and service instructions

Motorola

Motorola ASTRO APX 7500 Series Quick reference card

REI ECVR-6700T User manual

Popular Radio manuals by other brands
