Reichert Technologies Tono-Pen AVIA User manual

Tono-Pen AVIA®Applanation Tonometer
Quick Reference Guide
230650-105 Rev. B, 02-05-2020
1. Hold the Tono-Pen®with the transducer end pointed straight down toward the floor.
2. Press and hold the button for 5 seconds. The instrument will “beep” 5 times and
the LCD will display [dn].
3. Hold the Tono-Pen steady for 15 seconds until the device “beeps” and the LCD
displays [UP].
4. Quickly and smoothly flip the Tono-Pen up, so the transducer is pointing straight up.
5. A properly functioning Tono-Pen will display [Pass] and the device will “beep”.
Press the operating button again to ready the pen for a measurement.
6. If [Fail] is displayed, repeat this verification procedure.
Ocu-Film®+ Instructions
CORRECT
Proper set up of the Ocu-Film® + tip cover is essential for the precision and
accuracy of the tonometry measurement. A new Ocu-Film + tip cover must be
used for each new patient. Be certain that the film is flat across the tip, but not
too taut or too loose.
Position the Ocu-Film +
applicator on the transducer.
Roll the Ocu-Film + tip
cover onto the tip.
Remove the
applicator.
Taking an IOP Measurement
To take a measurement, press the button once. [88888]will briey be dis-
played, followed by a double row of dashes [= = = =], indicating the Tono-Pen is
ready to measure.
The corneal surface needs only to be momentarily contacted. Indentation or
excessive pressure is not required and may lead to injury to the eye.
CORRECT INCORRECT
Verication Procedure
Verication must be successfully performed
whenever the measurements are in question.
Verication can be performed with or with-
out an Ocu-Film + tip cover installed.
Note: The rst thing to be displayed on the
LCD screen during verication mode
is [dn] for down.
Two Measurement Modes Are Now Available
• First Generation Mode
Shipped in this mode, provides an average IOP value after 6-10 applanations
are obtained (typically 3-5 taps).
• Second Generation Mode with Quick-Tap™
Provides an IOP measurement in fewer applanations.
Refer to ‘Tono-Pen AVIA Tonometer Modes’ and ‘Measurement Modes’ in the
User’s Guide for additional information.

Tono-Pen AVIA®Applanation Tonometer
Quick Reference Guide
230650-105 Rev. B, 02-05-2020
Reichert, Inc. • 3362 Walden Ave, Suite 100, Depew, New York USA 14043 • www.reichert.com
Toll Free: 888-849-8955 • Tel: [phone] • Fax: [phone]
Tono-Pen, Tono-Pen AVIA and Ocu-Film are registered trademarks of Reichert, Inc. Quick-Tap is a trademark of Reichert, Inc.
Tono-Pen AVIA Does Not Taking A Reading
• Tip may be dirty. Perform the cleaning procedure. If problem persists, send the
pen in for service.
• Ocu-Film + may be installed incorrectly. Refer to Ocu-Film+ Instructions on reverse.
• Use blue Reichert brand Ocu-Film + ONLY. Use of other brand tip cover may a󰀨ect
readings or may void your warranty.
• If the above does not resolve the issue, STOP and send the unit in for repair.
Tono-Pen AVIA Displays [FAIL]
• Unit may be in verication mode. Perform the verication procedure.
• Verication procedure incorrectly performed. Pen is ipped up when [dn] is
displayed. Perform the verication procedure.
• Tip may be dirty. Perform the cleaning procedure. If problem persists, send the
pen in for service.
Tono-Pen AVIA Turns O󰀨
• Unit is going into power saving mode. If no measurements are taken within 15
seconds, the Tono-Pen will go into battery saving mode. Turn it on by pressing
the button once.
• Battery may be low. Replace the battery.
Tono-Pen AVIA [FAIL]s Verication
• Tip may be dirty. Perform the cleaning procedure. If problem persists, send the
pen in for service.
• Pen is being ipped up too slowly. The pen should be turned up quickly and smoothly
when [UP] appears.
Troubleshooting Cleaning Procedure
1. Remove the Ocu-Film + tip cover.

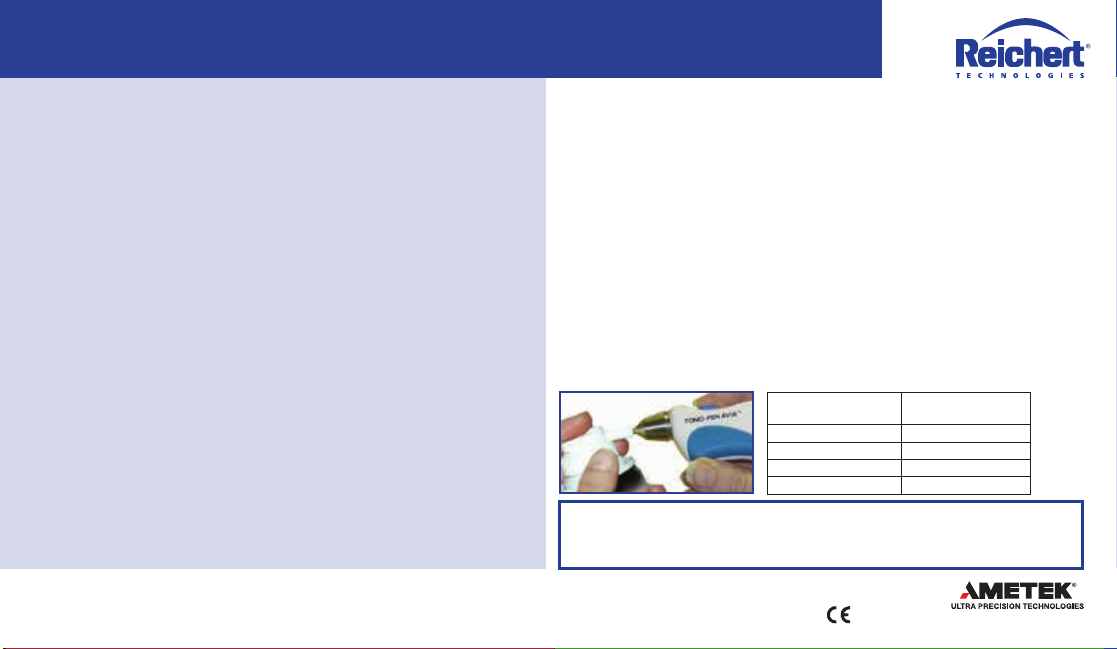

2. Using canned air, place the outlet of the canned air firmly against the Transducer
Tip as shown in the below image.
Note: Try to get a good seal between the canned air and the tip to blow any contami-
nants stuck in the tip safely into the internal cavity.
3. Blow air into the tip for approximately 3 seconds. Do not perform more than 3
times consecutively.
4. The tip will be cold; allow the tip to warm to room temperature.
5. Wipe the outside of the Tono-Pen with a clean, dust-free, cotton cloth dampened
with either a 70% isopropyl alcohol solution, 7.5% Hydrogen Peroxide solution, or
5.25% Bleach solution, and distilled water, or a Clorox¹ Bleach Germicidal Wipes
(0.55% sodium hypochlorite) or a Sani-Cloth² Prime Germicidal wipes (Didecyl
Dimethyl Ammonium Chloride, isopropyl alcohol and ethyl alcohol).
6. Perform the verification procedure after cleaning.
7. Install a new Ocu-Film tip cover as indicated in the User Guide.
Number of
Patients per Week
Number of Days
Between Cleaning
10 30
100 15
300 7
600 1
Cleaning ScheduleCleaning Tip
¹ Clorox is a registerd trademark of the Clorox Company, Oakland, CA.
² Sani-Cloth is a registered trademark of PDI, Inc., Woodcliff Lake, NJ.
Tono-Pen Service
Go to www.reichert.com/rma.Fill out the RMA request form. An RMA will be sent to you via
email. Send in your instrument, inside the protective carrying case, with a copy of the RMA.
