ReliOn BP100 User manual

BP3NL1-1PRL_0513-2

1
Automatic Blood Pressure Monitor
Instruction Manual
Table of contents
1. Introduction
1.1.Features of your blood pressure monitor
1.2.Important information about self-measurement
2. Important information on blood pressure and its measurement
2.1.How does high/low blood pressure arise?
2.2.Which values are normal?
2.3.What can be done if regular high/low values are obtained?
3. Components of your blood pressure monitor
4. Operation of your blood pressure monitor
4.1.Inserting the batteries
4.2.Tube connection
5. Measurement Procedure
5.1.Before measurement
5.2.Common sources of error
5.3.Fitting the cuff
5.4 Measuring procedure
5.5.Reading Recall displaying the last measurement
5.6.Discontinuing a measurement
6. Error Messages/Troubleshooting
7. Care and Maintenance
. Warranty
9. Certifications
10. Technical specifications
11. How to contact us

2
1. Introduction
1.1. Features of your automatic blood pressure monitor
Your blood pressure monitor is a fully automatic, digital blood pressure measuring
device for use on the upper arm, which enables very fast and reliable
measurement of the systolic and diastolic blood pressure as well as the pulse by
way of the oscillometric method. This device offers clinically proven accuracy and
has been designed to be user friendly.
Before using, please read this instruction manual carefully and then keep it in a
safe place. Please contact your doctor for further questions on the subject of
blood pressure measurement.
Attention!
1.2. Important information about self-measurement
• Self-measurement means Control, not diagnosis or treatment. Unusual
values must always be discussed with your doctor. Under no circumstances
should you alter the dosages of any drugs prescribed by your doctor.
•The pulse display is not suitable for checking the frequency of heart
pacemakers!
•In cases of irregular heartbeat, measurements made with this instrument
should only be evaluated after consultation with your doctor.
Electromagnetic interference:
The device contains sensitive electronic components. Avoid strong electrical or
electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones,
microwave ovens). These can lead to temporary impairment of the measuring
accuracy.

2. Important information on blood pressure and its measurement
2.1. How does high/low blood pressure arise?
Your level of blood pressure is determined in the circulatory center of the brain
and adjusts to a variety of situations through feedback from the nervous system.
To adjust blood pressure, the strength and frequency of the heart (Pulse), as well
as the width of circulatory blood vessels is altered. Blood vessel width is affected
by fine muscles in the blood vessel walls.
Your level of arterial blood pressure changes periodically during heart activity:
During the “blood ejection” (Systole) the value is highest (systolic blood pressure
value). At the end of the heart’s “rest period” (Diastole) pressure is lowest
(diastolic blood pressure value). Blood pressure values must lie within certain
normal ranges in order to prevent particular diseases.
2.2. Which values are normal?
Blood pressure is too high if at rest, your diastolic pressure is above 100mmHg
and/or the systolic blood pressure is over 160mmHg. In this case, please consult
your doctor immediately. Long-term values at this level endanger your health due
to continual damage to the blood vessels in your body.
Should the systolic blood pressure values lie between 140mmHg and 159mmHg
and/or the diastolic blood pressure values lie between 90mmHg and 99mmHg,
consult your doctor. Regular self-checks will be necessary.
With blood pressure values that are too low (i.e. systolic values under 105mmHg
and/or diastolic values under 60mmHg), consult your doctor.
Even with normal blood pressure values, a regular self-check with your blood
pressure monitor is recommended. You can detect possible changes in your values
early and react appropriately.
If you are undergoing medical treatment to control your blood pressure, keep a
record of values along with time of day and date. Show these values to your
doctor. Never use the results of your measurements to independently alter
the drug doses prescribed by your doctor.
3

4
The following table is for classifying blood pressure values in adults in
accordance with the National Institutes of Health JNC7 (Data in mmHg):
+Further information
• If your values are mostly normal under resting conditions but exceptionally
high under conditions of physical or psychological stress, it is possible that you
are suffering from so-called “labile hypertension”. Consult your doctor.
•Correctly measured diastolic blood pressure values above 120mmHg
require immediate medical treatment.
*Not intended for use on children under 12 years of age.
2.3. What can be done if regular high or low values are obtained?
a) Consult your doctor.
b) Increased blood pressure values (various forms of hypertension) are associated
with considerable health risks over time. Arterial blood vessels in your body
are endangered due to constriction caused by deposits in the vessel walls
(Arteriosclerosis). A deficient supply of blood to important organs (heart, brain,
muscles) can result from arteriosclerosis. Furthermore, the heart will become
structurally damaged with increased blood pressure values.
c) There are many different causes of high blood pressure. We differentiate
between the common primary (essential) hypertension, and secondary
hypertension. The latter group can be ascribed to specific organic
malfunctions. Please consult your doctor for information about the possible
origins of your own increased blood pressure values.
d) There are measures which you can take to reduce and prevent high blood
pressure. These measures must be permanent lifestyle changes.
Category Systolic Diastolic
(mmHg) (mmHg)
Normal <120 and <80
Pre-Hypertension 120-139 or 80-89
Hypertension
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension ≥160 or ≥100

A) Eating habits
• Strive for a normal weight corresponding to your age. See your doctor for your
ideal weight.
• Avoid excessive consumption of common salt.
• Avoid fatty foods.
B) Previous illnesses
• Consistently follow all medical instructions for treating illnesses such as:
• Diabetes (Diabetes mellitus or sugar diabetes)
• Fat metabolism disorder
• Gout
C) Habits
• Give up smoking completely
• Drink only moderate amounts of alcohol
• Restrict your caffeine consumption (coffee, tea, chocolate)
D) Physical constitution
• After a preliminary medical examination, exercise regularly.
• Choose sports which require stamina and avoid those which require strength.
• Avoid reaching the limit of your performance.
• With previous illnesses and/or an age of over 40 years, please consult your
doctor before beginning your sporting activities. He/She will advise you
regarding the type and extent of types of sport that are possible for you.
3. Components of your blood pressure monitor
The illustration shows the blood pressure monitor consisting of:
a) Measuring unit
5
Cuff connection START/STOP
button
LCD-display

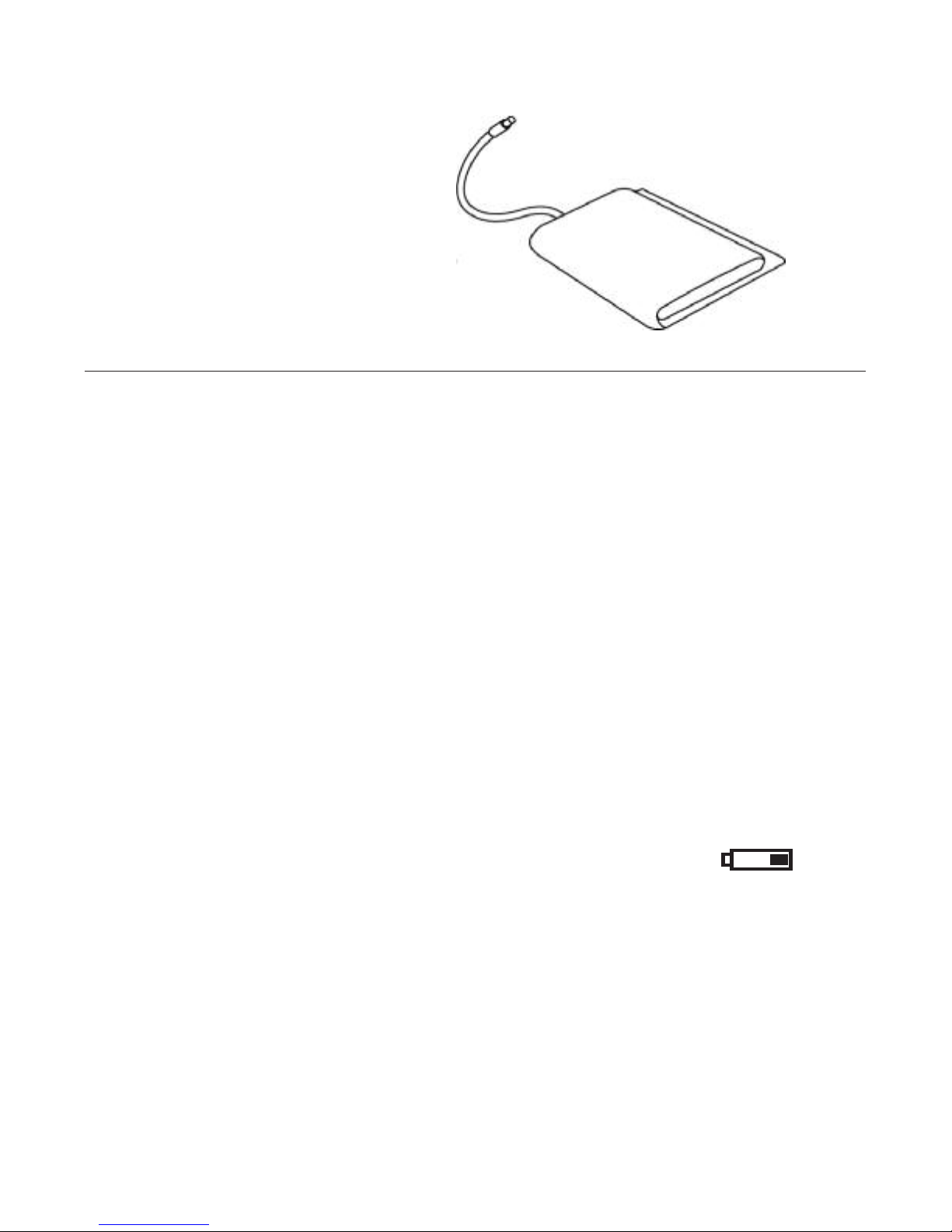

b) Upper arm cuffs:
The cuff is for arm circumference 22 42 cm or 8.7” - 16.5” (included)
4. Operation of your blood pressure monitor
4.1. Inserting the batteries
After you have unpacked your device insert the batteries. The battery compartment
is located on the bottom of the device.
a) Remove cover on the bottom of the monitor.
b) Insert the batteries (4 x size AA 1.5 V), following the indicated polarity. (+ -)
c) If the low battery indicator appears in the display, the batteries are discharged
and the unit will not function.
d) If the batteries are inserted incorrectly, the display may function erratically or
not at all. Check battery polarity.
Attention!
• After the low battery indicator appears, the device won’t
function until the batteries have been replaced.
• Please use “AA” Long-Life or Alkaline 1.5 V Batteries.
• Do not use rechargeable batteries.
• If the blood pressure monitor is not used for long periods,
remove the batteries from the device.
Functional check: Hold on the START/STOP button down to test all the display
elements. When functioning correctly many icons will appear.
6
Please Note:
Do not force cuff connection into
the opening. If the cuff is too small,
or if you need a replacement cuff,
call toll free 1-855-776-0662 for
further information.
Low Battery Indicator

4.2. Tube connection
Insert the cuff tube into the opening
provided on the left side of the instrument,
as shown in the diagram.
5. Measurement Procedure
Please note: You should always be seated before and during measurement
5.1. Before the measurement:
• Avoid eating and smoking as well as all forms of exertion directly before
measurement. These factors influence the measurement result. Find time to
relax by sitting in an armchair in a quiet atmosphere for about ten minutes
before measurement.
• Remove any garment that fits closely to your upper arm.
• Always measure on the same arm (normally left).
• Always perform measurements at the same time of day, since the blood
pressure changes during the course of the day.
5.2. Common sources of error:
Note: Comparable blood pressure measurements always require the same
conditions! These are normally quiet conditions.
• Efforts by the patient to support the arm can increase blood pressure. Make
sure you are in a comfortable, relaxed position and do not activate any of the
muscles in the measurement arm during the measurement. Use a cushion for
support and rest your arm on a table.
• If the upper arm artery lies considerably lower or higher than the heart, a false
high or low blood pressure will be measured!
*A variation of 6” between the cuff and heart level can result in a
reading error of + or - 10mmHg.
• Cuffs that do not fit properly result in false measurement values. Selecting the
correct cuff is extremely important. The cuff size is dependent upon the
circumference or distance around your upper arm measured in the center. The
permissible range is printed on the cuff. If this is not suitable for your use,
please call 1-855-776-0662.
Note: Not all cuffs are compatible with all blood pressure monitors. For a list
of compatible cuffs for this unit, please call 1-8 -776-0662.
• A loose cuff or a sideways protruding air-pocket causes false measurement values.
• Measurements should be done after a 5 minute rest to ensure accuracy.
• Consecutive blood pressure measurements should be performed after a 1 minute pause.
7

8

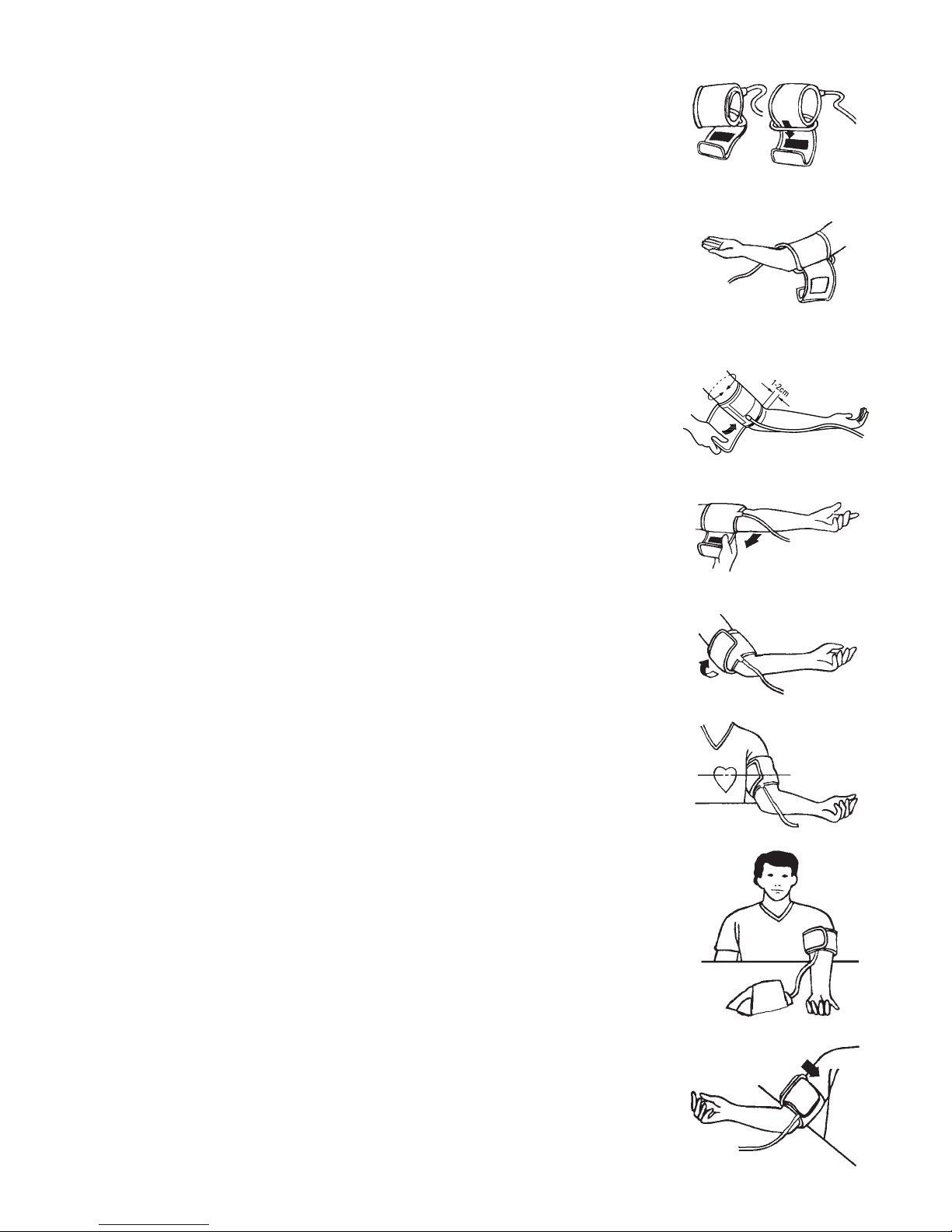

5.3. Fitting the cuff
a) Pass the end of the cuff through the flat metal ring so that a
loop is formed. The Velcro closer must be facing outwards.
(Ignore this step if the cuff has already been prepared.)
b) Place the cuff over the left upper arm so that the tube is
closer to your lower arm. Align the cuff artery mark (arrow)
over the arm artery than runs down the inner side of the arm.
Important! The red strip on the edge of the cuff (Artery
Mark) must lie over the artery which runs down the inner
side of the arm. TIP: Align red artery mark to pinky finger.
c) Lay the cuff on the arm as illustrated. Make certain that the
lower edge of the cuff lies approximately ½” to ¾” (1 to 2
cm) above the elbow and that the tube is closer to the inner
side of the arm.
d) Tighten the cuff by pulling the end and close the cuff by
affixing the velcro. Make sure that the cuff Index end falls
between the OK lines when the cuff is in position. If it
doesn’t, you are using the wrong cuff size.
e) There should be little free space between the arm and the
cuff. You should be able to fit 2 fingers between your arm
and the cuff. Clothing must not restrict the arm. Any piece of
clothing which does must be removed.
f) Lay your arm on a table (palm upward) so the cuff is at the same
height as the heart. Make sure that the tube is not kinked.
g) Remain seated quietly for five minutes before you begin
the measurement.
Comment:
If it is not possible to fit the cuff to the left arm, it can also
be placed on your right arm. However, all measurements
should be made using the same arm. Cuff on right arm
½”-¾”
8.7” - 16.5”

9
5.4. Measuring procedure
After the cuff has been appropriately positioned the measurement
can begin:
a) Press the START/STOP button. The pump begins to inflate the
cuff. In the display, the increasing cuff-pressure is continually
displayed.
b) After automatically reaching an individual pressure, the pump
stops and the pressure slowly falls. The cuff-pressure is
displayed during the measurement. If the inflation pressure is
not sufficient, the monitor automatically re-inflates.
c) When the device has detected your pulse, the heart symbol in
the display begins to blink for every pulse beat.
d) When the measurement has been concluded, a long beep tone
sounds. The measured systolic and diastolic blood pressure
values as well as the pulse are now displayed.
e) The measurement results are displayed until you switch the
device off. If no button is pressed for
5 minutes, the device switches off automatically.
5.5. Memory – displaying the last measurement
The measured results are stored in the instrument until a new
measurement is carried out or the batteries are removed. You can
call up the stored values at any time by holding the START/STOP
button for at least 3 seconds while the device is off.
5.6. Discontinuing a measurement
If it is necessary to interrupt a blood pressure measurement for
any reason (e.g the patient feels unwell), the START/STOP button
can be pressed at any time. The device then immediately lowers
the cuff pressure automatically.

6. Error Messages/Troubleshooting
If an error occurs during a measurement, the measurement is
discontinued and a corresponding error code is displayed.

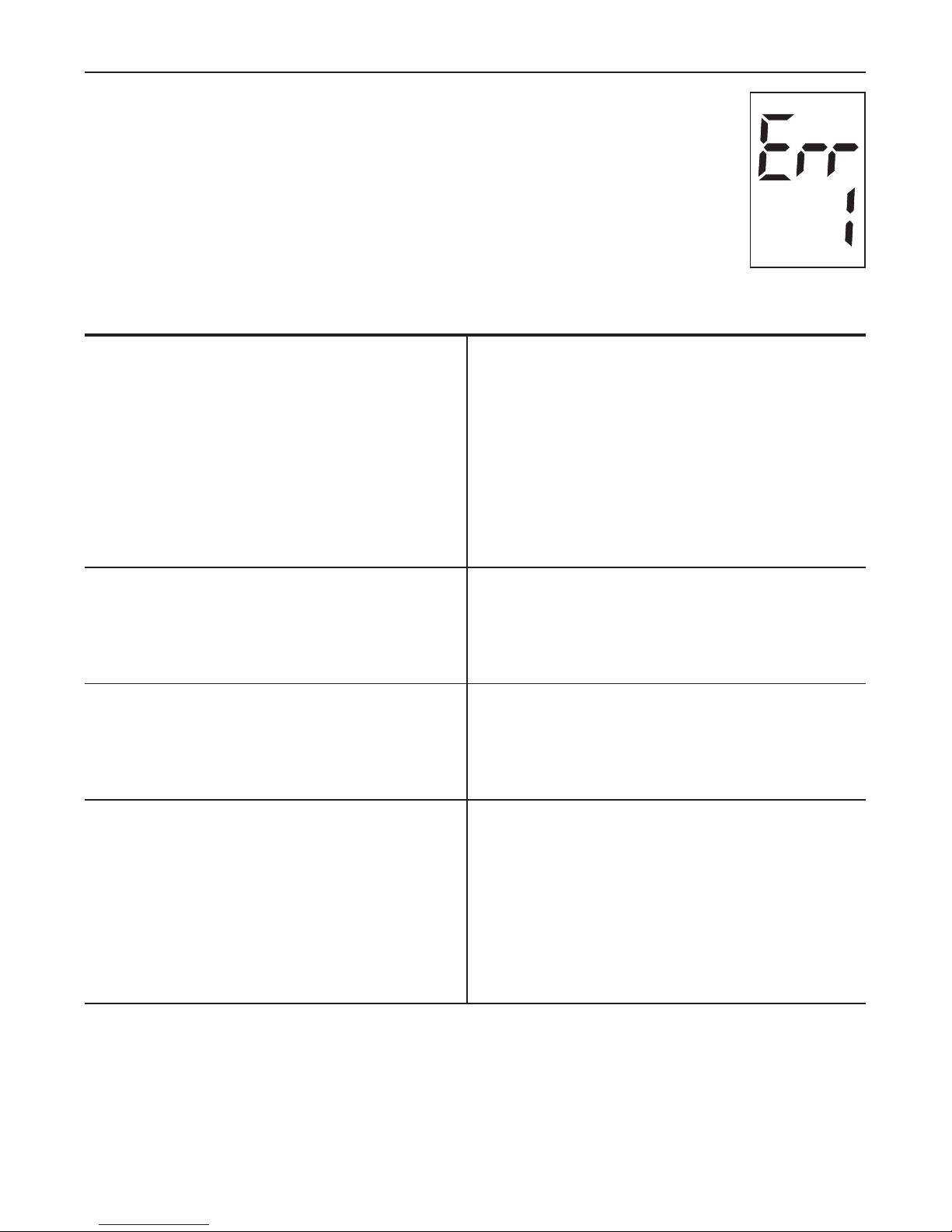

(Example Error no. 1)
Error No. Possible cause(s)
ERR 1 The systolic pressure was determined
but after wards the cuff pressure fell
below 20 mmHg.
This situation can occur, for example, if
the tube becomes unplugged after the
systolic blood pressure has been
measured. Further possible cause: No
pulse has been detected.
ERR 2 Unnatural pressure impulses influence
the measurement result. Reason: The
arm was moved during the
measurement (Artefact).
ERR 3 Inflation of the cuff takes too long. The
cuff is
not correctly seated or the hose
connection is not sealed.
ERR 5 The difference between systolic and
diastolic is excesive. Measure again
carefully following proper cuff
procedures and ensure measurement
under quiet conditions. Contact your
doctor if this message occurs
frequently.
10

Other possible errors and their solutions
If problems occur when using the device, the following points should be checked:
Malfunction Remedy
11
• Check battery installation.
• If the display is unusual, remove the
batteries and then exchange them
for new ones
• Check polarity
• Check the connection of the cuff
tube and connect properly.
1. Fit the cuff correctly on the arm. (see 5.3)
2. Before starting the measurement
make sure that the cuff is not too
tight and that clothing is not exerting
pressure on the arm. Take off
articles of clothing if necessary.
3. Measure blood pressure again in
complete peace and quiet.
• Please read the following
information and the points listed
under “Common sources of
error”.(5.2) Repeat the
measurement.
Blood Pressure changes constantly.
The observed readings may
accurately reflect your pressure.
• Record daily values and consult your
doctor.
• Pressure readings in your doctor’s
office may be higher due to anxiety.
• Your blood pressure fluctuates
throughout the day so record the
time along with your reading.
• Check cuff connections.
Ensure the unit has not been
tampered with.
The display remains blank when the
instrument is switched ON although
the batteries are in place.
The pressure does not rise although
the pump is running.
The device frequently fails to measure
the blood pressure values, or the
values measured are too low or too high.
Every measurement results in different
values, although the device functions
normally and normal values displayed.
The blood pressure values differ from
those measured by my doctor.
After the instrument has inflated the
cuff the pressure falls very slowly or
not at all. (No reasonable
measurement possible).

12
7. Care and maintenance
a) Do not expose the device to either extreme
temperatures, humidity, dust or direct sunlight.
b) The cuff contains a sensitive air-tight bubble. Handle
this carefully and avoid all types of straining through
twisting or buckling.
c) Clean the device with a soft, dry cloth. Do not use gas,
thinners or similar solvents. Spots on the cuff can be
removed carefully with a damp cloth and soapsuds.
The cuff must not be washed in a dishwasher,
clothes washer, or submerged in water.
d) Handle the tube carefully. Do not pull on it. Do not
allow the tubing to kink and keep it away from sharp
edges.
e) Do not drop the monitor or treat it roughly in any way.
Avoid strong vibrations.
f) Never open the monitor! This invalidates the
manufacturer’s warranty.
+Further information
Blood pressure is subject to fluctuations even in healthy people.
Comparable measurements always require the same conditions (quiet
conditions)!
If fluctuations in readings are larger than 15mmHg consult your doctor.
In order to receive market clearance from governmental bodies, this device was
subjected to strict clinical tests. The computer program used to measure blood
pressure values was tested by experienced cardiac specialists in Germany.
Never attempt to repair the instrument yourself!
Any unauthorized opening of the instrument invalidates all warranty claims!

. Warranty
Your ReliOn blood pressure monitor is guaranteed for one year against
manufacturers’ defects for the original purchaser only, from date of purchase. The
warranty does not apply to damage caused by improper handling, accidents,
professional use, not following the operating instructions or alterations made to
the instrument by third parties.
There are no user serviceable parts inside. Batteries or damage from old batteries
is not covered by the warranty.
Please note: According to international standards, your monitor should
be checked for calibration every 2 years.
9. Certifications
Device standard: Device corresponds to the
requirements of the standard for non-
invasive blood pressure monitors:
ANSI/AAMI SP10
IEC 60601-1
IEC 60601-1-2
Electromagnetic compatibility: Device fulfills the stipulations of the
standard IEC 60601-1-2
Clinical testing: Clinical performance tests were
carried out in the US according to
AAMI standard.
13

14
10. Technical specifications:
Operating temperature: 10 -40 ºC / 50 - 104 ºF
Storage temperature: -20 to +55 ºC / -4 to +131 ºF
Humidity: 15 to 90% relative humidity maximum
Weight: 375 g (including batteries)
Dimensions: 89 x 123 x 7 mm
Display: LCD-Display (Liquid Crystal Display)
Measuring method: Oscillometric, corresponding to Korotkoff
method: Phase I systolic, Phase V diastolic
Pressure sensor: Capacitive
Measuring range:
SYS/DIA: 60 to 255 mmHg
Pulse: 40 to 200 per minute
Cuff pressure display range: 0 300 mmHg
Memory: Stores the last measurement automatically
Measuring resolution: 1 mmHg
Accuracy: Pressure within ± 3 mmHg
or 2% of reading >200mmHg
Pulse ± 5 % of the reading
Power source: 4 dry cells (batteries) UM-3, size AA, 1.5 V
Accessories: Regular cuff for arm circumference
8.7”-16.5” (22 - 42 cm)
Made in China
Technical alterations reserved!
Read the instructions carefully before using this device.
Type BF applied part.
11. How to contact us:
Toll Free: 1-855-776-0662
Distributed by:
Wal-Mart Stores, Inc.
Bentonville, AR 72716.

15
1. Introducción
1.1.Características del modelo
1.2.Información importante sobre las automediciones
2. Información importante sobre la presión sanguínea y su medición
2.1.¿Como se origina la tensión arterial alta/baja?
2.2.¿Cuales son los valores normales?
2.3.¿Que podemos hacer si se miden regularmente valores altos/bajos?
3. Los diversos componentes del tensiómetro
4. Puesta en funcionamiento del tensiómetro
4.1.Colocacin de las pilas
4.2.Conexión del tubo
5. Desarrollo de una medición
5.1.Antes de la medición
5.2.Fuentes de error comunes
5.3.Ajuste del brazalete
5.4 Procedimiento de medición
5.5.Indicación del último valor medido Memoria
5.6.Interrupción de la medición
6. Mensaje de error/funcionamiento defectuoso
7. Cuidados y mantenimiento
. Garantía
9. Referencia a estándares
10. Especificaciones técnicas
11. Contacto para la ayuda

16
1. Introducción
1.1.Características del modelo
El modelo es un tensiómetro digital totalmente automático con un método
de medición oscilométrico que permite una medición rápida y fiable de la
presión arterial sistólica, diastólica y de la frecuencia del latido cardiaco.
El modelo dispone de una pantalla de cristal líquido de grandes
dimensiones, gracias a la cual es posible visualizar claramente el estado
de funcionamiento y la presión del brazalete durante toda la medición.
El aparato le ofrece una altísima precisión en la medición, clínicamente
comprobada, y ha sido diseñado de tal modo que su uso resulta sencillo.
Lea atentamente las instrucciones de uso antes de utilizar el aparato y
guárdelas para posibles consultas futuras.
Atención:
1.2. Información importante sobre las automediciones
• No lo olvide: automedición significa control, no diagnóstico o
tratamiento. Los valores inusuales deben ser discutidos siempre con su
médico. No modifique bajo ninguna circunstancia las dosis de cualquier
medicamento que le haya recetado su médico.
• El indicador de pulsaciones no es apropiado para medir la frecuencia de
los marcapasos.
• En casos de irregularidad cardiaca, las mediciones realizadas con este
instrumento deben ser evaluadas sólo, previa consulta con el médico.
Interferencia electromagnética:
El aparato contiene componentes electrónicos sensibles (microordenador).
Por ello, evite los campos eléctricos o electromagnéticos fuertes en la
proximidad directa del aparato (por ejemplo, teléfonos móviles,
microondas); pueden dar lugar a la pérdida temporal de la exactitud de
medición.

17
2. Información importante sobre la presión sanguínea y su medición
2.1. ¿Cómo se origina la tensión arterial alta/baja?
El nivel de la tensión arterial se determina en una zona del cerebro, en el
llamado centro circulatorio, y se adapta a cada situación concreta por
retroalimentación, a través del sistema nervioso. Para ajustar la tensión
arterial se modifican la potencia y la frecuencia cardiacas (pulso), así
como la anchura de los vasos sanguíneos. Esto último se efectúa
mediante los músculos de las paredes de los vasos sanguíneos.
El nivel de la tensión arterial cambia periódicamente junto con la
actividad cardiaca: durante la impulsión de la sangre (sístole) el valor es
máximo (valor sistólico de la tensión arterial); al final del «periodo de
relajación» del corazón (diástole), mínima (valor diastólico de la tensión
arterial).
Para evitar ciertas enfermedades, los valores de la tensión arterial deben
estar situados entre unos valores límite deter minados.
2.2. ¿Cuales son los valores normales?
Se produce un fenómeno de hipertensión cuando en condiciones de reposo
del organismo,la presión diastólica supera los 100 mmHg, o cuando la
presión sistólica supera los 160 mmHg. Entonces deberá dirigirse
inmediatamente al médico, porque la persistencia de estos valores pone en
peligro su estado de salud, a causa del progresivo deterioramiento de los
vasos sanguíneos que se produciría.
Se deberá dirigir al médico también cuando el valor de la presión sistólica se
encuentre entre 140 mmHg y 159 mmHg o cuando el valor de la presión
diastólica se encuentre entre 90 mmHg y 99 mmHg. Además, se deberá
automedir regularmente.
También cuando los valores de la presión sean excesivamente bajos: una
presión sistólica inferior a 105 mmHg o una presión diastólica por debajo de
60 mmHg, será necesario consultar con el médico.
Aún cuando los valores estén dentro de la normalidad, es aconsejable
efectuar regularmente una automedición usando el tensiómetro, de este
modo, será posible detectar eventuales variaciones de los valores y tomar
las medidas oportunas, en consulta con su médico.

Cuando se esté siguiendo una terapia médica para regular la presión
sanguínea , será necesario tomar regularmente nota de los valores de la
presión que vayamos midiendo siempre a la misma hora.
Las anotaciones pueden servir como soporte al examen médico. No use
nunca los resultados de sus mediciones para alterar por su cuenta el
tratamiento prescrito por su médico.
La tabla siguiente es para la clasificación de los valores de tensión arterial en
adultos según los establecidos para los Institutos Nacionales de la Salud
(información en mmHg)
+Otras informaciones
• En presencia de valores mayoritariamente normales en condiciones de
reposo, pero excepcionalmente altos en condiciones de esfuerzo físico
o psíquico, puede presentarse una «hipertensión lábil». Consulte a su
medico si sospecha que puede ser su caso.
• Valores de la presión diastólica medidos correctamente superiores a 120
mmHg, requieren un tratamiento médico de inmediato.
2.3. ¿Qué podemos hacer si se miden regularmente valores altos/bajos?
a) Consultar con el médico.
b) A medio-largo plazo, un aumento considerable de la tensión arterial (diversas
formas de hipertensión), supone considerables riesgos para la salud. Estos
riesgos son relativos a los vasos sanguíneos, los cuales se ven amenazados
por los depósitos que se forman en sus paredes y que los van estrechando
(arteriosclerosis). Ello puede comportar un aporte insuficiente de riego
sanguíneo a los órganos principales (corazón, cerebro, músculos). Además,
largos periodos de presión arterial elevada pueden provocar daños
estructurales en su corazón.
18
Categoría Sístole Diastole
(mmHg) (mmHg)
Normal <120 y <80
Prehipertensión 120-139 o 80-89
Hipertensión
Etapa 1 Hipertensión 140-159 o 90-99
Etapa 2 Hipertensión ≥160 o ≥100
