1Safety
The system was designed in accordance with the relevant international standards.
However, as with any technical product, hazards may arise if the system is not used
properly or is used for purposes other than its intended use.
Working with the system can be dangerous and may result in serious or fatal injury. It is
therefore essential to protect yourself and others.
In addition to the safety instructions in this document, you must also comply with general
safety standards.
Caution - Danger!
When working with the system, please note and observe the safety instructions and
requirements in these operating instructions because non-compliance may result in
serious or fatal injury.
1.1 Residual risks
This system has been manufactured in accordance with the current state of the art.
However, it is impossible to eliminate residual risks.
Always adhere to the following safety instructions:
Tripping hazard!
Lay the connection cables in suitable cable trays. Lay cables such that they do not
present a tripping hazard.
1.2 Information and obligations for the operator
•Ensure that:
- Operating personnel have read and understood these operating instructions.
- Anyone working near the machine is made aware of the dangers and is provided
with the necessary protective equipment.
- Repairs are only carried out by qualified persons.
•In particular, make operating personnel aware of the safety instructions in this
document.
•Always keep the system in fully functional condition.
•Any modifications made to the machine will invalidate the operating licence and the
warranty. Exception: Such modifications are expressly authorised by the manufacturer.
1.3 Intended use
The system is intended solely for operation with the PS2000 high-voltage source and a
plasma generator from relyon plasma GmbH.
Coupled with a suitable plasma generator, the machine is intended solely for the plasma
treatment of surfaces (metals, textiles, glass, plastics) to activate, clean, coat or remove
residue at atmospheric pressure.
Under no circumstances may the system be used by non-trained persons.

BA-GasPakNot_EN / F0352600
June 2016
5
1.4 Impermissible operating conditions
The system must not be operated under the following conditions:
•In explosive (Ex) zones
•In areas with severe build-up of dust
•Where there is excessive air humidity (>80% rel.)
•Where temperatures are outside of 0 –40 °C or 32 –104 °F.
•Where there are strong vibrations
Note!
Please also observe the information in the operating instructions of all additional
components connected to the system.

6
June 2016
BA-GasPakNot_EN / F0352600
2System description
2.1 Function
The components of the gas supply package are the basic elements of gas treatment for the
operation of a Plasmabrush®PB3.
The emergency off switch components are used to configure a basic safety circuit for the
PS2000 current source.
2.2 System overview
2.2.1 Description of the components
Gas supply package (item No. 1000603700)
No.
Components
1
MSB4 maintenance unit
2
L screw-in fitting
3
PEN plastic hose, Ø 6x1 mm, length: 15 m
4
PB3 throttle, preadjusted
The maintenance unit consists of the following components
•Manual filter regulator with manometer, ppermit = 1.5 to 14 bar, filter fineness: 5 µm
•Fine and ultra-fine filter, filter fineness: 0.01 µm
•Active carbon filter
1
2
3
4

BA-GasPakNot_EN / F0352600
June 2016
7

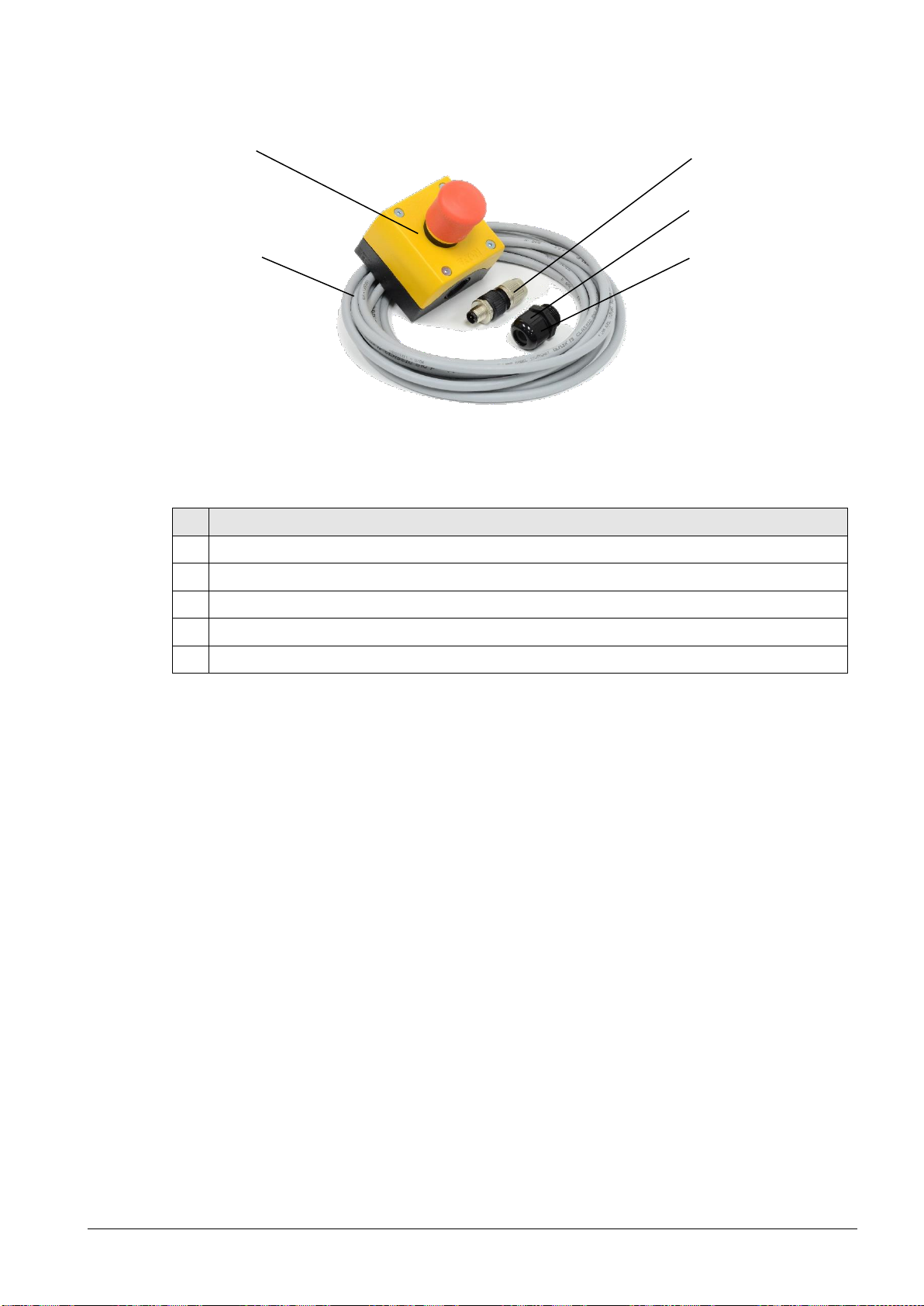

Emergency off switch for PS2000 (item No. 1000603600)
No.
Components
1
Emergency stop / emergency off switch
2
Connection cable, length: 5 m
3
Circular plug connector for connection to PS2000
4
Cable screw-in connection
5
Locknut for cable screw-in connection
2.2.2 Scope of delivery
Gas supply package (item No. 1000603700)
The scope of delivery includes the following components:
•MSB maintenance unit
•L screw-in fitting (2 pieces)
•PEN plastic hose, Ø 6x1 mm, length: 15 m
•PB3 throttle, preadjusted
•Operating instructions
Emergency off switch for PS2000 (item No. 1000603600)
The scope of delivery includes the following components:
•Emergency stop / emergency off switch
•Connection cable, length 5 m
•Circular plug connector
•Cable screw-in connection with locknut
•Operating instructions
1
2
3
4
5

8
June 2016
BA-GasPakNot_EN / F0352600
3Transport / storage
•Protect the system from dirt and foreign objects.
4Unpacking and installation
4.1 Unpacking
•Carefully open the packaging.
•Take the components out of the packaging.
4.2 Installation requirements
Before installing the machine, the following points must be met:
•The components must be undamaged.
•Only a trained electrician may wire the system.
•Observe all installation requirements and safety notices of the components/machines
that are also connected.
•A gas supply installed at the factory must be present (e.g. central compressed air
system or gas cylinder). Please refer to the operating instructions of the respective
connected machine for the gas type quality requirements
Emergency stop circuit
The emergency stop circuit may only be wired and started up by
a trained electrician.

BA-GasPakNot_EN / F0352600
June 2016
9
4.3 Installation

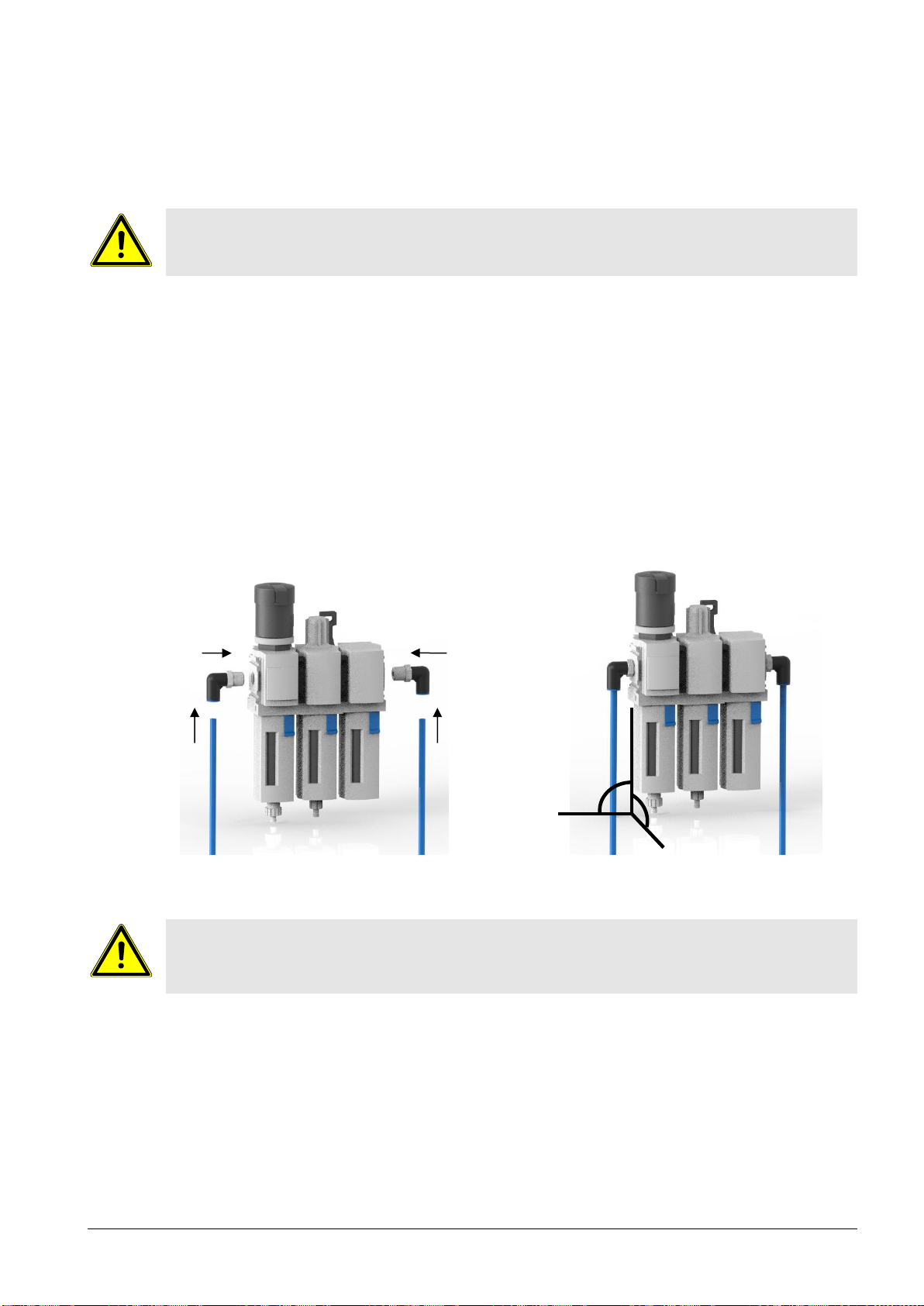

4.3.1 Gas supply package installation (1000603700)
To install the system, carry out the following steps in the order specified:
Compressed air lines
Caution! Make sure the system is depressurised before you start the installation process.
1. Insert both L screw-in fittings into the maintenance unit.
2. Cut the supplied hose to the desired length and connect the hose to the plasma generator
in the screw-in fitting on the right side A hose length of ≤ 10 m is recommended.
3. Insert the hose from the gas supply into the screw-in fitting on the left side.
4. Mount the maintenance unit in an upright/vertical position.
Maintenance unit position
The maintenance unit must always be operated in an upright/vertical position, otherwise
faults may occur.
1
2
1
3
4
90°
90°

10
June 2016
BA-GasPakNot_EN / F0352600

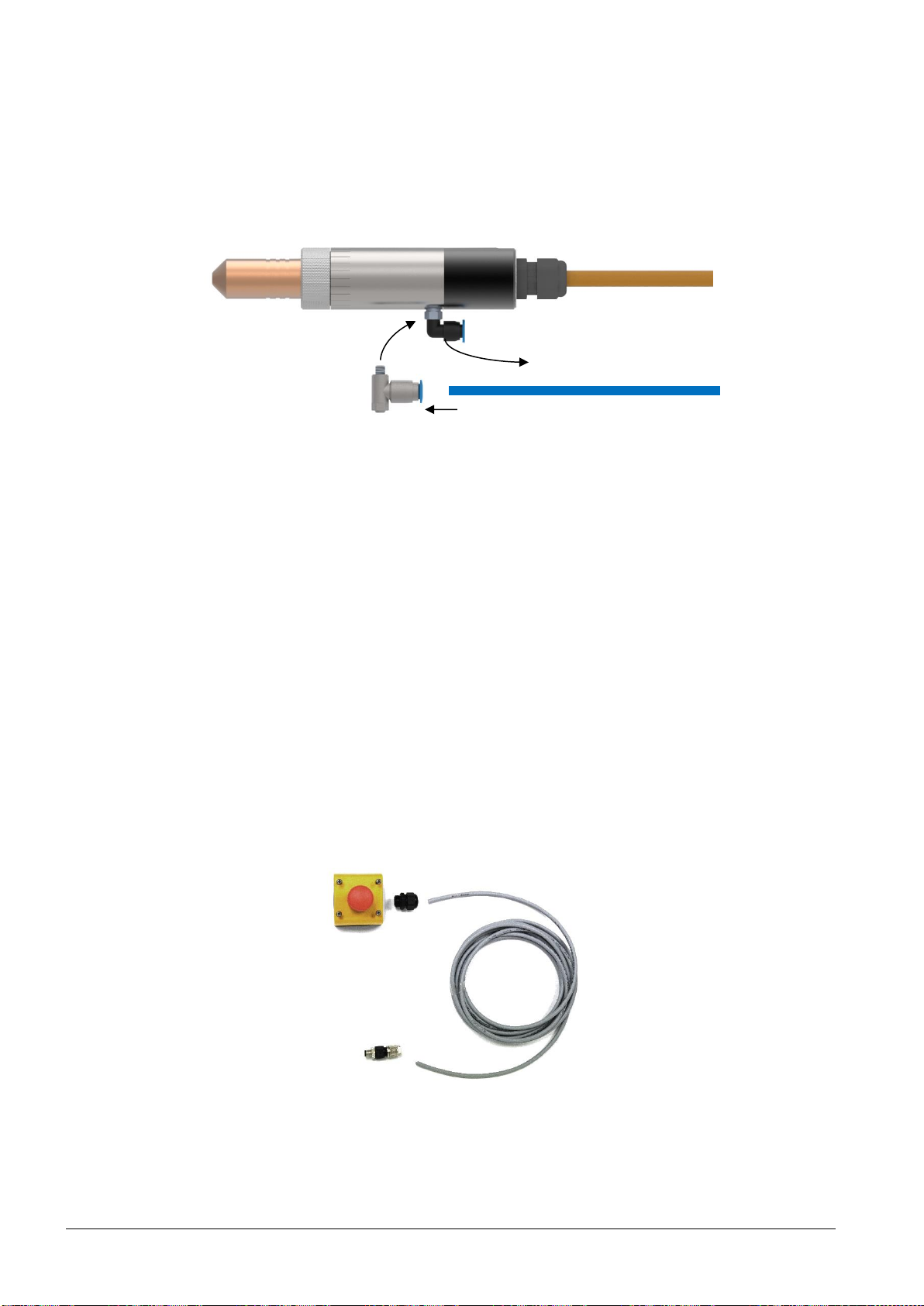

5. Unscrew the screw-in fitting mounted at the factory from the plasma generator.
6. Insert the preadjusted throttle into the plasma generator and connect the hose. The
throttle is suppliedin a preadjusted state with locking varnish.By changing the setscrew,
the pressure/flow ratio no longer corresponds to the characteristic in point 5.1.
7. Check all connections to ensure they are secure and do not leak before pressurising the
system.
The system is installed.
4.3.2 Installation emergency off switch for PS2000 (1000603600)
To install the system, carry out the following steps in the order specified:
1. If necessary, cut the cable to your required length and terminate the cable ends for the
wiring properly.
2. Insert the cable screw-in connection into the emergency stop switch, wire the cable in
accordance with the wiring diagram enclosed and secure the cable from sliding by
tightening the cable screw-in connection.
5
6
6
2
1
3

BA-GasPakNot_EN / F0352600
June 2016
11
3. Connect the circular plug connector to the other cable end in accordance with the wiring
diagram. The circular plug connector supplied consists of four individual parts which have
to be plugged/screwed together as shown.
4. Check the emergency off switch to make sure it functions properly before commissioning.
5. Connect the emergency off switch to the intended socket on the rear side of the PS2000
current source.
Connection assignment and connection principle of the emergency off switch display:
Emergency stop circuit
The emergency stop circuit may only be wired and started up by
a trained electrician.
The system is installed.
Der mitgelieferte Not-Aus Stecker besteht aus vier Einzelteilen, die in der
dargestellten Weise zusammengesteckt/-schraubt werden müssen.
PIN 1: +24 V output
PIN 2: 0 V/GND output
PIN 3: +24 V input (+/- 10%)
PIN 4: 0 V input
5
portable,
external
emergency
stop button
earth

12
June 2016
BA-GasPakNot_EN / F0352600
5Operation

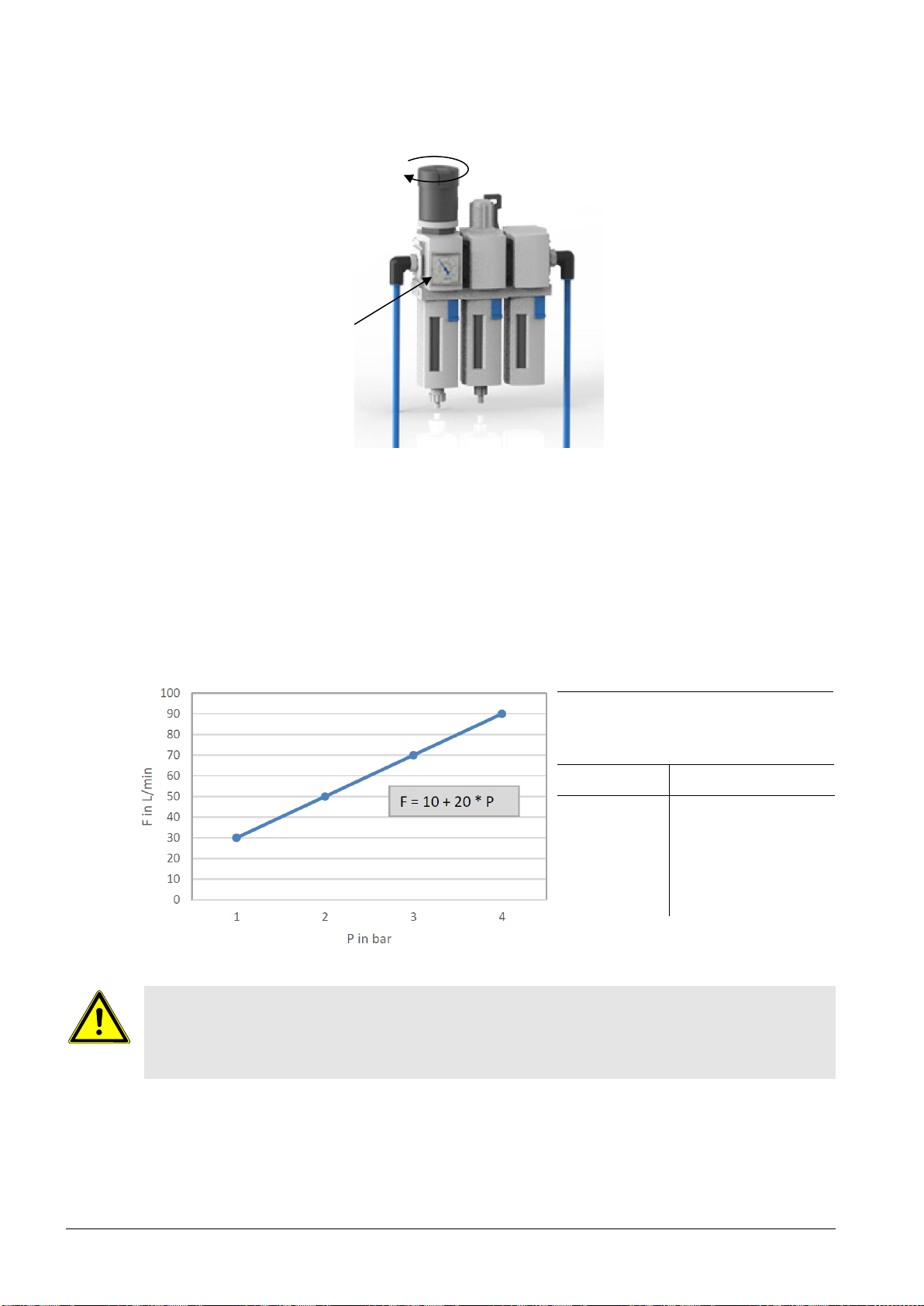

5.1 Characteristic of the preadjusted throttle
1. Adjust the gas pressure by turning the maintenance unit on the pressure reducer.
2. Read off the set value on the display.
3. The corresponding flow results from the following characteristics. Please refer to the operating
instructions of the connected machines for the permissible operating parameters.
Characteristic validity range
The characteristic is only valid if the throttle is not moved and the hose length (Di=4 mm) is 1 m.
For a hose length that is 5m, the pressure must be increased by 10%. For a hose length that is 10
m, the pressure must be increased by 20%.
Compressed air characteristic at
room temperature
(1 m hose connection with Di=4 mm)
Pressure
Gas flow
1
bar
30
l/min
2
bar
50
l/min
3
bar
70
l/min
4
bar
90
l/min
1
2
Characteristic for compressed air (T=25 °C)

BA-GasPakNot_EN / F0352600
June 2016
13
6Environment
6.1 Disposal
Consider the environment.
Electrical and electronic equipment used must not be disposed of along with normal
waste.
- The machine contains valuable materials that can be recycled. Take the machine to a
suitable collection point.
relyon plasma GmbH
Weidener Strasse 16
93057 Regensburg
Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
www.relyon-plasma.com
