Remington 476 User manual

REMINGTON®
POWERHAMMER
Model 476
Operating
Instructions
The Remington Powerhammer is de-
signedforusewithRemingtonPowder22
caliber, Type A crimped loads and
Remington Power Fasteners which are
no longer than 63.5mm (2 1/2”).
Remington Power Fasteners are manu-
factured from special steel and heat
treated to produce a very hard, yet duc-
tile, fastener.
CAUTION:
AlwaysuseRemington22caliberTypeA
crimped loads or loads manufactured to
specifications outlined in the P.A.T.M.I.
“Technical Data Pertaining to Powder
Loads (Boosters)”, latest revision. Use of
loads other than those conforming to
these specifications may cause load-
ejection problems or damage the tool.
Read this manual and all labels carefully
before operating your powder actuated
tool. This manual should always accom-
pany the tool and be transferred with it
upon change of ownership.
WARNING ICON G 001
WARNING: This tool is designed
onlyforusebyqualifiedoperators.Quali-
fication is obtained through a thorough
understanding of the
Safety Warnings
and operating instructions as defined in
this operating manual.

2
WARNING:
Safety Precautions

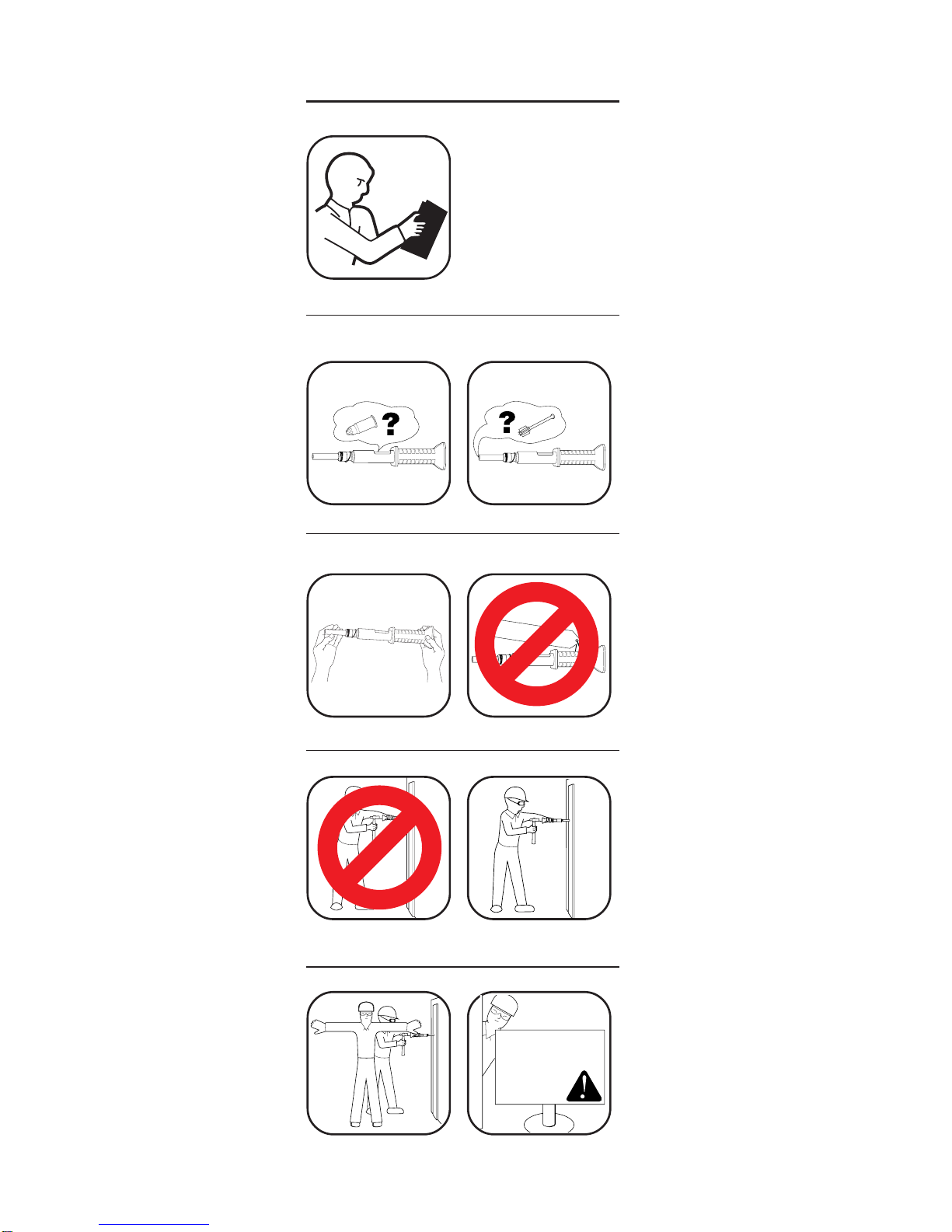

BEFORE USING
1. ALWAYS handle the tool as if it
were loaded. Before starting work,
check that the tool is unloaded and
the muzzle is clear. NEVER load a
tool unless it is going to be used.
2. ALWAYS inspect to make sure the
tool is working properly. If the tool
does not work properly or is dam-
aged remove from service and tag
DEFECTIVE.
3. Operators and bystanders must
ALWAYS wear goggles and ear
protection that meet or exceed CE
standards.
4. ALWAYS clearthe work areaon all
sides and post appropriate warning
signs on job sites.
The following pages contain detailed
warnings, cautions, and rules of safe
operation. Read carefully and become
familiar before operating to avoid seri-
ous injury. We expressly disclaim any
liability for any injury to persons or dam-
age to property which result from your
failuretotaketheprecautions contained
in this manual.

3
Safety Precautions
DEFECTIVE
WARNING
POWDER
ACTUATED
TOOLS
IN USE!
G 018
G 018

4
Safety Precautions
HANDLING THE TOOL
1. NEVER place your hand over the
muzzle. Accidental discharge can
cause serious injury.
2. ALWAYS store UNLOADED pow-
der actuated tool and loads in a
locked container. Keep powder
loads of different power levels in
separate containers.
3. NEVERcarryorpassaloadedpow-
der actuated tool. NEVER point a
powder actuated tool at anyone.
4. ALWAYStakeprecautionstomain-
tain your balance while operating a
powder actuated tool.
5. An operator taking medication
shouldtake extraprecautions while
handling the tool. NEVER drink al-
coholic beverages or take medica-
tions which impair your vision, bal-
ance or judgement before using a
powder actuated tool.

5
Safety Precautions
POWDER
LOADS
POWD
LOAD
G 018
G 018
G 018
G 018
G 018

6
3.NEVER make fastenings in spalled
or cracked areas.
Safety Precautions
KNOW YOUR FASTENING BASE
MATERIAL
1. ALWAYS know the thickness and
typeofbasematerialintowhichyou
are fastening. NEVER GUESS.
Test the base material by using the
Center Punch Test. The Center
Punch Test is performed by using a
hammer to test drive the particular
fastener to be used into the mate-
rial. If the point penetrates easily,
the material is too soft. If the point
becomes blunt, the material is too
hard. If the material fractures,
cracks or shatters, the material is
too brittle. Test fastenings should
always be made starting with the
lowest power load (Gray-Level 1)
and proceeding with the order
shown. Operators and bystanders
must ALWAYS wear goggles and
ear protection that meet or exceed
CE standards.
2. NEVER attempt to drive fasteners
into very hard or brittle materials
including, but not limited to cast
iron,glass,tile,stone,brick,orhard-
ened steel. Materials of this type
tend to shatter and create hazard
from flying particles.

7
Safety Precautions
?
?
?
?
CENTER
PUNCH TEST
Sinks in
with
average
hammer
blow
TOO SOFT TOO HARD
Point
flattens
Surface
shatters
Start
3
GREEN
2
BROWN
4
YELLOW
CAST
IRON GLASS TILE BRICK
1
GRAY
TOO BRITTLE
G 018
G 018
G 018
G 018 G 018
G 018

8
Safety Precautions
4. NEVER drive fasteners into thin or
easily penetrated materials unless
it is backed by concrete or steel.
When in doubt, such as when base
material is concealed, conduct a
Center Punch Test. Check continu-
ally to avoid fastening into unsuit-
able material, especially in older
buildings.
5. DONOTfastenthruorwithin13mm
(1/2”) of predrilled or pre-punched
holes.
6. DO NOT drive fasteners into con-
crete less than three times as thick
as the intended fastener penetra-
tion, within 76mm (3”) of the edge,
within 76mm (3”) of another fas-
tener or within 76mm (3”) of a failed
fastener.
7. DO NOT drive fasteners into steel
base material less then 5mm
(3/16”) thick, within 51mm (2”) of a
weld, within 13mm (1/2”) of the
edgeorwithin25mm(1”)ofanother
fastener.
8. Whenfasteningintomasonrywalls,
always drive into horizontal mortar
joints, NEVER into vertical mortar
joints. BE CAREFUL, a poorly laid
joint may permit too much penetra-
tion, and/or unsatisfactory holding
power.

9
Safety Precautions
1”
TOO THIN
WELD
1/2”
NO YES
G 018
G 018
G 018
G 018
76 mm
3"
3X
1X
76mm
3" 76mm
3"
76mm
3"
5 mm MIN
3/16"
25 mm
1"
13 mm
1/2"

10

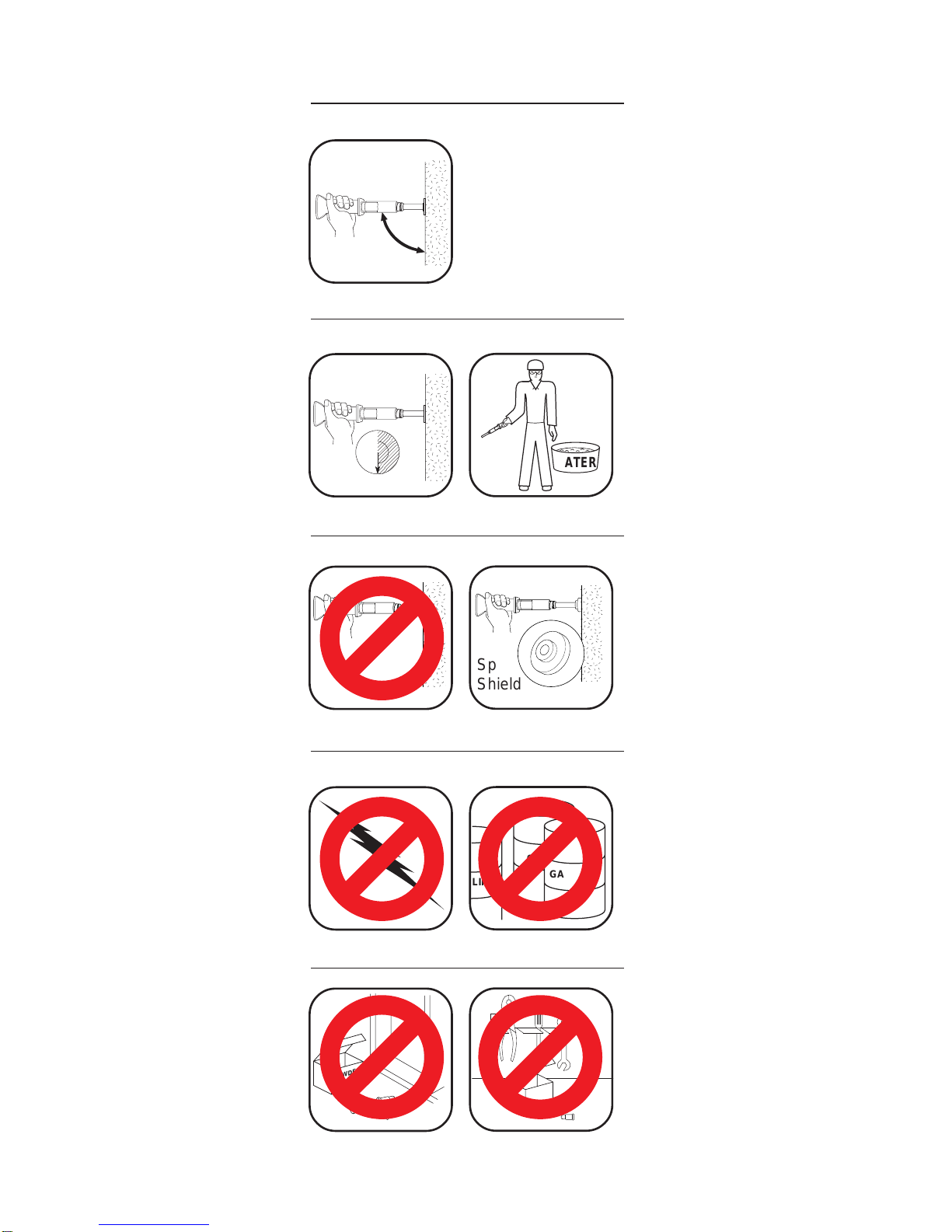

OPERATING THE TOOL
1. ALWAYSholdtoolperpendicularto
work surface.
2. Should the tool fail to fire, hold the
muzzle firmly against the work sur-
face for 30 seconds. Then remove
the tool, eject the load and safely
discard the misfired load into water
or oil.
3. ALWAYSusethespallshieldwhen
driving directly into concrete or
steel. ALWAYS wear goggles.
4. NEVER useapowderactuatedtool
inanexplosiveorflammableatmos-
phere or when non sparking tools
are required.
POWDER LOADS AND
FASTENERS
1. NEVERleaveunfiredpowderloads
on floors or work surfaces.
Safety Precautions
