Remington TRAYEL-RITER User manual

REMINGTON
TRAYEL-RITER
INSTRUCTION MANUAL
ii
IRtantL
OIViSION OF SPESLtlY RAND COft POti A* ION
315 PARK AVENUE SOUTH. NEW YORK 10, N.Y.

I
I
MECHANICAL INSTRUCTIONS
FOR
TRAVEL-RITER
DIVISION OF SPERKY RAND CORPORATION
315 PARK AVENUE SOUTH
NEW YORK 10, N. Y.
PRINTED IN U.S.A.

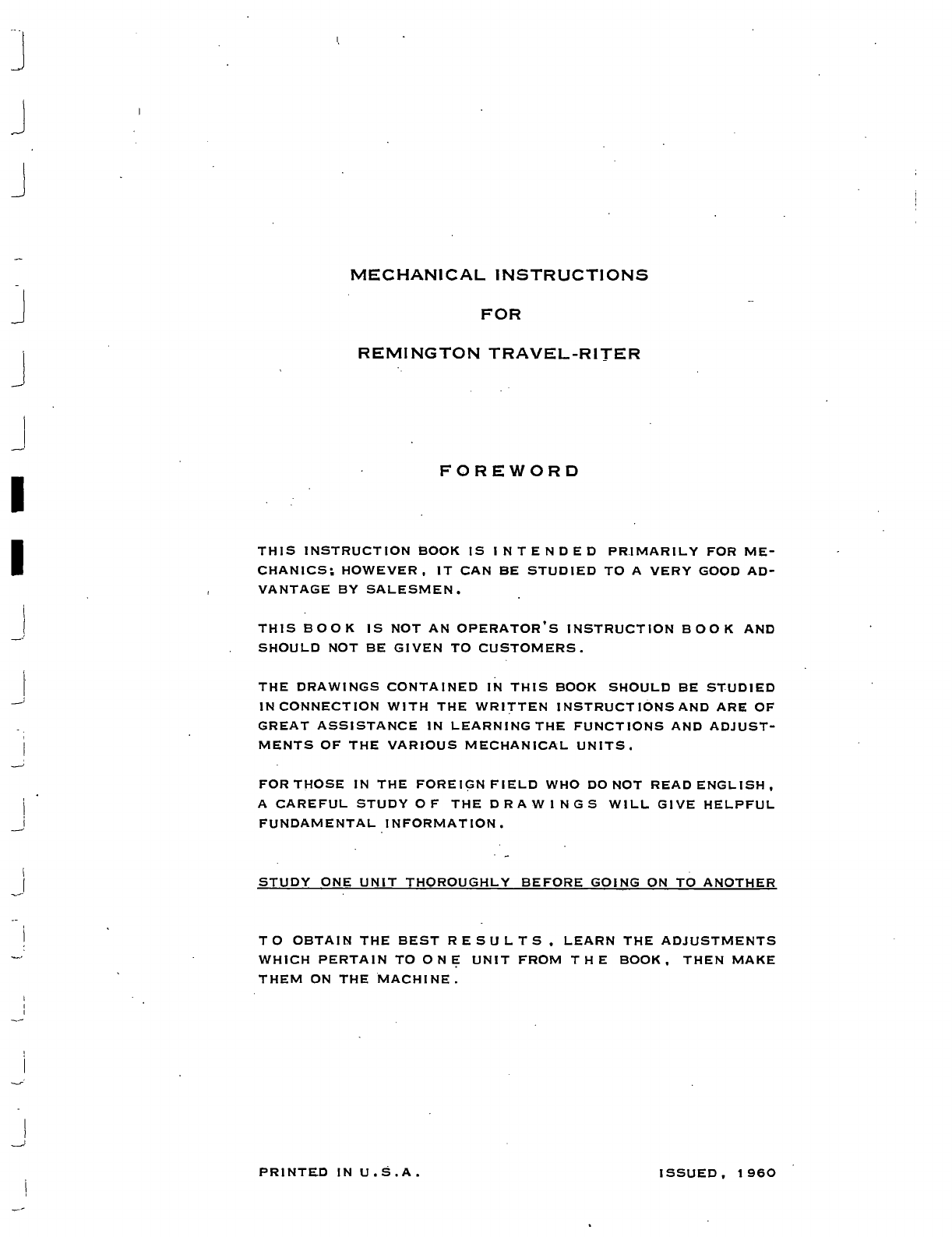

MECHANICAL INSTRUCTIONS
FOR
REMINGTON TRAVEL-RITER
FOREWORD
THIS INSTRUCTION BOOK IS INTENDED PRIMARILY FOR ME
CHANICS; HOWEVER, IT CAN BE STUDIED TO A VERY GOOD AD
VANTAGE BY SALESMEN.
THIS BOOK IS NOT AN OPERATOR'S INSTRUCTION BOOK AND
SHOULD NOT BE GIVEN TO CUSTOMERS.
THE DRAWINGS CONTAINED IN THIS BOOK SHOULD BE STUDIED
IN CONNECTION WITH THE WRITTEN INSTRUCT IONS AND ARE OF
GREAT ASSISTANCE IN LEARNING THE FUNCTIONS AND ADJUST
MENTS OF THE VARIOUS MECHANICAL UNITS.
FOR THOSE IN THE FOREIGN FIELD WHO DO NOT READ ENGLISH,
A CAREFUL STUDY OF THE DRAWINGS WILL GIVE HELPFUL
FUNDAMENTAL INFORMATION.
STUDY ONE UNIT THOROUGHLY BEFORE GOING ON TO ANOTHER
TO OBTAIN THE BEST RESULTS , LEARN THE ADJUSTMENTS
WHICH PERTAIN TO O N E UNIT FROM THE BOOK, THEN MAKE
THEM ON THE MACHINE.
PRINTED IN U.S.A. ISSUED, I960

ALIGNING SCALE
BACK SPACE
BELL
CARRIAGE
CARRIAGE MAIN SPRING
CARRIAGE RELEASE LEVERS
CYLINDER AND ANVIL
ESCAPEMENT
LINE SPACE
MARGIN AND LINE LOCK
RIBBON COVER
RIBBON DRIVE AND REVERSE
SPACE BAR
TRAVEL-RITER
INDEX
DESCRIPTION
PAGE NO.
SHIFT MECHANISM

I

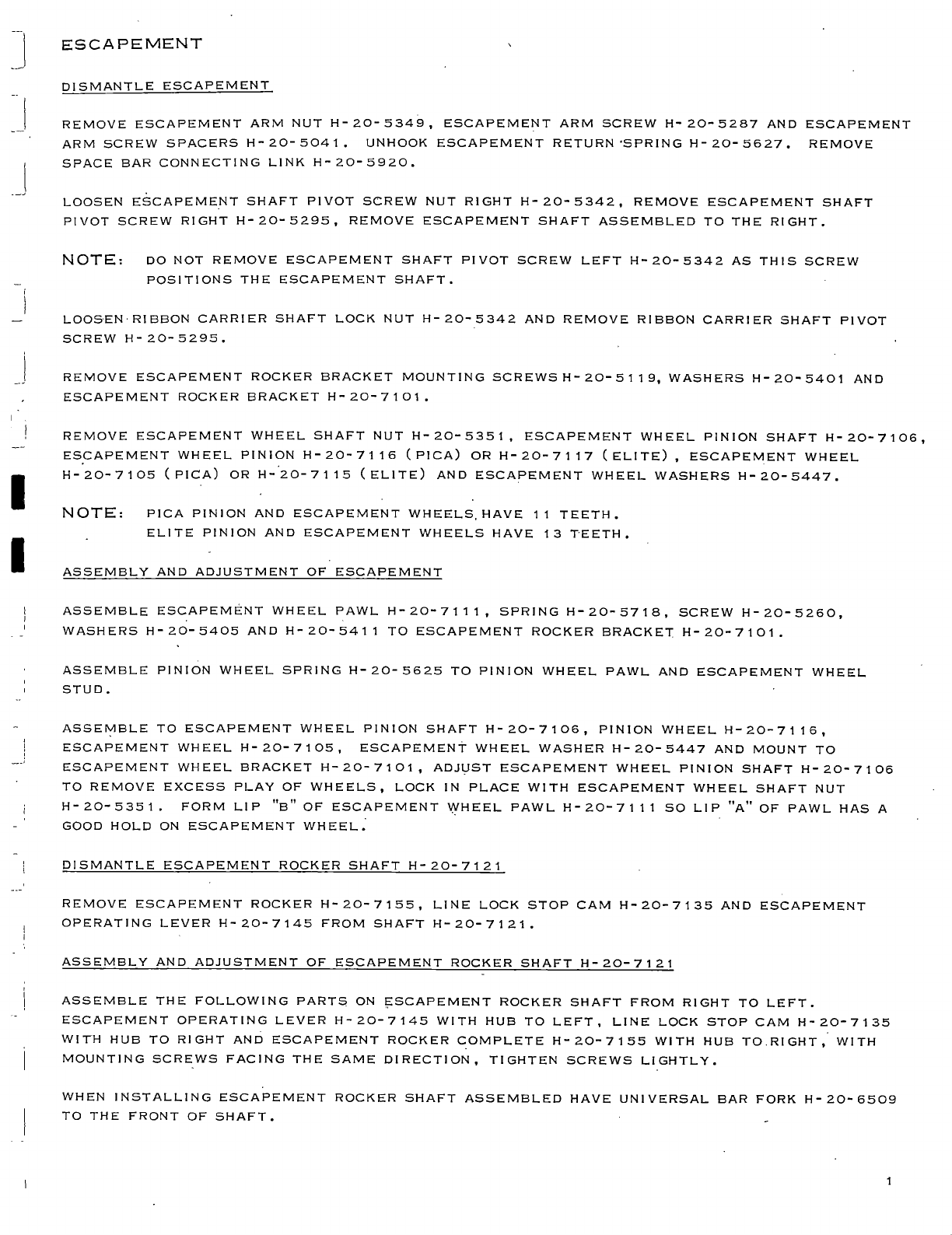

ESCAPEMENT
DISMANTLE ESCAPEMENT
REMOVE ESCAPEMENT ARM NUT H-20-5349, ESCAPEMENT ARM SCREW H-20-5287 AND ESCAPEMENT
ARM SCREW SPACERS H- 20- 504 1 . UNHOOK ESCAPEMENT RETURN "SPRING H-20-5627. REMOVE
SPACE BAR CONNECTING LINK H- 20-5920.
LOOSEN ESCAPEMENT SHAFT PIVOT SCREW NUT RIGHT H-20-5342, REMOVE ESCAPEMENT SHAFT
PIVOT SCREW RIGHT H-20-5295, REMOVE ESCAPEMENT SHAFT ASSEMBLED TO THE RIGHT.
NOTE: DO NOT REMOVE ESCAPEMENT SHAFT PIVOT SCREW LEFT H-20-5342 AS THIS SCREW
POSITIONS THE ESCAPEMENT SHAFT.
LOOSEN RIBBON CARRIER SHAFT LOCK NUT H- 20-5342 AND REMOVE RIBBON CARRIER SHAFT PIVOT
SCREW H-20-5295.
REMOVE ESCAPEMENT ROCKER BRACKET MOUNTING SC R E WS H - 2 O-5 1 1 9, WASHERS H-20-5401 AND
ESCAPEMENT ROCKER BRACKET H-20-7101 .
REMOVE ESCAPEMENT WHEEL SHAFT NUT H-20-5351 , ESCAPEMENT WHEEL PINION SHAFT H-20-7106,
ESCAPEMENT WHEEL PINION H-20-7116 (PICA) OR H-20-7117 (ELITE) , ESCAPEMENT WHEEL
H-20-7105 (pica) OR H-20-7115 (ELITE) AND ESCAPEMENT WHEEL WASHERS H-20-5447.
NOTE: PICA PINION AND ESCAPEMENT WHEELS. HAVE 11 TEETH.
ELITE PINION AND ESCAPEMENT WHEELS HAVE 13 TEETH.
ASSEMBLY AND ADJUSTMENT OF ESCAPEMENT
ASSEMBLE ESCAPEMENT WHEEL PAWL H-20-7111 , SPRING H-20-5718, SCREW H-20-5260,
WASHERS H-20-5405 AND H-20-541 1 TO ESCAPEMENT ROCKER BRACKET H-20-7101.
ASSEMBLE PINION WHEEL SPRING H-20-5625 TO PINION WHEEL PAWL AND ESCAPEMENT WHEEL
STUD.
assemble to ESCAPEMENT WHEEL PINION SHAFT H-20-7106, PINION WHEEL H-20-7116,
ESCAPEMENT WHEEL H-20-7105, ESCAPEMENt WHEEL WASHER H-20-5447 AND MOUNT TO
ESCAPEMENT WHEEL BRACKET H-20-7101 , ADJUST ESCAPEMENT WHEEL PINION SHAFT H-20-7106
TO REMOVE EXCESS PLAY OF WHEELS, LOCK IN PLACE WITH ESCAPEMENT WHEEL SHAFT NUT
H- 20- 5 35 1 . FORM LI P "b" OF ESCAPEMENT VVHEEL PAWL H-20-7111 SO LIP "a" OF PAWL HAS A
GOOD HOLD ON ESCAPEMENT WHEEL.
DISMANTLE ESCAPEMENT ROCKER SHAFT H-20-7121
REMOVE ESCAPEMENT ROCKER H-20-7155, LINE LOCK STOP CAM H-20-7135 AND ESCAPEMENT
OPERATING LEVER H-20-7145 FROM SHAFT H-20-7121.
ASSEMBLY AND ADJUSTMENT OF ESCAPEMENT ROCKER SHAFT H-20-7121
ASSEMBLE THE FOLLOWING PARTS ON ESCAPEMENT ROCKER SHAFT FROM RIGHT TO LEFT.
ESCAPEMENT OPERATING LEVER H-20-7145 WITH HUB TO LEFT, LINE LOCK STOP CAM H-20-7135
WITH HUB TO RIGHT AND ESCAPEMENT ROCKER COMPLETE H-20-7155 WITH HUB TO.RIGHT, WITH
MOUNTING SCREWS FACING THE SAME DIRECTION, TIGHTEN SCREWS LIGHTLY.
WHEN INSTALLING ESCAPEMENT ROCKER SHAFT ASSEMBLED HAVE UNIVERSAL BAR FORK H-20-6509
TO THE FRONT OF SHAFT.

ASSEMBLE ESCAPEMENT ROCKER SHAFT TO ESCAPEMENT ROCKER BRACKET, REMOVE SHAFT END
PLAY WITH ESCAPEMENT ROCKER SHAFT PIVOT SCREW RIGHT H-20-5295.
INSTALL SPACE BAR CONNECTING LINK H-20-592P TO THE SPACE LEVER H-20-6415.
NOTE: IF LEFT ESCAPEMENT SHAFT PIVOT SCREW H- 20-5295 HAS BEEN DISTURBED
ADJUST SCREW SO ABOUT TWO THREADS OF SCREW ARE SHOWING TO THE RIGHT OF THE
BRACKET H-2Q-7101 . TIGHTEN LOCK NUT H-20-5342.
INSERT ESCAPEMENT ARM SCREW H-20-5287 THRU REAR END OF SPACE BAR CONNECTING LINK
H-20-5292, INSTALL SPACER H-20-5401 , CONTINUE SCREW THRU ESCAPEMENT OPERATING
LEVER H-20-7145. INSTALL SPACER H-20-5401 ON SCREW, POSITION UNIVERSAL BAR FORK OVER
SCREW, INSTALL ESCAPEMENT ARM NU T , H - 2 O-5 34 9 .
HOLD ESCAPEMENT WHEEL SO TOOTH OF WHEEL IS AGAINST LIP "A OF ESCAPEMENT WHEEL PAWL.
PLACE A .020 FEELERGAUGE AGAINST ESCAPEMENT WHEEL TOOTH "c", POSITION ESCAPEMENT
ROCKER SO LOOSE DOG
SCREWS H-20-5112.
IS AGAINST FEELER GAUGE, TIGHTEN ESCAPEMENT ROCKER MOUNTING
O
O
O
o
5? O
O
o
o
(TOP VIEW)
I
I
ESCAPEMENT ROCKER SETTING
.020
REMOVE ESCAPEMENT SHAFT MOUNTING SCREW RIGHT H-20-5295 AND ESCAPEMENT SHAFT
ASSEMBLED.
MOUNT ESCAPEMENT ROCKER BRACKET H-20-7101 TO BOTTOM OF CARRIAGE FRONT RAIL H-20-7201
WITH ESCAPEMENT ROCKER BRACKET MOUNTING SCREWSH-20-5119 AND WASHERS H-20-5401.
REMOVE END PLAY OF RIBBON CARRIER SHAFT H-20-691 9 WITH SCREW H-20-5295 AND LOCK IN
PLACE WITH NUT H-20-5342.
INSTALL ESCAPEMENT SHAFT ASSEMBLED AND ADJUST.
OPERATE ESCAPEMENT MANUALLY, CHECK ESCAPEMENT "DROP". IT SHOULD BE l/3 - 2/3 SPACE,
IF THERE IS MORE THAN l/3 SPACE "DROP" ON THE FIRST TRIP, MOVE ESCAPEMENT ROCKER
H-20-7155 TO THE LEFT AND VICE VERSA.

ADJUST ESCAPEMENT OPERATING LEVER H-20-7145 SO TYPE BAR TRIP TAKES PLACE WHEN TYPE
IS 1/4 OF AN INCH FROM PLATEN. IF TRIP IS TOO SOON, MOVE LEVER H-20-7145 AWAY FROM
SEGMENT:. IF TOO LATE, MORE LEVER TOWARD SEGMENT.
UPPER AND LOWER CASE TRIP SHOULD BE THE SAME. EXAMPLE -- IF LOWER CASE TRIPS BEFORE
THE UPPER CASE, MOVE ESCAPEMENT ARM SCREW H-20-5287 UP IN SLOT OF ESCAPEMENT
OPERATING LEVER H-20-7145 AND VICE VERSA.
RIBBON DRIVE AND REVERSE
POSITION REVERSE LEVER TO THE RIGHT. ADJUST RIBBON REVERSE LEVER STOP SCREW H-20-5304
"a" right, to have RIBBON FEED PAWL LEFT H-20-6803 "c" MESH UNDER ITS SPRING TENSION
WITH RIBBON RATCHET WHEEL LEFT H-20-6845. AT THE SAME TIME CHECK RIBBON RETAINING
PAWL RIGHT H-20-6812 "b". IT MUST BE CLEAR OF RIBBON RATCHET WHEEL RIGHT H-20-6855.
POSITION RIBBON REVERSE LEVER TO THE LEFT. ADJUST RIBBON REVERSE LEVER STOP SCREW
H-20-5304 LEFT FOR THE OPPOSITE CONDITION.
RATCHET WHEELS LEFT AND RIGHT ARE DRIVEN TWO TEETH WITH EACH STROKE OF A KEY LEVER,
RATCHET WHEELS MUST NOT HAVE BACK LASH, TO REMOVE BACK LASH FORM RIBBON RETAINING
PAWLS LEFT AND RIGHT H-20-681 2 AND H-20-6813 AT POINTS "f" AND "b" TO THE REAR. IF
SPOOLS DRIVE ONE SPACE, FORM POINTS "F" AND "b" TO THE FRONT.
AS THE RIBBON UNWINDS FROM THE LEFT RIBBON SPOOL, THE RIBBON TENSION ARM LEFT H- 20-6822
MOVES TOWARD RIBBON SPOOL, WHEN FROM 5 TO 9 TURNS OF THE RIBBON REMAIN ON THE LEFT
RIBBON SPOOL, ARM "e" OF RIBBON REVERSE PAWL LEFT H-20-6810 IS INTERCEPTED BY POINT
THIS CAUSES RIBBON TO REVERSE.
FORM RIBBON TENSION ARM, AT POINT "d" TOWARD RIBBON SPOOL TO DECREASE NUMBER OF TURNS
OF RIBBON ON RIBBON SPOOL AT THE TIME THE RIBBON REVERSES AND VICE VERSA.
WITH KEYLEVERS AT REST, REMOVE RIBBON FROM MACHINE, POSITION REVERSE LEVER TO THE
LEFT. ARM "e" OF RIBBON REVERSE PAWL LEFT MUST CLEAR POINT "g" OF RIBBON REVERSE
TENSION ARM BY .020. FORM "e" TO OBTAIN CORRECT CLEARANCE. WITH RIBBON REVERSE
LEVER TO THE RIGHT, SAME CONDITION MUST EXIST BETWEEN RIGHT ARM "e" AND "g" OF RIGHT
TENSION ARM.

o
c:>
6845
o
6822
3
o
c:>
6855
0
o
0)
( TOP VIEW )
RIBBON DRIVE & REVERSE

RIBBON COVER -- TWO-COLOR RIBBON MACHINE
PLACE THE RIBBON CONTROL LEVER H- 20-5905 INDICATOR IN STENCIL POSITION. STUD "A "
ON RIBBON UNIVERSAL BAR LINK OPERATES IN THE CUT OUT OF RIBBON CONTROL ARM "g" H-20-6925,
IF STUD "a" is not OPERATING IN THE CUT OUT, THE ADJUSTMENT IS MADE BY FORMING THE RIBBON
CONTROL INTERMEDIATE LEVER H-20-6900 AT,POINT "b".
LOOSEN RIBBON CONTROL ARM MOUNTING SCREW "f". HAVE RIBBON VIBRATOR AT ITS LOWEST
POINT, POSITION RIBBON CONTROL ARM "g" H- 20-6925 TO LIGHTLY REST AGAINST "a".
TIGHTEN RIBBON CONTROL ARM MOUNTING SCREW "f".
POSITION RIBBON SELECTOR TO BLACK. DEPRESS A KEYLEVER AND HOLD TYPE BAR AGAINST
PLATEN. FORM "e" TO CLEAR PO
MUST CLEAR POINT "c" BY .GIG.
H-20-6900
i;^
o
©
O
RIBBON COVER
o
H-20- 6905
RIBBON COVER -- SINGLE COLOR RIBBON MACHINE
LOOSEN RIBBON CONTROL ARM H-2G-6925, SET SCREW H-2G-5112. RIBBON UNIVERSAL BAR
H-2G-6335 IS HELD AGAINST KEYLEVERS BY RIBBON UNIVERSAL BAR RESTORING SPRING H-2G-5624,
HOLD RIBBON VIBRATOR H-2G-6912 DOWN. TI GHTEN RIBBON CONTROL ARM SET SCREW H-2G-5112.
SPACE BAR
ADJUST SPACE LEVER PIVOT SCREWS H-2G-52G2 TO REMOVE END PLAY AND TO CENTER SPACE
LEVER H-2G-6415 IN KEY LEVER FRONT COMB H-2G-6G16.
ADJUST SPACE BAR TRIP TO TAKE PLACE WHEN SPACE BAR IS I/I6 OF AN INCH ABOVE DOWN STOPS
BY FORMING SPACE LEVER. PLACE PLIERS JUST TO THE LEFT OF LEFT SPACE KEY EXTENSION.
FORM TO THE REAR OF MACHINE FOR EARLIER TRIP, TO THE FRONT FOR A LATER TRIP.
SPACE BAR CONNECyiNG LINK H-2G-592G MAY BE FORMED TO GAIN CORRECT TRIP.
MUST BE TAKEN TO PREVENT BINDING OF LINK H-2G-592G.
EXTREME CARE

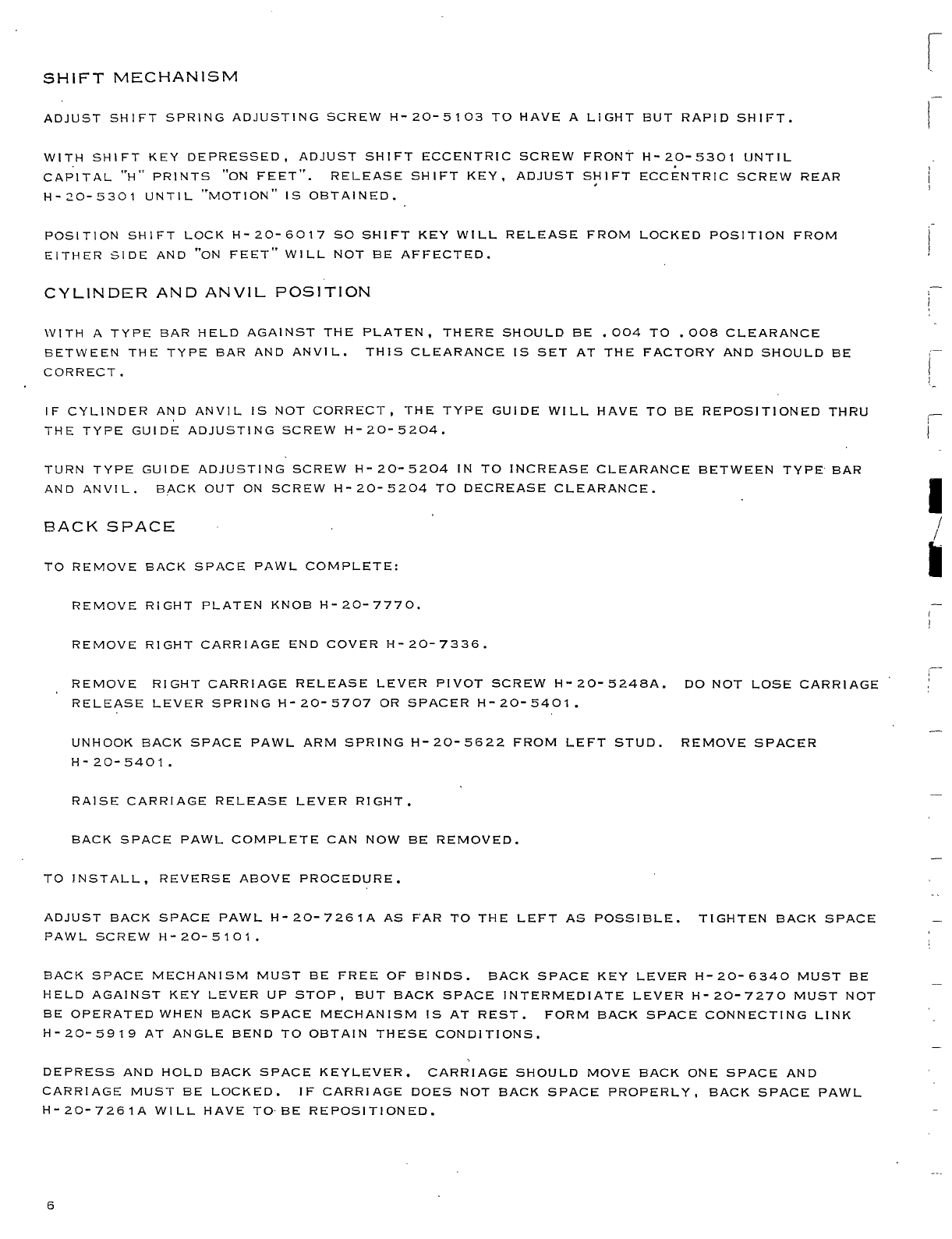

ADJUST SHIFT SPRING ADJUSTING SCREW H- 20-5103 TO HAVE A LIGHT BUT RAPID SHIFT.
WITH SHIFT KEY DEPRESSED, ADJUST SHIFT ECCENTRIC SCREW FRONt H-20-5301 UNTIL
CAPITAL "h" prints "ON FEET". RELEASE SHIFT KEY, ADJUST SHIFT ECCENTRIC SCREW REAR
H-20-5301 UNTIL "MOTION" IS OBTAINED.
POSITION SHIFT LOCK H- 20-6017 SO SHIFT KEY WILL RELEASE FROM LOCKED POSITION FROM
EITHER SIDE AND "oN FEET" WILL NOT BE AFFECTED.
CYLINDER AND ANVIL POSITION
WITH A TYPE BAR HELD AGAINST THE PLATEN, THERE SHOULD BE . 004 TO . 008 CLEARANCE
BETWEEN THE TYPE BAR AND ANVIL. THIS CLEARANCE IS SET AT THE FACTORY AND SHOULD BE
CORRECT.
IF CYLINDER AND ANVIL IS NOT CORRECT, THE TYPE GUIDE WILL HAVE TO BE REPOSITIONED THRU
THE TYPE GUIDE ADJUSTING SCREW H-20-5204.
TURN TYPE GUIDE ADJUSTING SCREW H-20-5204 IN TO INCREASE CLEARANCE BETWEEN TYPE BAR
AND ANVIL. BACK OUT ON SCREW H-20-5204 TO DECREASE CLEARANCE.
BACK SPACE
TO REMOVE BACK SPACE PAWL COMPLETE:
REMOVE RIGHT PLATEN KNOB H-20-7770.
REMOVE RIGHT CARRIAGE END COVER H-20-7336.
REMOVE RIGHT CARRIAGE RELEASE LEVER PIVOT SCREW H-20-5248A. DO NOT LOSE CARRIAGE
RELEASE LEVER SPRING H-20-5707 OR SPACER H-20-5401 .
UNHOOK BACK SPACE PAWL ARM SPRING H-2Q-5622 FROM LEFT STUD. REMOVE SPACER
H- 20-5401 .
RAISE CARRIAGE RELEASE LEVER RIGHT.
BACK SPACE PAWL COMPLETE CAN NOW BE REMOVED.
TO INSTALL, REVERSE ABOVE PROCEDURE.
ADJUST BACK SPACE PAWL H-20-7261A AS FAR TO THE LEFT AS POSSIBLE. TIGHTEN BACK SPACE
PAWL SCREW H-20-5101 .
BACK SPACE MECHANISM MUST BE FREE OF BINDS. BACK SPACE KEY LEVER H-20-6340 MUST BE
HELD AGAINST KEY LEVER UP STOP, BUT BACK SPACE INTERMEDIATE LEVER H-20-7270 MUST NOT
BE OPERATED WHEN BACK SPACE MECHANISM IS AT REST. FORM BACK SPACE CONNECTING LINK
H-20-5919 AT ANGLE BEND TO OBTAIN THESE CONDITIONS.
DEPRESS AND HOLD BACK SPACE KEYLEVER. CARRIAGE SHOULD MOVE BACK ONE SPACE AND
CARRIAGE MUST BE LOCKED. IF CARRIAGE DOES NOT BACK SPACE PROPERLY, BACK SPACE PAWL
H- 20-726 1A WILL HAVE TO BE REPOSITIONED.

CARRIAGE RELEASE LEVERS
WITH CARRIAGE AT EXTREME RIGHT MARGIN, LOOSEN CARRIAGE RELEASE LEVER SCREW RIGHT
H-20-5119. OPERATE CARRIAGE RELEASE LEVER RIGHT UNTIL LUG ON LEVER IS AGAINST POST
ON RIGHT CARRIAGE END. MOVE FEED RACK H- 20-7367TO REAR UNTIL IT IS FREE OF PINION
WHEEL. TIGHTEN CARRIAGE RELEASE LEVER SCREW H-20-51 19.
WITH CARRIAGE AT EXTREME LEFT MARGIN, LOOSEN CARRIAGE RELEASE LEVER SCREW LEFT NUT
H-20-5345. ADJUST CARRIAGE RELEASE LEVER SCREW LEFT H-20-5297 IN UNTIL IT TOUCHES
LEFT CARRIAGE END. BACK OUT ON SCREW SO IT WILL JUST CLEAR LEFT CARRIAGE END.
(this adjustment removes END PLAY FROM RELEASE MECHANISM.) ADJUST LEFT CARRIAGE
RELEASE LEVER SAME AS RIGHT. TIGHTEN CARRIAGE RELEASE LEVER SCREW NUT H-20-5345.
ALIGNING SCALE
ADJUST ALIGNING SCALE H-20-7193 TO BE LEVEL AND HAVE TOP OF SCALE JUST BELOW BOTTOM
OF PRINTED LINE. FORM BRACKET SO 6 SHEETS OF PAPER CAN BE INSERTED BETWEEN SCALE AND
PLATEN.
CARRIAGE
REMOVAL COMPLETE WITH BED RAIL
NOTE: SOME MACHINES HAVE SHIMS H-20-7206 BETWEEN CARRIAGE FRONT RAIL H- 20-7210
AND FRAME. SHIMS MUST BE REPLACED OR MOTION AND IMPRESSION WILL BE DIFFI
CULT TO OBTAIN .
UNHOOK DRAW CORD H-20-5890. REMOVE 4 ESCAPEMENT ROCKER BRACKET MOUNTING SCREWS
H-20-5119 AND WASHERS H- 20- 5 401 . REMOVE 4 CARRIAGE FRONT RAIL MOUNTING SCREWS
H-20-5102. REMOVE ALIGNING SCALE H-20-7193.
CARRIAGE CAN NOW BE REMOVED FROM FRAME.
REPLACEMENT COMPLETE WITH BED RAILS
WHEN SETTING CARRIAGE ON FRAME, MAKE SURE UPPER END OF BACK SPACE INTERMEDIATE
LEVER SPRING H-20-5711 IS AGAINST CARRIAGE FRONT RAIL AND TO THE LEFT OF ITS MOUNTING
SCREW H-20-5233. SEAT CARRIAGE FRONT RAIL ON CARRIAGE RAIL PINS H-20-5533. INSTALL
SHIMS H-20-7206 IF NEEDED. INSTALL 4 CARRIAGE FRONT RAIL MOUNTING SCREWS H-20-5102.
CARRIAGE IS NOW AT ITS ORIGINAL POSITION. SEAT ESCAPEMENT BRACKET AND INSTALL
MOUNTING SCREWS.
REMOVAL OF CARRIAGE FROM BED RAIL
REMOVE CARRIAGE COMPLETE AS ABOVE. REMOVE KEEPER H-20-5435 FROM ONE END OF CARRIAGE
RACK H-20-7848. REMOVE CARRIAGE RACK. CARRIAGE CAN NOW BE REMOVED FROM BED RAIL.
INSTALL CARRIAGE IN BED RAIL
SLIDE CARRIAGE INTO BED RAIL. POSITION CARRIAGE SO GEAR OF CARRIAGE BALL RETAINER
H-20-7845 IS IN THE LAST TOOTH OF CARRIAGE BALL RETAINER RACK H-20-7186. HOLD
CARRIAGE IN THIS POSITION. INSTALL CARRIAGE RACK H-20-7848. REPLACE CARRIAGE RACK
KEEPERS H-20-5435.
CARRIAGE REAR RAIL ADJUSTMENT
LOOSEN AND MAKE FRICTION TIGHT 4 CARRIAGE REAR RAIL MOUNTING SCREWS H-20-5281 .

LOOSEN CARRIAGE REAR RAIL ADJUSTING SCREW LOCK NUT H-20-5342. ADJUST CARRIAGE REAR -•
RAIL ADJUSTING SCREWS H-20-5203 TO REMOVE PLAY IN CARRIAGE. CHECK CARRIAGE TO BE
FREE THE FULL LENGTH OF WRITING LINE. TIGHTEN CARRIAGE REAR RAIL ADJUSTING SCREW NUTS j~
H-20-5342. ALSO CARRIAGE REAR RAI L MOUNTING SCREWS H-20-528 1 . L
LINE SPACE
LINE SPACE LEVER ADJUSTMENT
ASSEMBLE LINE SPACE LEVER SPRING H-20-5786 TO LINE SPACE LEVER H-20-7045 WITH SCREWS
H-20-5122. DO NOT TIGHTEN SCREWS. HOLD LINE SPACE LEVER H-20-7045 TO ITS HIGHEST
POSITION. PLACE HOLE OF LINE SPACE LEVER SPRING H-20-5786 OVER TOP OF LINE SPACE ,
LEVER SHAFT H-20-5586. TIGHTEN LINE SPACE LEVER SPRING SCREWS H-20-5122. |
CHECK FOR SLIGHT PLAY IN LINE SPACE RATCHET DETENT ROLL RELEASE LEVER H-20-7005. IF
THERE IS TOO MUCH PLAY,
RATCHET AND VICE VERSA.
THERE IS TOO MUCH PLAY, FORM LINE SPACE RATCHET ROLL H-20-7050 AWAY FROM PLATEN i
PLACE LINE SPACE SELECTOR AT 1 . OPERATE LINE SPACE LEVER SLOWLY UNTIL PLATEN HAS
MOVED TWO TEETH OF RATCHET. AT THIS TIME LINE SPACE PAWL MUST REST AGAINST LINE
SPACE REGULATOR ECCENTRIC SCREW H-20- 5291 . IF NOT, ADJUST SCREW H- 20- 529 1 .
MARGIN AND LINE LOCK H
ADJUST MARGIN LOCK STOP SCREW H-20-5204 (LOCATED AT REAR OF MACHINE JUST ABOVE REAR ,
MACHINE MOUNTING PLATE SCREW) IN UNTIL IT BINDS MARGIN LOCK RELEASE LEVER H-20-6732. |
BACK OUT ON SCREW UNTIL MARGIN LOCK H-20-6733 IS FREE. TIGHTEN NUT.
SET LEFT MARGIN STOP AT ID ON MARGIN SCALE. POSITION CARRIAGE AT LEFT MARGIN. ADJUST [ j
LEFT MARGIN STOP PLATE H-20-6736 SO THERE IS ABOUT .050 CLEARANCE BETWEEN LEFT J
MARGIN STOP AND MARGIN LOCK RELEASE LEVER H-20-6732. TEST CARRIAGE FOR OVER BANKING
AND DROPPING AWAY FROM LEFT MARGIN SETTING. READJUST MARGIN STOP PLATE LEFT j ]
H-20-6736 IF EITHER CONDITION EXISTS. ! J
SET LEFT AND RIGHT MARGIN STOPS 20 SPACES APART. FROM THE LEFT MARGIN TYPE TWENTY , ~|
CHARACTERS. - POSITION LINE LOCK STOP CAM H-20-7135 SO IT JUST CLEARS FRONT OF MARGIN | }
LOCK EXTENSION H-20-6733. AT THIS TIME POSITION RIGHT MARGIN STOP PLATE SO MARGIN
LOCK EXTENSION HAS A FULL HOLD ON LINE LOCK STOP CAM H-20-71 35.
I '
RETURN CARRIAGE TO LEFT MARGIN STOP. TYPE TWENTY CHARACTERS. THE LINE LOCK MECHANISM
WILL LOCK ESCAPEMENT ON THE 2 TST STROKE IF THE PRECEDING ADJUSTMENTS ARE CORRECTLY
MADE .
CARRIAGE MAIN SPRING _
THE CARRIAGE MAIN SPRING SHOULD HAVE EN OU GH,;.T EN SI ON TO PREVENT CARRIAGE FROM PILING !
WHEN TYPING RAPIDLY INTO EXTREME RIGHT MARGIN. ABOUT 5 TURNS ON DRUM IS USUALLY
CORRECT. ~l
1
BELL
IF NECESSARY, FORM BELL RINGER H-20-6440 SO THAT IT WILL ENGAGE RIGHT MARGIN STOP. |
BELL RINGER HAMMER MUST CLEAR BELL BY ABOUT .020. FORM BELL RINGER SPRING H- 20-6455. ' '
TO OBTAIN THIS ADJUSTMENT.
I ^
IF BELL RINGS WHEN CARRIAGE IS RETURNED, BELL HAMMER IS TOO CLOSE TO BELL. L
I
I
8 i
