Renegade 2YHM001OOO User manual

5 TON ELECTRIC
HORIZONTAL LOG SPLITTER
OPERATING AND SAFETY MANUAL
MODEL:
2YHM001OOO
FOR YOUR SAFETY, READ AND UNDERSTAND THE ENTIRE
MANUAL BEFORE OPERATING THIS MACHINE.
BOTH MODEL NUMBER AND SERIAL NUMBER MAY BE FOUND ON THE MAIN LABEL.
YOU SHOULD RECORD BOTH OF THEM IN A SAFE PLACE FOR FUTURE USE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

2





SAFETY WARNINGS & INSTRUCTIONS
UNDERSTAND YOUR LOG SPLITTER
Read and understand the owner’s manual and labels affixed to the log splitter. Learn its
application and limitations as well as the specific potential hazards related to it.
DRUGS, ALCOHOL AND MEDICATION
Do not operate the log splitter while under the influence of drugs, alcohol, or any medication
that could affect your ability to use it properly.
AVOID DANGEROUS CONDITIONS
Put the log splitter on a 59-76 cm (23 in-30 in) high, stable, flat, and level work bench where
there is plenty of room for handling. Bolt the log splitter to the work surface if it tends to slip,
walk, or slide. Keep your work area clean and well lighted. A cluttered area invites injuries. Do
not use the log splitter in wet or damp areas or expose it to rain. Do not use it in areas where
fumes from paint, solvents or flammable liquids pose a potential hazard.
INSPECT YOUR LOG SPLITTER
Check your log splitter before turning it on. Keep guards in place and in working order. Form a
habit of checking to see that keys and adjusting wrenches are removed from tool area before
turning it on. Replace damaged, missing or failed parts before using it.
DRESS PROPERLY
Do not wear loose clothing, neck ties or jewelry (rings, wrist watches). They can get
caught in moving parts. Protective, electrically non-conductive gloves and non-skid footwear
are recommended when working. Wear protective hair covering to contain long hair, preventing
it from getting caught in machinery.
PROTECT YOUR EYES AND FACE
Any log splitter may throw foreign objects into the eyes. This can cause permanent eye damage.
Always wear safety goggles. Everyday eyeglasses have only impact resistant lenses. They are
not safety glasses. Do not put the log splitter on the ground for operation. This is an awkward
operating position that the operator has to bring his face close to the machine, and thus risks
being struck by wood chips or debris.
SYMBOL AFFIXED TO MACHINE
TABLE OF CONTENTS
SAFETY WARNINGS & CAUTIONS..........................................................................................................................................2-4
APPLICATION CONDITIONS...................................................................................................................................................... 4
SPECIFICATIONS..................................................................................................................................................................... 4
ELECTRICAL REQUIREMENTS .................................................................................................................................................. 4
SET UP & PREPARATION FOR OPERATION ................................................................................................................................ 5
LOG SPLITTER OPERATION...................................................................................................................................................... 6
FREEING A JAMMED LOG........................................................................................................................................................ 6
REPLACING HYDRAULIC OIL .................................................................................................................................................... 7
SHARPENING WEDGE.............................................................................................................................................................. 7
TROUBLE SHOOTING / WARRANTY .......................................................................................................................................... 8

3
EXTENSION CORDS
Improper use of extension cords may cause inefficient operation of the log splitter which
can result in overheating. Be sure extension cord is approved for this application. See
specifications. Be sure the extension cord is no longer than 10m (30 ft) to allow sufficient
current flow to the motor. Avoid use of free and inadequately insulated connections.
Connections must be made with protected material suitable for outdoor use.
AVOID ELECTRICAL SHOCK
Check that the electric circuit is adequately protected and that it corresponds with the power,
voltage and frequency of the motor. Check that there is a ground connection and a regulation dif-
ferential switch upstream. Prevent body contact with grounded surfaces: pipes, radiators, ranges,
and refrigerator enclosures. Never open the pushbutton box on the motor. Should this
be necessary, contact a qualified electrician. Make sure your fingers do not touch the plug’s
metal prongs when plugging or unplugging the log splitter.
KEEP VISITORS AND CHILDREN AWAY
The log splitter must always be operated by one person only. Other people should keep a safe
distance from the work area, especially when the log splitter is in operation. Never have
another person help you with freeing a jammed log.
INSPECT LOG
Make sure there are no nails or foreign objects in logs to be split. The ends of the logs must
be cut square. Branches must be cut off flush with the trunk.
DO NOT OVERREACH
Floor must not be slippery. Keep proper footing and balance at all times. Never stand on log split-
ter. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted.
Do not store items above or near the log splitter where anyone might use the log splitter to stand
on in order to reach the items.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Always pay full attention to the movement of the log pusher. Do not attempt to load the
log on until the log pusher has stopped. Keep hands out of the way of all moving parts.
PROTECT YOUR HANDS
Keep your hands away from splits and cracks which open in the log, as they may close
suddenly and can cause severe injury. Do not remove jammed logs with your hands.
DO NOT FORCE THE TOOL
Never try to split logs larger than those indicated in the specifications table. This could be dan-
gerous and may damage the machine. Do not use log splitter for purposes in which it was not
intended.
NEVER LEAVE THE LOG SPLITTER RUNNING UNATTENDED
Do not leave log splitter unattended until it has come to a complete stop and is unplugged.
DISCONNECT POWER
Unplug when not in use, before making adjustments, changing parts, cleaning, or working on the
log splitter. Consult technical manual before servicing.
PROTECT THE ENVIRONMENT
Take used oil to an authorized collection point or follow the stipulations in the country where the
log splitter is used. Do not discharge into drains, soil or water.







4
MAINTAIN YOUR LOG SPLITTER WITH CARE
Keep the log splitter clean for best and safest performance.
MAKE THE WORKSHOP CHILDPROOF
Lock the shop. Disconnect master switches. Store the log splitter away from children and others not qualified to use it.
ELECTRICAL INFORMATION
WARNING: TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR
DAMAGE TO THE LOG SPLITTER, USE PROPER CIRUIT PROTECTION.
THIS LOG SPLITTER IS WIRED AT THE FACTORY FOR 120V AC OPERATION.
CONNECT TO A 120V AC, 20 A CIRCUIT OUTLET. TO AVOID SHOCK OR
FIRE WHEN THE POWER CORD IS WORN, CUT OR DAMAGED IN ANY
WAY, REPLACE IT IMMEDIATELY.
This log splitter has a 3-prong plug that is intended for use on a circuit that has a
receptacle like the one illustrated in Fig. A. Do not modify the power cord plug.
If it does not match the electrical outlet, have the proper outlet installed by
a qualified electrician.
APPLICATION CONDITIONS
This log splitter is a home use model. It is designed for operating under ambient temperatures between 5˚ C - 40˚ C (41˚ F and 104˚ F) and
for installation at altitudes no more than 1,000 metres (3,281 feet) above M.S.L. The surrounding humidity should be less than 50% at 40˚
C (104˚ F). It can be stored or transported under ambient temperatures between 10.5˚ C - 55˚ C (13˚ F and 131˚ F).
SPECIFICATIONS
MODEL NUMBER
MOTOR
LOG CAPACITY
SPLITTING FORCE
HYDRAULIC PRESSURE
HYDRAULIC OIL CAPACITY
OVERALL SIZE
WEIGHT
DIAMETER
LENGTH
WIDTH
HEIGHT
LENGTH
2YHM001OOO
120V 50Hz 1500W IP54
5 - 25 cm (2 - 9.8 in)
52 cm (20.5 in)
5 TONS
20MPa
4 Litres
940 mm (37 in)
260 mm (10.2 in)
480 mm (18.9 in)
43 kg (94.8 lbs)
* The diameter of the log is indicative – a small log can be difficult to split when it has knobs or a particularly tough fiber. On the other hand,
it may not be difficult to split logs with regular fibers even if its diameter exceeds the max figure indicated above.
ELECTRICAL REQUIREMENTS
Connect the main leads to a standard 230V+10% (50Hz+1Hz) electrical supply which has protection devices of under-voltage, over-volt-
age, over-current as well as a residual current device (RCD) with a maximum residual current rated at 0.03A.
1. 3-Prong plug
2. Receptacle with grounding conductor
FIG A

5
15

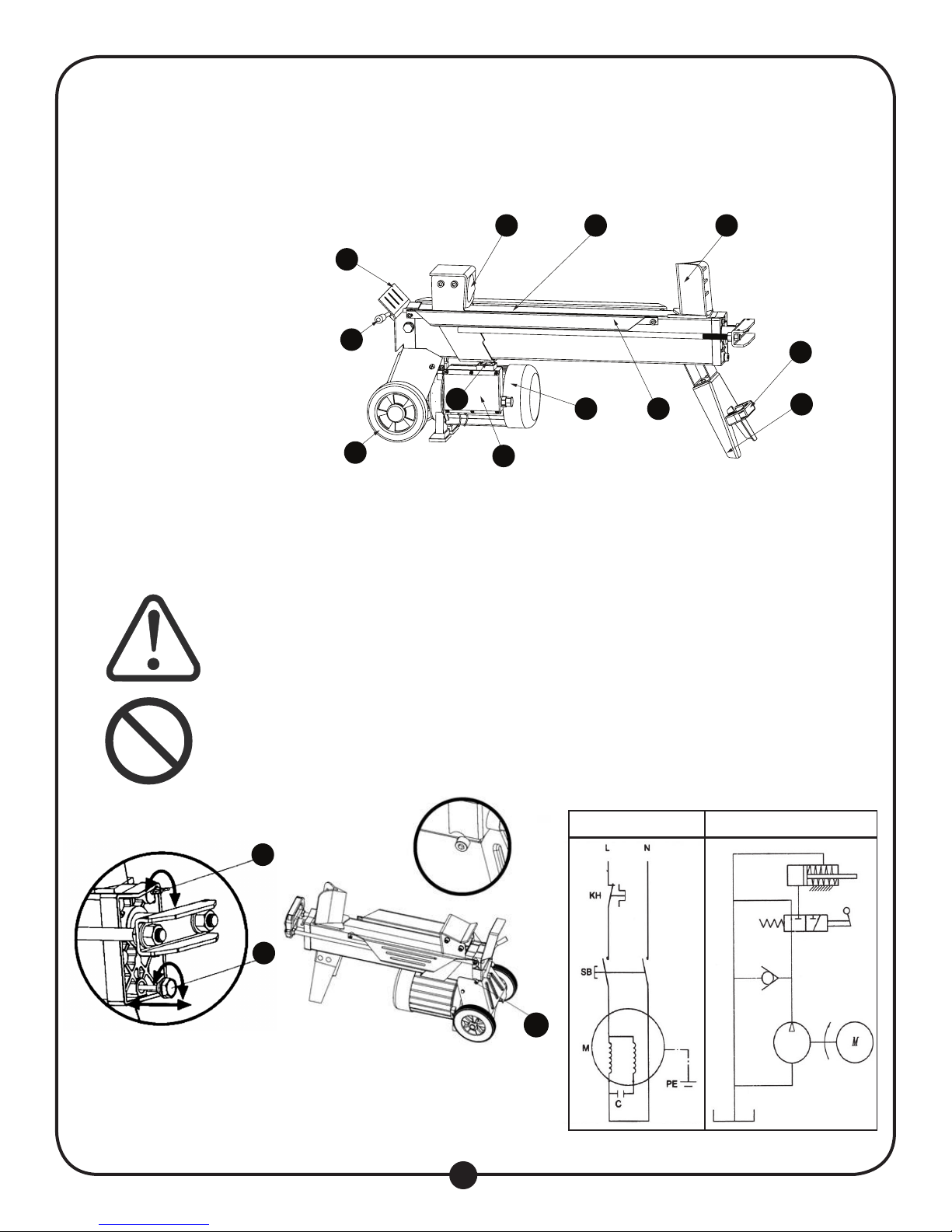

SET UP AND PREPARATION FOR OPERATION
1. Bolt the Support Leg to the Log Splitter, lift the log splitter by the handles at both ends and place it on a 60 – 75cm high, stable, flat and
level work surface.
2. Familiarize yourself with the controls and features of this log splitter in the illustrations.
1. Log Pusher
2. Work Table
3. Wedge
4. Lift Handle
5. Support Leg
6. Log Retaining Plates
7. Switch
8. Motor
9. Pushbutton Box
10. Wheels for Minor Moving ONLY.
11. Hydraulic Control Lever
12. Control Lever Guard
13. Bleed Screw
14. Oil Drain Bolt w/ Dipstick
15. Max Pressure Limiting Screw
BEFORE OPERATING THE LOG SPLITTER, THE BLEED SCREW SHOULD BE LOOSENED BY SOME ROTATIONS UNTIL AIR
CAN GO IN AND OUT OF THE OIL TANK SMOOTHLY. AIR FLOW THRU THE BLEED SCREW HOLE SHOULD BE DETECTABLE
WHEN THE LOG SPLITTER IS UNDER OPERATION. BEFORE MOVING THE LOG SPLITTER, MAKE SURE THE BLEED SCREW
IS TIGHTENED TO AVOID OIL LEAKING FROM THIS POINT.
FAILURE TO LOOSEN THE BLEED SCREW WILL KEEP THE SEALED AIR IN THE HYDRAULIC
SYSTEM FROM BEING COMPRESSED, AFTER BEING DECOMPRESSED. SUCH CONTINUOUS AIR
COMPRESSION AND DECOMPRESSION WILL BLOW OUT THE SEALS OF THE HYDRAULIC SYSTEM
AND CAUSE PERMANENT DAMAGE TO THE LOG SPLITTER.
DO NOT ADJUST THE MAX PRESSURE LIMITING SCREW!
Maximum pressure was set before the log splitter exited the factory.The max pressure limiting screw is sealed
with glue to ensure the log splitter works under pressure no more than 5 tons. The setting was done by a qualified
mechanic using professional instruments.
UNAUTHORIZED RESETTING WILL CAUSE FAILURE IN THE
HYDRAULIC PUMP TO OUTPUT ENOUGH SPLITTING PRESSURE
OR RESULT IN SERIOUS INJURY, AS WELL AS DAMAGE TO
THE MACHINE .
WIRING DIAGRAM HYDRAULIC DIAGRAM
1 2 3
4
5
68
9
7
10
11
12
13
14

6

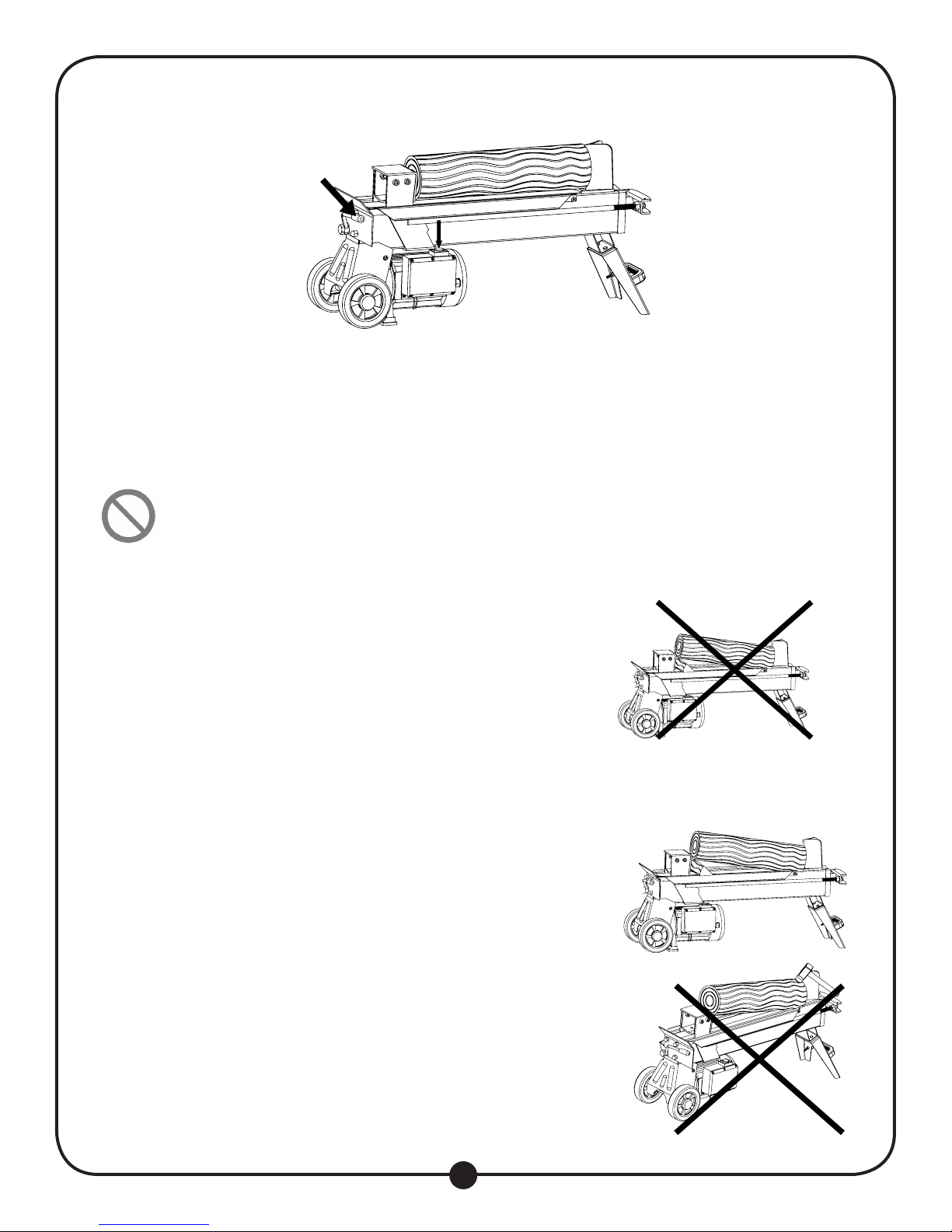

LOG SPLITTER OPERATION
This log splitter is equipped with “ZHB” control system that requires to be operated by both hands of the user – Left hand controls the
hydraulic control lever while right hand controls the pushbutton switch. The log splitter will freeze upon absence of either hand. Only after both
hands release the controls, the log pusher starts to return backward to the starting position.
Trigger type lock-out device is adopted to avoid accidental Hydraulic Control Lever pushdown. To operate the Hydraulic Control Lever, draw the
Trigger backward with the index finger before push the Hydraulic Control Lever forward.

NEVER FORCE THE LOG SPLITTER FOR MORE THAN 5 SECONDS BY KEEPING
PRESSURE ON IT TO SPLIT EXCESSIVELY HARD WOOD.
After this time interval, the oil under pressure will be overheated and the machine could be damaged. For difficult logs, rotate by 90º to see
whether it can be split in a different direction. In any case, if you are not able to split the log, this means that its hardness exceeds the
capacity of the machine and that the log should be discarded to protect the log splitter.
ALWAYS SET LOGS FIRMLY ON THE LOG RETAINING PLATES AND
WORK TABLE. MAKE SURE LOGS WILL NOT TWIST, ROCK OR SLIP
WHILE BEING SPLIT. DO NOT FORCE THE BLADE BY SPLITTING
THE LOG ON THE UPPER PART. THIS WILL BREAK THE BLADE
OR DAMAGE THE MACHINE.
Split logs in the direction of its growing grain. Do not place log across the log splitter for splitting. It may be dangerous and may seriously
damage the machine. Do not attempt to split 2 pieces of wood/logs at the same time. One could disengage, fly up and cause you injury.
FREEING A JAMMED LOG
1. Release both controls.
2. After the log pusher moves back and completely stops at its starting
position, insert a wedge wood under the jammed log.
3. Start the log splitter to push the wedge wood to go completely under
the jammed one.
4. Repeat above procedure with sharper slope wedge woods until the log
is completely freed.
DO NOT TRY TO KNOCK THE JAMMED LOG OFF. KNOCKING THE LOG WILL
DAMAGE THE MACHINE OR MAY LAUNCH THE LOG AND CAUSE INJURY.

7
REPLACING HYDRAULIC OIL
Replace the Hydraulic oil in the log splitter after every 150 hours of use.
Take following steps to replace it.
- Make sure all moving parts are off and the log splitter is unplugged.
- Unscrew Oil Drain Bolt with Dipstick to remove it.
- Turn the log splitter onto the Support Leg, over a 4 liters capacity
container, to drain out the hydraulic oil.
- Turn the log splitter back onto the rear wheels and lift up.
- Refill fresh hydraulic oil at the volume as per the hydraulic oil capacity
of a particular model indicated in the specifications table.
- Clean the surface of the Dipstick on the Oil Drain Bolt and put back into
the oil tank while keeping the log splitter in the vertical position.
- Make sure the level of the refilled oil is just between the 2 grooves around
the dipstick.
- Clean the Oil Drain Bolt before threading it back in. Make sure they are
tightened to avoid leakage before placing the log splitter back into the
horizontal position.
PERIODICALLY CHECK OIL LEVEL TO ENSURE IT IS BETWEEN
TWO (2) GROOVES AROUND THE DIPSTICK. TOP UP OIL
WHEN REQUIRED.
The following hydraulic oils or equivalent are recommend for the log splitter’s hydraulic transmission system:
SHELL Tellus 22
MOBIL DTE 11
ARAL Vitam GF 22
BP Energol HLP-HM 22
SHARPENING WEDGE
After using the log splitter several times, sharpen the wedge of the log splitter using a fine-toothed file and smooth any burrs or crushed areas
along the cutting edge.

8
TROUBLE SHOOTING
PROBLEM PROBABLE CAUSE SUGGESTED ACTION
Fails to split logs
Motor does not
start
The log pusher
moves jerkily,
making unfamiliar
noise or excessive
vibration.
Oil leaks around
cylinder ram or
from other points.
Log is improperly positioned.
Overload protection device disengaged
to protect the log splitter from being
damaged.
Contact a qualified Electrician to open
the push button box, which will
engage the overload protection device.
The sizes or hardness of the log exceeds
the capacity of the machine.
Reduce the log size before splitting it on
the log splitter.
Refer to “ Sharpening Wedge “ section to
sharpen the cutting edge.
Wedge cutting edge is blunt.
Locate leak(s) and contact customer service.Oil leaks.
Contact customer service.
Unauthorized adjustment was made on
Max. Pressure Limiting Screw. Lower
max pressure rating was set.
Lack of hydraulic oil and excessive air in
the hydraulic system.
Air sealed in hydraulic system while
operating.
Loosen Bleed Screw by 3 ~ 4 rotations
before operating the log splitter.
Bleed Screw is not tightened before
moving the log splitter.
Tighten the Bleed Screw up before
moving the log splitter.
Oil Drain Bolt with Dipstick is not tight. Tighten the Oil Drain Bolt with Dipstick.
Hydraulic Control Valve Assembly and /
or seal(s) are worn.
Contact customer service.
Check oil level for possible oil refilling.
Contact customer service.
Refer to “Log Splitter Operation” section for
correct log loading.
WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF WITH HOUSEHOLD REFUSE. PLEASE
RECYCLE WHERE FACILITES EXIST. CONTACT YOUR LOCAL AUTHORITIES OR RETAILER FOR RECYCLING
ADVICE AND/OR INFORMATION.

9
WARRANTY
Your electric log splitter is guaranteed for one year. If the tool should stop working within one year from the date of purchase you should
return it to the retailer where you purchased it for a free replacement.
This guarantee is for do-it-yourself / home owner use only and is not valid if the tool is used for commercial or rental use.
The guarantee may not be honoured if in the opinion of Quality Craft, the tool has been misused, dropped, taken apart and or has been
the subject of unusual wear and tear, and/or if repairs have been made or attempted by those other than specified by Quality Craft.
Disassembling the tool will also void the warranty.
IMPORTANT: If you have any problems with your Quality Craft product please vist our website at www.qualitycraft.com or call customer
service at 1-800-459-4409 (Monday to Friday 8:30am - 5:00pm EST) before returning unit to the retailer. Save packaging until you are
satisfied with your purchase.
Imported by
Laval, Quebec, Canada H7C 0A5
1-800-459-4409 (EST)
www.qualitycraft.com
Made in China

10
