Renesas 8V97003 User manual

User Manual
8V97003 EVB
User Manual
Evaluation Board
Rev.1.2
Sep.25.20
Page 1
The 8V97003 evaluation board is designed for customers to evaluate the functionality and performance of the
8V97003 RF/Microwave Wideband Synthesizer. On the evaluation board, the 8V97003 device can be
programmed and configured with Timing Commander, a PC-based GUI that generates output frequency from
187.5MHz to 18GHz with a very low phase noise and RMS phase jitter. This user manual details the setup of the
EVB and the programming of the 8V97003 using Timing Commander.
Contents
1. Overview......................................................................................................................................................... 3
2. Functional Description.................................................................................................................................. 4
2.1 Evaluation Board Overview ................................................................................................................... 4
2.2 Required Equipment.............................................................................................................................. 5
2.2.1. Power Supply.......................................................................................................................... 5
2.2.2. Signal Generator..................................................................................................................... 5
2.2.3. Phase Noise Analyzer/Spectrum Analyzer............................................................................. 5
2.2.4. Balun ....................................................................................................................................... 5
2.2.5. PC ........................................................................................................................................... 5
2.3 Hardware Connection............................................................................................................................ 6
2.4 Power-up Procedures............................................................................................................................ 6
3. Working with Timing Commander™ for Programming/Configuration..................................................... 7
3.1 Opening an Existing Configuration........................................................................................................ 7
3.2 Making Changes to an Existing Configuration ...................................................................................... 9
3.3 Creating a New Configuration ............................................................................................................. 10
4. Performance Evaluation with the 8V97003 EVB....................................................................................... 11
4.1 Output Matching .................................................................................................................................. 11
4.2 AC-coupling Capacitor......................................................................................................................... 12
4.3 Termination.......................................................................................................................................... 12
4.4 Transmission Line Loss....................................................................................................................... 12
5. PCB Layout Guidelines............................................................................................................................... 14
5.1 8V97003 Evaluation Board Schematic................................................................................................ 14
6. Bill of Materials (BOM) ................................................................................................................................ 17
7. Board Layout................................................................................................................................................ 18
8. Ordering Information................................................................................................................................... 20
9. Revision History .......................................................................................................................................... 20
Appendix A – New Configuration Example....................................................................................................... 21
Appendix B – Input Reference Phase Noise Performance.............................................................................. 28

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 2
Figures
Figure 1. 8V97003 EVB – Top View.........................................................................................................................3
Figure 2. Evaluation Board Overview.......................................................................................................................4
Figure 3. Starting up Timing Commander GUI.........................................................................................................7
Figure 4. Open Settings File Dialog Box ..................................................................................................................7
Figure 5. Connect to 8V97003 Device......................................................................................................................8
Figure 6. Program 8V97003 Device .........................................................................................................................8
Figure 7. Input Configuration Settings......................................................................................................................9
Figure 8. Feedback Divider Settings ........................................................................................................................9
Figure 9. Locked Settings View in Bit Sets Tab........................................................................................................9
Figure 10. New Settings GUI..................................................................................................................................10

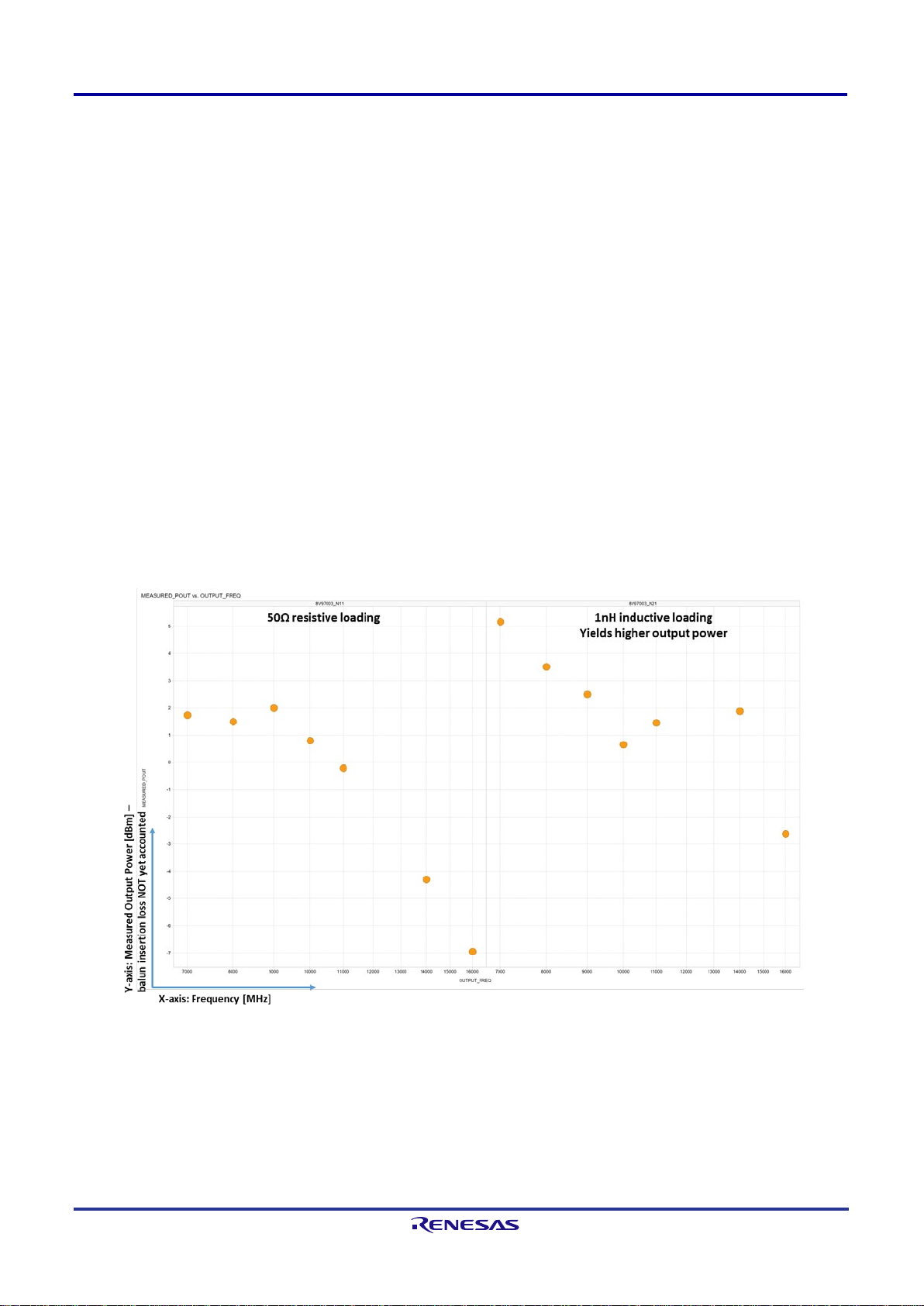

Figure 11. 8V97003 Output Power Over Frequencies – Resistive vs. Inductive Matching....................................11
Figure 12. 8V97003 EVB Revision D Transmission Line Loss ..............................................................................13
Figure 13. 8V97003 EVB Revision C Transmission Line Loss ..............................................................................13

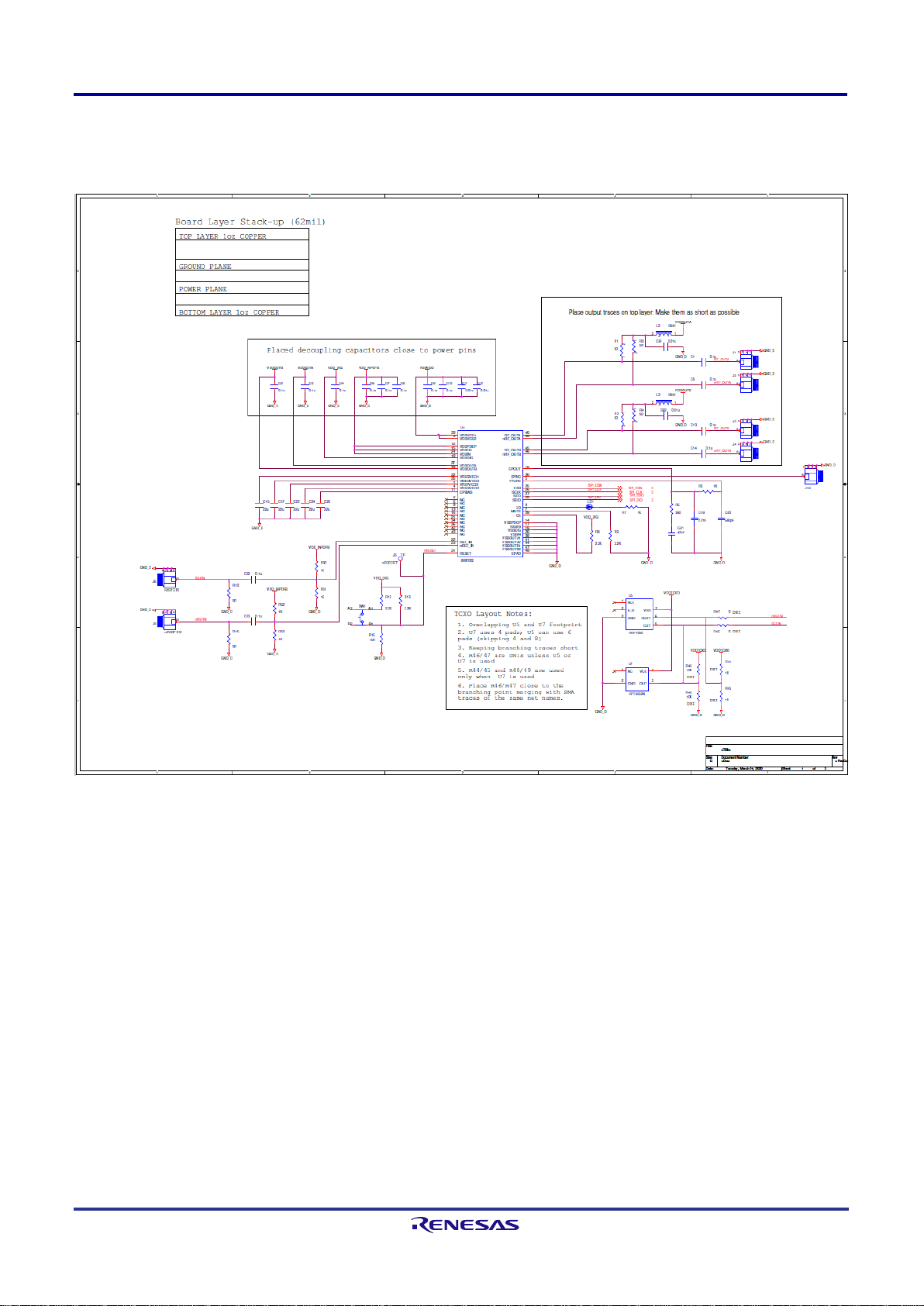

Figure 14. Schematic - Page 1...............................................................................................................................14
Figure 15. Schematic - Page 2...............................................................................................................................15
Figure 16. Schematic - Page 3...............................................................................................................................16

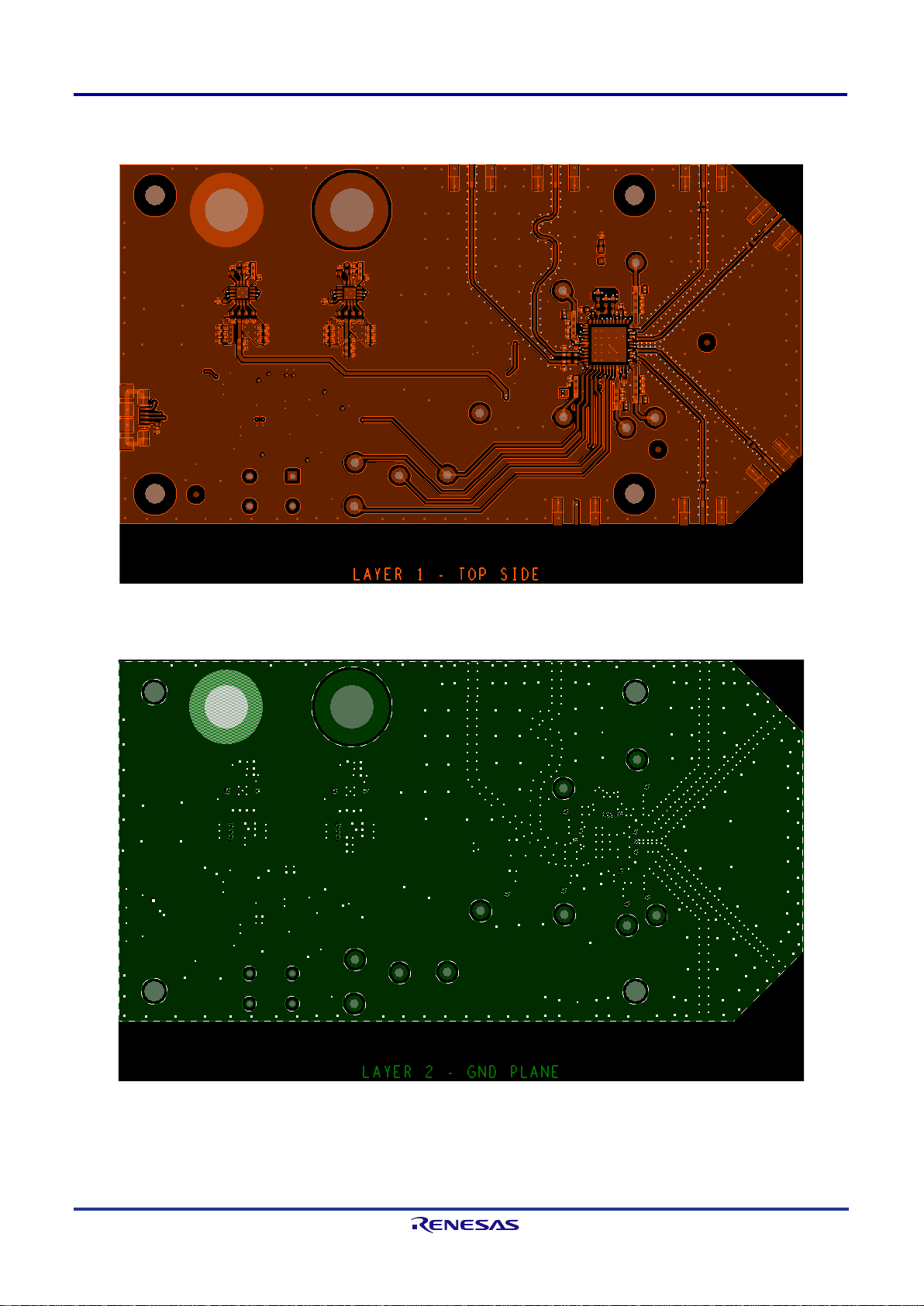

Figure 17. Evaluation Board – Top Layer...............................................................................................................18
Figure 18. Evaluation Board – Second Layer.........................................................................................................18
Figure 19. Evaluation Board – Third Layer.............................................................................................................19
Figure 20. Evaluation Board – Bottom Layer..........................................................................................................19
Figure 21. Timing Commander GUI for Creating New Integer Mode Configuration ..............................................22
Figure 22. Expected Performance of 8110.08MHz Output from Example 1..........................................................23
Figure 23. Timing Commander GUI for Creating New Fractional Mode Configuration..........................................25
Figure 24. Expected Performance of 8200MHz Output without Bleeder Current from Example 2........................26
Figure 25. Expected Performance of 8200MHz Output with 1.1mA of Bleeder Current from Example 2..............27
Figure 26. Phase Noise Performance of 245.76MHz Input Reference Clock........................................................28
Tables
Table 1. Evaluation Board Connection Descriptions 6

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 3
1. Overview

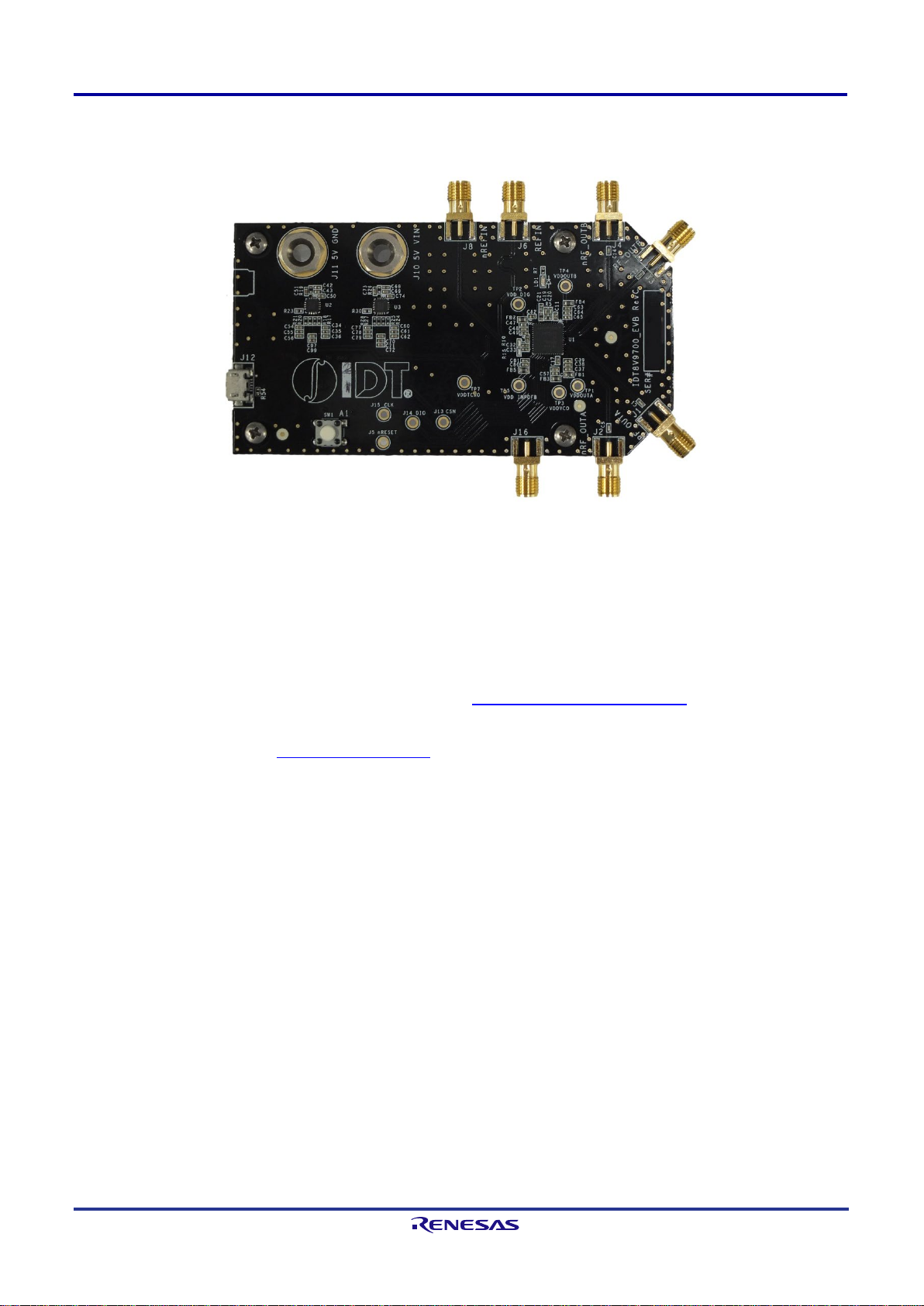

Figure 1. 8V97003 EVB – Top View
Kit Contents
•8V97003 Evaluation Board
•Micro USB cable
Required Software
•IDT Timing Commander Software Installer (available at www.idt.com/timingcommander)
•Network access during installation if the .NET framework is not currently installed on the system
•8V97003 GUI (available at www.idt.com/8V97003)
•USB 2.0 or USB 3.0 interface

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 4
2. Functional Description
This section provides an overview of the different components on the evaluation board, and discusses the
necessary bench equipment, the hardware connection, and the power-up sequence.
2.1 Evaluation Board Overview
The following diagram identifies various components of the board: power supply jacks, input and output SMA
connectors, USB interface port, and lock indicator LED.

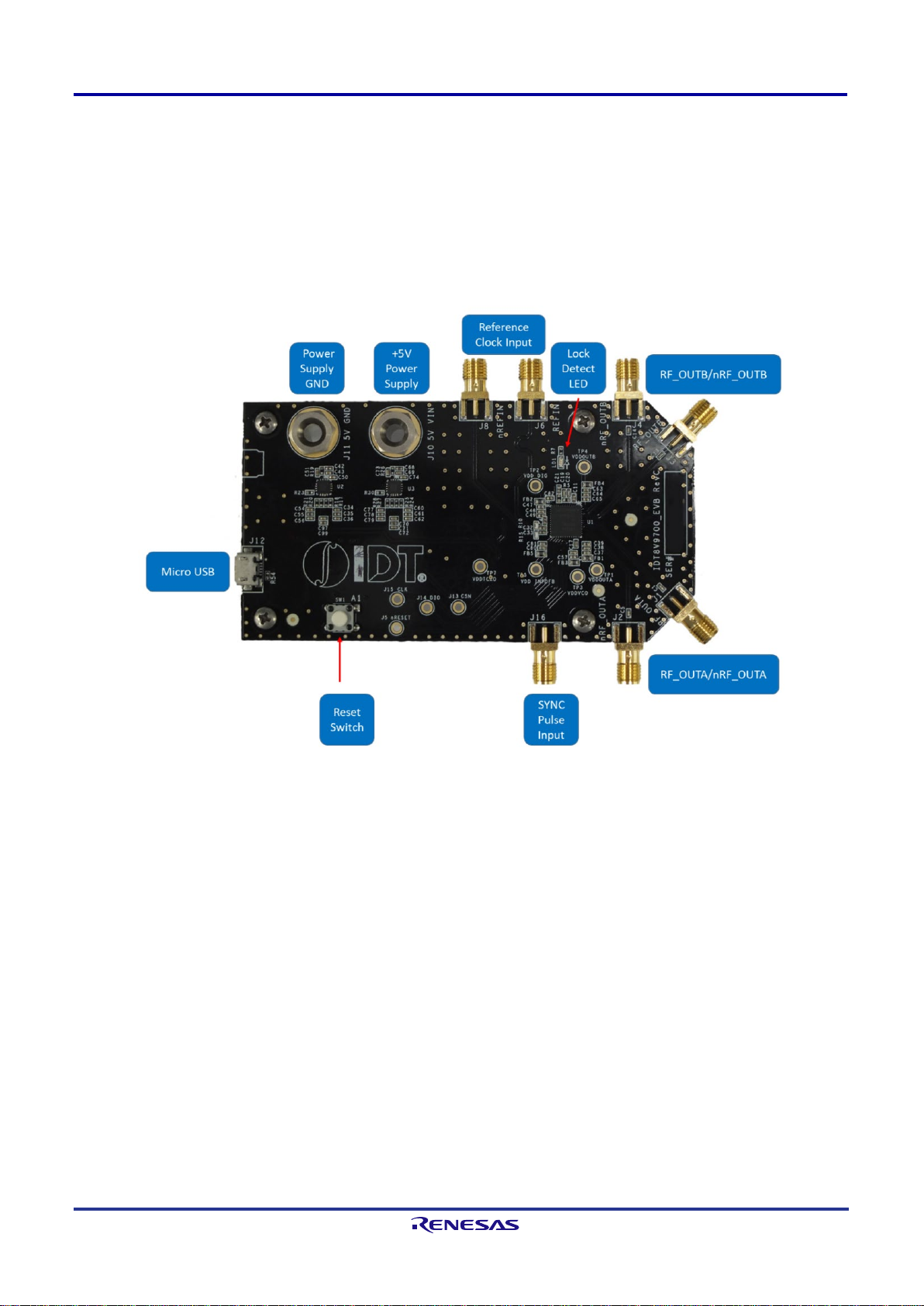

Figure 2. Evaluation Board Overview
Detailed descriptions of these components are as followed (clock-wise from upper left):
•Power Supply (Banana) Jacks: +5V DC at J10, GND at J11
•PCB Layout Revision: for RF Transmission Line Loss information
•Reference Clock Input SMA connectors: use J6 and J8 for differential reference clock input; use J6 for single-
ended reference clock input
oMaximum Vpp = 3.3V
of_max = 1000MHz when input reference doubler is disabled
of_max = 250MHz when input reference doubler is enabled
•Lock Detect LED: LED indicator of PLL Lock status
•RF_OUTB/nRF_OUTB output SMA connectors: differential RF/Microwave outputs at J3, J4
•RF_OUTA/nRF_OUTA output SMA connectors: differential RF/Microwave outputs at J1, J2
•SYNC input: J16
•Reset Push Button: SW1
•Micro USB: J12

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 5
2.2 Required Equipment
Several bench equipment are required for the evaluation of the 8V97003. This section describes the functions of
each required equipment.
2.2.1. Power Supply
The evaluation board uses a single +5V DC supply for its power supply. When running the board, set the bench
power supply at 5V/1A. The +5V terminal is connected to J10, and the Ground terminal is connected to J11.
Multiple LDOs on board are used to generate 3.3V to 8V97003 device.
2.2.2. Signal Generator
A signal generator is necessary to generate the reference clock to the 8V97003 RF/Microwave Synthesizer.
Single-ended reference clock is connected to J6, while J8 can be left unconnected. When differential reference
clock is available, connect them to J6 and J8.
Oscillators such as Oven Controlled Oscillators (OCXO) from Wenzel Associates, Inc. can also be used to
generate reference clock to the 8V97003 RF/Microwave Synthesizer. Some examples of these Wenzel
Oscillators are the VHF ULN OCXO (for frequencies from 15MHz to 160MHz) or MXO-FR OCXO (for
frequencies greater than 200MHz). However, a signal generator is recommended for the flexibility to experiment
with different reference clock frequencies.
2.2.3. Phase Noise Analyzer/Spectrum Analyzer
A phase noise analyzer is necessary to evaluate phase noise performance of the 8V97003 RF/Microwave
Synthesizer. A spectrum analyzer is necessary to evaluate harmonic performance. Both of these equipment
have (output) power measurement capability.
2.2.4. Balun
Balun is optional. A balun is used to convert single-ended output of a signal generator to differential output,
which is used to provide reference clock to the 8V97003 RF/Microwave Synthesizer. Another balun can be used
to combine the differential outputs of the 8V97003 to a single-ended signal for measurement with a phase noise
analyzer/spectrum analyzer.
2.2.5. PC
A PC is required to run IDT Timing Commander GUI.

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 6
2.3 Hardware Connection
Follow these procedures to set up the evaluation board:
1. Without connecting the bench power supply to the EVB, turn on the bench power supply to make sure the
output voltage and current clamp are set to +5V/1A respectively. Then turn off the bench power supply.
2. Connect bench power supply to EVB: +5V to J10, GND to J11.
3. Connect Signal Generator’s output to J6 if single-ended reference input clock configuration is desired. If
differential reference input clock configuration is desired, connect Signal Generator’s output to a balun’s
unbalanced port – then connect balun’s balanced ports to J6 and J8.
4. Connect RF outputs to measurement equipment.
5. Terminate unused outputs.
6. Connect micro-USB cable: micro-B end of the cable is connected to J12, A-plug is connected to PC.
Table 1. Evaluation Board Connection Descriptions
Equipment Type Connection on EVB Description
(DC) Power Supply +5V at J10 / GND at J11 5V/1A power supply
Signal Generator
J6 (for single-ended)/balun (for
differential) Reference clock input to 8V97003
Phase Noise Analyzer J1, J2, J3, J4 Measure phase noise at RF outputs
Spectrum Analyzer J1, J2, J3, J4 Measure output power or harmonic performance at RF outputs
Balun (Macom H-183-4) J6, J8 Differential reference clock input to 8V97003
Balun (Marki BAL 0026) J1, J2, J3, J4 Convert differential outputs to single-ended signal for measurements
Micro-USB J12
2.4 Power-up Procedures
Follow the steps below to power up the evaluation board once the hardware connections shown in 1.3 have
been completed:
1. Turn bench power supply on. Initial current consumption of the whole EVB should be around 500mA
2. Set reference clock input frequency and amplitude on Signal Generator – enable Signal Generator output
3. Program 8V97003 RF/Microwave Synthesizer using IDT’s Timing Commander GUI

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 7
3. Working with Timing Commander™ for Programming/Configuration
3.1 Opening an Existing Configuration
When a customer’s user case information is provided to IDT prior to EVB is sampled, an optimized configuration
is usually provided to the customer for the evaluation. Follow the procedure below to open a setting file:
1. Power up the evaluation board
2. Start the Timing Commander software. You will see options of New Setting File and Open Setting File.
Select Open Setting File.

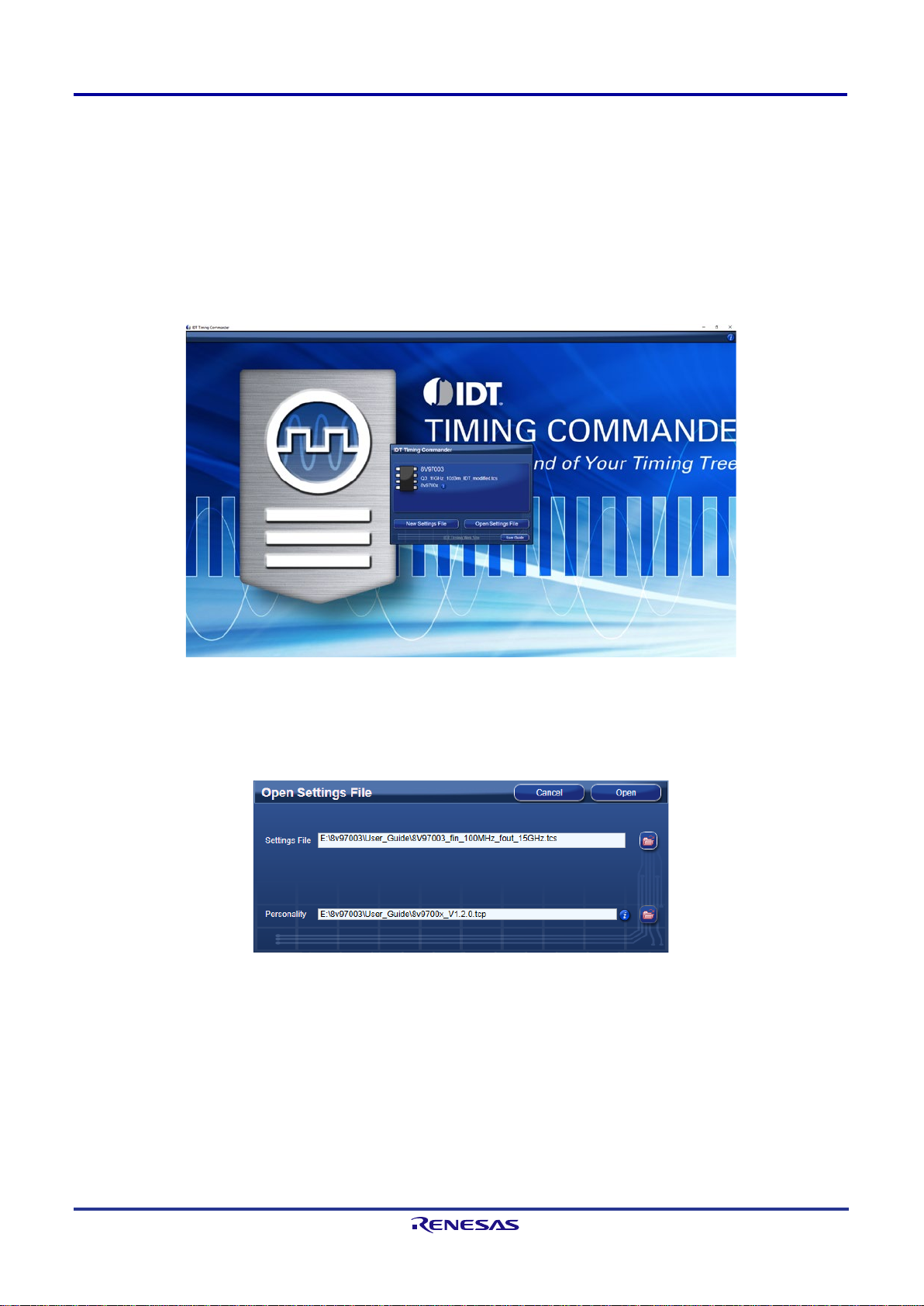

Figure 3. Starting up Timing Commander GUI
3. At Open Settings File dialog box, browse to select the setting file (*.tcs) and the personality file (*.tcp) –
Click Open.
Figure 4. Open Settings File Dialog Box

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 8
4. The GUI window with the 8V97003 block diagram opens to show the existing configuration; all configured
values display. To connect the board with Timing Commander (PC), click the Connect button (chip symbol)
at the upper right corner of the GUI to set up the communication interface.
Figure 5. Connect to 8V97003 Device
5. The connection will be established if a valid 8V97003 is detected, and a green band appears at the upper
right corner of the GUI window.
6. Click Write All to program 8V97003 device.
Figure 6. Program 8V97003 Device
7. The 8V97003 is now configured. If the lock detection function is properly configured, Lock Detect LED
should light when the PLL locked status is achieved, and the output frequency displayed in the Desired
REF_OUTA/B box should be available for measurements.

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 9
3.2 Making Changes to an Existing Configuration
When changes to an existing configuration is necessary, make sure none of the settings in the affected signal
path is locked as to allow the GUI to make appropriate calculation for optimal settings. A locked setting is
indicated by a white lock symbol in a red box ( ). Follow steps a. through c. from Opening an Existing
Configuration before making changes to the existing configuration.
For example, when changing the input reference frequency, make sure the input doubler enable and the input
reference divider settings are unlocked, as shown in Figure 7.
Figure 7. Input Configuration Settings
Another example is when changing the desired output frequency, make sure the Feedback Divider settings are
unlocked, as shown in Figure 8.
Figure 8. Feedback Divider Settings

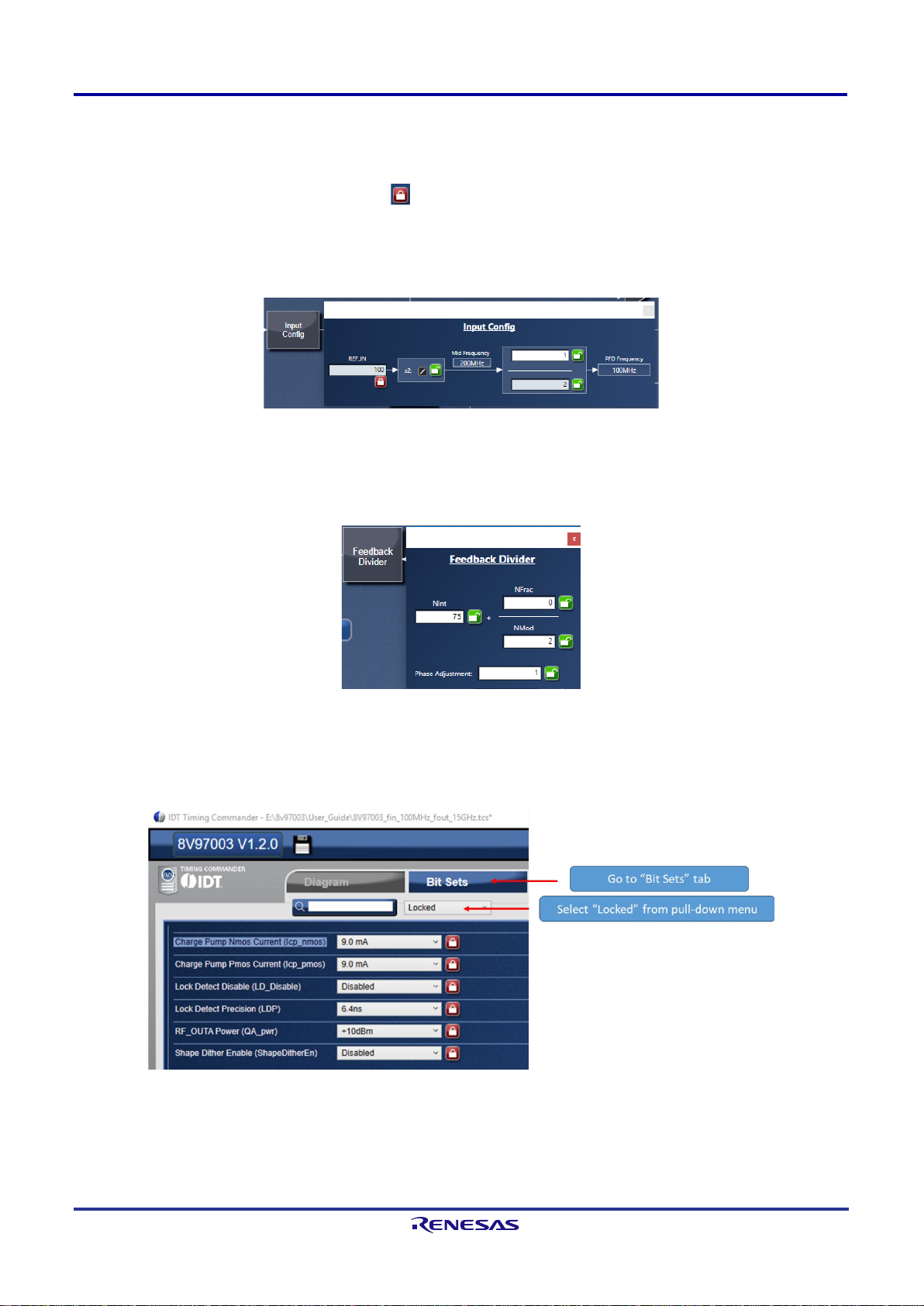

A quick way to view all “Locked” settings in an existing configuration is to select “Locked” option in “Bit Sets” tab,
as shown in Figure 9.
Figure 9. Locked Settings View in Bit Sets Tab

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 10
3.3 Creating a New Configuration
Follow the procedure below to create a new setting file:
1. Power up the evaluation board.
2. Start the Timing Commander software. You will see options of “New Setting File” and “Open Setting File”.
Select “New Setting File”.
3. In the “New Settings File” dialog box, select “8V97003” and click OK
4. The GUI window with the 8V97003 block diagram will open with no setting on any of the blocks
Figure 10. New Settings GUI
5. Click on each functional blocks of the block diagram to enter the desired settings/configuration or to check
automatically calculated settings/configuration. An invalid setting/configuration will result in an Error.
Settings/configurations that are not invalid, but not optimum will result in Warning. Error must be resolved
before proceeding.
6. Once all settings have valid values, click the Connect button (chip symbol) at the upper right corner of the
GUI to set up the communication interface.
7. The connection will be established if a valid 8V97003 is detected, and a green band appears at the upper
right corner of the GUI window.
8. Click Write All to program 8V97003 device.
See Appendix A for examples of creating New Configurations for 8V97003 device.

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 11
4. Performance Evaluation with the 8V97003 EVB
As the 8V97003 RF/Microwave Synthesizer covers a very wide range of output frequencies, careful
considerations must be given to component selection and termination to ensure signal integrity, especially at
high output frequencies. In addition, because impedance is a function of frequency, (amplitude) loss of
transmission line should also be characterized over frequency to ensure accurate de-embed of trace loss. This
section discusses the following topics when evaluating performance of 8V97003 device:
•Output Matching
•AC-coupling (series) capacitor
•Proper termination when making measurements on single-ended output
•Transmission line loss
4.1 Output Matching
The 8V97003 devices provides two differential outputs of CML type. The outputs are “open collector outputs”
and can be matched in different ways. By default, a simple resistive matching is used on the 8V97003 EVB.
This resistive matching consists of a 50Ω resistor to VDD, with a series AC coupling capacitor. This matching
scheme gives the output amplitude a “broadband” response, but it is not ideal to achieve maximum output power
transmission, especially for high frequencies.
An inductive matching is recommended for better performance and optimal power transmission. For the
inductive matching scheme, the 50Ω resistors connected to VDD are replaced by inductors. The inductor value
is frequency dependent.
Figure 11. 8V97003 Output Power Over Frequencies – Resistive vs. Inductive Matching
For impedance matching of 50Ω, the inductor value can be calculated as L = 50 ÷ (2 x π x f) where f is the
operating frequency. In the data shown in Figure 11 above, a 1nH would provide a 50.24Ω match at f = 8GHz.
Therefore, for the same output power setting, the measured output power with the 1nH inductive matching is
2dB higher than that with 50Ω resistive match at 8GHz.

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 12
When selecting the inductors for output matching, it is critical to select inductors whose self-resonant frequency
is higher than the operating frequency.
4.2 AC-coupling Capacitor
AC-coupling capacitors are populated on 8V97003 EVB to ensure 0V DC on the output signals when they are
connected to the input of (RF) measurement equipment. The part number of the (series) AC-coupling capacitor
used on 8V97003 EVB is 520L103KT16T which is specified for operation up to 16GHz. The same consideration
regarding self-resonant frequency also applies when selecting this capacitor.
For output frequencies above 16GHz, IDT recommends these AC-coupling capacitors be replaced with 0Ω
resistors, and a high performance external DC-block be used to ensure 0V DC input to (RF) measurement
equipment.
4.3 Termination
As mentioned in the Output Matching section, the outputs of the 8V97003 are “open collector outputs”.
Therefore, when making single-ended measurements on one branch of the differential pair, it is critical to
properly terminate the unused port to minimize distortion (due to reflection) of the output signal.
Because the built-in load of most (RF) measurement equipment is 50Ω, when making single-ended
measurements on one branch of the differential pair, terminate the unused port with a 50Ω load. At high
frequencies, the mismatch in electrical length at which each branch of the differential pair is terminated could
result in reflection that would distort the output signal. IDT recommended that at high frequencies, each branch
of the differential pair is terminated at the same electrical length. This means when making single-ended
measurements on one branch of the differential pair at high frequency, connect the unused port to a cable of the
same length with the cable connecting the port being measured, and terminate that cable with 50Ω load.
4.4 Transmission Line Loss
To accurately characterize the output power of the 8V97003 RF/Microwave Synthesizer, insertion loss of all
components in the measurement path should be accurately accounted. Besides the insertion loss of the RF
cables, and balun (if applicable), loss across frequencies due to transmission line on the EVB must also be
characterized.
To assist customer with the measurement of trace loss on 8V97003 EVB, a test “coupon” is included in the same
PCB manufacturing panel with the main EVB. This test “coupon” consists of the exact copy of the transmission
lines on the board and the SMA connectors.
The insertion loss of the transmission lines on PCB version D is shown below. The measurement was taken on
the test “coupon”, using a network analyzer, with ZSOURCE = ZLOAD = 50Ω. On the actual EVB with 8V97003 as
device-under-test (DUT), the source impedance (including output buffer, bond wire, package, and external
matching components) is probably not a perfect 50Ω. Therefore, the mismatch between the source impedance
and the transmission line could cause reflection that would likely present more loss to the output signal. The
insertion loss measured on the test structure shown above should be used as the minimum loss or the output
signal will suffer.

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 13
Figure 12. 8V97003 EVB Revision D Transmission Line Loss
The insertion loss of the transmission lines on PCB version C is shown below. The high insertion loss is caused
by reflection along the transmission line which was due to larger-than-expected tolerance of the designed
characteristic impedance of 50Ω. This issue causes performance degradation in output power, harmonic, and
phase noise. If you are evaluating the 8V97003 RF/Microwave Synthesizer on IDT’s EVB revision C, this trace
loss should be taken into account.
Figure 13. 8V97003 EVB Revision C Transmission Line Loss

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 14
5. PCB Layout Guidelines
5.1 8V97003 Evaluation Board Schematic
Figure 14. Schematic - Page 1

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 15
Figure 15. Schematic - Page 2

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 16
Figure 16. Schematic - Page 3

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 17
6. Bill of Materials (BOM)
Item
Qty
Reference
Part
PCB Footprint
Manufacturer
Part Number
1 35
C2,C3,C4,C6,C7,C8,C9,C10,C32,
C33,C35,C39,C40,C41,C42,C49,
C52,C53,C55,C59,C61,C65,C66,
C67,C68,C71,C75,C76,C78,C82,
C83,C85,C87,C96,C99
0.1u 0402M Murata Electronics NA GRM155R61A104KA01D
2
8
C11,C12,C36,C56,C62,C72,C79,C86
0.01u
0402M
Taiyo Yuden
EMK105B7103KV-F
3
5
C15,C17,C22,C24,C26
22u
0402M
4
1
C19
2.2nF
0402M
5 1 C20 680pF 0402M
6
1
C88
47nF
0402M
7 14 C34,C38,C43,C48,C54,C58,C60,
C64,C69,C70,C77,C81,C84, C97 10uF 402 Samsung CL05A106MQ5NUNC
8
5
C37,C47,C57,C63,C80
22uF
0402M
9
4
C50,C51,C73,C74
4.7uF
402
10
2
C89,C90
33PF
603
11 6 FB1,FB2,FB3,FB4,FB5,FB6 BLM18BB22
1SN1D
0603M
12 6 J1,J2,J3,J4,J6,J8, J16 JACK,SMA,E
DGE MOUNT
edge_mount Samtec sma-j-p-x-st-em1
13 2 J10,J11 3V3 BANANA_PCB_H_164 Emerson Network
Power 108-0740-001
14 1 J12 USB PORT CONN RCPT USB2.0
MICRO B SMD R/A
Hirose Electric Co Ltd ZX62-B-5PA(33)
15 4 J5,J13,J14,J15 Test_Point TP
16 2 LD1,LD2 LED_0603_120
6_H_GREEN
LED_0603_1206_H Panasonic LNJ616C8WRA
17 1 L1 600 ohm
500mA
603 TDK Corporation MMZ1608Y601B
18 2 L2,L3 18nH,0.4A,36
0mOhm
402 Murata Electronics NA LQG15HS18NJ02
19
2
R10,R15
50
0402M
Vishay-Dale
FC0402E50R0BST1
20
7
R7,R19,R26, R50, R51, R52, R53
1K
0402M
Panasonic
ERJ-2GEJ102X
21 1 R6 62 0402M
22
4
R8,R9,R12,R13
2.2K
603
23 12
R17,R18,R20,R21,R38,R39,R24,
R25,R27,R28,R36,R37 0
0402M Yageo RC0402JR-070RL
24
4
R1,R2,R3,R4
50
201
25 1 R16 DNP 603 Panasonic ERJ-3GEYJ101V
26
2
R22,R29
74K
402
27
2
R23,R30
DNP_50
402
Vishay-Dale
FC0402E50R0BST1
28
1
R31
680
603
Yageo
RC0603FR-07680FL
29
1
R32
470
603
Yageo
RC0603FR-07470RL
30
2
R34,R35
27
603
Yageo
RC0603FR-0727RL
31 1 R40 1.5K 603 Yageo RC0603FR-071K5L
32
3
R41,R42,R43
10K
603
Yageo
RC0603FR-0710KL
33 1 SW1 Pushbutton_
EVQPAC04M PB_EVQPAC04M Panasonic EVQ-PAC04M
34
6
TP1,TP2,TP3,TP4,TP5, TP7
VCC_D
TP
35
1
U1
8V97002
QFN48
IDT
8V97002
36
2
U2,U3
HMC1060LP3E
QFN16
HITTITE
HMC1060LP3E
37
1
U4
ft2232_chip
lqfp48_l
FTDI
FT2232D
38
1
X1
6MHz
XTAL_5mmx7mm
Abracon Corporation
ABMM-6.000MHZ-B2-T
39 6 C1,C5,C13,C14,C91,C92 10000pF 402 AT Ceramics 520L103KT16T
40
1
R5
20
0402M
Panasonic
ERJ-2GEJ200X
41
1
C21
220nF
0402M
42 U5, U7, R47, R46, R48, R44, R49,
R45, C26, C27, C28, R54, R55
DNP

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 18
7. Board Layout
Figure 17. Evaluation Board – Top Layer
Figure 18. Evaluation Board – Second Layer

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 19
Figure 19. Evaluation Board – Third Layer
Figure 20. Evaluation Board – Bottom Layer

8V97003 EVB User Manual
Rev.1.2
Sep.25.20
Page 20
8. Ordering Information
Contact Renesas Sales at https://www.renesas.com/support.html.
9. Revision History
Revision
Date
Description
1.2
Sep.25.20
Updated the formatting.
1.1
Oct.22.19
Completed minor changes throughout.
1.0
Nov.15.19
Initial release.
