1. product description
1.1product description
The product is an industrial wall-mounted high-protection grade enclosure, with a protection grade of IP65,
rain and snow proof and good air permeability. The circuit adopts American imported industrial-grade
microprocessor chips and imported high-precision temperature and humidity sensors to ensure excellent product
reliability, high precision and interchangeability. The output signal type is RS485, the farthest can communicate
2000 meters, the standard modbus protocol, supports secondary development.
1.2Features
1. Using high-precision temperature and humidity measurement unit, long-term stability and small drift
2. Using dedicated 485 circuit, standard ModBus-RTU communication protocol, communication address and baud
rate can be set
3.10~30V wide voltage range power supply
4. Easy to install, can be wall-mounted or rail-mounted
5. High anti-dust protection level (IP65)
6. LCD liquid crystal display, beautiful and generous
7. Buttons can set parameters, easy to operate
1.3The main technical parameters
DC power supply (default)
DC 10-30V
Maximum power
consumption
0.4W
A precision
humidity
±2%RH(60%RH,25℃)
temperature
±0.4℃（25℃）
B quasi-accuracy
humidity
±3%RH(60%RH,25℃)
temperature
±0.5℃（25℃）
(default)
-20℃~+60℃，0%RH~95%RH（Non-condensing）
-40℃~+120℃default：-40℃~+80℃
Transmitter circuit operating
temperature and humidity
0%RH-100%RH
Probe working temperature
Modbus-RTU letter of agreement
Probe working humidity
485 Signal
letter of agreement
0.1℃
output signal
0.1%RH
Temperature display
resolution
1s

Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0
Shandong Renke Control Technology Co., Ltd. www.rkckth.com
4
Humidity display
resolution
70mm
Temperature and humidity
refresh time
humidity
≤1%RH/y
temperature
≤0.1℃/y
Response time
humidity
≤8s(1m/s Wind speed)
temperature
≤25s(1m/s Wind speed)
parameter settings
Direct modification through software settings or buttons

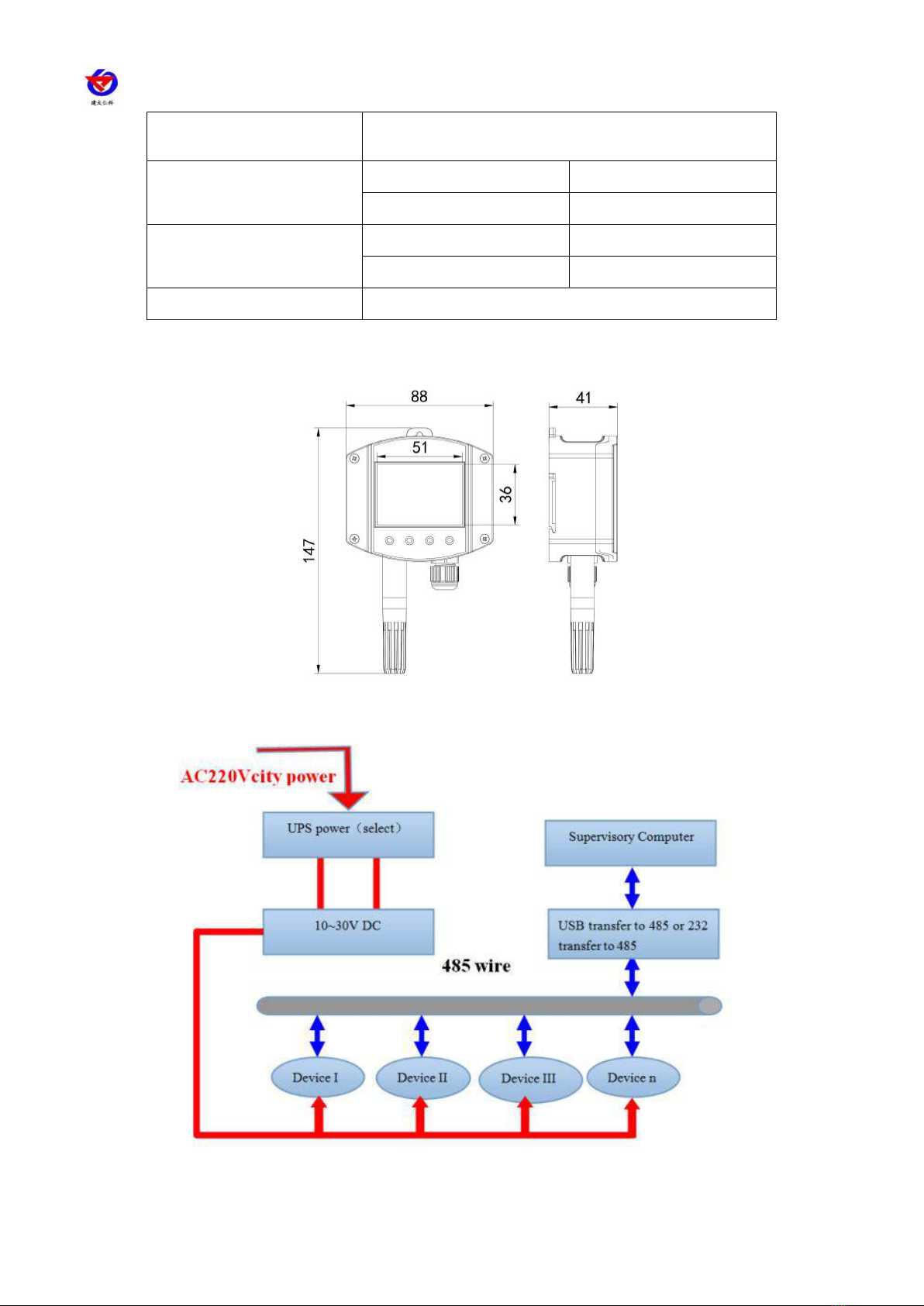

1.4Equipment size
1.5system framework
System scheme block diagram

Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0
Shandong Renke Control Technology Co., Ltd. www.rkckth.com
5

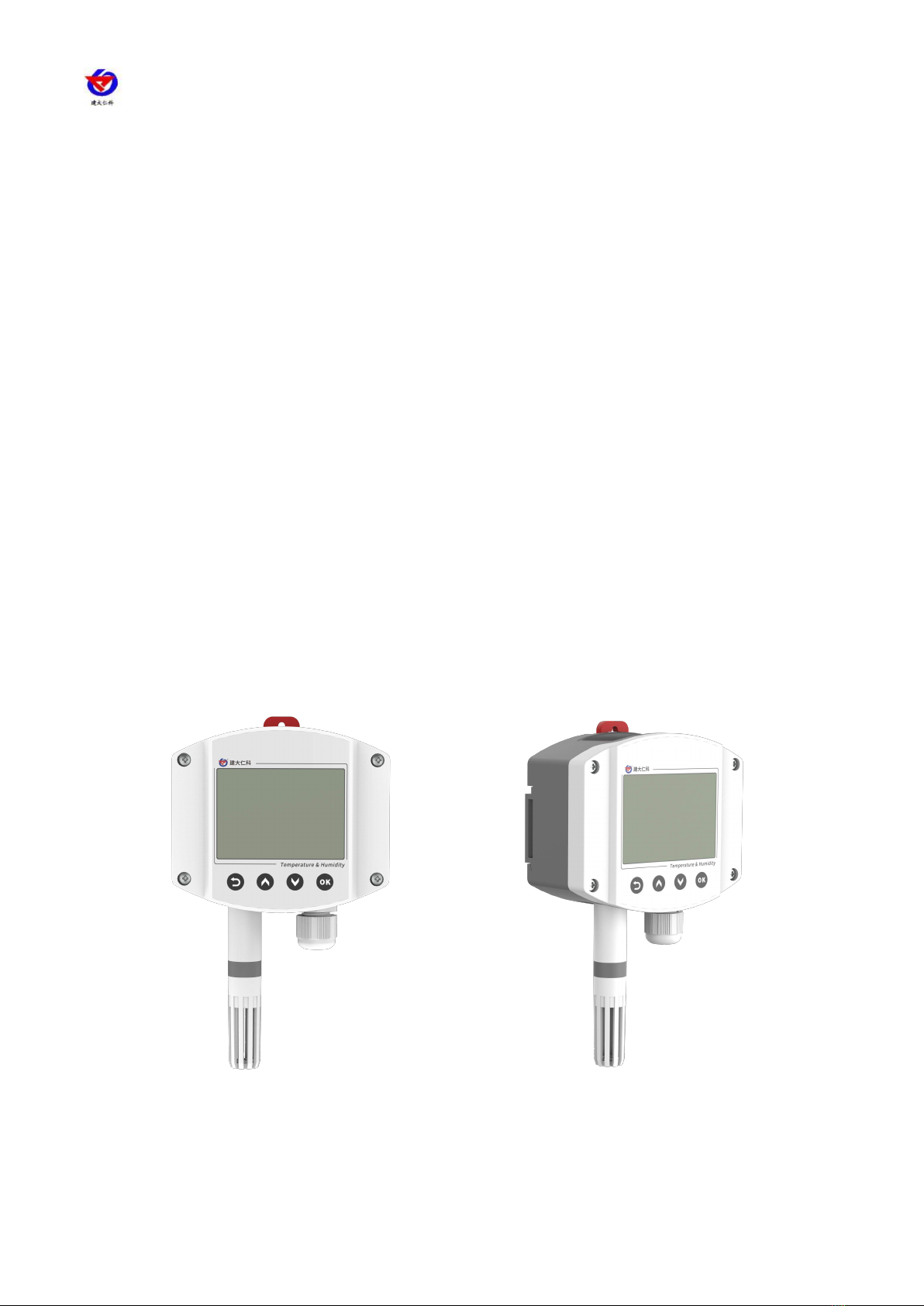

1.6product model
2．Equipment installation instructions
2.1Inspection before equipment installation
Equipment List：
1. 1 set of temperature and humidity transmitter equipment
2. Certificate of conformity, warranty card, calibration report, etc.
3. 2 expansion plugs, 2 self-tapping screws
4. USB to 485 (optional)
5. 485 terminal resistance (gift for multiple devices)
2.2 Installation method
Wall mount

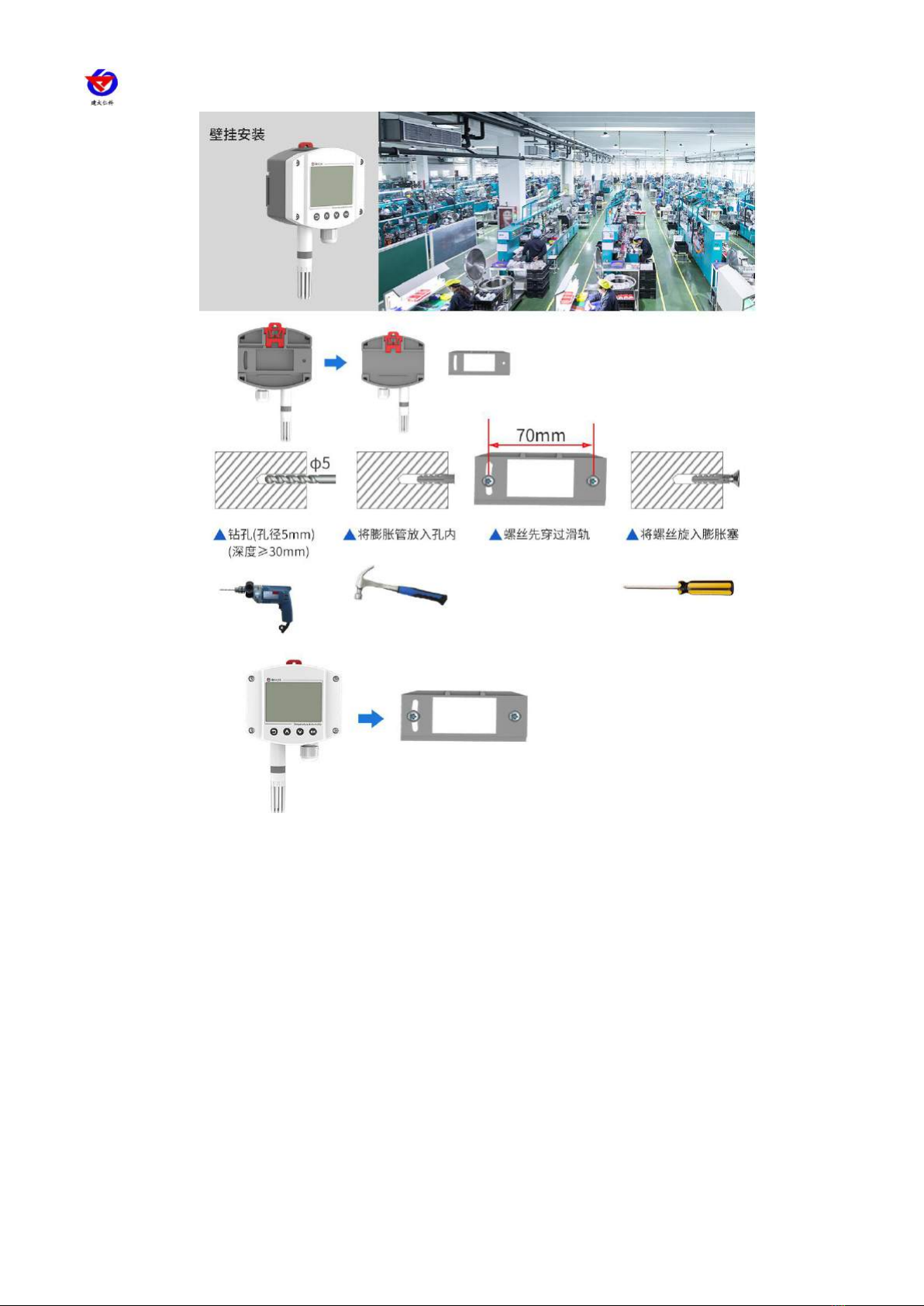

The back of the transmitter is equipped with a slide rail mounting plate. Remove the mounting plate first.
There are two expansion plugs and two self-tapping screws in the accessories. First, punch two holes with a
diameter of 5mm and a depth of ≥30mm on the wall (the opening spacing is 70mm). After inserting the expansion
plug, fix the slide rail mounting plate to the wall with self-tapping screws, and finally slide the transmitter into it.
RS-
Company code
WS-
Temperature and humidity transmission, sensor
N01-
485 communication (Modbus-RTU protocol)
2D-LCD
Industrial wall hanging (liquid crystal display)

Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0
Shandong Renke Control Technology Co., Ltd. www.rkckth.com
6
Slide rail installation
The back of the transmitter is equipped with a slide rail mounting plate. Remove the mounting plate first. The
transmitter can be slid directly into the standard 35 rail。

Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0
Shandong Renke Control Technology Co., Ltd. www.rkckth.com
7
Special Note：
1) There are certain specification requirements for 485 line field wiring. For details, please refer to the data package
"485 Equipment Field Wiring Manual".
2) When the device is connected to the 485 bus, ensure that the addresses of multiple devices will not be repeated.

Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0
Shandong Renke Control Technology Co., Ltd. www.rkckth.com
8
2.31 Wiring instructions.
Power and 485 signal
Wide-voltage power input can be 10~30V. When wiring the 485 signal line, pay attention to the two
wires A\B not to be reversed, and the addresses of multiple devices on the bus cannot be conflicted.
2.4 Specific wiring
Circuit identification
illustrate
power supply
VCC
V+（10~30V DC）
GND
V-
Communication
485A
485-A
485B
485-B

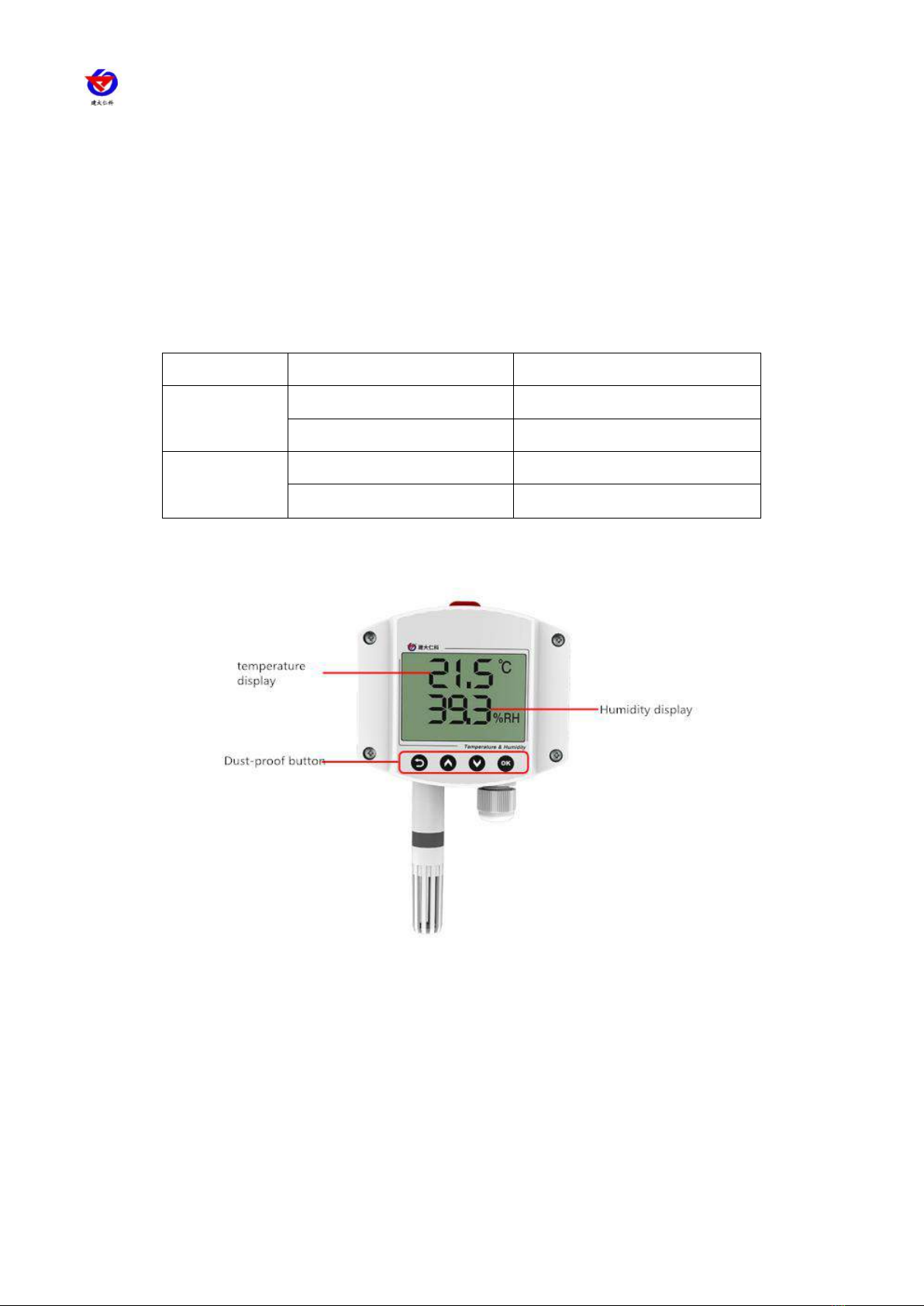

2.5Panel display description
If the device address is less than 100, the decimal address is displayed at the display location of the device
address; if the device address is greater than 100, the hexadecimal address is displayed at the display location of the
device address.
3. Configuration software installation and use
3.1 Software selection
Open the data package, select "Debugging software" --- "485 parameter configuration software",

Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0
Shandong Renke Control Technology Co., Ltd. www.rkckth.com
9

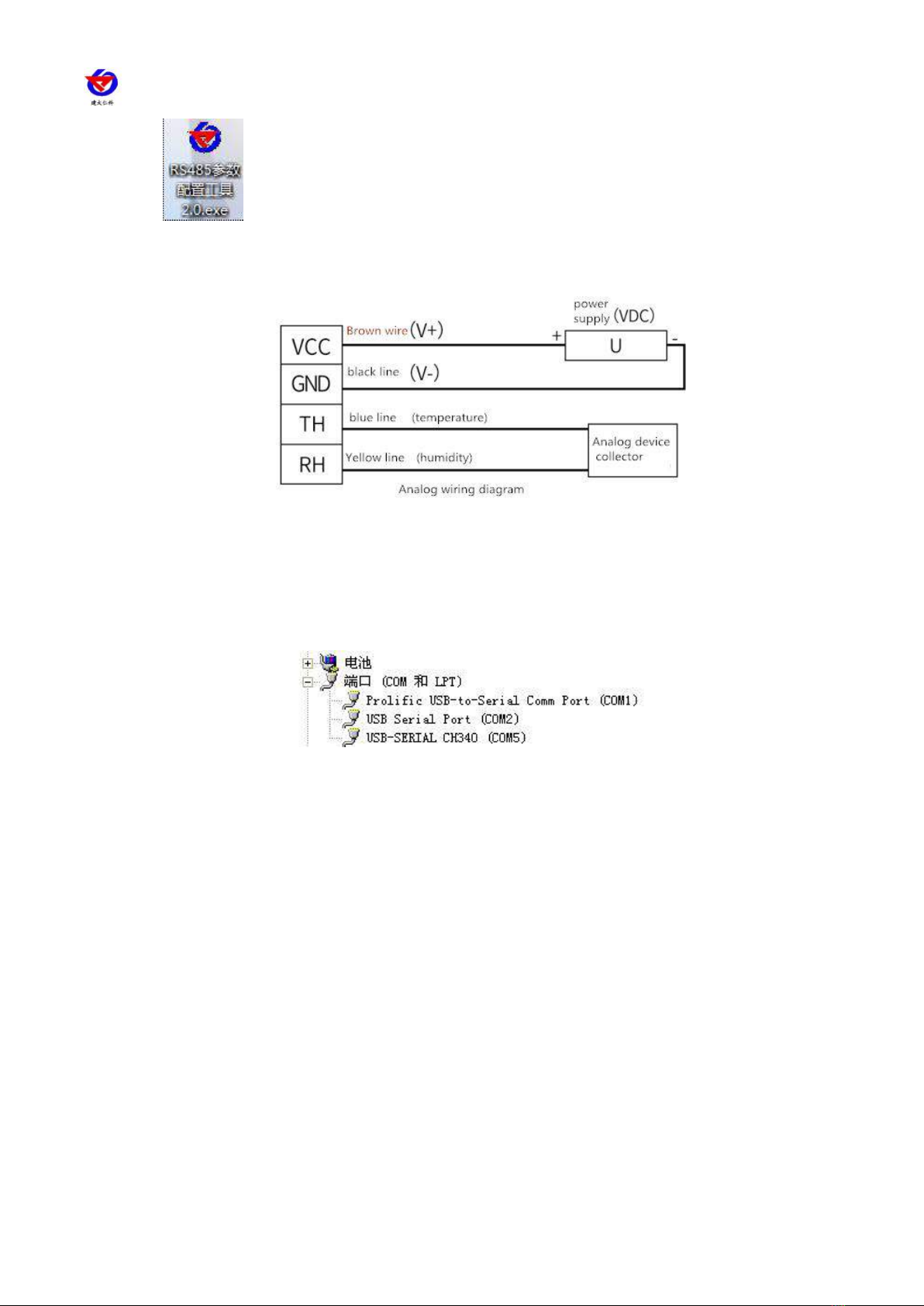

turn up Just open it。
Note: When using the configuration software to change the address and baud rate, only one device can be
connected.
（The device does not provide a communication line by default, the color of the line is for reference only）
3.2 parameter settings

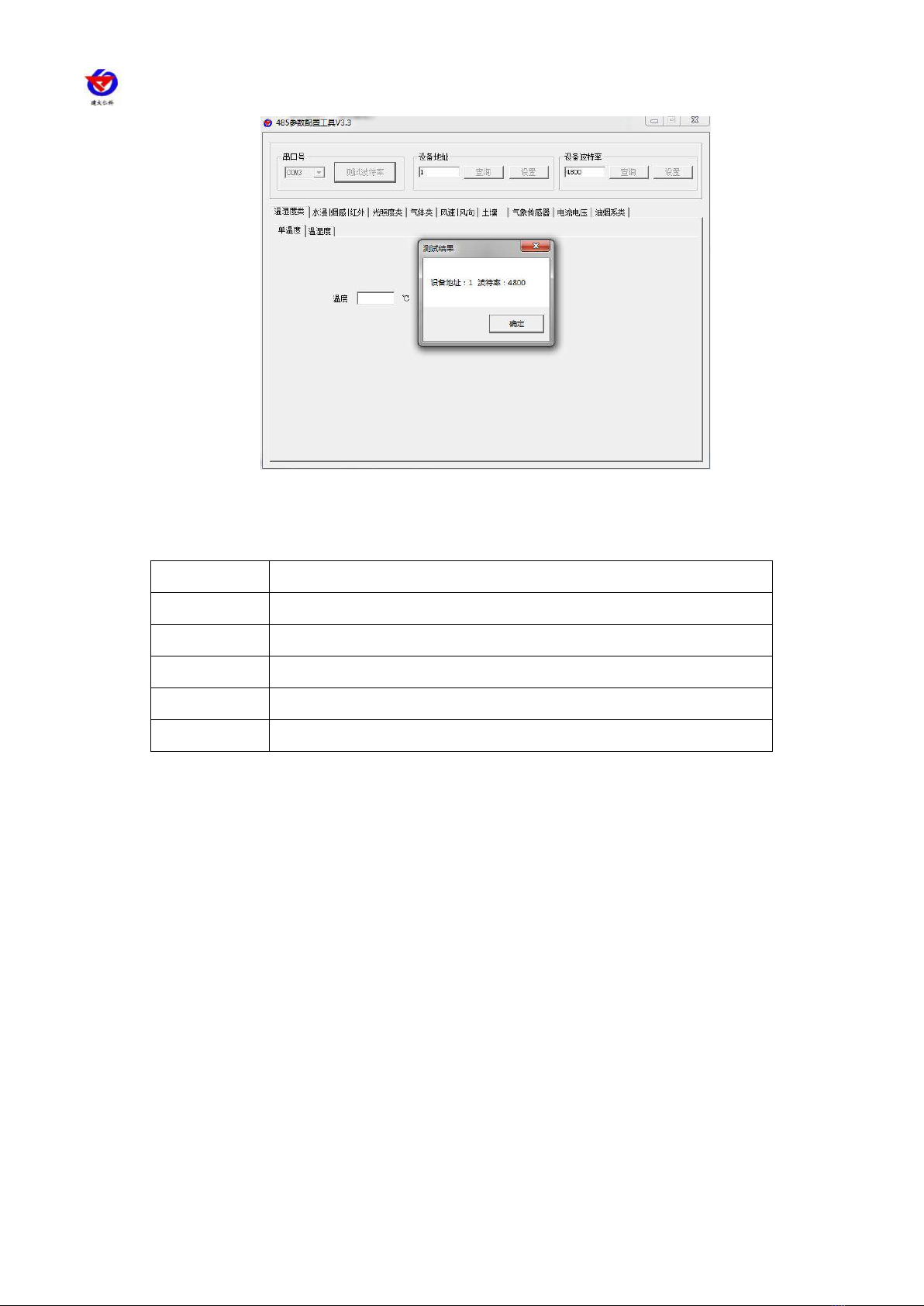

①. Select the correct COM port (check the COM port in "My Computer—Properties—Device Manager
—Port"). The following figure lists the driver names of several different 485 converters.
②Connect only one device alone and power it on, click the test baud rate of the software, the software
will test the baud rate and address of the current device, the default baud rate is 4800bit/s, and the
default address is 0x01.
③. Modify the address and baud rate according to the needs of use, and at the same time, you can query
the current function status of the device.
④. If the test is unsuccessful, please recheck the equipment wiring and 485 driver installation.

Industrial Wall-mounted LCD Temperature and Humidity Transmitter (Model 485) User Manual V1.0
Shandong Renke Control Technology Co., Ltd. www.rkckth.com
10
4. letter of agreement
4.1 Basic communication parameters
Code
8-bit binary
Data bit
8-bit
Parity bit
without
Stop bit
1 person
Error checking
CRC (Redundant Cyclic Code)
Baud rate
2400bit/s, 4800bit/s, 9600 bit/s can be set, the factory default is 4800bit/s
4.2 Data frame format definition
Using Modbus-RTU communication protocol, the format is as follows:
Initial structure ≥4 bytes of time
Address code = 1 byte
Function code = 1 byte
Data area = N bytes
Error check = 16-bit CRC code
Time to end structure ≥4 bytes
Address code: the address of the transmitter, which is unique in the communication network (factory default 0x01).
Function code: The command function instruction issued by the host, this transmitter only uses function code 0x03 (read register data).
Data area: The data area is the specific communication data, pay attention to the high byte of the 16bits data first!
CRC code: two-byte check code.
Host query frame structure:
