Renogy PHOENIX 200 User manual

PHOENIX 200 POWER STATION
USER GUIDE
EN 01
CN 18

PHOENIX 200
POWER STATION
User Guide
Model: R200PHX
- 01 -

TABLE OF CONTENTS
- 02 -
IMPORTANT SAFETY INSTRUCTIONS
PACKAGE CONTENTS
FEATURES
RECHARGING YOUR PHOENIX 200
BATTERY LEVEL LED INDICATORS
PRODUCT OVERVIEW
SPECIFICATIONS
TROUBLESHOOTING
FREQUENTLY ASKED QUESTIONS
WARRANTY
OPERATING YOUR PHOENIX 200
MAINTENANCE

Please read the User Guide carefully before recharging or operating your Phoenix 200.
IMPORTANT SYMBOLS
Indicates potentially dangerous conditions that could result in personal injury
Indicates conditions or practices that could result in damages to the unit or other
equipment
Indicates procedures or functions that are important for proper and safe operation
of the unit and/or other equipment
CAUTION
WARNING
NOTE
DO NOT drop or strike the unit. Doing so may cause circuit failures and cracks in the casing.
DO NOT dismantle or modify the unit. Doing so may cause irreversible damages to the unit and
void warranty.
Please turn off the output ports when no devices are connected to the unit to prevent electric
shocks.
Please dispose of the product according to the local recycling and environmental regulations.
DO NOT overload the AC or DC outputs. Please check the specifications of output ports and
devices before operation.
DO NOT submerge the unit in water or operate the unit in the rain. Doing so may cause
short-circuits, electric shocks, and/or fire.
DO NOT place the unit near fire and/or heat the unit. Doing so may cause irreversible damages
to the unit and/or battery explosion.
Keep the unit out of the reach of young children.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING
WARNING
WARNING
WARNING
CAUTION
CAUTION
CAUTION
- 03 -

Please check the unit before each use. Stop using the unit if you notice unusual smells,
heating, distortion, or any other abnormalities.
DO NOT expose the unit to strong electrostatic fields, strong magnetic fields, and/or radiation.
DO NOT place the unit under direct sunlight or place in high-temperature situations. Doing so
may cause unit malfunction or component degradation.
FEATURES
PACKAGE CONTENTS
UNIVERSAL COMPATIBILITY
Equipped with multiple output ports to power mainstream essential gadgets and small appliances at the push of
a button.
EASY RECHARGING
Conveniently charge the Phoenix 200 through a wall outlet, a car socket, or with a solar panel.
COMPREHENSIVE PROTECTION
The battery management system (BMS) enables voltage control, temperature control, short circuit protection,
overcurrent protection, and more advanced safety operations.
POWERFUL FLASHLIGHT
Be prepared for blackouts or other emergencies with the multi-mode LED flashlights on both sides of the
carrying handle.
1 x Renogy PHOENIX 200 Power Station
1 x User Guide
1 x AC/DC Adapter
1 x Cigarette Lighter Plug to 5.5mm DC Adapter Cable
CAUTION
CAUTION
CAUTION
- 04 -

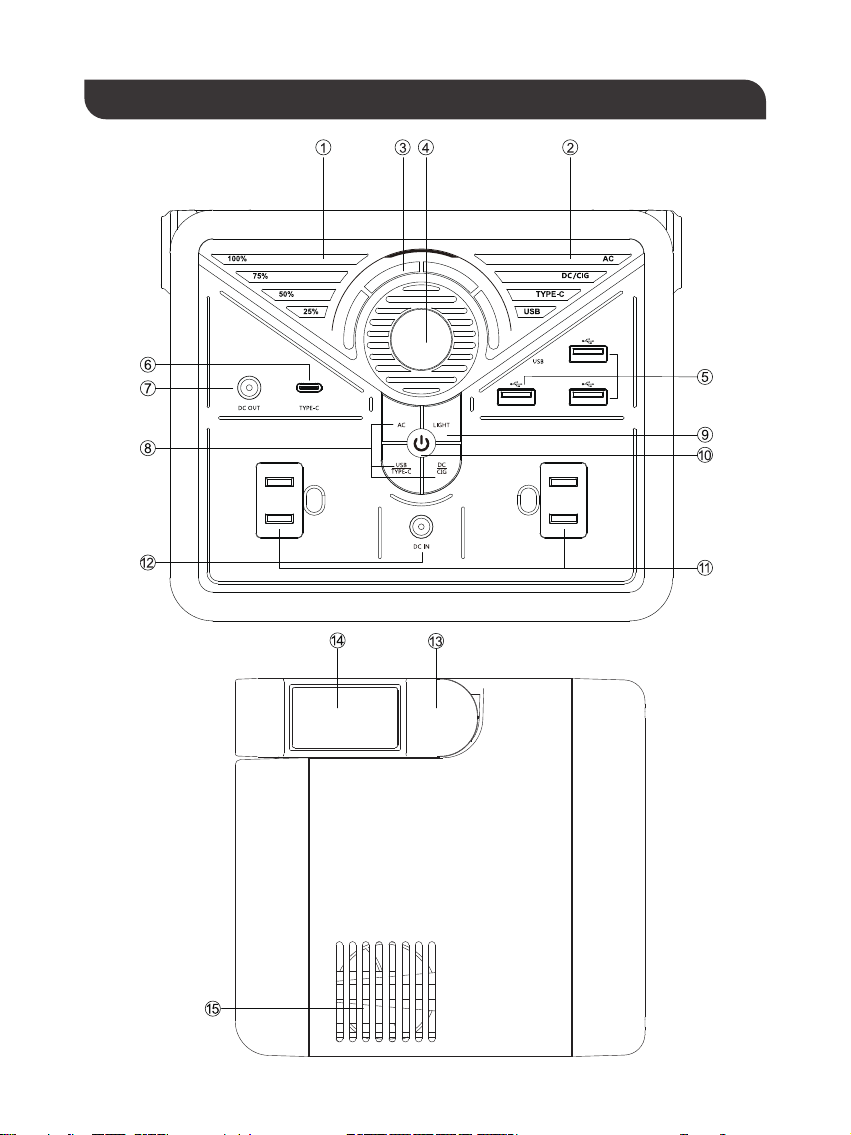

PRODUCT OVERVIEW
- 05 -

SPECIFICATIONS
Flashlight On/Off Button
Main Power Button
AC Outlets
DC Input Port
Folding Carrying Handle
LED Flashlight
Air Vent
15
14
13
12
11
10
9
Battery Level LED Indicators
Port Status LED Indicators
Flashlight Status LED Indicators
CIG Port
USB-A Ports
USB-C Port
DC Output Port
Port On/Off Buttons
8
7
6
5
4
3
2
1
Output
5V / 2.4A Each Max
5V / 3A Max
USB-A Port (3)
USB-C Port
Input
12-25V, 30W MaxDC Input Port
Battery
General
Lithium-ion Battery
10.8V
17500mAh / 189Wh
500 Cycles to 80% Capacity
Type
Voltage
Capacity
Cycle Life
181 x 155 x 143 mm / 7.1 x 6.1 x 5.6 in.
2.1 kg / 4.6 lb.
PC + ABS
2 x 1.6W LED
-10-45 / 14-113
-20-60 / -4-140
0-65%
10-90%
FCC, CE, PSE, RoSH
Dimension
Weight
Material
Flashlight
Normal Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Certifications
- 06 -

BATTERY LEVEL LED INDICATORS
RECHARGING YOUR PHOENIX 200
AC Outlet (2)
Total Continuous Output
110V / 60Hz (US, JP, CA)
220V / 50Hz (AU, EU, CN)
150W Rated, 200W Surge
Modified Sine Wave
200W Max
CIG Port
DC Output Port
9.6-12.6V / 10A Max
9.6-12.6V / 5A Max
When recharging your PHOENIX 200, one of the Battery Level LED Indicators will flash. The flashing LED
indicates the unit’s current battery level. Once your PHOENIX 200 is fully recharged, all Battery Level LED
Indicators will be lit and remain solid.
When the battery level of PHOENIX 200 is lower than 20%, the last Battery Level LED Indicator will flash twice
per second.
As you use your PHOENIX 200 to power other devices, the Battery Level LED Indicators will go out one by
one to indicate the remaining battery capacity.
Four Battery Level LED Indicators indicate the battery level of the PHOENIX 200, approximating 25% - 50%
- 75% - 100% capacity.
To shorten the recharge time of PHOENIX 200, it is recommended to disconnect all loads while
recharging the unit.
NOTE
To maximize battery life, be sure to fully recharge your PHOENIX 200 before operating or
storing.
If the Battery Level LED Indicators flash in an unusual way, your PHOENIX 200 may need
special attention. Please refer to the TROUBLESHOOTING section for help.
Recharge Time
Recharge via Car Socket: 8 Hours
Recharge via AC/DC Adapter: 7 Hours
Recharge via Solar: 7 Hours
CAUTION
CAUTION
- 07 -

The above recharge times are based on conditions when no load is connected.
NOTE
Recharging via Solar
The PHOENIX 200 will begin to recharge automatically and one of the Battery Level LED Indicators will flash.
The flashing LED indicates the unit’s current battery level.
Use a MC4 to 5.5mm DC adapter cable (not included) to connect the solar panel to the DC Input Port of your
PHOENIX 200 and place your PHOENIX 200 in the shade to prevent it from overheating.
Place the solar panel under direct sunlight. Steer clear of trees or branches that can shade the solar panel
and slow down the recharging process.
For optimal recharging performance, it is strongly recommended to recharge your PHOENIX 200 using a
solar panel with 30W or higher rated power (not included) on bright sunny days free of scattered clouds.
Recommended Solar Panels:
Renogy ECLIPS Series Solar Panel: 50W
Renogy Flexible Solar Panel: 50W
Renogy Monocrystalline Solar Panel: 50W
- 08 -

Make sure the open circuit voltage of the solar panel does not exceed 25V or fall short of 12V.
CAUTION
The solar recharge time is highly dependent on solar irradiance and ambient temperature.
NOTE
Recharging via AC/DC Adapter
The PHOENIX 200 will begin to recharge automatically and one of the Battery Level LED Indicators will flash.
The flashing LED indicates the unit’s current battery level.
Plug your PHOENIX 200 into a wall outlet through the DC Input Port using the included AC/DC Adapter.
Electrical shock can occur if the MC4 to 5.5mm DC adapter cable is damaged or frayed. DO
NOT use a damaged or frayed cable to recharge your PHOENIX 200.
Recharging via Car Socket
The PHOENIX 200 will begin to recharge automatically and one of the Battery Level LED Indicators will flash.
The flashing LED indicates the unit's current battery level.
Plug your PHOENIX 200 into a car socket through the DC Input Port using the included Cigarette Lighter Plug
to 5.5mm DC Adapter Cable.
Electrical shock can occur if the AC/DC Adapter is damaged. DO NOT use a damaged AC/DC
Adapter to recharge your PHOENIX 200.
WARNING
WARNING
- 09 -

For some makes or models of vehicles, the car socket may not operate when the ignition is
turned off. In such cases, please start the engine before recharging your PHOENIX 200 via the
car socket
NOTE
Operating your PHOENIX 200 at high temperatures above 113 (45 ) or at low temperatures
below 32 (0 ) can result in battery performance degradation and service life shortening. For
optimal battery performance and maximum battery life, it is strongly recommended to operate
your PHOENIX 200 at room temperature.
CAUTION
Please disconnect your PHOENIX 200 from the car socket when starting the engine. Electric
surges from the alternator when starting may damage your PHOENIX 200.
CAUTION
The above estimation formulas only apply when the PHOENIX 200 has been fully recharged and
the device does not draw too much power.
NOTE
Operation Time
Electrical shock can occur if the Cigaretter Lighter Plug to 5.5mm DC Adapter Cable is damaged
or frayed. DO NOT use a damaged or frayed cable to recharge your PHOENIX 200.
WARNING
Battery Powered Devices:
Number of Full Charges =
37,800mAh x 0.95
The Battery Capacity of Device (mAh)
DC Powered Devices:
Working Hours =
189Wh x 0.95
The Rated Power of Device (W)
AC Powered Devices:
Working Hours =
189Wh x 0.85
The Rated Power of Device (W)
OPERATING YOUR PHOENIX 200
- 10 -

Actual number of full charges and working hours may vary from different powering methods and
device operation status.
NOTE
Powering Your Devices
Four Port Status LED Indicators respectively display the status of the AC Outlets, DC Output Port and CIG
Port, USB-C Port, as well as USB-A Ports.
Compatible Devices:
USB-A Ports: Smart Watch, Electronic Book, Smart Phone, Tablet, Action Camera, Digital Camera, Bluetooth
Speaker, Wireless Headphone, Drone, and other USB enabled devices.
To use the output port(s), first press the Main Power Button to turn on the PHOENIX 200. The Battery Level
LED Indicator(s) will illuminate to indicate the unit's current battery level. Then, press the corresponding Port
On/Off Button(s) to turn on the output port(s). The corresponding Port Status LED Indicator(s) will illuminate.
Lastly, connect your device(s) to the output port(s) for power. When not using the output port(s), long press
the corresponding Port On/Off Button(s) to turn it (them) off and the corresponding Port Status LED
Indicator(s) will go out.
When no device is connected to the PHOENIX 200, long press the Main Power Button to turn it off to conserve
energy.
When the battery level of PHOENIX 200 is lower than 10%, use of the AC Outlets will be automatically
disabled. Please use DC outputs to continue powering your devices.
When the battery voltage is excessive low, all the outputs will be cut off automatically. See TROUBLESHOOT-
ING for more details.
USB-C Port: Smart Phone, Tablet, Handheld Gaming Console, DSLR Camera, and other USB-C enabled
devices.
CIG Port: Portable Refrigerator, Car Vacuum, Car Air Fan, CPAP Machine and other car powered devices.
DC Output Port: LED Strip Light, Modem, Router, Motor, and other 12V DC powered devices.
AC Outlets: Laptop, Monitor, TV, Game Console, Inkjet Printer, Blue-ray Player, Light Bulb and other AC
powered devices.
All the output ports except USB-A Ports will be shut off if the PHOENIX 200 operates below 14
(-10 ). When this is the case, warm up the unit to avoid battery performance degradation
and service life shortening. See TROUBLESHOOTING for more details.
CAUTION
The PHOENIX 200 can provide up to 200W total continuous output. Allocate the outputs
rationally and follow the specifications of each output port. DO NOT overload your PHOENIX
200. If the total output power should exceed 200W, the AC Outlets will be shut off first, followed
by the DC Output Port and CIG Port. See TROUBLESHOOTING for more details.
WARNING
- 11 -

Battery high-temperature protection may be triggered when the PHOENIX 200 is operating at
full load. When this is the case, cool down the unit before resuming operation. See TROUBLE-
SHOOTING for more details.
CAUTION
When using the AC outlets of your PHOENIX 200, keep 4 inches of space on either side of the
unit to guarantee efficient heat dissipation of the inverter.
CAUTION
If any of the Ports Status LED Indicators flashes in an unusual way, your PHOENIX 200 may
need special attention. See TROUBLESHOOTING for help.
CAUTION
Some devices that require high current impulse may not be compatible with the PHOENIX 200
even though they do not exceed the power ratings of output ports.
NOTE
When the PHOENIX 200 is powering devices that have high power consumption, the battery
level can drop quickly. In this case, you may not get exactly 189Wh of energy.
NOTE
The PHOENIX 200 can be recharged and deliver DC power to your devices simultaneously.
However, AC power is not available when the PHOENIX 200 is being recharged.
NOTE
MAINTENANCE
Using the LED Flashlight
The LED Flashlights on both sides of the Folding Carrying Handle have four light modes: Bright (100%
brightness), Dim (50% brightness), Flashing, and SOS.
Press the Flashlight On/Off Button to turn on the LED Flashlights, switch light modes, and turn off the LED
Flashlights. You can also long press the Flashlight On/Off Button to turn off the LED Flashlights no matter
what mode are they in.
To prolong the service life of your PHOENIX 200, keep it away from harsh sunlight, water, dust, and dirt. DO
NOT leave your PHOENIX 200 outside under harsh environments.
If possible, keep your PHOENIX 200 connected to a power source when it is not being used and avoid using
large loads when the battery level is low.
To maintain a healthy battery, please recharge your PHOENIX 200 at least once every two months.
Keep your PHOENIX 200 away from corrosives, fire, and heat sources.
If you do not intend to use your PHOENIX 200 frequently, it is strongly recommended to keep its battery level
at around 50% and store it in a clean, dry and well-ventilated environment with temperatures around 77 (25
) and a humidity no higher than 75%.
- 12 -

TROUBLESHOOTING
If your PHOENIX 200 does not operate normally, please refer to the following table for a possible cause and
solution.
If the following troubleshooting solutions do not work, please contact us for help. Refer to the last page of User
Guide for contact information.
LED Indicators Possible Causes Solution
All Battery Level LED Indicators
flash twice per second
All Battery Level LED Indicators
and Port Status LED Indicators
flash twice per second
DC Input Port Overvoltage
DC Input Port Undervoltage
1.
Discharge High Temperature
Protection (Battery Temperature
65 )
1.
Discharge Low Temperature
Protection (Battery Temperature
-20 )
2.
Recharge High Temperature
Protection (Battery Temperature
50 )
3.
Recharge Low Temperature
Protection (Battery Temperature
0 )
4.
2.
Remove all connections
If the voltage rating of power
source does not fall in the
range of 12-25V, stop using
that power source to
recharge the unit.
1.
2.
Connect the unit to the power
source that conforms to the
specifications of DC Input
Port and the unit will resume
recharging automatically.
3.
Remove all connections.
Cool down or warm up the
unit to the room temperature.
1.
The last Battery Level LED
Indicator flashes twice per
second and the unit get shut off
afterwards
Battery Low Voltage Protection
1. Remove all output connections.1.
Press the Main Power Button
to restart the unit and press
the Ports On/Off Buttons.
2.
2.
If the unit was powering loads,
press the Port On/Off Button(s)
to turn on the output port(s)
again and reconnect the loads
to the unit.
3.
If the unit was recharging,
reconnect the unit to the power
source and the unit will resume
recharging automatically.
4.
- 13 -

If output ports can be turned
on, it means that the loads
drew too much power from
the unit and pulled down the
battery voltage. In this case,
only connect small loads to
the unit.
3.
4.
All Battery Level LED Indicators
and the Ports Status LED
Indicator of USB-A Ports flash
twice per second
USB-A Ports Overcurrent
2.6A)
USB-A Ports Short-circuit
Protection
1.
2.
Remove connections to the
USB-A Ports
1.
All Battery Level LED Indicators
and the Ports Status LED
Indicator of DC Output Port and
CIG Port flash twice per second
DC Output Port Overcurrent
6.5A)
1.
CIG Port Overcurrent
12.1A)
2.
DC Output Port Short-circuit
Protection
3.
Remove connections to the
DC Output Port and CIG Port.
1.
If the USB-A Ports were shorted,
remove the short circuit
immediately.
If none of the output ports can
be turned on, it means that the
unit should not continue
powering loads. In this case,
recharge the unit as soon as
possible to avoid permanent
damages to the battery.
2.
If the loads drew currents that
exceed the specifications of
USB-A Ports, stop powering
those loads via the USB-A
Ports.
3.
4. Press the Port On/Off Button
to turn on the USB-A Ports
again and connect only the
loads that conform to the
specifications of USB-A Ports
to the unit.
If the DC Output Port or CIG
Port was shorted, remove the
short circuit immediately.
2.
If the loads drew currents that
exceed the specifications of DC
Output Port or CIG Port, stop
3.
- 14 -

CIG Port Short-circuit
Protection
4.
DC Output Port Reverse
Current Protection
5.
powering those loads via the
DC Output Port or CIG Port.
All Battery Level LED Indicators
and the Ports Status LED
Indicator of USB-C Port flash
twice per second
USB-C Port Overcurrent
3.3A)
1. Remove the connection to the
USB-C Port
1.
All Battery Level LED Indicators
and the Port Status LED
Indicator of AC Outlets flash
twice per second
AC Outlets Overload Protection
1.
AC Outlets Short-circuit
Protection
2.
Inverter Over Temperature
Protection (Inverter
/95
3.
Remove all output connections.1.
If the AC Outlets were shorted,
remove the short circuit
immediately.
2.
If the loads drew power that
exceeds the specifications of
AC Outlets, stop powering
those loads via the AC Outlets.
3.
If the load drew a current that
exceeds the specifications of
USB-C Port, stop powering that
load via the USB-C Port.
3.
Press the Port On/Off Button to
turn on the USB-C Port again
and connect only the load that
conforms to the specifications
of USB-C Port to the unit.
4.
If the power source was
connected to the DC Output
Port, disconnect the power
source and recharge the unit via
the DC Input Port instead.
4.
Press the Port On/Off Button to
turn on the DC Output Port and
CIG Port again and connect
only the loads that conform to
the specifications of DC Output
Port and CIG Port to the unit.
5.
If the USB-C Port Port was
shorted, remove the short
circuit immediately.
2.
USB-C Port Short-circuit
Protection
2.
- 15 -

If the unit has been operating
at high loads or at high
temperatures for a long time,
cool down the unit to room
temperature.
4.
All Battery Level LED Indicators
and the Port Status LED
Indicators of all operating output
ports flash twice per second
Total Output Overload
200W)
1. Reallocate the outputs to
keep the total output power
under 200W.
1.
Press the Port On/Off
Button(s) to turn on the output
port(s) again and connect only
necessary loads to the unit.
2.
Press the Port On/Off Button to
turn on the AC Outlets again
and connect only the loads that
conforms to the specifications
of AC Outlets to the unit.
5.
First, make sure the unit has been turned on by pressing the Main Power Button. Then check the battery level
of unit. If the last Battery Level LED Indicator is flashing, please recharge the unit as soon as possible. If not,
make sure the output ports have been turned on by pressing the corresponding Ports On/Off Buttons. Finally,
check if the connected device conforms to the specifications of output ports. If the unit still can’t power your
devices, see TROUBLESHOOTING or contact us for help. Refer to the last page of User Guide for contact
information.
FREQUENTLY ASKED QUESTIONS
1. Why doesn’t my PHOENIX 200 power other devices?
No, the battery pack in PHOENIX 200 is not replaceable. Do not try to dismantle your PHOENIX 200 and
replace the battery by yourself. Doing so may cause irreversible damages to the unit and battery explosion.
2. Can I replace the battery pack in my PHOENIX 200?
No, the PHOENIX 200 cannot be chained with other power stations. If you are looking for a rechargeable AC
power supply with larger capacity, please visit our official website or contact us for more options. Refer to the
last page of User Guide for contact information.
3. Is the PHOENIX 200 chainable?
- 16 -

No, the PHOENIX 200 is not waterproof. Please keep the unit away from moisture. Do no submerge the unit
in water or operate the unit in the rain. Doing so may cause short-circuits, electric shocks, and fire.
4. Is the PHOENIX 200 waterproof?
The battery capacity is rated at 0.2C. When the PHOENIX 200 is powering devices that have high power
consumption, the internal resistance of battery will turn more energy into heat and lower battery capacity as
a result. When this is the case, you may not get exactly 189Wh of energy.
5. Why doesn’t the battery of PHOENIX 200 last as long as I expect?
WARRANTY
RENOGY products are covered by a 12-month limited warranty from the original purchase date. If any
problems occur, please contact us for assistance. Refer to the last page of User Guide for contact information.
We only provide after-sales services for products that are sold by RENOGY or retailers and distributors
authorized by RENOGY. If you have purchased your unit from other channels, please contact your seller for
more information about return and warranty.
Please register your purchase(s) directly at www.renogy.com/warranty-registration or your region’s
corresponding website so that we can stay in touch and contact you in the unlikely event that a safety recall
is required.
- 17 -

- 18 -
Model: R200PHX

- 19 -
