Renown REN08006-VP User manual

VF53023MB
All Metal Construction • 1500 RPM - 20" Deck
• Heavy Duty 1.5 HP Motor - DC Rectified • Flexible Pad Driver
• Safety Lock-Out Switch • 50' Cord • Large Transport Wheels
• Warranty
1500 RPM BURNISHER
R
www.GoRenown.com
REN08006-VP
883076
REV.04(08-2013)
VF53023MB

Specifications:
• Model: REN08006-VP
• Power: 1.5 hp
• Deck Size: 20" (50.8 cm)
• Voltage: 110 volt
• Speed: 1500 rpm
• Power Cable: 50 ft. (15.2 m) safety
yellow
• Weight: 88 lbs (39.9 kg)
• Amp Draw: 13.5 amps
• Warranty: 5 years motor.
5 years metal components.
! WARNING !
IMPORTANT SAFETY
INSTRUCTIONS
Carefully read and understand this
manual before operating this
machine.
This machine must be grounded!
This floor/finishing machine shall be
grounded while in use to protect the
operator from electric shock.
Grounding provides a path of least
resistance for electric current. This
machine is equipped with a cord
having an equipment-grounding con-
ductor and grounding plug. The plug
must be plugged into an appropriate
outlet that is properly installed and
grounded in accordance with all local
codes and ordinances. Do not remove
the ground pin under any circum-
stances.
This machine is for use on a nominal
120-volt circuit and has a grounding
plug that resembles the plug illustrated
in Figure 1. Make sure that the
machine is connected to an outlet
having the same configuration as the
plug. No adapter should be used with
this machine.
This machine is intended for commer-
cial use. It is constructed for use in an
indoor environment and is not intended
for any other use. Use only recom-
mended accessories.
1. Do not operate machine:
– Unless trained and authorized.
– Unless you have read and under-
stand the operators manual.
– In flammable or explosive areas.
– With a damaged cord or plug.
– If not in proper operating condition.
– In outdoor areas.
– In standing water.
– With the use of extension cords.
2. Before operating machine:
– Make sure all safety devices are in
place and operating properly.
3. When using machine:
– Do not run machine over cord.
– Do not pull machine by cord or
plug.
– Do not pull cord around sharp
edges or corners.
– Do not unplug by pulling on the
cord.
– Do not stretch cord.
– Do not handle plug with wet hands.
– Keep cord away from heated
surfaces.
– Report machine damage or faulty
operation immediately.
4. Before leaving or servicing
machine:
– Turn off machine.
– Unplug cord from outlet.
5. When servicing machine:
– Unplug cord from outlet.
– Use manufacturer supplied or
approved replacement parts.
To avoid electric shock,
please replace the power cord
immediately if any damage is detected.
Repairs must be performed only by
authorized and ualified persons.
1500 RPM BURNISHER

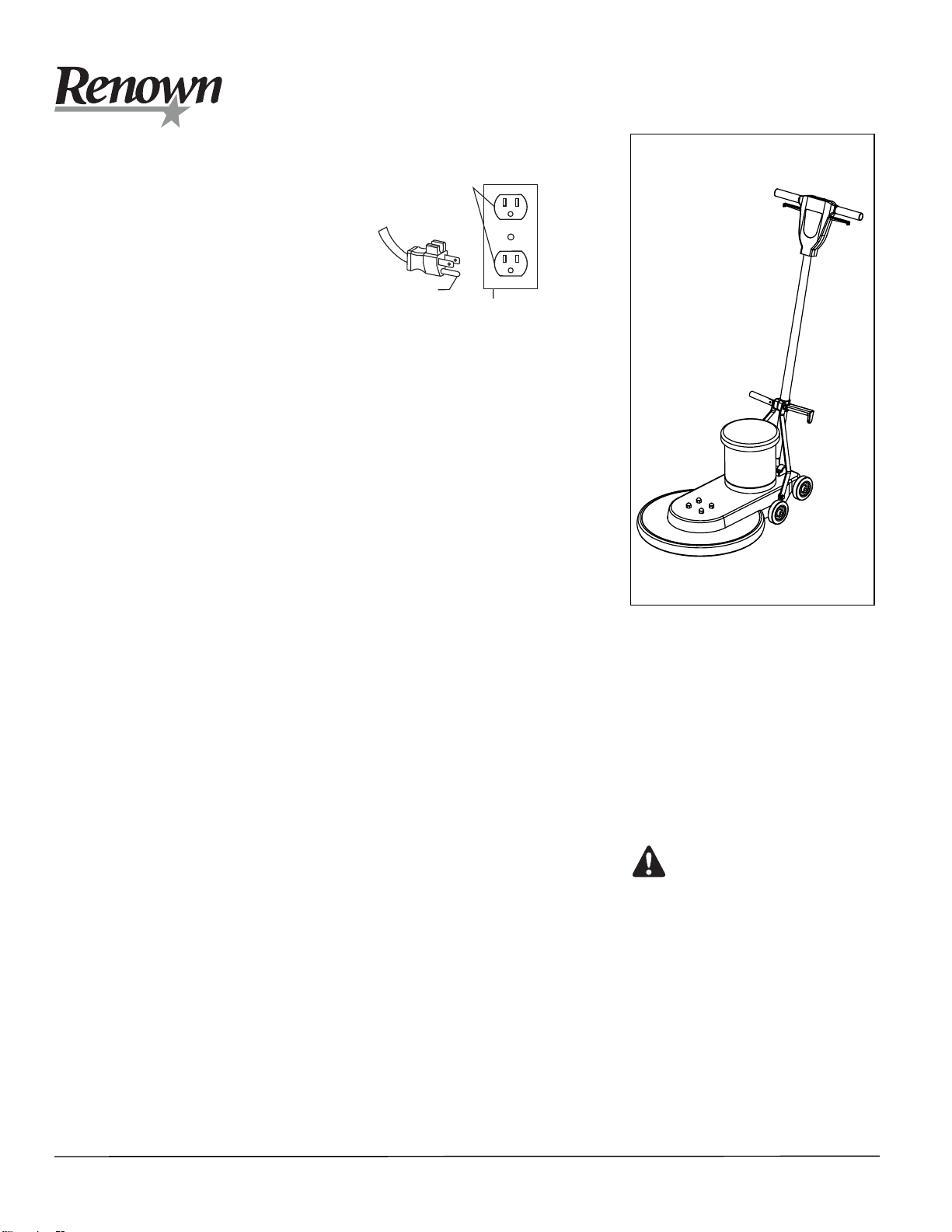

SAFETY PRECAUTIONS
Grounded
Outlet Box
Grounded
Outlet
Prong or
Grounding Pin
Figure 1
R
www.GoRenown.com
2
R
q

1500 RPM BURNISHER
OPERATING INSTRUCTIONS
General Use:
1. Remove any obstructions or other
obstacles in the area which is to be
cleaned.
2. Place the handle in the upright
position and tilt machine back until
handle rests on the floor.
Be sure the machine is not plugged
into an outlet.
3. Attach the pad to the machine by
first unscrewing the male end of the
“big mouth” from the flexible pad
driver. Place the approved pad on
the pad driver, place the male end
of the “big mouth” into the center
hole of the pad, and tighten the “big
mouth” firmly to the pad driver.
4. Place machine back into its upright
position.
5. Plug power cord into a grounded
outlet.
Never use an extension cord in con-
junction with the standard power cord.
6. The handle height may be adjusted
by lifting up the compression handle
which is located on the right side of
the handle tube about 1 foot above
floor level. Release the compression
handle and adjust handle to safe
operating height, then push back
down on the compression handle
to lock the handle in operating
position.
7. To start the machine, press the
red safety button on the top of the
upper switch housing, and then
squeeze either of the operating
triggers. (the safety button must be
depressed prior to squeezing the
operating triggers).
8. When the machine is in operation,
both hands should be placed on the
switch housing (upper handle).
9. To stop the machine at any time,
simply release the operating trig-
ger(s) and the machine will stop
automatically.
Maintenance:
To keep the machine performing
well for many years, please follow
the following maintenance proce-
dures.
Always confirm that the machine is
unplugged prior to performing any
maintenance or repairs.
1. Unplug machine as soon as you are
done using it.
2. Clean the outside of the machine
with a mild cleaner.
3. Check power cord for any damage.
If damage is detected, replace
power cord immediately.
4. Lubricate wheels with a water
resistant lubricant once a month.
5. Check machine for loose or missing
nuts and bolts, and replace as
necessary.
6. If the machine is used in a dusty
environment, you may remove the
motor cover and blow the motor
clean with compressed air. This will
ensure proper ventilation, and allow
the motor to run cooler.
Storage:
1. Unplug machine from power source
and wrap cord on handle.
2. Tilt machine so the pad is not
touching the floor.
3. Store machine in upright position
and in a dry area.
R
www.GoRenown.com
3

1500 RPM BURNISHER
HANDLE GROUP
R
www.GoRenown.com
4

VF300142
20x2.5 2
14 VF30016 HANDLE RELEASE 1
13 VF30017 SCREW PIN, HANDLE RELEASE 1
12 VF30018 WASHER, PLAIN,HANDLE RELEASE 2
11 VF300152 BOLT, HANDLE RELEASE 1
10 AS41902 PLUG PROTECTOR, LARGE FEMALE 1
9 VF45120 CORD, HANDLE, 14/3C 1
8 VF50120 GROMMET 1
7 VF30011B CLAMP BLOCK, HANDLE 2
6 VF14053 HEX SOCKET SCREW, M6x25 4
5 VF13504 NUT, M10, NYLON INSERT 1
4 VF30027 WASHER, PLAIN,
3
2 VF13493 SCREW, M6x10, HEX SOCKET 1
1 VF53109A TUBE HANDLE 1
1500 RPM BURNISHER
HANDLE GROUP PARTS LIST
R
www.GoRenown.com
5
37 AS22010 FRONT COVER, HANDLE 1
39 VF14222 SCREW, M5x12 4
38 VF47035S LABEL 1
36 AS22004S LEVER, RIGHT, SWITCH 1
35 VF14212 SCREW, M3x25 2
34 VF13511 WASHER, LOCK, INTERNAL TOOTH 2
33 VF44203 SWITCH ASSY 1
32 VF45124 JUMP WIRE 1
31 VF99010C CIRCUIT BREAKER, 17AMPS 1
30 AS312203 COVER, LEVELING HANDLE 1
29 GV40209 SAFETY BOTTON 1
28 GV40218 SPRING, SAFETY BUTTON 1







 







  

  


>?
>?>?
>?
¶10x¶
17
18 GV40238H COVER, LEVER, SOLUTION 1
19 VF48310 HANDLE GRIP 2
20 AS22005S LEVER, LEFT, SWITCH 1
21 VF13661 SCREW, M4x12 2
22 VF48309 CLAMP BLOCK 1
23 VF45119 CORD, POWER SUPPLY 1
24 AS22009 STRAIN RELIEF, CORD, POWER SUPPLY 1
25 GT13009 SCREW, M5x30 5
26 AS22012 REAR COVER, HANDLE 1
27 GT13008 SCREW, M5x20 2
16 VF13604 EXTERNAL TOOTH WASHER, ¶5 4
BUTTON
15 VF13570
VF40169
1
1
1
CORD WRAP BLOCK
PIN
CONNECTION PLATE

1500 RPM BURNISHER
BASE GROUP
R
www.GoRenown.com
6

4 VF53112 BRACKET, LEFT 1
1500 RPM BURNISHER
BASE GROUP PARTS LIST
DIA PART DESCRIPTION NO
NO NUMBER REQ’D
ZD41000S
2 VF99926-2 CARBON BRUSH 1
3 VF99926-1 RECTIFIER 1
5 VF53104 AXLE, TRANSPORT 1
6 VF53106 SPACER, WHEEL, TRANSPORT 1
7 VF13520 RETAINING RING, EXTERNAL, M12 2
8 VF50119 WAVE WASHER, M12 2
9 VF48202 WHEEL, 5" 2
10 VF13666 WASHER, PLAIN, M12 2
11 VF44012 SCREW, M6 x 12.7 2
12 VF53105 SPACER, WHEEL, FRONT AXLE 1
13 VF53103 FRONT AXLE 1
14 VA13474 SCREW, M5 x 16, PH 2
15 VA13474A WASHER, PLAIN, M5 x 16 2
16 VF13517 WASHER, PLAIN, M10 12
17 VF13518 WASHER, LOCK, M10 8
18 VF13497 SCREW, 16G, 3/8", HEX 4
19 VF14002 HEX SCREW, M10 x 65 1
20 VF14005 NUT, M10, HEX 1
21 VF52008 SPACER, DRIVING PULLEY 1
24 VF13519 WASHER, LOCK, M8 2
25 VF14008 SCREW, 18G, 5/16", HEX 1
26 VF99003A BIG MOUTH 1
27 VF13484 ST4 x 12, PH 3
29 VF99024D PAD HOLDER 1
31 VF52004A DRIVEN PULLEY 1
32 VF14075 BEARING, 6004 2RS 2
33 VF52006 SPACER, BEARING 1
34 VF14003 RETAINING RING, INTERNAL, M42 2
35 VF52001 KEY, DRIVEN SHAFT 1
36 VF52005 DRIVEN SHAFT 1
37 VF14007 HEX SCREW, M10 x 32 4
38 VF52007 MOUNTING PLATE, DRIVEN SHAFT 1
39 AS321203 BUMPER, FRAME 1
40 VF53101S FRAME 1
41 VF14059 CAP NUT, M10 4
42 VF14004 RETAINING RING, EXTERNAL M19 2
43 VF50123 WASHER, M19 2
continued on next page
R
www.GoRenown.com
7
1
MOTOR,120V
1
VF52009G
22
1
DRIVING PULLEY
VF52021
23
1
WASHER,PLAIN, 8 X 30 X 5
ФФ
GT13018
28
SCREW M8 X 30
1
VF14079B
30
VEE BELT
1

49 VF531131 BRACKET, RIGHT 1
1500 RPM BURNISHER
BASE GROUP PARTS LIST
DIA PART DESCRIPTION NO
NO NUMBER REQ’D
44 VF47027 WAVE WASHER, M19 2
45 VF47055 WHEEL, 160MM 2
46 VA96851 CAP, FRONT AXLE 2
47 VF53107 HEX SCREW, BRACKET 2
48 VF13514 WASHER, PLAIN, M8 x 16 2
51 VF99924 KEY, MOTOR 1
52 VF41079 RENOWN LOGO, PVC 1
WIRING DIAGRAM
R
www.GoRenown.com
8
AS41901
50
PLUG PROTECTOR SMALL MALE
1

1500 RPM BURNISHER FOR PURCHASE,
SERVICE AND SUPPORT INFORMATION
www.GoRenown.com
R
VISIT www.GoRenown.com
9
