Renown REN08026-VP User manual

Rotationally-molded polyethylene tanks
High coverage rate
Twist lock spray jets
Easy to service design
Simple, easy-to-use controls
Cylindrical brush
Well balanced
Compact Design
www.GoRenown.com
REN08026-VP CARPET EXTRACTOR
•
•
•
•
•
•
•
•

TABLEOFCONTENTS
Machine Components3
SafetyPrecautions4
Machine Set Up5
Machine Operation 5-6
Machine Maintenance&Storage6-7
Troubleshooting 8
PartsLists9-20
Wiring Diagram21
2
www.GoRenown.com

13
4
6
7
8
9
10
11
5
2
MACHINECOMPONENTS
1)Vacuum/ pumpon/off switch
7)Sprayjets
2)Brushcircuitbreaker
8)Brushassembly
3)Brush/ sprayon/off button
9)Pickuphead
4)Drainhose
10)Solutiontankfill port
5)Accessorytoolsolutionhookup
11)Recoverytanklid
6)
Br
ushraise andlowerfoot pedal
3
www.GoRenown.com

pet
SAFETYPRECAUTIONS
GROUNDING INSTRUCTIONS
General Thiscarextraction
machine shallbe groundedwhilein
usetoprotect the operatorfrom
electricshock. The machineis
provided withathree-contact
groundingtype attachment plugtofit
the propergrounding typereceptacle.
The green (orgreen &yellow)
conductorinthe cordisthe grounding
wire. Neverconnectthiswiretoother
than the grounding pinof the
attachment plug.
Thismachine isforuseonanominal
120-volt circuit andhasagrounding
plugthatresemblesthe plug illustrated
infigurebelow. Makesurethatthe
machine isconnectedtoan outlet
havingthe sameconfiguration asthe
plug. Noadaptershouldbeused with
thismachine.
Thismachine isintended for
commercialuse. Itisconstructed for
useinan indoorenvironment and is
notintended foranyotheruse. Use
onlyrecommended accessories.
Alloperatorsshallread, understand
and exercisethe following safety
precautions:
1)Donotoperatemachine:
-Unless trained and authorized
-Unless you haveread and
4
understand operatorsmanual
-Inflammableorexplosiveareas.
-Withdamaged ormodified cord
orplug.
-If notinproperoperating
condition.
-Inoutdoorareas.
-Instanding water.
-Without filtersinplace.
-Withthe useof unapproved
extension cords.
2)Beforeoperatingmachine:
-Makesureallsafetydevicesare
inplaceand operateproperly.
3)Whenusingmachine:
-Mixand handleanychemicals
according tomanufacturer’s
recommendations
-Donotrun machine overcord.
-Donotpullmachine bycordor
plug.
-Donotpullcordaround sharp
edgesorcorners.
-Donotunplug bypulling onthe
cord.
-Donot stretchcord.
-Donothandleplug withwet
hands.
-Keep cordawayfromheated
surfaces.
-Donot pick up flammable
materialsorreactivemetals.
-Report machine damage orfaulty
operationimmediately.
4)Beforeleavingorservicing
machine:
-Turnoff machine.
-Unplug powercordfromoutlet.
5)Whenservicingmachine:
-Unplug cordfromoutlet.
-Usemanufacturersupplied or
approvedreplacement parts.
-Avoidmoving parts.Don’t wear
looseclothing.
www.GoRenown.com

SLIDEREXTRACTORSETUP
!!!Readoperatorsmanual
thoroughlypriortooperatingor
servicingthismachine!!!
Carefullycheck the shipping carton for
signsof damage. Reportanycarton
damage tocarrierimmediately.
Check cartoncontentstoensure
carton iscomplete.Contact yourViper
distributorif anything ismissing.
Contents:
•Carpet Extractor
•Short “bleeder”vacuumhose
•50’extensionpowercable
!!!Readoperatorsmanual
thoroughlypriortooperatingor
servicingthismachine!!!
1)Using ahoseorbucket, filltank
withamaximumof 10 gallonsof
hot water.
2)Add distributorrecommended
cleaning solution
!!!Donotuse flammableliquids
oroperatemachineinornear
flammableliquidsorvapors!!!
3)Connect thesupplied extension
powercabletothemachine. Plug
cordintoagroundedwalloutlet.
(see groundinginstructions)
4)Drop the brushhead tothe floor
withthe footreleasepedalon the
back of themachine.
5
MACHINEOPERATION
PRIORTO EXTRACTING CARPETS
1)Inspect powercableand extension
cablefordamage. Replacecableif
damage isfound.
2)Vacuumcarpet toremovedebris
priortoextracting carpet.
CARPETEXTRACTING
1)Turnon vacuum/ pumpswitch.
NOTE: Solution will onlyspray
when the brush/ spraybutton is
pushed.
2)Tostart cleaning, pushthe brush/
spraybutton andbegintopullthe
machine backwards.
NOTE: Forbest cleaning results,
pull back on the machine at apace
of approx. 10 feet in15 seconds.
3)Releasebrush/ spraybutton at the
end of thepath, and continue topull
machine back foranother12 inches
topick up excess solution.
4)Tipmachine back ontothe
transport wheelsand pushforward
tobeginnext path.
OPERATING HINTS
1)Overlap cleaning pathbyapprox. 2
inches
2)Workawayfrompoweroutlet and
powercableinordertoavoid
damage tothe powercable.
www.GoRenown.com

3)Continuallycheck forfoambuildup in
recoverytank. Useadistributor
recommended foamcontrolsolution.
NOTE: Excessivefoambuildup will not
activatethe float shut-off and maycause
damage tothe vacuummotor.
4)Repeat extraction pathonheavily
soiled areas.
5)If brushstopsspinning, theremaybe
an obstruction inthe brush. Unplug
the powercable,raisethebrushoff
the floorand check foranobstruction.
Check &reset thebrushcircuit
breakerlocatedon thecontrol
housing.
6)Whenrecoverof the dirtysolution
ends, orthe solution tankisempty,
you must drainthe recoverytank.
(see TANKDRAINING)
USE OFACCESSORYTOOLS
NOTE: Priortocleaning upholstery, be
suretoread cleaning instructions
provided bythe manufacturer.
1)Disconnect black vacuumhoseoff
the back right side of the machine.
Connect (optional)accessory
vacuumhosetoarea wherethe
standardvacuumhosewasremoved.
2)Connect (optional)accessory
solutionhosetobrass quick connect
couplerlocated onthe back of the
machine.
3)Connect (optional)accessorytoolto
solutionand vacuumhoses.
4)Turnon vacuum/ pumpswitch.
5)Operateaccessorytoolsasneeded.
6)Whencleaning iscompleted, relieve
waterpressurefromsolution linesby
turning off vacuum/ pumpswitchand
then squeezetriggerfor4seconds.
DRAINING TANKS
DRAINING SOLUTIONTANK
1)Disconnect vacuumhosefromback
of machine and connect the “bleeder”
vacuumhose(included withmachine)
tothe machine back.
2)Removethe solution tankfilterat the
fillarea andplaceend of “bleeder”
hoseintothe bottomof the tank.
3)Turnon vacuum/ pumpswitch&
vacuumout the remaining solution.
DRAINING RECOVERYTANK
1)Turnoff machine, unplug andremove
powercable.
2)Unhookdrainhoseoff theback ofthe
machine and removedrainhose
stopper.
3)Draindirtysolution intofloordrain.
4)Replacedrainhosestopperand
reattachhosetoback ofmachine.
MACHINEMAINTENANCE
Tokeep the machine performing well
formanyyears, pleasefollowthe
followingmaintenanceprocedures.
!!!Alwaysconfirm thatthe
machineisunpluggedpriorto
performinganymaintenance or
repairs!!!
6
www.GoRenown.com

f
DAILYMAINTENANCE
1)Whencleaning operation iscomplete
forthe day, drainandrinsethe
recoverytankthoroughlywithclean
water.
2)Removeremainingsolution from
solutiontank.
3)Removefloatshut-off (ping pong ballin
cage)fromrecoverytankand clean
withwater.
4)Removeand inspectbrass sprayjets.
If necessary, clean jetsinaceticacid
solution.
NOTE: Donot cleanbrass jetswitha
pointed object, asit will damage the jets.
5)Check brushassembly&removeany
debrisorcarpet fibers.
6)Check pick up head andremoveany
debrisorcarpet fibers.
7)Check condition of the stainless steel
pickupshoeson the pickup head.The
shoesmust contact the floorforthe
wholelengthof the pickup head.
Replaceasnecessary.
8)Clean machinewithanonabrasive
cleaner.
9)Inspect powercableforanydamage.
Replaceif necessary.
MONTHLYMAINTENANCE
1)Flushpump&plumbing withanacetic
acidsolution todissolveanychemical
buildup.
Mixing Instructions:
a)Premix16 oz. oan aceticacid
solutionwith2gallonsof waterand
pourintosolution tank.
b)Turnvacuum/ pumpswitchon
c)Put machine headoverfloor
drainandoperatemachine for50
seconds.
d)Shut machine downand allow
remainingsolution tositinmachine
overnight.
e)Thefollowing day, sprayout
remainingsolution and flushsystem
againwith3gallonsof clean water.
2)Inspectmachine forwaterleaks.
3)Lubricatewheelswithawater
resistancelubricant.
4)Check machine forlooseormissing
nuts, screwand boltsand replaceas
necessary.
MACHINESTORAGE
1)Priortostoring themachine, ensure
the solution and recoverytanks are
cleanand emptyof anysolution.
2)Storemachine inupright position ina
dryarea, withthebrushheadoff the
floor.
3)Removerecoverytankclearlidtoallow
foraircirculation.
NOTE: If you arestoring the machine in
an areawhichcan freeze, be sureboth
tanks and the solution plumbing areempty
of all waterand dry!
7
www.GoRenown.com

BASICTROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Machine doesn't work Not plugged intopowersource Plug intoagrounded outlet
Faultypowercable Contact Distributor
Faultyextension powercable Replacewithnewextension power
cable
Building circuitbreakertripped Reset circuit breaker
Solution pumpnot
working Vacuum/ pumpswitchnot on Turnon switch
Vacuum/ pumpswitchfaulty Contact Distributor
Faultysolenoid Contact Distributor
Faultysolution pump Contact Distributor
Pumpoverheated Determine causeand allow30
minutesforpumptocool
Looseorbroken wiring Contact Distributor
Vacuummotornot
working Vacuum/ pumpswitchnot on Turnon switch
Vacuum/ pumpswitchfaulty Contact Distributor
Vacuummotorthermaloverload
tripped
Check forobstruction and allow30
minutestocool
Faultyvacuummotor Contact Distributor
Worncarbon brushes Contact Distributor
Looseorbroken wiring Contact Distributor
Poorpickup Airleaking around clearrecovery
lid Ensurerecovery lidisfirmlytightened
Clogged floatshut-off Removefloat shut-offand clean off
debris
Floatshut-off isactivated Drainrecoverytank
Loosedrainhosestopper Ensurestopperissecurelyinplace
Loosevacuumhoseconnections Ensurevacuumhoseconnections
aretight
Defectivevacuumhose Replacevacuumhose
Loosevacuumhosecuffs Ensurecuffsaresecuretothe hose
Damaged orloosepickup head
shoes Contact Distributor
Pulling machine too fast Slowdowncleaning operation
Uneven orno solution
spray Solution tankisemptyorlow Fillsolution tank
Vacuum/ pumpswitchnot on Turnon switch
Dirtyorplugged spraytips Clean orreplacespraytips
Improperspraytipsizeorspray
angle Contact Distributor
Wornspraytips Contact Distributor
Faultysolution pump Contact Distributor
Plugged solution tankfilter Clean orreplacefilter
Pinched orkinked solution hose Check forobstructionsand kinksand
rerouteorreplaceif needed
8
www.GoRenown.com

Solution and RecoveryTankAssembly
9
www.GoRenown.com

Solution and RecoveryTankAssemblyPartsList
DIANO PART
NUMBER DESCRIPTION NO REQ'D
1 VV67161 CLEARDOME, FRICTIONFIT 1
2 VV67163 GASKET, CLEARDOME 1
3 VV96002 SEAT SCREWINLID 1
4 VV67109 BEND, TUBE 2
5 VV67301 COUPLER 2
6 VV67302 GASKET, COUPLER 1
7 VV67108 ELBOW 1
8 VF81226 COUPLERVACHOSE 1
9 VV67705 DRAINHOSE 1
10 VV67113-1 VACHOSE 1
11 VV10113 CLAMP, HOSE 2" 2
12 VV20509 SCREW, RHMM5X10 SST 4
13 VV13601 WASHER, LOCK, SST Ø5 2
14 VV50712 CLAMP, CORD 3
15 VV67503 SWITCH 1
16 VV67509 BUTTON, SWITCH 1
17 VV67504 CIRCUITBREAKER, 2A 1
18 VF14126 SCREW, M5X12, HEX 3
19 GV40215 CORD WRAP 1
20 VV67111 CLAMP, DRAINHOSE 1
21 VV67501 SWITCH HOUSING 1
22 VF99008 STRAINRELIEF1
23 VV13511 WASHER, TEETH, ¢3 2
24 VF14212 SCREW, M3X25 2
25 VV67507TR CORD 1
26 VV67116TR POWERCORD 2
27 VV67505 BUSHING, CORD, 90°1
28 VV13652 NUT, LOCK, M3 2
29 VV67508 BRACKET, SWITCH 1
30 VV20291 WASHET, LOCK, ¢4 2
31 VF13491 SCREW, M4X12 2
32 VF44203 SWITCH ASSY 1
33 VV67105 CONNECTOR 1
34 GT13032 WASHER, PLAIN, Ø6XØ16X1.5 1
35 VV13607 WASHER, LOCK, SST Ø6 1
36 GT13056 SCREW, M6X16, PH 1
37 VV80128 BARB, HOSE 1
38 VV80115 ELBOW, STRECT45°1
39 VV80125A NUT, COUPLING 1
40 VV20667 WASHER, LOCK, INTERNALTOOTH 1
41 VV60509 GASKET, SOLUTION, INTAKE 1
42 VV20276 WASHER, PLAIN1
10
www.GoRenown.com

Solution and RecoveryTankAssemblyPartsList
DIANO PART
NUMBER DESCRIPTION NO REQ'D
43 VV80125 COUPLING 1
44 VV10411 STRAINER, LINE 1
45 VV67101 SOLUTIONTANK 1
46 VF47035TR LOGO 1
47 VV67107 FILTER 1
48 VA13471 SCREW, ST5X10 2
49 VV67102 RECOVERYTANK 1
50 VF81504 FLOAT, SHUT-OFF 1
51 VV67305 BEND 1
52 VV13664 WASHER PLAIN ¢4¢12X1 4
53 VF13491 SCREW M4X12 SST 2
54 VV67162 RUBBERHINGE 1
55 VF81403A ELBOW, 90º, BRASS 1
56 VV67708 TUBING 1
57 VF82090 CLAMP(16-20) 1
58 VV67711 ELBOW, 90º, BRASS 1
59 VV67118TR LABEL, RIGHT 1
60 VF80331 DECAL,WARNING 1
61 VV67119TR LABEL,LEFT 1
62 VF99010C CIRCUITBREAKER,17A 1
63 VA20104A PLUG DRAINHOSE 1
64 VA13477 SELF-TAPPING SCREW ST4X16 2
11
www.GoRenown.com

www.GoRenown.com

DIA NO PART
NUMBER DESCRIPTION NO REQ'D
1 RD80208 COUPLER,QUICK CONNECT 1
2 VV20274 WASHER,PLAIN,Ø13.5XØ32X1.5 1
3 VV20274A WASHER,PLAIN,Ø14XØ32X1.5 1
4 VV80115 ELBOW,STRECT,45°1
5 VV80128 BARB,HOSE 2
6 VV10114 CLAMP,HOSE,3/8" 6
7 VV67114 HOSE,HIGH PRESSURE 1
8 VV67607 BARB,PUMP 1
9 VV67604 SOLUTION SOLENOID,110V/60HZ 1
10 VV67606 CONNECTOR,THREE-WAY 1
11 VV67603 CONNECTOR 1
12 VV67602 BARB,PUMP 1
13 VV67601 MOUNTING FRAME,PUMP 1
14 VV67605 PUMP,115V,100PSI 1
15 VF81503 GASKET,VAC MOTOR 1
16 VV67154 VAC MOTOR,3-STAGE,120V 1
17
GT13032
WASHER,SST,PLAIN,Ø6XØ16X1.5
11

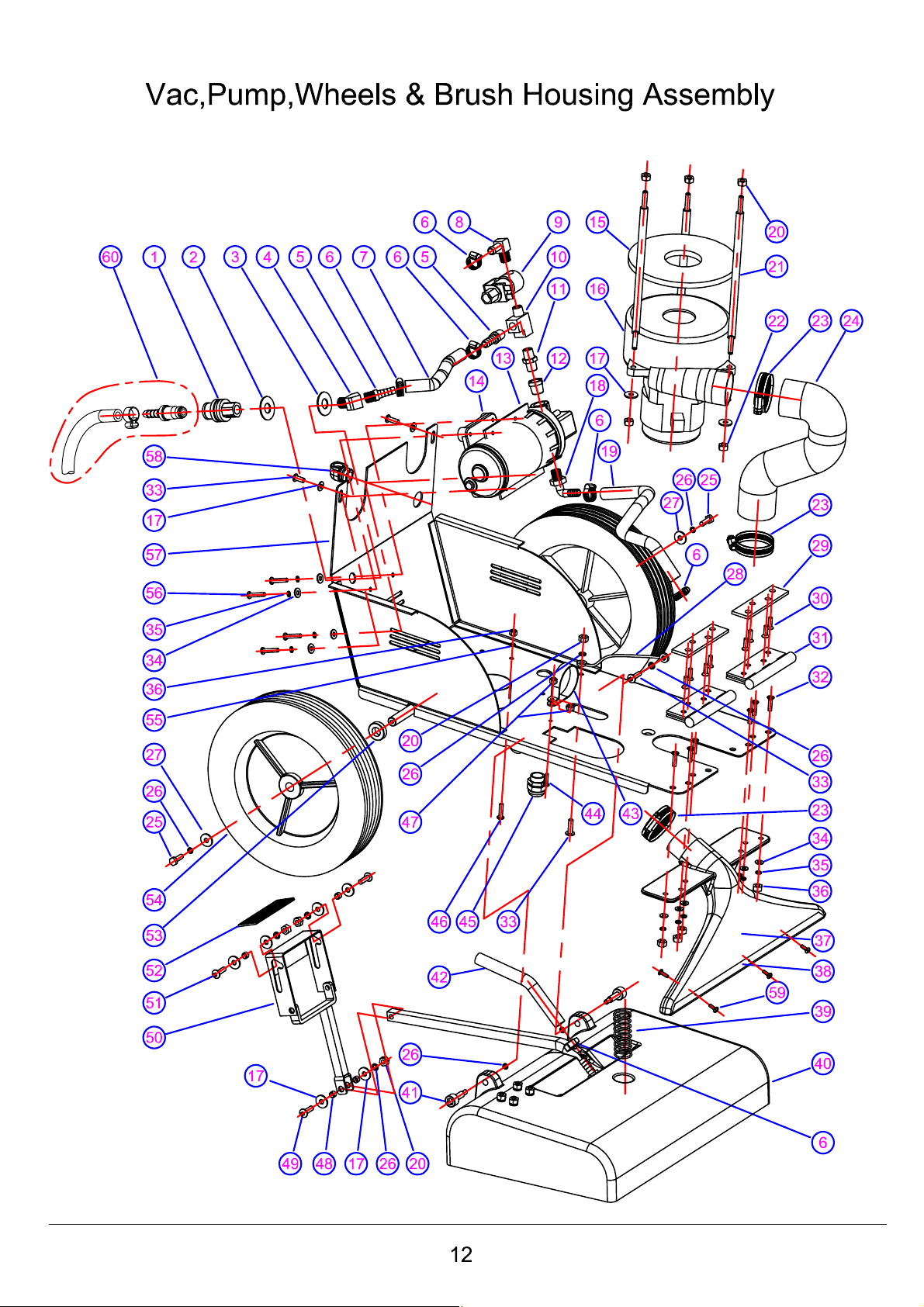

Vac,Pump,Wheels&Brush Housing Assembly Parts List
17
GT13032
WASHER,SST,PLAIN,Ø6XØ16X1.5
11
18 VV80210 BEND,NYLON,PUMP 1
19 VV67117 HOSE,SOLUTION 1
20 VF13521 NUT,SST,M6 6
21 VF81508 STUD 3
22 VF14506 NUT,LOCK,SS,M6 3
23 VV10113 CLAMP,HOSE 2" 3
24 VV67152 EXHAUST HOSE,Ø48 1
25 VF13495 BOLT,M6X16,HEX 2
26 VV13607 WASHER,LOCK,Ø6 11
27 VF13551 WASHER,SST,PLAIN,Ø6XØ22X1.5 2
28 VF82028 CABLE 1
29 VV67104 SPACER 2
30 VF13512 SCREW,FH,M5X15,SST 8
31 VV60406S HINGE,SST,4" 2
32 GT13058 SCREW,FH,SST,M5X22 6
33 GT13056 SCREW,SST,PH,M6X16 4
34 VF13474A WASHER,SST,PLAIN,Ø5XØ15X1 10
35 VV13601 WASHER,LOCK,Ø5 10
36 VV13633 NUT,SST,M5 7
37 VV67140 CARPET PICK-UP TOOL 1
38
VV67142
STAINLESS STEEL SHOES
2
38
VV67142
STAINLESS STEEL SHOES
2
39 VV67407 SPRING 1
40 VV67400 MOUNTING BASE ASSY,BRUSH 1
13
www.GoRenown.com

DIA NO PART
NUMBER DESCRIPTION NO REQ'D
41 VV67110 SHOULDER SCREW 2
42 VV67115 HOSE,SPRAYING 1
43 VV67120 CLAMP 1
44 VA13473 SCREW,RHM,M4X16,SST 1
45 VV67405 STRAINER 1
46 VV13635 SCREW,RHM,M5X20,SST 1
47 GT13014 NUT,NYLON,INSERT,M4 2
48 VV67106 SPACER 4
49 VA13478 SCREW,M6X35,HEX 1
50 VV67103A FOOT STEP 1
51 VF14127 SCREW,RHM,M6X20,SST 2
52 VV67121 ANTISKID PLATE 1
53 VV60113S WASHER,WHEEL,AL 2
54 VA75004TR WHEEL,10" 2
55 VF13604 WASHER,Ø5 1
56 VV13634 SCREW,RHM,M5X30,SST 4
Vac,Pump,Wheels&Brush Housing Assembly Parts List
57 VV67200 BOTTOM PLATE,ASSY 1
58 VV67505 BUSHING,90º,CORD 1
59 VF143001 SCREW,PH,M3X4,SST 4
60 VV67510 BLEEDER HOSE ASSEMBLY 1
14
www.GoRenown.com

BrushHousingAssembly
15
www.GoRenown.com

BrushHousingAssemblyPartsList
DIANO PART
NUMBER DESCRIPTION NO REQ'D
1 VV67403-2A LIFTBAR 1
2 VV99926-1 RECTIFIER 1
3 VV13601 WASHER,LOCK,SST,Ø5 5
4 VV13633 NUT,SST,M5 5
5 VV13634 SCREW,SST,PH,M5X30 1
6 VA13475 SCREW,PH,SST,M5X25 2
7 VV67407 SPRING 1
8 VV20501 SCREW,PH,SST,M5X14 2
9 VV13662 WASHER,PLAIN,Ø5XØ12X1 6
10 VV67401 MOUTING BASE,BRUSH 1
11 VV80128 BARB,HOSE 1
12 VV67423 INSERT,SPRAYERBODY 2
13 VV67421 SPRAYERBODY 1
14 VV67422 SPRAYTIP 4
15 VV67435 MOTOR,110V 1
16 VV67433 GASKET 1
17 VV67431-1 BOTTOMPLATE 1
18 GT13054 SCREW,BH,M5X12,SST 10
19 VF13512A SCREW,FH,SST,M5X18 4
20 VV67412 BRUSH 1
21 VV67417 GASKET 2
22 VV67414 FRAME,BRUSH 2
23 VV67404 PLATE 1
24 VV67406 GASKET 1
25 VF14024 BEARING 2
26 VF14023 SEAL 2
27 VV67411 SHAFT,BRUSH 1
28 VV67413 AXLE,PULLEY 1
29 VV67416 SPACER 1
30 GT13059 SCREW,HEX,SOCKET 4
31 VV67415 DRIVENPULLEY 1
32 VV67402 BELT 1
33 VV67432 DRIVING PULLEY 1
34 VV67424 NOZZLEBODY 4
35 VV67436 MOUNTING BRACKET MOTOR 1
36 GT13032 WASHER,SST,PLAIN,Ø6XØ16X1.5 4
37 VV13607 WASHER,LOCK,Ø6 4
38 VF13521 NUT,SST,M6 4
39 VV67405 STRAINRELIEF 1
40 VV67408 POWERCORD 1
41 VV67410 BRUSHASSEMBLY 1
16
www.GoRenown.com

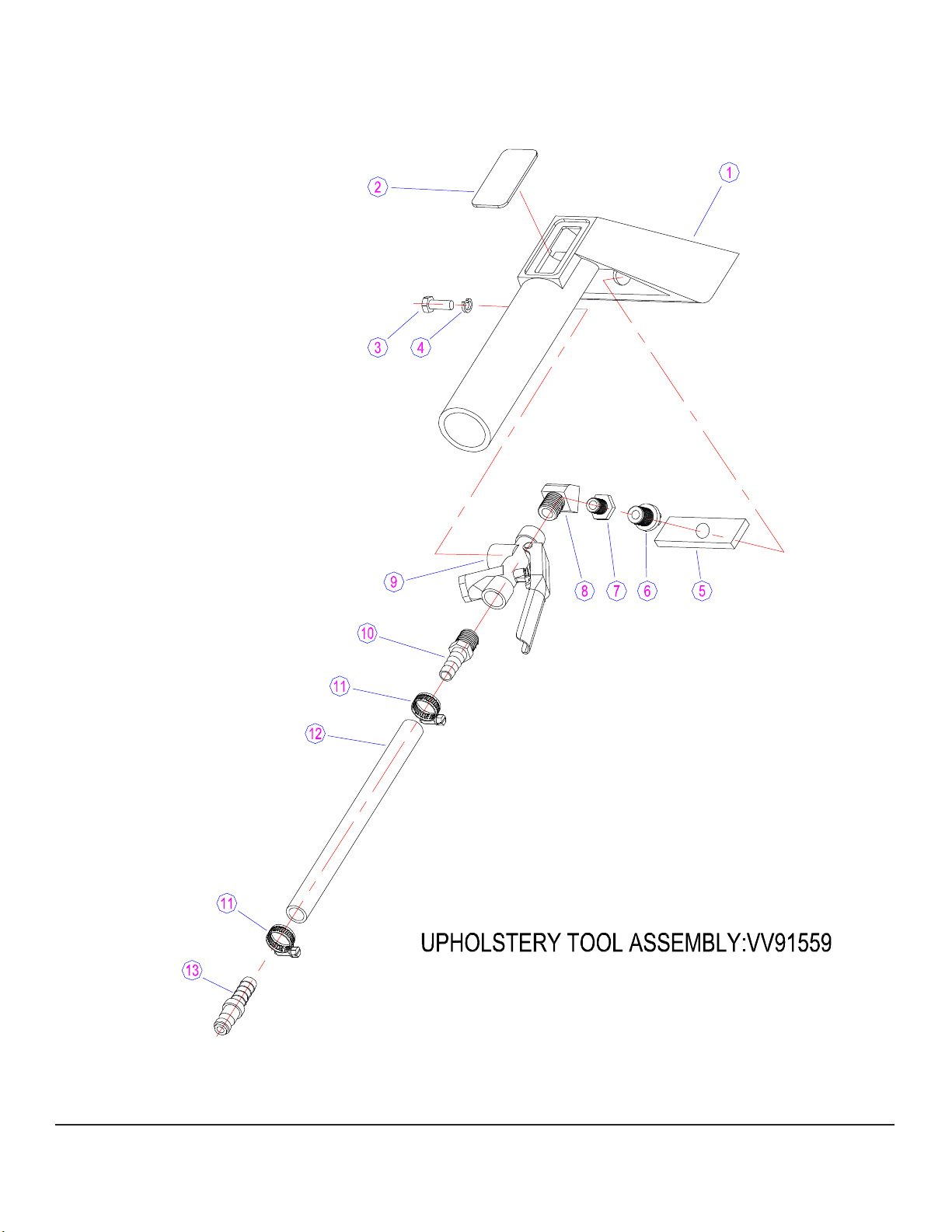

UpholsteryToolAssembly
17
www.GoRenown.com

UpholsteryToolAssemblyPartsList
DIANO PART
NUMBER DESCRIPTION NO REQ'D
1 VV40328 UPHOLSTERYTOOL 1
2 VV40328-6 WINDOW,HAND TOOL 1
3 VV20071 SCREW,5/16-18X5/8"L,HH 1
4 VV20298 WASHER LOCK 5/16“LSST 1
5 VV60531 GASKET 1
6 VV80159 NOZZLE SPRAY TIP 80º1
7 VV80105 BUSHING BRASS 1
8 VV80115 ELBOW STREET 45 DEGREES 1
9 VV10933 TRIGGERVALVE 1
10 VV80128 BARB HOSE 1
11 VV10114 CLAMP HOSE 3/8”2
12 VV85317 SOLUTIONHOSE 3/8”1
13 VV80241 BARB HOSEMAILPLUG 1
18
www.GoRenown.com

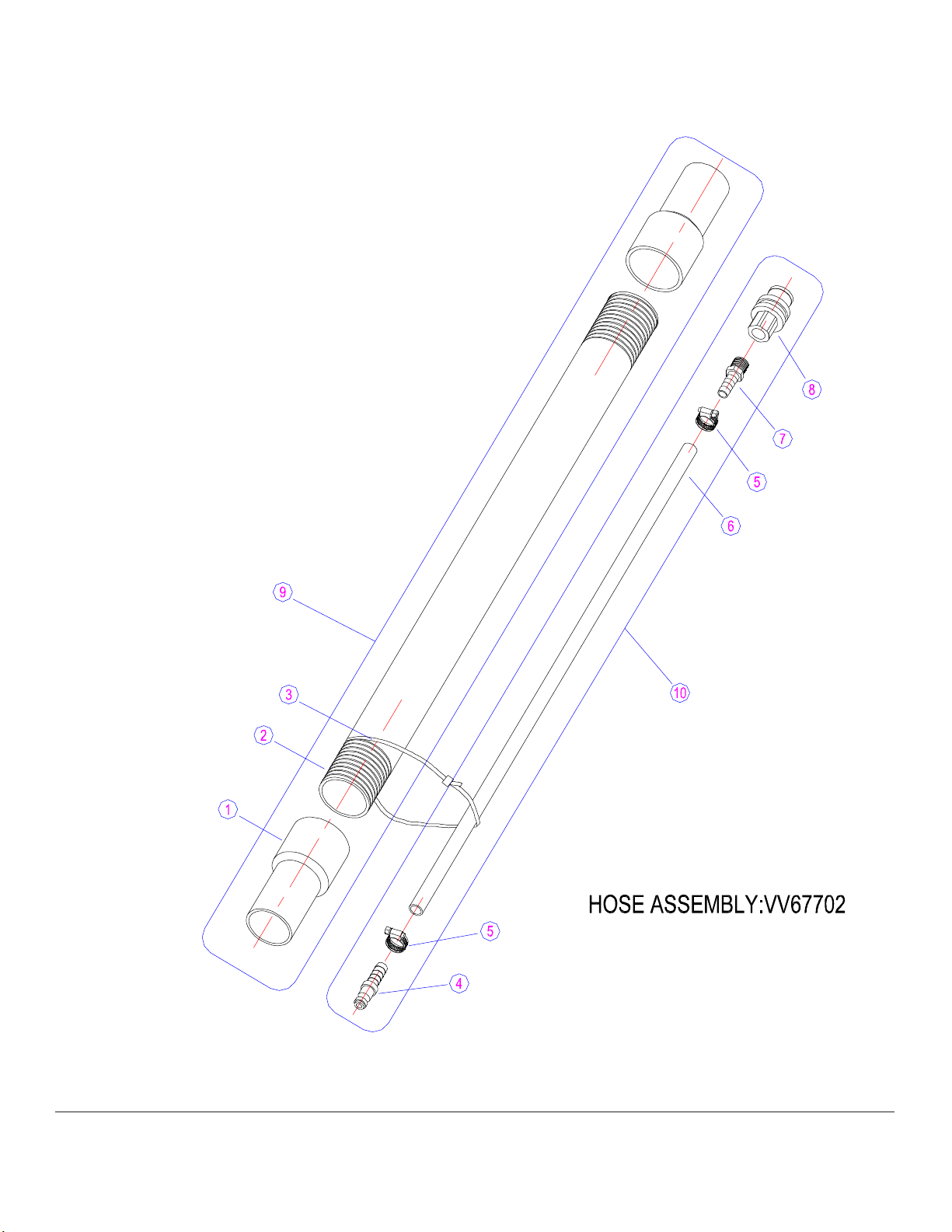

HoseAssembly
19
www.GoRenown.com

HoseAssemblyPartsList
DIANO PART
NUMBER DESCRIPTION NO REQ'D
1 VV60220 CUFF, 11/2" 2
2 VV67703 HOSE VACUUM 1
3 VV20652 TIE CABLE 16
4 VV80241 HOSE BARB,MAILPLUG SST 1
5 VV10114 CLAMP HOSE 3/8”,SST 2
6 VV67704 HOSE SOLUTION 16'LONG 1
7 VV80128 HOSE BARB 1
8 RD80208 COUPLER QUICKCONNECT 1
9 VV67703A VACUUMHOSE ASSEMBLY 1
10 VV67704A SOLUTIONHOSE ASSEMBLY 1
20
www.GoRenown.com
