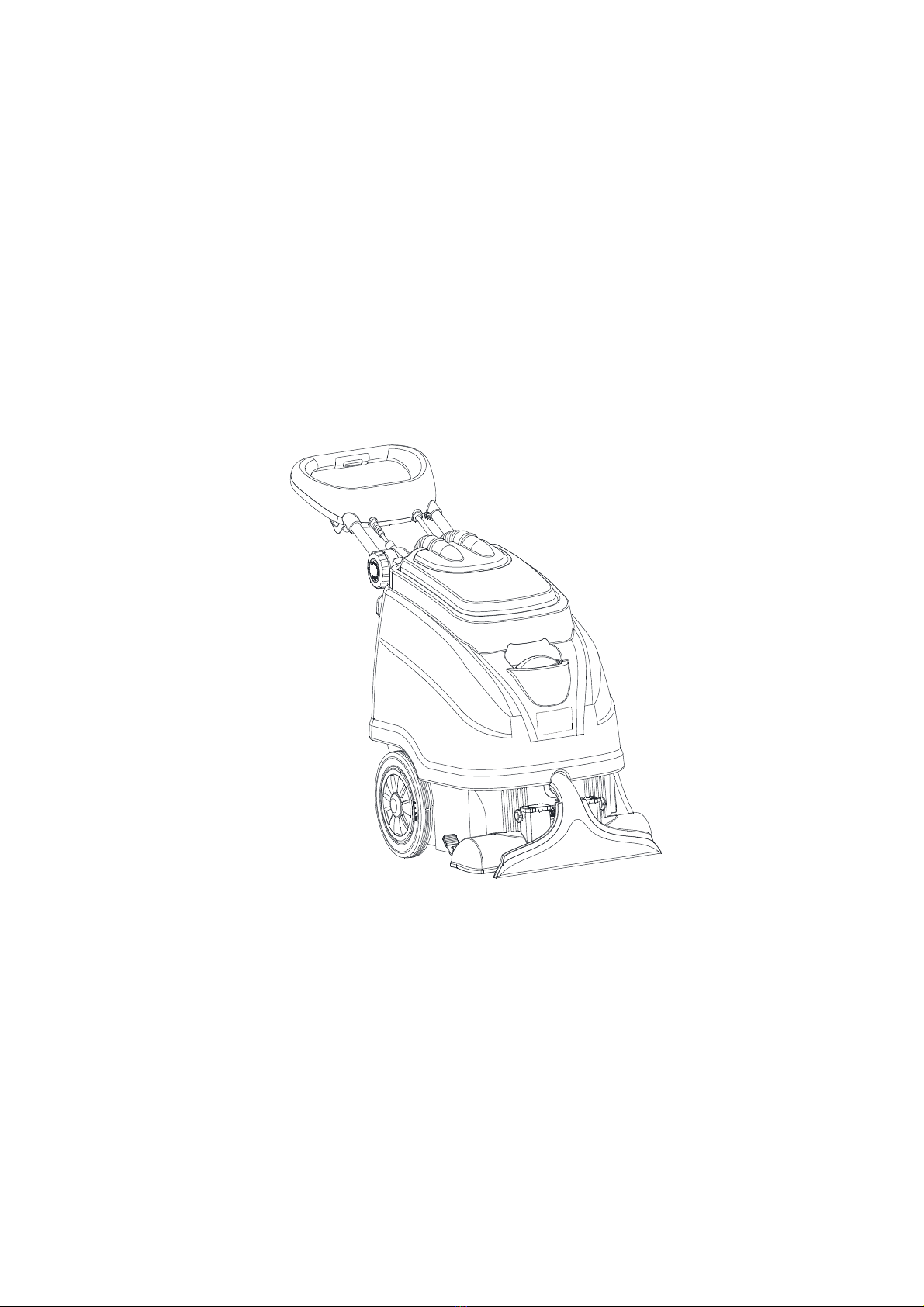

Renown REN08031-VP User manual

OWNERS MANUAL
IMPORTANT: READ OWENERS MANUAL CAREFULLY
SERIAL#: __________________________
MODEL#: REN08031-VP
VV78502
Rev 01
21 Dec 2018
www.GoRenown.com
__________________________

2
TABLE OF CONTENTS
ENGLISH..................................................................................
1-17
FRANÇAIS...............................................................................
18-22
ESPAÑOL...............................................................................
23-27

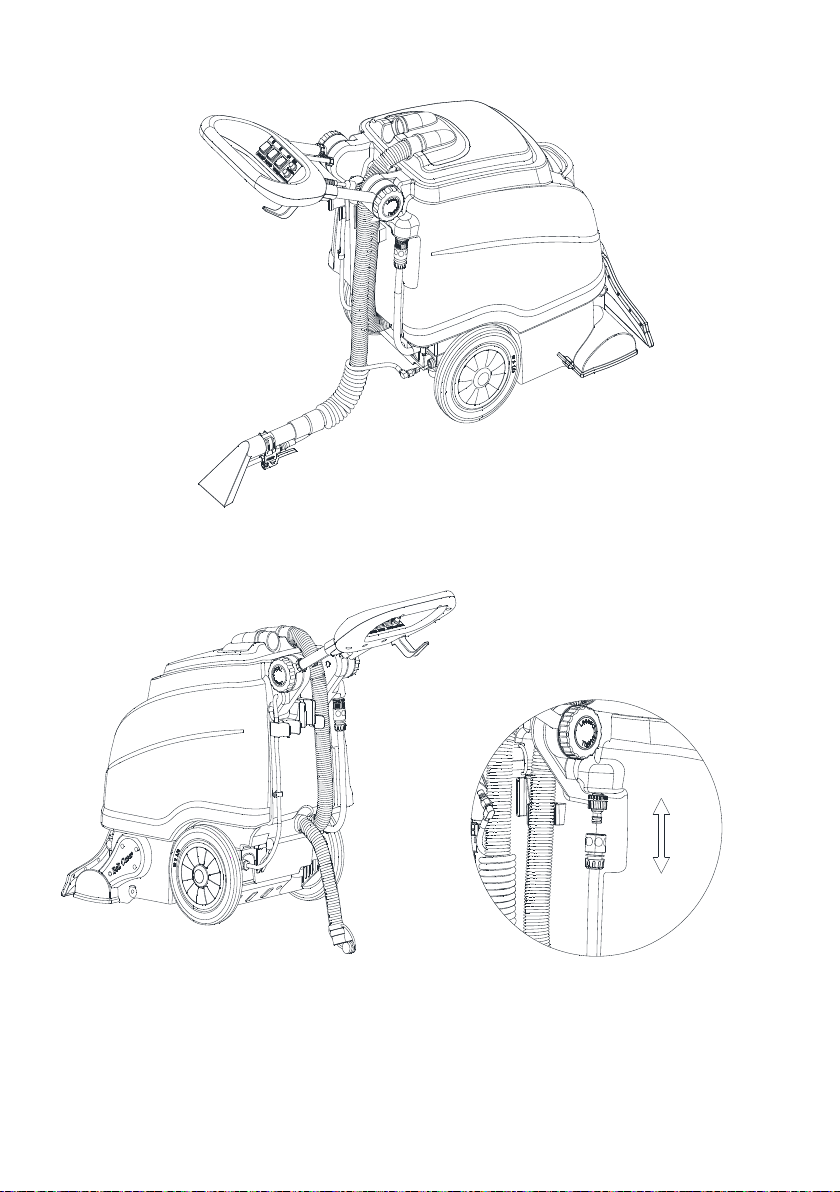

5
F3
1
2
3
F4 F5
2
134
5
F6

6
F7
F8 F9

7

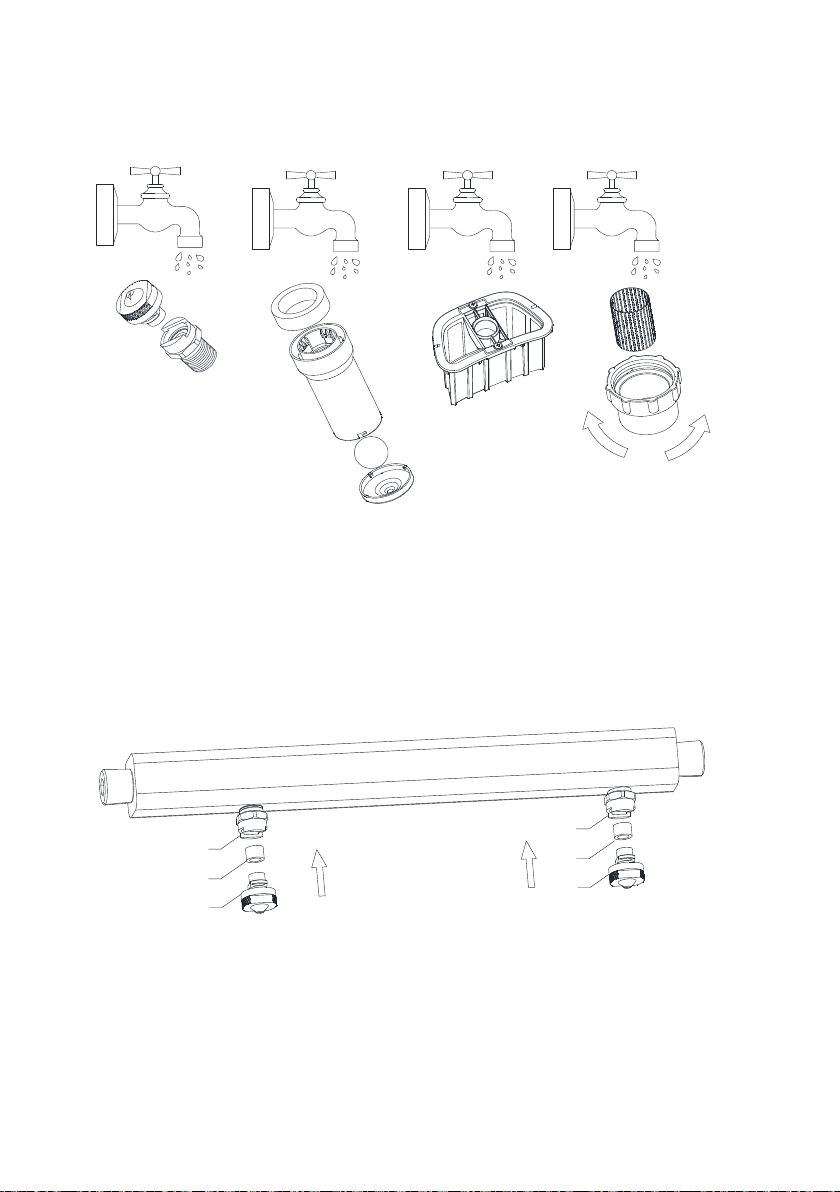

Loose Tighten
F10 F11 F12 F13
1
2
3
1
2
3
F14

8
F15 F16
F17 F18

9
Wiring diagram（F19）
REN08031-VP Carpet Extractor Wiring Diagram
SWITCH CIRCUIT
BREAKER
VACUUM
SWITCH
VACUUM
MOTOR
M
M
M
L
N
POWER
110V-120VAC
12A
6A CIRCUIT
BREAKER WATER
PUMP
HANDLE SWITCH
PUMP
SWITCH SOLENOID
VALVE
HANDLE SWITCH
BRUSH
MOTOR
RECTIFIER
+
AC

10
Technical specifications （F20）
TECHNICAL SPECIFICATION
MODLE
REN08031-VP Carpet Extractor
VOLTAGE(V)
110~120
RATED POWER(W)
RATED CURRENT(A)
14.6
FREQUENCY(Hz)
50/60
CORD(M/ FEET)
50FEET
SOLUTION TANK (L/Gal)
9 Gal
RECOVERY TANK（L/Gal）
6Gal
BRUSH MOTOR POWER(HP/W)
0.5 Hp
VACUUM MOTOR POWER(HP/W)
1.6 Hp
VACUUM MOTOR STAGES AND TYPE
3-stage tangential
VACUUM MOTOR WATERLIFT (INCH/MM H2O)
126 INCH
VACUUM MOTOR AIRFLOW(CFM,L/MIN)
85CFM
SOUND PRESSURE LEVEL(dBA)
68±2
PUMP CUT OFF PRESSURE(Bar/PSI)
120PSI
PUMP WORKING PRESSURE 2 JETS(Bar/PSI)
85PSI
PUMP WORKING PRESSURE 1 JET(Bar/PSI)
105PSI
MACHINE SPRAY TIP MATERAIL
Brass
HAND TOOL SPRAY TIP MATERAIL
Stainless
SOLUTION FLOW 2 JETS (Gal/MIN ,L/MIN)
0.7 Gal/MIN
SOLUTION FLOW 1 JET (Gal/MIN ,L/MIN)
0.5 Gal/MIN
BRUSH SPPED(RPM,Tr/Min)
1200RPM
VIBRATION
ah, w=0.45m/s²
CLEANING WIDTH (MM/INCH)
16 Inch
NOZZLE WIDTH (MM/INCH)
18 Inch
HAND TOOL WIDTH (MM/INCH)
4.7 Inch
FLOOR TOOL WIDTH (MM/INCH)
10 Inch
REAR WHEEL DIAMETER (MM/INCH)
10 Inch
MACHINE NET WEIGHT (Lbs./KG)
121 Lbs.
SHIPPING WEIGHT (Lbs./KG)
143 Lbs.
MACHINE DIMENSION (L x W x H) (INCH/MM)
46 x 20 x 35 Inches
SHIPPING DIMENSION (L x W x H) (INCH/MM)
35.5 x 24 x 36.5 Inches
HEIGHT WITHOUT HANDLE (Inch/MM)
28.5 inches
