Lumnia Compact US - Instruction Manual
This manual is based on the latest information and is provided subject to
alteration. We reserve the right to change the construction and/or configuration
of the product and versions at any time without obligation.
All rights reserved. No part of this document may be reproduced, stored in a database or any other retrieval
system, or published, in any form or way, electronically, mechanically, digitally per photo print or microfilm
or any other way without written permission from the author.

The lamp in this unit produce ultraviolet (UV) light, which
can cause skin or eye damage if viewed directly for a long
period. Only fit the correct type of UV lamps in the unit.
The unit shall be installed and serviced by individuals with
appropriate qualifications and/or experience in accordance
with national regulations in the country of operation and
installation.
Disconnection from the mains is provided by means of a
supply cord fitted by a plug. Protect the mains cable from
damage. If the mains cable is damaged, do not use the unit.
The cable must be replaced by the manufacturer, its service
agent, or similar qualified persons.
Do not insert foreign objects into the unit.
Do not use an extension cable with this unit.
Only personnel with appropriate skills and training must
install or service this unit.
Do not install this unit in areas where dangerous
concentrations of inflammable or explosive substances may
be present in the air.
Only install this product indoors in a dry location that is
shielded from direct sunlight. Do not install the unit in a barn,
stable, or similar location.
Install the cable such a way to prevent the exposition of the
cable to UV radiation from UV Lamps.
Children or personnel with reduced physical, sensory or
mental capabilities, or personnel who lack experience
or knowledge, must not use this unit, unless they are
supervised by a person responsible for their safety. Children
must not play with this unit. The appliance is to be kept out
of reach of children.
Users can perform the maintenance tasks described in this
document. Users must not perform any other repairs or
maintenance.
Warning
Caution
Attention
1. Safety
SAVE THESE INSTRUCTIONS
WARNING Skin or eye damage
may result from directly viewing
the light produced by the lamp
in this apparatus. To safeguard
always ensure installation
manual and manufacturers
recommendations are followed.
CAUTION Risk of UV exposure. Ensure product
is installed to ensure no person is likely to be
within 0.5 metres of the unit while illuminated.
AVERTISSEMENT Observer la lumière produite
par la lampe de cet appareil sans protection peut
causer des dommages cutanés ou oculaires.
Pour des raisons de sécurité, veillez au respect
des consignes du manuel d’installation et des
recommandations du fabricant.
ATTENTION Risque d’exposition UV. Veillez à ce
que le produit soit installé de manière à ce que
personne ne se trouve à moins de 0.5 mètre de
celui-ci tandis qu’il est allumé. GSD-200802-2

2. Introduction
The Lumnia Compact unit uses one ultra-violet LED driven lamps that attract flying insects
that are then captured on a replaceable glue board. The Compact product is a glue board
monitoring device.
While unpacking, check for any signs of shipment damage and, if found, notify both
transporter and supplier in writing within eight days of receipt with full details of the
damage that has occurred. Retain the equipment and packing materials for inspection.
Check that all parts have been received as ordered. Make sure that all packaging is
removed from the unit before use.
3. Equipment for Installation
A3 drilling template – Supplied in Box
Screw Fix Kit – Supplied In Box
Spirit Level advised. – Not Supplied
Power Drill - Not Supplied
Masonry Drill Bit Ø6mm - Not Supplied
Phillips Screw Driver PH2 – Not supplied

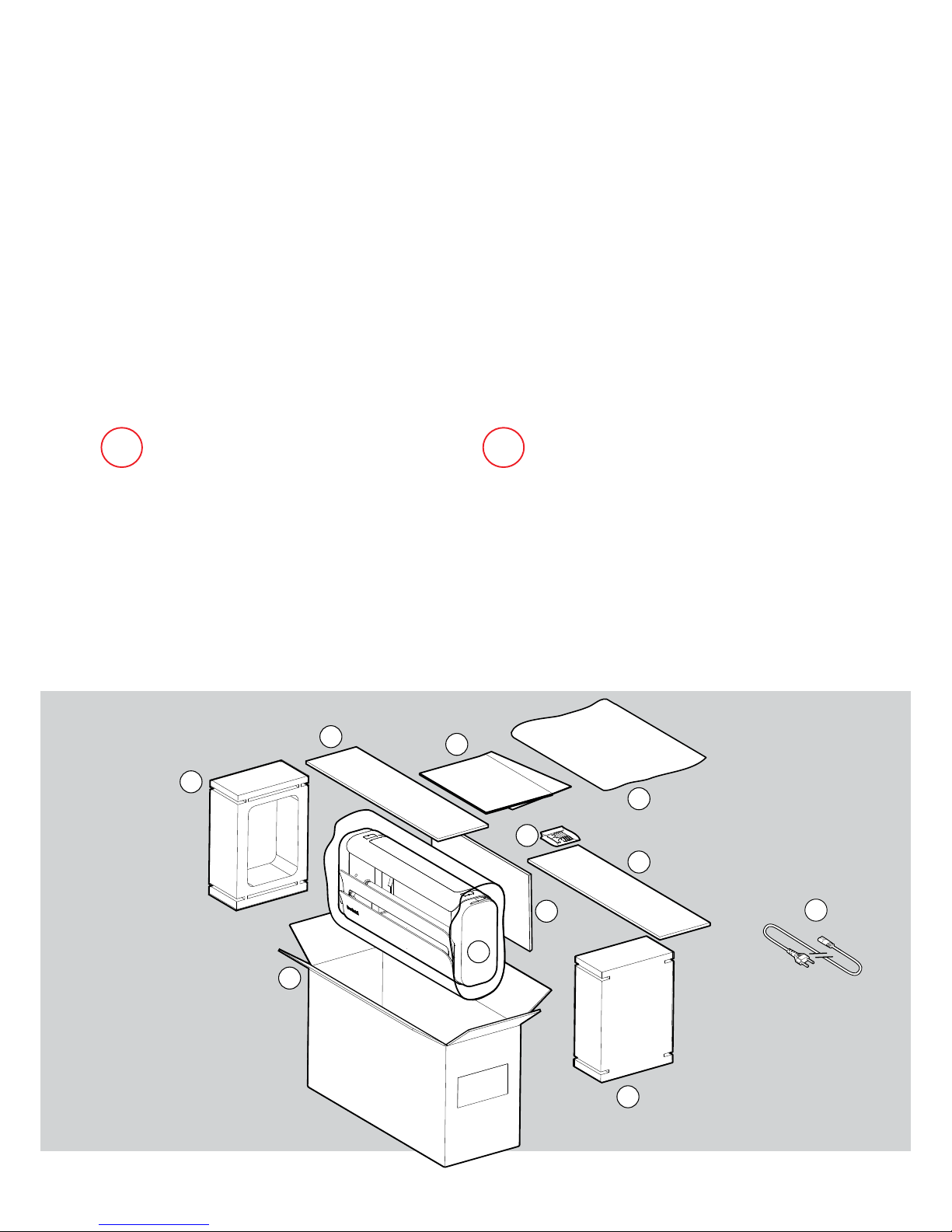

In the Box:
AEquipment Required for Install B
1. Lumnia Compact US: 304856
Also includes x1 UV-LED Lamps 304816
2. Drilling Template
3. Screw Fix Kit
4. Lumnia Manual
5. Glue Board (Black) 304858
6. Packaging
7. Outer box and Label
8. Power Cable
8
5
7
1
6
3
6
6
4
2
6

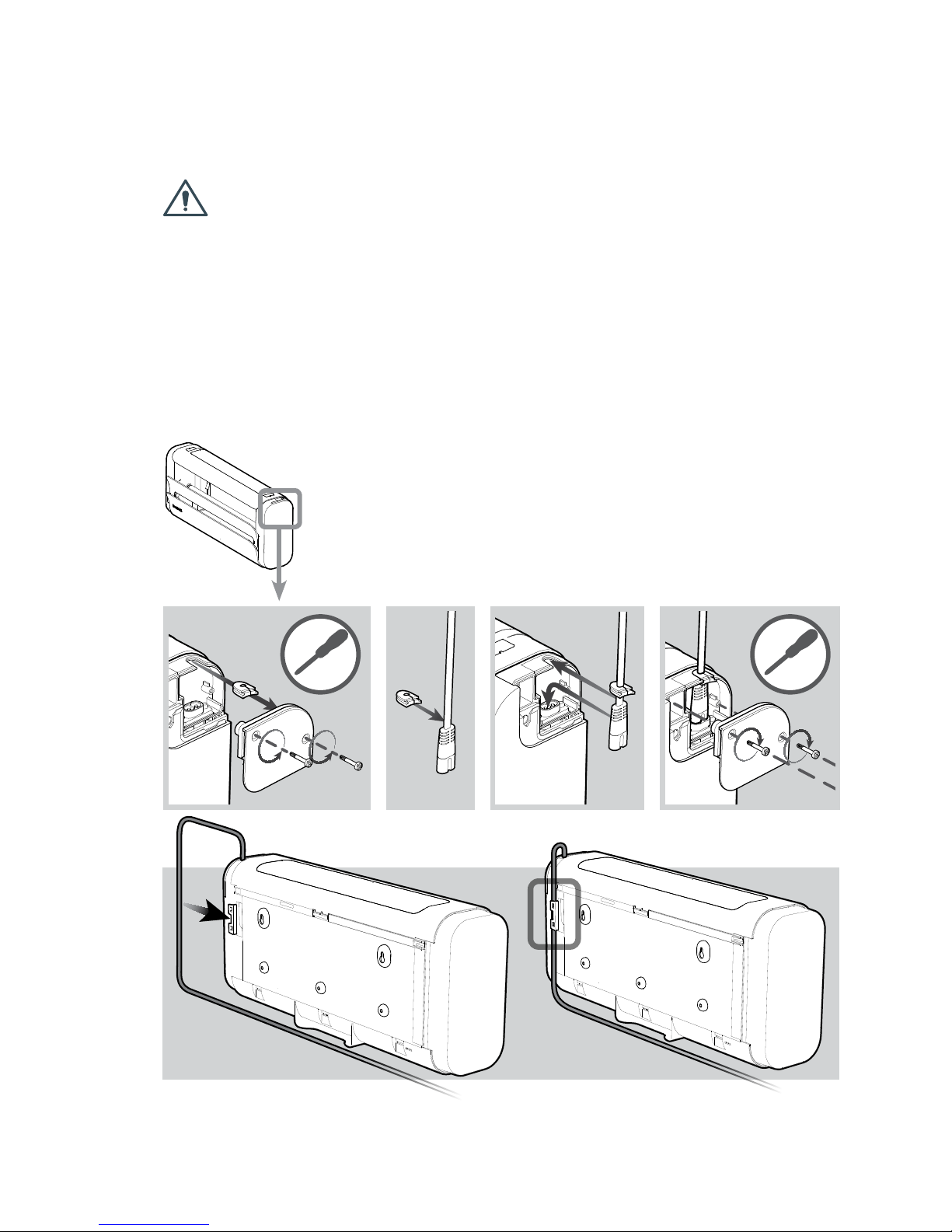

4. Installation Instructions:
Once installed as above and mounted correctly, connect the plug connector for the
cable into the power socket.
DANGER: You must NOT connect the unit into a lighting circuit.
WARNING: You must connect the power cable to a standard power socket.
Connecting the Power Source
DANGER: SERVICING OF DOUBLE-INSULATED APPLIANCES
In a double-insulated appliance, two systems of insulation are provided instead of grounding. No
grounding means is provided on a double-insulated appliance, nor should a means for grounding
be added to the appliance. Servicing of a double-insulated appliance requires extreme care and
knowledge of the system and should be done only by a qualified service personnel. Replacement
parts for a double insulated appliance must be identical to those parts in the appliance.
A double-insulated appliance is marked with the words “DOUBLE INSULATION” or “DOUBLE
INSULATED”. The symbol (square within a square) may also be marked on the appliance.
1. Isolate the electrical supply to the power socket.
2. Check that the mains voltage displayed on the unit label is
correct for your supply.
3. Check that the cable and plug connector are not damaged.

1.86M

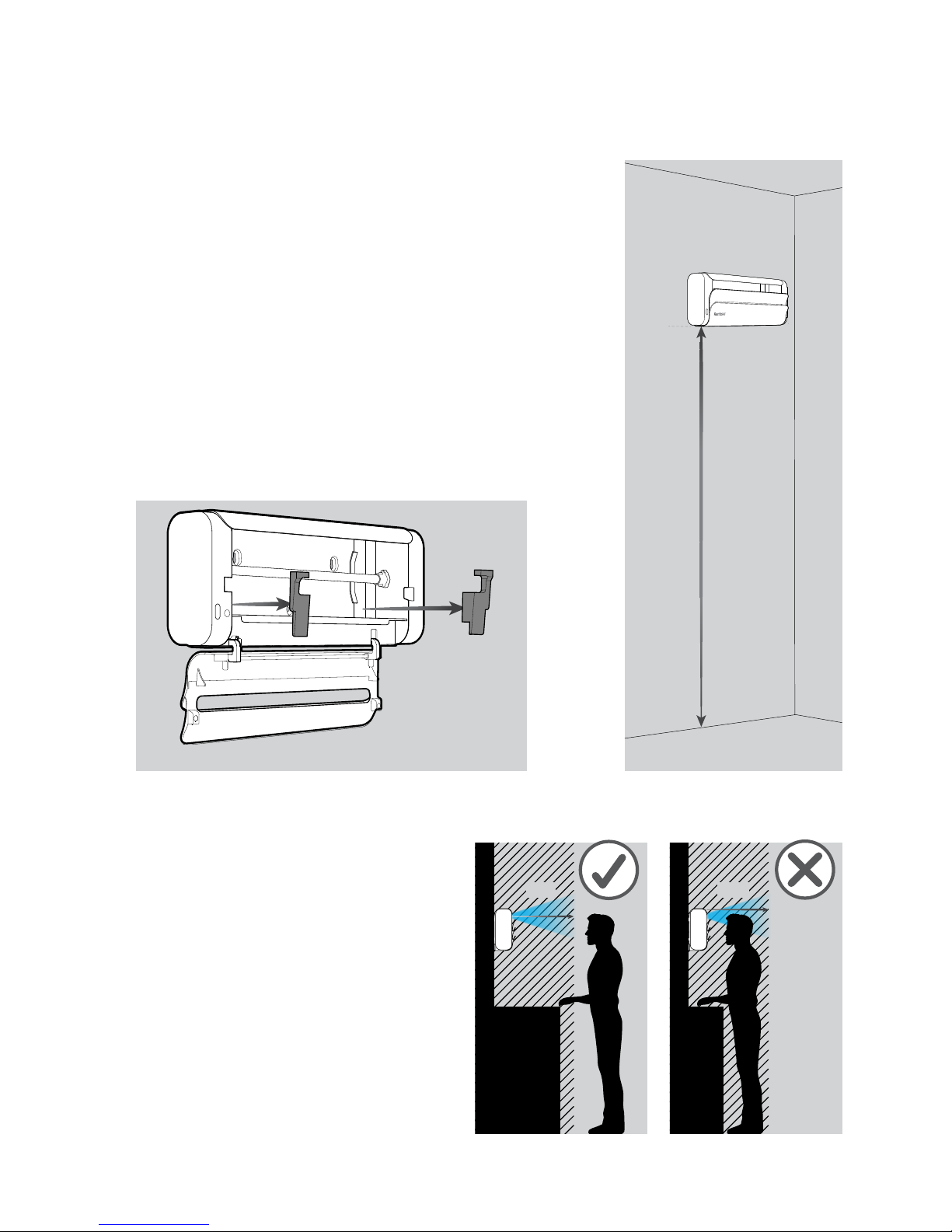

5. Positioning the Unit
Figure 1:
Position the unit on a suitable wall at a minimum
height of 1.86 metres to the bottom of the unit.
Figure 1 illustrates the suggested mounting height.
Position the unit as far as possible from sources of
ambient light. Ambient light can cause inecient
capture of flying insects. Ideally position the unit
so the cable entry is within 1.8 metres of an electric
socket. If this is not possible the unit must be
connected safely by a qualified electrician.
Packaging Removal
Remove transport spacers before installing Lumnia
To ensure that the product minimises
risk UV exposure especially to eyes,
it is recommended that the product is
installed at a minimum height of 1.86
metres from the bottom of the unit and
also at least 1 metre from any area that
may have persons occupying for more
than 4 hours in a day.
It is also recommended that the
product is not installed higher than
1.86 metres to ensure that the product
can be maintained by the majority of
technicians without the use of a ladder.
1M 1M

Figure 2:
DO NOT position the unit directly over areas where food is prepared, or where
uncovered food is stored.
DO NOT position unit directly over sources of heat.
For safety reasons, the unit contains a micro switches that disables the UV lamps if you
open the Front Louvre.

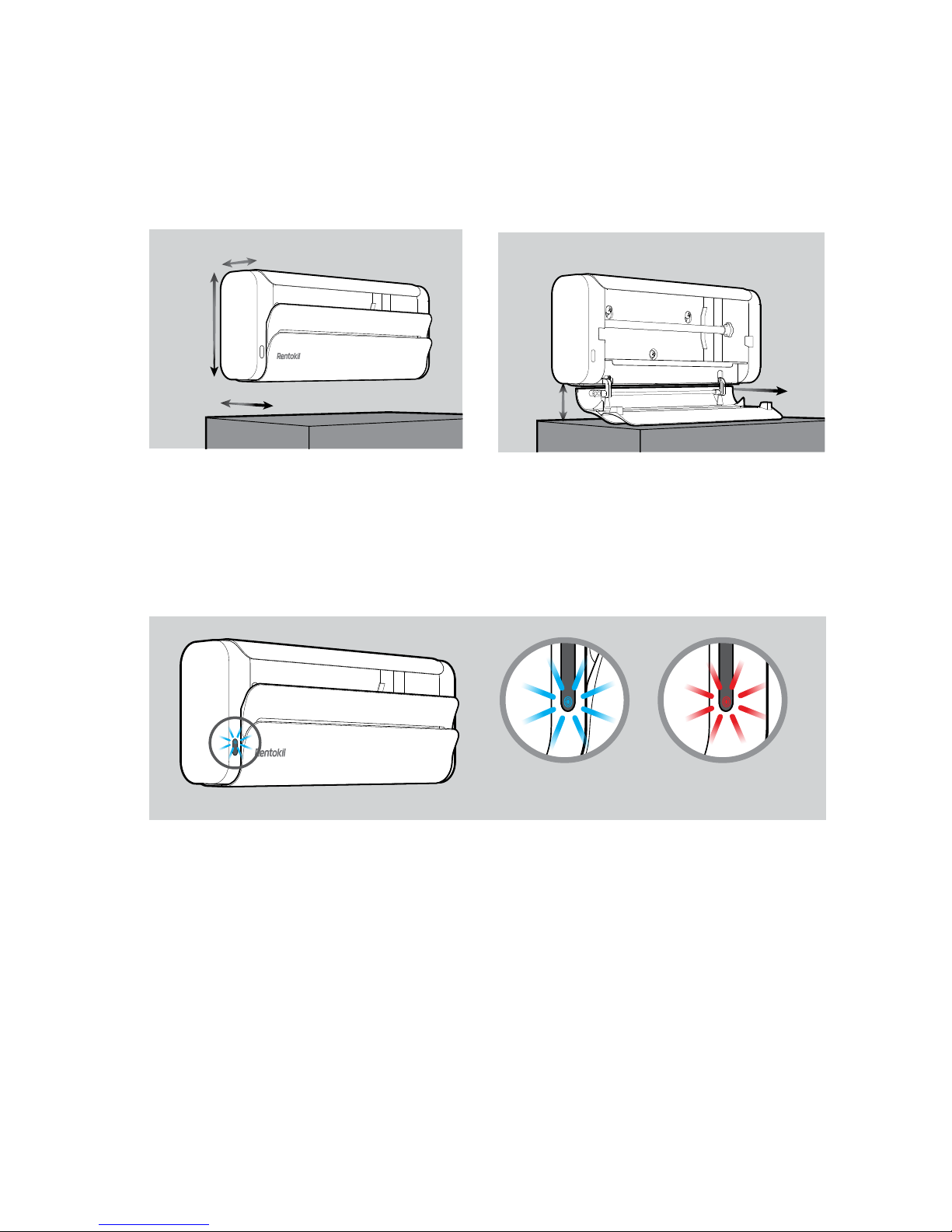

Figure 2 indicates the size and space considerations for louvre cover opening sweeps
at 90°.
239mm
132mm
155mm
77mm
MIN
225mm
6. Positioning Guide
•Not facing entry/exit point or windows - to avoid attracting unwanted insects or
competing light sources
•Avoid putting on same surface as competing light source
•Mounting on clear surface preferable to maximise UV footprint
•Maximise line of sight (i.e. Have clear line of sight from any point within coverage
area away from food source or high risk area)
Operational Service Mode
When the product is operational, the front icon will illuminate blue.
When in Service Mode or the front louvre is open the front icon will illuminate red.

1.86M
Ø6mm

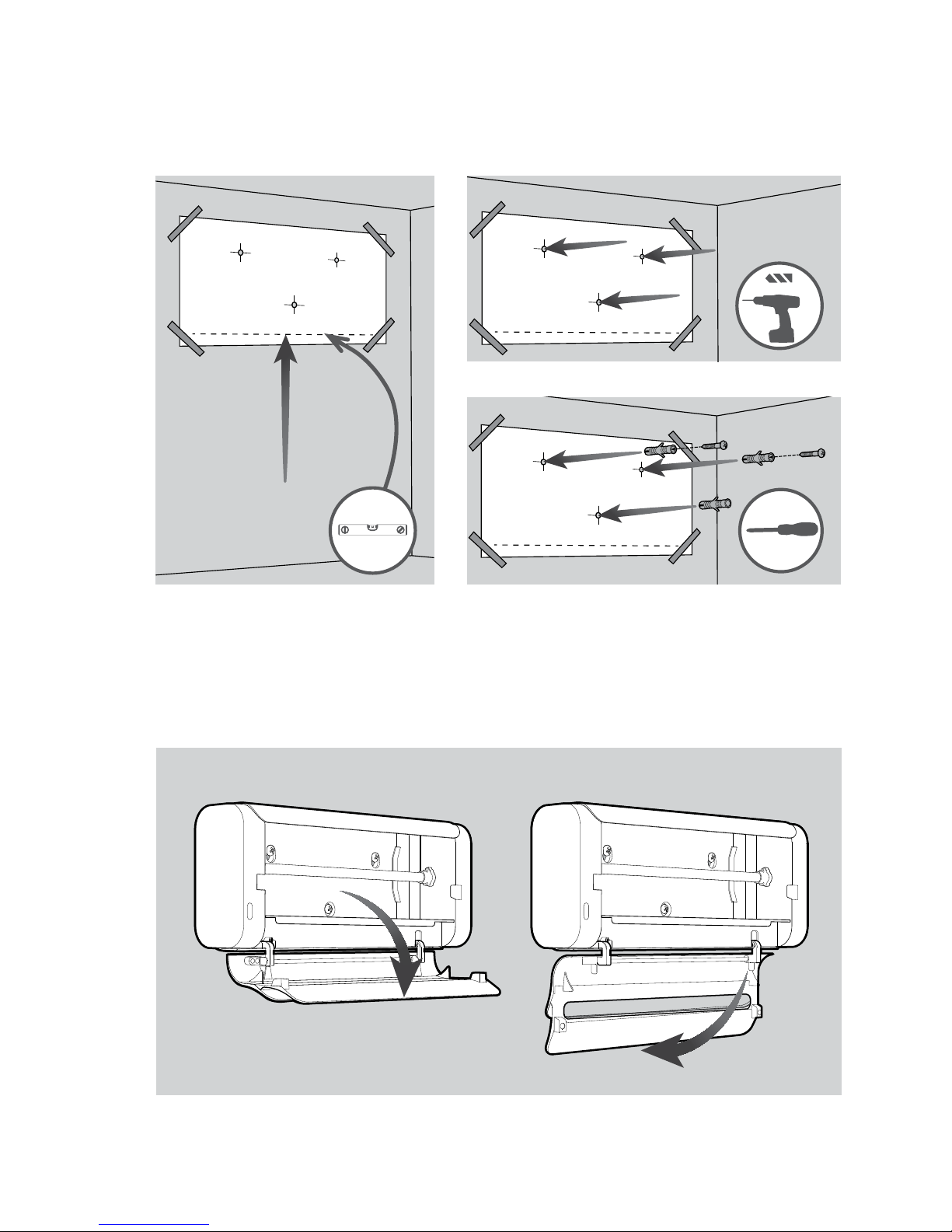

7. Installation Preparation
8. Opening the Louvres

10. Preparing the Glue Board
Fold Flex
Remove Liner
9. Mounting Lumnia
SECURE WITH
ALL 3x SCREWS
NOTE: Remove lamps before screwing
See Section 14 for more details
on lamp removal
Tighten

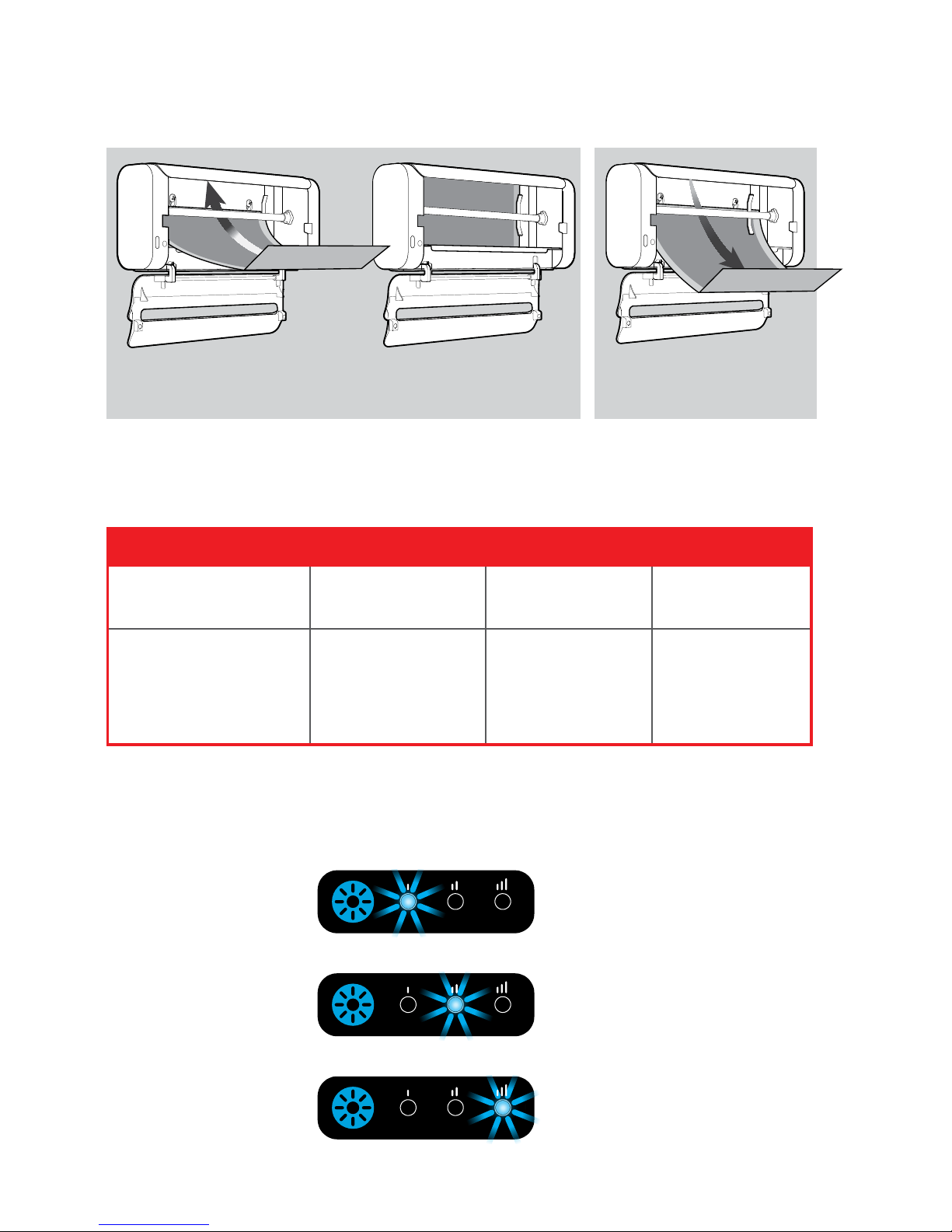

11. Installing & Removing the Glue Board
11. Removing the Glue Board
Installing Installed Removing
12. Lumnia Performance Table
13. Light Output Settings
II = Medium Light Output
III = High Light Output
I = Low Light Output
Warehouses,
Home,
Theatres,
Archives
Normal Oce
Work, PC Work,
Study Library,
Show Rooms,
Laboratories
Supermarkets,
Areas near
windows
Low ( I ) Medium ( II ) High ( III )
< 300 300 - 750 750 +
Power Setting
Ambient Light
Level (LUX)
Equivalent
Environment

14. Removing and Replacing
the UV - LED Lamp
NOTE:
Ensure the
lamp is
pushed firmly
back into
the left hand
fitting
Removing UV - LED Lamp
1. Press lamp into the
right hand side fitting
1. Insert & press lamp to
the right hand side fitting
2. Insert lamp into left
hand side fitting
2. Release left side of
lamp from fitting
3. Remove lamp from
right hand side fitting
Replacing UV - LED Lamp
For lamp identification refer to reference number on Lamp. Only Lamps specified
in Section 15 - Accessories and Spares to be used with this product.
Do not touch LED when servicing, maintaining or cleaning the lamps.

15. Accessories and Spares
For a list of the Lumnia accessories and spares see below:
16. Product Disposal
We hereby declare that model Lumnia Compact conforms covering the
appliance provisions of applicable US Federal requirements, including 21 CFR
Part 1040, Chapter 1, Sub-chapter J, Radiological Health.
The Lumnia Compact is classified as electrical or electronic equipment,
according to the Waste of Electrical and Electronic Equipment (WEEE) directive.
Do not dispose of this product with other household or commercial waste.
Contact the agent who sold the product for recycling advice.
EPA Est. No. 92685-MYS-1
The product described in this manual is subject to continuous development
and improvement and Rentokil reserve the right to alter the specification or
design without prior notice. Rentokil cannot accept any liability for any loss or
damage arising from the use of any information contained within this manual,
or from any incorrect use of the product described herein. Rentokil can accept
no liability whatsoever for any loss or damage arising from the product being
serviced maintained or repaired by unauthorised personnel.
17. Specification
Parameter Value
Power Supply 100 to 240V AC
Power Classification Class II
When servicing, use only
identical replacement parts.
Power Consumption 12W
Replacement Tubes Rentokil type SKU: 304816
Size W: 550mm H: 240mm D: 155mm
Weight:
•Boxed Unit 3.3 kg (boxed)
•Unit including Lamps & Glueboard 2.1 kg
Spares:
•UV-LED Lamp: 304816
•Glue Board (Pack of 10 Black): 304858
•Glue Board (Pack of 10 White): 304857
Accessories:
•Hanging Bracket Kit: 304790

© 2018 RENTOKIL INITIAL PLC ALL RIGHTS RESERVED
2018 Rentokil Initial plc. Registered in England 5393279.
Registered oce: Riverbank, Meadows Business Park,
Blackwater, Camberley, Surrey, GU17 9AB
The names Rentokil® and Initial® are registered trademarks
GSD-100743-1.2 USA
Why Choose Rentokil?
Rentokil is the global leader in pest control, bringing expert, reliable and
professional service to commericial and residential customers in over 60 countries
worldwide. As the experts in pest control, we work closely with you to:
Give you peace of mind.
With over 12,000 qualified technicians worldwide, we have extensive experience
across a wide range of industry sectors. Our experts work proactively in
partnership with you to minimise the threat of pest infestations in your business.
Safeguard your reputation
We take a dual approach, incorporating both preventative and responsive
strategies to enhance protection for your business through a consistent,
continuous pest control programme.
Neither the whole nor any part of the information described in this manual, nor the
product therein described, may be adapted or reproduced in any form without prior
written approval of Rentokil.
The product described in this manual is subject to continuous development and
improvement and Rentokil reserve the right to alter the specification or design
without prior notice. Rentokil cannot accept any liability for any loss or damage arising
from the use of any information contained within this manual, or from any incorrect
use of the product described herein. Rentokil can accept no liability whatsoever for
any loss or damage arising from the product being serviced maintained or repaired
by unauthorised personnel.
For more information about Rentokil visit www.rentokil.com
Registered Design - refer to www.rentokil-initial.com/ip
Refer to Lumnia Compact Manual
for full installation instructions,
scan the QR code or visit:
www.rentokil.com/manuals
