Reolink RLN8-410 User manual
Apply to: RLN8-410, RLN16-410
Operational Instruction
Aug 2021
QSG1_B
58.03.005.0018
EN/DE/FR/IT/ES
@ReolinkTech https://reolink.com
Technical Support
If you need any technical help, please visit our ocial support site and contact our support
team before returning the products, https://support.reolink.com.
Technische Unterstützung
Wenn Sie Hilfe brauchen, kontaktieren Sie bitte Reolink Support Team zuerst, bevor Sie Ihre
Bestellung zurücksenden. Meiste Fragen oder Probleme können von unserem Online Support
Center beantwortet und gelöst werden: https://support.reolink.com.
Support technique
Si vous avez besoin d’aide, veuillez contacter Reolink avant de retourner votre produit. La
plupart des questions peuvent être répondues via notre centre de support en ligne à l'adresse
https://support.reolink.com.
Assistenza Tecnica
Se avete bisogno di aiuto, le chiediamo gentilmente di contattare Reolink prima di restituire il
prodotto. La maggior parte delle domande può essere risolta tramite il nostro centro di
assistenza online all'indirizzo https://support.reolink.com.
Soporte técnico
Si necesita ayuda, comuníquese con Reolink antes de devolver su producto. La mayoría de las
preguntas se pueden responder a través de nuestro centro de soporte en línea en
https://support.reolink.com.
REOLINK INNOVATION LIMITED
FLAT/RM 705 7/F FA YUEN COMMERCIAL BUILDING 75-77 FA YUEN STREET MONG KOK KL
HONG KONG
Hoferstasse 9B, 71636 Ludwigsburg, Germany
Product Ident GmbH
89 Princess Street, Manchester, M1 4HT, UK
APEX CE SPECIALISTS LIMITED
REP
EU
REP
UK
Contents
What's in the Box
NVR Introduction
Connection Diagram
Set up PoE NVR System
Troubleshooting
Specifications
Notification of Compliance
2
3
4
6
7
8
8
EN
2English1 English
HDMI Cable
x1
NVR
Power Adapter
x1
USB Mouse
x1
NVR
x1
1m Ethernet Cable
x1
Quick Start Guide
x1
What’s in the Box
4English3 English
NOTE: The actual appearance and components may vary with dierent products.
Connection Diagram
Connect the NVR (LAN port) to
your router with an Ethernet cable.
Next, connect the mouse to the
USB port of the NVR.
Connect the NVR to the monitor
with a VGA or HDMI cable.
NOTE: There is no VGA cable
included in the package.
AUDIO
OUT USB HDMI VGA LAN 2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
ON
OFF
DC 52V
IN
PWR HDD
ALL MENU SELECT
USB Port
Power LED
HDD LED
Control Panel
USB Port
Power Switch
Audio Out
Power Input
HDMI Port
VGA Port
LAN Port
PoE Ports 2
1
VGAHMDI

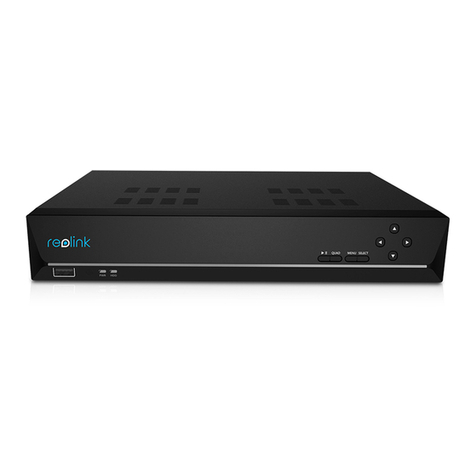

NVR Introduction
4English3 English
NOTE: The actual appearance and components may vary with dierent products.
Connection Diagram
Connect the NVR (LAN port) to
your router with an Ethernet cable.
Next, connect the mouse to the
USB port of the NVR.
Connect the NVR to the monitor
with a VGA or HDMI cable.
NOTE: There is no VGA cable
included in the package.
AUDIO
OUT USB HDMI VGA LAN 2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
ON
OFF
DC 52V
IN
PWR HDD
ALL MENU SELECT
USB Port
Power LED
HDD LED
Control Panel
USB Port
Power Switch
Audio Out
Power Input
HDMI Port
VGA Port
LAN Port
PoE Ports 2
1
VGAHMDI
NVR Introduction
6English5 English
Set up PoE NVR System
A setup wizard will guide you through the NVR system configuration process. Please set a
password for your NVR (for the initial access) and follow the wizard to configure the system.
Connect cameras to PoE ports on
the NVR.
Connect the NVR to a power outlet
and turn on power switch.
NOTE: The password should be at least 6 characters. It is recommended that you note down the
password and keep it in a secure place.
NOTE: Some Reolink WiFi cameras also work with Reolink PoE NVR. For more information, visit
https://support.reolink.com and search Make Reolink WiFi Cameras Work with Reolink PoE-NVRs.
Access the NVR via Smartphone or PC
Download and launch the Reolink App or Client software and follow the instructions to access the
NVR.
Reset Button
DC Power
Network (LAN)
3
4
• On PC
Download path: Go to https://reolink.com > Support > App & Client.
• On Smartphone
Scan to download the Reolink App.
6English5 English
Set up PoE NVR System
A setup wizard will guide you through the NVR system configuration process. Please set a
password for your NVR (for the initial access) and follow the wizard to configure the system.
Connect cameras to PoE ports on
the NVR.
Connect the NVR to a power outlet
and turn on power switch.
NOTE: The password should be at least 6 characters. It is recommended that you note down the
password and keep it in a secure place.
NOTE: Some Reolink WiFi cameras also work with Reolink PoE NVR. For more information, visit
https://support.reolink.com and search Make Reolink WiFi Cameras Work with Reolink PoE-NVRs.
Access the NVR via Smartphone or PC
Download and launch the Reolink App or Client software and follow the instructions to access the
NVR.
Reset Button
DC Power
Network (LAN)
3
4
• On PC
Download path: Go to https://reolink.com > Support > App & Client.
• On Smartphone
Scan to download the Reolink App.
8English7 English
Decoding
Decoding Resolution:
12MP/8MP/5MP/4MP/3MP/1080p/720p
Video Format: H.264,H.265
Synchronous Playback: Up to 4 Channels
General
Operating Temperature:
-10°C to 45°C (-10°C to 55°C for RLN16-410)
Size: 260 x 41 x 230mm,
(330 x 45 x 285mm for RLN16-410)
Weight: 2.0kg, (3.0kg for RLN16-410)
No Video Output on
the Monitor
Troubleshooting
If there’s no video output on the monitor from
Reolink NVR, please try the following
solutions:
• TV/monitor resolution should be at least
720p or above.
• Make sure your NVR is powered on.
• Double check the HDMI/VGA connection,
or swap another cable or monitor to test.
If it still doesn’t work, please contact Reolink
Support https://support.reolink.com
Failed to Access the
PoE NVR Locally
If you failed to access the PoE NVR locally via
mobile phone or PC, please try the following
solutions:
• Connect the NVR (LAN port) to your router
with a network cable.
• Swap another Ethernet cable or plug the
NVR to other ports on the router.
• Go to Menu -> System -> Maintenance and
restore all settings.
If it still doesn’t work, please contact Reolink
Support https://support.reolink.com
Failed to Access the PoE NVR
Remotely
If you failed to access the PoE NVR remotely
via mobile phone or PC, please try
the following:
• Make sure you can locally access this NVR
system.
• Go to NVR Menu -> Network -> Network
Advanced and make sure that UID Enable is
selected.
• Please connect your phone or PC under the
same network (LAN) of your NVR and see if
you can visit any website to verify whether
there is Internet access available.
• Please reboot your NVR and home router
and try again.
• If it still doesn’t work, please contact Reolink
Support https://support.reolink.com
Specifications
HDMI Output: Up to 8MP
VGA Output: Up to 2MP
Audio output: 1CH RCA
Video/Audio Output
Notification of Compliance
FCC Compliance Statement
This device complies with Part 15 of FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation. For more information, visit:
https://reolink.com/fcc-compliance-notice/.
Reolink declares that this device is in
compliance with the essential requirements
and other relevant provisions of Directive
2014/30/EU.
This marking indicates that this product
cannot be disposed with other household
wastes throughout the EU. To prevent
possible harm to the environment or human
health from uncontrolled waste disposal and
promote the sustainable reuse of material
resources, please recycle it responsibly. To
return your used device, please visit the
Return and Collection System or contact the
retailer from whom the product was
Simplified EU Declaration
of Conformity
Correct Disposal of This Product
8English7 English
Decoding
Decoding Resolution:
12MP/8MP/5MP/4MP/3MP/1080p/720p
Video Format: H.264,H.265
Synchronous Playback: Up to 4 Channels
General
Operating Temperature:
-10°C to 45°C (-10°C to 55°C for RLN16-410)
Size: 260 x 41 x 230mm,
(330 x 45 x 285mm for RLN16-410)
Weight: 2.0kg, (3.0kg for RLN16-410)
No Video Output on
the Monitor
Troubleshooting
If there’s no video output on the monitor from
Reolink NVR, please try the following
solutions:
• TV/monitor resolution should be at least
720p or above.
• Make sure your NVR is powered on.
• Double check the HDMI/VGA connection,
or swap another cable or monitor to test.
If it still doesn’t work, please contact Reolink
Support https://support.reolink.com
Failed to Access the
PoE NVR Locally
If you failed to access the PoE NVR locally via
mobile phone or PC, please try the following
solutions:
• Connect the NVR (LAN port) to your router
with a network cable.
• Swap another Ethernet cable or plug the
NVR to other ports on the router.
• Go to Menu -> System -> Maintenance and
restore all settings.
If it still doesn’t work, please contact Reolink
Support https://support.reolink.com
Failed to Access the PoE NVR
Remotely
If you failed to access the PoE NVR remotely
via mobile phone or PC, please try
the following:
• Make sure you can locally access this NVR
system.
• Go to NVR Menu -> Network -> Network
Advanced and make sure that UID Enable is
selected.
• Please connect your phone or PC under the
same network (LAN) of your NVR and see if
you can visit any website to verify whether
there is Internet access available.
• Please reboot your NVR and home router
and try again.
• If it still doesn’t work, please contact Reolink
Support https://support.reolink.com
Specifications
HDMI Output: Up to 8MP
VGA Output: Up to 2MP
Audio output: 1CH RCA
Video/Audio Output
Notification of Compliance
FCC Compliance Statement
This device complies with Part 15 of FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation. For more information, visit:
https://reolink.com/fcc-compliance-notice/.
Reolink declares that this device is in
compliance with the essential requirements
and other relevant provisions of Directive
2014/30/EU.
This marking indicates that this product
cannot be disposed with other household
wastes throughout the EU. To prevent
possible harm to the environment or human
health from uncontrolled waste disposal and
promote the sustainable reuse of material
resources, please recycle it responsibly. To
return your used device, please visit the
Return and Collection System or contact the
retailer from whom the product was
Simplified EU Declaration
of Conformity
Correct Disposal of This Product
