Repotec RP-ID162 User manual

VOIP ROUTER USER MANUAL
PREFACE...........................................................V
PART I: IAD GATEWAY OVERVIEW ............................1
1.1 Overview ................................................................................. 2
1.2 Software Specifications ........................................................... 3
1.3 Hardware Specifications .......................................................... 4
PART II: START-UP .............................................7
2.1 Software Installation Guide..................................................... 8
2.1.1 Default Settings of IAD gateway..............................................8
2.1.2 Additional Installation Requirements ........................................8
2.1.3 Essential Configuration via Web Management interface ............. 10
2.1.3.1 Save Data and Reboot.................................................... 10

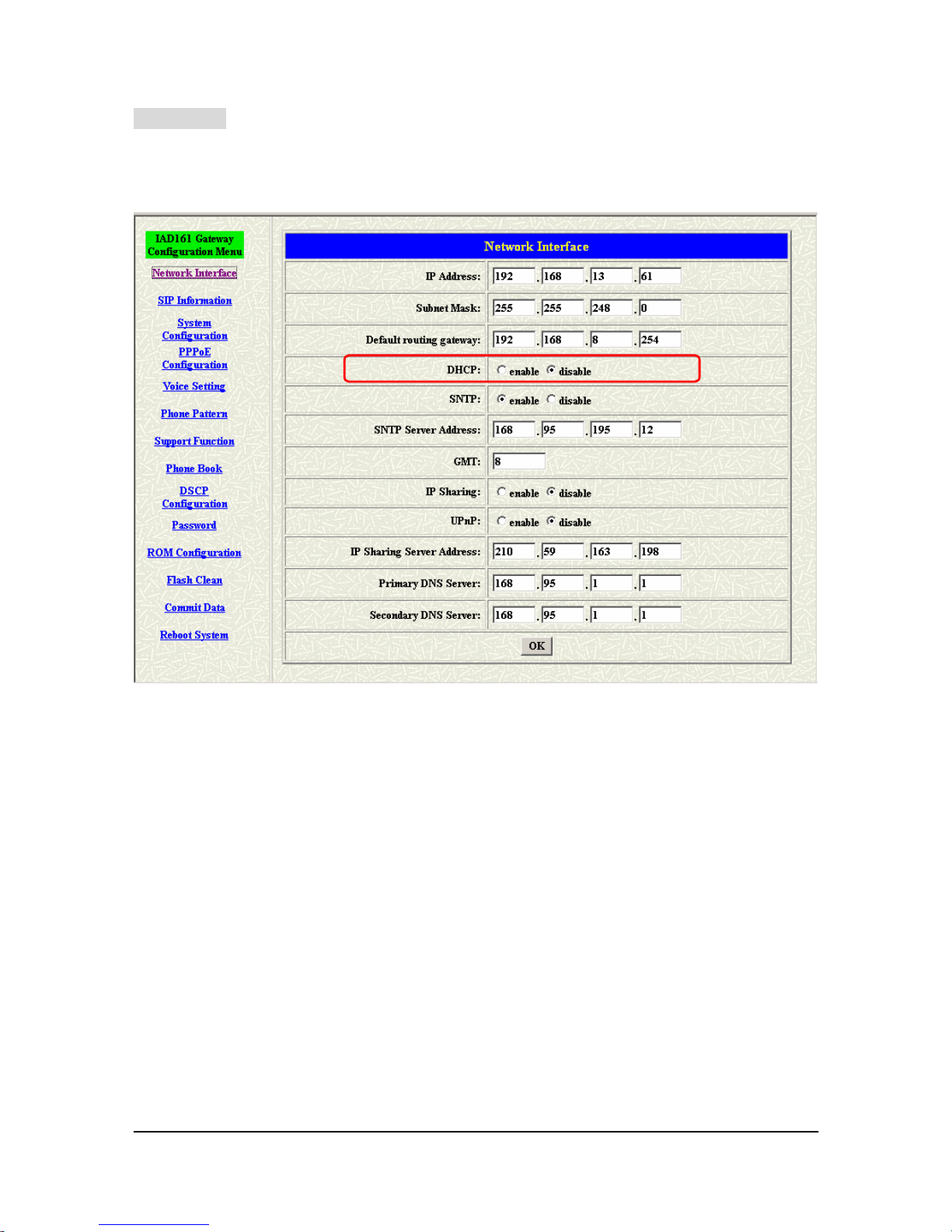

2.1.3.2 Setup Network .............................................................. 12
(1) Fixed IP........................................................................... 12
(2) DHCP.............................................................................. 13

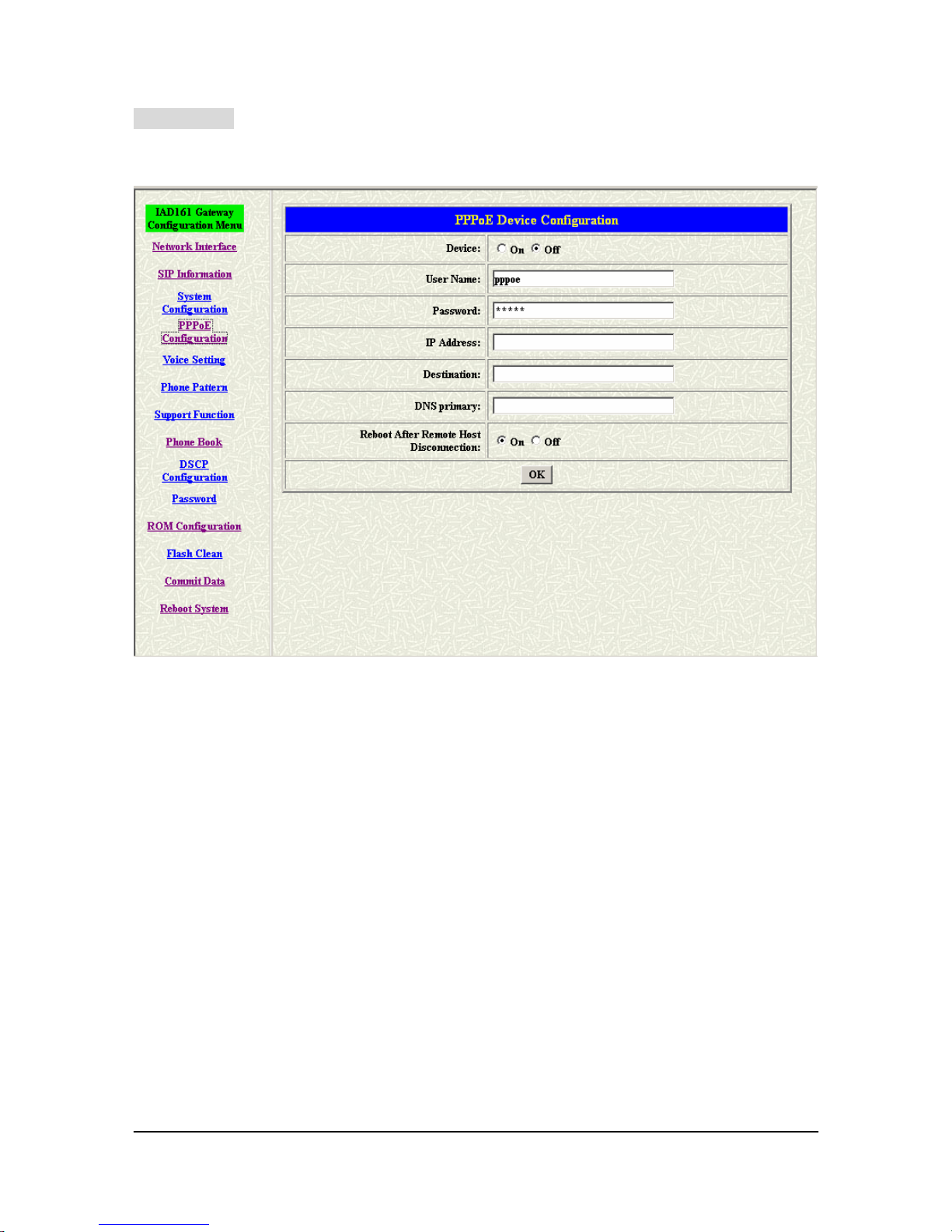

(3) PPPoE.............................................................................. 14
2.1.3.3 Application mode-Proxy/Peer-to-Peer Mode ....................... 15
2.1.3.3.1 Proxy mode............................................................. 15
2.1.3.3.2 Peer-to-Peer Mode.................................................... 16
2.1.4 Essential Configuration via Telnet Command Line interface........ 19
2.1.4.1 Save Data and Reboot.................................................... 19
2.1.4.2 Setup Network .............................................................. 19
(1) Fixed IP........................................................................... 19
(2) DHCP.............................................................................. 19
(3) PPPoE.............................................................................. 19
2.1.4.3 Application mode-Proxy/Peer-to-Peer Mode ....................... 21
2.1.4.3.1 Proxy mode............................................................. 21
2.1.4.3.2 Peer-to-Peer Mode.................................................... 22
2.1.4.3.3 Hotline Mode ........................................................... 23
2.1.4 Essential Configuration via Installation Wizard......................... 24
2.1 Special Housing Installation Guide ........................................ 25
List of Table I

2.1.1 Horizontal Type................................................................... 25
2.1.1.1.................................................................................... 25
2.1.1.2.................................................................................... 25
2.1.1.3.................................................................................... 25
2.1.2 Vertical Type....................................................................... 26
2.1.2.1.................................................................................... 26
2.1.2.2.................................................................................... 26
2.1.2.3.................................................................................... 26
PART III: SPECIAL APPLICATIONS AND FEATURES......... 27
3.1 Behind IP-Sharing ................................................................. 28
3.1.1 IP Sharing Configuration ...................................................... 28
3.1.1.1 One IAD Gateway behind IAD.......................................... 28
3.1.1.2 More than one IAD behind the same IP Sharing Device ....... 31
3.2 NAT mode (PPPoE) ................................................................ 33
3.3 Call Hold, Transfer and Forward ............................................ 35
3.3.1 Call Hold – press [FLASH]..................................................... 35
3.3.2 Call Transfer – press [FLASH], then [transferring number] ........ 35
3.3.3 Call Forward:...................................................................... 35
3.4 Upgrade Your IAD.................................................................. 37
3.4.1 Upgrade via Web management interface................................. 37
3.4.1.1 Before start................................................................... 37
3.4.1.2 Upgrade Version ............................................................ 37
3.4.2 Upgrade via Telnet Command interface................................... 39
3.5 IAD 162 PSTN Line Application .............................................. 42
3.5.1 PSTN Outgoing Call.............................................................. 42
3.5.1.1 Make PSTN call from TEL Phone set.................................. 42
3.5.1.2 PSTN Backup................................................................. 42
3.5.2 PSTN Incoming Call ............................................................. 42
3.5.2.1 VoIP TEL is busy ............................................................ 42
3.5.2.2 VoIP TEL is available....................................................... 42
3.5.3 VoIP Outgoing Call............................................................... 42
3.5.4 VoIP Incoming Call .............................................................. 42
PART IV: WEB MANAGEMENT INTERFACE................... 43
4.1 Login and welcome screen..................................................... 44
List of Table II

4.2 Save and Reboot.................................................................... 45
4.3 Web Management Configuration............................................ 46

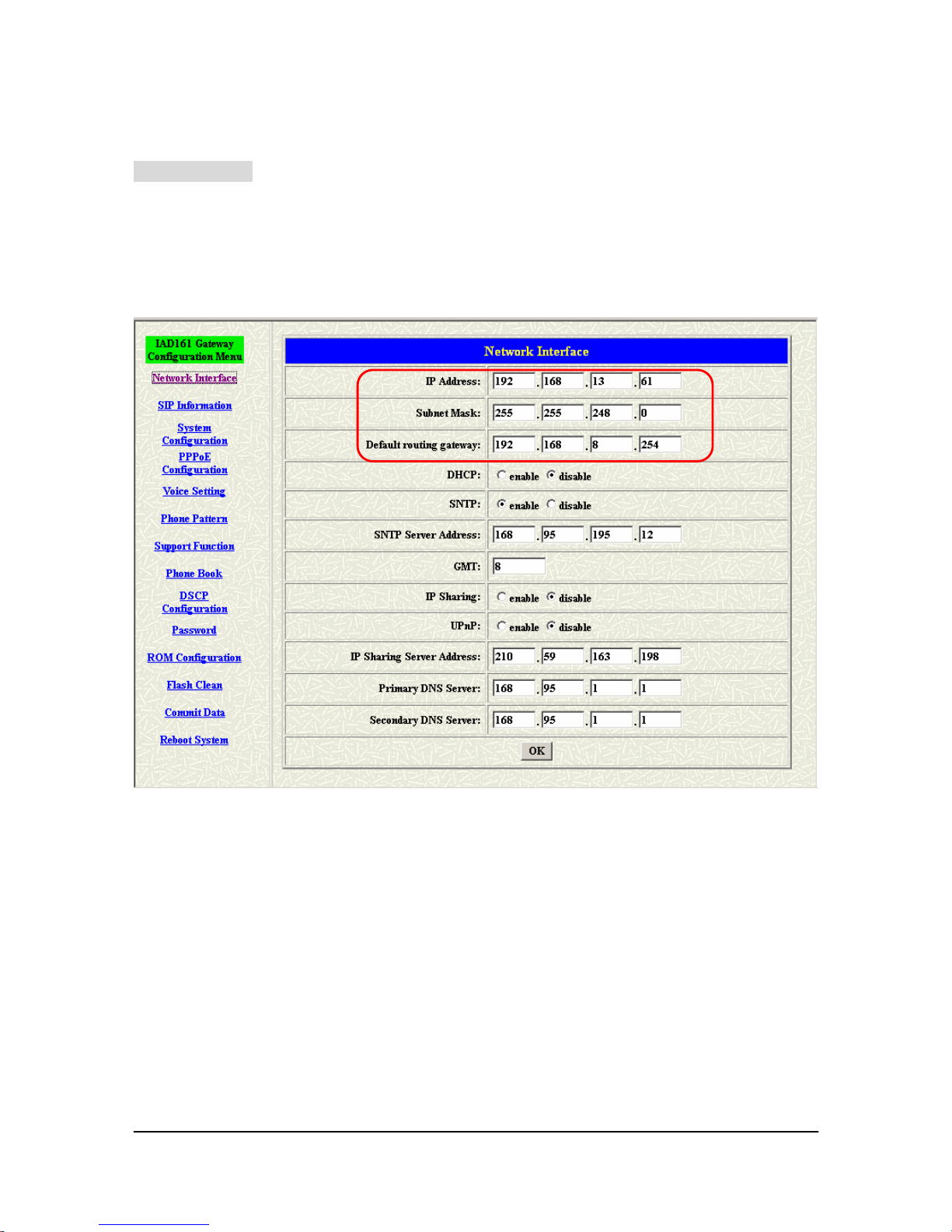

4.3.1 Network Interface ............................................................... 46
4.3.2 SIP Information Screen........................................................ 48
4.3.3 System Configuration........................................................... 50
4.3.4 PPPoE Configuration Screen .................................................. 51
4.3.5 Voice Configuration Screen ................................................... 52
4.3.6 Phone Configuration Screen.................................................. 53
4.3.7 Support Configuration Screen................................................ 55
4.3.8 Phone Book Configuration..................................................... 56
4.3.9 DSCP Configuration Screen................................................... 57
4.3.10 Password Configuration Screen............................................ 59
4.3.11 ROM Configuration Screen .................................................. 60
4.3.12 Flash Clean Screen ............................................................ 61

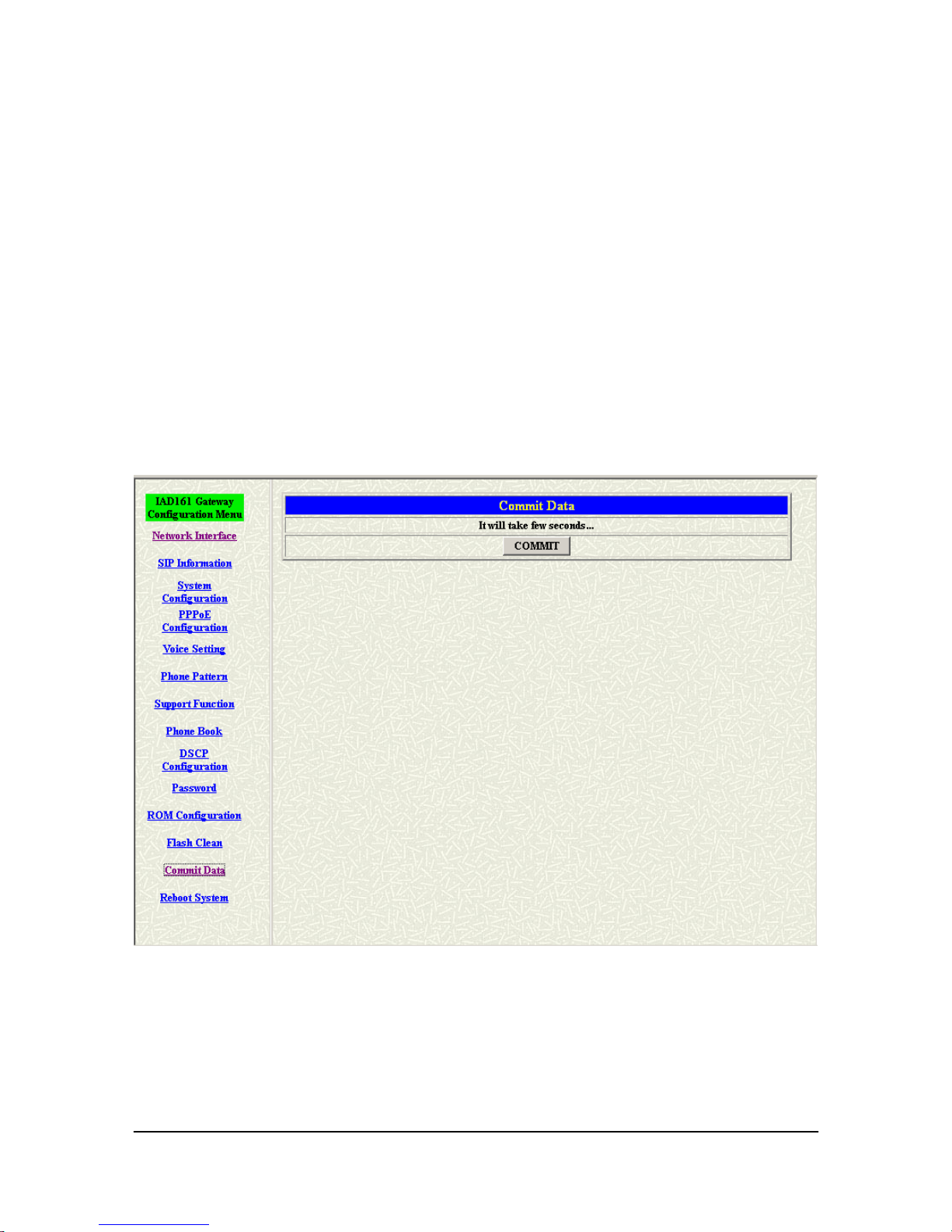

4.3.13 Commit Configuration Data Screen....................................... 62
4.3.14 Reboot IAD System screen.................................................. 63
PART V: TELNET COMMAND INTERFACE..................... 64
5.1 Login...................................................................................... 65
5.2 Save and Reboot.................................................................... 65
5.3 System Commands Overview................................................. 66
5.3.1 [help]................................................................................ 66
5.3.2 [quit]................................................................................. 67
5.3.3 [debug] ............................................................................. 67
5.3.4 [reboot]............................................................................. 68
5.3.5 [commit]............................................................................ 69
5.3.6 [ifaddr].............................................................................. 69
5.3.7 [time]................................................................................ 72
5.3.8 [ping]................................................................................ 72
5.3.9 [pbook] ............................................................................. 73
5.3.10 [pppoe]............................................................................ 75
5.3.11 [flash].............................................................................. 76
5.3.12 [sysconf].......................................................................... 78
5.3.13 [sip] ................................................................................ 80
5.3.14 [security] ......................................................................... 82
5.3.15 [voice]............................................................................. 83
5.3.16 [support].......................................................................... 86
List of Table III

5.3.17 [tos]................................................................................ 87
5.3.18 [phone]............................................................................ 88
5.3.19 [bureau] .......................................................................... 92
5.3.20 [rom]............................................................................... 94
5.3.21 [passwd].......................................................................... 95
List of Table IV

Preface
¾About this User’s Manual
This user’s guide includes specifications, installation guide, web
management and command line configuration interface for the IAD
161/162 VoIP Gateway.
¾Revision History:
Version
Date Author Modified Contents
1.0 Sep., 17th, 2004 Sabrina 1st Revision for IAD 161 162 SIP Gateway.
List of Table V

Part I: IAD Gateway Overview
This part introduces the software/hardware specifications and default settin
g
s
of the IAD Gateway.
- 1 -

1.1 Overview
The IAD 161 is a one-port telephone extension and three ports SOHO
Router to IP network gateway. It provides Data transfer by 10/100Mbps,
telephone services and T.38 fax over IP network with easily operation and
configuration. It is most suitable for SOHO and small-to-medium enterprise
in Internet communication environment.
The IAD 161 provides IP telephone number for end users with FreeTalk
voice service. User can make phone call via Internet now. No more long
distance and international telephony fee! It also connects three computers
without another IP sharing as showed as following diagram.
The IAD 162 provides two telephone numbers that one is IP telephone
number and the other is PSTN telephone number in one device for end users.
You can make phone call via Internet or PSTN in one telephone set now. No
more long distance and international telephony fee! Especially, User still can
make phone call when external power is failure.
The IAD 161/162 also can connect three computers with embedded IP
sharing and DHCP server function.
- 2 -

1.2 Software Specifications
¾IAD Gateway Features
zProvide Voice over IP and Fax over IP features.
zSIP RFC 3261 compliance
zBuilt-in NAT/IP sharing function
zProvided call features: Hold, forward and transfer
zAutomatic FAX detection (Support T.38 protocol)
zCodec: G.711 a/μlaw, G.723.1, G.729A
zPPPoE connection
zVAD (Voice Activity Detection), CNG (Comfort Noise Generate)
zG.168/165 echo cancellation
zFSK and DTMF Caller ID
zProvide both IP telephone number and PSTN telephone number in
one device for end users (IAD 162 only)
zPSTN backup: user still can make phone call when external power is
failure (IAD 162 only)
¾Audio feature
zCodec: G.711 a/μlaw, G.723.1 (6.3kbps), G.729A
zVAD (Voice Activity Detection)
zCNG (Comfort Noise Generation)
zG.168/165-compliant adaptive echo cancellation
zDynamic Jitter Buffer
zBad Frame Interpolation
zVoice/DTMF Gain Settings
¾System Monitoring
zSystem status (WAN, LAN, TEL, Status, Power)
¾Remote Firmware Upgrade
You can use FTP/TFTP to perform firmware upgrade for the IAD Gateway
from a remote location.
¾Security
zPassword protection for system management
zBuilt-in NAT function.
¾Certification
zCE, FCC
- 3 -

1.3 Hardware Specifications
¾Chassis
z190mm(W) x 110mm(D) x 51.5mm(H)
zWeight (unit): 0.3 kg

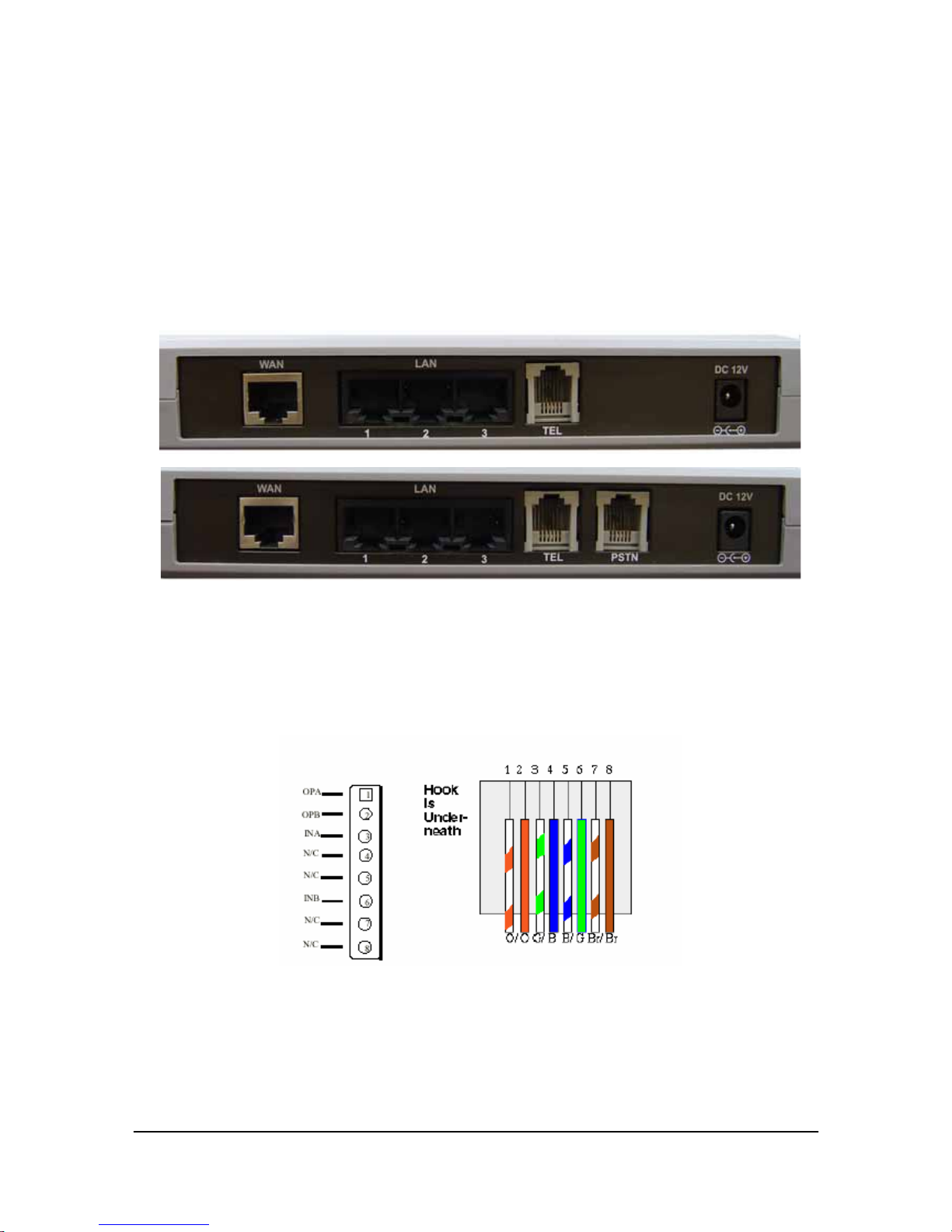

¾Interface
zFour 10/100 Base-T Ethernet RJ-45 ports (Auto LAN MDI/MDIX).
zInput AC 100V-240V, Output DC 12V.
zOne/Two RJ11 Telephone Port (IAD 161/162).
¾Special Housing
zThe plastic housing can be adjustable by manual (Vertical type or
Horizontal type)
¾Environment
zOperational Humidity: 10 to 90 % (Non-condensing)
zOperational Temperature: 0 to +40 °C
zStorage Humidity: 10 to 90 % (Non-condensing)
zStorage Temperature: -10 to +50 °C
¾Front Panel
The LEDs on the front panel indicate the operational status of the
Gateway.
zPower (Green):
(1) Light on: IAD is connected with power adapter correctly and
power on.
(2) Light off: IAD is not connected with power adapter correctly or
not power on.
zStatus (Green):
(1) Light on: IAD is under Proxy mode and successfully register to
Proxy.
(2) Light off: IAD is under Proxy mode and not successfully register
to Proxy or under Peer-to-Peer mode.
zTEL (Orange):
(1) Light Blinking: IAD IP side has incoming call.
(2) Light On: IAD IP side is in communication.
(3) Light Off: IP Line of IAD is in standby mode.
zWAN/LAN (Green):
- 4 -

(1) Light on: Ethernet port successfully connected with network.
(2) Blanking: Ethernet port is transmitting or receiving data.
zPSTN (Orange): (IAD 162 only)
(1) Light Blinking: IAD IP side has incoming call.
(2) Light On: IAD PSTN side is in communication.
(3) Light Off: PSTN Line of IAD is in standby mode.
¾Back Panel
zEthernet Port:
Ethernet port is for connecting VoIP Gateway to network, transmit
rate supports 10/100 Base-T.
Ethernet connector（LAN/WAN）
zTEL Port:
RJ-11 connector, IAD interface to connect analog phone sets or trunk
port of PABX.
zPSTN Port (IAD 162 Only):
- 5 -

RJ-11 connector, IAD interface to CO PSTN line or extension port of
PABX.
zDC 12V Port:
DC 12V Power supply.
- 6 -

:
Part II: Start-UP
This part explains how to confi
g
ure essential and basic items before user can
run IAD gateway.
- 7 -

2.1 Software Installation Guide
This guide covers all essential configurations under different application,
user can follow steps below to configure basic items to run IAD gateway.
2.1.1 Default Settings of IAD gateway
¾WAN IP Parameters
(1) WAN
zIP Address = 10.1.1.3
zSubnet mask = 255.0.0.0
zDefault gateway = 10.1.1.254
(2) LAN
zIP Address = 192.168.123.123
zSubnet mask = 255.255.255.0
¾Telnet and Web Login Password
zLogin User Name= root
Password = “Null” (default)
2.1.2 Additional Installation Requirements
In addition to the contents of your package, there are other hardware
and software requirements you need before you can install and use your
IAD Gateway. These requirements include:
1. A computer with an Ethernet NIC (Network Interface Card)
installed.
2. Use Internet Explorer 5.5 or later / Netscape Navigator 6 or later
versions.
3. Analog telephone set.
4. Software tools: SIP Proxy Server (optional)
5. Installation Wizard (optional): This is a configuration tool for users
can easy access products and configuring IP address. Please
contact with your retailer for more information.
- 8 -

Please follow steps below to access IAD configuration interface:
Step 1.Connect WAN Port of IAD Gateway to public network
Connect the WAN port (silver) on the IAD Gateway to the
Ethernet port of your network (e.g. Cable Modem, ADSL Modem)
using the standard CAT-5 straight Ethernet cable.
Step 2.Connect your PC to the LAN port of IAD
Connect your PC to the LAN port of IAD with standard CAT-5
straight Ethernet cable.
Step 3.Set your PC as DHCP mode
Please go to the network setting of your PC and set it as DHCP
mode, let your PC can automatically search for DHCP server and
get one valid IP address. IAD has embedded DHCP server
(default is enabled) so that your PC will get one IP address from
IAD DHCP server.
Step 4.Open your browser and input IP address 192.168.123.123
Once your PC has got an IP from IAD, you may connect IAD via
WEB browser to do more configurations. The default LAN IP
address of IAD is “192.168.123.123”; please input this IP
address on web browser to connect with web management
interface. Please refer to Part III Web management for more
information.
Step 5.Advanced Setting via Telnet (Optional)
If user wants to do more advanced and complete settings that
cannot be found via web management interface, please Telnet to
the IAD to do more detail configurations.
Step 6.Connect other PC with LAN Ports (Optional)
If you have more than one PC, you can connect them with LAN
Ports (black) on the IAD Gateway. Please set these PCs as DHCP
mode so that they can automatically get IP from IAD DHCP
server. DHCP server of IAD can assign 253 IP most.
Caution:
To prevent damage to the IAD Gateway, please make sure
you have connected with the correct power adapter.
- 9 -

2.1.3 Essential Configuration via Web Management
interface
This section describes how to setup IAD via Web managementinterface.
Please follow procedures below to configure essential items before you use
IAD gateway.
2.1.3.1 Save Data and Reboot
After any configuration has been made, user has to save all data and reboot
system to make configurations take effect.
Step 1.Click [Commit Data] on the navigation panel. In the Commit
Configuration Data screen, click the [Commit] button. In the Commit
Configuration Data screen will Display [Commit to Flash OK!], when
IAD finished committing data.
- 10 -

Step 2.Click [Reboot System] on the navigation panel. In the IAD Gateway
screen, click the [Reboot] button. It will take around 40 seconds to
reboot.
Step 3.Close the current browser windows and launch your web browser
again.
- 11 -

2.1.3.2 Setup Network
(1) Fixed IP
To configure the VoIP Gateway IP address, please click [Network
Interface] on the navigation panel. In the Network Interface screen, type
a new IP address, subnet mask and the default routing gateway (e.g. IP
Address: 192.168.13.80, Subnet mask: 255.255.248.0, Default routing
gateway: 192.168.8.254) and click the OK button.
- 12 -

(2) DHCP
Click [Network Interface] on the navigation panel. In the Network
Interface screen, enable the DHCP function if you are using the cable
modem or DHCP server and click the [OK] button.
- 13 -

(3) PPPoE
Click [PPPoE Configuration] in the navigation panel and open the [PPPoE
Configuration] Screen.
-Device: Set PPPoe function to be On or Off.
-User Name: Set PPPoE authentication User Name.
-Password: Set PPPoE authentication password.
-Reboot After Remote Host Disconnection: Enable/Disable auto reboot after
PPPoE disconnection
If user enables this function, after PPPoE being disconnected, IAD will
automatically reboot to re-connect, and after reboot, if IAD still can’t get
contact with server, IAD will keep trying to connect. After re-connected, IAD
will also restart system. On the other hand, if user disables this function, IAD
won’t reboot and keep trying to connect.
-Other items: for reference only, cannot allow to be configured.
- 14 -

2.1.3.3 Application mode-Proxy/Peer-to-Peer Mode
After setting IP address, user must assign IAD to work under Proxy mode or
Peer-to-Peer mode. If there is no Proxy, please set your IAD as Peer-to-Peer
Mode.
2.1.3.3.1 Proxy mode
Proxy mode means that there will be an intermediate Proxy Server between
IAD Gateway and the remote entity. While operating at this mode, IAD
Gateway will first register to the Proxy Server located at the ISP side. For the
following operation, it sends the INVITE message to the Proxy Server once
you initiate a session. Then the Proxy server will forward the INVITE
message to the right place. And the Response message from the remote
entity will be forwarded back to you via Proxy server.
Step 1.Configure the IAD Gateway SIP Configuration. Click SIP Information
on the navigation panel. In the SIP Information screen, select Proxy
routed Mode function.
Step 2.Set the SIP information from your service provider: Proxy IP Address,
Line1 Number, Line1 Account, Line1 Password, and click the OK
button.
Note:
1. Please contact with your Proxy vendor to obtain user account
information.
2. If no need to enter password, user also has to set security information,
please set “name” the same with line number.
- 15 -
