Repotec RP-13SC20S User manual

Smart 10/100BASE-TX to
100BASE-FX Fast Ethernet
Single Fiber Bi-Direction
Media Converter
Quick Installation Guide

FCC Warning
This equipment has been tested and found to comply with
the regulations for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with this
user’s guide, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in
which case the user will be required to correct the
interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this
product may cause radio interference, in which case the
user may be required to take adequate measures.
VCCI Warning
This is a product of VCCI Class B Compliance
1

2
Introduction
Thank you for choosing the Smart 10/100BASE-TX to
100BASE-FX Media Converter, The Media Converter
introduced here provides one channel media conversion
between 10/100BASE-TX and 100BASE-FX.
Dual-Wavelength Single-Fiber
These types of Single-Fiber modules combine transmit and
receive signals onto one fiber strand using two wavelengths.
This design avoids the budget losses incurred b the
single-wavelength single-fiber technology, and minimizes
any possibility of reflections in the system. The units on
both ends of a link are different. One module uses one
wavelength to transmit and a second wavelength to receive,
while the other module flips that relationship. For this
reason these units are sold in pairs.
About Media Converter
The Smart Media Converter is a network technology
specified by IEEE 802.3 10BASE-T, IEEE802.3u
100BASE-TX, 100BASE-FX standards.

3
About Link Pass Through
When LLCF is enabled, the ports do not transmit a link
signal until they receive a link signal from the opposite port.
Link loss is “carried forward” to the managed switch or hub
that is sending the link. LLCF can be used for either the
copper or fiber ports.
When LLR is enabled, the fiber port’s transmitter shuts
down if its receiver fails to detect a valid receive link. If
one of the optical conductors is bad, the card with LLR
enabled will return a no link condition to its link partner.
LLR is used to detect link problems only on the fiber port.

4
Product Features
9A pair of One-channel single fiber media conversion
between 10/100BASE-TX and 100BASE-FX.
9Two different type of transmitting wavelength: One
wavelength with bi-directional for both transmits and
receives. TX: 1310nm; RX: 1550nm. or TX: 1550nm;
RX: 1310nm
9Auto negotiation of speed and duplex mode on TX
port
9Store-and-forward mechanism
9Back-pressure & IEEE 802.3x compliant flow control
9Full wire-speed forwarding rate
9Front panel status LEDs
9Used as a stand-alone device or with a chassis
9Hot-swappable when used with a chassis
9Supports Link Pass Through
9Supports Auto-MDIX for 100BASE-TX port
9Sliding switch for the duplex mode of Fiber
9Sliding switch for setting to Forced mode or
Auto-negotiation
9Sliding switch for setting the speed
9Sliding switch for setting the LLCF, LLR function
9Hot-swappable when used with a Chassis System
Manageable through Intelligent Chassis System

5
Installation
This chapter gives step-by-step installation instructions for
the Smart Media Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the
equipment where it will not be subjected to extreme
temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following
requirements:
1. The ambient temperature should be between 32 and
104 degrees Fahrenheit (0 to 40 degrees Celsius).
2. The relative humidity should be less than 90 percent,
non-condensing.
3. Surrounding electrical devices should not exceed
the electromagnetic field (RFC) standards for IEC
801-3, Level 2 (3V/M) field strength.
4. Make sure that the equipment receives adequate
ventilation. Do not block the ventilation holes on
each side of the switch or the fan exhaust port on
the side or rear of the equipment.
5. The power outlet should be within 1.8 meters of the
switch.

Sliding Switch
There is a sliding switch for the setting on copper and fiber
port. Refer to the table below for more details.
123456
ON DIP
On Fiber Half Duplex
Switch 1 Off Fiber Full Duplex
On TX Forced Mode
Switch 2 Off TX Auto-Negotiation
* When switch to Forced Mode, the Auto MDI-
X
function
will turn off and become MDI mode.
On TX 10M
Switch 3 Off TX 100M
On TX Half Duplex
Switch 4 Off TX Full Duplex
On LLR Enable
Switch 5 Off LLR Disable
On LLCF Enable
Switch 6 Off LLCF Disable
6

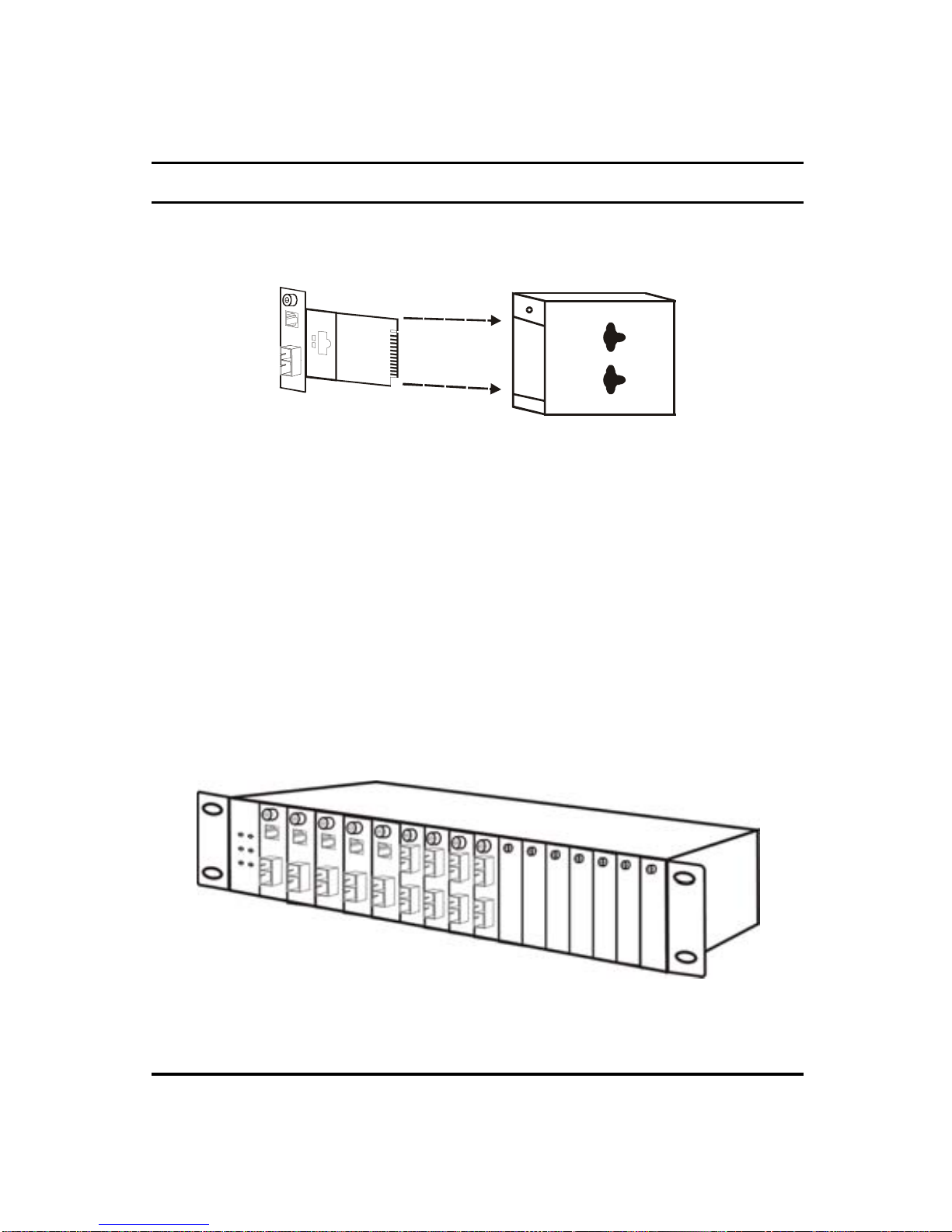

Installing in a Chassis
The Converter can be fit into any of the expansion slots on
a special designed chassis.
Unscrew and pull out the
media converter board
First, install the converter onto a carrier supplied with the
chassis:
Step 1- Unscrew the carrier from the desired expansion
slot on the chassis.
Step 2- Remove the screw on the converter as shown
below.
Step 3- Fit the converter onto the carrier and use the
screw to secure it.
7

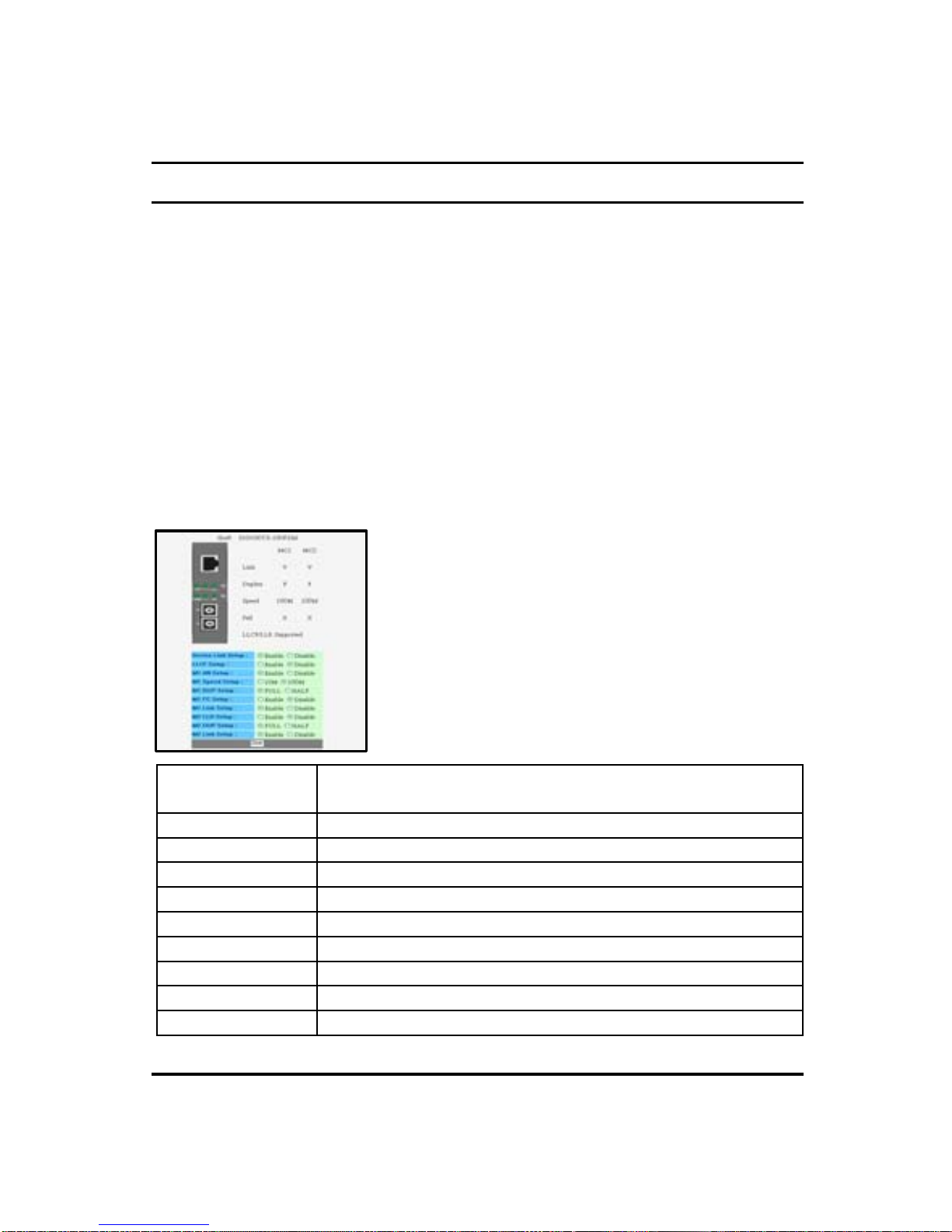

Management the Media Converter
The optional Management Chassis that can control this
Smart Media Converter through the management system,
this Smart Media Converter can be controlled through Web
Browser, SNMP management utility and terminal
emulation program.
The Management Chassis will detect the default reset on
the DIP switches and display out the status, also the
Management Chassis can control the function through the
management system.
Through the optional Media Converter
Chassis System via Management Module, you
can control the setting of this Smart Media
Converter.
To set the Fiber and UTP (FDX/HDX), UTP
(Auto negotiation/Manual), Speed (10M/100M),
LLR (Enable/Disable), LLCF (Enable/Disable)
Device Link Setup To enable or disable the connection of both UTP port and
Fiber port
LLCF Setup To enable or disable the LLCF function of the device
M1 AN Setup To set the UTP to Auto-negotiation or Forced Mode
M1 Speed Setup To set the speed of UTP to 10M or 100M
M1 DUP Setup To set the Duplex Mode of UTP port to Full or Half
M1 FC Setup To set the Flow Control of the UTP to enable or disable
M1 Link Setup To enable or disable the connection of the UTP port
M2 LLR Setup To enable or disable the LLR function of the Fiber port
M2 DUP Setup To set the Duplex Mode of Fiber port to Full or Half
M2 Link Setup To enable or disable the connection of the Fiber port
8

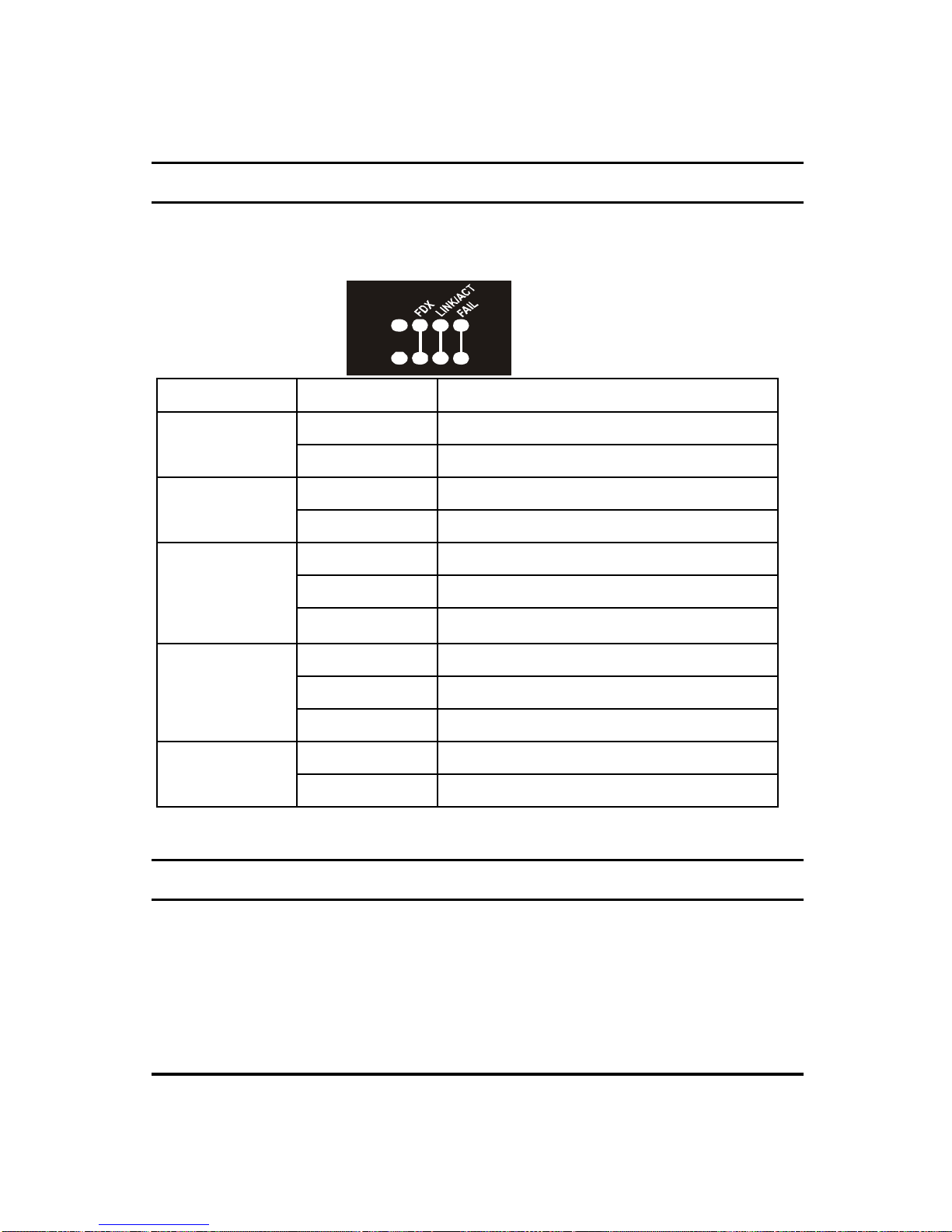

LED Indicator
The LED indicators give you instant feedback on status of the
converter:
TX
FX
100M
PWR
LEDs Status Indication
Lights on Power on
PWR
(Power) Off Power off
Lights on Runs at 100Mbps on TX port
100M
(100Mbps) Off Runs at 10Mbps on TX port
Lights on Connection in full duplex mode
Lights off Connection in half duplex mode
FDX/COL
Blinking Data collision
Lights on A valid network connection established
Lights off Not Linking
LINK/ACT
Blinking Data transmitting or receiving
Lights on The physical line is broken
FAIL Lights off The physical line is fine
Dual Wavelength Single Fiber
The converter combine transmit and receive signal onto one
fiber strand using two kind of wavelength. The units on
both ends of a link are different. One module uses one
wavelength to transmit and a second wavelength to receive,
9

while the other module flips that relationship. For this
reason these units are sold in pairs.
When using a converter that the TX (transmit) is 1310nm
and the RX(receive) is 1550nm, then the other end need to
have a combination of converter that the TX(transmit) is
1550nm and the RX(receive) is 1310nm.
The TX needs to connect to the other end’s RX with the
same wavelength.
TX:1310nm
RX:1550nm
TX:1550nm
RX:1310nm
Media Converter #1 Media Converter #2
10

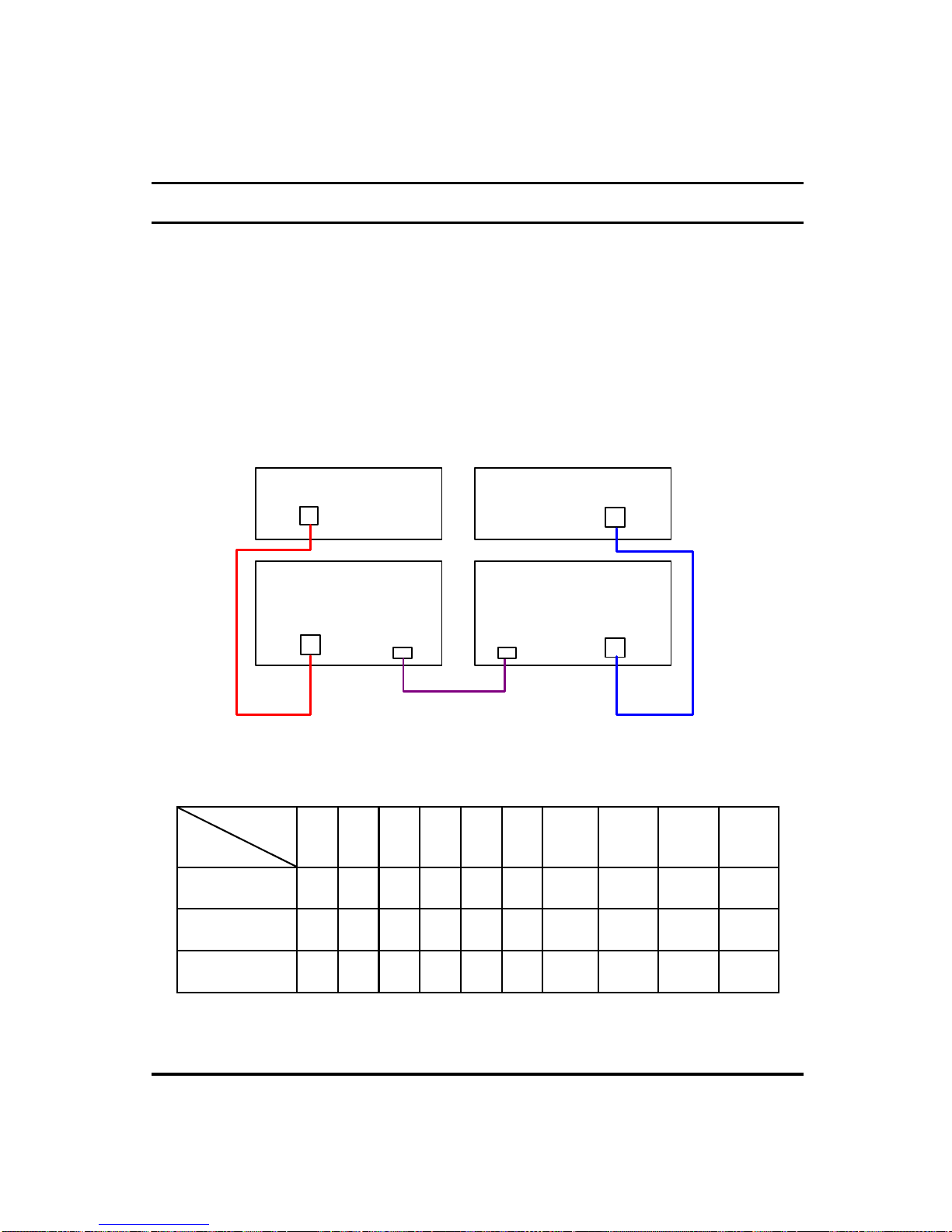

Link Pass Through Function
LLR (Link Loss Return)
When a device connected to the converter and the fiber line
loss the link, the converter’s fiber will disconnect the link
of transmit.
The switch 5 is to enable or disable the LLR function of the
media converter.
MC113STSC
Fiber
MC115STSC
Fiber
SW8P-B SW8P-A
UTP Cable
CopperCopper
Copper
Copper
Cable 2
Cable 3
Cable 1
9/125um
single-mode
fib e r o ptic c a b le
UTP Cable
L.L.C.F. Off
L.L.R. On
Link 1 Link 2Link 4 Link 3
Link 6 Link 5
Lin k
F a il 3
Link
F a il 4 Link
Fail 2
L.L.C.F. Off
L.L.R. Off
Link
F a il 1
Test Result:
Link Status
Disconnect
Link
1
Link
2Link 3Link 4Link 5Link 6Link
Fail 1
LED
Link
Fail 2
LED
Link
Fail 3
LED
Link
Fail 4
LED
Cable 1 Off On Off On On On On Off On Off
Cable 2 On Off On On Off On Off On Off Off
Cable 3 On On On Off On Off Off Off Off On
Note: When using two converters, don’t enable the both device’s LLR
function at the same time.
11

LLCF (Link Loss Carry Forward)
When a device connected to the converter and the TP line
loss the link, the converter’s fiber will disconnect the link
of transmit, so that the other ends will know that there is a
linkage error on this end. And when the Fiber line loss the
link, the converter’s TP will disconnected, and the other
end will know that there is linkage problem exist.
The switch 6 is to enable or disable the LLCF function of
the media converter.
MC113STSC
Fiber
MC115STSC
Fiber
SW8P-B SW8P-A
UTP Cable
CopperCopper
Copper
Copper
Cable 2
Cable 3
Cable 1
9/125um
single-mode
fiber optic cable
UTP Ca ble
L.L.C.F. On
L.L.R. Off
Link 1 Lin k 2Link 4 Lin k 3
Link 6 Link 5
Lin k
Fail 3
Link
F a il 4 Lin k
Fail 2
L.L.C.F. Off
L.L.R. Off
Link
F a il 1
Test Result:
Link Status
Disconnect
Link
1Link 2Link 3Link 4Link 5Link 6
Link
Fail 1
LED
Link
Fail 2
LED
Link
Fail 3
LED
Link
Fail 4
LED
Cable 1 Off On Off Off On Off On Off On Off
Cable 2 On Off On On Off On Off On Off Off
Cable 3 Off On Off Off On Off On Off Off On
12

13
Specifications
Applicable
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX, 100BASE-FX
Ports 1 x 10/100BASE-TX port, 1 x 100BASE-FX port
Speed 10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
Per Unit-: Power
LED Indicators TP: FDX/COL, LINK/ACT, FAIL, Speed
Fiber: FDX/COL, LINK/ACT, FAIL
Cable
10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100 m
100BASE-TX: 2-pair UTP Cat. 5, up to 100 m
100BASE-FX:10/125um single mode fiber optic
cable
Dimensions L120 × W88 × H25 mm
Power External power adapter 7.5V 1.5A
Power
Consumption 3W Max.
Operating
Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage
Temperature -25°C ~ 70°C (-13°F ~ 158°F)
Humidity 10 ~ 90%, non-condensing
Emissions FCC Class B, CE Class B, VCCI Class B
Rev:C1-03
