Repotec UTP-MM 2 User manual

Brief introduction
Many thanks for purchasing Fast Ethernet optical transceiver!
This product supports IEEE802.3UI100Base-Tx/Fx protocol,
as well as full duplex and half duplex mode. This manual is for
adaptive 10M/100M transceivers. The following purchasing
guide is for customer’s reference.
Purchasing guide for optical transceivers
Model Specifications
UTP-MM 2 10/100M adaptive, multi-mode 2km, SC
UTP-SM 2 10/100M adaptive, single mode 2km, ST
UTP-SM 20 10/100M adaptive, single mode 20km, SC
UTP-SM 40 10/100M adaptive, single mode 40km, SC
UTP-SM 60 10/100M adaptive, single mode 60km, SC
UTP-SM 100 10/100M adaptive, single mode 100km, SC
Packing list
Please check the following items in the package before
installing the transceiver.
Fast Ethernet optical transceiver 1set
AC/DC power adapter 1pcs
User manual 1copy
Please contact the dealer immediately for any loss or damage
to the above items.
Installation
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical
length of 100 meter. It features the function of automatically
identifying the through line and cross wire (10/100M).
Fiber interface
SC/ST fiber interface is of duplex mode type, including two
interfaces, namely TX and RX. When the two sets of optical
transceiver are interfaced or connected to switch with fiber
interface, the fiber is in cross connection, namely "TX-RX",
"RX-TX" (direct butting for single optical fiber).
2. Connection
The network device (work station, hub or switch) with RJ-45
interface is connected to RJ-45 jack of optical transceiver
through twisted-pair. And the multi/single mode fiber is
connected to SC/ST fiber interface of the optical transceiver.
Then switch on. The corresponding LED is on for correct
connection. (See the table below for the LED indicator lamp)

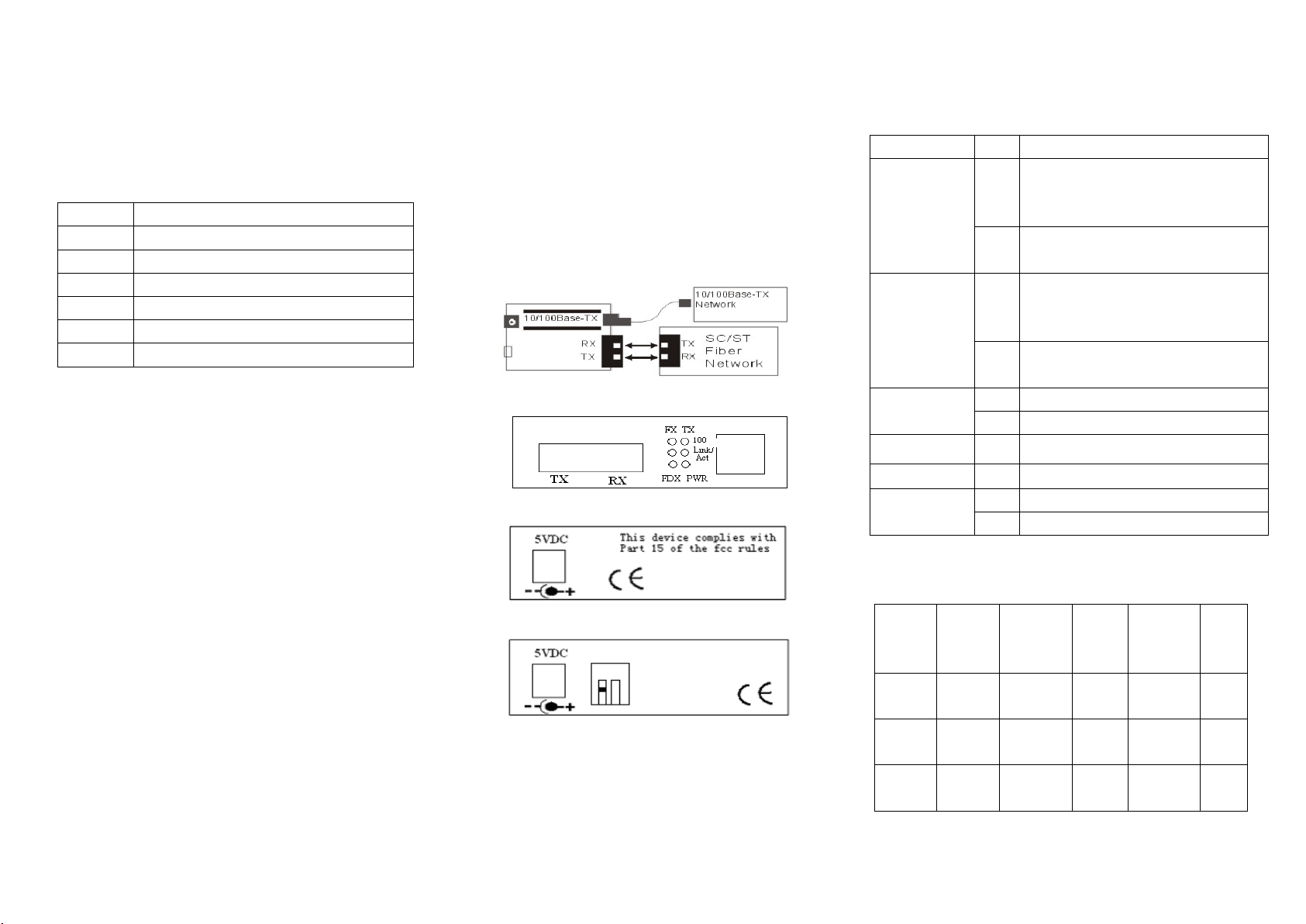

Figure 1 Schematic drawing of connection
Figure 2 Front Pannel
Type A
Type B
Figure 3 Back Pannel
Explanation for LED indicator lamp
LED indicator lamps serve as device monitoring and trouble
display. The following is the explanation for each LED
indicator lamp.
LED indicator lamp Status Explanation
FX Link/Act On Connection status display for fiber link.
“ON” indicates that Fiber link is
in correct
connection.
Blink Active status display of fiber link
“Blink” indicates packet goes through Fx end.
TX Link/Act On Connection status display for electric link.
“ON” indicates that electric
link is in correct
connection.
Blink Active status display of fiber link
“Blink” indicates packet goes through Tx end.
FDX On Transceiver works in the full duplex mode.
Off Transceiver works in the half duplex mode.
PWR On Power is on and normal.
FX100 On Transfer rate of optical interface is 100Mbps.
TX100 On Transfer rate of electric interface is 100Mbps.
Off Rate of electric interface is 10Mbps
Transmission characteristics of single fiber transceiver
Product
model
Optical
wavelength
(m)
Transmitting
optical power
(dbm)
Receiving
sensitivity
(dbm)
Transmission
distance
(km)
Fiber
type
UTP-SM
(20km)
1310/1550
1550/1310
>-15
dBm
<-
34dBm
20 Single
mode
UTP-SM
(40km)
1310/1550
1550/1330
>-8
dBm
<-38
dBm
40 Single
mode
UTP-SM
(60km)
1310/1550
1550/1330 >-
5dBm
<-38
dBm
60 Single
mode

Fiber transmission features:
Product model Optical
wavelength
(nm)
Optical
power
(dbm)
Sensibility
(dbm)
Saturability
(dbm)
UTP-SM 850/1310n
m
>-18dB
m <-31
dBm
2km
UTP-SM 20 1310nm >-15dB
m <-
34dBm
20KM
UTP-SM 40 1310nm >-8dB
m <-38
dBm
40KM
UTP-SM 60 1310nm >-5dB
m <-38
dBm
60KM
UTP-SM 100 1550nm
DFB >
0dBm
<-
38dBm
100KM
Main features
1. In conformity to IEEE 802.3 10 Base-T standard.
In conformity to IEEE 802.3u 100 Base-TX/FX standard.
2. Max. 2M buffer memory built in chip.
3. Back pressure flow control for full duplex IEEE802.3 X and
half duplex.
4. Automatic identification of MDI/MDI-X cross line.
5. High-performance1.4Gbps memory bandwidth.
6. In conformity to safety code of FCC and 15 CLASS A and
CE MARK.
Technical parameters:
1. Standard Protocol: IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX/FX standard
2. Connector: one UTP RJ-45 connector, one SC/ST
connector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter: 5V DC/1A
5. Environmental temperature:-20℃~70 ℃
6. Relative humidity: 5%-90% non-condensing
8. TP cable: Cat5 UTP cable
9. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm
10 Dimensions:
External power supply: 26mmx 71mm x 94mm
Cautions:
1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with
naked eyes.
4. Single optical fiber transceiver must be used in pair(A,B)
A: TX1310RX1550nm B:TX1550/RX1310nm.
Trouble shooting:
1. Device is not matched. Please select the corresponding
network device according to the transfer rate of the product
(10Mbps or 100Mbps) when connected to other network
devices (network card, hub, switch).
2. Line loss is excessive during the fiber wiring. Excessive loss
in connector plug-in and fiber soldering welding, and excessive
intermediate nodes may cause excessive loss rate or abnormal
operation.
DIP SWITCH (Type B only)
*Toggle ON pin 1 to enable LFP; OFF to disable
*Toggle ON pin 2 to enable Flow Control; OFF to disable
Gigabit Optical Converter
10/100Base-Tx to 100Base-Fx
User manual
(Please read before using the Media Converter)
