Repotec RP-UPH603T User manual

User manual
RP-UPH 6K/10K
ON LINE UPS
REV. 2

Contents
1. Introduction....................................…….........……… 1
2. Safety Instructions......………...…….........…….…… 2
3. System Description............……......….........…….….. 4
4. Installation....................…….......…...........………..... 8
5. Operation.........................................……......….….... 9
6. Trouble Shooting Guide....................………............. 14
7. Communication.........……..............…...................... 15
8. Specification......................……..........….…………... 16

1
1. INTRODUCTION
1.1 General Description
The continuity of electrical power is an essential requirement for critical load
operations .The Uninterruptible Power System (UPS) is designed to meet
the user‘s need of present computer, server and the equipment of office
automation that make the UPS more compact and less noisy.
To choose the UPS as your equipment protector is a wise investment
because it supplies reliable, pure and stable power at affordable price.
1.2 Key features
1. Wide input range designed to operate under harsh environment.
2. High input power factor and DC-start function.
3. LED and LCD display for detail status and data; real-time alarm silence.
4. Remote monitoring with SNMP intelligent slot and RS-232 interface.
5. Light weight and compact size, easy to transport and place.
1.3 Important Notices
To be sure that the UPS will be operated correctly, the following items
should be noticed:
1. Read instructions carefully before operating the UPS.
2. UPS power connect instruction should be followed.
3. Please don‘t open the case to prevent danger.
4. If the UPS will be stored for long period, the battery must be charged
once every 90 days.
5. Retain the load within the rating of UPS to prevent faults.
6. Keep the UPS clean and dry.
7. Keep the front air inlet and rear air outlet of the UPS are unblocked to
avoid over-temperature failure.

2
2. SAFETY INSTRUCTION
2.1 Transporting
1. Disconnect all power cables if necessary.
2. Be careful not to damage the UPS while transporting.
3. Don‘t move the UPS upside down.
4. Please transport the UPS system only in the original packaging (to protect
against shock and impact).
2.2 Positioning
1. Do not put the UPS on rugged or declined surface.
2. Do not install the UPS system near water or in damp environments.
3. Do not install the UPS system where it would be exposed to direct sunlight
or near heat.
4. Do not block off ventilation openings in the UPS system’s housing and
don’t leave objects on the top of the UPS.
5. Allow a minimum distance of 20 cm in the rear and two sides of the UPS
for ventilation.
6. Keep the UPS far away from heat emitting sources.
7. Do not expose it to corrosive gas.
8. Ambient temperature : 0℃- 40℃

3
2.3 Important notices
1. Caution - risk of electric shock.
Even after the unit is disconnected from the mains power supply (building
wiring socket outlet), components inside the UPS system are still
connected to the battery and are still electrically live and dangerous.
Before carrying out any kind of servicing and/or maintenance, disconnect
the batteries and verify that no current is present.
2. Only persons adequately familiar with batteries and with the required
precautionary measures may exchange batteries and supervise operations.
Unauthorized persons must be kept well away from the batteries.
3. Batteries may cause electric shock and have a high short-circuit current.
Please take the precautionary measures specified below and any other
measures necessary when working with batteries:
- remove wristwatches, rings and other metal objects
- use only tools with insulated grips and handles.
4. When changing batteries, install the same number and same type of
batteries.
5. Do not attempt to dispose of batteries by burning them. This could cause
battery explosion.
6. Do not open or destroy batteries. Escaping electrolyte can cause injury to
the skin and eyes.
7. Ensure that no fluids or other foreign objects can enter the UPS system.

4
3. SYSTEM DESCRIPTION
3.1 Front panel description for LCD
Buttons Description
1. LCD Display
LCD Display: This indicates the UPS operation
information, including UPS status, input/output voltage,
input/output frequency, battery voltage, battery
capacity left, output load and inside temperature.
UPS output voltage , frequency can be set from it here,
too.

2. Up-key
Press Up-key to select upward
Switch Off: press both Up-key(2) and
Down-key(3) simultaneously for 3 seconds until
UPS beeps for twice.

3. Down-key
Press Down-key to select downward
Switch Off: press both Up-key(2) and
Down-key(3) simultaneously for 3 seconds
until UPS beeps for twice.

5

4. Enter-Key
Switch On:
Press both Down-key(3) and Enter-key(4)
simultaneously for 3 seconds until UPS beeps
for twice.
Mute:
Under battery mode, press both Up-key(2) and
Enter-key(4) simultaneously for 3 seconds
To disable the buzzer.
Self-test:
Under line mode, press and hold both Up-key(2)
and Enter-key(4) simultaneously for 3 seconds
to initiate the self-test 10 seconds.
5. Fault LED
(red) To indicate the UPS has an internal fault.
6. Warning LED
(yellow) To indicate the UPS is in the status of overload, bypass and battery back-up.
7. Normal LED
(green):
To indicate the UPS is working normally and the green
LED indication is lighting on.
To indicate the UPS is off and the green LED indication
is blinking.

6
3.2 OUTLINE
6K/10K Tower

7
3.3 Rear description
6K/10K Tower
1. RS232 port
2. USB port
3. EPO connector
4. Parallel connection
5. Intelligent slot
6. Fan
7. External battery connector
8. Input breaker
9. Input / Output terminal
10. Classic ground screw
11. Maintain bypass switch
12. IEC Circuit breaker /
over current protection
13 IEC output outlets

8
4. INSTALLATION
Installation and wiring must be performed in accordance with the local
electric code and the following instructions by professional personnel.
For safety, please cut off the mains power switch before installation.
The battery breaker also needs to be cut off.
1. Open the terminal block cover located on the rear panel of the
UPS，please refer to the appearance diagram.
2. For 6K UPS, it is recommended to select the UL1015 10AWG
（6mm2）wire or other insulated wire which complies with AWG
Standard for the UPS input and output wirings.
3. For 10K UPS, it is recommended to select the UL1015 8AWG
(10mm2）wire or other insulated wire which complies with AWG
Standard for the UPS input and output wirings.
4. To connect the load with the UPS, please turn off all the loads first,
then perform the connection and finally turn on the loads one by one.
5. Connect the input and output wires to the corresponding input and
output terminals according to the following diagram
Note: you must make sure that the input and output wires and
the input and output terminals are connected tightly.
6. After having completed the installation, make sure the wiring is
correct.
7. If the UPS connect external batteries, make sure the battery polarity
and voltage are correct.
Note: Do not use the wall receptacle as the input power source for
the UPS, as its rated current is less than the UPS’s maximum input
current. Otherwise the receptacle may be burned and destroyed.

9
5. OPERATION
5.1 Check Prior to Start Up
1. Ensure the UPS is in a suitable positioning.
2. Check input cord is secured.
3. Make sure the load is disconnected or in the “OFF” position.
4. Check if input voltage meets the UPS rating required.
5.2 Operation Procedure for LCD Model
Please follow the instructions below for UPS operation.
1. Once the AC source is connected, the LCD Display shall light up
immediately to display first the main menu of greeting context and the
Normal LED is blinking to indicate ready to switch on the inverter.
2. By pressing the Enter-keyand the Down-keysimultaneously for 3
seconds, the UPS will start up after two beeps and Normal LED lights
up to indicate the power is from its inverter to the load.
3. When the Up-keyand the Down-keyare pressed simultaneously
for 3 seconds, the inverter will be turned off after two beeps and the
UPS is on the standby status (LCD display illuminates and Normal
LED is blinking) until AC source is disconnected.
5.3 Storage Instruction
Disconnect input power in rear panel if you will not use it for long period.
If the UPS is stored over 3 months, please keep supplying power to the
UPS for at least 24 hours to ensure battery fully recharged.

10
5.4 LCD display
Use Up/Down key to select menu-displays of the LCD described below.
This screen will refresh once the system power is enabled.

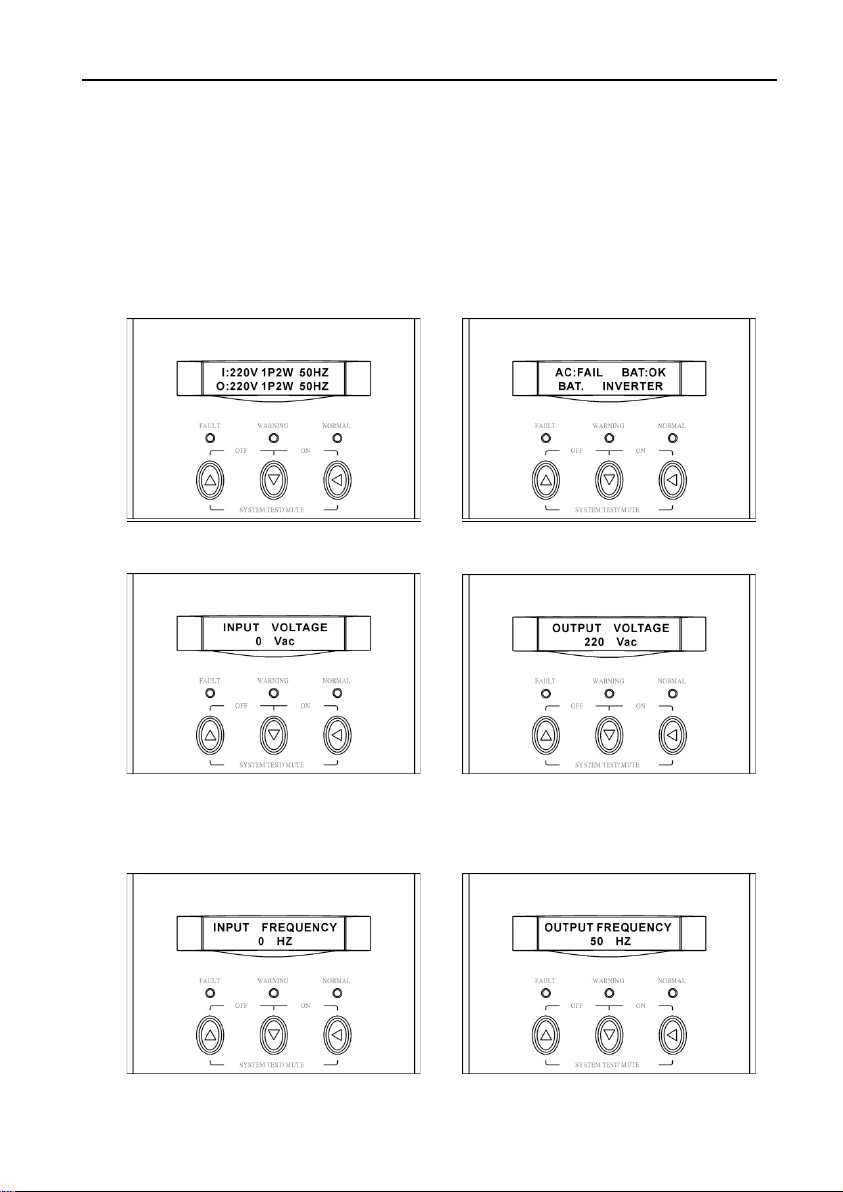

1．Rated specification
2．Status
3．Voltage
4．Frequency

11
5．Battery status
6
．
Output power
7
．
Temperature

12

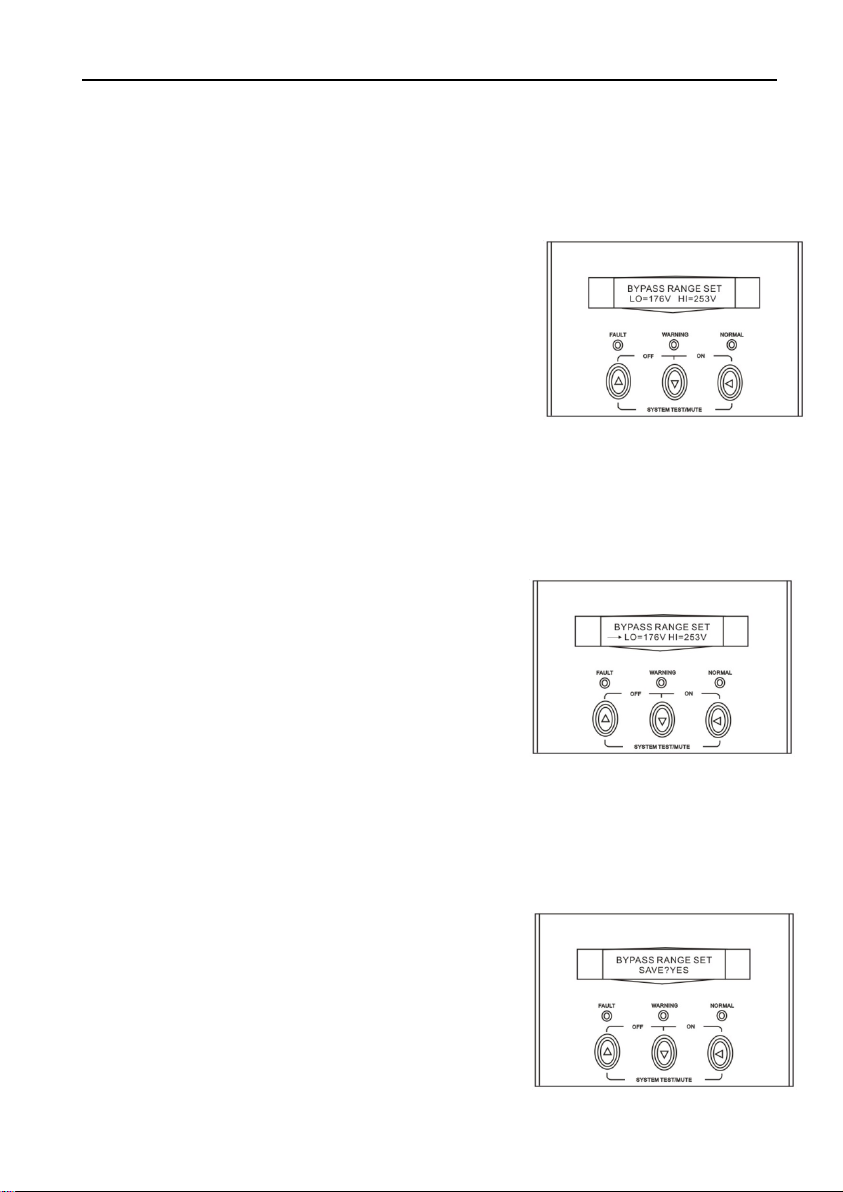

8．Bypass range setting
(Under AC mode, this menu is displayed before turning the UPS on)
A. To protect the load, the function
of bypass auto-transfer is
activated only when the AC main
voltage is within the setting
range of LO(low) and HI(high).
Once AC main voltage exceeds the
Setting range,
the bypass output
will be closed automatically to
protect the load.
In this screen, press Enter-key
to enter the following steps
for LO/HI voltage setting.
B. The cursor ( →
) will pop up to
indicate the item newly selected.
Press Enter-keyto get the item of
LO or HI range the user wants to
adjust.
Use Upor Down-keyto adjust
the voltage (changing 1V by every
press). LO (low rang) :176V+/-20V,
HI(high range):253V+/- 20V).
C. Once the value is confirmed, press
Enter-keyagain to save the data.

13
9. Output voltage/frequency setting
(Under AC mode, this menu is displayed before turning the UPS on)
A. In this screen, press Enter-keyto
enter the following steps for output
voltage and frequency setting.
B. The cursor (→) will pop up to indicate
the output voltage and frequency
newly selected.
C. Use Upor Down-keyto adjust
the output voltage and frequency.
Press Enter-keyto confirm voltage
and then the cursor will move to
frequency selection.
The output voltage ( 208V, 220V, 230V
or 240V) are available.
The output frequency ( 50Hz, 60Hz,
50HzP or 60HzP ) are available.
UPS is off without bypass output once
the frequency (50Hz or 60Hz) is selected.
UPS is off with bypass output once the
frequency (50HzP or 60HzP) is selected.
D. Once the correct voltage(or frequency) is
selected, press Enter-keyagain to save
the selection.
The new setting will be performed after
The UPS is restarted.

14
6. TROUBLE SHOOTING GUIDE
No UPS status description Solution
1
AC utility power is normal.
UPS is running normally, but
battery capacity is low. Buzzer
beeps once every second for
battery low.
Please check charger board
and battery.
2
AC utility power is normal.
The output load is supplied
through bypass of AC utility.
Fault LED lits up and buzzer
beeps continuously.
Please contact your agent
for service.
3
AC utility power is normal but
UPS is overloaded. Warning
LED lits up and buzzer beeps.
But UPS has not switched to
bypass.
Please reduce the critical
load to <100%.
4
AC utility power is normal but
UPS is overloaded. Warning
LED lits up and buzzer beeps.
And UPS has been switched
to bypass.
Please reduce the critical
load to <70%, the UPS will
return to inverter to supply
power automatically.
5
The AC output comes from
battery, passing through
DC/AC inverter to supply AC
power to load.
Please check the voltage
and frequency of AC utility.

15
7. COMPUTER INTERFACE
7.1 COMMUNICATION
1. This series is equipped with an intelligent slot for an optional card
( USB card or AS400 card ) to achieve remote management of the UPS.
Please contact your local distributor for further information.
2. The following are the descriptions and pin assignment of RS232
DB-9 port:
Baud rate：2400bps
Data length：8bit
Ending bit：1bit
Parity：None
DB-9 pin assignment
Pin # Description I/O
2 TXD Output
3 RXD Input
5 GND Ground

16
8.SPECIFICATION
Model
RP-UPH603T-
RP-UPH103T
Capacity
6KVA/6KW
10KVA/10KW
Input
Nominal voltage
220Vac ; 1P2W+G
Nominal frequency
50Hz / 60Hz
Outlet Terminal blocks
Voltage range 110Vac~300Vac【load <50% 】
Low voltage
transfer
110Vac
【
load <50%
】
110Vac + 2.2* ( load%-50% )
【
load 50%~80%
】
176Vac【load>80% 】
Power factor ≧
99%
【100% RCD load, nominal input voltage, nominal load, full battery】
Battery
Type/Number
Seal Lead Acid battery 12V*20pcs
Built-in
1 set ( 12V*20pcs)
Charging voltage
273Vdc
Charging current
1A / 2A / 3A / 4A
【
Max: 4A
】
Output
Voltage
208/220/230 or 240Vac【power derating 90% for 208Vac】;1P2W+G
Frequency range
50Hz / 60Hz
±
0.1Hz
Outlet
Terminal blocks + IEC outlet*2
Wave-form
True sine wave
Frequency lock
range
50Hz / 60Hz ±4Hz
Overload
( Line mode)
100%~110% : 10minutes ; 110%~130% : 1 minute ;
>130% : 1 second
Overload
( Battery mode)
100%~110% : 30 seconds
；
110%~130% : 10 seconds
；
>130% : shutdown immediately
Transfer time
0ms
Efficiency
Line mode
93%
【
R load 100%
】
Battery mode
91%
【
R load 100%
】
Display
LED
Yes
LCD
Yes
Alarm
Yes
Communication
connector
RS232*1 / Intelligent slot*1
Interface card
Option : USB , AS400 or SNMP
Environment
Audible noise
<55dB@1M
<58dB@1M
Operating humidity
< 95% ; non-condensing
Operating
temperature
0-40℃
Altitude
<1000m for nominal power
Physical
Dimension
( W*D*H)
260*550*740mm
Weight
(with battery)
81.5 kgs 84 kgs
Weight
(without battery)
31 kgs 33.5 kgs
** All specifications are subjected to change without further notice.
