Repotec WR5822 User manual

Quick Installation Guide
V1.0
802.11ac Dual Band Concurrent
Gigabit WLAN Router

802.11ac Dual Band Concurrent GbE WLAN Router
WEEE Directive & Product Disposal
At the end of its serviceable life,
this product should not be treated as household or general
waste.
It should be handed over to the applicable collection point for
the recycling of electrical and electronics equipment,
or returned to the supplier for disposal.
1

R4
802.11ac Dual Band Concurrent GbE WLAN Router
System Requirements
1. Pentium 200MHZ processor or above
2. Windows 98SE, Windows Me, Windows 2000,
Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1 and
Windows 10.
3. 64MB of RAM or above.
4. 25MB free disk space
Package Content
1. 802.11ac Dual Band Concurrent GbE WLAN Router
2. CD-ROM (Software & Manual)
3. Quick Installation Guide
4. Ethernet Cable (RJ-45)
5. Power Adaptor
2

802.11ac Dual Band Concurrent GbE WLAN Router
Installation & Setup
Follow each STEP carefully and only go to the next step
once you have completed the previous STEP.

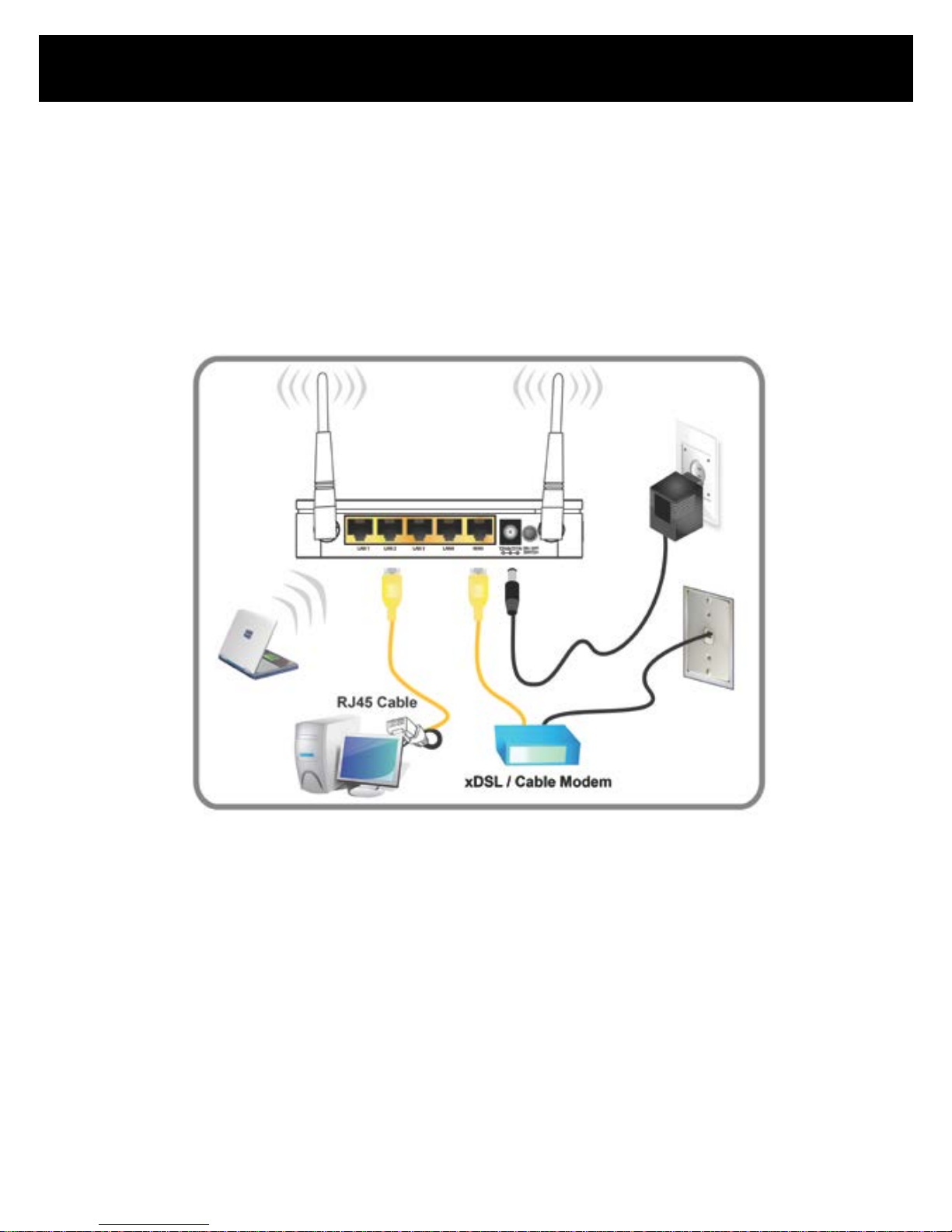

STEP 1
Connection of 802.11ac WLAN AP Router
Step 1. Connect the Ethernet cable to WAN Port
Connect the RJ45 Ethernet cable from your xDSL/Cable Modem's
Ethernet port to 802.11ac WLAN Router's WAN Port.
Step 2. Connect the Ethernet cable to LAN Port
Connect the supplied RJ45 Ethernet cable from your PC's Ethernet
port to any of the 4 802.11ac WLAN Router's LAN Ports.
Step 3. Attach the power connector
Connect the power adapter to the power inlet “POWER” of the
802.11ac WLAN Router and turn the power switch “ON/OFF
SWITCH” of your 802.11ac WLAN Router on.
3

R4
802.11ac Dual Band Concurrent GbE WLAN Router
LED Meaning
Your 802.11ac WLAN Router has indicator lights on the front side. Please see
below for an explanation of the function of each indicator light.
Power indicator
Ethernet Active indicator
Wireless Active indicator
WPS Active indicator
Ethernet Active indicator
Table1. LED function
Label
Color
On
Flash
Off
Green Ready Waiting for device
ready Power Off
Green
The device has a WAN
IP address from
xDSL/Cable Modem
Transmit / Receive
Data
No WAN IP address
from xDSL/Cable
Modem
Green WLAN Ready Transmit / Receive
Data WLAN Off
Green N/A Start WPS pairing
within 2 minutes WPS Idle
Green Ethernet Connected Transmit / Receive
Data Ethernet Disconnected
The icons appear on the products are for application indication only.
The trademark or intellectual property is belonging to their respective owners.
4

802.11ac Dual Band Concurrent GbE WLAN Router
Connectors
Table 2 shows the function of each connector and switch of the device.
Table 2. Function / Description of Connectors
Connector
Description
ANTENNA
2 fixed Antenna
ON/OFF
SWITCH
Power on / off the device
POWER
Connects to the supplied power adaptor
LAN 4/3/2/1
Connects the device via LAN Ethernet to up to 4 PCs
WAN
Connects the device via WAN Ethernet to xDSL / Cable
Modem
WPS
Press this button for at least 3 full seconds and the WPS
LED will flash to start WPS.
Now go to the wireless adapter or device and press its
WPS button. Make sure to press the button within 120
seconds (2 minutes) after pressing the router's WPS
button.
WLAN
Press this button for at least 3 full second to turn off/on
wireless signals
RESET
Reset button. RESET the 802.11ac WLAN router to its
default settings.
Press this button for at least 6 full seconds to RESET
device to its default settings.
5

R4
802.11ac Dual Band Concurrent GbE WLAN Router
Figure1. Rear View of the 802.11ac WLAN Router
Figure2. WPS/ WLAN button
Figure3. RESET button
6

802.11ac Dual Band Concurrent GbE WLAN Router
STEP 2
Configuration Procedures
Before starting the 802.11ac WLAN Router configuration, please kindly
configure the PC computer as below, to have automatic IP address / DNS
Server.
For Windows 98SE/ME/2000/XP
1. Click on "Start" -> "Control Panel" (in Classic View). In the Control
Panel, double click on "Network Connections" to continue.
2. Single RIGHT click on "Local Area connection", then click "Properties".
7

R4
802.11ac Dual Band Concurrent GbE WLAN Router
3. Double click on "Internet Protocol (TCP/IP)".
4. Check "Obtain an IP address automatically" and "Obtain DNS server
address automatically" then click on "OK" to continue
5. Click "Show icon in notification area when connected" (see screen
image in 3. above) then Click on "OK" to complete the setup procedures.
8

802.11ac Dual Band Concurrent GbE WLAN Router
For Windows Vista-32/64
1. Click on "Start" -> "Control Panel" -> "View network status and tasks".
2. In the Manage network connections, click on "Manage network
connections" to continue.
3. Single RIGHT click on "Local Area connection", then click "Properties".
9

R4
802.11ac Dual Band Concurrent GbE WLAN Router
4. The screen will display the information "User Account Control" and click
"Continue" to continue.
5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
6. Check "Obtain an IP address automatically"and "Obtain DNS server
address automatically" then click on "OK" to continue.
10

802.11ac Dual Band Concurrent GbE WLAN Router

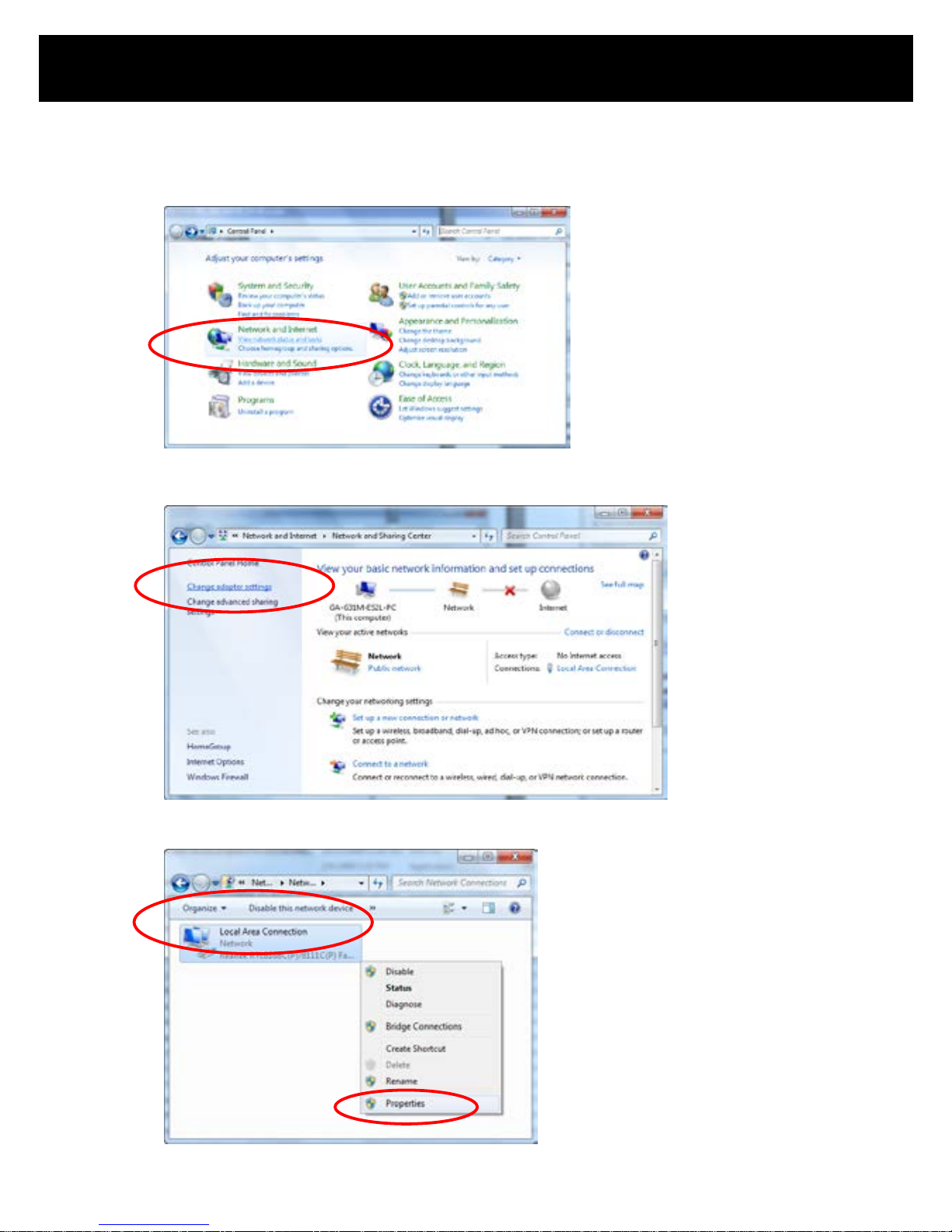

For Windows 7-32/64
1. Click on "Start" -> "Control Panel" (in Category View) -> "View network
status and tasks".
2. In the Control Panel Home, click on "Change adapter settings" to
continue.
3. Single RIGHT click on "Local Area connection", then click "Properties".
11

R4
802.11ac Dual Band Concurrent GbE WLAN Router

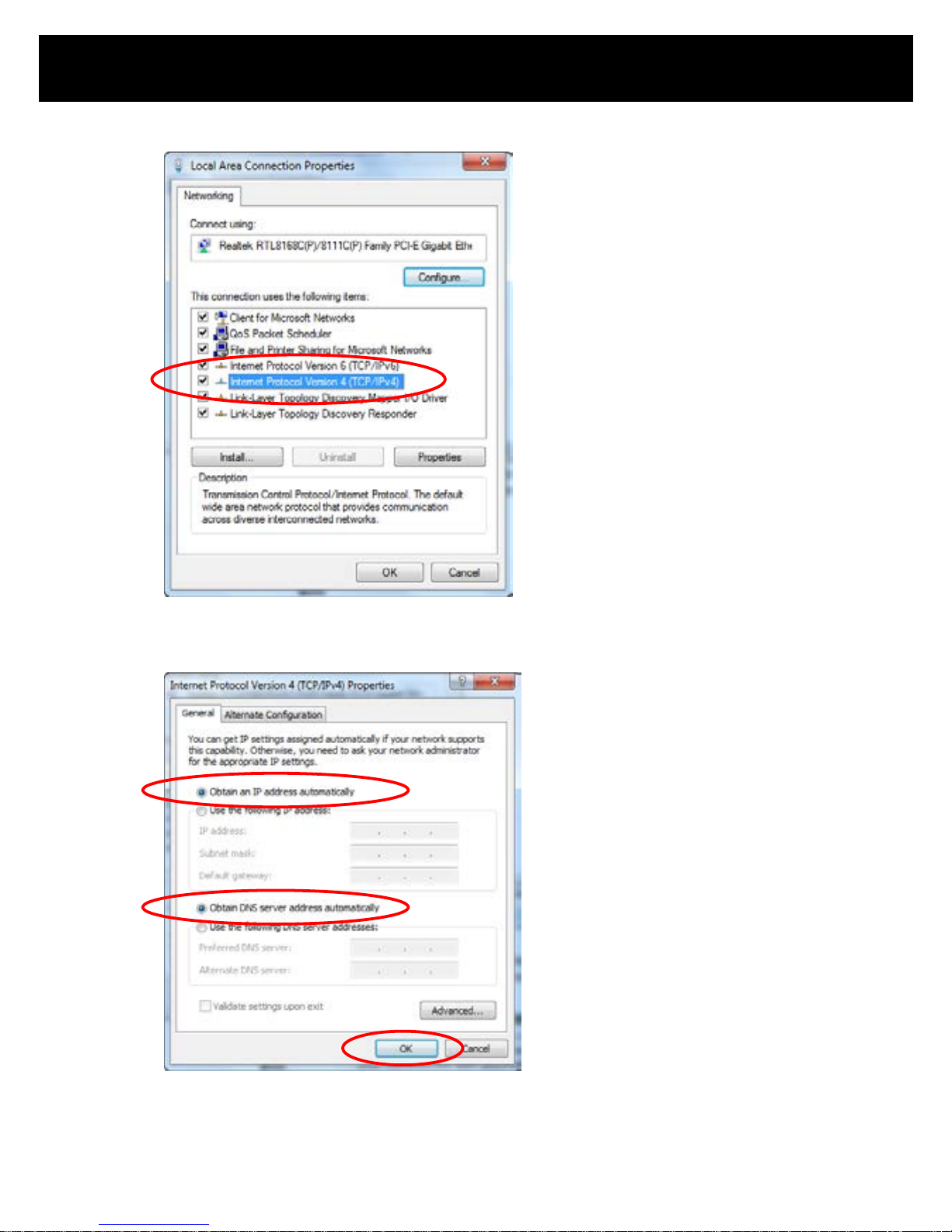

4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
5. Check "Obtain an IP address automatically"and "Obtain DNS server
address automatically" then click on "OK" to continue.
12

802.11ac Dual Band Concurrent GbE WLAN Router

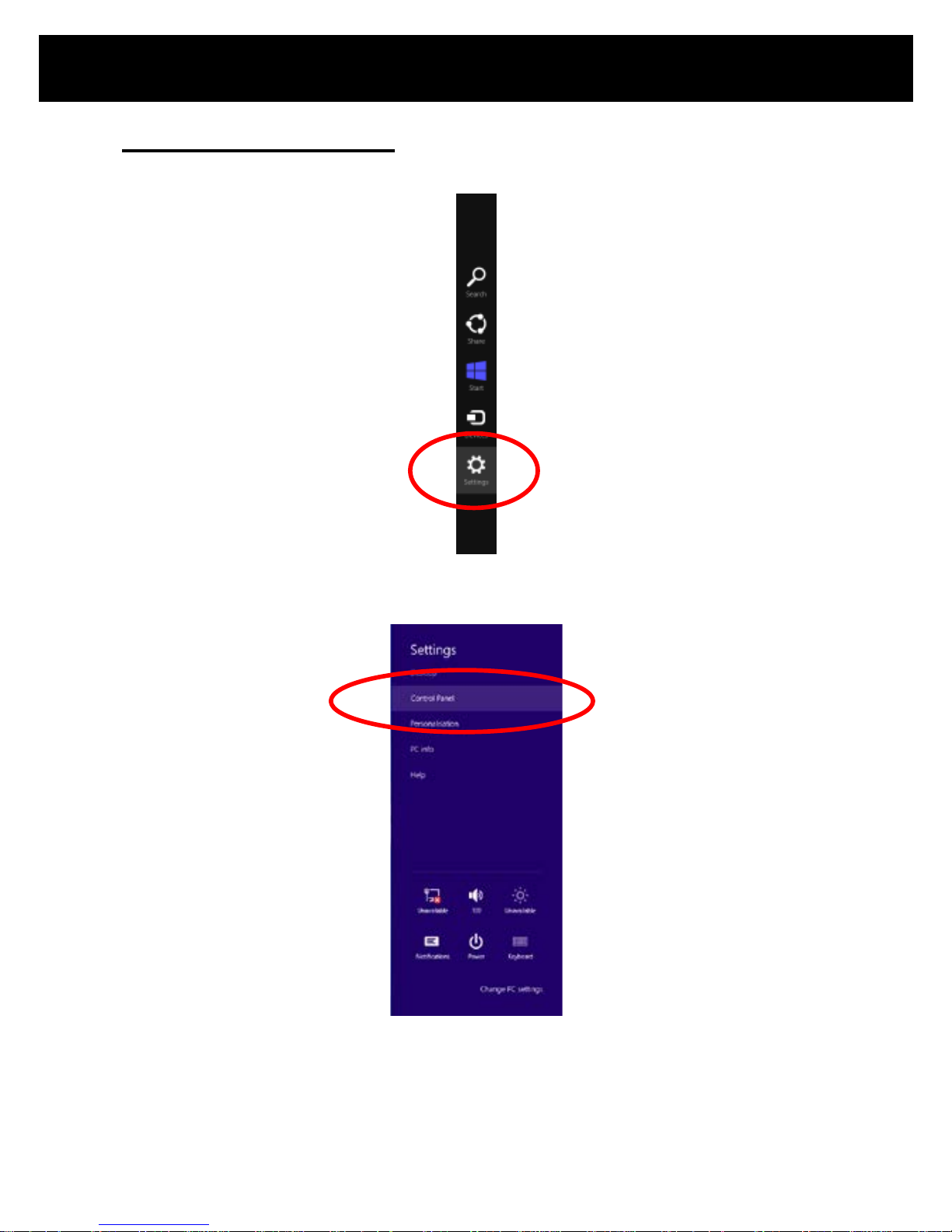

For Windows 8/8.1-32/64
1. Move the mouse or tap to the upper right corner and click on “Settings”.
2. Click “Control Panel”.
13

R4
802.11ac Dual Band Concurrent GbE WLAN Router

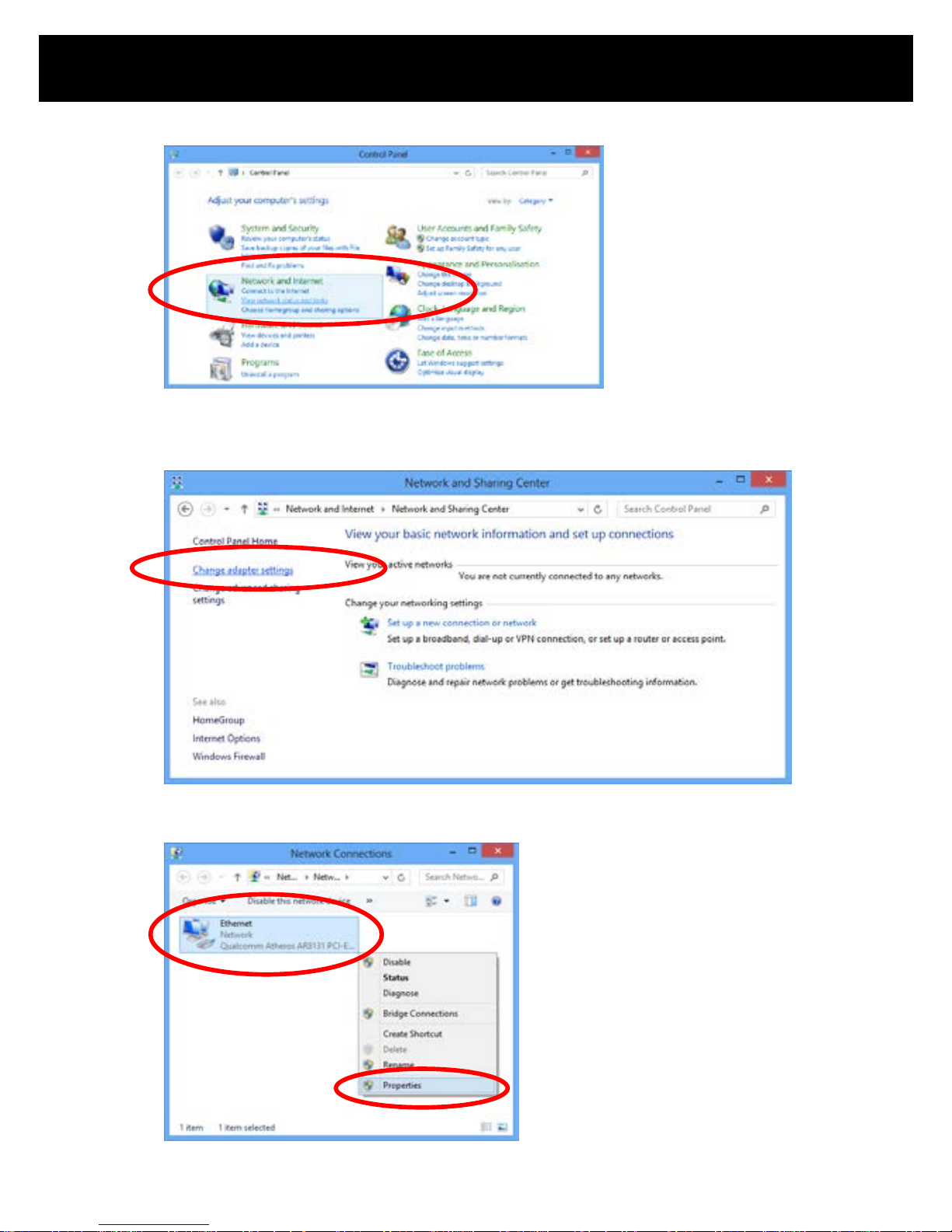

3. Click on “View network status and tasks”.
4. In the Control Panel Home, click on “Change adapter settings” to
continue.
5. Single RIGHT click on "Ethernet", then click "Properties".
14

802.11ac Dual Band Concurrent GbE WLAN Router
6. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
7. Check "Obtain an IP address automatically"and "Obtain DNS server
address automatically" then click on "OK" to continue.
15

R4
802.11ac Dual Band Concurrent GbE WLAN Router
For Windows 10-32/64
1. Right click on Network icon , then click "Open Network and Sharing
Center" .
2. In the Control Panel Home, click on “Change adapter settings” to
continue.
3. Single RIGHT click on "Ethernet", then click "Properties".
16

802.11ac Dual Band Concurrent GbE WLAN Router
4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
5. Check "Obtain an IP address automatically"and "Obtain DNS server
address automatically" then click on "OK" to continue.
17

R4
802.11ac Dual Band Concurrent GbE WLAN Router
STEP 3
802.11ac WLAN Router Configuration
1. Before you begin to execute utility CD Installations, please ensure the
802.11ac WLAN AP Router has been powered on.
2. Please insert the supplied CD into your CD-ROM drive.
3. The CD should auto-start, displaying the window shown in 4. below. If
your CD does not start automatically, go to Windows Explorer, Select your
CD drive and double click "Autorun.exe".
4. To configure the Internet and Wireless configuration, please click the "
Advanced Configuration ".
5. Please enter the User Name: admin and Password: administrator and
then click on OK button.
