Repotec 1T1R User manual

WLAN Broadband Router
User Manual
User's Manual of WLAN Broadband Router
(1T1R)
USER MANUAL 2.0.0
© 2009
- 1 -

WLAN Broadband Router
User Manual
Table of Contents
1. Terminology..........................................................................................................5
2. Introduction..........................................................................................................7
2.1 Package contents....................................................................................7
2.2 Product Specifications ...........................................................................7
2.3 Product Features.....................................................................................8
2.4 Front Panel Description .........................................................................9
2.5 Rear Panel Description ........................................................................10
3. Installation..........................................................................................................10
3.1 Hardware Installation...........................................................................10
3.2 Software Installation............................................................................11
4. Software configuration......................................................................................11
4.1 Prepare your PC to configure the WLAN Broadband Router .............11
4.2 Connect to the WLAN Broadband Router...........................................12
4.3 Management and configuration on the WLAN Broadband Router.....13

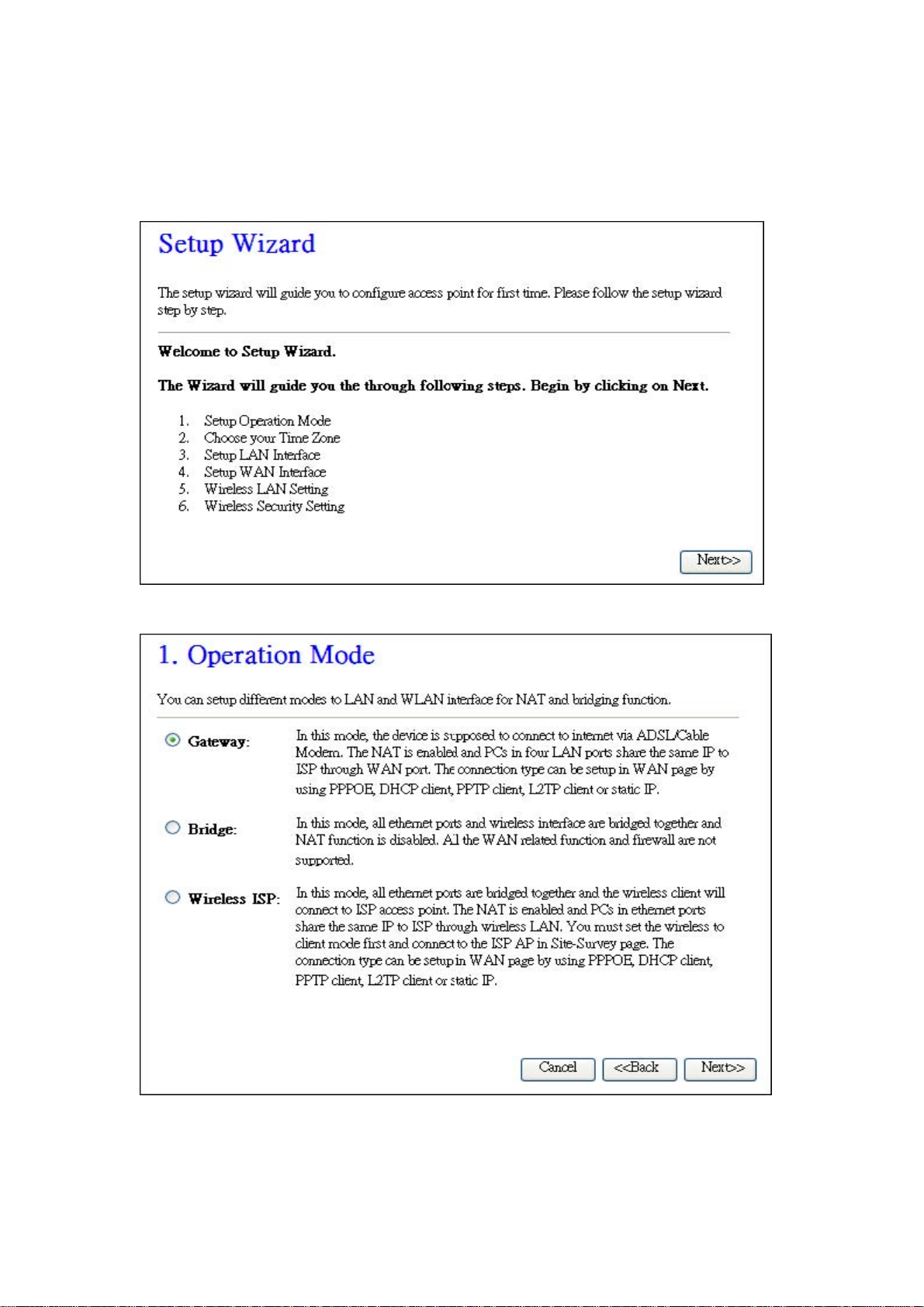

4.3.1 Setup Wizard................................................................................13
4.3.2 Operation Mode...........................................................................18
4.3.3 Wireless........................................................................................19
4.3.3.1 Basic Settings........................................................................19
4.3.3.2 Advanced Settings ................................................................21
4.3.3.3 Security.................................................................................22
4.3.3.3.1 Disable .......................................................................22
4.3.3.3.2 WEP...........................................................................23
4.3.3.3.3 WPA...........................................................................24
4.3.3.3.4 WPA2.........................................................................25
4.3.3.3.5 WPA-Mixed...............................................................26
4.3.3.4 Access Control......................................................................28
4.3.3.5 WDS Settings........................................................................29
4.3.3.5.1 WDS Security Setup..................................................30
4.3.3.5.2 WDS AP Table...........................................................30
4.3.3.5.3 Mesh settings .............................................................31
4.3.3.6 Site Survey............................................................................32
4.3.3.7 WPS ......................................................................................33
4.3.3.8 Schedule................................................................................34
4.3.4 TCP/IP Settings............................................................................35
4.3.4.1 LAN Interface Setup.............................................................35
4.3.4.1.1 Static DHCP Setup.....................................................37
- 2 -

WLAN Broadband Router
User Manual
4.3.4.2 WAN Interface Setup............................................................39
4.3.4.2.1 Static IP......................................................................39
4.3.4.2.2 DHCP Client..............................................................41
4.3.4.2.3 PPPoE ........................................................................43
4.3.4.2.4 PPTP ..........................................................................45
4.3.4.2.5 L2TP ..........................................................................47
4.3.5 Firewall........................................................................................49
4.3.5.1 Port Filtering.........................................................................49
4.3.5.2 IP Filtering ............................................................................50
4.3.5.3 MAC Filtering.......................................................................51
4.3.5.4 Port Forwarding....................................................................52
4.3.5.5 URL Filtering........................................................................53
4.3.5.6 DMZ......................................................................................54
4.3.5.7 VLAN ...................................................................................55
4.3.6 QoS ..............................................................................................56
4.3.7 Management.................................................................................58
4.3.7.1 Status.....................................................................................58
4.3.7.2 Statistics................................................................................60
4.3.7.3 DDNS....................................................................................61
4.3.7.4 Time Zone Setting.................................................................62
4.3.7.5 Denial-of-Service..................................................................63
4.3.7.6 Log........................................................................................64
4.3.7.7 Upgrade Firmware................................................................65
4.3.7.8 Save/ Reload Settings ...........................................................65
4.3.7.9 Password...............................................................................66
5. FREQUENTLYASKED QUESTIONS (FAQ)................................................67
5.1 What and how to find my PC’s IP and MAC address?........................67
5.2 What is Wireless LAN? .......................................................................67
5.3 What are ISM bands?...........................................................................67
5.4 How does wireless networking work?.................................................67
5.5 What is BSSID?...................................................................................68
5.6 What is ESSID?. ..................................................................................68
5.7 What are potential factors that may causes interference?....................68
5.8 What are the Open System and Shared Key authentications?.............68
5.9 What is WEP?......................................................................................68
5.10 What is Fragment Threshold?..............................................................69
5.11 What is RTS (Request To Send) Threshold?........................................69
5.12 What is Beacon Interval?.....................................................................69
- 3 -

WLAN Broadband Router
User Manual
5.13 What is Preamble Type? ......................................................................69
5.14 What is SSID Broadcast?.....................................................................69
5.15 What is Wi-Fi ProtectedAccess (WPA)?.............................................70
5.16 What is WPA2?....................................................................................70
5.17 What is 802.1x Authentication?...........................................................70
5.18 What is Temporal Key Integrity Protocol (TKIP)?..............................70
5.19 What is Advanced Encryption Standard (AES)? .................................70
5.20 What is Inter-Access Point Protocol (IAPP)?......................................70
5.21 What is Wireless Distribution System (WDS)?...................................70
5.22 What is Universal Plug and Play (uPNP)?...........................................70
5.23 What is Maximum Transmission Unit (MTU) Size?...........................71
5.24 What is Clone MACAddress?.............................................................71
5.25 What is DDNS?....................................................................................71
5.26 What is NTP Client? ............................................................................71
5.27 What is VPN? ......................................................................................71
5.28 What is IPSEC?....................................................................................71
5.29 What is WLAN Block Relay Between Clients? ..................................71
5.30 What is WMM?....................................................................................71
5.31 What is WLAN ACK TIMEOUT? ......................................................71
5.32 What is Modulation Coding Scheme (MCS)?.....................................71
5.33 What is Frame Aggregation? ...............................................................72
5.34 What is Guard Intervals (GI)?..............................................................72
6. Configuration examples.....................................................................................73
6.1 Example one -PPPoE on the WAN......................................................73
6.2 Example two -fixed IP on the WAN ....................................................77
- 4 -

WLAN Broadband Router
User Manual
1. Terminology
3DES Triple Data Encryption Standard
AES Advanced Encryption Standard
ANSI American National Standards Institute
AP Access Point
CCK Complementary Code Keying
CSMA/CA Carrier Sense Multiple Access/Collision Avoidance
CSMA/CD Carrier Sense Multiple Access/Collision Detection
DDNS Dynamic Domain Name Server
DH Diffie-Hellman Algorithm
DHCP Dynamic Host Configuration Protocol
DSSS Direct Sequence Spread Spectrum
EAP Extensible Authentication Protocol
ESP Encapsulating Security Payload
FCC Federal Communications Commission
FTP File Transfer Protocol
IEEE Institute of Electrical and Electronic Engineers
IKE Internet Key Exchange
IP Internet Protocol
ISM Industrial, Scientific and Medical
LAN Local Area Network
MAC Media Access Control
MD5 Message Digest 5
NAT Network Address Translation
NT Network Termination
NTP Network Time Protocol
PPTP Point to Point Tunneling Protocol
PSD Power Spectral Density
RF Radio Frequency
SHA1 Secure Hash Algorithm
SNR Signal to Noise Ratio
SSID Service Set Identification
TCP Transmission Control Protocol
JTFTP Trivial File Transfer Protocol
- 5 -

WLAN Broadband Router
User Manual
TKIP Temporal Key Integrity Protocol
UPNP Universal Plug and Play
VPN Virtual Private Network
WDS Wireless Distribution System
WEP Wired Equivalent Privacy
WLAN Wireless Local Area Network
WPA Wi-Fi Protected Access
- 6 -

WLAN Broadband Router
User Manual
2. Introduction
The Wireless LAN Broadband Router is an affordable IEEE 802.11b/g with 802.11n specifications of
wireless LAN broadband router solution; setting SOHO and enterprise standard for high performance,
secure, manageable and reliable WLAN. This document describes the steps required for the initial IP
address assign and other WLAN router configuration. The description includes the implementation of
the above steps.
2.1 Package contents
The package of the WLAN Broadband Router includes the following items,
9The WLAN Broadband Router
9The DC Power Adapter
9The Documentation CD
9RJ-45 Cable Line
9Cradle
9The One panel antenna
2.2 Product Specifications
Product Name WLAN 11n Router, 2.4G
Standard 802.11b/g/n(Wireless), 802.3(10BaseT), 802.3u(100BaseT)
Data Transfer Rate 1,2,5.5,6,9,11,12,18,24,36,48,54, and maximum of 150Mbps
Modulation Method BPSK/QPSK/16-QAM/64-QAM
Frequency Band 2.4GHz -2.483GJz ISM Band
RF Output Power < 22dBm(802.11n),< 24dBm(802.11b),< 28dBm(802.11g)
Receiver Sensitivity 802.11b: -93dBm@8%,
802.11g: -91dBm@10%,
802.11n: -89dBm@10%
Operation Range Indoor@Up to 100 meters,Outdoor@Up to 280 meters
Antenna External Antenna(1Tx1R)
LED Power, Active (WLAN), Act/Link (Ethernet)
Security 64 bit/128 bit WEP, TKIP, AES
LAN interface One 10/100BaseT with RJ45 connector (WAN)
Four 10/100BaseT with RJ45 connectors (LAN)
Power Consumption 12 V, 1A Power Adapter
Operating Temperature 0 ~ 50°C ambient temperature
Storage Temperature -20 ~ 70°C ambient temperature
Humidity 5 to 90 % maximum (non-condensing)
Dimension 149 x 104 x 25 mm
- 7 -

WLAN Broadband Router
User Manual
2.3 Product Features
Generic Router
¾Compatible with IEEE 802.11n Specifications provides wireless speed up to 150Mbps data rate.
¾Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds of 54Mbps
data rate.
¾Maximizes the performance and ideal for media-centric applications like streaming video,
gaming and Voice over IP technology.
¾Supports multi-operation (bridge/gateway/WISP) modes between wireless and wired Ethernet
interfaces.
¾Supports WPS, 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption and WPA with
Radius function to protect the wireless data transmission.
¾Supports IEEE 802.1x Authentication.
¾Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface.
¾Supports DHCP server to provide clients auto IP addresses assignment.
¾Supports DHCP client, static IP, PPPoE, PPTP of WAN Interface.
¾Supports firewall security with port filtering, IP filtering, MAC filtering, port forwarding, trigger
port, DMZ hosting and URL filtering functions.
¾Supports WEB based management and configuration.
¾Supports UPnP for automatic Internet access.
¾Supports Dynamic DNS service.
¾Supports NTP client service.
¾Supports Log table and remote Log service.
¾Support Setup Wizard mode.
¾Support QoS for uplink and downlink
¾Support Wireless Mesh Networking setting
¾Support VLAN tagging
- 8 -

WLAN Broadband Router
User Manual
2.4 Front Panel Description
LED Indicator State Description
on The WLAN Broadband Router is powered on.
1. PWR LED off The WLAN Broadband Router is powered off.
Flashing Data is transmitting or receiving on the antenna.
2. WLAN LED off No data is transmitting or receiving on the antenna.
Flashing Data is transmitting or receiving on the LAN interface.
on Port linked.
3. LAN LED ACT
off No link.
Flashing Data is transmitting or receiving on the WAN interface.
on Port linked.
4. WAN LED ACT
off No link.
Flashing 1sec flash light /1sec light dark / attempt to communicate
with wireless client
on When user press WPS button
5. WPS LED ACT
off Default No link
- 9 -

WLAN Broadband Router
User Manual
2.5 Rear Panel Description
Interfaces Description
Antenna (Fixed / SMA) The Wireless LAN Antenna.
The power jack allows an external DC power supply connection.
Power
The external DC adaptor provide adaptive power requirement to the
WLAN Broadband Router.
LAN The RJ-45 sockets allow LAN connection through Category 5 cables.
Support auto-sensing on 10/100M speed and half/ full duplex; comply
with IEEE 802.3/ 802.3u respectively.
WAN The RJ-45 socket allows WAN connection through a Category 5 cable.
Support auto-sensing on 10/100M speed and half/ full duplex; comply
with IEEE 802.3/ 802.3u respectively.
Reset Push continually the reset button 5 ~ 10 seconds to reset the
configuration parameters to factory defaults.
WPS Push the WPS button implementation to reduce the network
configuration steps,and also easy to implement network security.
3. Installation
3.1 Hardware Installation
Step 1:
Place the WLAN Broadband Router to the best optimum transmission location. The best transmission
location for your WLAN Broadband Router is usually at the geographic center of your wireless
network, with line of sign to all of your mobile stations.
Step 2:
Connect the WLAN Broadband Router to your wired network. Connect the Ethernet WAN interface of
WLAN Broadband Router by category 5 Ethernet cable to your switch/ hub/ xDSL modem or cable
modem. A straight-through Ethernet cable with appropriate cable length is needed.
Step 3:
Plug in the DC power to the WLAN Broadband Router. Use only theAC/DC power adapter supplied
with the WLAN Broadband Router; it maybe occur damage by using a different type of power adapter.
The hardware installation finished.
- 10 -

WLAN Broadband Router
User Manual
3.2 Software Installation
There are no software drivers or utilities installation needed, but only the
configuration setting. Please refer to chapter 4 for software configuration.
Notice: It will take about 50 seconds to complete the boot up sequence after powered on the WLAN
Broadband Router; Power LED will be active, and after that the WLAN Activity LED will be flashing
to show the WLAN interface is enabled and working now.
4. Software configuration
There are web based management and configuration functions allowing you to have the jobs done
easily.
The WLAN Broadband Router is delivered with the following factory default parameters on the
Ethernet LAN interfaces.
Default IPAddress: 192.168.1.254
Default IP subnet mask: 255.255.255.0
WEB login User Name: <empty>
WEB login Password: <empty>
4.1 Prepare your PC to configure the WLAN Broadband Router
For OS of Microsoft Windows 2000/ XP:
1. Click the Start button and select Settings, then click Control Panel. The Control Panel window
will appear.
2. Move mouse and double-click the right button on Network and Dial-up Connections icon. Move
mouse and double-click the Local Area Connection icon. The Local Area Connection window will
appear. Click Properties button in the Local Area Connection window.
3. Check the installed list of Network Components. If TCP/IP is not installed, click the Add button to
install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and click Add button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install
the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close
and go back to Network dialog box after the TCP/IP installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
9IPAddress: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to
connect the Wireless LAN Access Point.
9IP Subnet Mask: 255.255.255.0
8. Click OK to completes the IP parameters setting.
For OS of Microsoft Windows Vista / 7:
1. Click the Start button and select Settings, then click Control Panel. The Control Panel window
will appear.
2. Move mouse and double-click the right button on Network Connections item. The Network
Connections window will appear. Double click Local Area Connection icon, then User Account
Control window shown. Right click Continue button to set properties.
3. In Local Area Connection Properties window, Choose Networking tab, move mouse and click
Internet Protocol Version 4 (TCP/IPv4), then click Properties button.
4. Move mouse and click General tab, Select Specify an IP address and type in values as following
example.
9IPAddress: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to
connect the Wireless LAN Access Point.
9IP Subnet Mask: 255.255.255.0
5. Click OK to complete the IP parameters setting.
- 11 -

WLAN Broadband Router
User Manual
For OS of Microsoft Windows 95/ 98/ Me:
1. Click the Start button and select Settings, then click Control Panel. The Control Panel window
will appear.
Note: Windows Me users may not see the Network control panel. If so, select View all Control
Panel options on the left side of the window
2. Move mouse and double-click the right button on Network icon. The Network window will appear.
3. Check the installed list of Network Components. If TCP/IP is not installed, click the Add button to
install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and clickAdd button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install
the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close
and go back to Network dialog box after the TCP/IP installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
9IPAddress: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to
connect the Wireless LAN Access Point.
9IP Subnet Mask: 255.255.255.0
8. Click OK and reboot your PC after completes the IP parameters setting.
For OS of Microsoft Windows NT:
1. Click the Start button and select Settings, then click Control Panel. The Control Panel window
will appear.
2. Move mouse and double-click the right button on Network icon. The Network window will appear.
Click Protocol tab from the Network window.
3. Check the installed list of Network Protocol window. If TCP/IP is not installed, click theAdd
button to install it; otherwise go to step 6.
4. Select Protocol in the Network Component Type dialog box and clickAdd button.
5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install
the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close
and go back to Network dialog box after the TCP/IP installation.
6. Select TCP/IP and click the properties button on the Network dialog box.
7. Select Specify an IP address and type in values as following example.
9IPAddress: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to
connect the Wireless LAN Access Point.
9IP Subnet Mask: 255.255.255.0
8. Click OK to complete the IP parameters setting.
4.2 Connect to the WLAN Broadband Router
Open a WEB browser, i.e. Microsoft Internet Explore 6.1 SP1 or above, then enter 192.168.1.254 on
the URL to connect the WLAN Broadband Router.
- 12 -

WLAN Broadband Router
User Manual
4.3 Management and configuration on the WLAN Broadband Router
4.3.1 Setup Wizard
This page guides you to configure wireless broadband router for first time.
I. Operation Mode
This page followed by Setup Wizard page to define the operation mode.
- 13 -

WLAN Broadband Router
User Manual
II. Time Zone Setting
This page is used to enable and configure NTP client.
III. LAN Interface Setup
This page is used to configure local area network IP address and subnet mask.
- 14 -

WLAN Broadband Router
User Manual

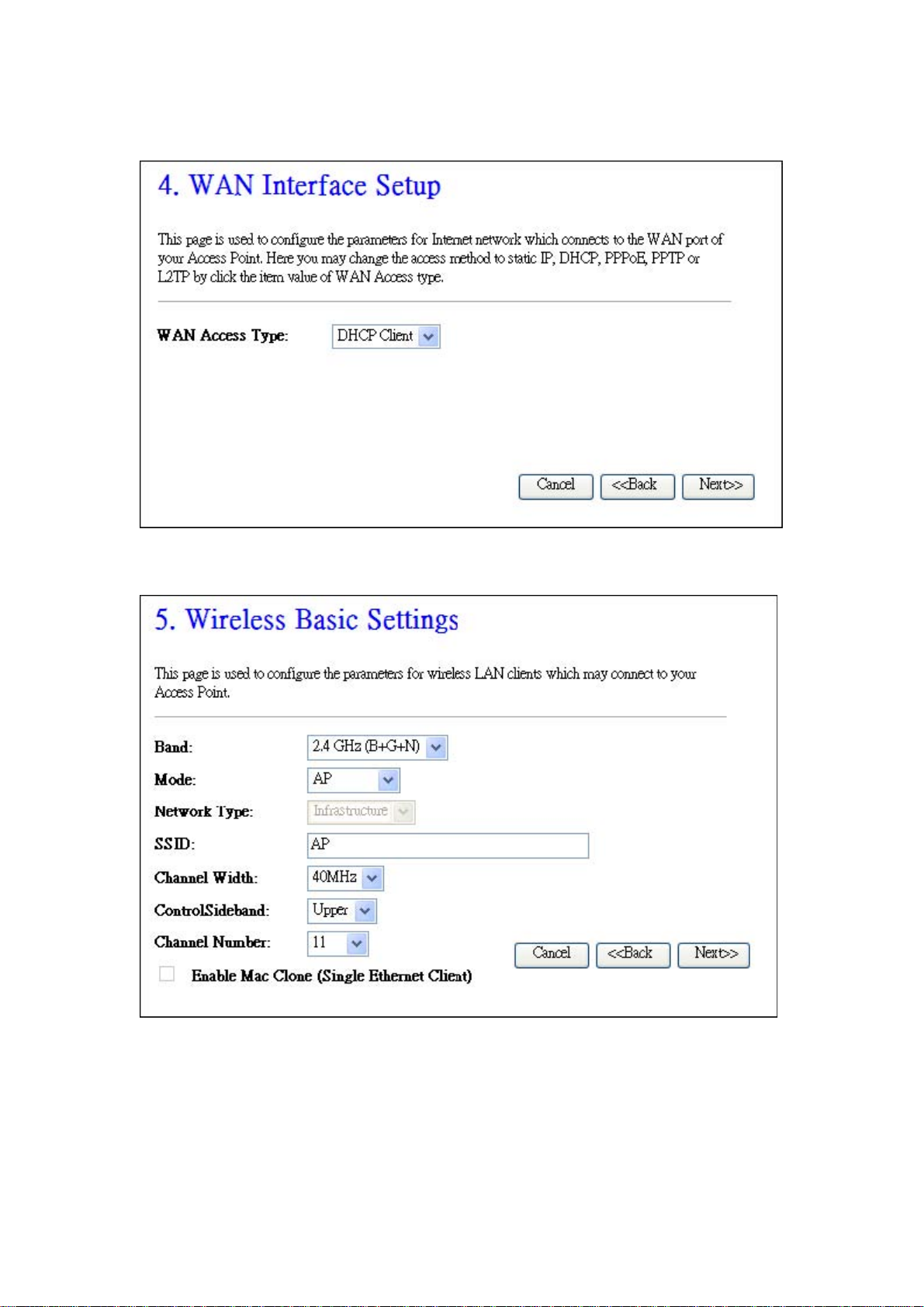

IV.WAN Interface Setup
This page is used to configure WAN access type.
V. Wireless Basic Settings
This page is used to configure basic wireless parameters like Band, Mode, Network Type SSID,
Channel Number, Enable Mac Clone (Single Ethernet Client).
- 15 -

WLAN Broadband Router
User Manual

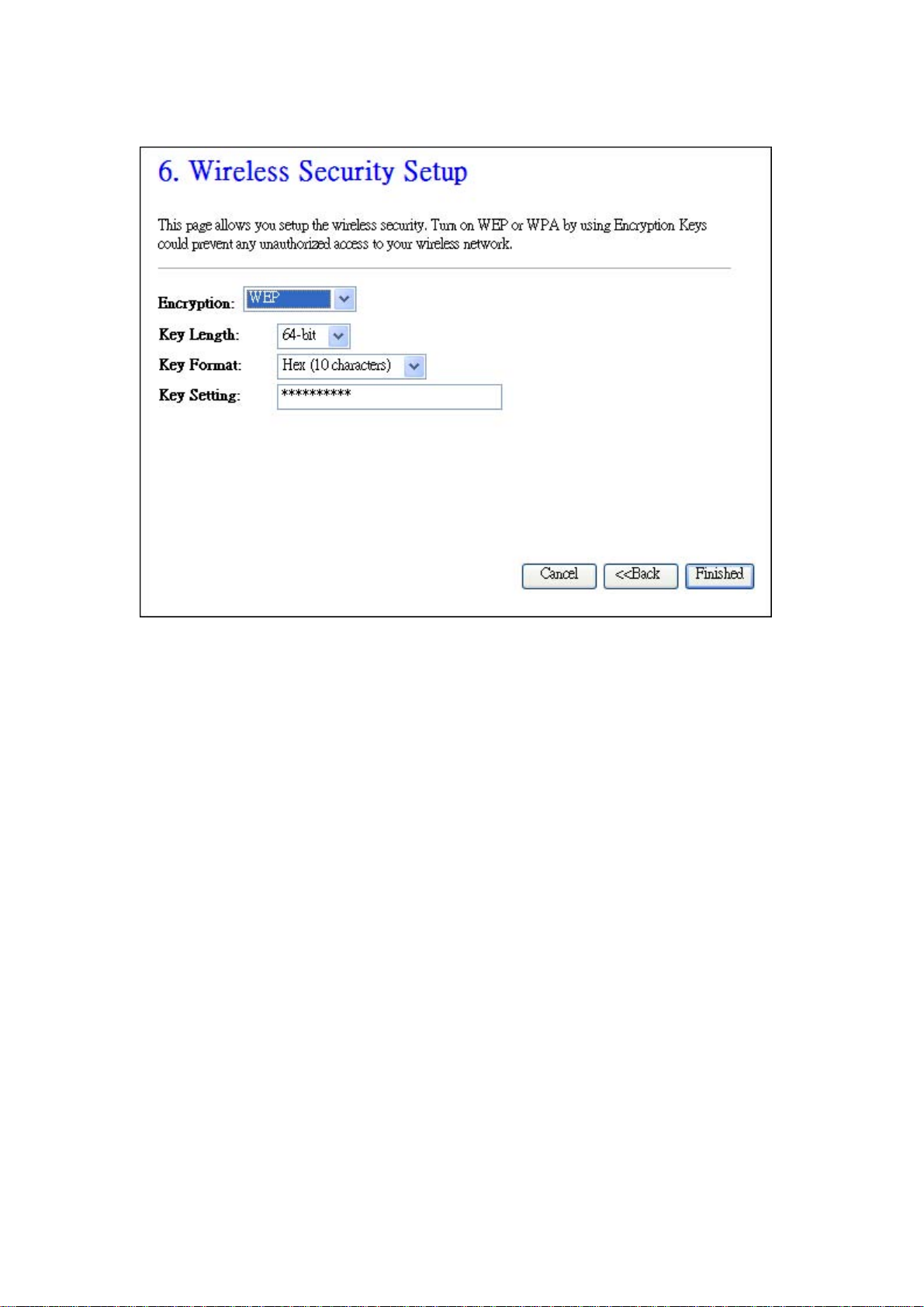

VI. Wireless Security Setup
This page is used to configure wireless security.
- 16 -

WLAN Broadband Router
User Manual
- 17 -

WLAN Broadband Router
User Manual
4.3.2 Operation Mode
This page is used to configure which mode wireless broadband router acts.
Item Description
Gateway Traditional gateway configuration. It always connects internet via ADSL/Cable
Modem. LAN interface, WAN interface, Wireless interface, NAT and Firewall
modules are applied to this mode
Bridge Each interface (LAN, WAN and Wireless) regards as bridge. NAT, Firewall and
all router's functions are not supported
Wireless ISP Switch Wireless interface to WAN port and all Ethernet ports in bridge mode.
Wireless interface can do all router's functions
Apply Changes Click the Apply Changes button to complete the new configuration setting.
Reset Click the Reset button to abort change and recover the previous configuration
setting.
- 18 -

WLAN Broadband Router
User Manual
4.3.3 Wireless
4.3.3.1 Basic Settings
This page is used to configure the parameters for wireless LAN clients that may connect to your
Broadband Router. Here you may change wireless settings as well as wireless network parameters.
Item Description
Disable Wireless LAN Interface Click on to disable the wireless LAN data transmission.
Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(N) /
2.4GHz(B+G)/ 2.4GHz(G+N) / 2.4GHz(B+G+N)
Mode Click to select the WLAN AP / Client / WDS / AP+WDS /
AP+MESH / MESH wireless mode.
Network Type While Mode is selected to be Client. Click to select the network
type infrastructure or Ad hoc.
SSID It is the wireless network name. The SSID can be 32 bytes long.
Channel Width Select the operating channel width 20 MHz or 40 MHz.
[N band only]
Control Sideband Select the Sideband with Upper or Lower for channel width
40MHz. [N band only]
- 19 -

WLAN Broadband Router
User Manual
Channel Number Select the wireless communication channel from pull-down
menu.
Broadcast SSID Click to enable or disable the SSID broadcast function.
WMM Click Enabled/Disabled to init WMM feature.
Data Rate Select the transmission data rate from pull-down menu. Data rate
can be auto-select, 1M to 54Mbps or MCS.
Associated Clients Click the Show Active Clients button to open Active Wireless
Client Table that shows the MAC address, transmit-packet,
receive-packet and transmission-rate for each associated wireless
client.
Enable Mac Clone (Single
Ethernet Client)
Take Laptop NIC MAC address as wireless client MAC
address. [Client Mode only]
Enable Universal Repeater Mode Click to enable Universal Repeater Mode
SSID of Extended Interface Assign SSID when enables Universal Repeater Mode.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset Click the Reset button to abort change and recover the previous
configuration setting.
- 20 -
