Resi RESI-KNX-GW User manual

RESI®
RESI
Informatik &
Automation
GmbH
Date:
09.02.2019
Customer:
Pages
Version:
03.33
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
41
Edited by:
DI HC Sigl, MSc
Reviewed by:
DI HC Sigl, MSc
Project:
Reviewed by:
-
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
RESI-KNX-GW
RESI-KNXGW-ETH
Great care has been taken in the creation of the text, illustrations and
program examples in this manual. The editors and publishers accept
no responsibility for any inadvertent omission of entries or for
typographical or other errors herein. Nor can they be held responsible
or liable for consequences arising from any errors herein.
This manual is subject to copyright law. All rights are reserved.
This manual may not be copied in part or whole in any form including
electronic media without the written consent of RESI. Neither may it be
transferred in any other language suitable for machines or data
processing facilities. Also rights for reproduction through lecture, radio
or television transmission are reserved.
This documentation and the accompanying software are copyrighted
by RESI.
© Copyright 2005 –2019 by RESI Informatik & Automation GmbH

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
2
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
1 History
Date
Editor
Description
13.01.10
DI HC Sigl, MSc
Initial release
05.05.15
DI HC Sigl, MSc
Correction to the query group function
09.02.19
DI HC Sigl, MSc
Adding RESI-KNXGW-ETH module

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
3
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
2 Content
RESI-KNX-GW.......................................................................................................................................................1
RESI-KNXGW-ETH................................................................................................................................................1
1 HISTORY.............................................................................................................................................................2
2 CONTENT ...........................................................................................................................................................3
3 IMPORTANT SECURITY NOTES ......................................................................................................................5
4 GENERAL INFORMATION.................................................................................................................................7
5 TECHNICAL DATA FOR RESI-KNX-GW ..........................................................................................................8
6 TECHNICAL DATA FOR RESI-KNXGW-ETH...................................................................................................9
7 MOUNTING AND CONNECTIONS ..................................................................................................................10
7.1 ASSEMBLING.........................................................................................................................................10
7.2 CLAMPS AND LEDS FOR RESI-KNX-GW...............................................................................................11
7.3 DIP SWITCH SETTINGS FOR RESI-KNX-GW...........................................................................................12
7.4 CLAMPS AND LEDS FOR RESI-KNXGW-ETH........................................................................................13
7.5 DIP SWITCH SETTINGS FOR RESI-KNXGW-ETH ...................................................................................14
7.6 WIRING DIAGRAM FOR RESI-KNX-GW ..................................................................................................15
7.7 WIRING DIAGRAM FOR RESI-KNXGW-ETH...........................................................................................16
8 FUNCTIONAL DESCRIPTION .........................................................................................................................17
8.1 PROTOCOL DESCRIPTION.......................................................................................................................17
8.1.1 KNX physical address.....................................................................................................................17
8.1.2 KNX group addresses.....................................................................................................................18
8.1.3 Request help...................................................................................................................................18
8.1.4 Request gateway version ...............................................................................................................18
8.1.5 Request copyright...........................................................................................................................18
8.1.6 Request device setting ...................................................................................................................19
8.1.7 Set device setting ...........................................................................................................................19
8.1.8 Perform software reset ...................................................................................................................20
8.1.9 Activate direct mode .......................................................................................................................21
8.1.10 Receive protocol in direct mode.................................................................................................21
8.1.11 Write protocol in direct mode......................................................................................................21
8.1.12 Deactivate direct mode...............................................................................................................22
8.1.13 Request KNX group address settings........................................................................................23
8.1.14 Define KNX group addresses.....................................................................................................23
8.1.15 Request telegram forwarding settings........................................................................................24
8.1.16 Define KNX telegram forwarding................................................................................................24
8.1.17 Delete the entire group address settings ...................................................................................25
8.1.18 Delete the entire forwarding settings..........................................................................................25
8.1.19 Transmit/Send a KNX telegram..................................................................................................26
8.1.20 Receive of a KNX telegram at the KNX......................................................................................26
8.1.21 Query the status of a KNX telegram at the KNX........................................................................27
8.1.22 Tell the status of a KNX telegram to the KNX............................................................................27
8.1.23 Query received telegrams in half duplex mode..........................................................................27
8.2 ERROR MESSAGES ................................................................................................................................28
8.3 KNX DATA TYPES..................................................................................................................................29
8.3.1 Data type “EMPTY”.........................................................................................................................29
8.3.2 Data type “BIT”................................................................................................................................29
8.3.3 Data type “CHAR”...........................................................................................................................29
8.3.4 Data type “UBYTE” .........................................................................................................................29
8.3.5 Data type “PERCENT”....................................................................................................................29
8.3.6 Data type “ANGLE”.........................................................................................................................29
8.3.7 Data type “BYTE”............................................................................................................................29
8.3.8 Data type “UWORD” .......................................................................................................................30
8.3.9 Data type “WORD”..........................................................................................................................30
8.3.10 Data type “VALUE” .....................................................................................................................30
8.3.11 Data type “TIME” ........................................................................................................................30
8.3.12 Data type “DATE” .......................................................................................................................30
8.3.13 Data type “UDWORD” ................................................................................................................30

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
4
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
8.3.14 Data type “DWORD”...................................................................................................................30
8.3.15 Data type “FLOAT” .....................................................................................................................31
8.3.16 Data type “STRING” ...................................................................................................................31
8.3.17 Data type “GENERIC” ................................................................................................................31
9 RESI-KNXGW-ETH OPERATION MODES......................................................................................................32
10 RESI-KNXGW-ETH WEB CONFIGURATION................................................................................................33
10.1 HOWTO SETUP IP ADDRESS.................................................................................................................34
10.2 HOWTO CHANGE SOCKET NUMBER .......................................................................................................35
10.3 HOWTO CHANGE USER NAME AND PASSWORD.......................................................................................36
10.4 HOWTO RESTART THE MODULE VIA ETHERNET......................................................................................37
11 SPECIFICATIONS ..........................................................................................................................................38
11.1 DIMENSIONS OF THE MODULES RESI-KNX-GW......................................................................................38
11.2 3D DRAWING OF THE MODULES RESI-KNX-GW.....................................................................................39
11.3 DIMENSIONS OF THE MODULE RESI-KNXGW-ETH ................................................................................40
11.4 3D DRAWING OF THE MODULE RESI-KNXGW-ETH...............................................................................41

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
5
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
3 IMPORTANT SECURITY NOTES
Danger to life through electrical current!
Only skilled personal trained in electro-engineering should perform the described steps in the following
chapters. Please observe the country specific rules and standards. Do not perform any electrical work while the
device is connected to power.
Pay attention to the following rules:
1. Disconnect the system from power
2. Secure the system against automatic power on
3. Check that the system is de-energized
4. Cover other energized parts of the system
IMPORTANT HINT: Before you start with the installation and the initial setup of the device, you have to
read this document and the attached installation guide and the actual manual for the device very
carefully. You have to follow all the herein given information very accurate!
Only authorized and qualified personnel are allowed to install and setup the device!
The connection of the device must be done in de-energized state!
Do not perform any electrical work while the device is connected to power!
Disable and secure the system against any automatic restart or power on procedure!
The device must be operated with the defined voltage level!
Supply voltage jitters must not exceed the technical specifications and tolerances given in the technical
manuals for the product. If you do not obey this issue, the proper performance of the device cannot be
guaranteed. This can lead to fail functions of the device and in worst case to a complete breakdown of
the device!
You have to obey the current EMC regulations for wiring!
All signal, control and supply voltage cables must be wired in a way, that no inductive or capacitive
interference or any other severe electrical noise disturbance may interfere with the device. Wrong wiring
can lead to a malfunction of the device!
For signal or sensor cables you have to use shielded cables, to avoid damages through induction!
You have to obey and to apply the current safety regulations given by the ÖVE, VDE, the countries,
their control authorities, the TÜV or the local energy supply company!
Obey country-specific laws and standards!
The device must be used for the intended purpose of the manufacturer!
No warranties or liabilities will be accepted for defects and damages resulting from improper or incorrect
usage of the device!
Subsequent damages, which results from faults of this device, are excluded from warranty and liability!
Only the technical data, wiring diagrams and operation instructions, which are part to the product
shipment are valid!
The information on our homepage, in our datasheets, in our manuals, in our catalogues or published
by our partners can deviate from the product documentation and is not necessarily always actual, due
to constant improvement of our products for technical progress!
In case of modification of our devices made by the user, all warranty and liability claims are lost!
The installation has to fulfill the technical conditions and specifications (e.g. operating temperatures,
power supply, …) given in the devices documentation!
Operating our device close to equipment, which do not comply with EMC directives, can influence the
functionality of our device, leading to malfunction or in worst case to a breakdown of our device!

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
6
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
Our devices must not be used for monitoring applications, which solely serve the purpose of protecting
persons against hazards or injury, or as an emergency stop switch for systems or machinery, or for any
other similar safety-relevant purposes!
Dimensions of the enclosures or enclosures accessories may show slight tolerances on the
specifications provided in these instructions!
Modifications of this documentation is not allowed!
In case of a complaint, only complete devices returned in original packing will be accepted!

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
7
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
4 General Information
With the RESI-KNX-GW or RESI-KNXGW-ETH gateways, a KNX bus system can be integrated in almost
every system with a RS232/RS485 or Ethernet interface. The gateway is a serial interface for connection to
the KNX with an integrated 2 wire KNX bus-coupler. The time-critical KNX communication is done from the
gateway itself, and all telegrams will be transferred in plain ASCII text commands to the connected host
system either via serial line or via Ethernet socket.
Easy integration of the KNX in any system
Commands and messages as plain text in the ASCII standard
KNX and host interface are galvanically isolated
Supports all 65535 group addresses
Supports all DPT types
Remanent group address range filter
Integrated KNX bus-coupler
RESI-KNX-GW: Host interface: RS232 or RS485, 9600 to 57600 bps, 8 data bits,
no or even parity, 1 stop bit
RESI-KNXGW-ETH: Host interface: Ethernet 10/100MBit/s, ASCII text socket
Power supply with 12 to 48Vdc
Power consumption RESI-KNX-GW <0.5W
Power consumption RESI-KNXGW-ETH <1.1W
Mountable onto a EN50022 DIN rail
Type
Description
Voltage
Power
Weight
RESI-KNX-GW
KNX to ASCII gateway with RS232 or
RS485 interface for all 65535 group
addresses
12…48 V=
<0.5W
55 g
RESI-KNXGW-ETH
KNX to ASCII gateway with Ethernet
interface for all 65535 group addresses
12…48 V=
<1.1W
90 g

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
8
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
5 Technical data for RESI-KNX-GW
Technical data
Power supply
Supply voltage
12…48 V= +/-10%
Storage temperature
-20...85 °C
Power LED indicator
Yes
Operation
temperature
0...60°C
Power consumption
<0.5W
Humidity
25...90 % rH not
condensing
Protection class
IP20 (EN 60529)
Dimensions LxWxH
17.5mm x 90mm x 58mm
Weight
55g
Mounting
on DIN EN50022 rail
ASCII text interface
Factory settings
Protocol
ASCII plain text
ASCII address
255
Type
RS232 or RS485
ASCII baud rate
9600
Baud rate
9600 to 57600/8/N or E/1
ASCII interface
RS232
Cable connection
Via clamps
LED indicator
Yes
Galvanic insulation to the
KNX interface
Yes
KNX bus interface
Protocol
KNX
Baud rate
9600Bits/s
Cable connection
Via clamps
Galvanic insulation to serial
interface
Yes
LED indicator
Yes
Clamps
Clamp wire cross section
Max. 1,5 mm²
Tightening torque
Max. 0.5Nm
CE conformity
Yes
IT Accessories
hterm
Use the free terminal software hterm from the internet to communicate with our
gateway

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
9
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
6 Technical data for RESI-KNXGW-ETH
Technical data
Power supply
Supply voltage
12…48 V= +/-10%
Storage temperature
-20...85 °C
Power LED indicator
Yes
Operation
temperature
0...60°C
Power consumption
<1.1W
Humidity
25...90 % rH not
condensing
Protection class
IP20 (EN 60529)
Dimensions LxWxH
35.8mm x 90mm x 58mm
Weight
90g
Mounting
on DIN EN50022 rail
ASCII text interface
Factory settings
Protocol
ASCII plain text
ASCII address
255
Type
Ethernet
ASCII baud rate
9600
Speed
10/100MBit/s
ASCII interface
RS232
Cable connection
Via RJ45
LED indicator
Yes
Galvanic insulation to the
KNX interface
Yes
KNX bus interface
Protocol
KNX
Baud rate
9600Bits/s
Cable connection
Via clamps
Galvanic insulation to
Ethernet interface
Yes
LED indicator
Yes
Clamps
Clamp wire cross section
Max. 1,5 mm²
Tightening torque
Max. 0.5Nm
CE conformity
Yes
IT Accessories
putty
Use the free terminal software putty from the internet to communicate with our
gateway

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
10
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
7 Mounting and Connections
7.1 Assembling

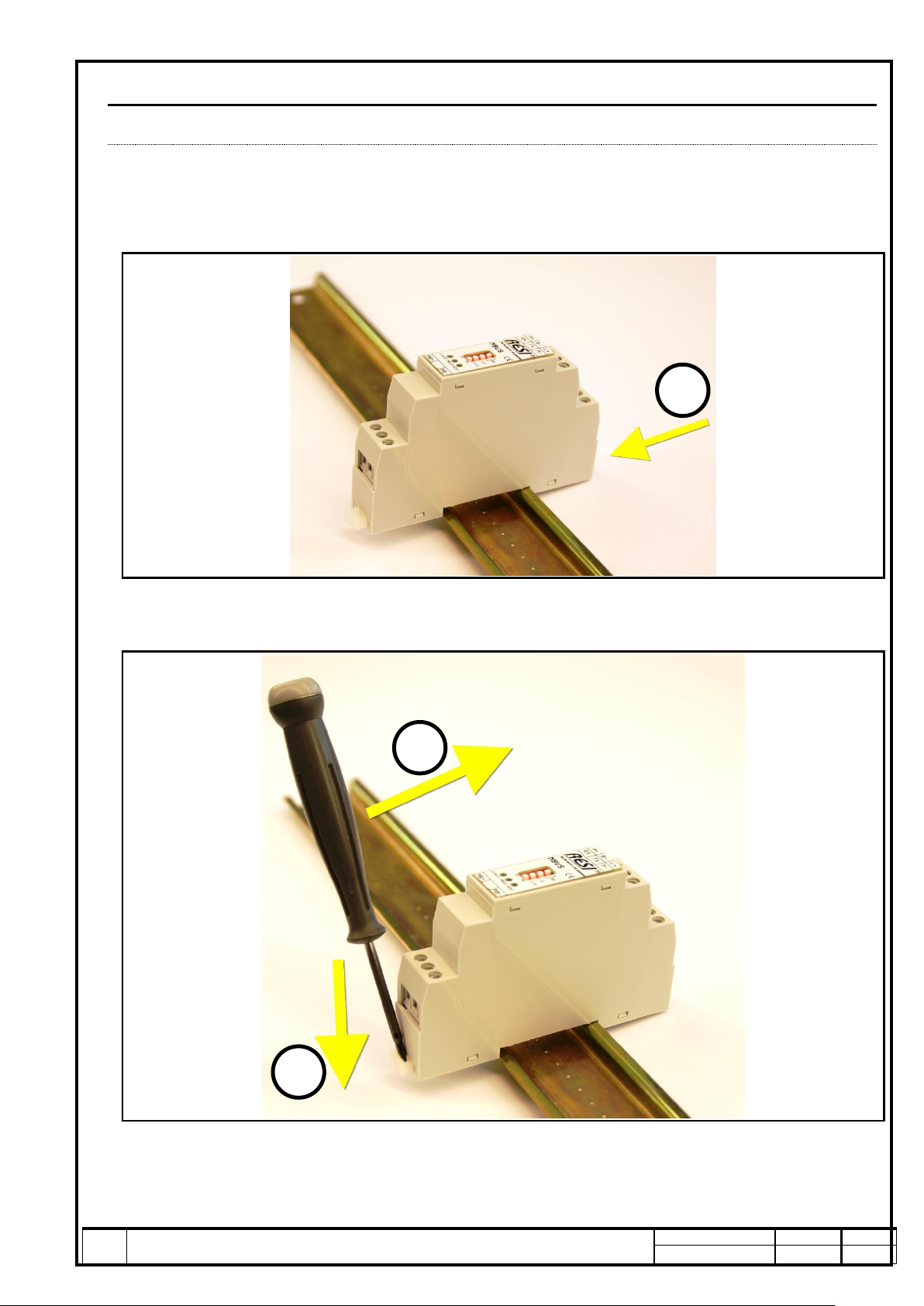

Our RESI-KNX-GW or RESI-KNXGW-ETH gateways are designed for mounting on a 35mm DIN-EN50022
rail. Please note, that there are symbol photos used in the mounting pictures below.
At first, put the gateway with the top side on the DIN rail (1).
Then open the clamp lever on the bottom side with a screw driver (2) and press the device on the DIN rail (3).
Release the clamp lever. The module is now placed correctly on the DIN rail.
1
2
3

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
11
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
To dismount the module from the DIN rail first open the clamp lever with a screwdriver on the bottom side (4).
Hold the clamp lever opened while you lift the module from the DIN rail (5). Then remove the gateway from
the bar with while pulling it on the top side.
7.2 Clamps and LEDs for RESI-KNX-GW
RESI-KNX-GW
L+
M-
Power supply
L+: 12…48 V=
M-: Ground
A
B
RS485 Modbus/RTU slave interface
A: DATA+
B: DATA-
RX
TX
M-
RS232 Modbus/RTU slave interface
RX: serial receive
TX: serial transmit
M-: Ground for RS232
K+
K-
Interface to KNX bus system
K+: KNX+ bus wire (red)
K-: KNX- bus wire (black)
STATE
State-LED, flashes slowly, when gateway is ok
and the KNX is connected. Flashes fast, if the
gateway or the KNX connection has an error
KNX
KNX activity LED, this LED is on while the
gateway send or receives KNX telegrams
HOST
HOST-LED, flashes, when host sends/receive
ASCII telegrams
Table: Description of connectors and LEDs of the RESI-KNX-GW gateway
4
5

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
12
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
7.3 DIP switch settings for RESI-KNX-GW
Illustration: Description of the DIP switch settings and LED status displays
DIP Switch
RESI-KNX-GW
Baudrate
BR
Use DIP Switches 1+2 to select baud rate:
OFF OFF: 9600Bd
ON OFF: 19200Bd
OFF ON: 38400Bd
ON ON: 57600Bd
HINT: The correct parity (NONE, EVEN or ODD) is configured with the
PC software, not via DIP switches!
Interface
IF
Select serial interface for ASCII host
OFF=RS232
ON=RS485
Function
Definition
FD
Selects a special function:
OFF=The gateway uses a compatibility format (>)
ON=The gateway uses the RESI format (#)
Table: Description of DIP switch functions
Baudrate
DIP Switch #1
Baudrate
DIP Switch #2
Interface
RS232-RS4895
Function
Definition

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
13
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
7.4 Clamps and LEDs for RESI-KNXGW-ETH
RESI-KNXGW-ETH
L+
M-
Power supply
L+: 12…48 V=
M-: Ground
ETHERNET
Ethernet connection for transparent mode or
MODBUS/TCP or internet access.
10M/100Mbit adaptive, support AUTO–MDIX
K+
K-
Interface to KNX bus system
K+: KNX+ bus wire (red)
K-: KNX- bus wire (black)
STATE
State-LED, flashes slowly, when gateway is ok
and the KNX is connected. Flashes fast, if the
gateway or the KNX connection has an error
KNX
KNX activity LED, this LED is on while the
gateway send or receives KNX telegrams
HOST
HOST-LED, flashes, when host sends/receive
telegrams
CFG
Factory config LED: In normal mode this LED
flashes in the same way like the STATE LED.
If CFG switch=ON while rebooting, the STATE
LED is always ON and this LED flashes
slowly. When this process is finished, both
LED blink very fast.
LINK
This LED is on if Ethernet port is connected
correctly to network
DATA
The LED shows the data flow on the Ethernet
port
Table: Description of connectors and LEDs of the RESI-KNXGW-ETH gateway

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
14
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
7.5 DIP switch settings for RESI-KNXGW-ETH
Illustration: Description of the DIP switch settings and LED status displays
DIP Switch
RESI-KNXGW-ETH
Function
FUNC1
ON: while restarting the module, the module switches to static IP
configuration with the standard IP settings:
IP address: 192.168.0.221
IP mask: 255.255.255.0
Gateway: 192.168.0.1
OFF: the current configured IP settings are used
Function
FUNC2
ON: while restarting the module, the module switches to DHCP IP
configuration.
OFF: the current configured IP settings are used
Mode
MODE
Selects a special function:
OFF=The gateway uses a compatibility format (>)
ON=The gateway uses the RESI format (#)
Factory config
CFG
ON: while restarting the module, the module restores the factory
defaults for the system. Wait for approx. 30 seconds until the
STATE+CFG LED flash very fast. Then reset the DIP switch. The
module will restart automatically and is ready for operation.
OFF: Normal start of module
HINT
After changing the DIP switches the converter reboots immediately,
so no power off or on is necessary. After reboot all the LEDs are on
for half a second to signal the power on sequence.
Table: Description of DIP switch functions
Function
FUNC1
Function
FUNC2
Mode
MODE
Factory reset
CFG

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
15
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
7.6 Wiring diagram for RESI-KNX-GW
Illustration: wiring diagram of gateway

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
16
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
7.7 Wiring diagram for RESI-KNXGW-ETH
Illustration: wiring diagram of gateway
Power 12-48Vdc
Ethernet

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
17
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
8 Functional Description
The RESI-KNX-GW and RESI-KNXGW-ETH gateways communicate with the host by a protocol, which is
based on simple text strings in ASCII character set. The host interface handles no control character below the
space character (Code: 20H) with the exception of the “carriage return” character (Code: 0DH), which will be
constitute as <cr>. Each command, a message, or a line must use the character <cr> as end of line indication.
Received characters from the host will not be send back to the host (no echo).
Differences between full duplex and half duplex mode:
In RS232/Ethernet mode the RESI-KNX-GW gateway sends a received KNX telegram immediately as an
ASCII string to the host, due to the fact, that this communication is bidirectional (full duplex).
In RS485 mode the RESI-KNX-GW gateway puffers a received KNX telegram internally, until the host polls
the internal memory with the command #GET<cr>. The gateway can buffer up to 32 KNX telegrams internally
in its queue. This is the tradeoff for half duplex communication. This mode can also be used on the Ethernet
gateway.
This mode can be controlled with the option COM in the #SETUP command.
Setting COM to ON enable full duplex communication mode.
Setting COM to OFF enables half-duplex communication mode with #GET command.
8.1 Protocol description
Following all commands and messages of the gateway will be described. Each command has to be
terminated with the <cr> character. All feedback messages of the gateway also end with a <cr> character.
The case sensitivity is to keep in mind (Use upper case letters) !
Numbers and group addresses can be optionally send to the gateway in decimal or hexadecimal form. To
send a number in hexadecimal form, the number must be precede a “x”. By output of a number in
hexadecimal form(option HEX activated), there no “x” precede the numbers!
8.1.1 KNX physical address
Physical addresses can be defined (A = area / L = line / M = member) as character string
AA.LL.MMM or
AA/LL/MMM or
xALMM
or as hexadecimal digit
digit 1
digit 2
digit 3
digit 4
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
A
L
M
Examples:
0.0.0 x0000
3/1/15 x310F
15.15.255 xFFFF

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
18
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
8.1.2 KNX group addresses
Group addresses can be defined (H = main group / M = middle group / U = sub group) as character string
HH.M.UUU or
HH/MM/UUU
or as hexadecimal digit
digit 1
digit 2
digit 3
digit 4
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
H
M
U
Examples:
0.0.0 x0000
3/1/15 x190F
15/0/255 x78FF
15/7/255 x7FFF
31.7.255 xFFFF
8.1.3 Request help
Command:
?H
Description:
Return a short summary of all commands for the gateway
Answer:
Summary of the commands and messages
Example:
----
8.1.4 Request gateway version
Command:
?V
Description:
Returns the product description and the version
Answer:
RESI-KNX-GW Vn.n.n
n.n.n............software version
Example:
?V
RESI-KNX-GW V3.0.0
8.1.5 Request copyright
Command:
?C
Description:
Returns the copyright.
Answer:
Show the copyright
Example:
----

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
19
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
8.1.6 Request device setting
Command:
?SETUP
Description:
Returns the device setting.
Answer:
PHY=pa
SRC=src
HEX=hex
COM=com
pa................physical address of the gateway at the KNX
src...............display of the source address when receiving a KNX telegram
(ON = activate / OFF = deactivate)
hex..............display the KNX address in hexadecimal form
(ON = activate / OFF = deactivate)
com.............define the communication mode
(ON = full duplex / OFF = half duplex)
Example:
?SETUP
PHY=1.1.156
SRC=ON
HEX=OFF
COM=OFF
or
?SETUP
PHY=119C
SRC=ON
HEX=ON
COM=OFF
8.1.7 Set device setting
Command:
#SETUP=pa;src;hex;com
Description:
Set the device setting .
pa................physical address of the gateway at the KNX
src...............Defines, if the source address of a received KNX telegram is
shown or not
(ON = activate / OFF = deactivate)
hex..............Defines, if the KNX address is shown in hexadecimal form
(ON = activate / OFF = deactivate)
com.............Defines the communication mode
(ON = full duplex / OFF = half duplex)
Answer:
Ok The settings are changed successfully
Example:
Set the physical address of the gateway to 1.1.156, enable output of KNX source
address, disable output of KNX address in hexadecimal form and disable full
duplex mode (Use #GET<cr> for polling).
#SETUP=1.1.156;ON;OFF;OFF
Ok
same settings but with address as hexadecimal number
#SETUP=x119C;ON;OFF;OFF
Ok

RESI®
Title:
RESI-KNX-GW,RESI-KNXGW-ETH manual
Date
Page
of
09.02.2019
20
41
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
8.1.8 Perform software reset
Command:
#RESET
Description:
Performs a software RESET
Answer:
none
Example:
----
