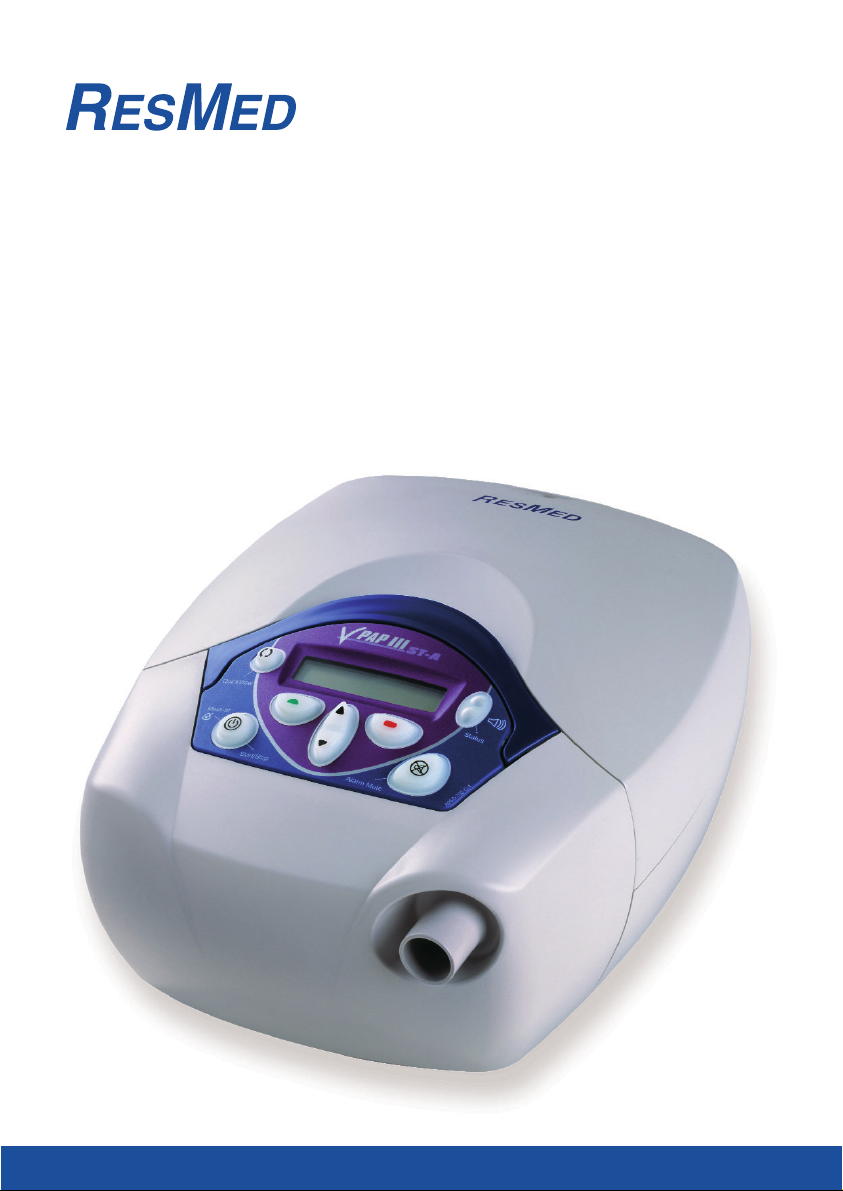

ResMed VPAP III ST-A User manual

VPAP™III ST-A
User Manual
English • Deutsch • Français • Italiano
Español • Português • Nederlands
Front Cover.qxd 21/11/2005 3:44 PM Page 1

Global leaders in sleep and respiratory medicine www.resmed.com
248111/1 05 12
VPAP III ST-A
USER
EUR 1
Front Cover.qxd 21/11/2005 3:44 PM Page 2

HUMIDIFIERS / ATEMLUFTBEFEUCHTER / HUMIDIFICATEURS / UMIDIFICATORI /
HUMIDIFICADORES / HUMIDIFICADORES / BEVOCHTIGERS
A
B
12
4
SETTING UP THE VPAP III ST-A / AUFSTELLEN DES VPAP III ST-A /
INSTALLATION DE LA VPAP III ST-A / CONFIGURAZIONE DEL VPAP III ST-A /
CONFIGURACIÓN DEL VPAP III ST-A / MONTAGEM DO VPAP III ST-A / OPSTELLEN
VAN DE VPAP III ST-A
D
1
2
4
© 2005 ResMed Ltd. © 2005 ResMed Ltd. © 2005 ResMed Ltd. © 2005 ResMed Ltd.
OTHER ACCESSORIES / SONSTIGES ZUBEHÖR / AUTRES ACCESSOIRES /
ALTRI ACCESSORI / OTROS ACCESORIOS / OUTROS ACESSÓRIOS /
OVERIGE ACCESSOIRES
C
3
SYSTEM COMPONENTS / SYSTEMKOMPONENTEN / COMPOSANTS DU
SYSTEME / COMPONENTI DEL SISTEMA / COMPONENTES DEL SISTEMA /
COMPONENTES DO SISTEMA / SYSTEEMCOMPONENTEN
1
2
34 5
2 m
HumidAire 2i™HumidAire 2iC™
HumidAire™ ResMed Passover
13 m 252 cm
3
HUMIDAIRE 2i AND VPAP III ST-A / HUMIDAIRE 2i UND VPAP III ST-A /
HUMIDAIRE 2i ET VPAP III ST-A / HUMIDAIRE 2i E VPAP III ST-A / HUMIDAIRE 2i
Y VPAP III ST-A / HUMIDAIRE 2i E VPAP III ST-A / HUMIDAIRE 2i EN VPAP III ST-A
E
F
© 2005 ResMed Ltd.© 2005 ResMed Ltd.
VPAP™III ST-A
Illustrations / Abbildungen /
Illustrations / Illustrazioni / Figuras /
Ilustrações / Illustraties
Component of 248111/1
Removable front cover /
Abnehmbare Frontabdeckung /
Capot avant amovible /
Coperchio frontale estraibile /
Cubierta delantera
desmontable / Tampa da frente
removível / Afneembare
frontkap
LCD Screen / LCD-Display /
Ecran LCD / Schermo a cristalli
liquidi / Visor LCD / Mostrador
LCD / LCD-scherm
Handle / Tragegriff / Poignée /
Maniglia / Asa / Pega / Hendel
Control Panel / Bedienoberfläche /
Panneau de contrôle / Pannello di
controllo / Panel de control / Painel
de controle / Bedieningspaneel
Air Outlet / Luftauslassöffnung /
Sortie d’air / Presa di uscita
dell’aria / Salida de aire / Saída de
ar / Luchtuitlaat
Air filter cover /
Luftfilterabdeckung / Couvercle
du logement du filtre à air /
Coperchio del filtro dell’aria /
Cubierta del filtro de aire /
Tampa do filtro de ar /
Afdekkap luchtfilter
Serial communications port (9-pin) /
Serieller Kommunikationsanschluss
(9-Pin) / Port série de communication
(9 broches) / Porta di comunicazione seriale
(9 piedini) / Puerto serial de
comunicaciones (9 clavijas) / Porta de
comunicações de série (9-pinos) / Seriële
communicatiepoort (9-pens)
Power switch /
Hauptschalter / Interrupteur
principal / Interruttore di
accensione / Interruptor
principal / Interruptor /
Elektriciteitsschakelaar
Power socket /
Netzanschlussbuchse / Prise
d’alimentation / Presa del cavo
di alimentazione / Entrada de
corriente / Tomada /
Aansluitpunt
Auxiliary port (15-pin) / Aux-Anschluss
(15-Pin) / Port auxiliaire (15 broches) / Porta
ausiliaria (15 piedini) / Puerto auxiliar
(15 clavijas) / Porta auxiliar (15-pinos) /
Hulppoort (15-pens)
HUMIDAIRE 2iC AND VPAP III ST-A / HUMIDAIRE 2iC UND VPAP III ST-A /
HUMIDAIRE 2iC ET VPAP III ST-A / HUMIDAIRE 2iC E VPAP III ST-A /
HUMIDAIRE 2iCY VPAP III ST-A / HUMIDAIRE 2iC E VPAP III ST-A /
HUMIDAIRE 2iC EN VPAP III ST-A
Docking station /
Andock-Station /
Support / Unità di
alloggiamento /
Estación de carga /
Estação de
ancoragem /
Docking-station
Water chamber /
Befeuchterkammer /
Réservoir / Camera
dell’acqua / Cámara
de agua / Câmara de
água / Waterkamer
Docking station /
Andock-Station /
Support / Unità di
alloggiamento / Estación
de carga / Estação de
ancoragem /
Docking-station
Water chamber /
Befeuchterkammer /
Réservoir / Camera
dell’acqua / Cámara de
agua / Câmara de água /
Waterkamer

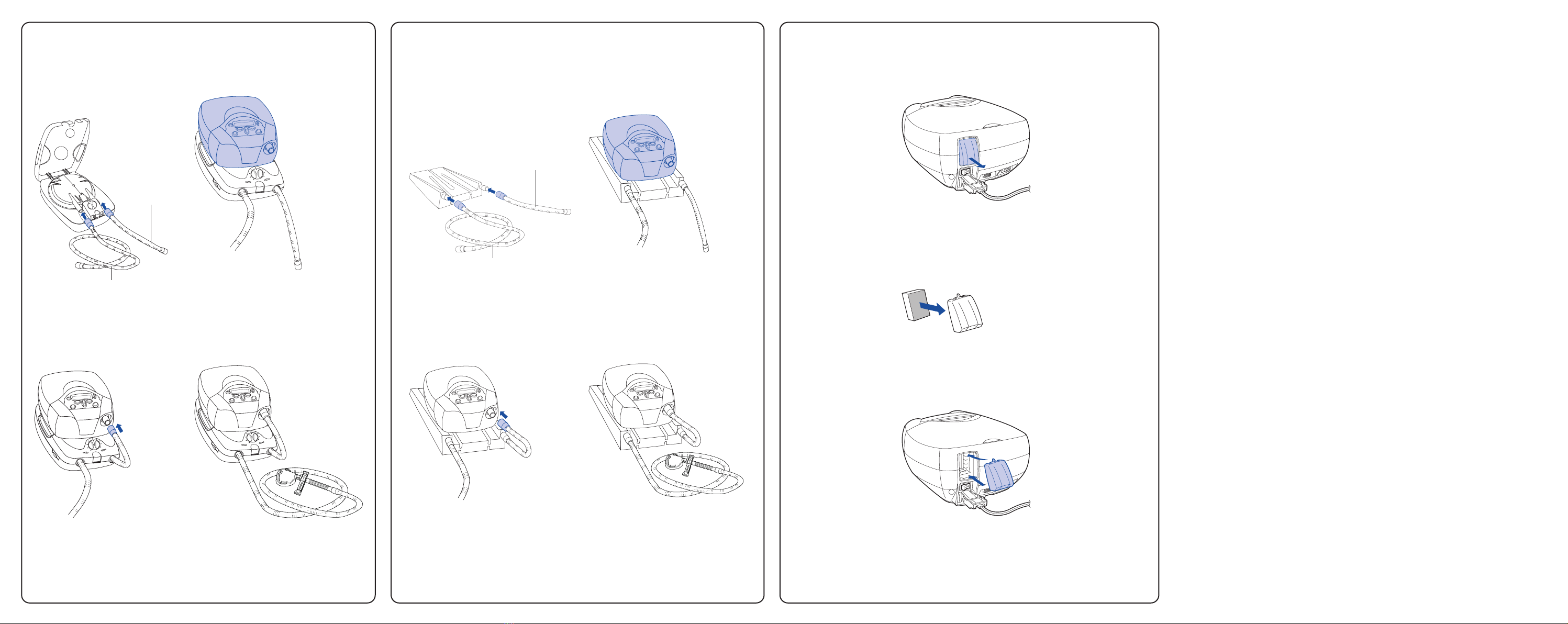

248111 illos.qxd 21/11/2005 3:30 PM Page 1

USING A PASSOVER HUMIDIFIER / BENUTZUNG EINES PASSOVER-
ATEMLUFTBEFEUCHTERS / UTILISATION D'UN HUMIDIFICATEUR PASSOVER /
USO DI UN UMIDIFICATORE PASSOVER / USO DE UN HUMIDIFICADOR
PASSOVER / USO DE UM HUMIDIFICADOR PASSOVER / GEBRUIK VAN EEN
PASSOVER BEVOCHTIGER
H
4
© 2005 ResMed Ltd.
3
USING A HUMIDAIRE HUMIDIFIER / BENUTZUNG EINES HUMIDAIRE
ATEMLUFTBEFEUCHTERS / UTILISATION D'UN HUMIDIFICATEUR
HUMIDAIRE / USO DI UN UMIDIFICATORE HUMIDAIRE / USO DE UN
HUMIDIFICADOR HUMIDAIRE / USO DE UM HUMIDIFICADOR HUMIDAIRE /
GEBRUIK VAN EEN HUMIDAIRE BEVOCHTIGER
G
© 2005 ResMed Ltd.
12
4
3
12
(2 m/3 m)
(52 cm)
(2 m/3 m)
(52 cm)
REPLACING THE AIR FILTER / AUSWECHSELN DES LUFTFILTERS /
REMPLACEMENT DU FILTRE A AIR / SOSTITUZIONE DEL FILTRO DELL’ARIA /
CAMBIO DEL FILTRO DE AIRE / SUBSTITUIÇÃO DO FILTRO DE AR / VERVANGING
VAN HET LUCHTFILTER
I
© 2005 ResMed Ltd.
1
2
3
248111 illos.qxd 21/11/2005 3:30 PM Page 2

User’s Manual 1
Manuel utilisateur 109
Bedienungsanleitung 53
Manuale per l’utente 165
VPAP™ III ST-A
EnglishDeutschItaliano Français
Manual del Usuario 221
Manual do Utilizador 277
Gebruikershandleiding 333
EspañolPortuguêsNederlands

Protected by patents: AU 697652, AU 699726, AU 713679, EP 0661071, EP 0858352, US 4944310, US 5199424,
US 5522382, US 6213119, US 6240921, US 6705315. Other patents pending.
Protected by design registrations: AU 147283, AU 147335, AU 147336, CH 128.709, CH 128.710, CH 128.711,
CH 128.712, DE 40201723, DE 40202007, DE 40202008, DE 40202020, ES 153514, ES 153515, ES 153516, ES 153518,
ES 156135, ES 156136, FR 02 1407, GB 3001791, GB 3001819, GB 3001820, GB 3001821, JP 1164087, JP 1164265,
JP 1164266, JP 1164267, JP 3638613, SE 75598, SE 75599, SE 75600, SE 75715, US D467335, US D468011,
US D476077, US D477868, US D487311, US D503796. Other designs pending.
VPAP, Activa, HumidAire, HumidAire 2i, Mirage, SmartStart, Smart Data, Swift, Ultra Mirage and Vista are trademarks of
ResMed Ltd, and VPAP, Activa, HumidAire, HumidAire 2i, Mirage, SmartStart, Ultra Mirage and Vista are
registered in U.S. Patent and Trademark Office.
© 2005 ResMed Ltd.
Manufactured by:
ResMed Ltd 1 Elizabeth MacArthur Drive Bella Vista NSW 2153 Australia
Tel: [phone] or 1 800 658 189 (toll free) Fax: [phone] Email: [email protected]m.au
Distributed by:
ResMed Corp 14040 Danielson Street Poway CA 92064-6857 USA
Tel: [phone] or 1-800-424-0737 (toll free) Fax: [phone] Email: [email protected]
ResMed (UK) Limited 65 Milton Park Abingdon Oxfordshire OX14 4RX UK
Tel: [phone] Fax: [phone] Email: [email protected]
ResMed Asia Pacific Ltd 97 Waterloo Road North Ryde NSW 2113 Australia
Tel: [phone] or 1 800 658 189 (toll free) Fax: [phone] Email: [email protected]
ResMed Austria GmbH Purtscherstraße 18, 9500 Villach Österreich
Tel: [phone] Fax: [phone] Email: [email protected]
ResMed BV Nieuwe Parklaan 86, 2587 BV Den Haag Nederland
Tél: [phone] Fax: [phone] Email: [email protected]
ResMed Finland Oy Eteläinen Salmitie 2 Masala 02430 Suomi
Puh: [phone] Faksi: [phone] Sähköposti: [e-mail]
ResMed GmbH & Co. KG Fraunhoferstraße 16, 82152 Martinsried Deutschland
Tel: [phone] oder [phone] (gebührenfrei) Fax: [phone]
Email: [email protected]
ResMed Hong Kong Limited Room 701, Miramar Tower 132-134 Nathan Road Tsim Sha Tsui Hong Kong
Tel: [phone] Fax: [phone] Email: [email protected]
ResMed Japan 17F, Fukokuseimei Building, 2-2-2, Uchisaiwai-cho, Chiyoda-ku Tokyo 100-0011 Japan
Tel: [phone] Fax: [phone]
ResMed Malaysia Sdn Bhd Suite E-10-20, Plaza Mon’t Kiara No. 2 Jalan 1/70C Mon’t Kiara 50480 Kuala Lumpur Malaysia
Tel: [phone] Fax: [phone] Email: [e-mail]
ResMed Middle East 66 Ahmed Shawki St. Mostafa Kamel, Alexandria 21111 Egypt
Tel: [phone] Fax: [phone]
ResMed NZ Ltd PO Box 51-048 Pakuranga Auckland New Zealand
Tel:[phone] Fax:[phone] Email: [email protected]
ResMed SA Parc de la Bandonnière 2, rue Maurice Audibert 69800 Saint-Priest France
Tél. : [phone] Fax : [phone] Email: [email protected]
ResMed Schweiz Thannerstrasse 57 CH-4054 Basel Schweiz
Tel: [phone] Fax: [phone] Email: [email protected]
ResMed Singapore Pte Ltd 238A Thomson Road #12-03/04, Novena Square, Tower A Singapore 307684
Tel: [phone] Fax: [phone] Email: [email protected]
ResMed Spain SL C/Arturo Soria, 245 28033 Madrid España
Tel: [phone] Fax: [phone] Email:[email protected]
ResMed Sweden AB Industrigatan 2 S-461 37 Trollhättan Sverige
Tel: [phone] Fax: [phone] Email: [e-mail]
US DESIGNATED AGENT: ResMed Corp
EU AUTHORIZED REPRESENTATIVE: ResMed (UK) Ltd
Internet: www.resmed.com

English
1
VPAP™III ST-A
User Manual
English

2

3Contents
English
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
User/Owner Responsibility 5
Medical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
What the VPAP III ST-A is Intended for 5
Contraindications 5
Warnings 6
Cautions 6
Adverse Effects 7
The VPAP III ST-A System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Masks 9
Humidifiers 10
Accessories 10
Setting up the VPAP III ST-A System . . . . . . . . . . . . . . . . . . . . . . . 11
Setting up the VPAP III ST-A 11
Attaching a Humidifier 12
Using the LCD Screen and Keypad 14
Starting Treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Stopping Treatment 18
Using the HumidAire 2i Warm-up Feature 18
Using the Mask-Fitting Feature 18
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Daily Cleaning 21
Weekly Cleaning 21
Periodic Cleaning 21
Testing the Alarm 22
Replacing the Air Filter 22
Servicing 22
How to Use the VPAP III ST-A Menus . . . . . . . . . . . . . . . . . . . . . . 23
Ramp Screen 23
How to Use the Standard Menu 23
How to Use the Detailed Menu (if enabled by your clinician) 24
Menu Functions (Detailed Menu only) 26
Treatment Screens 29
Non-vented Mask Alarm Screen 31
The Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Alarms Troubleshooting 33
Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4
System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

5Introduction
English
Introduction
The VPAP™ III ST-A is a bilevel pressure support ventilator specifically designed
for non-invasive mask ventilation.
This user manual contains the information you need for the correct use of your
VPAP III ST-A.
User/Owner Responsibility
The user or owner of this system shall have sole responsibility and liability for any
injury to persons or damage to property resulting from:
•operation which is not in accordance with the operating instructions supplied
•maintenance or modifications carried out unless in accordance with
authorized instructions and by authorized persons.
Please read this manual carefully before use.
This manual contains special terms and icons that appear in the margins to draw
your attention to specific and important information.
•Warning alerts you to possible injury.
•Caution explains special measures for the safe and effective use of the
device.
•Note is an informative or helpful note.
Medical Information
What the VPAP III ST-A is Intended for
The VPAP III ST-A system is intended to provide non-invasive ventilation for
patients with respiratory insufficiency or obstructive sleep apnea (OSA), in the
hospital or home.
Contraindications
The VPAP III ST-A should not be used if you have an insufficient respiratory drive
to endure brief interruptions in non-invasive ventilation therapy. The
VPAP III ST-A is not a life support ventilator and may stop operating with power
failure or in the unlikely event of certain fault conditions.
If you have any of the following conditions, tell your doctor before using the
VPAP III ST-A:
•acute sinusitis or otitis media
•epistaxis causing a risk of pulmonary aspiration
•conditions predisposing to a risk of aspiration of gastric contents
•impaired ability to clear secretions

6
•hypotension or significant intravascular volume depletion
•pneumothorax or pneumomediastinum
•recent cranial trauma or surgery.
Warnings
•The entire manual should be read before using the VPAP III ST-A.
•Advice contained in this manual should not supersede instructions given by
the prescribing physician.
•The VPAP III ST-A should be used with masks and accessories recommended
by ResMed or the prescribing physician. Use of incorrect masks and
accessories may adversely affect the function of the VPAP III ST-A.
•The VPAP III ST-A is designed for use with masks that allow exhaled gases to
be flushed out through vent holes. Exhaled gases will be rebreathed if the
mask is worn with the machine turned off, or the vent holes are occluded. If
this occurs over prolonged periods, suffocation may occur.
•In the event of power failure or machine malfunction, remove the mask.
•The VPAP III ST-A can be set to deliver pressures up to 30 cm H2O. In the
unlikely event of certain fault conditions, pressures up to 40 cm H2O are
possible.
•The VPAP III ST-A is not suitable for use in the vicinity of flammable
anesthetics.
•The VPAP III ST-A should not be used with anesthetized patients, whose
breathing depends entirely on mechanical ventilation.
•If oxygen is used with the VPAP III ST-A, the oxygen flow should be stopped
when the device is not operating. If oxygen flow continues when the device
is not operating, oxygen may accumulate within the device and create a risk
of fire.
•Do not use the VPAP III ST-A if there are obvious external defects,
unexplained changes in performance or unusual noises.
•Do not open the VPAP III ST-A case. There are no user serviceable parts
inside. Repairs and internal servicing should only be performed by an
authorized service agent.
Cautions
•At low EPAP pressures, the flow through the mask vent holes may be
inadequate to clear all exhaled gases, and some rebreathing may occur.
•The air flow for breathing produced by this device can be as much as 6oC
higher than the temperature of the room. Caution should be exercised if the
room temperature is warmer than 32oC.
Note: The above are general warnings and cautions. Further specific warnings,
cautions and notes appear next to the relevant instructions in the manual.

7Medical Information
English
Adverse Effects
You should report unusual chest pain, severe headache or increased
breathlessness to your physician. An acute upper respiratory tract infection may
require temporary discontinuation of treatment.
The following side effects may arise during the course of therapy with the
VPAP III ST-A:
•drying of the nose, mouth or throat
•bloating
•ear or sinus discomfort
•eye irritation
•mask-related skin irritations
•chest discomfort.

8

9The VPAP III ST-A System
English
The VPAP III ST-A System
Please refer to the illustrations in section Aof the illustration sheet.
Please identify and familiarize yourself with the following components of the
VPAP III ST-A:
•VPAP III ST-A front view (A-1)
•VPAP III ST-A rear view (A-2)
•Power cord (A-3)
•Carry bag (A-4)
•2 m air tubing (A-5).
!
WARNING
•Do not connect any device to the auxiliary port. Although your health
care provider may connect specially designed devices to the auxiliary
port of the VPAP III ST-A, connection of other devices could result in
injury, or damage to the unit.
•In the home environment, the only device that may be connected to the
communications port is a modem that is locally approved. Locally
approved modems may also be connected in the clinical environment.
•In the clinical environment any PC that is used with the VPAP III ST-A
system must be at least 1.5 m away from, or at least 2.5 m above the
patient. It must also comply with IEC 60950 or equivalent.
Masks
You will also need a ResMed mask system (supplied separately).
The following ResMed mask systems are recommended for use with the
VPAP III ST-A:
Nasal Masks
•Ultra Mirage™ Nasal Mask
•Mirage™ Nasal Mask
•Mirage Activa™ Nasal Mask
•Mirage Vista™ Nasal Mask
•Modular Nasal Mask.
Nasal Pillows Systems
•Mirage Swift™ Nasal Pillows System.
Full Face Masks
•Mirage™ Full Face Mask
•Mirage™ Full Face Mask Series 2
•Ultra Mirage™ Full Face Mask.
To select the appropriate setting for your mask, see “Settings for Mask Types”
on page 27.

10
Notes:
•ResMed VPAP III ST-A has been designed and manufactured to provide
optimum performance using ResMed vented mask systems. While other
vented mask systems may be used, performance and data outputs may be
affected.
•Not all masks are available in all regions.
Humidifiers
Please refer to the illustrations in section Bof the illustration sheet.
A humidifier may be required if you are experiencing dryness of the nose, throat
or mouth. The VPAP III ST-A is compatible for use with the following humidifiers:
•HumidAire 2i™ heated humidifier (B-1)
•HumidAire 2iC™ passover humidifier (B-2)
•HumidAire™ heated humidifier (B-3)
•ResMed Passover humidifier (B-4).
!
WARNING
Only the HumidAire 2i, HumidAire 2iC, HumidAire heated humidifier and
the ResMed Passover are compatible for use with the VPAP III ST-A. Please
refer to Warnings on page 6.
Accessories
Please refer to the illustrations in section Cof the illustration sheet.
The following accessories may be purchased separately:
•3 m air tubing (C-1)
•Medium (52 cm) air tubing for the HumidAire and ResMed Passover
humidifiers (C-2)
•Hypoallergenic air filter.
Note: ResMed regularly releases new products. Please check our website at
www.resmed.com.

11Setting up the VPAP III ST-A System
English
Setting up the VPAP III ST-A System
Please refer to the illustrations in section Dof the illustration sheet.
Setting up the VPAP III ST-A
1Place the VPAP III ST-A on a flat surface near the head of your bed. If the device
is placed on the floor, ensure that the area is free from dust and clear of bedding,
clothes or any other objects that could block the air inlet.
!
CAUTION
Be careful not to place the device where it can be bumped or where
someone is likely to trip over the power cord.
2Connect the power cord
There are two sockets at the rear of the flow generator—the top one for an AC
(standard mains electricity) and the lower one for a DC power cord (see “Using
a Battery to Power the VPAP III ST-A” on page 37).
ResMed recommends using the AC power cord supplied with the unit.

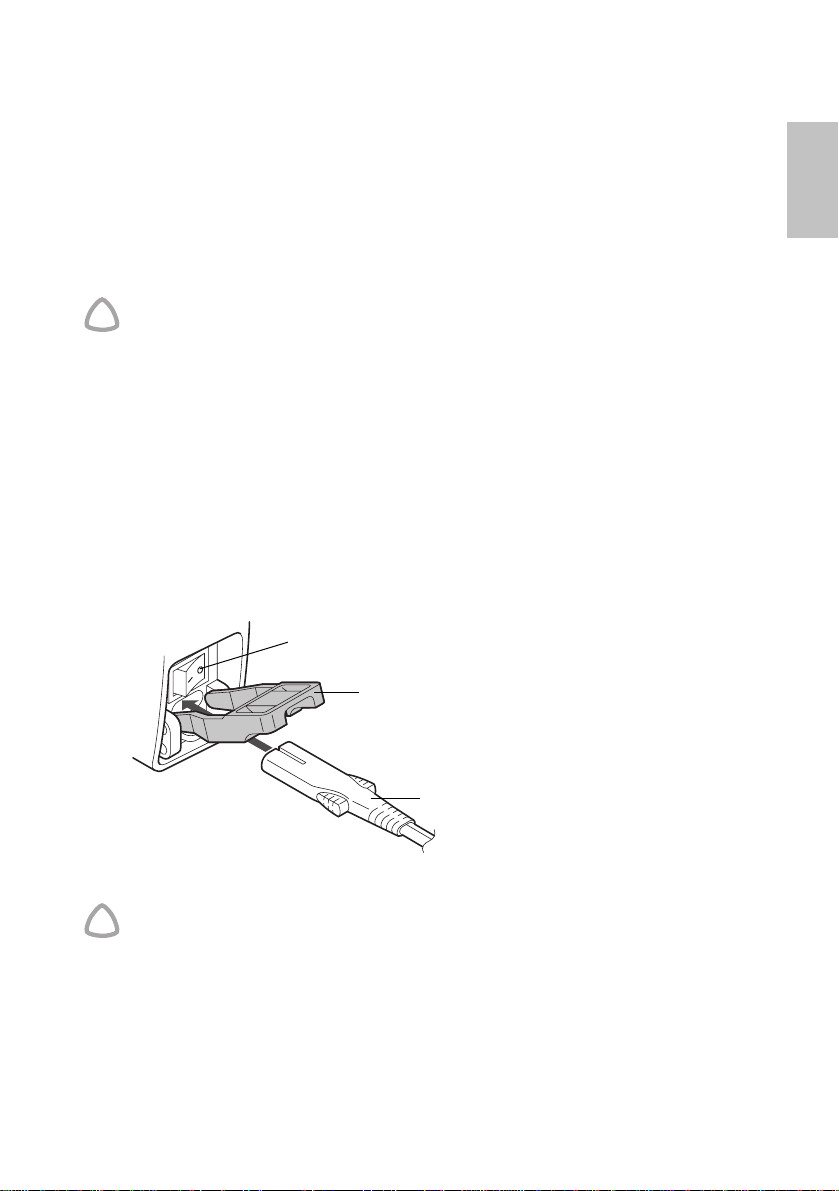

If the customized ResMed power cord is supplied, it can be held in place with
the locking clips. To insert the locking clip, pinch the free ends together and fit
the pins into the holes on both sides of the socket. Insert the power cord into the
socket. Push the locking clip down so that the groove holds the power cord in
place.
Plug the free end of the power cord into a power outlet (D-1).
!
CAUTION
Do not connect both AC and DC power cords to the VPAP III ST-A at the
same time.
Power switch
AC locking clip
AC power cord

12
!
WARNING
•Make sure the power cord and plug are in good condition and the
equipment is not damaged.
•The air filter cover protects the device in the event of accidental liquid
spillage onto the device. Ensure that the air filter and air filter cover are
fitted at all times.
3Connect one end of the air tubing firmly onto the air outlet of the VPAP III ST-A
(D-2).
!
WARNING
Only ResMed air tubing should be used with your flow generator. A
different type of air tubing may alter the pressure you actually receive and
reduce the effectiveness of your treatment.
4Assemble your mask system according to the mask user instructions.
5Connect your mask system to the free end of the air tubing (D-3).
The VPAP III ST-A system is now assembled (D-4). To start treatment, see
“Starting Treatment” on page 17.
Attaching a Humidifier
!
WARNING
When using a humidifier, position it lower than you, and at the same level
or lower than the VPAP III ST-A.
Note: You must activate the humidifier option in the menus if you are using a
HumidAire or Passover humidifier.
Attaching a HumidAire 2i Humidifier
Please refer to the illustrations in section Eof the illustration sheet.
The HumidAire 2i attaches to the front of the VPAP III ST-A to provide heated
humidification. No other accessories are required for its use. The VPAP III ST-A
automatically detects the presence of the HumidAire 2i. No menu changes are
required. Please refer to the HumidAire 2i User’s Manual for details.
Attaching a HumidAire 2iC Humidifier
Please refer to the illustrations in section Fof the illustration sheet.
The HumidAire 2iC attaches to the front of a VPAP III ST-A to provide passover
humidification. No other accessories are required for its use. Please refer to the
HumidAire 2iC User’s Manual for details.
Attaching a HumidAire Humidifier
Please refer to the illustrations in section Gof the illustration sheet.
Medium size (52 cm) air tubing is a necessary accessory for connecting the
VPAP III ST-A to the HumidAire humidifier.

13Setting up the VPAP III ST-A System
English
To set up the VPAP III ST-A with the HumidAire:
1. Fill the HumidAire with water as described in the humidifier manual.
2. Place the filled water chamber inside the HumidAire. Connect the medium
(52 cm) air tubing to the right connector port, and the long air tubing (2 m or
3 m) to the left connector port on the humidifier (G-1). Close the HumidAire
lid.
3. Place the VPAP III ST-A on top of the HumidAire (G-2). Do not place the
VPAP III ST-A underneath the humidifier. (This is to avoid water spilling into
the device.)
4. Connect the free end of the medium air tubing to the air outlet of the
VPAP III ST-A (G-3).
5. Connect the mask system to the free end of the long air tubing. The final
assembly should look like illustration G-4.
6. Plug the HumidAire power cord into a power outlet.
7. If the VPAP III ST-A is not already plugged in, see Step 2 on page 11.
!
WARNING
Make sure that the power cord and plug are in good condition and the
equipment is not damaged.
8. Navigate to the humidifier setting (if available) in the VPAP III ST-A menu and
select "HUMIDAIRE". See “How to Use the Detailed Menu (if enabled by
your clinician)” on page 24.
The VPAP III ST-A is now ready for use with the HumidAire. To start treatment,
see “Starting Treatment” on page 17.
Attaching a Passover Humidifier
Please refer to the illustrations in section Hof the illustration sheet.
Medium size (52 cm) air tubing is a necessary accessory for connecting the
VPAP III ST-A to the ResMed Passover humidifier.
To set up the VPAP III ST-A with the ResMed Passover:
1. Fill the Passover with water as described in the humidifier manual.
2. Connect the medium (52 cm) air tubing to the right connector port, and the
long air tubing (2 m or 3 m) to the left connector port on the humidifier (H-1).
3. Place the VPAP III ST-A on top of the Passover (H-2). Do not place the
VPAP III ST-A underneath the humidifier. (This is to avoid water spilling into
the device.)
4. Connect the free end of the medium air tubing to the air outlet of the
VPAP III ST-A (H-3).
5. Connect the mask system to the free end of the long air tubing. The final
assembly should look like illustration H-4.
6. If the VPAP III ST-A is not already plugged in, see Step 2 on page 11.

14
!
WARNING
Make sure that the power cord and plug are in good condition and the
equipment is not damaged.
7. Navigate to the humidifier setting (if available) in the VPAP III ST-A menu and
select "PASSOVER". See “How to Use the Detailed Menu (if enabled by your
clinician)” on page 24.
The VPAP III ST-A is now ready for use with the ResMed Passover. To start
treatment, see “Starting Treatment” on page 17.
Using the LCD Screen and Keypad

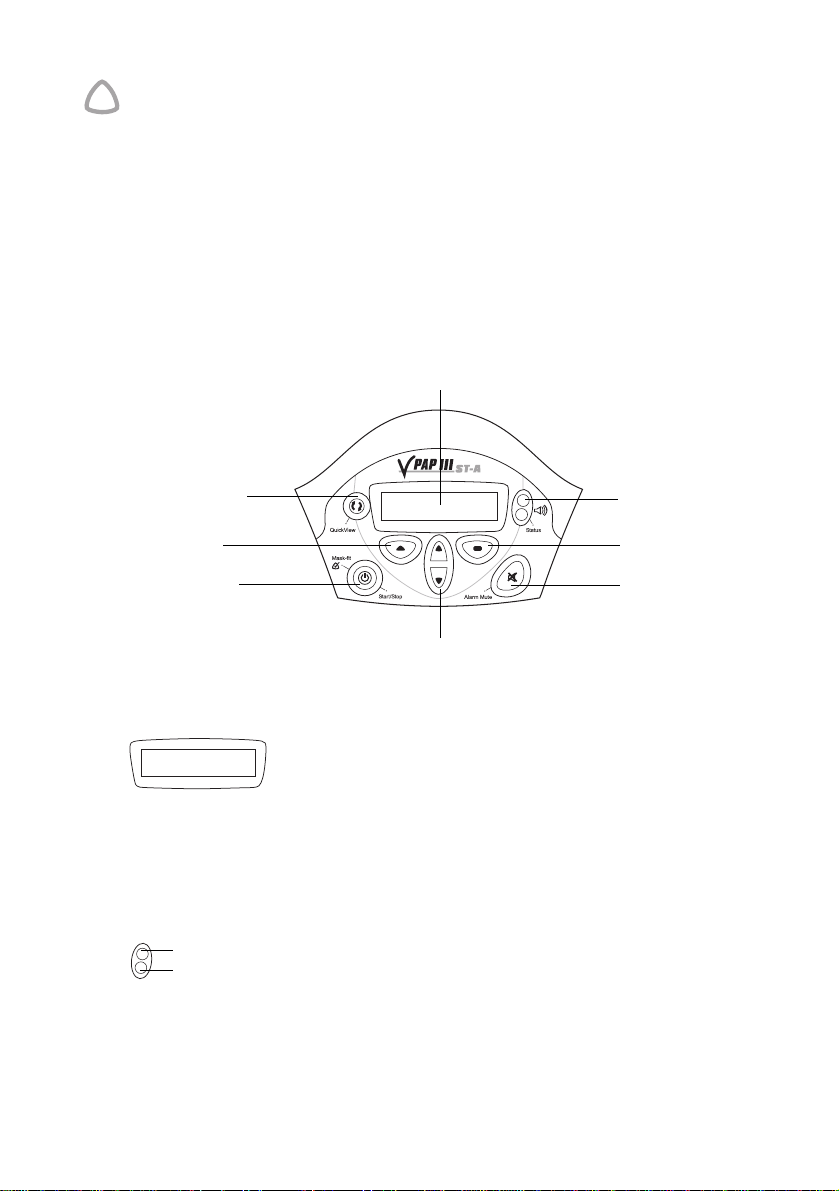

The control panel of the VPAP III ST-A includes an LCD screen, LEDs and keypad.
LCD Screen
The LCD screen displays the menus, treatment screens and alarm conditions.
To assist you in adjusting the VPAP III ST-A, the keypad and LCD are equipped
with a backlight. The LCD backlight comes on when the device is turned on or
when you press a key, and turns off after two minutes.
LEDs
The LEDs display the status of the VPAP III ST-A when active.
The Green LED may be on during treatment, if enabled by your clinician. The
Ye l l o w or Red LEDs are on during an alarm condition.
LEDs
Alarm Mute
Start/Stop
Right key
Left key
Up/down key
LCD screen
(green)
QuickView
(red)
Green/Red
Yellow
