Resolution RE108 User manual

RE108_Hardwire_to_GE-Compat_Translator
Page 1 of 4 24-Hour Tech Support Line: [phone] 15-Oct-14
www.ResolutionProducts.com
RE108 Hardwire-to-GE® Wireless Translator™
Features
• Converts hardwire zones into GE-compatible wireless signals.
• 8 Hardwire loops with end-of-line resistor detection.
• nique wireless ID for each zone, plus 1 for main device.
• Transmit diversity for long reliable range.
• PIR/Glassbreak powering (via external supply).
• 3 year operation on batteries (monitoring contacts only).
• Complete supervision of zone tampers and low battery.
Key Instructions
• DO NOT MO NT IN A METAL CAN.
• DO NOT P T POWER ON HARDWIRE TERMINALS.
• se with normally closed contacts in-line with 4.7 K-ohms resistors (mandatory).
• Not for use with life safety devices, such as Smoke or CO sensors.
• External supply requirements:
 Contacts-only installations may use wall plug power supply (see specifications)
 Installations with PIRs or Glassbreaks (powered devices) require battery-
backed external power supply (see diagram).
 Without backed-up power, PIRs or Glass Breaks could alarm when
power is lost.
 Translator AA batteries drive contacts only, and do not drive
powered devices.
 Ensure that external supply has sufficient current to supply all
powered devices including Translator.
 4-wire powered devices only. Not for use with 2-wire powered
devices.
 If using old panel as the battery-backed 12V DC supply, verify supply
and battery operation. DO NOT MO NT TRANSLATOR IN OLD CAN… the wireless will not
get out!
Installation
• Hook up PIR and Glass Break power lines to external power supply.
• Alarm contact hook-up:
 Works only with normally-closed contacts (alarm = open).
 Remove any existing end-of-line resistors.
 Connect 4.7K end-of-line resistor (included) IN-LINE with contact.
 Resistor should NOT be across (between) terminals.
• Enrollment:
 Put Panel in Learn Sensor mode.
 When panel asks to “Trip Sensor”, short (tamper) each loop to enroll it. You
can use a piece of wire or needle nose pliers between the terminal screws.
 To enroll Translator itself, press tamper switch on Translator.
 Select Group based on how you want Translator tamper to report:
• Group 10 will report Translator tamper to central station on
next supervisory. Tamper will cause protest at arming.
• Group 36 will alarm and report Translator tamper to central
station immediately.
RE108_Hardwire_to_GE-Compat_Translator
Page 2 of 4 24-Hour Tech Support Line: [phone] 15-Oct-14
www.ResolutionProducts.com
• Application Diagram
• Connection Diagram
New Wireless
System
Existing Hardwire Sensors
New GE
Self-Contained System in
living area
Taking over old Hardwire panel,
usually mounted in utility area
GE Wireless
4.7K
Contact
(Normally Closed)
Loop
x
PIR
To Enroll zone,
short the two terminals with
a wire.
This sends a wireless
tamper signal.
Translator AA
atteries DO NOT
power external
devices
Altronix AL100UL
12VDC Supply
With Lead-acid
battery
Old Panel ay be used,
if operation fully verified
+12 VDC GND
PIR
Power
Input
PIR Contact
Output
(Nor ally
Closed)
4.7K
Loop
y
Altronix TP1620
16.5VAC, 20VA
Transformer
with securing screw
Resolution
RE012
12 VDC
Power Supply
NON-Switched
Outlet
Use Battery-Backed 12VDC
if powering
PIRs or Glass Breaks
Use Non-Battery-Backed
Supply ONLY if installation is
all non-powered contacts
Power Supply polarity
DOES NOT matter!
End of Line
Resistor
May use GE 60
-
898
-
ITI supply here,
if securing screw is desired

RE108_Hardwire_to_GE-Compat_Translator
Page 3 of 4 24-Hour Tech Support Line: [phone] 15-Oct-14
www.ResolutionProducts.com
Operation
• 8 Hardwire 4.7K-ohm Zones – transmit 8 unique wireless IDs:
Alarm, when device sees open circuit.
Tamper, when device sees short circuit.
Supervisories, every hour for each zone.
• Translator Main Zone wireless transmission (9th unique ID):
Tamper, when cover opened.
Low battery, when either low AA batteries, OR loss of 12V DC external.
Supervisory every hour.
• LED Operation
Green LED: On if AC power present.
Red LED: When 12V DC is present: “Blinks” on transmit to panel;
“on” if device tamper or device low battery.
Specifications
GE Device Type: Same as Std DWS (all 8 zone ID’s and device ID)
Transmitter Type: Talks to SAW and Crystal receivers.
Zone sensing duration: State sensed if held more than 600ms.
End-of-line Resistors: 4.7k-ohm, 5%.
Max wire run: 1000 feet.
Backup batteries: Two AA Alkaline.
External supply: 8.5 to 13 VDC or 6-9 VAC
Standard: Resolution RE012: 12VDC, 50mA.
Optional: GE 60-898-ITI, for securing screw
Wire connection polarity DOESN’T matter!
Current draw with supply: 4mA, normal operation.
PIR usage: PIR may need tight voltage tolerance. Add PIR and
device current requirements together to get total
current need.
AC Fail Indication: Translator ID sends Low Battery signal if its external
12V is gone for 15 minutes. Restores on external 12V
restore.
AA Low Battery Conditions: Low battery for 1 minute. Restores on device
tamper, external 12V restore.
AA Battery Life on AC Fail: 3-5 years, when monitoring contacts.
Housing dimensions: 4x6x1 inches
Specifications subject to change without notice.

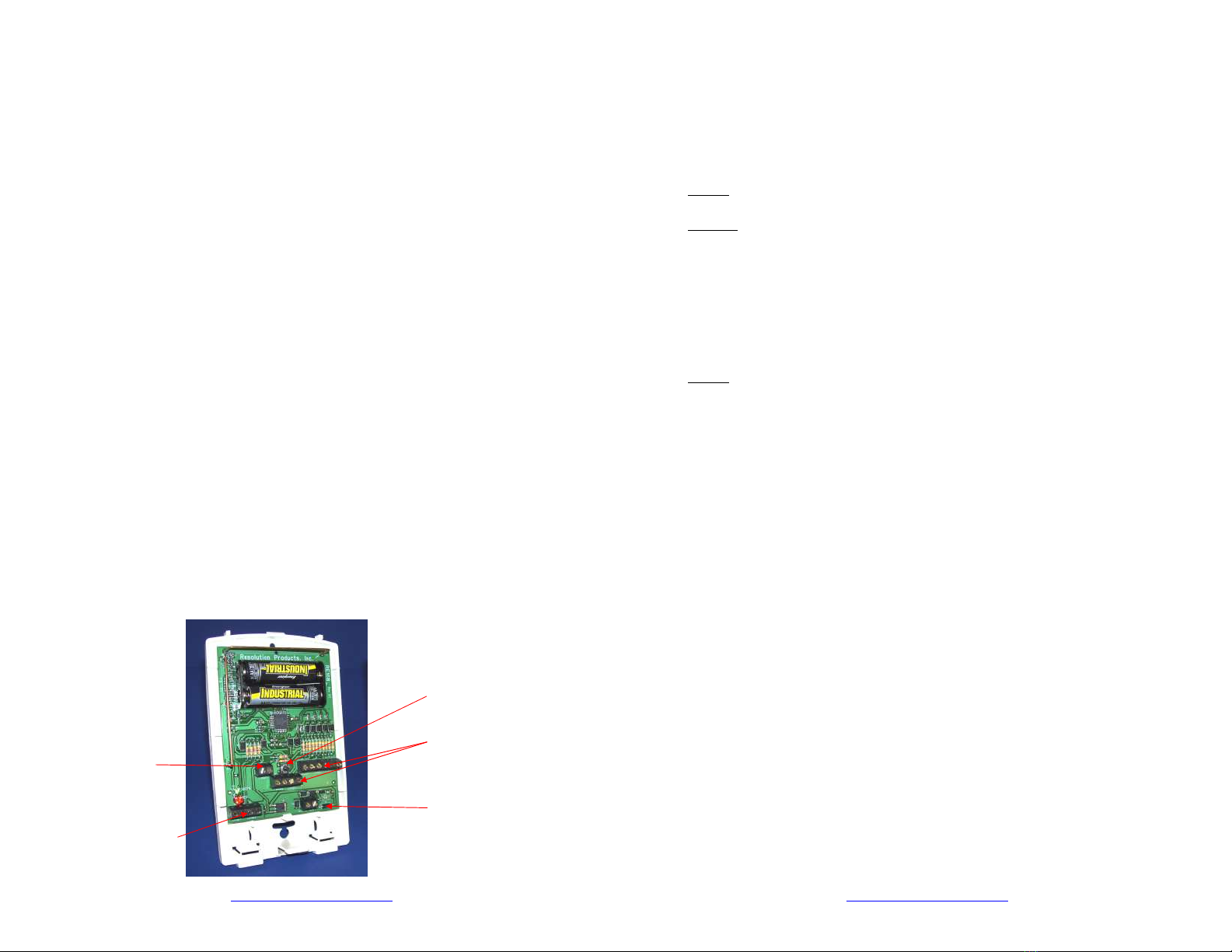

Internal Picture
Terminals for Zones 1, 2
Terminals for Zones 4-8
Power Terminals
Tamper / Enroll Switch
Terminals for Zone 3
RE108_Hardwire_to_GE-Compat_Translator
Page 4 of 4 24-Hour Tech Support Line: [phone] 15-Oct-14
www.ResolutionProducts.com
Notices
“GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell
International Inc , and Tyco Safety Products Canada LTD, respectively
Resolution Products, Inc products will function with one of either GE, DSC or Honeywell systems
However, no Resolution product is produced by, endorsed by, nor is officially associated with GE,
Honeywell or DSC Resolution recommends verifying operation at installation
Do not use Translator for life safety devices, such as smoke or CO sensors
Warranty
Resolution Products, Inc will replace products that are defective in their first five (5) years
FCC Notice
This device complies with Part 15 of the FCC rules Operation is subject to the following two
conditions:
This device may not cause harmful interference
This device must accept any interference that may be received, including interference
that may cause undesired operation
Changes or modifications not expressly approved by Resolution Products, Inc could void the
user's authority to operate this equipment
FCC ID: U5X-RE108
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s) Operation is
subject to the following two conditions:
(1)This device may not cause interference, and
(2)This device must accept any interference, including interference that may
cause undesired operation of the device
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et
(2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement
IC: 8310A-RE108
