ResortLOCK LockState RL 4000 User manual

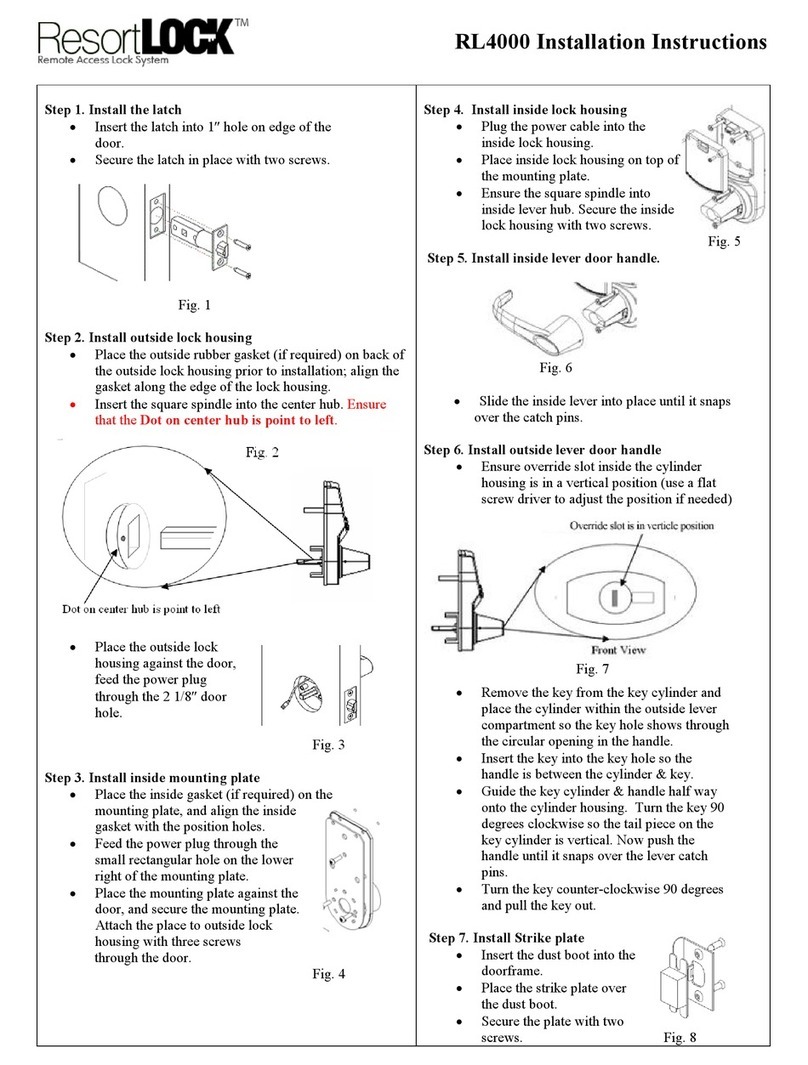

RL4000 Installation Instructions
Step 1. Install the latch
• Insert the latch into 1″ hole on edge of the
door.
• Secure the latch in place with two screws.
Fig. 1
Step 2. Install outside lock housing
• Place the outside rubber gasket (if required) on back of
the outside lock housing prior to installation; align the
gasket along the edge of the lock housing.
• Insert the square spindle into the center hub. Ensure
that the Dot on center hub is point to left.
• Place the outside lock
housing against the door
feed the power plug
through the 2 1/8″ door
hole.
Fig. 3
Step 3. Install inside mounting plate
• Place the inside gasket (if required) on the
mounting plate and align the inside
gasket with the position holes.
• Feed the power plug through the
small rectangular hole on the lower
right of the mounting plate.
• Place the mounting plate against the
door and secure the mounting plate.
Attach the place to outside lock
housing with three screws
through the door.
Fig. 4
Step 4. Install inside lock housing
• Plug the power cable into the
inside lock housing.
• Place inside lock housing on top of
the mounting plate.
• Ensure the square spindle into
inside lever hub. Secure the inside
lock housing with two screws.
Fig. 5
Step . Install inside lever door handle.
Fig. 6
• Slide the inside lever into place until it snaps
over the catch pins.
Step 6. Install outside lever door handle
• Ensure override slot inside the cylinder
housing is in a vertical position (use a flat
screw driver to adjust the position if needed)
Fig. 7
• Remove the key from the key cylinder and
place the cylinder within the outside lever
compartment so the key hole shows through
the circular opening in the handle.
• Insert the key into the key hole so the
handle is between the cylinder & key.
• Guide the key cylinder & handle half way
onto the cylinder housing. Turn the key 90
degrees clockwise so the tail piece on the
key cylinder is vertical. Now push the
handle until it snaps over the lever catch
pins.
• Turn the key counter-clockwise 90 degrees
and pull the key out.
Step 7. Install Strike plate
• Insert the dust boot into the
doorframe.
• Place the strike plate over
the dust boot.
• Secure the plate with two
screws. Fig. 8
All manuals and user guides at all-guides.com
all-guides.com

Parts List
1 iButton Reader 9 Inside Mounting Plate
2 Keypad 10
Batteries Housing Cover
3 Outside Lock Housing 11
Inside Lock Housing
4 Outside Lever 12
Inside lever
5 Override Cylinder 13
Spindle
6 Outside Gasket 14
Strike Plate
7 Latch 15
Dust Boot
8 Inside Gasket
RL4000 Door Prep www.ResortLock.com
All manuals and user guides at all-guides.com

2 1/8" DIA (54)
1/2" (13) DIA HOLE
2 3/4" (70) Backset
2 3/8" (60) Backset
Flat N Bevel
3 3/8" (86)
