Reverberi SERENA User manual

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 1
MEDICAL DEVICES SECTOR
MANUAL FOR THE TECHNICIAN
Language: ENGLISH Cod: 9046
STEAM STERILIZER
SERENA
“THE NEW GENERATION…”

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 2
SUMMARY
1. ACCESS TO THE MENU WITH PASSWORD.................................................3
1.0 LOGO.......................................................................................................................................................................3
1.1 SERIAL NUMBER ..................................................................................................................................................4
1.2 SW VERSION..........................................................................................................................................................4
1.3 CALIBRATION .......................................................................................................................................................5
1.3.1 CHAMBER PRESSURE...................................................................................................................................5
1.3.2 T1 CHAMBER –TEMPERATURE PROBE ...................................................................................................6
1.3.3 T2 CHAMBER- TEMPERATUREPROBE ......................................................................................................6
1.3.4 T3 VAPORIZER ...............................................................................................................................................7
1.3.5 T4 BODY...........................................................................................................................................................7
1.3.6 T5 RESISTANCE..............................................................................................................................................8
1.3.7 T6 RADIATOR .................................................................................................................................................8
1.3.8 CONDUCTIVITY METER...............................................................................................................................9
1.4 INCREASE BAR......................................................................................................................................................9
1.5 TIMED REFILLING..............................................................................................................................................10
1.6 VACUUM MAX ....................................................................................................................................................10
1.7 VACUUM DRY.....................................................................................................................................................11
1.8 VAPORIZER TEMPERATURE............................................................................................................................11
1.9 IRON TEMPERATURE CHAMBER 121° ...........................................................................................................11
1.10 IRON TEMPERATURE CHAMBER 134° .........................................................................................................12
1.11 IRON TEMPERATURE DRYING PHASE.........................................................................................................13
1.12 EXTERNAL RESISTANCE TEMPERATURE ..................................................................................................13
1.13 RADIATOR TEMPERATURE............................................................................................................................14
1.14 CHECK ACTUATORS........................................................................................................................................14
3FUSES SCHEME..................................................................................................16
4 TECHNICAL EQUIPMENT..............................................................................16
5CALIBRATION AND ALIGNMENT..................................................................17
5.0 COLD PROBES ALIGNMENT.......................................................................................................................18
5.1 PROBES ALIGNMENT ON TEMPERATURE............................................................................................19
6CALIBRATION....................................................................................................20
7RESET COUNTERS.............................................................................................20
8SPARE PARTS .....................................................................................................21

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 3
1. ACCESS TO THE MENU WITH PASSWORD
PASSWORD
0
0
0
0
Warning! Menu without security! For authorized technician only..
SETTINGS
CONFIGURATIONS
Contact the Manufacturer for access to the password. We recommend the extreme
confidentiality of the same!
After entering the password hold START until the display turns on.
Press START and the following screen will open
1.0 LOGO
LOGO
SERIAL NUMBER
SW VERSION
CALIBRATION
INCREASE BAR
FILLING

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 4
We do not recommend change the logo, but only to display it.
1.1 SERIAL NUMBER
LOGO
SERIAL NUMBER
SW VERSION
CALIBRATION
INCREASE BAR
FILLING
We do not recommend change the serial number.
SERIAL NUMBER
0
0
0
0
0
1
1.2 SW VERSION
LOGO
SERIAL NUMBER
SW VERSION
CALIBRATION
INCREASE BAR
FILLING
LOGO
S
E
R
E
N
A
O N L Y B C Y C L E

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 5
We do not recommend change the SW version.
SW VERSION
1.00
1.3 CALIBRATION
Warning! Before proceeding to calibration, the machine must be completely
cold and preheating must be switched off!
LOGO
SERIAL NUMBER
SW VERSION
CALIBRATION
INCREASE BAR
FILLING
The following screen will appear
CHAMBER PR.
T1 CHAMBER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
By using a certified instrument, adjust the calibration so that the data on the display corresponds to the test
instrument.
1.3.1 CHAMBER PRESSURE
CHAMBER PR.
-004 mbar
1000 mbar

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 6
1.3.2 T1 CHAMBER –TEMPERATURE PROBE
CHAMBER PR.
T1 CHAMBER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
T1 CHAMBER
+0.2°C
047.1°C

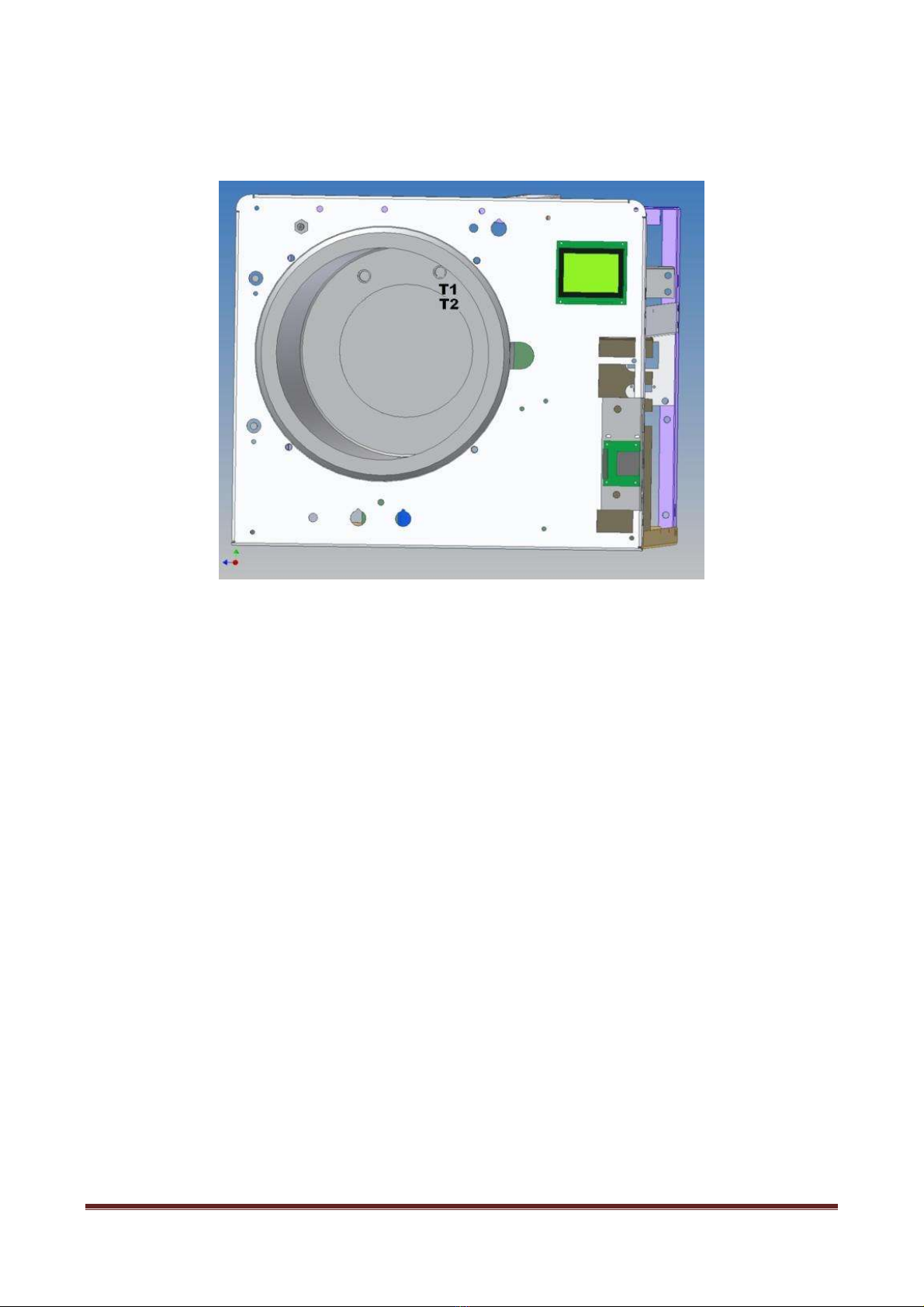

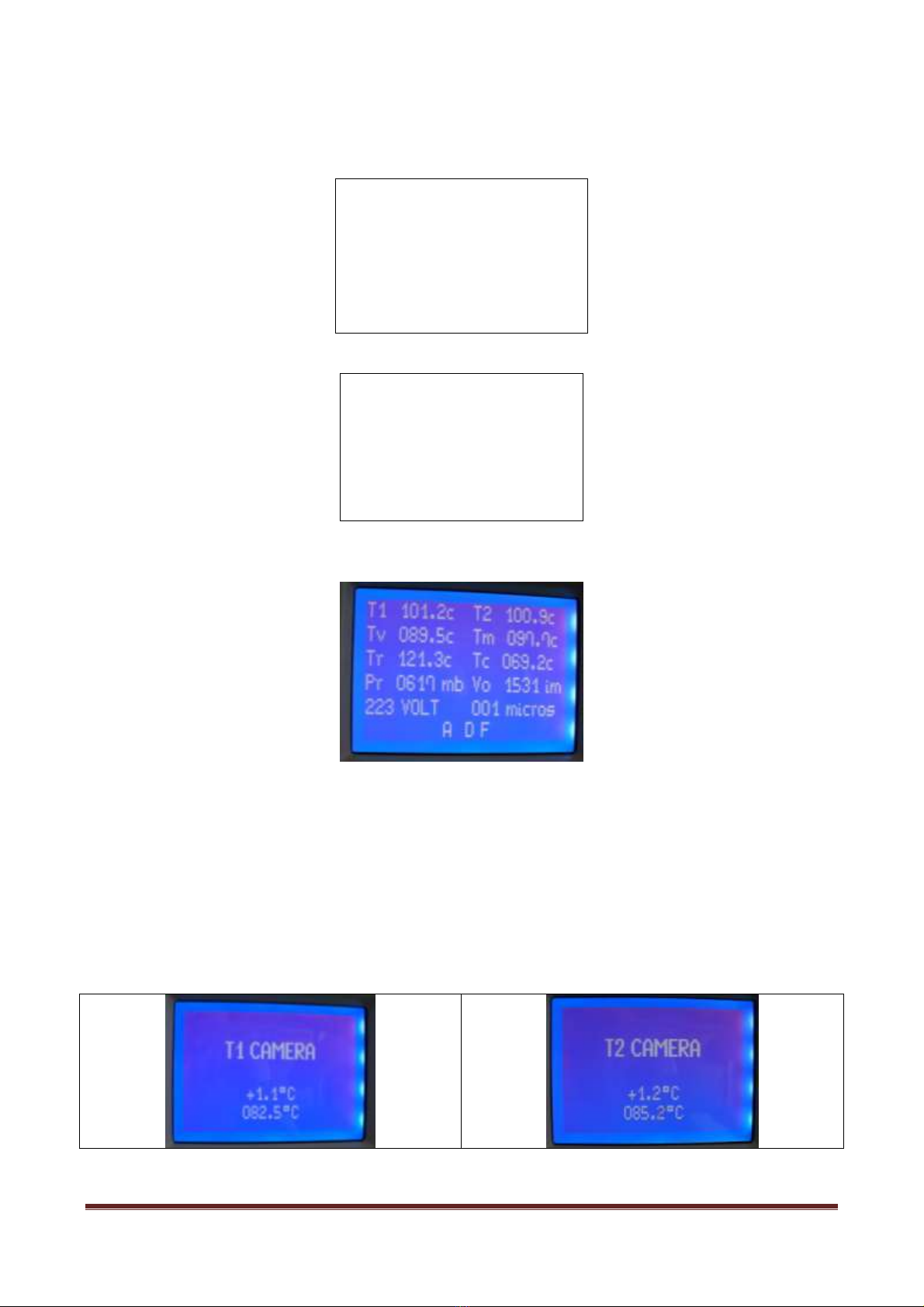

To proceed to the alignment of the sensors T1 and T2, see pg. 16.
1.3.3 T2 CHAMBER- TEMPERATUREPROBE
PR.CHAMBER
T1 CHAMBER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
T2 CHAMBER
+0.2°C
045.9°C

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 7
1.3.4 T3 VAPORIZER
PR. CHAMBER
T1 CHAMBER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
T3 VAPORIZER
+0.9°c
+028.2°C
1.3.5 T4 BODY
CHAMBER PR.
T1 CHAMBER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
T4 BODY
+0.3°C
052.7°C

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 8
1.3.6 T5 RESISTANCE
PR. CHAMBER
T1 CHAMBER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
T5 RESISTANCE
+0.6°C
048.8°C
1.3.7 T6 RADIATOR
T1 CHAMBER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
T6 RADIATOR
T6 RADIATOR
+0.1°C
025.9°C

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 9
1.3.8 CONDUCTIVITY METER
T2 CHAMBER
T3 VAPORIZER
T4 BODY
T5 RESISTANCE
T6 RADIATOR
CONDUCTIVITY METER
Warning! By a certified instrument verify the quality of water in the tank. Take
a small amount of water from the blue grasp and proceed with the verification.
THE FIRST THREE NUMBERS are used for calibration. Act with up / down arrow to change so that the
other three numbers correspond to the value found with the certificated instrument.
Values are expressed in µS.
CONDUCTIVITY METER
000 012 micro
1.4 INCREASE BAR
LOGO
SERIAL NUMBER
SW VERSION
CALIBRATION
INCREASE BAR
REFILLING
It detects the pressure (P) during vacuum phases.
INCREASE BAR
1300 mbar

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 10
1.5 TIMED REFILLING
SERIAL NUMBER
SW VERSION
CALIBRATION
INCREASE BAR
TIMED REFILLING
TIMED REFILLING
090 s
ONLY IN THE MANUAL REFILLING:The value indicates the seconds that remains active the pump for filling
water clean. To change the values act on up / down arrow.
1.6 VACUUM MAX
SW VERSION
CALIBRATION
INCREASE BAR
TIMED
REFILLING
VACUUM MAX
It is the max depression that the sterilizer must achieve in the vacuum phases. It is also the point of alarm in
case the vacuum does not occur.
VACUUM MAX
0250 mbar

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 11
1.7 VACUUM DRY
CALIBRATION
INCREASE BAR
TIMED REFILLING
VACUUM MAX
VACUUM DRY
The values (D) indicate the range in which the bacteriological filter is activated
VACUUM DRY
MIN 0240 mbar
MAX 0400 mbar
1.8 VAPORIZER TEMPERATURE
TIMED REFILLING
VACUUM MAX
VACUUM DRY
VAPORIZER
TEMPERATURE
The following screen will appear:
The values indicate the range in which occurs the injection of water that becomes steam.
VAPORIZER
TEMPERATURE
MIN 150 °C
MAX 160 °C
1.9 IRON TEMPERATURE CHAMBER 121°
The values indicate he temperature during all the phases EXCLUDED THE DRY, that is the DRYING
PHASE.

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 12
VACUUM MAX
VACUUM DRY
VAPORIZER TIMED
IRON
TEMPERATURECHAMBER
121°
The values indicate the range in which the resistance tries to maintain the temperature of the metal
The following screen will appear.
IRON TEMPERATURE
CHAMBER 121°
MIN 110 °C
MAX 117 °C
1.10 IRON TEMPERATURE CHAMBER 134°
The values indicate the temperature during all the phases EXCLUDED THE DRY, hat is the DRYING
PHASE.
VACUUM MAX
VACUUM DRY
VAPORIZER
TEMPERATURE
IRON TEMPERATUE
CHAMBER 134°
IRON TEMPERATURE
CHAMBER 134°
MIN 132 °C
MAX 138 °C
The values indicate the range in which the resistance tries to maintain the temperature of the metal

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 13
1.11 IRON TEMPERATURE DRYING PHASE
IRON TEMPERATURE
CHAMBER 121°
IRON TEMPERATURE
CHAMBER 134°
IRON TEMPERATURE
DRYING PHASE
IRON TEMPERATURE
DRYING PHASE
115 °C
The value indicates the temperature ONLY during the DRYING phase.
1.12 EXTERNAL RESISTANCE TEMPERATURE
IRON TEMPERATURE
CHAMBER 121°
IRON TEMPERATURE
CHAMBER 134°
IRON TEMPERATURE
DRYING PHASE
EXTERNAL
RESISTANCE
TEMEPRATURE
EXTERNALE
RESISTANCE
TEMPERATURE
MIN 140 °C
MAX 145 °C
The values indicate the range within which the resistance band is still active.

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 14
1.13 RADIATOR TEMPERATURE
IRON TEMPERATURE
DRYING PHASE
EXTERNAL
RESISTANCE
TEMPERATURE
RADIATOR
TEMEPRATURE
RADIATOR
TEMPERATURE
MIN 080 °C
MAX 085 °C
The values indicate the range of the temperature of the drain water
1.14 CHECK ACTUATORS
IRON TEMPERATURE
DRYING PHASE
EXTERNAL
RESISTANCE
TEMPERATURE
RADIATOR
TEMPERATURE
CHECK ACTUATORS
CHECK
………
A E

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 15
PRESS START to verify the actuators
2 CHECK ACTUATOR:
A => clean water above the minimum level
B => clean water above the maximum level
C => dirty water tank full
E => open door
D => door approached
F => closed door
EV VAC => 3-way electro valve
EV LOAD => vaporizer pump
EV DSCH => water drain electro valve
EV VAP => not connected
EV BYPS => bypass electro valve
EV FLT => bacteriological filter electro valve
EV RETE (NETWORK) => purifier electro valve
VENT => condenser fan
P. VAC => vacuum pump
P. LOAD => charging pump clean water tank
R. CHAM => resistance chamber
R.VAP => vaporizer resistance
CLOSE DOOR => the engine is in the closed position and the micro are activated
OPEN DOOR => it opens and closes the door without considering the pressure. Warning! Before opening
the door verify that the pressure of the chamber is under vacuum or ambient pressure.
IMPORTANT NOTE: do not hold START when you do NOT hear the engine noise (ENGINE
UNPROTECTED).
If you are unable to open the door in any way, proceed as follows:
SETTINGS-> CONFIGURATION-> PASSWORD -> CHECK ACTUATOR -> OPEN DOOR -> START
press the button and release immediately when open the door! In the process disappears F and appear the
E. Release the button just disappears the F and opens the door. Do not hold pressed the button when
appears the E! Otherwise, the motor of the door BURNS (menu without protection!).
Use this procedure to open the door in case of EMERGENCY!
MENU WITHOUT PROTECTION!
Danger of burning the motor of the door!
Press ESC to exit and return to the main menu
Warning! If the controls do not respond properly, it is necessary to check the two fuses alongside the
electronic card. The correct positioning of the fuses is marked by a small noise of joints.
Small vibrations of the writings on the display indicate that there are anomalies in some component.
Water consumption: 1 lt every 2200 cycles -> 0,45 cc for 1 cycle

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 16

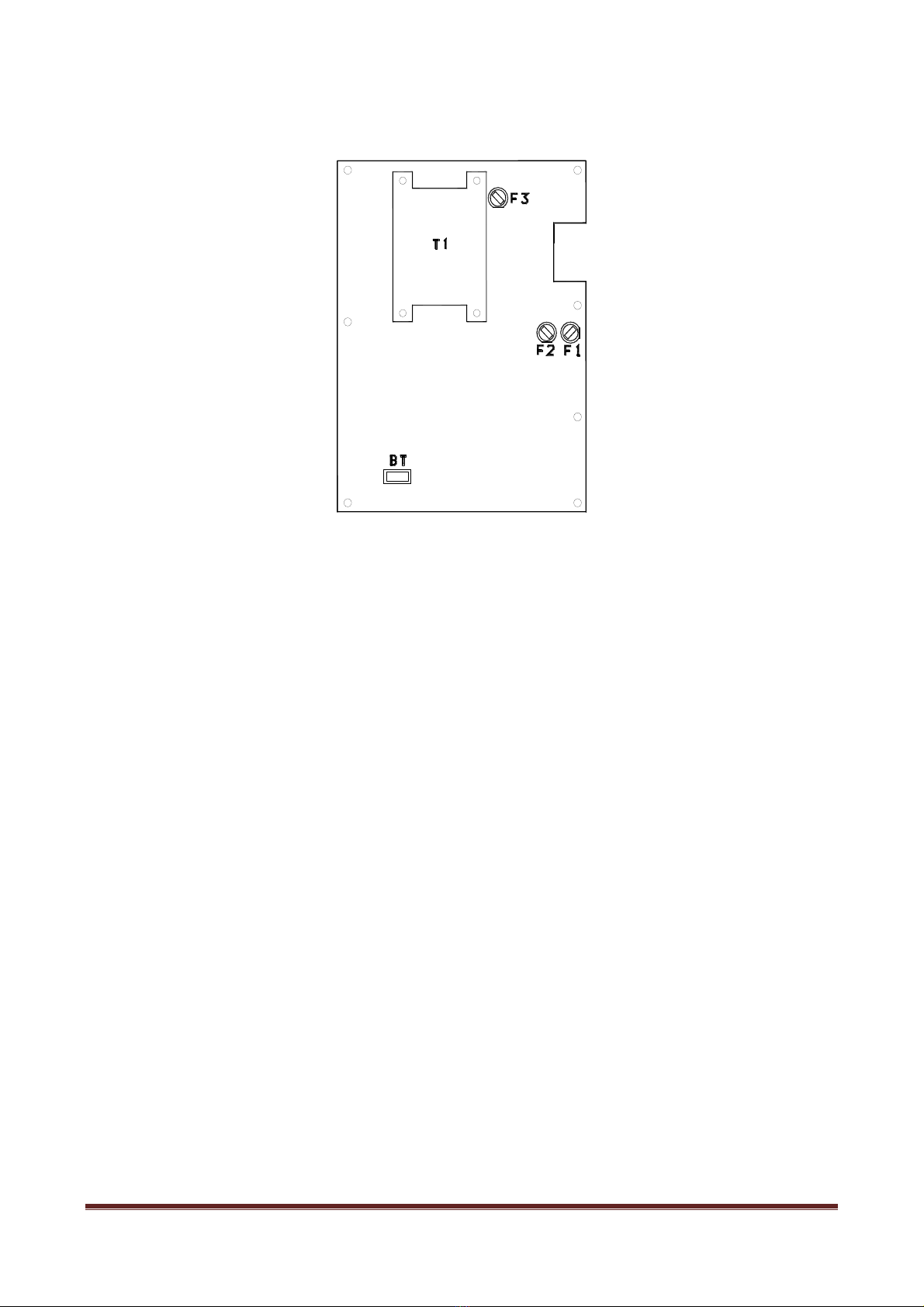

3 FUSES SCHEME
T1: Transformer
F1 (250V T3,15A 5X20): It protects the power P. load, P. Vacuum, Fan, E.V. system, E.V. bacteriological filter, E.V. by
pass, E.V. vaporizer, E.V. drainage, E.V. load vaporizer pump, E.V. vacuum pump
F2 (250V T3,15A 5X20): It protects the power P. load, P. Vacuum, Fan, E.V. system, E.V. bacteriological filter, E.V. by
pass, E.V. vaporizer, E.V. drainage, E.V. load vaporizer pump, E.V. vacuum pump
F3 (250V T500mA 5X20): It protects the power of the display and the SD card low-voltage components
BT: Battery (VARTA CR2032 3Vdc)
4 TECHNICAL EQUIPMENT
MINIMUM EQUIPMENT THAT THE TECHNICIAN MUST HAVE AT DISPOSAL FOR THE CALIBRATION:
CERTIFIED THERMOMETER WITH PROBE NO MORE THAN 3.2 mm
INSTRUMENT FOR MEASURING THE ENVIRONMENTAL PRESSURE
INSTRUMENT FOR MEASURING THE QUALITY 'OF WATER
TESTER TO VERIFY THE CONSUMPTION
TESTER TO CHECK THE SHORT CIRCUITS AND RESISTANCES
ALWAYS KEEP AN ORIGINAL PACKING AVAILABLE FOR EVENTUAL SHIPMENT OF THE
STERILIZER
Note: All instruments must have the calibration certificate not expired!

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 17
5 CALIBRATION AND ALIGNMENT
OPTIONS ->OPENING DOOR -> START
OPENING
DOOR
START
Once pressed START, use the arrows UP / DOWN to VISUALIZE THE TEMPERATURE
T1…c T2…c
Tv… c Tm… c
Tr… c Tc… c
Pr … mb Vo…im
…. Volt …. Micron
A DF
Press INFO button to visualize the technician data with the door closed
T1 chamber probe temperature T2 chamber probe temperature
Tv vaporizer probe temperature Tm chamber metal temperature
Tr chamber resistance temperature Tc condenser temperature
Pr chamber mb pressure Vo water quantity volume

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 18
The data shown in the first line (eg +1.1 ° C) corresponds to the delta T of Calibration.
The data shown in the second row (eg 082.5 ° C) corresponds to the temperature detected at that time.
5.0 COLD PROBES ALIGNMENT
To align the probes temperatures, proceed as follow:
1. Remove the outer casing
2. Unscrew the cap of ¼ placed on the top of the sterilization chamber
3. Introduce a certified thermometer
4. Start a 134° universal sterilization cycle
5. Wait until the maintenance phase is reached and the temperature has stabilized
6. About half of the PPH phase, press the info button to view the temperatures T1 and T2……....
7. Record the temperature of the certified thermometer of T1 and T2
Example: CERTIFIED THERMOMETER SHOWS 134.8 - T1 and T2 SHOWS 134.5
8. At the end of the sterilization cycle, go to the SETUP menu and provide the CALIBRATION. As in the
example T1 should be increased of +5 and T2 of +3
9. At this point, the probes should be perfectly aligned
10. Make a further test cycle to ensure that the alignment is done properly.

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 19
5.1 PROBES ALIGNMENT ON TEMPERATURE
a) Start the sterilization cycle at 134 ° PRIONE
b) In the middle of the sterilization phase (STR), proceed as follows:
- Press and hold INFO. Within 5 seconds after you pressed INFO, press and release at least 5 times,
pressing UP (UP ARROW). The menu T1 appears.
- From now on, whenever you press INFO, it enters the pages T1-T2-INFO
- To return to the usual mode, press and hold INFO for more than 5 seconds.
c) At a pressure of 3200-3300 mbar, align the temperature to 135.5 °

Autoclave SERENA/Manual for technician/Rev.01/23.05.12 Pagina 20
6 CALIBRATION
SETTINGS -> CONFIGURATIONS -> PASSWORD (hold START for 5 seconds till the menu appears) -
>CALIBRATION
Proceed with the calibration using UP / DOWN buttons
Press ESC to confirm
LOGO
LOGO it is possible to change the pre-existing logo
SERIAL NUMBER it is the serial number given to the machine
SOFTWARE VERSION it is assigned by the provider and identifies a type of software
installed
CALIBRATION the most important calibrations are PR - T1, T2 and μs
INCREASE BAR it is the maximum pressure during the vacuum peaks
TIMER FILLING Min 000s Max 180s
It is the time in which the filling clean water pump is primed.
MAX VACUUM (0300mb)
It is the maximum vacuum that the machine reaches more an x time. If does not go
under it the machine goes into alarm
DRY VACUUM min 0500mb max 0900mb vacuum during drying phase
When it reaches the 0500mb it opens the valve of the bacteriological filter till 0900mb
VAPORIZER TEMPERATURE min 140 ° C, max 150 ° C
The vaporizer is turned on until the beginning of sterilization. The pump that will
produce steam injects water between the two temperatures established.
121° CHAMBER IRON TEMPERATURE min 120 ° C, max 125 ° C max
It is the metal temperature of the chamber during the 121° cycle
134° CHAMBER IRON TEMPERATURE min 132 ° C, max 138 ° C max
It is the metal temperature of the chamber during the 134° cycle
IRON TEMPERATURE DRYING PHASE
It is the metal temperature of the chamber during the drying phase115°
EXTERNAL RESISTANCE TEMPERATURE min. 140°C, max 145°C
It is the maximum temperature that the resistance can reach
RADIATOR TEMPERATURE min. 080°C, max 085°C
It is the maximum temperature for condensing the steam
SERIAL NUMBER
SOFTWARE VERSION
CALIBRATION
INCREASE BAR
TEMP. REFILLING.
VACUUM MAX
VACUUM DRY
VAP. TEMPERATURE.
IRON CHAMBER TEMP. 121°
IRON CHAMBER TEMP 134°
IRON TEMP. DRYING PHASE
TEMP.EXT. RESISTANCE
RADIATOR TEMP.
ACTUATORS CHECK
The values shown are purely indicative and subject to change. Before the amendment contact the
manufacturer for updated data
7 RESET COUNTERS
The machine is equipped with counters that indicate the time when is important to change some
details, such as the door gasket and the bacteriological filter.
Once proceeded with the replacement of spare parts, it is important to reset the counter to zero by
performing the following operation -> MAINTENANCE:
- Position on the counter
- Simultaneously press the down and up arrow for a few seconds until it resets
