Rexing PRD615 User manual
User Manual
PRD615
Projector
The information in this manual is subject to change without notice.
Rexing All Rights Reserved
www.rexingusa.com
We hope you love your new products as much as we do. If you need assistance, or
have any suggestions to improve it, please contact us.
Our support team will respond you as soon as possible.
Always a surprise in Rexing.
•https://www.facebook.com/rexingusa/
•https://www.instagram.com/rexingdashcam/
•https://www.rexingusa.com/support/registration/
Overview
Thank you for choosing REXING!
Check us out here.
Facebook Instagram Site Product Support
(877) 740-8004
1
2
Safety Instruction
Installation
•To get a better watching, please use this projector while drawing the curtain or
in a dark room.
•Please use this projector carefully. Dropping or crashing may damage parts or
result in blurred images, and abnormal displaying.
Power
•Be careful while using the power cord, in case of excessive bending. The
damage of power cable may cause electric shock and fire.
•It is better to unplug the power cord after power off.
Cleaning
•Unplug the power cord first.
•Clean the shell regularly with a damp cloth. Neutral detergent can be used.
•Please use a glasses cloth or lens paper. Do not scratch the lens.
•Please clean the projector's vents and speakers regularly by banister brush, or
the vents will be blocked.
High temperature attention
•While projecting or just finishing projection, it will get hot near the air outlet. To
avoid scalding, please do not touch it with your hands.
•While projecting, please do not look the lens directly, or it may hurt eyes.
*Warm tips
•Do not disassemble the projector, with a risk of electric shock, also would affect
the warranty time.
•Please do not put any liquid or heavy stuff on the projector.
•To assure the stability of heat dissipate, please open the height bracket in the
bottom before starting.
What's in the Box?
3
1 2
3 4 5
4. User Manual
5. Safety Guide
1. Projector
2. Remote Control
3. Power Adapter
安全ガイド
www.rexingusa.com
Safety Guide
4
Product Overview
5. Micro SD Card Port
6. Indicator Light
7. HDMI Ports
8. IR Remote Sensor
9. Power Button
10. RJ45 Port
11. USB Ports
12. AUX Cord Jack (Earphone Jack)
1. Projector Lens
2. Ventilation Holes
3. DC-IN Terminal
4. SPDIF Port
1 2
3
9
4
10
5
11
6 7
12
8
Note
1. It is not allowed to wipe the lens.
2. It is recommended to keep the lens cover closed when the projector is not working.
5
Note
The air inlet and outlet on the projector is strictly prohibited from being
blocked, so as to avoid damage to the projector caused by overheating
(not covered by the warranty)!
Power Button
1. Turn On: Connect the DC terminal of the power adapter to the DC-IN
port of the projector. When the indicator light turns red, press the
power button on the rear panel to turn it on.
2. Turn Off: Press the power button when the projector is on. When the
indicator light turns red from green, the projector is turned off.
Power On/Off
Hole for Stand (1/4 inch)
6
Product Parameters
Physical Interface
Display Chip
Lens
Brightness Uniformity:
NTSC
Projection Size
Throw Ratio
Keystone
Focus Mode
Power Adapter
Total Power
Speaker
Dimensions
Product Weight
DC Power Jack
USB 2.0
Micro SD Card Port
3.5mm Headphone Jack
HDMI
SPDIF
RJ45
×1
×2
×1
×1
×2
×1
×1
0.45” DMD
high light transmittance coating glasses
98%
≥120%
40-150 inch
1.2:1
±40 degree physical correction
Electronic focusing
DC19V/3.42A
50W
3W×2
9" x 5.5" x 1.75"
2 lbs
7
Note
Focusing by pressing the F+ or F- button until the screen is clear.
Remote Control and Focus Adjustment
1
60 inch
5.25 ft 6.5 ft 8.5 ft 10 ft 12.5 ft
80 inch
150 inch
100 inch
120 inch
1. Turn on the Bluetooth connection
2. At the same time, press and hold the following
two buttons for 3 seconds, the indicator light
flashes quickly, the remote control and the
projector enter the pairing mode.
3. The words [RGE_XXX] appear in the Bluetooth
list and please select the connection.
and
For the first time, please match the remote
control with the projector as follows
10. OK Key
11. Return Key
12. Focus +
13. Focus -
1. Indicator Light
2. Power Key
3. Source Key
4. Arrow Keys
5. Menu
6. Volume +
7. Volume -
8. Mute Button
9. Home Button
3
2
4
5
6
7
8
9
10
11
12
13
8
USB Interface
Mouse/keyboard can be connected to the projector through USB interface. Videos,
audios and pictures in U disk can be read through USB interface. Apps in APK format
can be installed through it as well.
Connect with Mouse / Keyboard / U Disk
Support Format
JPG, JPEG, BMP, PNGImage Format
MP3, AAC, WAV, M4AAudio format
AVI, TS, MPG, MKV, VOB, MOV, 3GP, DAT, MP4, TP, TRP, FLV, M2TS, F4VFile Format
H264, H263, AVC, MPEG1, MPEG2, MPEG, MPEG-4, JPEG, RV40, FLV1, HVC,
REALVIDEO
Video Encoding
Format
9
Play via USB Signal
Insert the USB flash drive with audios, videos and texts into the USB port. In
the Apps choose MediaPlayer, and then enter into the playback category to
select what you need.
Apps Settings
YouTube Netflix Google Play HDMI
All Apps EShare
MediaPlayer
10
HDMI
Play via HDMI Signal
Connect the Blu-ray DVD or computer to the projector through HDMI port. The
optimal resolution of the projector is 1280×800. Under the Apps interface, select the
HDMI option and enter the HDMI channel. (Picture 1)
Or press the Source button on the remote control and select the HDMI option in the
menu. (Picture 2)
HDMI2
HDMI1
Picture 1 Picture 2
11
Connect to Wi-Fi
Step1:
In the Settings interface, select Network.
Step2:
After entering the interface, select Wireless setting.
Step3:
Open Wi-Fi, select the Wi-Fi you want to connect in the list below, and type the
correct password, click CONNECT to confirm.
Settings
Network setting
Ethernet Settings
Wireless setting
Network diagnose
Download Speed
Test
Bluetooth
Portable hotspot
disabled
disabled
available
Settings
Network setting > Wifi Settings
Wi-Fi
Add network
manually
BMW
5G
TP-LINK_F186
Connected
12
Connect to Bluetooth
Step1:
In the Settings interface, select Network.
Step2:
Select the Bluetooth option, choose the corresponding Bluetooth device, and follow
the tips to connect.
Settings
Network Settings > Bluetooth
Bluetooth
bluetooth is enabled,click to turn it off
Search for devices
Plesse click to search for devices
Android TV
Only visible to paired devices
Connected
Settings
Network setting
Ethernet Settings
Wireless setting
Network diagnose
Download Speed
Test
Bluetooth
Portable hotspot
disabled
disabled
available

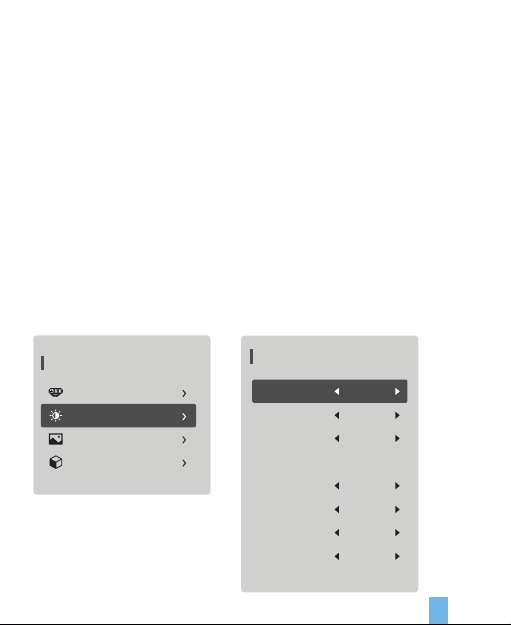

Projection Setting
Projector Settings
Projector Diret
Auto Correct
Manual Correct
Quadrangular Correction
Stepless Zoom
Zooming Ratio
Vertical Zoom
horizontal Zoom
Gyroscope Level Correction
Front
On
0
100
16:10
0
0
Settings
Projector Settings
LED Bright
Picture Mode
3D
Front
User
Normal
Close
In the Settings interface, select Projector setting;
1. Projection Method
Choose “Projection Diret” and press the OK button to choose the desired projection
method.
2. Quadrangular Correction
Select "Quadrangular Correction" and press the arrow keys on the remote control to
adjust the four corners of the picture until they are at right angles.
3. Choose Zooming Ratio and press the OK button to set 16/10 & 16/9 & 4/3 respectively.
When Auto Correct is on, the projector supports vertical keystone correction.
Note:
When the automatic trapezoidal correction angle is not correct, you can turn off the Auto Keystone
function and place the projector on the horizontal table to perform Gyroscope Level Correction. When
Auto Correct is turned off, the vertical & horizontal or Quadrangular Correction can be manually set.
13
3D Function
14
Settings
Projector Settings
LED Bright
Picture Mode
3D
Front
User
Normal
Close
3D
Close
Up Down 3D
Left Right 3D
Up Down 3D->2D
Left Right 3D->2D
Note:
3D function is not supported when using Quadrangular Correction.
3D Video Playback:
The format of video source is 3D. During playing, press and hold the menu button
on the remote control, select "3D" option in the menu, and choose the corresponding
3D mode according to the 3D source.
Settings
System update
HTTP
System net update
System local update
Download acceleration mode
Factory data reset
Online Update
15
Step1:
First, make sure the network is smooth.
Step2:
Select Update in the Settings interface.
Step3:
Check the current version and update the system as tips.
Apps Settings
Network Image & Sound Time Zone DeviceManager
System Update Projector setting Download About
FAQ
FAQ
16
1. Install EShare for Android
Please make sure your android device is connected to the same network with
your projector, launch EShareServer on the projector, scan the QR code or visit the
web page according to the IP address provided, download and install EShare for
Android.
2. Connect to Projector
After the installation of EShare, launch it on your Android device, and it will start
to search for the projector in the same network. Then choose and click on the
device name which you want to connect in the device list.
1. Connect your device to XXXXX;
2. Visit http://192.168.XX.XX:8000 with web browser or
scan the QR-code to download the app.
3. Launch EShare and click on EShare-XXXX to connect.
3. Wireless Mirroring
Click on the “Mirroring” button in EShare, the screen will be mirrored to your projector.
TV Mirror Camera Remote
Miracast
Device List
EShare-XXXX
EShare-XXXX
192.168.0.XXX
192.168.0.XXX
Mirroring
17
1. Install EShare for iPhone
Search "Eshare" directly in iPhone App Store or install application according to the
directions pushed by Eshare Software from the projector.
2. Connect to Projector
After the installation of EShare, launch it on your mobile device, and it will start
to search for the projector in the same network.
3. Wireless Mirroring
Click on the “Mirroring” button in EShare, the screen will be mirrored to your projector.
Local Files Remote
iOS Cast
Mirroring
EShare for
iPhone
Shenzhen EShare...
1. Connect your device to XXXXX;
2. Visit http://192.168.XX.XX:8000 with web browser or
scan the QR-code to download the app.
3. Launch EShare and click on EShare-XXXX to connect.
TV Mirror
Warranty & Support
The Rexing PRD615 projector comes with a full 12-month warranty. If you register
your product on our official site (https://www.rexingusa.com/support/registration),
you can extend the warranty to 18 months.
Warranty
If you have any questions regarding your product, please do not hesitate to contact
answered within 12-24 hours.
Support
Rexing is firmly committed to always improving our products, services, and user
experience. If you have any thoughts on how we can do even better, we welcome
your constructive feedback and suggestions.
Your opinion matters
Thank you for choosing Rexing!
18
FCC ID: 2AK43RD-606
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Table of contents
Other Rexing Projector manuals
