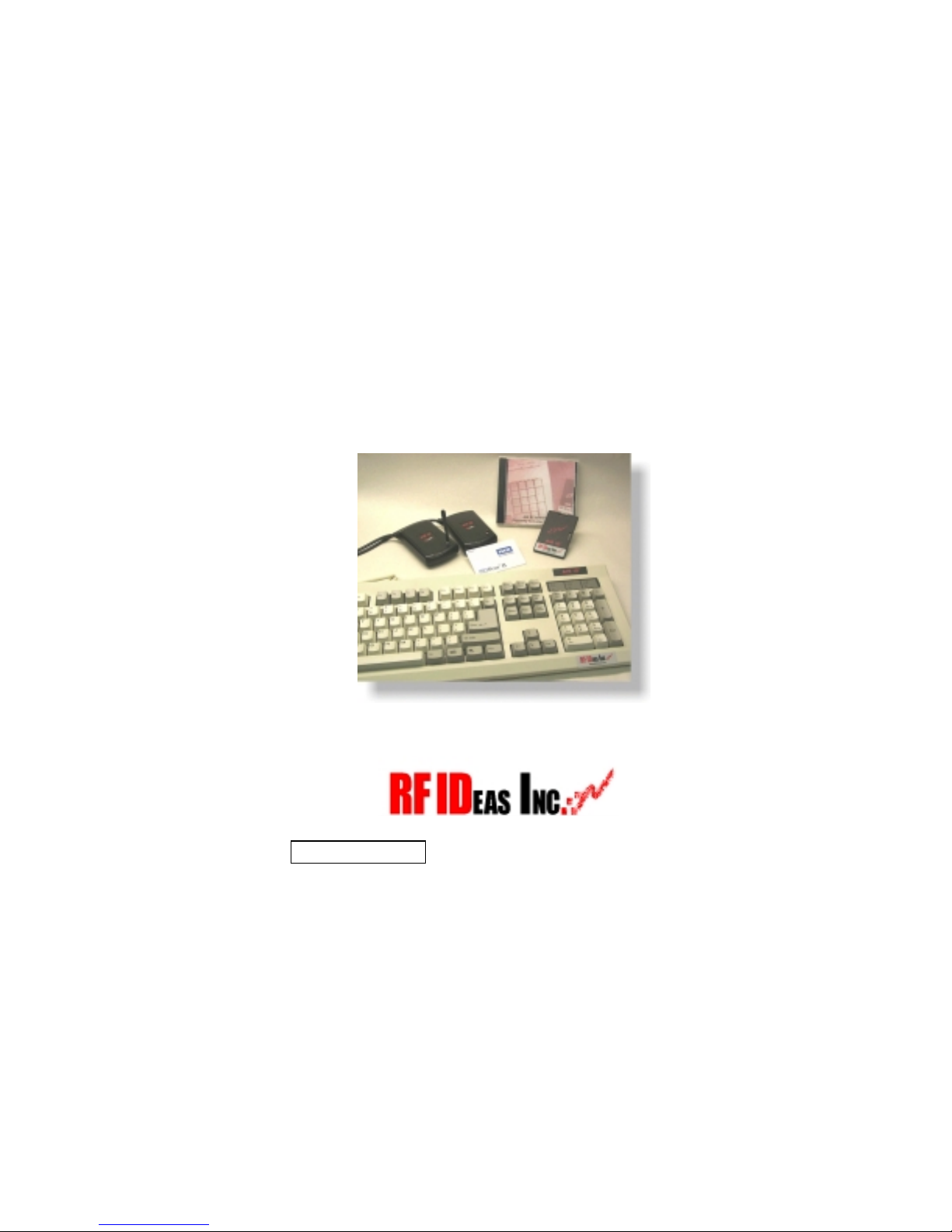

RFIDeas AIR ID User manual

FCC ID: M9MBUPCPROXH100
AIR ID
AIR IDAIR ID
AIR ID®
AIR ID
AIR IDAIR ID
AIR ID®LT
LTLT
LT
and
pcProxTM
Proximity Activated Identification
User Manual
www.RFIDeas.com
PN: MAN-USER2.5

i END-USER LICENSE AGREEMENT
END-USER LICENSE AGREEMENT
End-User License Agreement for RF IDeasTM SOFTWARE and HARDWARE - RF
IDeas’ AIR ID®, AIR ID®LT, and pcProx Proximity Activated Systems.
IMPORTANT-READ CAREFULLY: This End-User License Agreement ("EULA") is
a legal agreement between you (either an individual or a single entity) and the
manufacturer RF IDeas ("Manufacturer") with which you acquired the RF IDeas
software and hardware product(s) identified above ("PRODUCT"). The PRODUCT
includes the pcProx Base Unit, AIR ID Badge, AIR ID Base Unit or AIR ID LT
Badge, AIR ID LT Base, computer software, the associated media, any printed
materials, and any "online" or electronic documentation. By installing, copying or
otherwise using the PRODUCT, you agree to be bound by the terms of this EULA.
The SOFTWARE PORTION OF THE PRODUCT includes the computer software,
the associated media, any printed materials, and any "online" or electronic
documentation. By installing, copying or otherwise using the PRODUCT, you
agree to be bound by the terms of this EULA. If you do not agree to the terms of
this EULA, RF IDeas is unwilling to license the PRODUCT to you. In such event,
you may not use or copy the SOFTWARE PORTION OF THE PRODUCT, and you
should promptly contact the vendor you obtained this PRODUCT from for
instructions on return of the unused product(s) for a refund.
The products described in this publication are intended for consumer applications.
AIR ID and AIR ID LT operate on shared radio channels. Radio interference can
occur in any place at any time, and thus the communications link may not be
absolutely reliable. AIR ID and AIR IDLT must be used so that a loss of
communications due to radio interference or otherwise will not endanger either
people or property, and will not cause the loss of valuable data. RF IDeas assumes
no liability for the performance of product. RF IDeas products are not suitable for
use in life-support applications, biological hazard applications, nuclear
control applications, or radioactive areas. None of these products or
components, software or hardware, are intended for applications that provide
life support or any critical function necessary for the support of protection of
life, property or business interests. The user assumes responsibility for the use
of any of these products in any such application. RF IDeas, Inc. shall not be liable
for losses due to failure of any of these products, or components of these products,
beyond the RF IDeas commercial warranty, limited to the original purchase price.
SOFTWARE PRODUCT LICENSE
The PRODUCT is protected by copyright laws and international copyright treaties,
as well as other intellectual property laws and treaties. The SOFTWARE
PORTION OF THE PRODUCT is licensed, not sold.
1. GRANT OF LICENSE. This EULA grants you the following rights:
* Software. You may install and use one copy of the SOFTWARE PORTION OF
THE PRODUCT on the COMPUTER.
* Network Services. If the SOFTWARE PORTION OF THE PRODUCT includes
functionality that enables the COMPUTER to act as a network server, any number
of computers or workstations may access or otherwise utilize the basic network
services of that server. The basic network services are more fully described in the
printed materials accompanying the SOFTWARE PORTION OF THE PRODUCT.
* Storage/Network Use. You may also store or install a copy of the computer
SOFTWARE PORTION OF THE PRODUCT on the COMPUTER to allow your
other computers to use the SOFTWARE PORTION OF THE PRODUCT over an
internal network, and distribute the SOFTWARE PORTION OF THE PRODUCT to
your other computers over an internal network. However, you must acquire and

SOFTWARE PRODUCT LICENSE ii
dedicate a license for the SOFTWARE PORTION OF THE PRODUCT for each
computer on which the SOFTWARE PORTION OF THE PRODUCT is used or to
which it is distributed. A license for the SOFTWARE PORTION OF THE
PRODUCT may not be shared or used concurrently on different computers.
2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.
* Limitations on Reverse Engineering, Decompilation and Disassembly. You may
not reverse engineer, decompile, or disassemble the PRODUCT, except and only
to the extent that such activity is expressly permitted by applicable law
notwithstanding this limitation.
* Separation of Components. The PRODUCT is licensed as a single product. Its
component parts may not be separated for use on more than one computer.
* Single COMPUTER. The PRODUCT is licensed with the COMPUTER as a
single integrated product. The PRODUCT may only be used with the COMPUTER.
* Rental. You may not rent or lease the PRODUCT without permission from RF
IDeas.
* Software Transfer. You may permanently transfer all of your rights under this
EULA only as part of a sale or transfer of the COMPUTER, provided you retain no
copies, you transfer all of the PRODUCT (including all component parts, the media
and printed materials, any upgrades, this EULA and, if applicable, the Certificate(s)
of Authenticity), AND the recipient agrees to the terms of this EULA. If the
PRODUCT is an upgrade, any transfer must include all prior versions of the
PRODUCT.
* Termination. Without prejudice to any other rights, RF IDeas may terminate this
EULA if you fail to comply with the terms and conditions of this EULA. In such
event, you must destroy all copies of the SOFTWARE PORTION OF THE
PRODUCT and all of its component parts.
3. UPGRADES. If the SOFTWARE PORTION OF THE PRODUCT is an upgrade
from another product, whether from RF IDeas or another supplier, you may use or
transfer the PRODUCT only in conjunction with that upgraded product, unless you
destroy the upgraded product. If the SOFTWARE PORTION OF THE PRODUCT
is an upgrade of a RF IDeas product, you now may use that upgraded product
only in accordance with this EULA. If the SOFTWARE PORTION OF THE
PRODUCT is an upgrade of a component of a package of software programs
which you licensed as a single product, the SOFTWARE PORTION OF THE
PRODUCT may be used and transferred only as part of that single product
package and may not be separated for use on more than one computer.
4. OEM COPYRIGHT. All title and copyrights in and to the PRODUCT (including
but not limited to any images, photographs, animations, video, audio, music, text
and "applets," incorporated into the PRODUCT), the accompanying printed
materials, and any copies of the SOFTWARE PORTION OF THE PRODUCT, are
owned by RF IDeas or its suppliers. The PRODUCT and SOFTWARE PORTION
OF THE PRODUCT is protected by copyright laws and international treaty
provisions. You may not copy the printed materials accompanying the PRODUCT.
5. DUAL-MEDIA SOFTWARE. You may receive the SOFTWARE PORTION OF
THE PRODUCT in more than one medium. Regardless of the type or size of
medium you receive, you may use only one medium that is appropriate for your
single computer. You may not use or install the other medium on another
computer. You may not loan, rent, lease, or otherwise transfer the other medium to
another user, except as part of the permanent transfer (as provided above) of the
SOFTWARE PORTION OF THE PRODUCT.
6. OEM PRODUCT SUPPORT. Product support for the PRODUCT is NOT
provided by RF IDeas Inc. or its subsidiaries. For product support, please refer to

iii Limited Warranty
the OEM suppliers support number provided in the documentation. Should you
have any questions concerning this EULA, or if you desire to contact OEM for any
other reason, please refer to the address provided in the documentation provided.
FOR THE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING
TO YOUR PARTICULAR JURISDICTION, PLEASE REFER TO YOUR
WARRANTY BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED WITH
THE SOFTWARE PRODUCT PRINTED MATERIALS.
Limited Warranty
RF IDeas, Inc. warrants to the original buyer of this product, that the hardware and
related disk(s) are free of defects in material and workmanship for a period of one
year from date of purchase from RF IDeas or from an authorized RF IDeas dealer.
Should the RF IDeas products fail to be in good working order at any time during
the one-year period, RF IDeas will, at its option, repair or replace the product at no
additional charge, provided that the product has not been abused, misused,
repaired or modified. This warranty shall be limited to repair or replacement and in
no event shall RF IDeas be liable for any loss of profit or any commercial or other
damages, including but not limited to special, incidental, consequential or other
similar claims.
No dealer, distributor, company, or person has been authorized to change or add
to the terms of this agreement, and RF IDeas will not be bound by any
representation to the contrary. RF IDeas SPECIFICALLY DISCLAIMS ALL
OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS OF
PURPOSE. Since some states do not allow such exclusion of limitation of
incidental or consequential damages for consumer products, check the statute of
the state in which your business resides. This warranty gives you the specific legal
rights in addition to any rights that you have under the laws of the state in which
your business resides or operates.
Returns
RF IDeas products which require Limited Warranty service during the warranty
period shall be delivered to the nearest authorized dealer or sent directly to RF
IDeas at the address below with proof of purchase and a Return Materials
Authorization (RMA) Number provided by RF IDeas technical support Dept.
Replacement parts or complete boards become the property of RF IDeas.
If the returned board or unit is sent by mail, the purchaser agrees to pre-pay the
shipping charges and insure the board or unit or assume the risk of loss or damage
which may occur in transit. The purchaser is expected to employ a container
equivalent to the original packaging.
Copyright
Copyright by RF IDeas, Inc. 1997-1999. All rights reserved. Reproduction or
distribution of this document in whole or in part or in any form is prohibited without
express written permission from RF IDeas, Inc.
Trademarks
All RF IDeas products are trademarks of RF IDeas, Inc. All other product names or
names are trademarks or registered trademarks of their respective holders.

Limited Warranty iv
Disclaimer
This User’s Guide is printed in the U.S.A. Any resemblance mentioned in the
User’s guide to persons living or dead, or to actual corporations or products is
purely coincidental. RF IDeas believes that the information contained in this
manual is correct. However, RF IDeas does not assume any responsibility for the
accuracy of the content of this User Manual, nor for any patent infringements or
other rights of third parties. RF IDeas reserves the right to make any modifications
in either product or the manual without giving prior written notification.

v ID Badge Unit FCC compliance statement
Congratulations on the purchase of your AIR ID system. We at
RF IDeas hope you enjoy using your new AIR ID Proximity
Activated Identification System as much as we enjoyed creating
and developing it! Please share your comments and suggestions
for our future "AIR ID AWARE" solutions!
If you are interested in our OEM or Independent Developer’s
Programs, please call!
Thank you,
The Staff at RF IDeas
Need Assistance?
Call Toll-free: [phone]
Fax: [phone]
E-mail: TechSup[email protected]om
Mail to:
RF IDeas
290 Lexington Dr.
Buffalo Grove, IL 60089-6930
ID Badge Unit FCC compliance statement
FCC ID M9MMU100
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference that may cause undesired operation.
ID Base Unit FCC compliance statement
FCC ID M9MBU100, M9MBUPCPROXH100, or
M9MBUPCPROXM100
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interface, and (2) This device must accept any
interference that may cause undesired operation.

AIR ID
TABLE OF CONTENTS
END-USER LICENSE AGREEMENT________________i
SOFTWARE PRODUCT LICENSE __________________i
Limited Warranty ________________________________iii
ID Badge Unit FCC compliance statement____________ v
ID Base Unit FCC compliance statement _____________ v
TABLE OF CONTENTS __________________________ 1
Proximity Activated Products_______________________ 4
AIR ID (Active Badge) __________________________________5
AIR ID LT (Active Badge)________________________________5
pcProx TM (Passive Badge)________________________________5
What’s New In Version 2 __________________________ 6
Understanding Wireless Identification _______________ 7
What is AIR ID®Proximity Activated Identification? _7
Why is it necessary? _____________________________ 7
Who can benefit with the AIR ID System? __________ 8
What is included with the AIR ID Kit? ______________ 8
What is pcProx TM Proximity Activated Identification? 9
What is included with the pcProx Kit? _____________ 9
How does AIR ID Operate?_______________________ 10
What are the minimum system requirements?________________10
Hardware Installation ___________________________ 11
Windows 95/98 Users __________________________________11
Windows NT Users ____________________________________11
AIR ID Badge & Battery ________________________________12
Battery Life (Active badge users only) _____________________12
pcProx Badge (Passive badge users only)___________________12
Software Installation ____________________________ 13
Software Setup _________________________________ 14

Enable the AIR ID Screensaver in Windows________ 14
Setting AIR ID System Parameters ________________ 17
AIR ID Startup Screen (First Time Users) __________ 17
AIR ID Application (Standard Launch) _____________ 19
Base Unit Dialog Tab____________________________ 20
Base Unit Com Port______________________________ 20
Get Base Version________________________________ 20
Base Proximity Range ___________________________ 21
Radio Frequncy Issues__________________________________ 21
Using a Practical Proximity Zone _________________________ 21
Positioning the Base Unit _______________________________ 22
Screensaver Wait Time (seconds)_________________ 22
Screen Saver Wait Time when no Base Unit Attached
________________________________________________ 23
Badge Sensing __________________________________ 23
Multiple Users on This PC________________________ 25
Under 10 Users (auto-scan)______________________________ 25
More Than 10 (auto-scan)_______________________________ 25
More Than 10 (keyboard) _______________________________ 26
Badges Dialog Tab______________________________ 27
Overview _______________________________________ 27
Types of Users __________________________________ 27
Administrative Users___________________________________ 27
Non-Badge Users _____________________________________ 28
AIR ID Badge Users ___________________________________ 28
Set (Changing) Password ________________________ 28
Get Password ___________________________________ 29
Reading a Badge - Orienting the Base Unit _________________ 29
Orienting the Base Unit_________________________________ 30
Administrative Functions _______________________________ 31
Add User________________________________________ 32
Edit User________________________________________ 33
Delete User _____________________________________ 34

AIR ID
Audit Log_______________________________________ 35
Audit: Windows 95 Specific _____________________________35
Audit: Windows NT Specific_____________________________36
Assignment_____________________________________ 37
Machines _______________________________________ 38
DB Location ____________________________________ 38
Screensaver Lock _______________________________ 39
NT Setting Dialog Tab ___________________________ 39
NT GINA________________________________________ 41
Logout _________________________________________ 41
Lock ___________________________________________ 41
Change Password_______________________________ 41
Task Manager___________________________________ 41
TROUBLESHOOTING __________________________ 42
No Base Unit Attached___________________________ 42
Cannot Locate the Badge ________________________ 42
Your Password doesn’t work_____________________ 42
TECHNICAL SPECIFICATIONS _________________ 43
The AIR ID Base Unit __________________________________43
The AIR ID Badge_____________________________________43
The pcProx Base Unit __________________________________43
Index _________________________________________ 44

Proximity Activated Products 4
RF IDeas
Proximity Activated Products
RF IDeas offers a variety of wireless products for hands-free or
contactless identification and security. Please review the following
to choose which product best fits your need. If you do not see a
solution, please contact us. There are several software developers
licensing our technology and the solution you are looking for may
already be developed. We welcome your suggestions!

5Proximity Activated Products
AIR ID
Product FEATURE - BENEFIT
AIR ID (Active
Badge)
♦Highest security
♦Full two-way communication (transceiver
in Badge and Base)
♦Open read/write memory banks for
expansion
♦Badge securely holds NT/Novell
password
♦Audit Trail
♦TD2FTM Two-Factor Authentication
AIR ID LT (Active
Badge) ♦Great for multiple users sharing a
computer
♦Economical solution
♦Badge transmits, Base Unit receives
♦Audit Trail
♦TD2FTM Two-Factor Authentication
pcProx TM (Passive
Badge) ♦Great for multiple users sharing a
computer
♦Passive badges, no batteries
contactless range is 1-3 inches.
♦Economical solution
♦Uses existing passive HID or Motorola
RFID proximity technology
♦Unique learn mode reads ID from HID or
Motorola Indala badges
♦Audit Trail
♦TD2FTM Two-Factor Authentication
Enterprise
Management
Software
♦Centralized Management of all users
♦Lowers cost of ownership
AIR ID Developer’s
Kit ♦Complete API Kit supporting both AIR
ID, AIR ID LT, and pcProx
♦Platform independent
♦Dynamic range adjustment
♦Read/write ability with AIR ID
♦Private label
♦AIR ID Aware Certification Program
3rd Party AIR ID
Aware Products ♦Sun Solaris Desktop Security
♦Apple Macintosh Desktop Security
♦Machine Control Active X controls
♦People Location System
♦Healthcare Security Products

What’s New In Version 2 6
RF IDeas
What’s New In Version 2
The AIR ID system is greatly expanded with the release of Version
2. New features include the ability to centrally manage all AIR ID
system users using the following new Enterprise Management
Functions:
TD2FTM Two-Factor Authentication – TD2F is our time definable
two-factor authentication. This provides an additional level of
security for the user and the organization. Two-factor
authentication allows you to optionally, require the user to present
two types of authentication:
1. Bring something (i.e. the badge)
2. Know something (i.e. their password).
The implementation of this powerful system is the key. You can
specify that the second factor (i.e. entering a password) is required
on some periodic basis such as x hours or days. Setting it to 24
hours will require the user to validate themselves every day. This
provides additional security from the loss or theft of a badge. If
you lose you badge, then effectively within 24 hours the badge will
not function without a valid password for this user.
This feature also allows AIR IDto become a true two-factor
system. TD2F can be configures to always require the user to type
their password. Therefore without both the badge and password,
the user cannot enter the protected system.
TD2F is flexible and can be configured uniquely for each user.
Thus certain users such as the administrator might benefit from
the true two-factor approach while other less sensitive users can
benefit from the hands-free approach. The flexibility of TD2F is a
true breakthrough in authentication technology.
Enterprise Support – This new feature allows the administrator to
specify a server or central location for the AIR ID database and
system information. This centralized approach greatly reduces the
time spent associated with issuing badges, modifying user’s
access to machines in the organization, and generally reduces the
total cost of ownership (TCO) of a system’s maintenance. The
administrator may add or re-assign individual’s from any machine
in the organization that has the AIR ID software installed.

7Understanding Wireless Identification
AIR ID
AddUser – Expanded to include the assigning of each individual
to specific machines within the enterprise. New ‘Learn Mode’ for
pcProx badges.
Enterprise Support through the Assignment Button – Allows
the administrator to easily modify user access to machines with
the use of check boxes
Enterprise Support through the Machine Button – Allows the
administrator to view which machines in the enterprise are
registered in the AIR ID system.
Enterprise Support through the Audit Log – Expanded to allow
the administrator to view activity associated with AIR ID access by
user or machine. Audit logs may now be exported in a comma-
delimited file.
NT GINA Pass-Through Mode – AIR IDnow by default passes
through to the installed Microsoft GINA. This is important if your
organization is already using a third party supplied GINA with an
NT workstation or server. The ‘pass-through mode’ permits our
AIR ID GINA (RFIDGINA.DLL) to thread through and use the other
supplied GINA as the vehicle to the authentication authority on
your LAN.
Understanding Wireless Identification
What is AIR ID®Proximity Activated Identification?
AIR ID (Active Badge) is a proximity activated access control
system that tells the PC when the authorized user is present.
Unlike password systems, biometrics readers, and smart cards,
AIR ID uses RF (radio frequency) and therefore the user has no
involvement, giving the PC the ability to detect when the user has
left the area. Once the user has left the area, the PC is
automatically locked. When the user returns, the authenticating
information is exchanged between the AIR ID Base Unit attached
to the PC and the AIR ID Badge worn by the user. The result is a
complete lock and reactivation of access to the PC - all 100%
hands-free!
Why is it necessary?
With the proliferation of PC’s, cash machines, security systems,
and electronic locks, users are increasingly burdened with the

Understanding Wireless Identification 8
RF IDeas
requirement of entering passwords and PINs (person identification
numbers) to gain access to these protected systems. AIR ID
eliminates the burden without compromising privacy or security.
Who can benefit with the AIR ID System?
AIR ID is necessary for PC users who have access to sensitive
files or those who simply want the convenience of automatic login
and walk-away security. Employees using Win95/98/NT operating
systems will benefit with AIR ID. It eliminates the problems of
manual interaction-based security, increases efficiency,
compliance, and may also prevent security breaches.
Below are some examples of environments that will find AIR ID
useful:
Medical - Hospitals and medical centers where nurses, doctors,
and administrative personnel need quick and secure access to
patient records without the burden of constant login and logout
functions.
Financial - Trading floors, banks, insurance companies and other
financial institutions working with sensitive information, and
performing financial transactions, that should not be viewed by
unauthorized users. These users also benefit from AIR ID’s audit
log.
Corporate - HR, MIS, payroll, tax departments, company
executives, secretaries, sales personnel, etc. Departments
responsible for their own company sensitive data who are
concerned of inadvertently releasing information to other company
employees through unattended logged in systems. By using AIR
ID the user can comply without extra effort.
Government - Employees and government contractors who have
confidential information that should be secured at both their
desktops as well as at the network level. These Government
contractors are usually required to enforce an unattended PC
policy. This policy is easily achieved with AIR ID.
What is included with the AIR ID Kit?
•Base Unit, Badge (credit card size)
•Badge clip
•AIR ID Screensaver software
•NT GINA software
•Novell Login module
•Installation and User Manual on CD

9Understanding Wireless Identification
AIR ID
What is pcProx TM Proximity Activated
Identification?
PcProx (Passive Badge) is the newest addition to our line of
proximity activated access control systems. pcProx significantly
lowers deployment and implementation costs for users of HID’s or
Motorola Indala’s line of facility access proximity badges since the
same badge can now be used for PC logon and access control.
pcProx is different from the AIR ID line in that there is no battery in
the badge. While this passive approach to proximity reduces the
range, it is perfect for companies that want to increase security
and compliance while leveraging a single ID badge solution for
computers and buildings. The user simply waves their existing HID
badge over the pcProx reader and access is granted. A standard
time-out can then be utilized to auto-lock the system after
inactivity.
Many companies can now avoid issuing user-name and
passwords to employees for their computer access needs. This
greatly improves compliance since users can’t write down or
otherwise share their passwords with others.
The pcProx reader functions using the same AIR ID software.
What is included with the pcProx Kit?
•HID compatible Base Unit reader
•AIR ID Screensaver software
•NT GINA software
•Novell Login module
•Installation and User Manual on CD

Hardware Installation 10
RF IDeas
How does AIR ID Operate?
The main components of the AIR ID system are the Base Unit and
Badge. The Base Unit is attached to the serial port using the cable
and adapter. The badge may be clipped to the user's belt, jacket,
collar, inside front pocket, or worn around the neck.
(Active badge users only) As a user approaches their PC, the
system automatically detects the user, using radio frequency (RF)
communications to exchange the user authentication information,
granting immediate access. If the PC user walks away, the
system detects this event and is automatically secured and enters
into a screensaver mode. When an unauthorized person attempts
to use the PC, access is denied.
What are the minimum system requirements?
•486-DX33 with CD ROM drive
•2 MB RAM (10 MB hard disk space available for AIR ID
software).
•1 available serial port (unused by other devices)
•Microsoft Windows 95, 98 or NT v 4.0 SP3/4
•For Windows NT, the installer as well as the user must have
administrative rights to access and modify AIR ID files.
Caution: Turn off your system prior to attaching any
peripherals.
Note which communications port number you are using to
attach the Base Unit.

11 Hardware Installation
AIR ID
Hardware Installation
Locate an open serial port on the system. If there is a 9 pin serial
port connector present, attach the Base Unit’s 9 pin connector to
the PC serial port. The Base Unit is self-powered by the serial port
and therefore no other connections are required.
You may place the Base Unit next to your monitor, beside your
PC, or where you feel appropriate.
(Active badge users only) Adjustments may be needed (for the
orientation and placement of the Base Unit) to create a practical
proximity distance in the viewable range of your monitor. Keep in
mind that metal objects will affect the Base Unit’s RF
communications with the AIR ID Badge.
Windows 95/98 Users
To verify which serial port is available, follow these steps:
1. Click Start
2. Select Settings
3. Click Control panel
4. Select System
5. Select Device Manager
6. Listed under the category, Ports, locate an available serial
port (i.e. COM1 or COM2). Verify this port agrees with the
connector attached to the Base Unit.
Windows NT Users
To verify which serial port is available, follow these steps:
1. Click Start
2. Select Settings
3. Click Control panel
4. Select Ports
5. Listed under the category, Ports, locate an available port( i.e.
COM1 or COM2)
6. Verify this port agrees with the connector attached to the Base
Unit.

Hardware Installation 12
RF IDeas
AIR ID Badge & Battery
(Active badge users only) Your Badge comes complete with a coin
cell lithium battery (CR2025). The battery may be replaced by
placing the badge face down (logo side down) and pulling open
the battery drawer located on the bottom of the badge. The (+)
side of the battery faces up when placed in the battery holder.
When the battery is seated properly into its holder, the battery
drawer slips easily into the badge.
Battery Life (Active badge users only)
The battery is expected to last up to one year. Factors that may
affect the battery life are:
•The length of time you are at your desk during the day.
•How often you are at your desk when there is no keyboard or
mouse activity.
•If the Badge Sensing is set to Room Proximity to poll for the
badge or checked for the next keyboard or mouse activity.
•The number of seconds or minutes of inactivity before the
screen saver is launched by Windows operating system.
•Proximity of other AIR ID users.
pcProx Badge (Passive badge users only)
The pcProx badge is the same as your supplied HID badge for
your facility access control system. This is a passive badge and
therefore requires no battery. Energy required for the badge is
supplied by the pcProx Base Unit once the badge comes within
range (approximately 1-4 inches).
