RGBLE DH-4HT-U User manual

Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
18Gbps
4K@60Hz
HDMI 1X4 HDBT Splitter
DH-4HT-U
User Manual
VER 1.0

1
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
Thank you for purchasing RGBLE product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1.Introduction……………………………………………………………………2
2.Features……………………………………………………………………….2
3.Package Contents……………………………………………………...........2
4.Specifications…………………………………………………………………3
5.Operation Controls and Functions………………………………………….4
5.1 Transmitter……………………………………………………………….
4
5.2 HDBT Receiver………………………………………………………6
5.3 IR Pin Definition………………………………………………………….7
6.EDID Mode……………………………………………………………………8
7.ASCII Commands…………………………………………………………....
9
8.Application Example………………………………………………………....
13

2
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
1. Introduction
TheRGBLE 18Gbps HDMI 1x4 HDBT Splitter can distribute 1 source signal
to any 4 display devices. The HDMI signal transmission distance can be
extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at
1080P@60Hz via a single CAT6/6a/7 cable. The product supports up to
7.1CH HD audio pass-through. Audio extract function and advanced EDID
management are supported.
2. Features
☆HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆Support 18Gbps video bandwidth
☆Support video resolution up to 4K2K@60Hz 4:4:4
☆Support HDR, HDR10+, HLG and Dolby vision
☆Support up to 7.1CH HD audio pass-through
☆Support digital and analog audio de-embedded output
☆Extend the signal transmission distance up to 120 meters at the resolution
of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
☆Support 1 HDMI input, 1 HDMI loop output and 4 HDBT outputs.
☆IR, RS-232 routed to HDBT output
☆Advanced EDID management
☆Support one-way POC function (only from transmitter to receiver)
☆Compact design for easy and flexible installation
3. Package Contents
① 1 ×18Gbps HDMI 1×4 HDBT Splitter
② 4 ×HDBT Receiver
③ 5 ×IR Blaster Cable (1.5 meters)
④ 5 ×20K~60KHz IR Receiver Cable (1.5 meters)
⑤ 5 ×3-pin Phoenix Connector
⑥ 1 ×5-pin Phoenix Connector
⑦ 10 ×Mounting Ear
⑧ 1 ×24V/2.7A DC Locking Power Adapter
⑨ 1 ×User Manual

3
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2/1.x
Video Bandwidth
594MHz/18Gbps
Video Resolution
Up to 4k2k@60Hz 4:4:4
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz) 8-bit
(4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space
RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR
Support HDR, HDR10+, HLG, Dolby vision
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS
HD-HRA, DTS-X
Coaxial Audio
Formats
PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Audio
Formats
PCM 2.0CH
ESD Protection
Human body model—±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Input
1×HDMI Type A (19-pin female)
Output
1×HDMI Type A (19-pin female）4x HDBT OUT [RJ45]
1x Coaxial Audio OUT [RCA]
1x L/R Audio OUT [5-pin phoenix connector]
Control
1×RS-232 (3-pin phoenix connector）1x EDID DIP
switch [5-pin]
1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT
[3.5mm Stereo Mini-jack]
General
Housing
Metal Enclosure
Silkscreen Color
Black
Dimensions
Transmitter: 220mm (W) ×130mm (D) ×40mm (H) Receiver:
140mm (W) ×65mm (D) ×18mm (H)
Weight
Transmitter: 853g
Receiver: 246g
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 24V/2.7A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
35W
Operation
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)

4
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
5. Operation Controls and Functions
5.1 Transmitter
Front Panel
No.
Name
Function Description
POWER LED
When the device is powered on, the red power LED
will be on.
IN LED
When the HDMI IN port connects an active source
device, the green LED will be on.
LOOP LED
When the HDMI LOOP OUT port connects an active
display device, the green LED will be on.
OUT (1~4) LED
When the HDBT OUTPUT port connects an HDBT
Receiver, the corresponding green OUT LED will be
on.
Rear Panel

5
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
No.
Name
Function Description
RS-232
Connect to a PC or control system via a 3-pin
phoenix connector cable for three functions:
1, Firmware update;
2, Control the Splitter via RS-232 commands;
3, RS-232 signal pass-through (from transmitter
to receiver or from receiver to transmitter).
IR IN
Connect to IR receiver cable, the IR receive signal
will emit to “IR OUT” port of the HDBT Receiver.
IR OUT
Connect to IR blaster cable, the IR emit signal is from
“IR IN” port of the HDBT Receiver.
AUDIO OUT
(COAX, L/R)
Coaxial/balanced audio output port, connect to
amplifier or speaker.
POWER switch
Press this switch to power on/off the device.
EDID DIP
switch
Used to set EDID mode. Please refer to Section “6.
EDID Mode” for details.
HDMI port
IN: HDMI input port, connect to HDMI source device
such as DVD or set-top box with an HDMI cable.
LOOP OUT: HDMI loop output port, connect to the
HDMI display device such as TV or Monitor with an
HDMIcable.
➑
HDBT OUTPUT
port (1~4)
Connect to the HDBT IN port of the HDBT receiver
with a CAT cable.
➒
Link Signal
Indicator lamp
(Green)
•Illuminate: Transmitter and receiver are
connected.
•Dark: Transmitter and receiver are not connected.
➓
Data Signal
Indicator lamp
(Orange)
•Illuminate: There is signal transmission between
the transmitter and the receiver.
•Dark: No signal transmission.
⓫
DC 24V
Plug the DC 24V power supply into the unit and
connect the adaptor to an AC outlet. (Note: The
transmitter can power the receiver via a CAT cable.)

6
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
5.2 HDBT Receive
No.
Name
Function Description
Power
Indicator
When the receiver is powered on, the power indicator will be
on.
RS-232
3-pin Phoenix connector for RS-232 command transmission.
The RS-232 command will pass-through
from transmitter to receiver or from receiver to transmitter
DC 24V
Plug DC 24V/1A power supply into the unit and connect the
adapter to an AC outlet.
(Note: The HDBT receiver also can be powered by the
transmitter via a CAT cable.)
HDBT IN
Connect to the HDBT OUTPUT port on the transmitter with a
CAT cable.
HDMI OUT
HDMI output port, connect to HDMI display device such as
TV or Projector with an HDMI cable.
AUDIO OUT
Audio output port, connect to amplifier or speaker.
IR IN
Connect to the IR Receiver cable. The IR signal will send to
the IR OUT port of the transmitter.
➑
IR OUT
Connect to the IR blaster cable, the IR signal is from IR
IN port of the transmitter.

7
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204

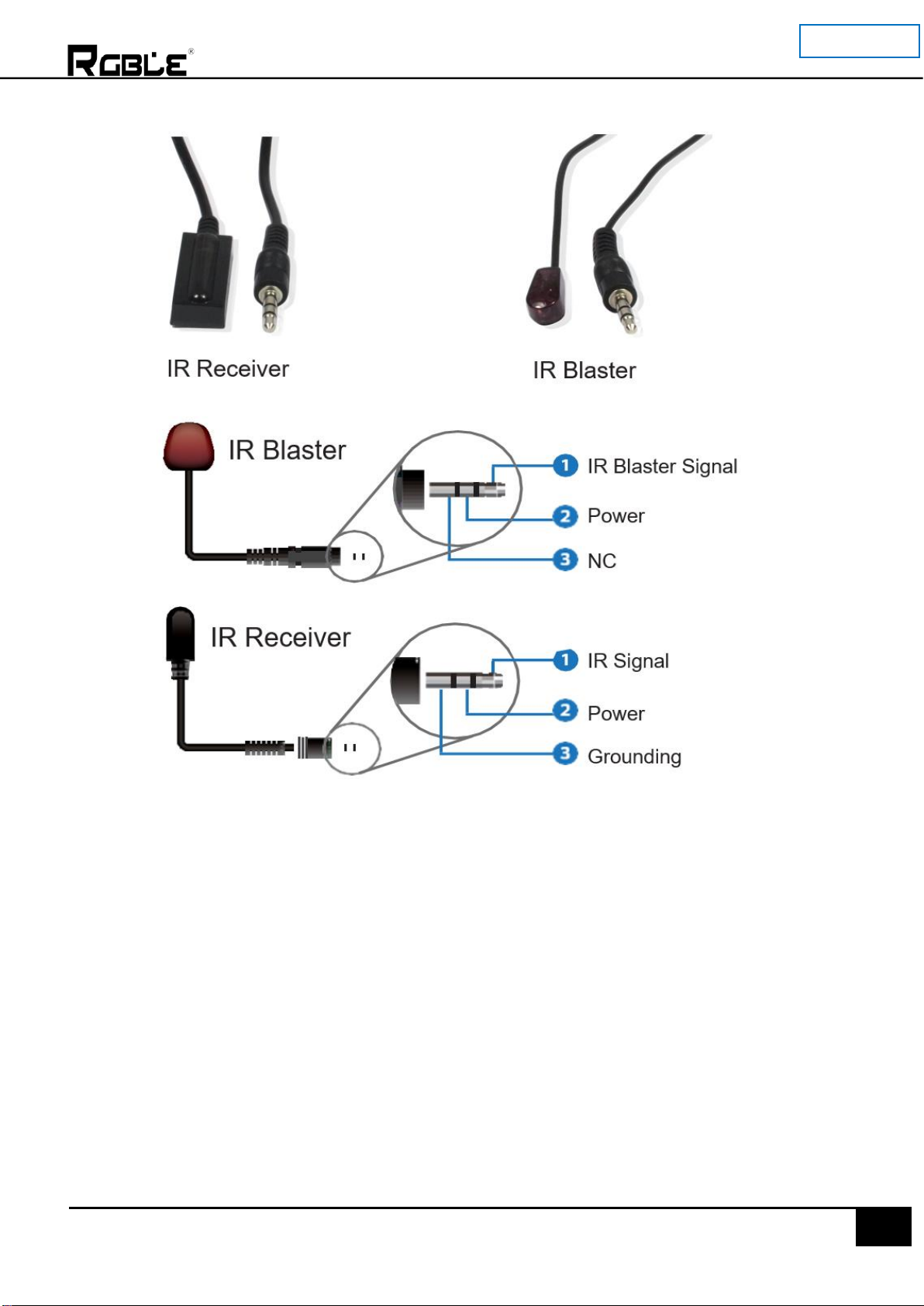

5.3 IR Pin Definition

8
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
6. EDID Mode
The defined EDID setting list of the product is shown as below:
EDID Mode
EDID Description
11111
1080P, Stereo Audio 2.0
11110
1080P, Dolby/DTS 5.1
11101
1080P, HD Audio 7.1
11100
1080I, Stereo Audio 2.0
11011
1080I, Dolby/DTS 5.1
11010
1080I, HD Audio 7.1
11001
1080P 3D, Stereo Audio 2.0
11000
1080P 3D, Dolby/DTS 5.1
10111
1080P 3D, HD Audio 7.1
10110
4K2K30Hz_444, Stereo Audio 2.0
10101
4K2K30Hz_444, Dolby/DTS 5.1
10100
4K2K30Hz_444, HD Audio 7.1
10011
4K2K60Hz_420, Stereo Audio 2.0
10010
4K2K60Hz_420, Dolby/DTS 5.1
10001
4K2K60Hz_420, HD Audio 7.1
10000
4K2K60Hz_444, Stereo Audio 2.0
01111
4K2K60Hz_444, Dolby/DTS 5.1
01110
4K2K60Hz_444, HD Audio 7.1
01101
4K2K60Hz_444, Stereo Audio 2.0 HDR
01100
4K2K60Hz_444, Dolby/DTS 5.1 HDR
01011
4K2K60Hz_444, HD Audio 7.1HDR
01010
COPY_FROM_LOOP OUT
01001
COPY_FROM_HDBT OUT1
01000
COPY_FROM_HDBT OUT2
00111
COPY_FROM_HDBT OUT3
00110
COPY_FROM_HDBT OUT4
00101
1080P, Stereo Audio 2.0
00100
1080P, Stereo Audio 2.0
00011
1080P, Stereo Audio 2.0
00010
1080P, Stereo Audio 2.0
00001
1080P, Stereo Audio 2.0
00000
PC control mode

9
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
7. ASCII Commands
The product also supports ASCII command control. Connect the RS-232 port of the
product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command
tool on PC to send ASCII commands to control the product. The ASCII command list
about the product is shown as below.
ASCII Commands
Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0
x - Parameter 1
y - Parameter 2
! - Delimiter
Command Code
Function
Description
Example
Feedback
Default
Setting
Power
s power z!
Power on/off the
device, z=0~1 (z=0
power off, z=1 power
on)
s power 1!
Power on
System Initializing...
Initialization Finished! FW
version x.xx.xx
power on
r power!
Get current power
state
r power!
power on/power off
s reboot!
Reboot the device
s reboot!
Reboot…
System Initializing...
Initialization Finished! FW
version x.xx.xx
System Setup
help!
List all commands
help!
r type!
Get device model
r type!
HDC-SPB14H150
r status!
Get device current
status
r status!
Get the unit all status:
power,
in/out connection,
edid mode
r fw version!
Get Firmware
version
r fw
version!
MCU BOOT: Vx.xx.xx MCU
APP: Vx.xx.xx
r link in!
Get the connection
status of the input
port
r link in!
HDMI IN: connect
r link out y!
Get the connection
status of the y
output
port, y=0~5(0=all,
1~4=HDBT 1~4, 5 =
loop out)
r link out 1!
hdmi loop out:
connect
hdbt output 1: connect
s reset!
Reset to factory
defaults
s reset!
Reset to factory defaults
System Initializing...
Initialization Finished! FW
version x.xx.xx

10
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
Command Code
Function
Description
Example
Feedback
Default
Setting
Output Setting
s hdmi stream z!
Set hdmi loop
output stream
on/off
z=0~1(0:disable,1:
enable)
s hdmi
stream 1 !
Enable hdmi loop out
stream
Disable hdmi loop out
stream
enable
s hdmi hdcp z!
Set hdmi loop
output hdcp on/ off
z=0~1(0:disable,1:
enable)
s hdmi
hdcp 1!
Enable hdmi loop out hdcp
Disable hdmi loop out hdcp
enable
s hdbt y hdcp z!
Set hdbt output y
hdcp on/off,
y=0~4(0=all)
z=0~1(0:disable,
1:enable)
s hdbt 1
hdcp 1 !
s hdbt 0
hdcp 1 !
Enable hdbt output 1
hdcp
Disable hdbt output 1 hdcp
Enable hdbt all outputs
hdcp Disable hdbt all
outputs hdcp
enable
s hdbt y stream z!
Set hdbt output y
stream on/ off,
y=0~4(0=all)
z=0~1
(0:disable,1:enabl
e)
s hdbt 1
stream 1 !
s hdbt 0
stream 1 !
Enable hdbt output 1
stream
Disable hdbt output 1
stream
Enable hdbt all outputs
stream Disable hdbt all
outputs stream
enable
r hdmi stream!
Get hdmi loop
out stream status
r hdmi
stream!
Enable hdmi output
stream
r hdmi hdcp!
Get hdmi loop out
hdcp status
r hdmi
hdcp!
Enable hdmi output hdcp
r hdbt y hdcp!
Get hdbt output y
hdcp status,
y=0~4(0=all)
r hdbt 1
hdcp!
Enable hdbt output 1 hdcp
r hdbt stream!
Get hdbt output
y stream status,
y=0~4(0=all)
r hdbt 1
stream!
Enable hdbt output 1
stream

11
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
Command Code
Function Description
Example
Feedback
Default Setting
EDID Setting
Set input EDID from default
EDID z, z=1~27
1, 1080p, Stereo Audio 2.0
2, 1080p, Dolby/DTS 5.1
3, 1080p, HD Audio 7.1
4, 1080i, Stereo Audio 2.0
5, 1080i, Dolby/DTS 5.1
6, 1080i, HD Audio 7.1
7, 3D, Stereo Audio 2.0
8, 3D, Dolby/DTS 5.1
9, 3D, HD Audio 7.1
10, 4K2K30_444,
Stereo Audio 2.0
11, 4K2K30_444, Dolby/DTS 5.1
12, 4K2K30_444, HD Audio 7.1
13, 4K2K60_420,
input EDID:1080p,
Stereo Audio2.0
s edid in from z!
Stereo Audio 2.0
14, 4K2K60_420,
Dolby/DTS 5.1
s edid in from 1!
1080p, Stereo
Audio 2.0
15, 4K2K60_420, HD Audio 7.1
16, 4K2K60_444,
Stereo Audio 2.0
Please toggle EDID
dip switch to 00000!
17, 4K2K60_444,
Dolby/DTS 5.1
18, 4K2K60_444, HD Audio 7.1
19, 4K2K60_444,
Stereo Audio 2.0 HDR
20, 4K2K60_444,
Dolby/DTS 5.1 HDR
21, 4K2K60_444,
HD Audio 7.1 HDR
22, copy from hdmi loop out
23, copy from hdbt output 1
24, copy from hdbt output 2
25, copy from hdbt output 3
26, copy from hdbt output 4
27, use user1 EDID
s edid user1 00
FF FF FF FF …!
Set user1 EDID data
s edid user1 00
ff ff ff ff …. !
user1 EDID data: 00
FF FF ….
r edid user1!
Get user1 EDID data
r edid user1!
user1 EDID data: 00
FF FF FF FF FF FF
00 ………
r edid in!
Get EDID status of the input
r edid in!
input EDID:
4K2K60_
444, Stereo
Audio 2.0
r edid in data!
Get the EDID data of the hdmi input
r edid in data!
EDID data: 00 FF FF
FF FF FF 00 ……

12
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
Command
Code
Function Description
Example
Feedback
Default Setting
RS-232 BYPASS Setting
s rs232
bypass
hdbt y!
Set RS-232 port connect to HDBT
out1 Receiver RS-232
port, y=0~5(0=all,
1~4= hdbt out 1~4 5=NC)
s rs232
bypass
hdbt 1!
RS-232 connect
to HDBT OUT1
RS-232 not
connect
to HDBT OUT
y=0
r rs232
bypass!
Get RS-232 port connect to HDBT
out receiver RS-232 port
r rs232
bypass!
RS-232 connect
to HDBT OUT1
RS-232 connect
to all HDBT
OUT
RS-232 not
connect
to HDBT OUT
s device
baud w size
x stop y
parity z!
Set receiver control device COM port
setting, w=2400,
4800,9600,19200,38400,
57600,115200, x=7,8
y=1,2, z=none, even, odd
s device
baud
57600
size 8
stop 1
parity
none!
receiver device
COM port
setting
baudrate:
57600
data size :8,
stop:1
parity: none
s rs232 time
x!
set send RS232 command wait time
x=200~5000ms
s rs232
time 200!
send RS-232
command wait
time 200ms
200ms

13
Stock Code 873117 en.rgble.com 400-1661-021
P/N: D00204
8. Application Example
