RGBlink ASK Series User manual

ASK
Wireless Presentation and Collaboration System
USER MANUAL
Article No: RGB-RD-UM- E001
Revision No: V1.0

ASK User Manual
1
CONTENTS
CONTENTS............................................................................................................................................1
Declarations.........................................................................................................................................2
FCC/Warranty.............................................................................................................................. 2
Operators Safety Summary......................................................................................................... 3
Installation Safety Summary........................................................................................................3
Chapter 1 Your Product........................................................................................................................5
1.1 In the Box...............................................................................................................................5
1.2 Product Overview..................................................................................................................5
1.2.1 Interface..................................................................................................................... 7
Chapter 2 Install Your Product.............................................................................................................9
Chapter 3 Use Your Product...............................................................................................................11
3.1 MENU...................................................................................................................................11
3.2 Streaming from Smart-phone to ASK RX............................................................................ 15
3.3 Screen Mode....................................................................................................................... 15
3.4 Multicast or Display Group Setup....................................................................................... 17
Chapter 4 Order Codes...................................................................................................................... 18
Chapter 4 Support ............................................................................................................................19
4.1 Contact Us........................................................................................................................... 19
Chapter 5 Appendix........................................................................................................................... 20
5.1 Specification........................................................................................................................ 20
5.2Terms & Definitions..............................................................................................................22
5.3 Revision History...................................................................................................................29

ASK User Manual
2
Thank you for choosing our product!
This User Manual is designed to show you how to use this video processor quickly
and make use of all the features. Please read all directions and instructions
carefully before using this product.
Declarations
FCC/Warranty
Federal Communications Commission (FCC)
Statement
This equipment has been tested and found to comply with the limits for a class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a
residential area may cause harmful interference, in which case the user will be
responsible for correcting any interference.
Guarantee and Compensation
RGBlink provides a guarantee relating to perfect manufacturing as part of the legally
stipulated terms of guarantee. On receipt, the purchaser must immediately inspect all
delivered goods for damage incurred during transport, as well as for material and
manufacturing faults. RGBlink must be informed immediately in writing of any
complains.
The period of guarantee begins on the date of transfer of risks, in the case of special
systems and software on the date of commissioning, at latest 30 days after the transfer of
risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a
replacement at its own discretion within an appropriate period. If this measure proves to
be impossible or unsuccessful, the purchaser can demand a reduction in the purchase
price or cancellation of the contract. All other claims, in particular those relating to
compensation for direct or indirect damage, and also damage attributed to the operation
of software as well as to other service provided by RGBlink, being a component of the
system or independent service, will be deemed invalid provided the damage is not proven
to be attributed to the absence of properties guaranteed in writing or due to the intent or
gross negligence or part of RGBlink.
If the purchaser or a third party carries out modifications or repairs on goods delivered by
RGBlink, or if the goods are handled incorrectly, in particular if the systems are

ASK User Manual
3
commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to
influences not agreed upon in the contract, all guarantee claims of the purchaser will be
rendered invalid. Not included in the guarantee coverage are system failures which are
attributed to programs or special electronic circuitry provided by the purchaser, e.g.
interfaces. Normal wear as well as normal maintenance are not subject to the guarantee
provided by RGBlink either.
The environmental conditions as well as the servicing and maintenance regulations
specified in this manual must be complied with by the customer.
Operators Safety Summary
The general safety information in this summary is for operating personnel.
Do Not Remove Covers or Panels
There are no user-serviceable parts within the unit. Removal of the top cover will expose
dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate
the unit without the cover installed.
Power Source
This product is powered by USB on TX end and DC 5V at RX end.
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an explosive atmosphere.
Installation Safety Summary
Safety Precautions
For all ASK installation procedures, please observe the following important safety and
handling rules to avoid damage to yourself and the equipment.
To protect users from electric shock, ensure that the chassis connects to earth via the
ground wire provided in the AC power Cord.
The AC Socket-outlet should be installed near the equipment and be easily accessible.
Unpacking and Inspection
Before opening ASK processor shipping box, inspect it for damage. If you find any
damage, notify the shipping carrier immediately for all claims adjustments. As you open
the box, compare its contents against the packing slip. If you find any shortages, contact
your sales representative.
Once you have removed all the components from their packaging and checked that all the

ASK User Manual
4
listed components are present, visually inspect the system to ensure there was no
damage during shipping. If there is damage, notify the shipping carrier immediately for all
claims adjustments.
Site Preparation
The environment in which you install your ASK should be clean, properly lit, free from
static, and have adequate power, ventilation, and space for all components.

ASK User Manual
5
Chapter 1 Your Product
1.1 In the Box
1*USBCable
1*DC 5V 2A Power Adapter
For PC without HDMI port but with Type C port, we suggest using Type C-HDMI convertor,
but please noted that the Type C has to be USB 3.1 at least.
Power adapter is subject to the destionation market.
1.2 Product Overview
ASK is an intuitive and high efficiency 4K wireless presentation and collaboration system that
enables any meeting participant to simply share the content from their laptop, mobile phone, or
tablet on the projector or large screen wirelessly, no APP required, no set up, no messy cables,
just touch and share.
ASK support up to 128 presenters to share their contents instantly without wasting valuable
meeting time, also support 4 users in one screen simultaneously, which significantly improves
corporate efficiency and productivity.
ASK also support Multicast, which is group communication, where video transmission from one
transmitter is addressed to a group of receivers simultaneously.
The ASK support whiteboard function, user can instantly edit, draw and write on the big screen
with touch panel, which is suitable for educational and enterprise application.
A standard ASK is a combination of two transmitters and one receiver, the receiver is connected
to a projector or big TV, and the transmitters are connected with PC or any device with HDMI jack,
after connected, users touch the finger print on the transmitter and the PC screen will be
streaming to the display, other users can switched easily with simple touch. You can buy
additional transmitter or receiver if needed.
Never have to worry about the software configuration, no compatibility, WIFI and network set up,

ASK User Manual
6
no need IT support, with our powerful and simplicity solution, everyone can immediately know
how to use it for collaborative presentations.
ASK System Connection Diagram
Product features
Features
Description
Plug and play
Simple connect the transmitter with your PC USB and HDMI ports, then
touch the finger print to start the streaming.
App Free
ASK doesn’t need any software or app installation, no setup, no IT team.
All in one
Support iOS/Android/Windows system, support Blu-ray DVD player,
media player and any devices with HDMI jack.
Touch Control
ASK support touch back control function when connect with a big screen

ASK User Manual
7
with touch panel.
Wireless Camera
Share the images and audio from smart-phone camera or to the large
display simultaneous.
Four Screen Split
Up to 128 user’s presentation at one time
Support up to 4 users on-screen simultaneously
Multicast/
Display Group
Beside one to one streaming mode, ASK also support Multicast, which is
group communication, where video transmission from one transmitter is
addressed to a group of receivers simultaneously
White Board Function
The ASK support instantly edit, draw and write on the big screen with
touch panel.
Auto Channel Selection
The ASK will select the best Wi-Fi channel automatically after power on
to ensure streaming smoothly.
Fast Speed with 5G AC
MIMO Technology
The ASK comes with the fast 802.11ac MIMO technology which increase
Wi-Fi speeds by allowing a pair of wireless devices to simultaneously
send or receive multiple data streams.
4K60 High Video
Quality
ASK support real 4K60 decode, which means much more clear
pictures, rich in details and texture, the device also supports high
dynamic range (HDR).
High Security
Protection
No worries about the data security, the ASK support AES 128-bit security
encryption and WPA2/WPA-PSK/WPA2-PSK authentication protocol to
protect data. HDCP supported to protect the content.
1.2.1 Interface

ASK User Manual
8

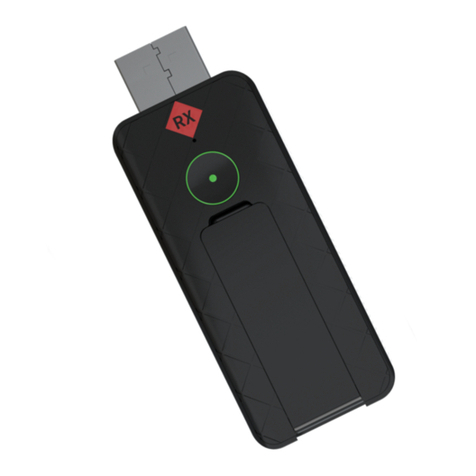

RX Illumination
reset the device if the
device stops working
Micro USB Power DC 5V
Connect to TV, projector,
and monitor by using the
HDMI cable.
LAN Port,Connect to router
for internet access.
USB 2.0, connect to
keyboard and mouse
TX Illumination
Fingerprint key
Tourch and it
vibrate press to
start presenting
HDMI cable
connect computer or other
devices with HDMI
USB cable
connect to a
computer or other
devices for power
LED indicator
on present key
to display different statue

ASK User Manual
9
Chapter 2 Install Your Product
Devices Requirement
Please ensure the devices meets the following requirements:
iOS 9.0 or above
Android 5.0 or above
LED indicators
LED indicator on TX
Description
Static Green
Transmitter is booting on
Flashing Purple
Waiting for connection
Static Purple
Connection successful, casting done
LED indicator on RX
Description
Blue light on
Receiver is powered on
Receiver Installation
1. Power on the RX and connect to the big screen TV or projector by HDMI cable.
2. Connect the USB port to keyboard or mouse to control and screen.
3. Connect RJ45 cable to your RX to access the internet.
Remark:
Please ignore step 3 if no need to access the internet.

ASK User Manual
10
Transmitter Installation
1. Connect the ASK TX’s HDMI and USB jacks to the laptop USB/HDMI inputs.
2. The LED indicator of the ASK TX will light on in green when it’s booting up.
3. The LED indicator become purple and flashing when ASK is ready to stream.
4. Touch the finger print to start presenting and the LED indicator become stastic Purple,
meaning the casting is successful.
Pairing of TX and RX
On delivery, each ASK set has been paired , but when extra TX are required, following steps are
the method for users to finish TX/RX pairing.
a. connect HDMI cable on TX to HDMI port on RX
b. connect USB cable on TX to USB-A port on RX
c. wait till the LED indicator light up in purple indicating pairing successful.

ASK User Manual
11
Chapter 3 Use Your Product
3.1 MENU
After RX is connect to big screen, the screen enters homepage, click the triangle icon on the middle
right boader,menu column will be open up.
Homepage Menu column
Here is a list of menu items.
Close off the menu
column
Homepage
IP list of device on screen
Annotation tool
Whiteboard tool
File
Screen shot
Volume
Black screen
Zoom
Spotlight
Setting

ASK User Manual
12
Save the file
After users’ finish the
whiteboard work, they can
save the file in format of
EWB,IWB or PDF on RX.
Whiteboard
User can write draw edit
on the display directly if
the big screen is touch
screen, or with mouse if
not.
IP list of devices on screen
Here showing the IP
address of each device
which is ready to cast on
the screen.
Homepage
When the RX is connected
to the big screen it will
enter homepage which is
also the standby page.

ASK User Manual
13
File can be saved to Google
drive or One drive, or if
there are files saved in
Google drive or One drive,
users can recall the file.
Save or recall screen shot
picture here
Save or recall EWB file
here
Setting-Common Setup

ASK User Manual
14
Setting-Display Group
Setup
Setting-Whiteboard Setup
Setting-Advanced
Setup-Power off reset
Setting-Advanced
Setup-Reset Plan-Shedule
daily

ASK User Manual
15
3.2 Streaming from Smart-phone to ASK RX
Step 1: Search in WLAN setting the hotspot of ASK with name of RGBlink-XXXX and connect,
Password: 12345678
Step 2: Stream the content from your iOS/Android devices via screen mirroring.
Remark: there are different name on difference brand phones or tablets: WIFI Display, WLAN
Display, Wireless Display, Allshare Display, Allshare Cast, Wireless Display, Chromecast...
3.3 Screen Mode
1. Single screen mode:
If there is one ASK TX, touch the TX finger print shortly, TX vibrates and the image of the laptop
will be streaming to the big screen.
If there is two or more ASK TX, touch the second TX finger print shortly, the image of the second
laptop will automatically replace the image from the first TX.
If you use a smartphone, please stream the content to the big screen by Airplay, miracast and
DLNA directly.
Setting-Advanced
Setup-Reset Plan-After
idle of

ASK User Manual
16
2. Multiple Screen Split Mode:
Please touch the ASK TX finger print above 2 seconds and there are interval vibrations on TX,
then multiple screens can be cast and split to the large display automatically.
If you use smartphone, please ensure that your smart-phone and receiver are connected in the
same subnet, click the smart-phone, multiple screens can be cast and split to the large display
automatically.
To make sure the multiple screen works there must be at least one TX in the devices about to cast.
When there 3 phones or pad and 1 TX device, streaming from phone or pad first and then long
pressing TX finger print to make the screen split, at last cast the other 2 phones or pads, the other
2 screen will be splitted automatically.
Remark: the Android phone don’t support multi-screen mode.
3. Exit multiple screens split mode:
You can touch any TX finger print shortly and the image from this TX cast to the screen, other
TXs will stop casting.
Or user can click the “Full Screen” icon at the bottom right corner on any image to cover the
whole screen but other images are still on casting, they can be retrieved by clicking the “Full
Screen” icon again.

ASK User Manual
17
3.4 Multicast or Display Group Setup
Step 1: Make sure the different receivers in the same subnet.
Step 2: open up the menu on the homepage and click Setting icon and open Display Group
Setup
Step 3: Turn the “Turn on/off Display Group” button on the display group, then other receiver
which in the same subnet will be listed, please select the receiver which you want to join the
display group, click confirm.
Step 4: After confirmation, the image will stream to the selected receiver automatically, the ASK
can support up to 8 different receivers.

ASK User Manual
18
Chapter 4 Order Codes
Product Code
Item
450-0001-01-0
ASK Mini (RX)
450-0101-01-0
ASK Me (TX)
450-1001-01-0
ASK Set (TX*2+ RX*1)

ASK User Manual
19
Chapter 4 Support
4.1 Contact Us
