RGBlink ASK nano 4K User manual

ASK nano 4K
Wireless Presentation and Collaboration System
User Manual
Article No: RGB-RD-UM-ASK nano 4K E000
Revision No: V1.0

ASK nano User Manual
1
Content
Declarations ....................................................................................................................................................................2
FCC/Warranty ......................................................................................................................................................... 2
Operators Safety Summary .................................................................................................................................... 3
Installation Safety Summary ...................................................................................................................................3
Chapter 1 Your Product ...................................................................................................................................................4
1.1 In the Box ..........................................................................................................................................................4
1.2 Product Overview .............................................................................................................................................4
1.3 Interface ............................................................................................................................................................5
1.4 Dimensions ....................................................................................................................................................... 6
Chapter 2 Use Your Product ............................................................................................................................................7
2.1 Receiver Installation ......................................................................................................................................... 7
2.2 TX Mode ............................................................................................................................................................7
2.3 Multicast Function ............................................................................................................................................8
2.3.1 Pairing a Transmitter and Receiver ....................................................................................................... 8
2.4 Airplay/Miracast Mode .....................................................................................................................................9
2.4.1 iOS ..........................................................................................................................................................9
2.4.2 Android ................................................................................................................................................ 10
2.5 Connect to Internet ........................................................................................................................................ 10
2.5.1 iOS ........................................................................................................................................................13
2.5.2 Android ................................................................................................................................................ 13
Chapter 3 Order Codes ................................................................................................................................................. 14
3.1 Product Code .................................................................................................................................................. 14
Chapter 4 Support .......................................................................................................................................................15
4.1 Contact Us ...................................................................................................................................................... 15
Chapter 5 Appendix ...................................................................................................................................................... 16
5.1 Specification ................................................................................................................................................... 16
5.2 Terms & Definitions ........................................................................................................................................ 17
5.3 Revision History .............................................................................................................................................. 23

ASK nano User Manual
2
Thank you for choosing our product!
This User Manual is designed to show you how to use this product quickly and make use of all the features.
Please read all directions and instructions carefully before using this product.
Declarations
FCC/Warranty
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the user will be responsible for correcting any interference.
Guarantee and Compensation
RGBlink provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of
guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred
during transport, as well as for material and manufacturing faults. RGBlink must be informed immediately in
writing of any complains.
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the
date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of compliant,
RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this
measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or
cancellation of the contract. All other claims, in particular those relating to compensation for direct or indirect
damage, and also damage attributed to the operation of software as well as to other service provided by RGBlink,
being a component of the system or independent service, will be deemed invalid provided the damage is not
proven to be attributed to the absence of properties guaranteed in writing or due to the intent or gross negligence
or part of RGBlink.
If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods
are handled incorrectly, in particular if the systems are
commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed
upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee
coverage are system failures which are attributed to programs or special electronic circuitry provided by the
purchaser, e.g. interfaces. Normal wear as well as normal maintenance are not subject to the guarantee provided
by RGBlink either.
The environmental conditions as well as the servicing and maintenance regulations specified in this manual must
be complied with by the customer.

ASK nano User Manual
3
Operators Safety Summary
The general safety information in this summary is for operating personnel.
Do Not Remove Covers or Panels
There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages. To
avoid personal injury, do not remove the top cover. Do not operate the unit without the cover installed.
Power Source
This product is powered by USB on TX end and DC 5V at RX end.
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an explosive atmosphere.
Installation Safety Summary
Safety Precautions
For all ASK nano installation procedures, please observe the following important safety and handling rules to
avoid damage to yourself and the equipment.
To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the
AC power Cord.
The AC Socket-outlet should be installed near the equipment and be easily accessible.
Unpacking and Inspection
Before opening ASK nano processor shipping box, inspect it for damage. If you find any damage, notify the
shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the
packing slip. If you find any shortages, contact your sales representative.
Once you have removed all the components from their packaging and checked that all the listed components are
present, visually inspect the system to ensure there was no damage during shipping. If there is damage, notify the
shipping carrier immediately for all claims adjustments.
Site Preparation
The environment in which you install your ASK nano should be clean, properly lit, free from static, and have
adequate power, ventilation, and space for all components.

ASK nano User Manual
4
Chapter 1 Your Product
1.1 In the Box
1.2 Product Overview
ASK nano 4K is an intuitive and high efficiency 4K wireless presentation and collaboration system that enables any
meeting participant to simply share the content from their laptop, mobile phone, or tablet on the projector or
large screen wirelessly, no APP required, no set up, no messy cables, just click and share.
A standard ASK nano 4K is a combination of one transmitters and two receivers, the receiver is connected to a
projector or display, and the transmitters are connected with PC or any device with HDMI jack, after connected,
users just need to wait the screen streaming to the display automatically.
Never have to worry about the software configuration, no compatibility, WIFI and network set up, no need IT
support, with our powerful and simplicity solution, everyone can immediately know how to use it for
collaborative presentations, which significantly improves corporate efficiency and productivity.
ASK nano System Connection Diagram 1
Transmitter x 1
Receiver x 2
USB-C Cable x 3
HDMI Extended
Cable x 3

ASK nano User Manual
5
ASK nano System Connection Diagram 2
1.3 Interface
Transmitter Illumination
Item
Illumination
HDMI IN
Connect with the HDMI port of the source devices
Button
Click to discontinue projection or resume projection
LED
To display different status
Reset
Press the button up to 3s for factory reset
USB-C Jack
For power supply
Indicator light of Transmitter
TX
Illumination
Static Red
TX system is booting on
Flashing Red
TX is searching for RX
Flashing Blue
Waiting for the connection
Static blue
Connected and start to presenting
Purple
No HDMI in

ASK nano User Manual
6
Receiver Illumination
Item
Illumination
HDMI OUT
Connect with monitor or projector
Button
Short press to switch mode between TX Mode and Airplay/Miracast Mode
LED
To display different status
Reset
Long press 9s for factory reset
USB-C Jack
for power supply
Indicator light of Receiver
RX
Illumination
Flashing Blue
Power on and ready for projection
Static blue
Already in projection
1.4 Dimensions
Following is the dimension of ASK nano 4K for your reference:
91mm×34mm×13mm (TX/RX)

ASK nano User Manual
7
Chapter 2 Use Your Product

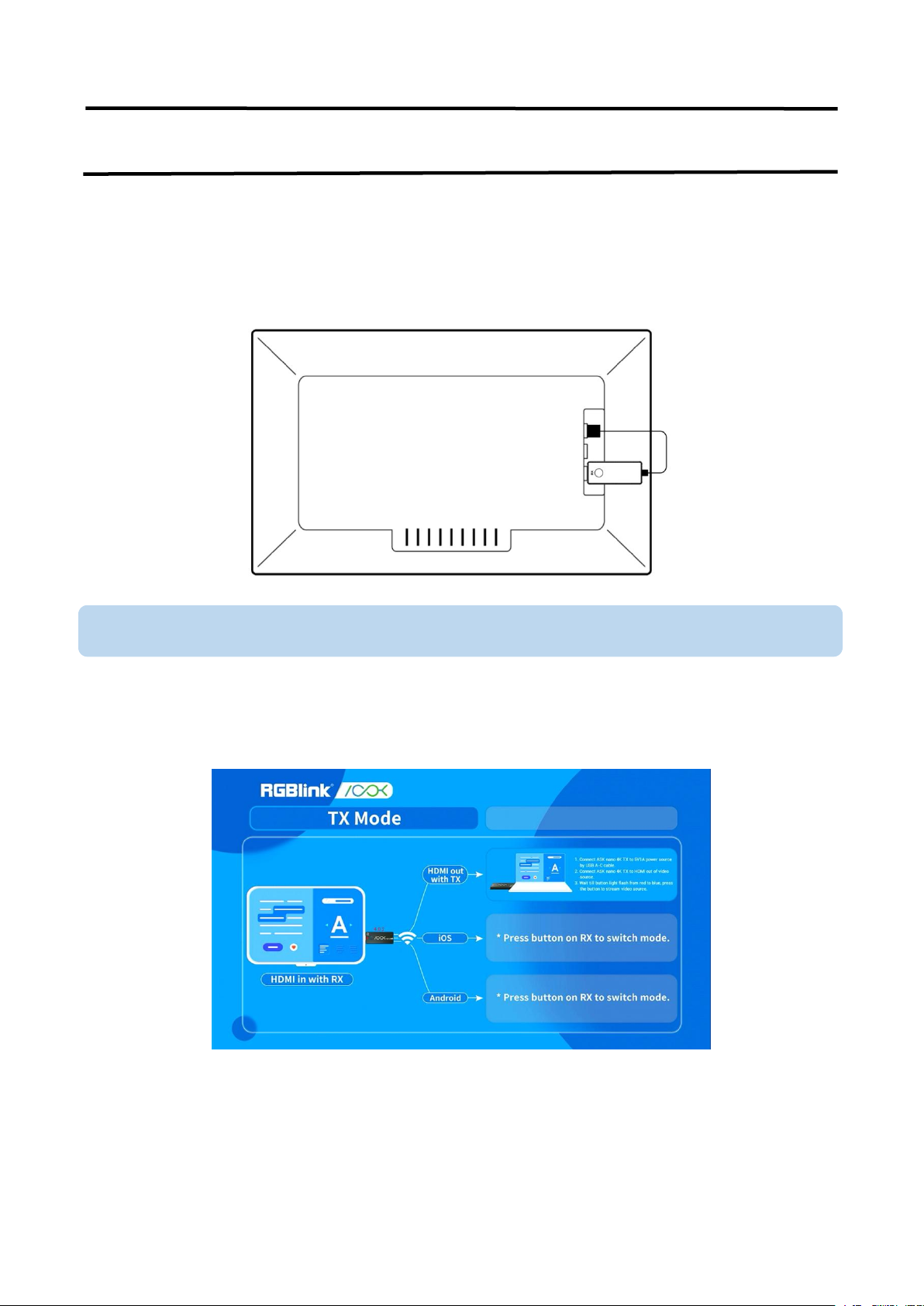

2.1 Receiver Installation
1. Connect the RX with HDMI port of display.
2. Connect the USB-C port of RX to the TV USB port through the USB cable for power supply.
2.2 TX Mode
1. Check the TV screen and make sure it is under TX Mode, if not press the button on ASK nano 4K RX.
2. Power ASK nano 4K TX via 5V/1A power adapter or connect its USB port to PC by a USB A-C cable.
3. Connect ASK nano 4K TX’s HDMI jack to HDMI output on PC or other source device.
Note: The power supply of RX is about 5V/1A. Please connect the RX with a power adapter if your TV can’t
supply enough power.

ASK nano User Manual
8
4. The LED indicator of the ASK nano 4K TX will turn red when it’s booting up.
5. The LED indicator will become blue and flash when ASK nano 4K is ready to stream.
6. Wait and the system will automatically to stream. After it is successfully connected, the LED indicator turns to
static blue.
2.3 Multicast Function
ASK nano 4K features multicast function. Power on the transmitter and two receivers, the video from transmitter
will cast to two receivers simultaneously.
2.3.1 Pairing a Transmitter and Receiver
A standard ASK nano 4K set includes two receivers and one transmitter, which are paired before shipment.
Normally you don’t need to pair them again.
However, if you buy an additional receiver or upgrade to new software, you need to follow the instruction below
Note: Please note the coverage between TX and RX will be shorter if you use multicast mode.

ASK nano User Manual
9
to pair the new receiver with the transmitter. First make sure ASK nano 4K RX is still under TX Mode before doing
paring.
1. Power on receiver and connect with display and wait for RX to enter the home page.
2. Power on the TX and wait around 5~10 seconds, the button light of TX will turn to flashing red, then hold the
reset button up to 3 seconds till the button flash fast for factory reset, then the TX will restart and the LED light
will turn from red to flashing blue after 30s automatically.
2.4 Airplay/Miracast Mode
This mode is designed for casting screen from smart devices.
Press button on RX to switch it to Airplay/Miracast mode.

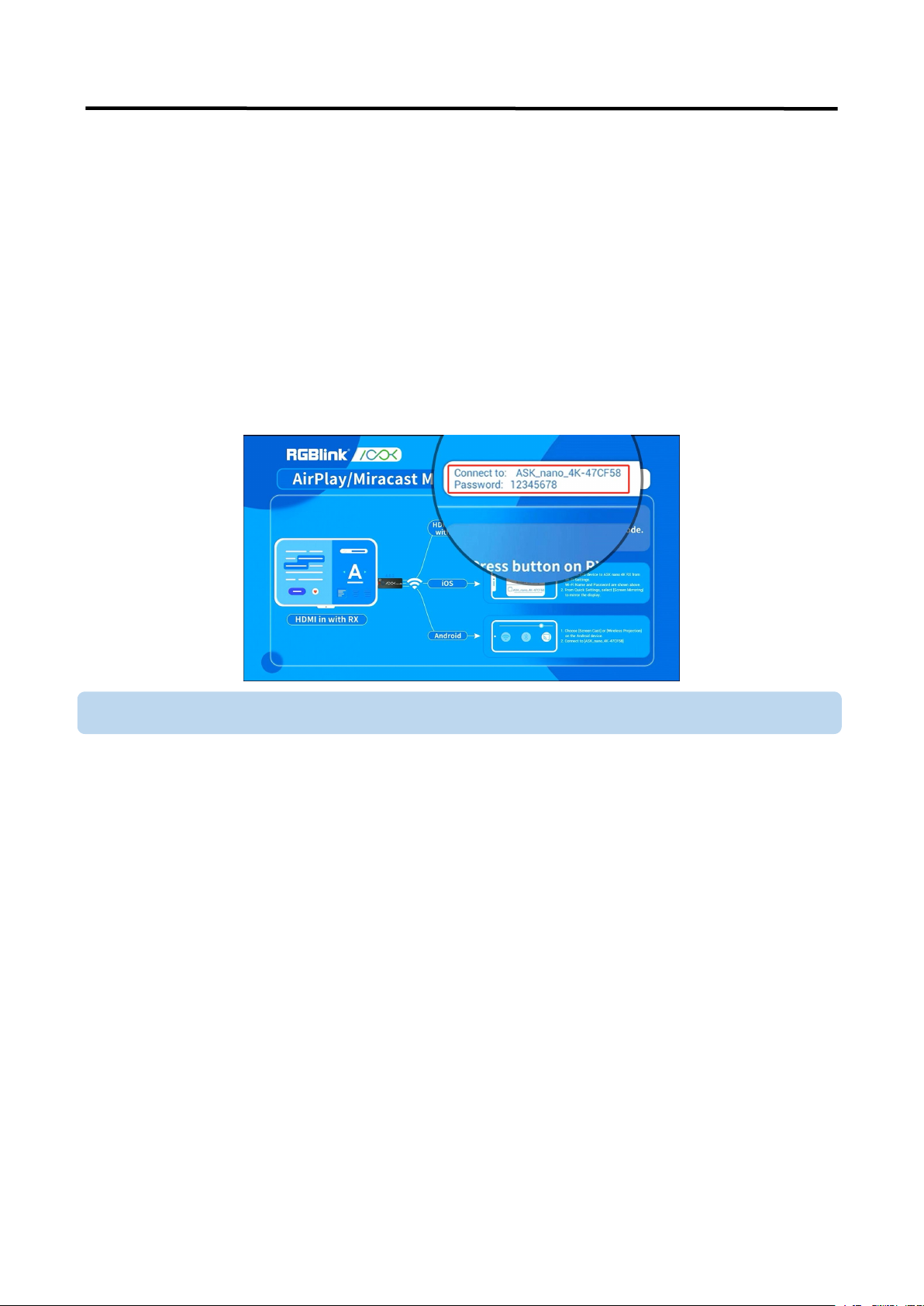

2.4.1 iOS
1. Search RX SSID and connect. (SSID: ASK nano 4Kxxxx, Password: 12345678), the SSID is shown on the right
upper corner of the screen.
2. From Quick Settings, select Screen Mirroring to mirror the device screen.
Note: iOS requires version 9.0 or above, and Android requires version 5.0 or above.

ASK nano User Manual
10
2.4.2 Android
Make sure your Android devices Wi-Fi are available, and select the Wireless Projection Function of your phone
and start to stream.

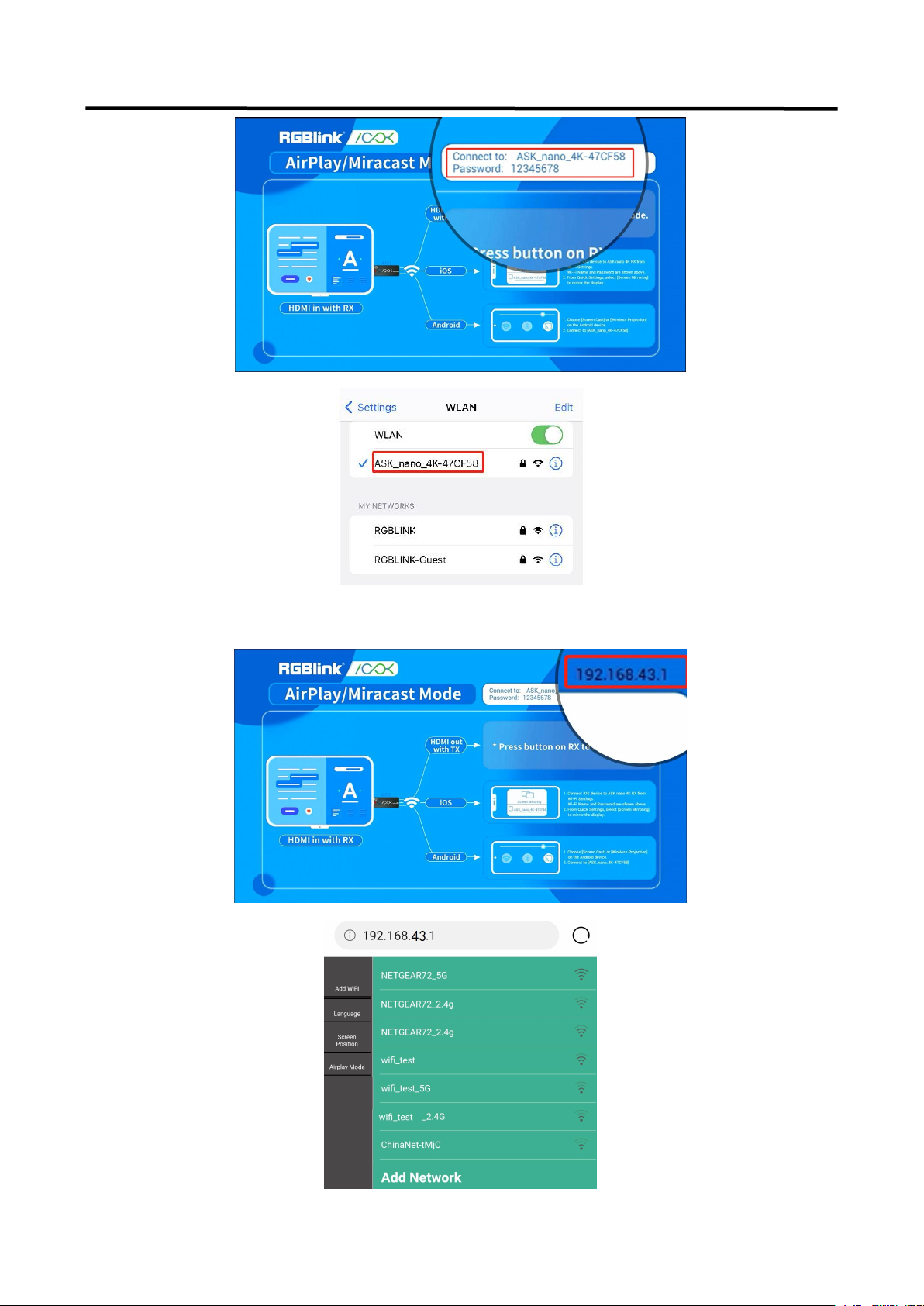

2.5 Connect to Internet
When your iOS or Android device needs to connect to Internet but is not able to use celluar data, such as iPad or
or other tablets, it is necessary to connect your ASK nano 4K RX to Internet.
1. Press button on RX to switch it to Airplay/Miracast mode.
2. Connect the RX SSID with your smart device, the SSID and password are shown on the right upper corner of the
screen.

ASK nano User Manual
11
3. Open the browser with your phone, and input the IP address shown on the right upper corner of the screen to
enter to the ASK nano 4K RX management platform.

ASK nano User Manual
12
4. Select the network and connect in the management platform, the RX will link to the network and show the
network SSID on the upper right corner of the screen. ( To get a better performance, we recommend to connect
with 5G router.)
Note: When connected to router, the IP address will be updated accordingly.
Note: After ASK nano 4K is connected to Internet, you do not need to connect iOS or Android device to
ASK nano 4K RX’s SSID any more. Just keep device connected to the same network as ASK nano 4K RX.

ASK nano User Manual
13
2.5.1 iOS
From Quick Settings, select Screen Mirroring and choose ASK nano 4K XXXXX-iTV from the device list.
2.5.2 Android
Search wireless projection device from setting and choose ASK nano 4K-XXXXX.

ASK nano User Manual
14
Chapter 3 Order Codes
3.1 Product Code
450-2002-02-0 ASK nano 4K Set (TX*1+RX*2)

ASK nano User Manual
15
Chapter 4 Support
4.1 Contact Us

ASK nano User Manual
16
Chapter 5 Appendix
5.1 Specification
Receiver
Connectors
Output
HDMI
1×HDMI-A
Power
USB
1×USB-C
Performance
Output Resolutions
HDMI
VESA
Up to 3840×2160@60
Supported Standard
HDMI
2.0
HDCP
2.2
Power
Input Voltage
DC 5V/1A
Max Power
3.5W
Operating
Environment
Temperature
0℃~40℃
Humidity
10%~80% RH
Storage
Environment
Temperature
-10℃~60℃
Humidity
5%~95% RH
Physical
Weight
Net
0.03kg
Dimension
Net
91mm×34mm×13mm
Transmitter
Connectors
Input
HDMI
1×HDMI-A
Power
USB
1×USB-C
Performance
Input Resolutions
HDMI
SMPTE
1080p50/60
VESA
3840x2160@24/25/30 | 1920×1080@24/25/30/50/60 |
1280x720@50/60
Supported Standard
HDMI
2.0
HDCP
2.2

ASK nano User Manual
17
Power
Input Voltage
DC 5V/1A
Max Power
3.5W
Operating
Environment
Temperature
0℃~40℃
Humidity
10%~80% RH
Storage
Environment
Temperature
-10℃~60℃
Humidity
5%~95% RH
Physical
Weight
Net
0.03kg
Dimension
Net
91mm×34mm×13mm
5.2 Terms & Definitions
●RCA: Connector used primarily in consumer AV equipment for both audio and video. The RCA connector
was developed by the Radio Corporation of America.
● BNC :Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named for its inventors). A
cylindrical bayonet connector that operates with a twist-locking motion.
●CVBS: C VBS or Composite video, is an analog video signal without audio. Most commonly CVBS is used for
transmission of standard definition signals. In consumer applications the connector is typically RCA type, while in
professional applications the connector is BNC type.
●YPbPr: Used to describe the colour space for progressive-scan. Otherwise known as component video.
●VGA: Video Graphics Array. VGA is an analog signal typically used on earlier computers. The signal is non-interlaced in
modes 1, 2, and 3 and interlaced when using in mode.
●DVI: Digital Visual Interface. The digital video connectivity standard that was developed by DDWG (Digital Display
Work Group). This connection standard offers two different connectors: one with 24 pins that handles digital
video signals only, and one with 29 pins that handles both digital and analog video.
●SDI: Serial Digital Interface. Standard definition video is carried on this 270 Mbps data transfer rate. Video pixels are
characterized with a 10-bit depth and 4:2:2 color quantization. Ancillary data is included on this interface and typically
includes audio or other metadata. Up to sixteen audio channels can be transmitted. Audio is organised into blocks of 4
stereo pairs. Connector is BNC.
●HD-SDI: High-definition serial digital interface (HD-SDI), is standardized in SMPTE 292M this provides a nominal data
rate of 1.485 Gbit/s.
●3G-SDI: Standardized in SMPTE 424M, consists of a single 2.970 Gbit/s serial link that allows replacing dual link
HD-SDI.
●6G-SDI: Standardized in SMPTE ST-2081 released in 2015, 6Gbit/s bitrate and able to support 2160p@30.

ASK nano User Manual
18
●12G-SDI:Standardized in SMPTE ST-2082 released in 2015, 12Gbit/s bitrate and able to support 2160p@60.
●U-SDI:Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra high
definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable. The interface was
standardized as the SMPTE ST 2036-4.
●HDMI: H igh Definition Multimedia Interface: An interface used for the transmission of uncompressed high
definition video, up to 8 channels of audio, and control signals, over a single cable.
●HDMI 1.3: released on June 22 2006, and increased the maximum TMDS clock to 340 MHz (10.2 Gbit/s). Support
resolution 1920 × 1080 at 120 Hz or 2560 × 1440 at 60 Hz). It added support for 10 bpc, 12 bpc, and 16 bpc color depth
(30, 36, and 48 bit/px), called deep color.
●HDMI 1.4 : released on June 5, 2009, added support for 4096 × 2160 at 24 Hz, 3840 × 2160 at 24, 25, and 30 Hz, and
1920 × 1080 at 120 Hz. Compared to HDMI 1.3, 3 more features added which are HDMI Ethernet Channel (HEC) , audio
return channel (ARC),3D Over HDMI, a new Micro HDMI Connector, an expanded set of color spaces.
●HDMI 2.0:Released on September 4, 2013 increases the maximum bandwidth to 18.0 Gbit/s. Other features of HDMI
2.0 include up to 32 audio channels, up to 1536 kHz audio sample frequency, the HE-AAC and DRA audio standards,
improved 3D capability, and additional CEC functions.
●HDMI 2.0a: Was released on April 8, 2015, and added support for High Dynamic Range (HDR) video with static
metadata.
●HDMI 2.0b: Was released March, 2016, support for HDR Video transport and extends the static metadata signaling to
include Hybrid Log-Gamma (HLG).
●HDMI 2.1:Released on November 28, 2017. It adds support for higher resolutions and higher refresh rates, Dynamic
HDR including 4K 120 Hz and 8K 120 Hz.
●DisplayPort: A VESA standard interface primarily for video, but also for audio, USB and other data. DisplayPort (orDP)
is backwards compatible with HDMI, DVI and VGA.
●DP 1.1: Was ratified on 2 April 2007, and version 1.1a was ratified on 11 January 2008. DisplayPort 1.1 allow a
maximum bandwidth of 10.8 Gbit/s (8.64 Gbit/s data rate) over a standard 4-lane main link, enough to support
1920x1080@60Hz.
●DP 1.2: Introduced on 7 January 2010, effective bandwidth to 17.28 Gbit/s support increased resolutions, higher
refresh rates, and greater color depth, maximum resolution 3840 × 2160@60Hz.
●DP 1.4: Publish on 1 Mar, 2016.overall transmission bandwidth 32.4 Gbit/s ,DisplayPort 1.4 adds support for Display

ASK nano User Manual
19
Stream Compression 1.2 (DSC), DSC is a "visually lossless" encoding technique with up to a 3:1 compression ratio. Using
DSC with HBR3 transmission rates, DisplayPort 1.4 can support 8K UHD (7680 × 4320) at 60 Hz or 4K UHD (3840 × 2160)
at 120 Hz with 30 bit/px RGB color and HDR. 4K at 60 Hz 30 bit/px RGB/HDR can be achieved without the need for DSC.
●Multi-mode Fiber: Fibers that support many propagation paths or transverse modes are called multi-mode fibers,
generally have a wider core diameter and are used for short-distance communication links and for applications where
high power must be transmitted.
●Single-mode Fiber: Fiber that support a single mode are called single-mode fibers. Single-mode fibers are used for
most communication links longer than 1,000 meters (3,300 ft).
●SFP: Small form-factor pluggable, is a compact, hot-pluggable network interface module used for
both telecommunication and data communications applications.
●Optical Fiber Connector:Terminates the end of an optical fiber, and enables quicker connection and disconnection
than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. 4 most common types
of optical fiber connectors are SC, FC, LC,ST.
●SC: (Subscriber Connector), also known as the square connector was also created by the Japanese company – Nippon
Telegraph and Telephone. SC is a push-pull coupling type of connector and has a 2.5mm diameter. Nowadays, it is used
mostly in single mode fiber optic patch cords, analog, GBIC, and CATV. SC is one of the most popular options, as its
simplicity in design comes along with great durability and affordable prices.
●LC：(Lucent Connector) is a small factor connector (uses only a 1.25mm ferrule diameter) that has a snap coupling
mechanism. Because of its small dimensions, it is the perfect fit for high-density connections, XFP, SFP, and SFP+
transceivers.
●FC: (Ferrule Connector) is a screw type connector with a 2.5mm ferrule. FC is a round shaped threaded fiber optic
connector,mostly used on Datacom, telecom, measurement equipment, single-mode laser.
●ST: (Straight Tip) was invented by AT&T and uses a bayonet mount along with a long spring-loaded ferrule to support
the fiber.
●USB: Universal Serial Bus is a standard that was developed in the mid-1990s that defines cables, connectors and
communication protocols. This technology is designed to allow a connection, communication and power supply for
peripheral devices and computers.
●USB 1.1: Full–Bandwidth USB, specification was the first release to be widely adopted by the consumer market. This
specification allowed for a maximum bandwidth of 12Mbps.
●USB 2.0: Or Hi–Speed USB, specification made many improvements over USB 1.1. The main improvement was an
increase in bandwidth to a maximum of 480Mbps.
