RGBlink D6 User manual

D6
Article No: RGB-RD-UM-D6 E001
Revision No: V1.0
USER MANUAL

D6 User Manual
1
CONTENTS
CONTENTS....................................................................................................................................................1
Declarations................................................................................................................................................... 2
FCC/Warranty........................................................................................................................................ 2
Operators Safety Summary.................................................................................................................3
Installation Safety Summary............................................................................................................... 3
1.1 In the Box.........................................................................................................................................5
1.2 Product Overview........................................................................................................................... 6
1.2.1 Front Panel...........................................................................................................................7
1.2.2 Back Panel......................................................................................................................... 11
1.2.3 Dimension.......................................................................................................................... 12
Chapter 2 Installing Your Product.............................................................................................................13
2.1 Plugging in Signals.......................................................................................................................13
2.2 Plugging in Main Power.............................................................................................................. 13
2.3 Turning on Your D6...................................................................................................................... 13
Chapter 3 Using Your Product.................................................................................................................. 14
3.1 XPOSE Operation........................................................................................................................ 14

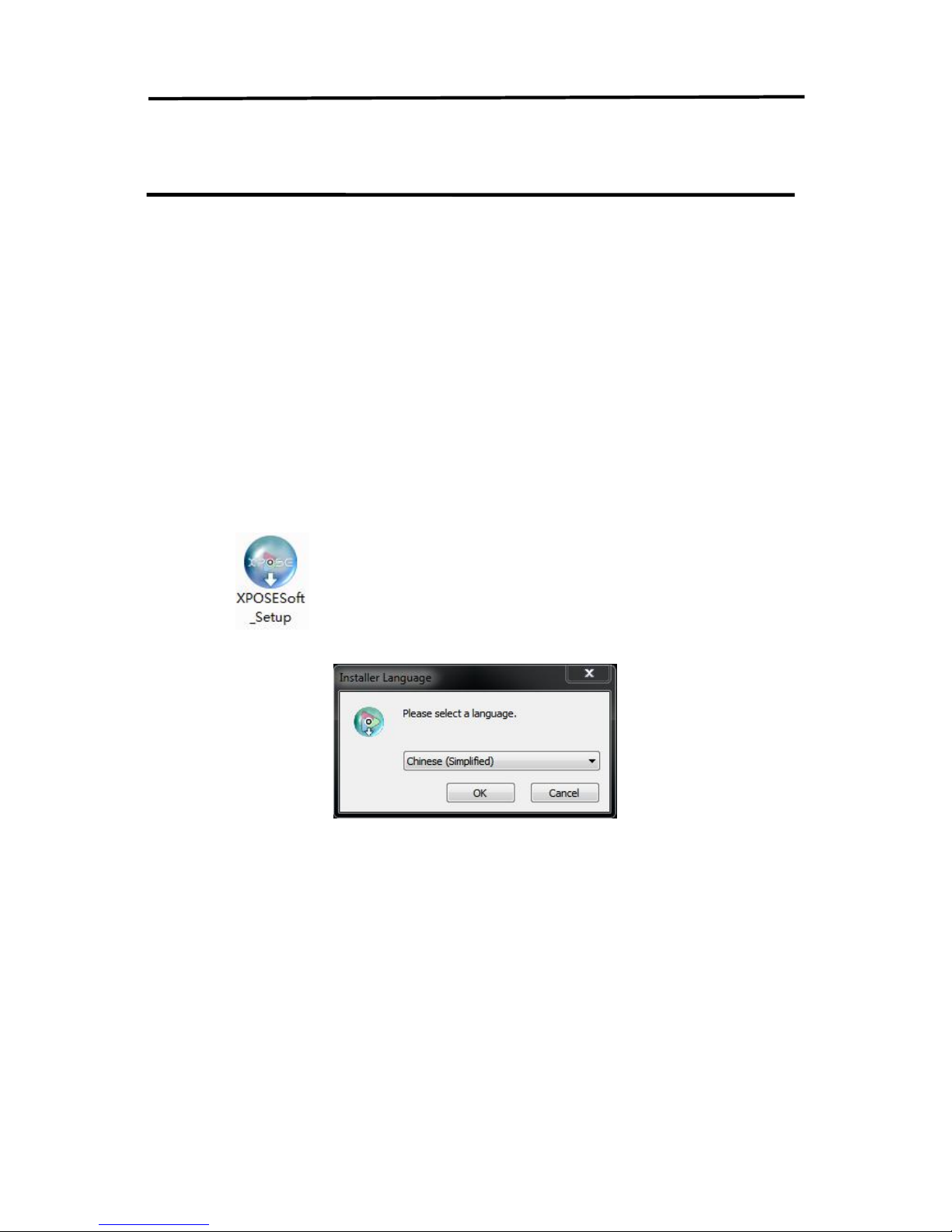

3.1.1 XPOSE Installation........................................................................................................... 14
3.2 XPOSE Controls D6.....................................................................................................................18
3.2.1 Login in XPOSE................................................................................................................ 18
3.2.2 Web Links...........................................................................................................................20
3.2.3 Connect with the D6......................................................................................................... 20
3.2.4 Output Settings..................................................................................................................22
3.2.5 Operation Mode................................................................................................................ 25
3.2.6 Admin.................................................................................................................................. 44
3.2.7 System Settings................................................................................................................ 46
3.2.8 Slave Unit........................................................................................................................... 49
3.2.9 Log Out............................................................................................................................... 50
Chapter 4 Ordering Codes........................................................................................................................ 51
4.1 Product........................................................................................................................................... 51
4.2 Options........................................................................................................................................... 51
4.2.1 Input Options..................................................................................................................... 51
4.2.2 Output Options.................................................................................................................. 51
Chapter 5 Support.......................................................................................................................................52
5.1 Contact Us.....................................................................................................................................52
Chapter 6 Appendix.................................................................................................................................... 53
6.1 Specification.................................................................................................................................. 53
6.2 D6 Upgrade....................................................................................................................................57
6.3 Installing Options.......................................................................................................................... 59
6.4 Terms & Definitions...................................................................................................................... 60
6.5 Revision History............................................................................................................................64

D6 User Manual
2
Thank you for choosing our product!
This User Manual is designed to show you how to use this video processor quickly and
make use of all the features. Please read all directions and instructions carefully before
using this product.
Declarations
FCC/Warranty
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the user will be responsible for correcting any interference.
Guarantee and Compensation
RGBlink provides a guarantee relating to perfect manufacturing as part of the legally
stipulated terms of guarantee. On receipt, the purchaser must immediately inspect all
delivered goods for damage incurred during transport, as well as for material and
manufacturing faults. RGBlink must be informed immediately in writing of any complains.
The period of guarantee begins on the date of transfer of risks, in the case of special systems
and software on the date of commissioning, at latest 30 days after the transfer of risks. In the
event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its
own discretion within an appropriate period. If this measure proves to be impossible or
unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the
contract. All other claims, in particular those relating to compensation for direct or indirect
damage, and also damage attributed to the operation of software as well as to other service
provided by RGBlink, being a component of the system or independent service, will be deemed
invalid provided the damage is not proven to be attributed to the absence of properties
guaranteed in writing or due to the intent or gross negligence or part of RGBlink.
If the purchaser or a third party carries out modifications or repairs on goods delivered by
RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned
operated incorrectly or if, after the transfer of risks, the goods are subject to influences not
agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. Not
included in the guarantee coverage are system failures which are attributed to programs or
special electronic circuitry provided by the purchaser, e.g. interfaces. Normal wear as well as
normal maintenance are not subject to the guarantee provided by RGBlink either.
The environmental conditions as well as the servicing and maintenance regulations specified in
this manual must be complied with by the customer.

D6 User Manual
3
Operators Safety Summary
The general safety information in this summary is for operating personnel.
Do Not Remove Covers or Panels
There are no user-serviceable parts within the unit. Removal of the top cover will expose
dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate the
unit without the cover installed.
Power Source
This product is intended to operate from a power source that will not apply more than 230 volts
rms between the supply conductors or between both supply conductor and ground. A protective
ground connection by way of grounding conductor in the power cord is essential for safe
operation.
Grounding the Product
This product is grounded through the grounding conductor of the power cord. To avoid electrical
shock, plug the power cord into a properly wired receptacle before connecting to the product
input or output terminals. A protective-ground connection by way of the grounding conductor in
the power cord is essential for safe operation.
Use the Proper Power Cord
Use only the power cord and connector specified for your product. Use only a power cord that is
in good condition. Refer cord and connector changes to qualified service personnel.
Use the Proper Fuse
To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating
characteristics. Refer fuse replacement to qualified service personnel.
Do Not Operate in Explosive Atmospheres
To avoid explosion, do not operate this product in an explosive atmosphere.
Installation Safety Summary
Safety Precautions
For all D6 processor installation procedures, please observe the following important safety and
handling rules to avoid damage to yourself and the equipment.
To protect users from electric shock, ensure that the chassis connects to earth via the ground
wire provided in the AC power Cord.
The AC Socket-outlet should be installed near the equipment and be easily accessible.

D6 User Manual
4
Unpacking and Inspection
Before opening D6 processor shipping box, inspect it for damage. If you find any damage, notify
the shipping carrier immediately for all claims adjustments. As you open the box, compare its
contents against the packing slip. If you find any shortages, contact your sales representative.
Once you have removed all the components from their packaging and checked that all the listed
components are present, visually inspect the system to ensure there was no damage during
shipping. If there is damage, notify the shipping carrier immediately for all claims adjustments.
Site Preparation
The environment in which you install your D6 should be clean, properly lit, free from static, and
have adequate power, ventilation, and space for all components.

D6 User Manual
5
AC Power
Cord
Chapter 1 Your Product
1.1 In the Box
Note:
AC Power Cable supplied as standard according to destination market.
USB is contained on the Warranty/Registration Card. Please keep.
Certification
HDMI to DVI
Cable
Screw
Driver
Antistatic
Bag
DB9 to RJ11
Cable
SDI Cable
USB Cable
DVI Cable
HDMI Cable

D6 User Manual
6
1.2 Product Overview
D6 is a 4K2K@60Hz scaler & presentation switcher, supports any format 4K2K signal
input and output switching, D6 is based on fully optional input/output modules structure,
with different optional modules to build the different range application.
D6 can be set up with the local front panel or by remote controller with its remote control
interfaces, including Ethernet, USB and RS 232.
D6 local front panel is not only a dedicated normal local panel, but a removable remote
control panel. Operator can control the D6 by setting up this remote control panel with a
Cat5 cable only. The remote control panel is used to preview the input sources and PST
by its LCD display directly.
For the, remote controller, it is including the XPOSE runs on the desktop windows and
MAC OS, and the T1 or the 3rd party CMS, such as crestron and AMS.
With the set up and operation, D6 can be set to meet different application, by its different
working mode, including 4k Preview Switcher mode, Split mode and different presentation
mode.

D6 User Manual
7
1.2.1 Front Panel
Button Instruction
1~16
Input signal source button
and Number button use for
scale, crop, zoom and custom
setting
TP
Test pattern button
OUT1~OUT4
Main Output button
SCALE
Scale button
Multiview presets area
POS
Adjust
L1~L4
Layer Area
FS
Layer Mask
BG1&BG2
Background button
DIMME
R
Dimmer button
LOGO1 &
LOGO2
Logo button
FORMA
T
Choose Resolution or custom
Setting
LCD Panel
Show operation menu items
PRO
Program button
Knob
Confirm and adjust OLED
menu
PST
PST button
MENU
Menu and back button
PVW
Source Monitoring
ENTER
Confirmation button
BLACK
Black button
USB
Connector
USB Connector
FREEZE
Freeze Current
LOAD
Save the set up as the preset.
CUT
Quickly Transition Effects from PST
to PRO
SAVE
Loading the user preset
TAKE
Transition Effects from PST to PRO
DSK
Down streaming key
T-Bar
Transition Effects in any position

D6 User Manual
8
Menu Instruction
1
Input menu
10
Background
2
Output Menu
11
Blending
3
PVW Menu
12
Test Pattern
4
Program Menu
13
Language
5
PST Menu
14
View, including Save & Load Menu
6
Layer Mask
15
System
7
DSK Menu
16
Tech Support
8
OSD
17
Factory Reset
9
LOGO

D6 User Manual
9

D6 User Manual
10

D6 User Manual
11
1.2.2 Back Panel
Chassis Module Structure
1
4 input module slots, support SDI & 4K Input module
2
4 output module slots, support HDMI and SDI optional module
3
Communication Board
4
1 preview output card slot, including 2 HDMI output
5
Power module

D6 User Manual
12

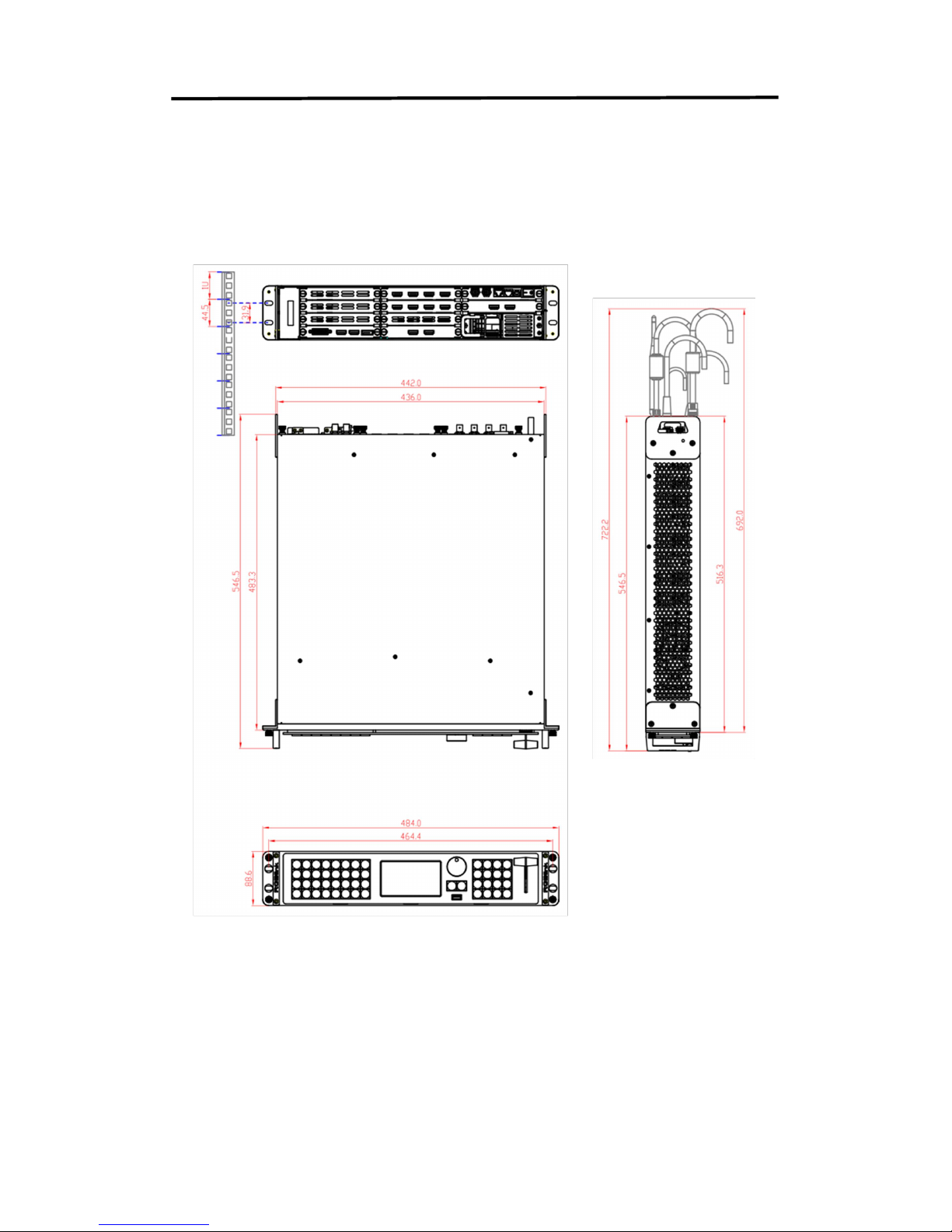

1.2.3 Dimension
Following is the dimension of D6 for your reference:

D6 User Manual
13
Chapter 2 Installing Your Product
2.1 Plugging in Signals
Connect signals to the product (ensure all devices are powered off first). Tighten
connector screws/locks where provided.Connect to XPOSE software by RS 232. RGBlink
provides a USB to RS 232 converter and the RS 232 to RJ11 cable for this connection, as
a standard accessories. Please check in the package for these two cables.
2.2 Plugging in Main Power
Connect IEC cable to device and plug into wall socket. Turn on power at wall socket.
2.3 Turning on Your D6
The device will enter to the boot interface, and OLED display will show as below,
completing initialization before loading last settings and input/output configuration.
On delivery, the output format is defaulted to 1920x1080@60.

D6 User Manual
14
Chapter 3 Using Your Product
3.1 XPOSE Operation
3.1.1 XPOSE Installation
Environment Requirements:
Processor: 1 GHz or above 32 bit or 64 bit processor
Memory: 2 GB or more
Graphics: Support DirectX 9 128M or above (open AERO effect)
Hard disk space: Above 16G (primary partitions, NTFS format)
Monitor: Resolution must be 1280 x720 pixel or above (it can not display normally if the resolution
is lower than 1280 x720)
Operating system: Windows 7 or above (full version, not Ghost version or compact version)
Double click icon, it will pop-up the installer language box, select the language, for
example, select “English”, and click “OK” to confirm.
Click “Next” to install:

D6 User Manual
15
Select “Browse...” to select the XPOSE software install location:
Note:
Click “Install”:
User should get the rights in “Roles
Management” when install the software to disk C
if the system is Windows 7 or above.

D6 User Manual
16
During installation, it will pop up the window of Install Shield Wizard for Virtual Com port:
If user install the XPOSE software for the first time, click “Next”

D6 User Manual
17
Then click “Install", as shown in the figure below:
Click “Finish” and complete the installation, as shown in the figure below:
Select”Finish”and the device driver is completed installed，：

D6 User Manual
18
Click “Finish” and is ready to run the XPOSE :
3.2 XPOSE Controls D6
3.2.1 Login in XPOSE
Double click the icon on the desktop. Login interface will pop up, the user name is
Admin, and there is no password, select “D6”, and enter the XPOSE by clicking “Login”.

D6 User Manual
19
If user want to change the language to Chinese, click the drop down arrow after “Language” and
select “Chinese”, as shown in the figure below, then click “Login” to enter into the XPOSE.
XPOSE management software interface is shown as follows:
