RGC 3721050 User manual

REIMANN & GEORGER CORPORATION P/N 6112191
Marine Products Division 12/4/2023
VLS 24VDC DIRECT DRIVE
INSTRUCTIONS
(Applies to P/N’s 3721050, 3721070, 3721090)

1
Contents
SAFETY ........................................................................................................................................................ 2
1.1. INTRODUCTION ............................................................................................................................................... 2
1.2. INSTALLATION SAFETY ................................................................................................................................ 2
1.3. OPERATING SAFETY ...................................................................................................................................... 2
1.3.1. General ............................................................................................................................................................ 2
1.3.2. Safety When Raising the Boat ........................................................................................................................ 2
1.3.3. Safety When Lowering the Boat ..................................................................................................................... 3
SPECIFICATIONS ....................................................................................................................................... 3
2.1. TECHNICAL DATA .......................................................................................................................................... 3
INSTALLATION AND SETUP ................................................................................................................... 4
3.1. PRE-INSTALLATION CHECKS ....................................................................................................................... 4
3.2. WINCH INPUT COUPLER INSTALLATION .................................................................................................. 5
3.3. MOUNTING THE DIRECT DRIVE .................................................................................................................. 5
3.4. COUPLER ALIGNMENT AND GAP ADJUSTMENT ..................................................................................... 6
3.5. VL DIRECT DRIVE HD GUARD / SWITCH INSTALLATION ................................................................... 7
3.6. VL REMOTE CONTROL MOUNTING ............................................................................................................ 8
3.6.1. PRE-INSTALLATION CHECKS .................................................................................................................. 8
3.6.2. MOUNTING REMOTE CONTROL PANEL ................................................................................................ 8
3.7. CONNECTING THE BATTERIES .................................................................................................................... 9
OPERATION............................................................................................................................................... 10
4.1. TESTING WINCH OPERATION .................................................................................................................... 10
4.2. RAISING AND LOWERING THE PLATFORM ............................................................................................ 10
4.3. REMOTE CONTROL INFORMATION .......................................................................................................... 10
4.3.1. Reprogramming Your Remote Control ......................................................................................................... 10
TROUBLESHOOTING .............................................................................................................................. 11
PARTS LISTS ............................................................................................................................................. 12
6.1. 3721050 24V VLDD RC 6K ASSEMBLY / R18LT WINCH .......................................................................... 12
6.1.1. 3711250 VLDDRC ASSY 24V 6K R18 3/4HP 15:1GR GEM SQ LEG ...................................................... 12
6.1.2. 3707025 VLDD R18LT COVER ASSY KIT ............................................................................................... 12
6.2. 3721070 24V VLDD RC 8K ASSEMBLY / R18LT WINCH .......................................................................... 13
6.2.1. 3711251 VLDDRC ASSY 24V 8K R18 1HP 15:1GR GEM SQ LEG ......................................................... 13
6.2.2. 3707025 VLDD R18LT COVER ASSY KIT ............................................................................................... 13

2
SAFETY
1.1. INTRODUCTION
Your Reimann & Georger Corporation Marine Products 24V DC direct power drive mounts to the winch side to lift your boat out of
the water. The exclusive right angle design minimizes the intrusion of dock space.
Your power drive is well-designed and well-built. However, like any other equipment, it can malfunction or become hazardous in the
hands of an inexperienced and/or untrained user. Therefore, read this manual and your related vertical lift manual thoroughly before
operating the power drive to provide maximum safety for all operating personnel, and to get the maximum benefit from your
equipment.
WARNING:
AN INSTALLED POWER DRIVE BECOMES AN INTEGRAL PART OF THE ASSOCIATED
VERTICAL LIFT. THEREFORE, DO NOT USE THE POWER DRIVE TO OPERATE THE LIFT
WITHOUT STUDYING BOTH THIS MANUAL AND THE VERTICAL LIFT MANUAL.
FAILURE TO DO THIS CAN LEAD TO MISUSE OF THE DRIVE AND/OR LIFT WITH
RESULTING DAMAGE AND/OR PERSONAL INJURY. CONTACT YOUR RGC MARINE
DEALER IF YOU HAVE ANY QUESTIONS.
1.2. INSTALLATION SAFETY
1. Insure that all bolts and nuts are fastened securely prior to operation.
1.3. OPERATING SAFETY
1.3.1. General
1. Before allowing anyone to operate the drive, be sure they fully understand the proper operating procedure and the use of all
controls and connections for both the drive and the lift.
2. Completely remove any user or dealer installed locking devices before operating the lift.
3. Do not operate the drive and the lift under the influence of drugs, alcohol, or medication.
4. Do not exceed the rated maximum capacity of the lift. This can damage the drive, lift and/or boat with resulting serious personal
injury.
5. Never allow anyone into the boat when suspended in the lift.
6. Never operate the drive without the cover installed over the drive assembly. Keep fingers and clothing clear of all moving parts
of the lift and direct drive.
7. Do not attempt to make any adjustments on the lift or drive during operation.
8. Disconnect and lock out the power source when not using the drive to prevent unauthorized use.
9. Never use the drive installation or any part of the lift to hang or store any auxiliary equipment such as boating hardware.
1.3.2. Safety When Raising the Boat
1. The power drive shaft must turn clockwise to raise the platform. The brake pawl on the winch must click, indicating that the
brake is operative.
2. Do not try to raise the boat beyond the maximum lifting height of the platform. This can cause lift and drive damage.
WARNING:
IF THE POWER DRIVE SHAFT TURNS COUNTERCLOCKWISE TO RAISE THE PLATFORM,
YOU HAVE REEVED THE WINCH INCORRECTLY. THE DRIVE WILL IMMEDIATELY
ENCOUNTER STRONG RESISTANCE WHICH CAN DAMAGE THE DRIVE AND/OR WINCH
AND BREAK THE CABLE.

3
1.3.3. Safety When Lowering the Boat
1. The power drive shaft must turn counter-clockwise when lowering the platform.
WARNING:
IF THE DRIVE SHAFT TURNS CLOCKWISE TO LOWER THE PLATFORM, YOU HAVE
REEVED THE WINCH INCORRECTLY. THE BRAKE PAWL WILL NOT BE EFFECTIVE
WHICH CAN CAUSE AN UNCONTROLLED SPIN-DOWN OR “FREEWHEEL” OF THE
WINCH SHAFT. IF FREEWHEELING OCCURS, NEVER TRY TO STOP IT.
2. Counter-clockwise rotation of the power drive shaft allows the self-activating brake mechanism to provide a controlled lowering
of the platform.
WARNING:
NEVER RELEASE THE BRAKE PAWL OF THE WINCH. THIS CAN TRIGGER AN
UNCONTROLLED SPIN-DOWN OR “FREEWHEEL” OF THE WINCH SHAFT.
3. Do not continue lowering the platform after the boat floats freely. Excessive slack in winch cable may cause binding.
SPECIFICATIONS
2.1. TECHNICAL DATA
VLDD ASSY #
MOTOR
GEAR REDUCER
3721050*
3/4 HP 24VDC
15:1
3721070*
1 HP 24VDC
15:1
3721090*
1 HP 24VDC
20:1
*Remote control units, come with 2 remote transmitters.
2.1 MOTOR SPECIFICATIONS
HORSEPOWER: 3/4 HP 1 HP
VOLTAGE: 24 VDC 24 VDC
RPM: 1800 1800
SERVICE FACTOR: 1.0 1.0
AMPS: 29 39
Two group 27 deep cycle batteries are recommended for powering the drive unit. The control box power cable connecting to the
battery cable and the battery cable are each 10 feet long.

4
INSTALLATION AND SETUP
3.1. PRE-INSTALLATION CHECKS
1. Ensure that the vertical lift has been properly installed as described in your lift manual.
2. Check that the winch is reeved properly. Do not install the direct drive until the winch is reeved as described in your lift manual.
3. Do not install or use the drive if it shows any signs of damage.
4. Do not weld or otherwise modify any part of the drive assembly. Such alterations may damage the drive and/or the winch and void
the associated warranties.
5. Two people will be needed to mount this drive onto the winch. The following precautions must be observed when lifting any part
of this equipment:
a. Be sure of your footing.
b. Bend your knees and lift with your legs.
c. Hold the equipment section close to your body when lifting.
WARNING:
THE DRIVE IS TOO HEAVY TO SAFELY MOUNT IT SINGLE-HANDEDLY. ATTEMPTING THIS
CAN CAUSE EQUIPMENT DAMAGE AND/OR PERSONAL INJURY.
6. Tools required for installing this drive. Two 3/4” wrenches, two 9/16” wrenches, one 1/2” wrench, one 9/32” wrench, one 3/4” deep
wall socket with ratchet, and one #2 Phillips screwdriver.
WARNING:
DO NOT REMOVE THE BRASS WASHER FROM THE WINCH INPUT SHAFT. THE SPRING
LOADED WINCH BRAKE PAWL MUST REMAIN ENGAGED DURING THE POWER DRIVE
INSTALLATION.

5
3.2. WINCH INPUT COUPLER INSTALLATION
1. Screw the acme coupler (8) clockwise onto the winch input shaft. The coupler must pinch the brass washer and brake sprocket
tightly against the friction disk.
2. Verify that the brake pawl is engaged on the brake sprocket.
3. Install 1/2” washer (E) onto the end of the input shaft.
4. Install and securely fasten the 1/2”-20 locknut (G) onto input shaft. Tighten using a 3/4” socket/ratchet.

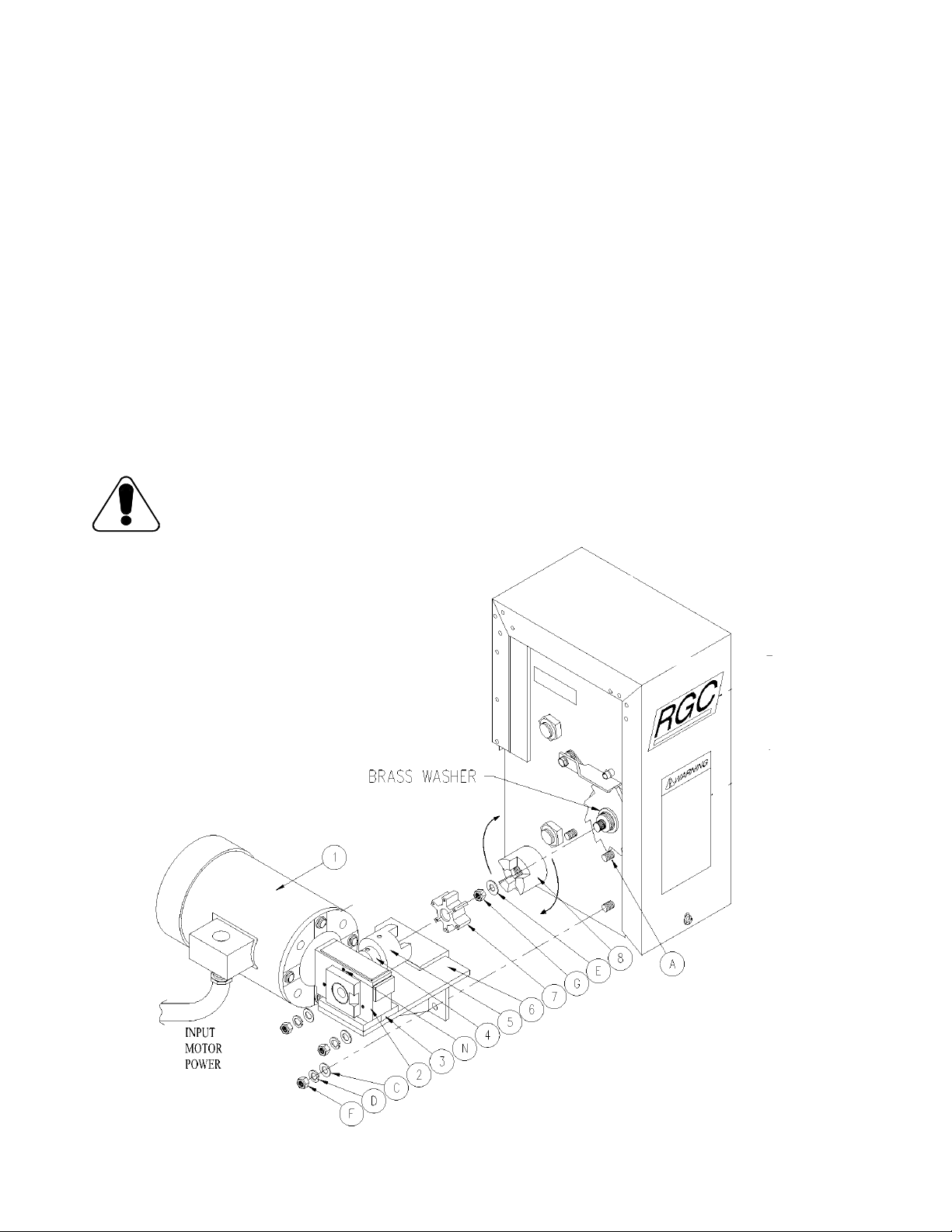

3.3. MOUNTING THE DIRECT DRIVE
1. Unpack the drive by removing the 5/16 X 3/4 bolt from the mounting plate to which the motor is attached. Do not remove the 1/4
X 1” bolt from the wood frame.
2. Remove the 3/8 X 1” bolt, nut, and washer, from the direct drive mounting bracket.
3. Remove from the winch, the 3/8 nuts and washers off both the 3/8 X 1” carriage bolt that is pressed into the winch wall, and the 3/8
X 6-1/2” bolt that holds the winch wall spacer. DO NOT remove either of the 3/8 bolts.
4. Insert rubber spider onto direct drive coupler.
5. Make sure the fingers on the direct drive and winch shaft couplers are properly aligned. You may need to turn the winch shaft
coupler to do this.
6. Lightly moisten rubber spider with water to assist in mating the couplers.
7. Mount the direct drive assembly to the winch as shown. Re-install and hand tighten washers and nuts (removed in step 3) onto the
winch supplied bolts. Install the 3/8 x 1” bolt (A), washers (C & D), and nut (F) supplied with mounting bracket, from the inside of
winch wall to outside of mounting bracket. Lightly fasten.
8. Position mounting bracket for best alignment, then securely fasten all 3/8 nuts.
9. Using a 9/32” wrench, remove from reducer the installed 1/8” shipping plug (red pipe plug). Install the vent plug (N) supplied with
unit.
CAUTION:
FAILURE TO INSTALL SUPPLIED VENT PLUG COULD, IN PROLONGED USE, BLOW THE
REDUCER SEALS AND VOID YOUR WARRANTY.

6

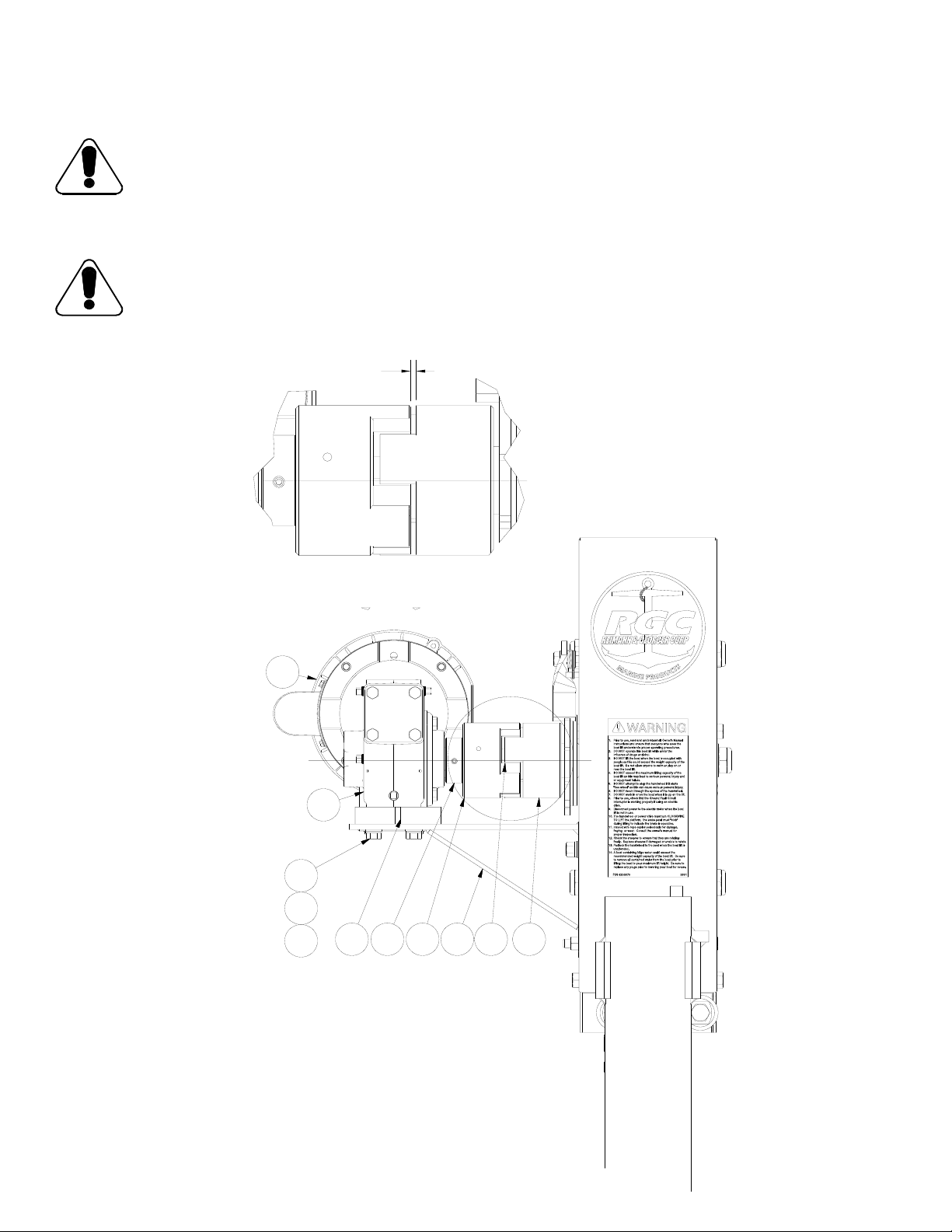

3.4. COUPLER ALIGNMENT AND GAP ADJUSTMENT
1. The centerline of the direct drive coupler must align with the centerline of the winch input shaft coupler. Align if necessary, by
loosening the gearbox mounting bolts and positioning the gearbox as required. Re-tighten bolts.
CAUTION:
FAILURE TO PROPERLY ALIGN THESE CENTER LINES CAN CAUSE EQUIPMENT DAMAGE.
2. With the winch shaft coupler threaded tightly against the brake sprocket, measure the gap between the couplers. A 1/8” gap is
required to insure proper brake operation.
CAUTION:
FAILURE TO MAKE THE PROPER GAP ADJUSTMENT CAN CAUSE EQUIPMENT DAMAGE.
3. If adjustments are required to achieve this 1/8” gap, use the supplied Allen wrenches to loosen the coupler and shaft collar set
screws on the gearbox output shaft. Make the proper adjustments to this coupler position.
8
7
56
4
3
2
1
B
C
D
1/8 GAP
4. Tighten all hardware after making the adjustments.
5. There will be a 1/8” gap between the two couplers when the platform is raised. This gap closes when the brake is released and the
platform is lowered.

7
3.5. VL DIRECT DRIVE HD GUARD / SWITCH INSTALLATION
1. Using a #2 Phillips screwdriver, fasten the long winch mounting bracket (15) to the backside of guard (14) with 1/4 -20 x 1/2
machine screws (K).
2. Fasten short mounting bracket (13) to the gearbox mounting plate with 1/4 -20 x 1” machine screws.
3. Remove screws from backside of winch guard and install VL Direct Drive Guard over drive assembly. Fasten guard to bracket on
gearbox mounting plate with 1/4 -20 x 1/2 machine screws. Fasten guard to winch using previously removed screws.
WARNING:
NEVER OPERATE THE DIRECT DRIVE WITHOUT THE MOTOR GUARD IN PLACE. THIS
CAN CAUSE SERIOUS PERSONAL INJURY.
14
15
K
K
K
13

8
3.6. VL REMOTE CONTROL MOUNTING
3.6.1. PRE-INSTALLATION CHECKS
1. Do not use the RC panel if it shows any signs of damage.
2. Proper function of the RC system is dependent upon several factors that are not controllable by the manufacturer. RGC is not
responsible for the following:
•Improper installation
•Low battery
•Natural occurrences
•Use other than intended
•Location of panel, receiver, or transmitter too close to interfering metal objects
•Multiple RC panels within 15 feet of each other
•Use in area with external interference such as radio, cell phone and TV towers, or a natural magnetic field
•Blocked or shielded antenna
•Other transmitter interference from cell phones, cordless phones, wireless systems, CB and mobil transmitters, computer
and industrial equipment, electric motors, even fluorescent lights
3.6.2. MOUNTING REMOTE CONTROL PANEL
1. Mount the remote control to the winch mounting bracket as shown.
2. Attach limit switch bracket assembly onto vertical leg A, approximately 10 inches below “Maximum Lift Height” decal. Fasten
securely.
3. Reposition limit switch bracket assembly after maximum lift height has been established for your boat and lift installation. Your
maximum lift height must include rough water conditions and rising water tables.
H

9

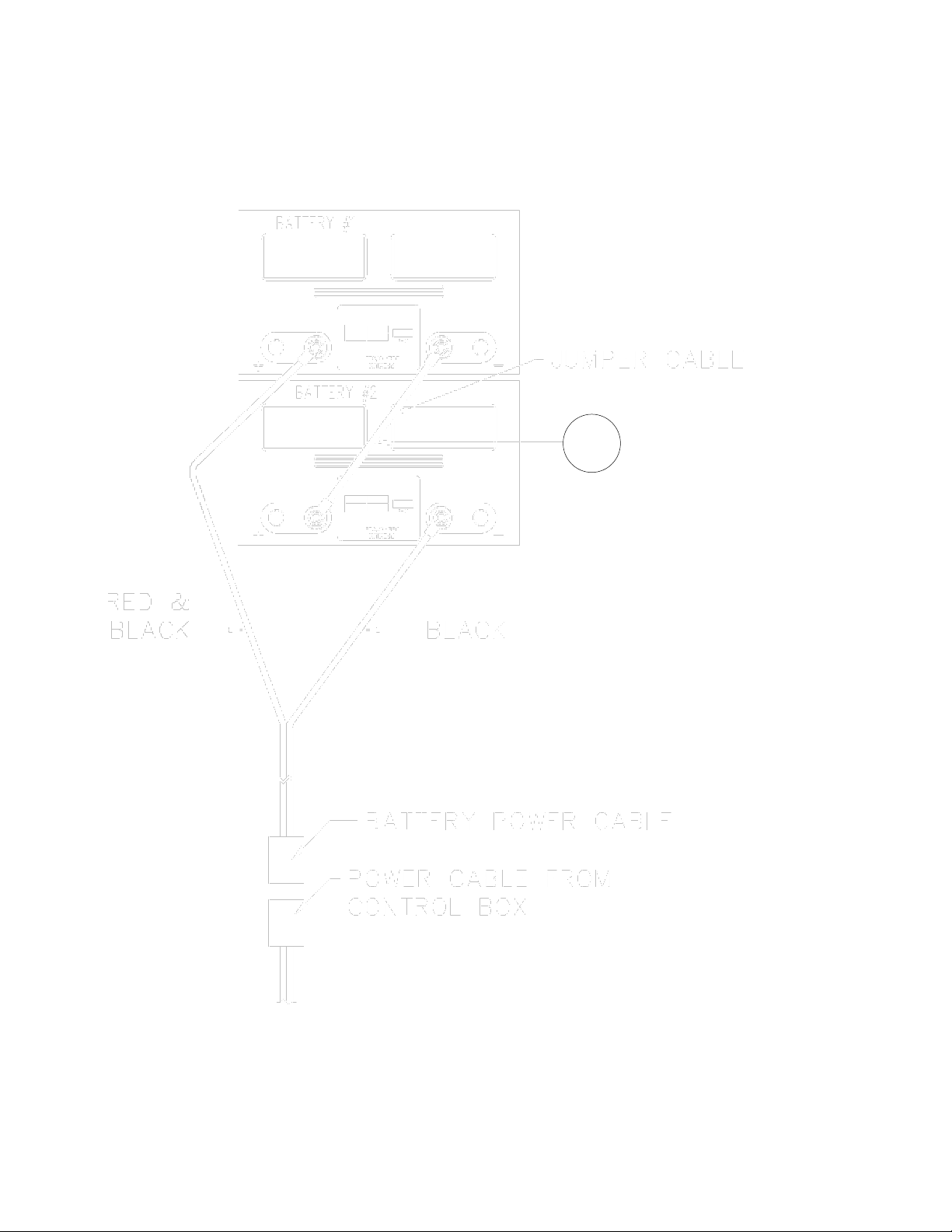

3.7. CONNECTING THE BATTERIES
1. Connect the battery cable to the two batteries by connecting the black & red wire to the positive terminal of battery #1, and the
black wire to the negative terminal of battery #2. Connect jumper cable (12) to the negative terminal of battery #1 and to the
positive terminal of battery #2. If the cable end does not fit battery stud, rotate jumper cable end for end.
2. Connect the power cable from the control box to the battery power cable.
3. Use plastic zip ties and any other supplies needed to tie off the electrical cords. This protects the cords from abrasion, sharp
objects, water contact and other harm.
15
