RHINO 1540 User manual

© 2007Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
1540
Rear Mounted Blade
Rev 03-07 Part No. 697P

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentially hazardous. Thereisno substitute foracautious, safe-minded operatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statement foundin this Manual. Fill out the Warranty RegistrationForm
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2007 Alamo Group Inc.
Formaximumsafetyandtoguaranteeoptimumproductreliability,alwaysuse
genuineServis-RhinoParts. Theuseofinferiorreplacementpartsmaycause
prematureorcatastrophicfailurewhichcouldresultinseriousinjuryordeath.
Directany questionsregarding partsto:
Thefollowinginstructionsareofferedtohelpeliminateneedlessdelayanderrorinprocessing
purchaseorders for theequipment in thissection.
1. ThePartsSectionispreparedinlogicalsequenceandgroupingofpartsthatbelongtothe
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locatethe partsandquantities required.
2. The Purchase Order must include the name and address of the person or organization
orderingtheparts,whoshouldbecharged,andifpossible,theserialnumberofthemachine
forwhich the partsare ordered.
3. ThePurchaseOrdermustclearlylistthequantityofeachpart,thecompleteandcorrectpart
number (be sure to include all periods), and the basic name of the part.
4. TheManufacturerreservestherighttosubstitutepartswhereapplicable.
5. Somepartsareunlisteditemswhicharespecialproductionitemsnotnormallystockedand
are subject to special handling. Request a quotation for such parts before sending a
PurchaseOrder.
6. TheManufacturerreservestherighttochangepriceswithoutpriornotice.
NOTE: Pleaserefer toThe SafetySection inthe front of this Manual for theproper
PartNumberwhenorderingReplacementSafetyDecals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

PART NAME INDEX
ADJUST LINK ASSEMBLY ............................................................................................................................................ 27, 28
ADJUSTING LINK - MANUAL........................................................................................................................................ 29, 30
BRACKET ASSY - CONTROL VALVE................................................................................................................................. 23
CONTROL VALVE ASSEMBLY........................................................................................................................................... 24
CYLINDER - HYDRAULIC............................................................................................................... 14, 15, 17, 18, 19, 20, 21
CYLINDER - HYDRAULIC Rev 03-07.................................................................................................................................. 13
GAUGE WHEEL..................................................................................................................................................................... 7
GENERAL ASSEMBLY Rev 03-07 ........................................................................................................................................ 4
HOSE CONNECTIONS - HYDRAULIC................................................................................................................................ 22
HYDRAULIC CYLINDER...................................................................................................................................................... 16
HYDRAULIC CYLINDER Rev 03-05.................................................................................................................................... 12
REAR BLADE HYDRAULICS............................................................................................................................................... 11
SAFETY DECAL SHEETS ................................................................................................................................................... 31
SKID SHOE ASSEMBLY S/N 16152-CURRENT Rev 03-07................................................................................................. 6
VALVE SELECTOR.............................................................................................................................................................. 26
WHEEL HUB..................................................................................................................................................................... 9, 10
WHEEL HUB ASSEMBLY...................................................................................................................................................... 8
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 3

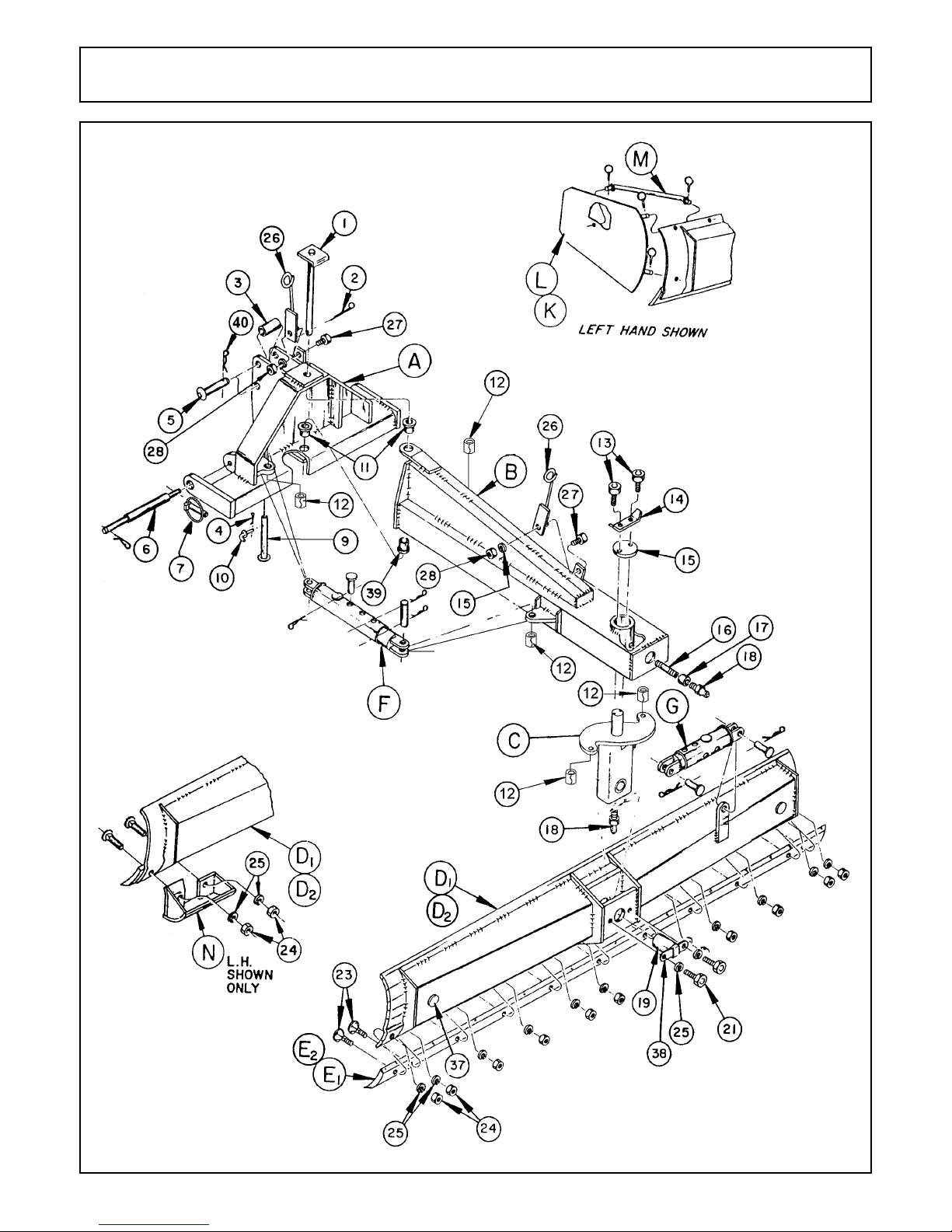

GENERAL ASSEMBLY Rev 03-07
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 4

GENERAL ASSEMBLY Rev 03-07
ITEM PART NO. QTY. DESCRIPTION
A 00775902 1 A-FRAME
B 00775901 1 MAINFRAME
C 00775900 1 MOLDBOARD CARRIER
D1 69104B1 1 MOLDBOARD (8’)
D2 69137B1 1 MOLDBOARD (10)
E1 441111 1 GRADER BLADE (8’)
E2 691372 1 GRADER BLADE (10’)
F B69115A 2 ADJUSTING LINK
G B69116B 1 ADJUSTING LINK
K 0691360200 1 END PLATE (RIGHT)
L 0691360300 1 END PLATE (LEFT)
M 0691360100 2 BRACE, END PLATE
0691360001 8 LOCKING PIN
N 0691380000 2 SKID SHOE W/HARDWARE (16151 -BELOW)
2A3101120 4 PLOW BOLT (16151-BELOW)
1 69105A 1 PIVOT PIN
2 164024 1 COTTER PIN
3 69113 1 TOP LINK BUSHING
4 2192 1 HAIR PIN COTTER
5 69109 1 TOP LINK PIN
6 69141 2 WRIST PIN
7 2196 4 PIN, LYNCH
9 0831140000 1 SUPPORT STAND
10 69112 1 LOCK PIN
11 6910114 2 BUSHING
12 0692010009 5 BUSHING (FOR USE WITH ALL 1" PIN CYLINDERS AND ADJ. LINKS)
02969064 5 BUSHING (FOR USE WITH ALL 1 1/4" PIN CYLINDERS)
13 02929200 2 BOLT
14 69117 1 RETAINER CLIP
15 69110 1 KING PIN CAP
16 19C1220 1 NIPPLE
17 8639-2 1 COUPLING
18 4720 2 GREASE FITTING
19 69106 1 MOLDBOARD PIVOT PIN WELDMENT
21 02675800 2 BOLT
23 2A3101116 10* PLOW BOLT
24 00010400 10* NUT (16151 -BELOW)
25 00010300 12* LOCKWASHER (16151 -BELOW)
26 0691320000 2 HYDRAULIC HOSE BRACKET ASSY
27 02675800 2 BOLT
28 00695100 2 NUT, TOPLOCK
38 69111 1 RETAINER
39 0831010008 1 BUSHING LOWER MAINFRAME
40 0691360001 1 PIN, KLICK 1/4 X 1-3/4
* Add 2 for 10’ Moldboard
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 5

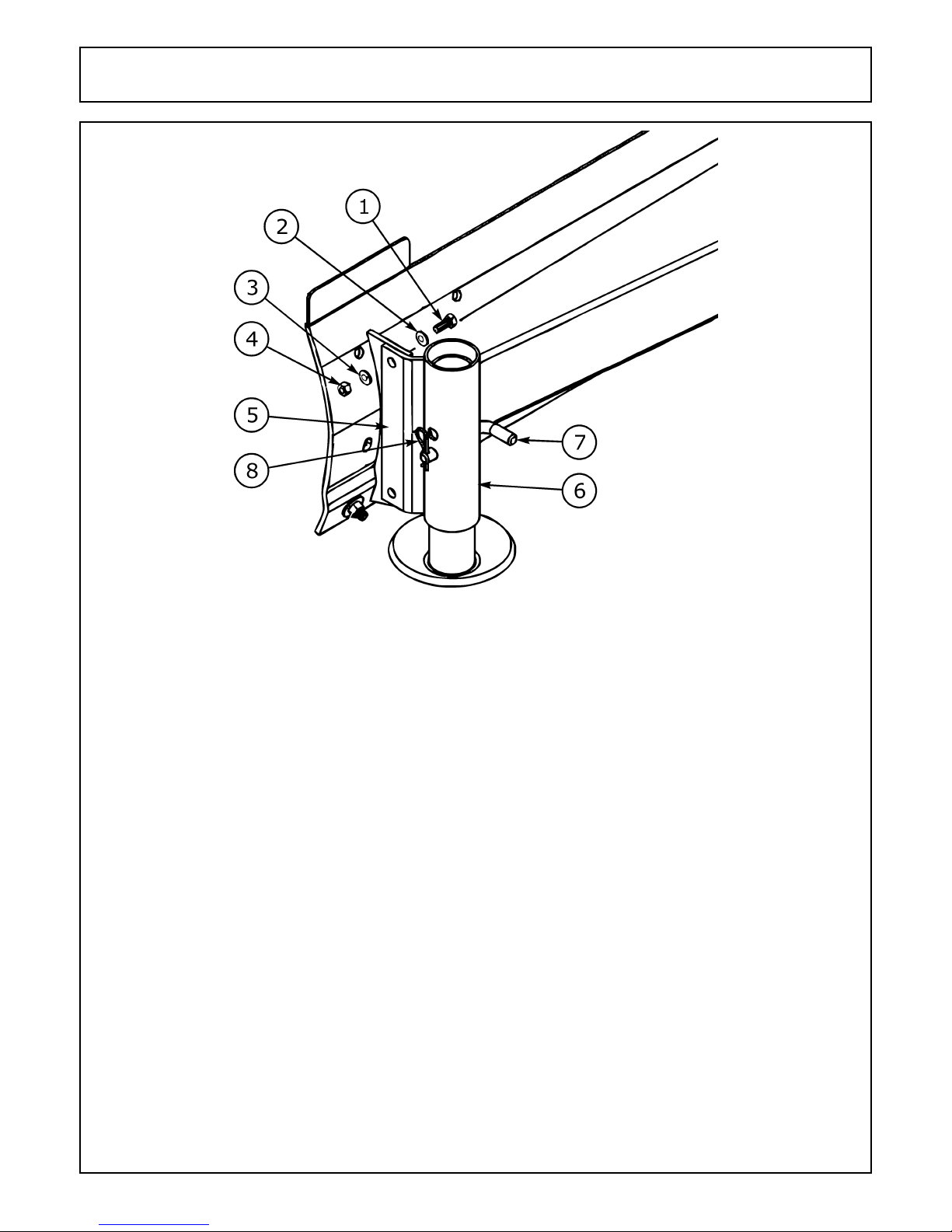

SKID SHOE ASSEMBLY S/N 16152-CURRENT Rev 03-07
ITEM PART NO. QTY. DESCRIPTION
1 02845500 4 HEXB 5/8 NC 2 PL5
2 00001401 4 WASHER
3 00010300 4 LOCKWASHER 5/8
4 00010400 4 NUT 5/8 NC HEX PL
5 00768246 2 WELDMENT, SKID SHOE MOUNT
6 00768243 2 WELDMENT, SKID SHOE
7 00768249 2 PIN, ADJUSTING
8 37107B13 2 CLIP-X HAIR PIN
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 6

GAUGE WHEEL
ITEM PART NO. QTY. DESCRIPTION
1 0831080200 1 BEAM WELDMENT W/BUSHINGS
2 0691500100 1 TAILWHEEL BRACKET
3 00758151 1 CASTER WLDMT (SINGLE SPINDLE)
00758554 1 CASTER WLDMT (DOUBLE SPINDLE)
4 4720 1 GREASE FITTING
5 7A121080 3 BOLT
6 00003901 2 LOCKWASHER
7 5B12100 2 NUT
8 5GR12100 1 LOCKNUT
9 165024 1 COTTER PIN (SINGLE SPINDLE)
10 301042 2 THRUST WASHER
11 54103A11 2 PIVOT BUSHING
12 59113 1 WASHER
13 5JRA2460 1 NUT (DOUBLE SPINDLE)
14 00756489 1 HUB ASSEMBLY
15 00025200 1 PUNCTURE PROOF TIRE & WHEEL
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 7

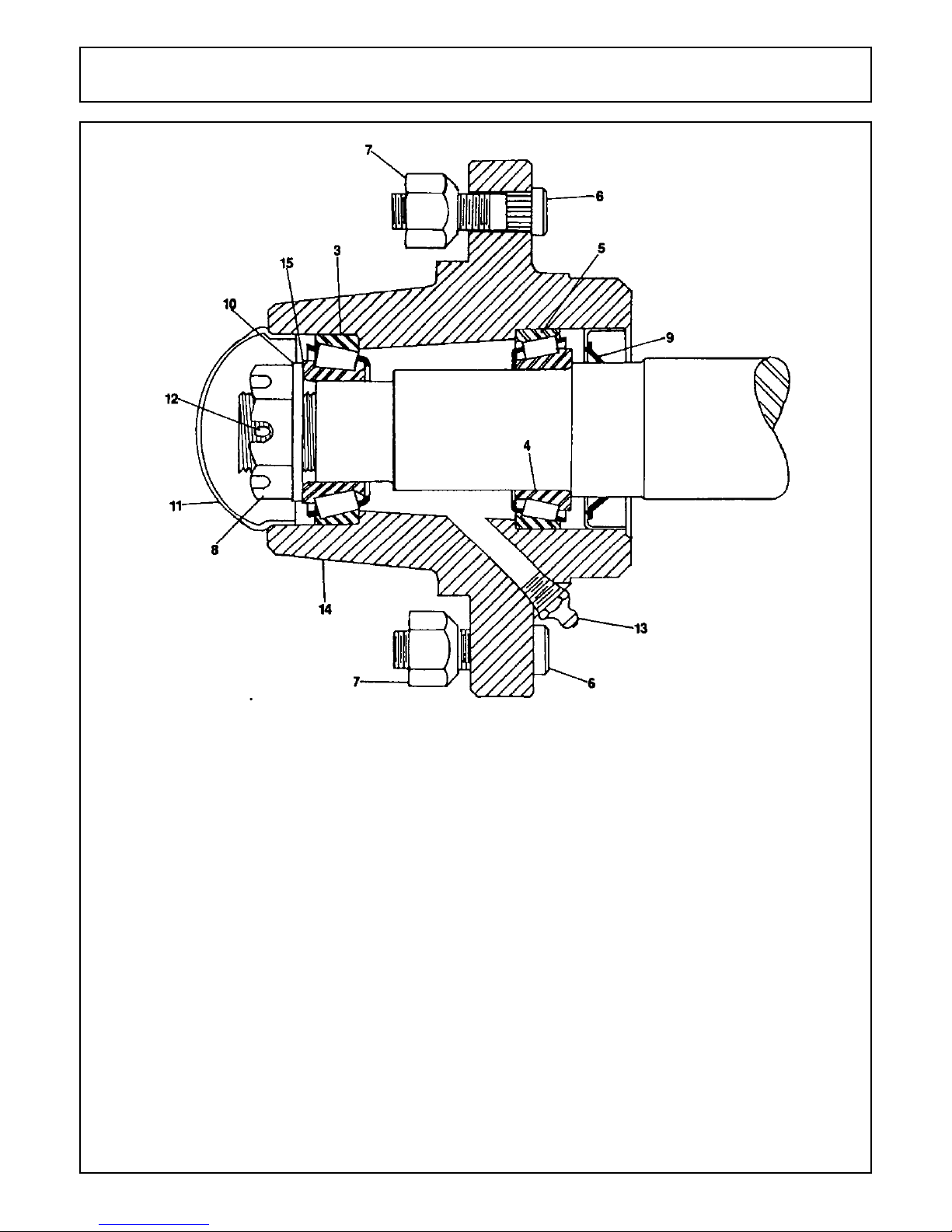

WHEEL HUB ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
3 00756576 1 BEARING CUP(OUTSIDE)
4 00750434 1 BEARING CONE(INSIDE)
5 00756577 1 BEARING CUP(INSIDE)
6 00756488 5 STUD BOLT
7 00750614 5 NUT
8 00756490 1 BEARING ADJUSTING NUT
9 00756491 1 SEAL
10 00756493 1 WASHER
11 00756492 1 DUST CAP
12 00000400 1 COTTER PIN
13 00003500 1 GREASE FITTING
14 00756000 1 WHEEL HUB
15 0371242102 1 BEARING CONE(OUTSIDE)
16 00756001 ref SPINDLE, SINGLE WHEEL
00756489 ref HUB(W/CUPS & STUDS)
00756528 ref WHEEL HUB ACCESSORY KIT
17 00756002 ref SPINDLE, DUAL WHEEL
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 8

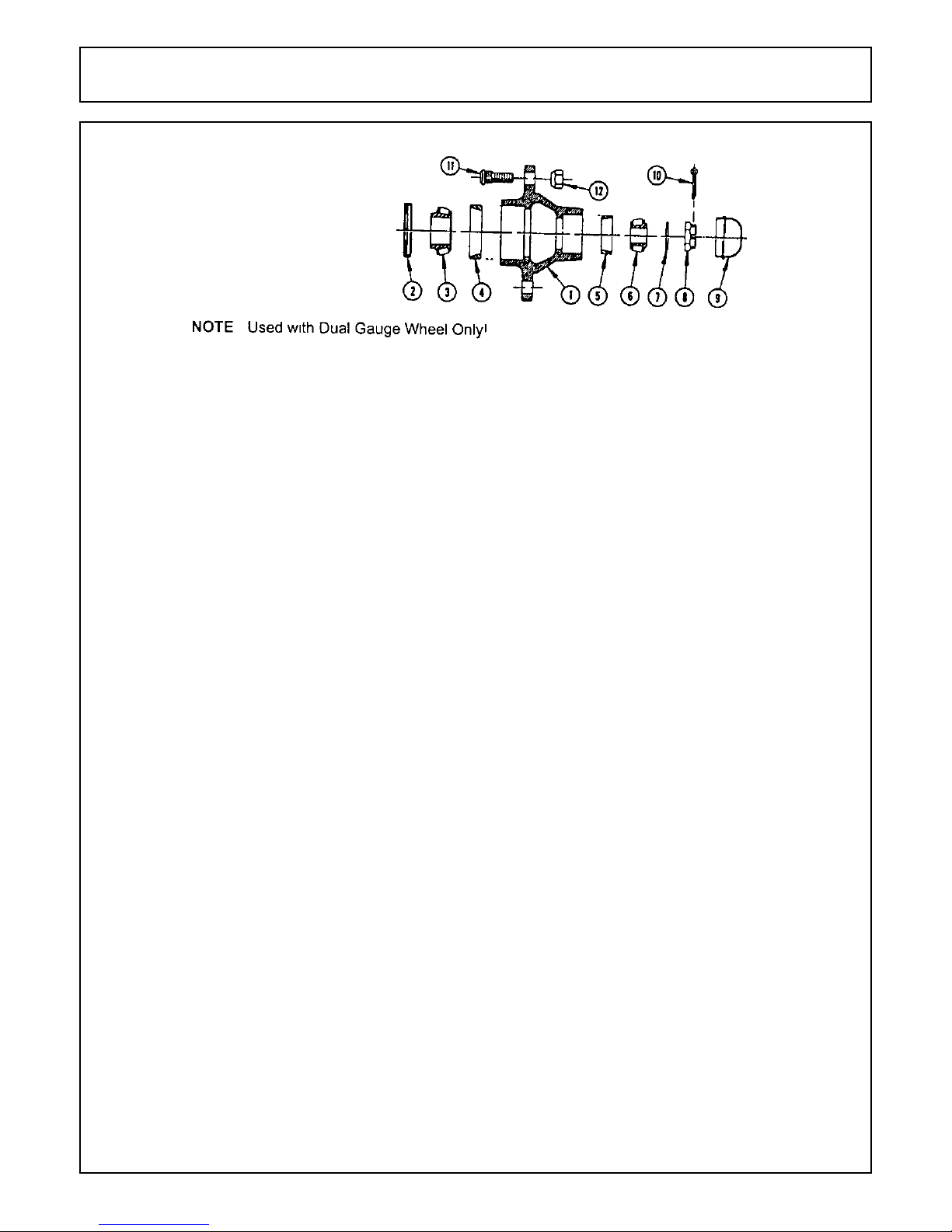

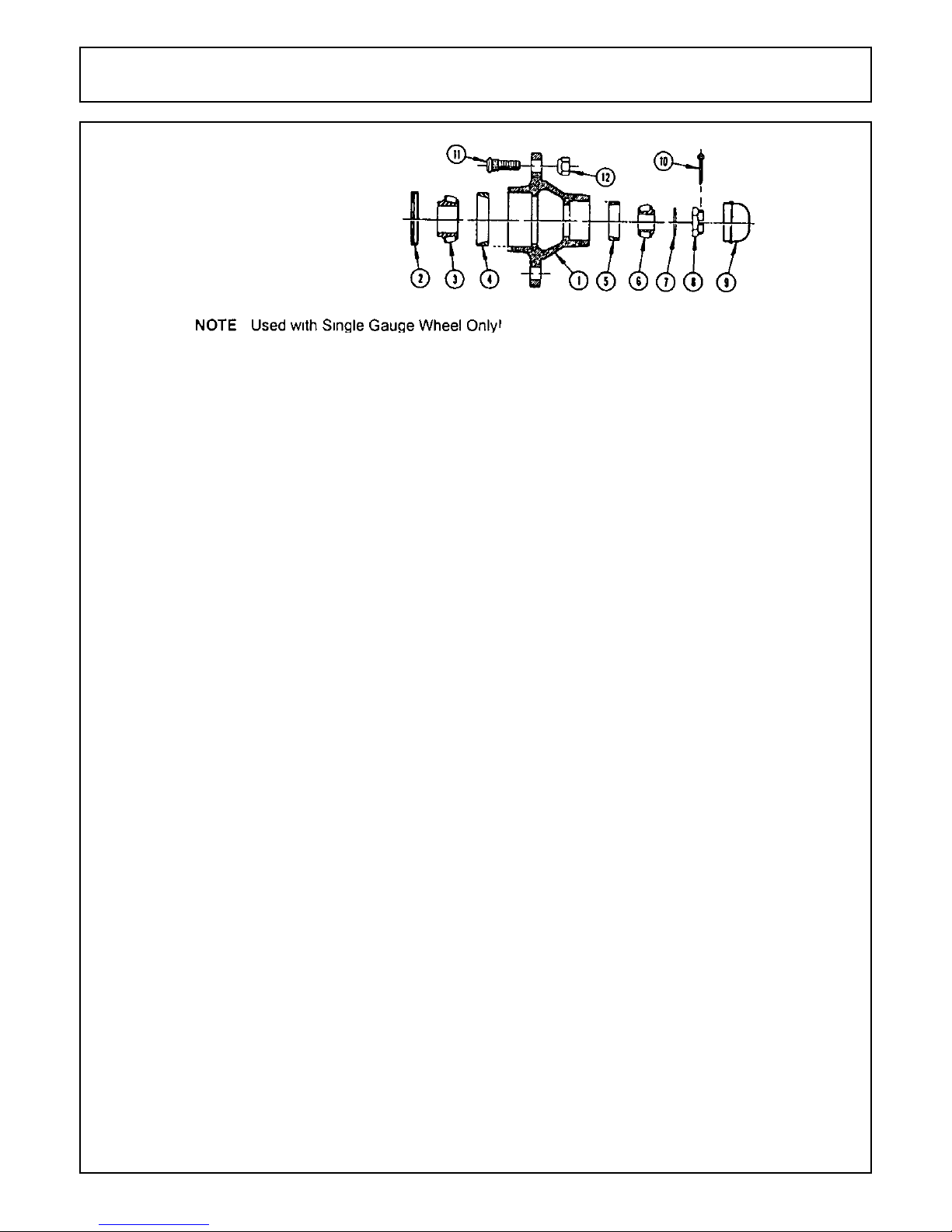

WHEEL HUB
ITEM PART NO. QTY. DESCRIPTION
1 371247SA 1 HUB ASSEMBLY (INCL. 4, 5, 11, 12)
2 371247F 1 GREASE SEAL
3 371247E 1 BEARING CONE (INNER)
4 371247D 1 BEARING CUP (INNER)
5 W-33 1 BEARING CUP (OUTER)
6 371247C 1 BEARING CONE (OUTER)
7 371247H 1 SPINDLE WASHER
8 371247J 1 SPINDLE NUT
9 1621/2010 1 COTTER PIN
10 371247G 1 HUB CAP
11 PT115 5 LUG BOLT
12 PT116 5 LUGNUT
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 9

WHEEL HUB
ITEM PART NO. QTY. DESCRIPTION
1 PT110SA 1 HUB ASSEMBLY (INCL. 4, 5, 11, 12)
2 PT106 1 GREASE SEAL
3 PT107 1 BEARING CONE (INNER)
4 W-33 1 BEARING CUP (INNER)
5 PT108 1 BEARING CUP (OUTER)
6 PT109 1 BEARING CONE (OUTER)
7 PT113A 1 SPINDLE WASHER
8 PT114 1 SPINDLE NUT
9 1621/2010 1 COTTER PIN
10 PT112 1 HUB CAP
11 PT115 5 LUG BOLT
12 PT116 5 LUGNUT
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 10

REAR BLADE HYDRAULICS
ITEM PART NO. QTY 8’ QTY 10’ DESCRIPTION
1 0691600000B 1 2 HYDRAULIC CYLINDER
2 00759715A 1 1 HYDRAULIC CYLINDER
3 691302 2 4 HOSE
4 651132 2 2 HOSE
5 11565 2 4 ELBOW ADAPTER
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 11

HYDRAULIC CYLINDER Rev 03-05
ITEM PART NO. QTY. DESCRIPTION
0691600000B - HYDRAULIC CYLINDER
1 00775917 1 HEX NUT
2 49045 4 COTTER PIN
3 0116000 1 SETSCREW
4 00775918 4 BUSHING
5 00775916 2 CYLINDER PIN
6 00775915 1 CYLINDER HEAD
7 00778736 1 CYLINDER TUBE
8 00775913 1 CYLINDER ROD
9 00775912 1 ROD CLEVIS
10 00775911 1 PISTON
11 ¤* 1 SEAL HALLITE
12 ¤* 1 SEAL WIPER ROD
13 ¤* 1 SEAL
14 ¤* 1 O-RING
15 ¤* 1 SEAL PSP PISTON RING
16 ¤* 1 WEAR RING
17 00775908 4 HYDRAULIC HOSE
* 02975527 Ref SEAL KIT
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 12

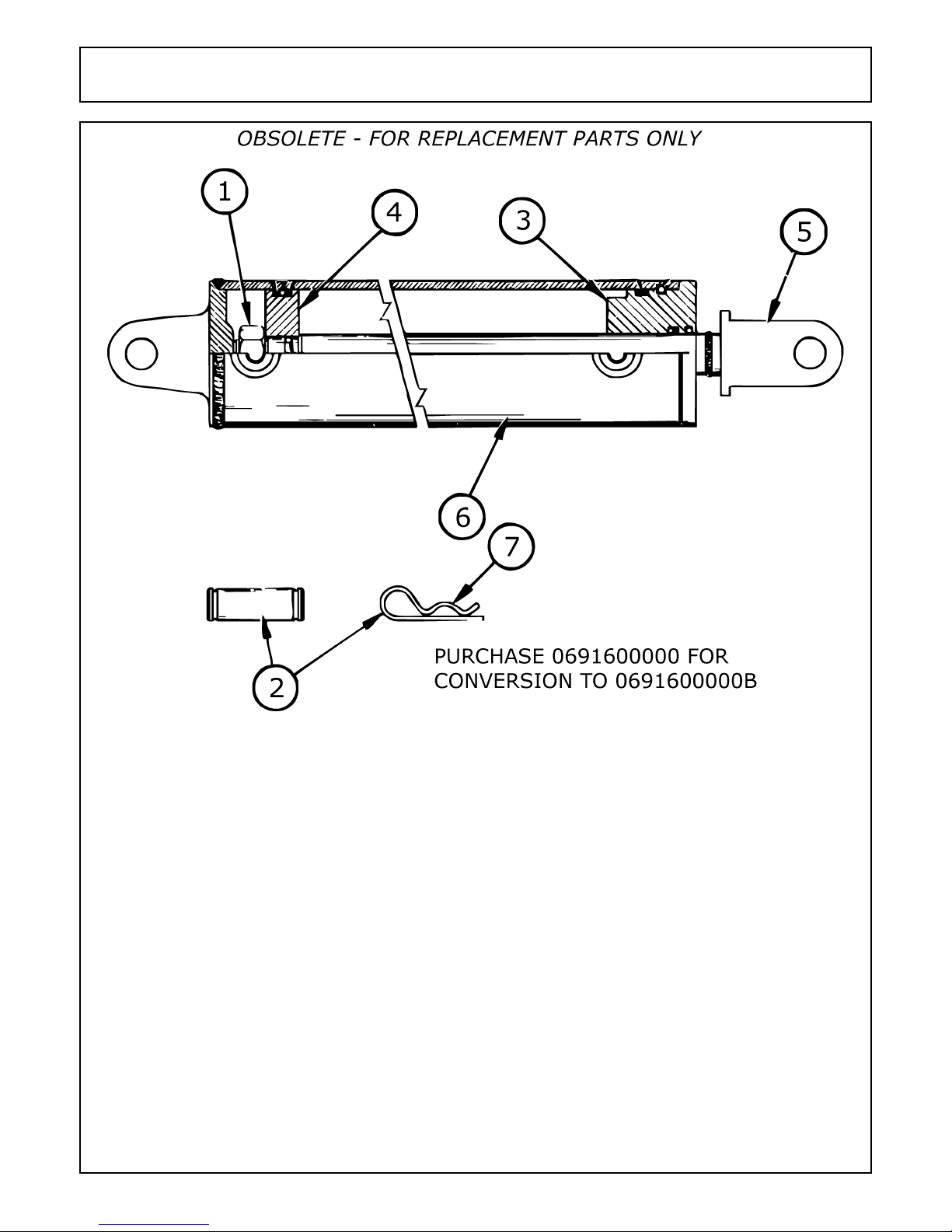

CYLINDER - HYDRAULIC Rev 03-07
ITEM PART NO. QTY. DESCRIPTION
0691600000 - CYLINDER HYD 16 STX4BOREX2ROD
1 0781070002 1 LOCKNUT PISTON
2 0781070013 2 PIN, CLEVIS
3 0781070014 1 HEAD
4 0781070015 1 PISTON
5 0691600016 1 ROD,PISTON W/CLEVIS
6 0691000100 1 BARREL,HYD.CYLINDER
7 37107B13 2 CLIP-X HAIR PIN
0781070200 - SEAL KIT
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 13

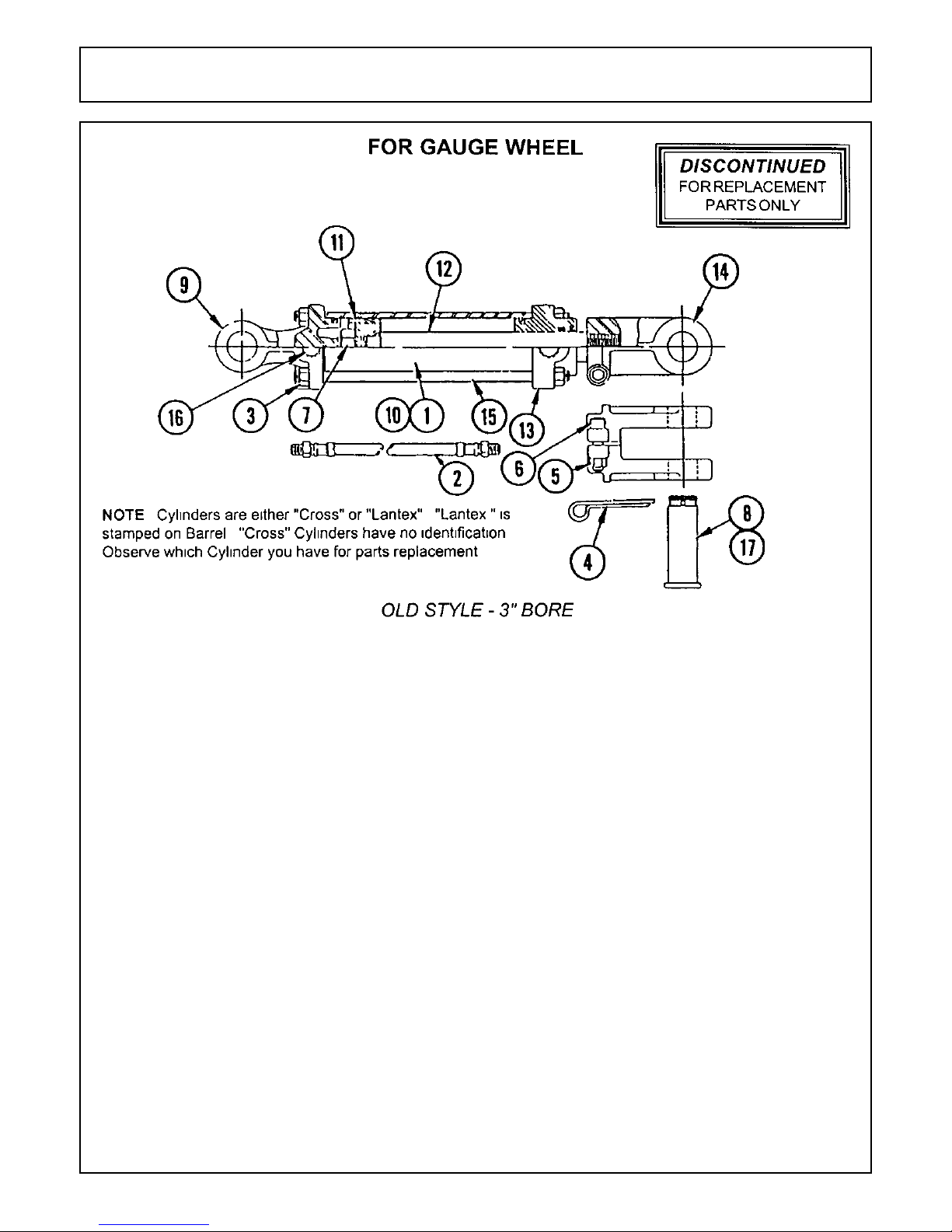

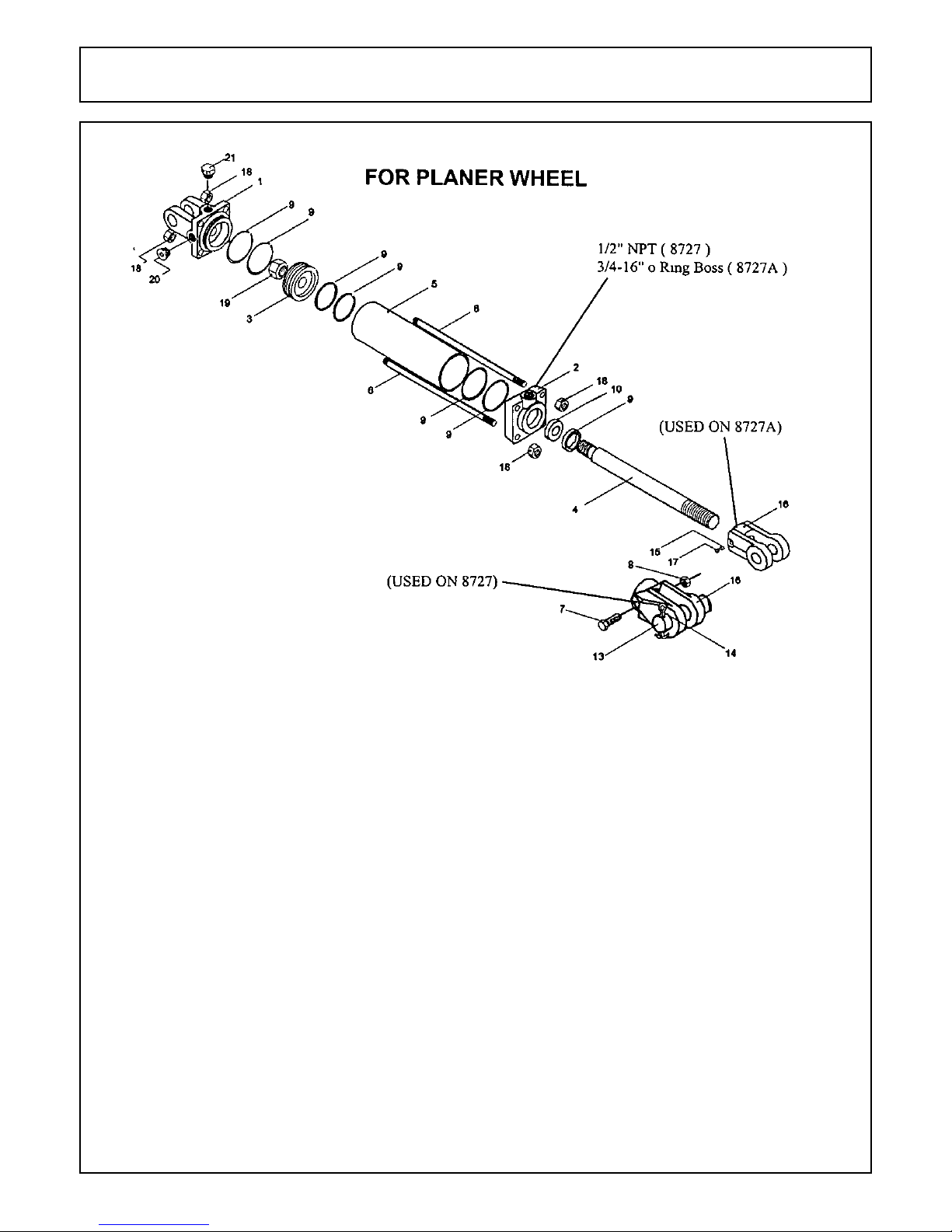

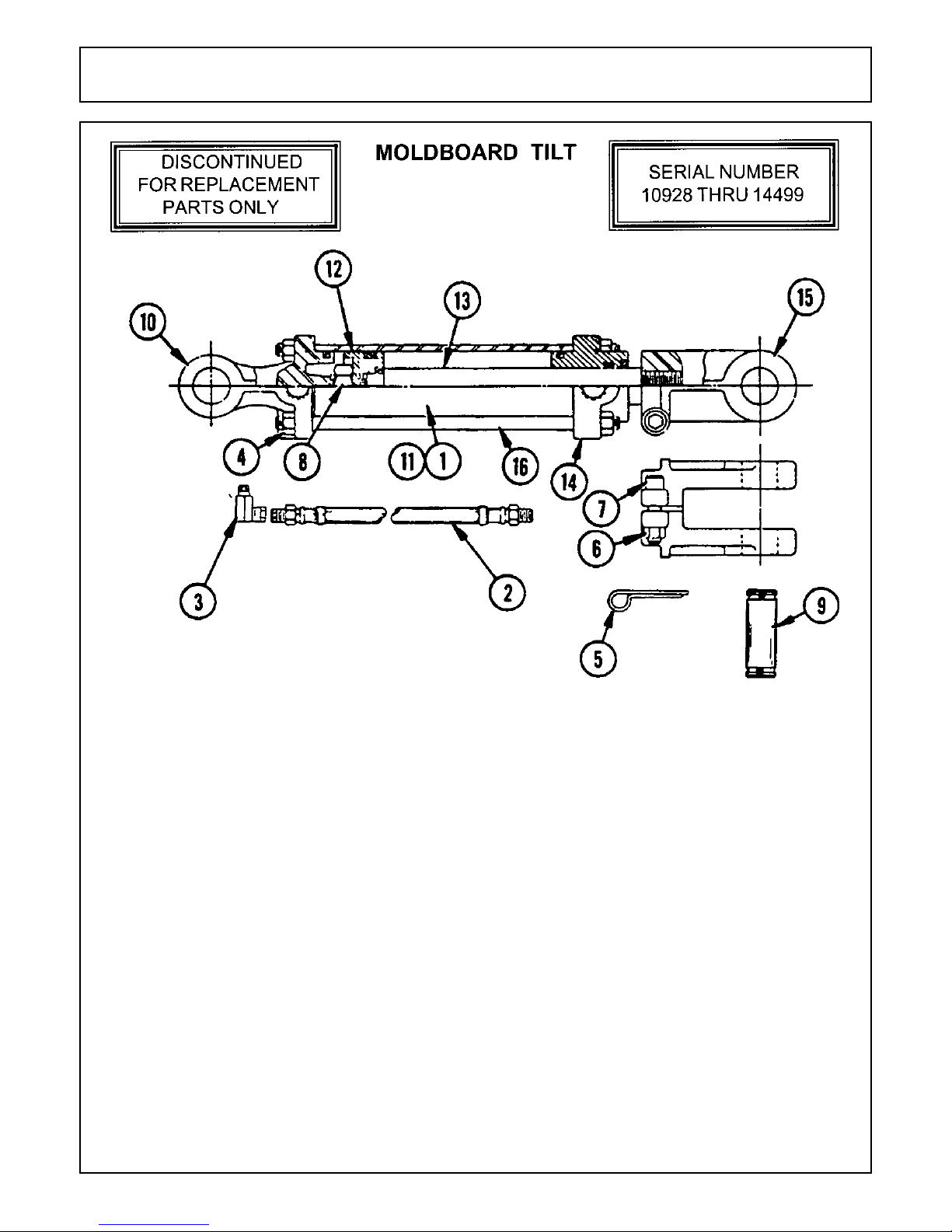

CYLINDER - HYDRAULIC
ITEM PART NO. QTY. DESCRIPTION
8727 COMPLETE ASSEMBLY
1 8755 1 CAP
2 8757 1 HEAD
3 00760671 1 PISTON
4 8753 1 PISTON ROD
5 8752 1 TUBE
6 8756 4 TIE ROD
7 00023100 1 BOLT
8 00013901 1 HEX NUT
9 8763 1 SEAL KIT
13 8354 2 ref PIVOT PIN
14 00606000 2 ref COTTER PIN
16 8754 1 OUTER CLEVIS
18 02031800 8 TIE ROD NUT
19 4675 1 PISTON NUT
21 7339 1 BREATHER PLUG
651132 2 ref HYDRAULIC HOSE (NOT SHOWN)
94514 2 ref SWIVEL FITTING 90 DEGREES (NOT SHOWN)
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 14

CYLINDER - HYDRAULIC
ITEM PART NO. QTY. DESCRIPTION
8727A COMPLETE ASSEMBLY
1 00774729 1 CLEVIS CAP
2 00774734 1 ROD CAP
3 00774730 1 PISTON
4 00774753 1 ROD
5 3047111 1 TUBE
6 3047112 4 TIE ROD
15 3047117 1 NYLON THREAD PROTECTOR
16 1917140 1 ROD CLEVIS
17 00774740 1 SET SCREW
18 33003H5C 8 TIE ROD NUT
19 5JRC12160 1 PISTON NUT
20 1917132 1 PORT PLUG
21 2417154 1 BREATHER
00774700 1* SEALANT (NOT SHOWN)
651132 2* HOSE (NOT SHOWN)
94514 2* ELBOW (NOT SHOWN)
0652141311 2* ADAPTER (NOT SHOWN)
8354 2* PIN (NOT SHOWN)
00606000 2* COTTER PIN (NOT SHOWN)
* 00774760 - SEAL KIT FOR 8727A CYL
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 15

HYDRAULIC CYLINDER
ITEM PART NO. QTY. DESCRIPTION
00759715A - HYDRAULIC CYLINDER
1 2417158 1 CLEVIS CAP
2 2417157 1 ROD CAP
3 00774733 1 PISTON
4 00774736 1 ROD
5 00774747 1 TUBE
6 00774741 4 TIE ROD
7 ¤* 2 END CAP O-RING
8 ¤* 1 ROD, WIPER SEAL
9 ¤* 1 ROD, DUST SEAL
10 ¤* 1 PISTON SEAL
11 ¤* 2 PISTON WEAR RING
12 ¤* 2 END CAP BACKUP WASHERS
13 3047117 1 NYLON THREAD PROTECTOR
14 1917140 1 ROD CLEVIS
15 00774740 1 SET SCREW
16 33005H5C 8 TIE ROD NUT
17 5JRC16140 1 PISTON NUT
18 1917132 1 PORT PLUG
19 11565 2 ELBOW, FITTING 90DEGREES
20 651132 2 HYDRAULIC HOSE
* 02975527 - SEAL KIT
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 16

CYLINDER - HYDRAULIC
ITEM PART NO. QTY. DESCRIPTION
1 00759715 1 HYDRAULIC CYLINDER W/CLEVIS PIN
2 691302 1 HYDRAULIC HOSE
3 94514 1 STREET ELBOW
4 4376 8 NUT
5 7343 2 COTTER PIN
6 4378 1 NUT
7 4427 1 BOLT
8 4675 1 PISTON NUT
9 8354 2 CLEVIS PIN
10 8784 1 CAP
11 00759734 1 TUBE
12 00759733 1 PISTON
13 00759735 1 PISTON ROD
14 8786 1 HEAD
15 8754 1 FEMALE CLEVIS
16 00759736 4 TIE ROD
00759737 1 SEAL KIT
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 17

CYLINDER - HYDRAULIC
ITEM PART NO. QTY. DESCRIPTION
1 B69135A 1 COMPLETE CYLINDER W/CLEVIS PIN
2 651132 2 HYDRAULIC HOSE
3 00001200 8 HEX NUT
4 00000400 2 COTTER PIN
5 5B6160 1 HEX NUT
6 7E62414 1 BOLT
7 691351 1 PISTON NUT
8 8354 1 CLEVIS PIN
9 69135A2 1 CLEVIS BASE
10 6913010 1 TUBE
11 6913011 1 PISTON
12 6913012 1 ROD
691353 1 ROD
13 6913013 1 HEAD
69130A13 1 HEAD
14 691354 1 CLEVIS, PISTON ROD
15 6913014 4 TIE ROD
69130A14 4 TIE ROD
16 00749508 1 PIPE PLUG
17 691356 1 CLEVIS BASE PIN
1540 (Oct-01)S/N 14500 -Current Rev 03-07
©2007 Alamo Group Inc. Parts Section – 18
