RHINO TW27 User manual

© 2018 Alamo Group Inc.
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part
of the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is not
with the equipment, contact your dealer or Servis-Rhino (800-
446-5158) to obtain a Free copy before operating the equipment.
TW27
ROTARY MOWER
Rev02-8Part No. 00792448P

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsarepotentiallyhazardous. Thereisnosubstituteforacautious,safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand thecomplete Warranty Statementfound in thisManual. Fill out theWarranty Registration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2017Alamo Group Inc.
For maximum safety and to guarantee optimum product reliability, always use
genuine Servis-Rhino Parts. The use of inferior replacement parts may cause
premature or catastrophic failure which could result in serious injury or death.
Direct any questions regarding parts to:
The following instructions are offered to help eliminate needless delay and error in processing
purchase orders for the equipment in this section.
1. The Parts Section is prepared in logical sequence and grouping of parts that belong to
the basic machine featured in this manual. Part Numbers and Descriptions are given to help
locate the parts and quantities required.
2. The Purchase Order must include the name and address of the person or organization
ordering the parts, who should be charged, and if possible, the serial number of the machine
for which the parts are ordered.
3. The Purchase Order must clearly list the quantity of each part, the complete and correct
part number (be sure to include all periods), and the basic name of the part.
4. The Manufacturer reserves the right to substitute parts where applicable.
5. Some parts are unlisted items which are special production items not normally stocked
and are subject to special handling. Request a quotation for such parts before sending a
Purchase Order.
6. The Manufacturer reserves the right to change prices without prior notice.
NOTE: Please refer to The Safety Section in the front of this Manual for the proper
Part Number when ordering Replacement Safety Decals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

PART NAME INDEX
A-FRAME ASSEMBLY................................................................................................................................................................................ 4
BLADE CARRIER ASSEMBLY.................................................................................................................................................................. 6
CASTER FORK ASSEMBLY....................................................................................................................................................................... 7
CHAINGUARD ASSEMBLY....................................................................................................................................................................... 9
DECALS - TW27......................................................................................................................................................................................... 10
DEFLECTOR ASSEMBLY......................................................................................................................................................................... 11
DRIVELINE ASSEMBLY - 00792450....................................................................................................................................................... 12
DUAL TAILWHEEL ASSEMBLY - OPTIONAL..................................................................................................................................... 14
GEARBOX ASSEMBLY 00791057........................................................................................................................................................... 16
GEARBOX SHIELD & MOUNTING HARDWARE................................................................................................................................. 18
SINGLE TAILWHEEL ASSEMBLY......................................................................................................................................................... 19
SLIPCLUTCH - 00779512........................................................................................................................................................................... 20
©2018 Alamo Group Inc. Parts Section -3
TW27

A-FRAME ASSEMBLY
©2018 Alamo Group Inc. Parts Section -4
TW27

A-FRAME ASSEMBLY
Continued...
22 317014C 1
23 5JRC1680 1
24 9216 2
25 69141 2
HHCS 3/4 NC 2-1/4 PL5
NUT TOPLOCK 1 NC PL
WASHER, 1 STRUCTURAL
PIN, HITCH CAT II & III
©2018 Alamo Group Inc. Parts Section -5
TW27
ITEM PART NO. QTY.
0 00792401 1
1 00703200 2
2 00780663 1
3 00780869 2
5 00792278 2
7 00792425 1
8 00792426 1
9 00792427 1
10 00792428 2
11 00792429 1
12 00792430 1
13 00792431 2
15 02030700 1
18 02959391 8
19 02971324 1
20 03200782 1
21 2196 2
DESCRIPTION
WDMT, TW27 DECK
HHCS 5/8-11 NC 2-3/4 PL5
FLAT, DRIVELINE STORAGE
NUT, FLG 5/8NC SPIRALOCK PL5
BUSHING, .88 OD X .64 ID X 1.19
ARM, FRONT A-FRAME-LH
ARM, FRONT A-FRAME-RH
PLATE, RAMP LINK
BAR, BRACE
BUSHING, 1.25 X 1.06 X 2.53
BUSHING, 1.00 X .78 X 2.53
BUSHING, SHOULDER-3/4"
HHCS 1/2-13NC X 1-1/4 GR5 PL
HHCS 3/4 NC 2-1/4 PL5
NUT LOCK FLG 1/2-13 NC PL
HEXB 1 NC 5 PL5
CLIP (LYNCH PIN), 13/32 DIA.

BLADE CARRIER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00792422 1 WDMT, TW27 BLADE CARRIER
2 5JRC16140 2 LOCKNUT TLM 1 NF PL
3 9216 2 WASHER, 1 STRUCTURAL
4 8251 2 BOLT, BLADE SPECIAL
5 00780803P 2 BLADE, CCW FAN, 28-1/4" CTR-TIP
6 00780809 4 WASHER, 1-9/64" SQ HOLE X 2" OD
7 8264 1 KIT, BLADE BOLT (CONTAINS ITEMS 2 & 4)
©2018 Alamo Group Inc. Parts Section -6
TW27

BLANK INTENTIONALLY
©2017Alamo Group Inc.
TW27

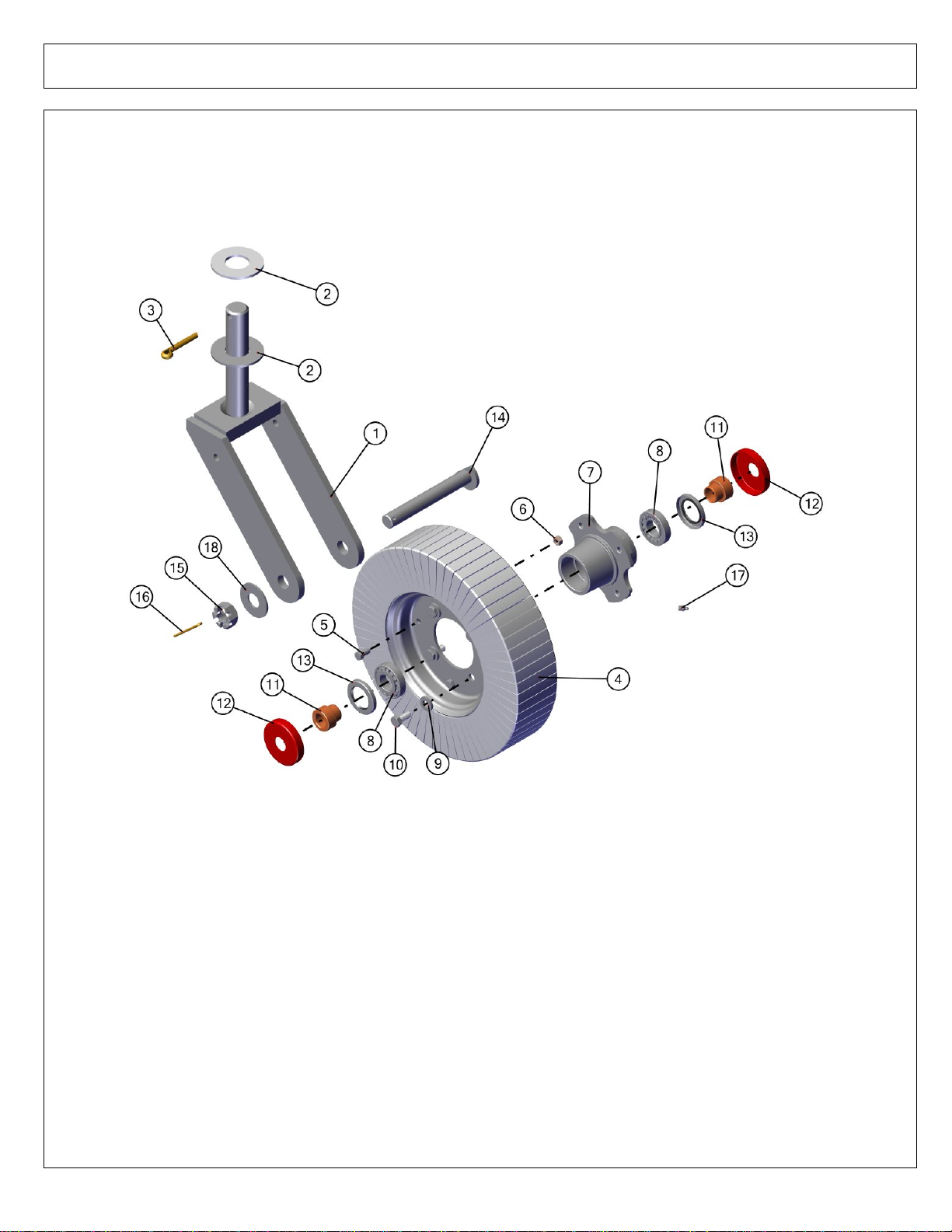

CASTER FORK ASSEMBLY
©2018 Alamo Group Inc. Parts Section -7
TW27

CASTER FORK ASSEMBLY
Continued...
18 02822500 1
19 00780238 1
20 00785915 1
FLATWASHER 1 PL STD
ASY,TAILWHEEL HUB (INCLUDES ITEMS 7 & 20)
KIT,BEARING & SEAL (INCLUDES ITEMS 7-13 & 17)
©2018 Alamo Group Inc. Parts Section -8
TW27
ITEM PART NO. QTY.
1 0585020210A 1
2 15B2400 2
3 00758899 1
4 373024H 1
5 00002000 4
6 00771824 4
7 00780238 1
8 00776213 2
9 00759635 4
10 00762462 4
11 00772017 2
12 00772018 2
13 00776219 2
14 00776211 1
15 00776212 1
16 00771620 1
17 00772082 1
DESCRIPTION
WDMT,CASTER FORK
FLATWASHER,SAE 1-1/2 NAR-PLT
PIN COTTER 3/8X2-1/2 PL EXTEND
ASY,WHEEL & TIRE
HHCS 3/8 NC X 3/4 PL5
LOCKNUT TLMF 3/8 NC PLB
TAILWHEEL HUB ASSEMBLY
SET,BEARING CONE & CUP
WASHER, FLAT 1/2 HARDND NONPLT
HEXB METRIC 12-P1.75- 25MM PL5
BUSHING SPINDLE STEP
DUST CAP
SEAL,DBL LIP OIL 40 X 62 X 8
BOLT,SPINDLE M24 X 2 X 192 OAL
NUT SPINDLE M24 X 2
PIN,COTTER 5/32X2-1/2 PL
NIPPLE, GREASE M8X1

CHAINGUARD ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00792442 2 ASY, FRONT CHAINGUARD-TW27
2 00792444 1 ASY, REAR CHAINGUARD-TW27
3 4528 18 NUT, HEX LOCK 3/8-16 FLG WHIZ
4 000644 18 CARB-3/8 NCK 1-1/4 PL5
©2018 Alamo Group Inc. Parts Section -9
TW27

DECALS - TW27
ITEM PART NO. QTY. DESCRIPTION
1 00792435 1 DECAL, MODEL TW27-1 S/N
2 2738332 2 DECAL, RED OBLONG REFLECTOR
3 00781352 1 SHEET, SINGLE SPINDLE SAFETY DECAL
3.1 D614 2 DECAL, DANGER THROWN OBJECT
3.2 D388 1 DECAL, DANGER PTO
3.3 00756004 1 DECAL, DANGER-SHIELD MISSING
7 00792284 1 SHEET, DECAL LOGO-TW27
7.1 00792307 2 DECAL, RHINO BLACK 7.5" X 34.5"
7.2 00792180 1 DECAL, FLAG-MADE IN USA
7.3 00792447 1 DECAL, MODEL TW27
7.4 D389-D814-D5901 DECAL, DANGER/GREASE
7.5 00760657 1 DECAL, SAFETY WARNING
7.6 D137 1 DECAL, BLADE ROTATION CCW
7.7 D395 1 DECAL, WARNING-BLADE ATTACHMENT
7.8 00792179 1 DECAL, RHINO-RED/WHITE/BLUE
7.9 00792308 1 DECAL, GEARBOX WARRANTY-HOOF
©2018 Alamo Group Inc. Parts Section -10
TW27

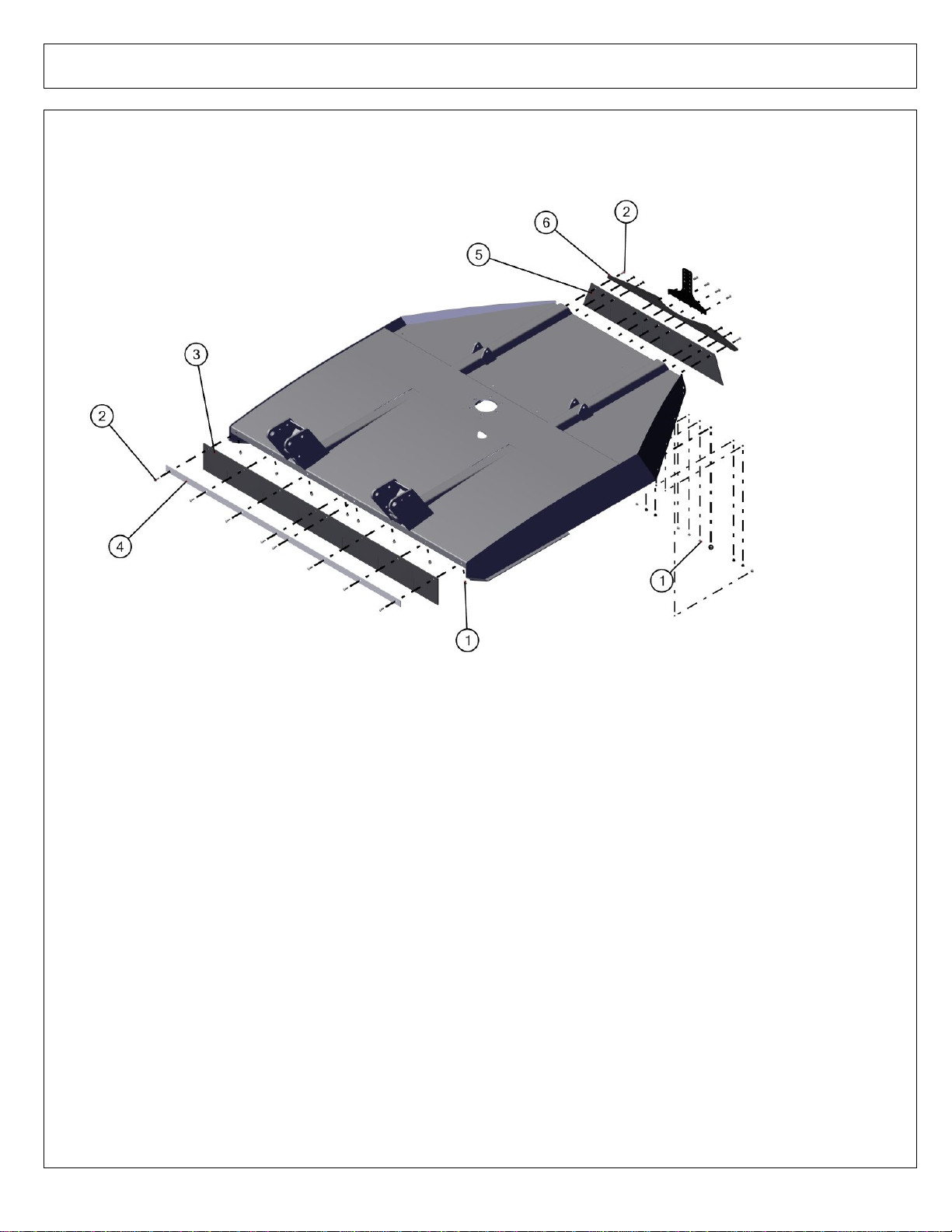

DEFLECTOR ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 4528 18 NUT, HEX LOCK 3/8-16 FLG WHIZ
2 000644 18 CARB-3/8 NCK 1-1/4 PL5
3 00792439 1 DEFLECTOR, RUBBER TW27
4 00792437 1 FLAT, DEFLECTOR STRAP
5 00792440 1 DEFLECTOR, RUBBER TW27
6 00792438 1 BRACKET, REAR DEFLECTOR
©2018 Alamo Group Inc. Parts Section -11
TW27

BLANK INTENTIONALLY
©2017Alamo Group Inc.
TW27

DRIVELINE ASSEMBLY - 00792450
©2018 Alamo Group Inc. Parts Section -12
TW27

DRIVELINE ASSEMBLY - 00792450
Continued...
19 00767954 1
20 00792453 1
21 00792454 1
COLLAR KIT - (INCLUDES: COLLAR, BALLS, SPRING, AND SNAP RING)
INNER PROFILE
OUTER PROFILE
©2018 Alamo Group Inc. Parts Section -13
TW27
ITEM PART NO. QTY.
00792450 1
1 00779516 1
2 8388 2
3 00756934 2
4 8982 1
7 8387 1
8 00779512 1
12 8393 2
14 00759217 2
17 8974 1
18 1416601 1
- 00779513 1
DESCRIPTION
COMPLETE DRIVELINE ASSY.
YOKE 1 3/8" -6 SPL.
CROSS & BEARING KIT
PIN,ROLL 10 X 80
YOKE INBOARD
INBOARD YOKE
FRICTION CLUTCH
BEARING RING
SCREW 1/2 LG #8
PAN SUPPORT BEARING
ZERK
SHIELD KIT

DUAL TAILWHEEL ASSEMBLY - OPTIONAL
©2018 Alamo Group Inc. Parts Section -14
TW27

BLANK INTENTIONALLY
©2018 Alamo Group Inc.
TW27
ITEM PART NO. QTY.
1 00792621 2
2 00792629 2
3 00792643 2
4 00792644 2
5 00792630 1
6 00776220 2
7 00776031 1
8 00792280 2
9 00792631 2
10 02858200 2
11 4528 2
12 00780869 2
13 00780878 3
14 02971324 4
15 00013300 4
16 000644 2
22 000514 2
DESCRIPTION
WDMT, TAILWHEEL
PLATE, TAILWHEEL ADJUSTMENT
PLATE, BOTTOM POSITION
PLATE, TOP POSITION
PLATE, RHINO COVER
ASY, CASTER FORK & WHEEL
CANISTER, PARTS MANUAL
BUSHING, SHOULDER 5/8"
BUSHING, 1.00 X .69 X 1.91
HHCS, 5/8-11 X 5.5 GR5 ZC
NUT, HEX LOCK 3/8-16 FLG WHIZ
NUT, FLG 5/8NC SPIRALOCK PL5
RIVET, 3/16 POP X 15/32" G.R.
NUT LOCK FLG 1/2-13 NC PL
HEXB 1/2 NC X 2 GR5 PL
CARB-3/8 NCK 1-1/4 PL5
CARB, 1/2 NC 1-1/4 PL5
23 4526 2 NUT LOCK FLG WHIZ 1/2-13 NC PL
Continued...
Parts Section -15

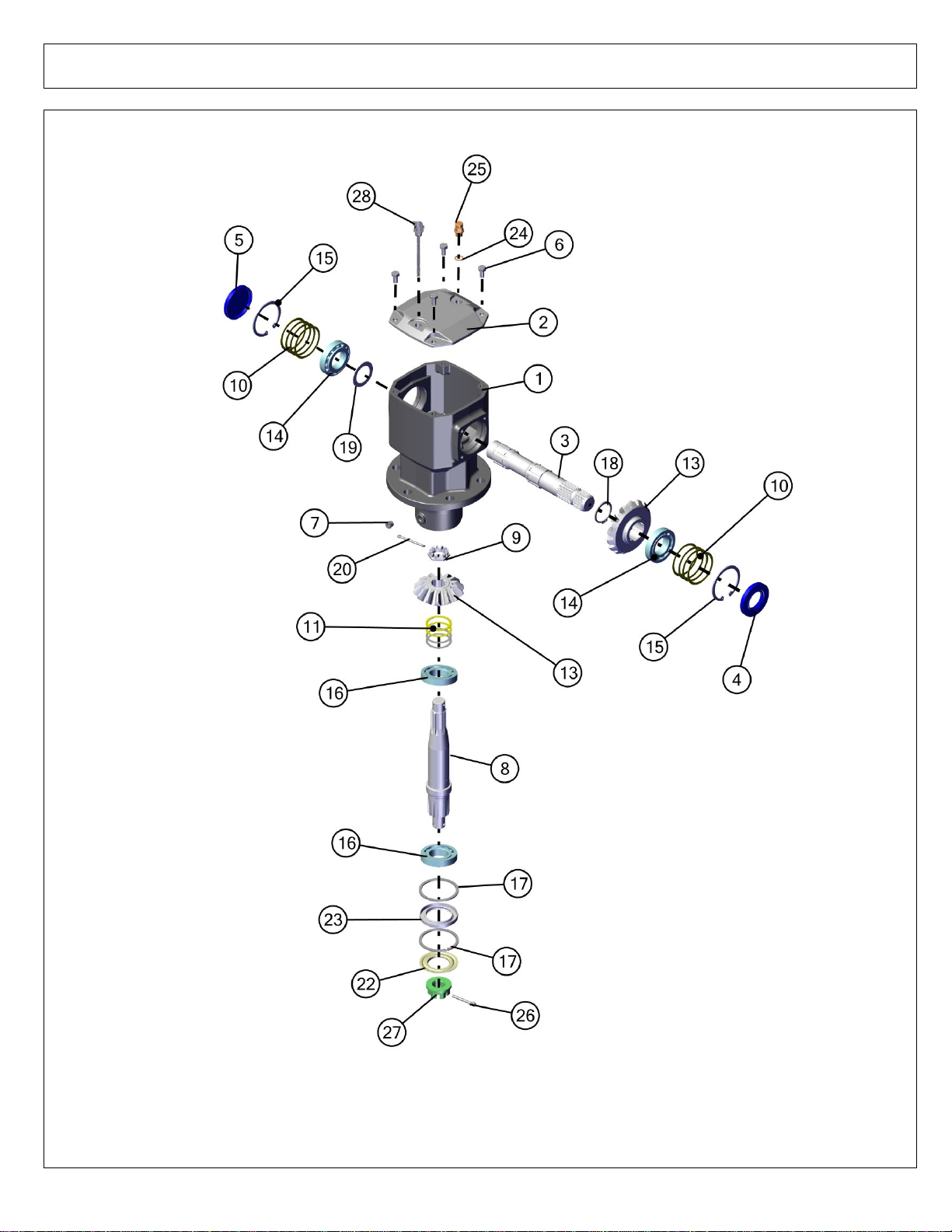

GEARBOX ASSEMBLY 00791057
©2018 Alamo Group Inc. Parts Section -16
TW27
