Rhosonics 9670 User manual

Software Version: 2.2.7 Date: 8 December, 2009 Page 1/46
Model 9670
Ultrasonic Suspended Solids (TSS)
and dissolved solids (TDS) Analyzer
MANUAL
Model 9670 Ultrasonic TSS and TDS
Analyzer

Software Version: 2.2.7 Date: 8 December, 2009 Page 2/46
TABLE OF CONTENTS
1. PREFACE 4
1.1 PURPOSE 4
1.2 SYMBOLS AND CONVENTIONS 5
1.3 ABOUT THIS MANUAL 5
1.3.1 CONVENTIONS 5
2. INSTALLATION 6
2.1 INTRODUCTION 6
2.2 ANALYZER INSTALLATION 6
2.2.1 SPLIT TYPE INSTALLATION 6
2.2.2 WEATHER PROOF HOUSING INSTALLATION 8
2.3 SENSOR INSTALLATION 9
2.4 INSTALLING THE CABLES 9
3. CONFIGURATION. 12
3.1 INTRODUCTION 12
3.1.1 TOUCH SCREEN FUNCTIONS 12
3.1.2 PREPARATIONS 12
3.2 ANALOG OUTPUT CONFIGURATION 13
3.2.1 PROCEDURE 13
3.2.2 OUTPUT SOURCE 13
3.2.3 OUTPUT SCALING 13
3.2.4 ERROR COMMUNICATION THROUGH ANALOG OUTPUTS 14
3.2.5 DECAY TIME 14
3.3 DISPLAY CONFIGURATION 15
3.3.1 SELECTING THE RESULTS 15
3.3.2 SETTING THE DISPLAY RESOLUTION 15
3.3.3 DISPLAY SMOOTHING 16
3.3.4 GRAPH SCALING 16
3.3.5 BACKLIGHT TURN OFF TIME 16
3.4 SENSOR PARAMETERS 16
3.4.1 INTRODUCTION 16
3.4.2 PROCEDURE 16
3.4.3 INSTRUCTIONS: 17
3.4.4 AUTO DEAD TIME 17
3.5 ALARM CONFIGURATION. 17
3.5.1 INTRODUCTION 17
3.5.2 PREPARATION. 18
3.5.3 PROCEDURE 18
3.6 TROUBLE SHOOTING 18
3.6.1 PREPARATION. 18
3.6.2 MEMORY STICK LOGGING 19
3.6.3 PROCEDURE TO STOP LOGGING ON USB MEMORY STICK 19
3.6.4 VERIFYING THE ULTRASONIC SIGNAL WAVEFORM 21
3.6.5 FACTORY DIAGNOSTICS TO USB 23
3.6.6 HARD COPYING SCREENS 23

Software Version: 2.2.7 Date: 8 December, 2009 Page 3/46
4. LIQUID SELECTION AND EDITING 25
4.1 LIQUID (PRODUCT)SELECTION 25
4.1.1 PURPOSE: 25
4.1.2 PROCEDURE (MANUAL SELECTION): 25
4.1.3 PROCEDURE (REMOTE SELECTION): 25
4.2 EDITING LIQUIDS (POLYNOMIAL CALIBRATIONS) 25
4.2.1 INTRODUCTION 25
4.2.2 PURPOSE: 26
4.2.3 PREPARATION FOR EDITING LIQUID PARAMETERS 26
4.2.4 PROCEDURE 26
4.2.5 ADJUSTING INDIVIDUAL ALARM TRIP POINTS. 26
4.2.6 ADJUSTING POLYNOMIALS. 26
5. CALIBRATION 28
5.1 TYPES OF CALIBRATION 28
5.2 BACKGROUND AND FUNCTIONS OF ZERO AND CLEAR LIQUID CALIBRATION. 29
5.3 CALIBRATION PROCEDURE AND FIRST SETUP 29
5.3.1 CALIBRATION MENU 29
5.4 TEMPERATURE OFFSET 30
5.4.1 PURPOSE 30
5.4.2 WHEN NEEDED 30
5.4.3 PROCEDURE 30
5.5 ZERO (WATER)CALIBRATION 30
5.5.1 PURPOSE 30
5.5.2 WHEN NEEDED 31
5.5.3 PROCEDURE 31
5.6 LIQUID CALIBRATION (ZERO TSS AND SG) 31
5.6.1 PURPOSE 31
5.6.2 WHEN NEEDED 31
5.6.3 PROCEDURE 31
5.7 HIGH DENSITY OR FIELD CALIBRATION 32
5.7.1 PURPOSE 32
5.7.2 WHEN NEEDED 32
5.7.3 PROCEDURE HIGH DENSITY CALIBRATION 32
5.8 FIELD (SAMPLE)CALIBRATION 33
5.8.1 PURPOSE 33
5.8.2 WHEN NEEDED 33
5.8.3 PROCEDURE 33
6. AUTOMATION AND COMMUNICATION. 34
6.1 REMOTE PRODUCT SELECTION 34
6.1.1 PURPOSE 34
6.2 BINARY PRODUCT SELECTION 34
6.2.1 PURPOSE 34
6.3 PRODUCT SELECTION THROUGH RS232 34
6.3.1 PURPOSE 34
6.3.2 METHOD 34
6.4 EXTERNAL HOLD FUNCTION 35
6.4.1 PURPOSE 35
6.5 AUTOMATIC CALIBRATION 35

Software Version: 2.2.7 Date: 8 December, 2009 Page 4/46
6.5.1 AUTO DEAD TIME CALIBRATION 35
6.5.2 AUTOMATIC ZERO CALIBRATION 35
7. MAINTENANCE 36
7.1.1 INTRODUCTION 36
7.1.2 INSTRUMENT MAINTENANCE 36
7.1.3 4-20 MAINPUT CALIBRATION 37
7.1.4 4-20 MAOUTPUT CALIBRATION 37
7.1.5 QUICK TROUBLE SHOOTING 38
8. FREQUENTLY ASKED QUESTIONS 39
8.1.1 INSTALLATION QUESTIONS 39
8.1.2 OPERATION QUESTIONS 39
9. TECHNICAL SPECIFICATIONS 41
9.1 OPERATION CHARACTERISTICS 41
9.2 OPTIONS 41
9.3 SUPPLEMENTAL CHARACTERISTICS 41
9.3.1 ANALYZER WITH TOUCH SCREEN DISPLAY 41
9.4 ENVIRONMENTAL CONDITIONS 42
9.4.1 INGRESS PROTECTION 42
9.4.2 TEMPERATURE 42
9.4.3 HUMIDITY 42
9.4.4 STORAGE CONDITIONS 42
10. TECHNOLOGY 43
10.1 MEASUREMENT SEQUENCE 43
10.2 ULTRASONIC VELOCITY OF SOUND 43
10.3 OTHER ULTRASONIC VARIABLES 43
10.4 ATTENUATION 44
10.5 CONVERSION OF MEASURING PARAMETERS 44
11. APPENDICES 45
11.1 OPERATING SOFTWARE STRUCTURE FOR LEVEL 1, 2AND 3IN THE CONFIGURATION MENU 45
11.2 LIST OF SPARE PARTS 45
11.3 OPTIONS 46
11.4 APPENDIX A: SOUND SPEED OF WATER AT 0TO 100 °C 46
1. Preface
1.1 Purpose
This manual explains the installation, configuration, operation and calibration of your
Rhosonics Inline Process Analyzer.
For ease of reading and understanding, the manual is organized in logical steps, divided over
several chapters and sections. Where necessary, the manual provides additional information

Software Version: 2.2.7 Date: 8 December, 2009 Page 5/46
about the above mentioned issues, and gives you all the answers regarding ultrasonic inline
concentration analysis in the added section with Frequently Asked Questions.
1.2 Symbols and conventions
The following words and symbols indicate special messages:
W
ARNING:
This symbol indicates that failure to follow directions in the warning could result in bodily
harm.
CAUTION:
This symbol indicates that failure to follow directions could result in damage to the equipment
or loss of information.
IMPORTANT:
This word indicates that the text that follows contains clarifying information or specific
instructions.
NOTE:
This word indicates that the text that follows contains comments, sidelights or interesting
points of information.
1.3 About this manual
1.3.1 Conventions
•The symbol ►indicates a step to be performed
•Text represented as [Bold] indicates the (drawn) button on the touch screen display to be
pressed
•Text in ITALIC refers to text displayed on the touch screen display
•Pages on the touch screen display are represented as figures; normally these figures are
shown if the page is mentioned for the first time.
•The picture shown in the manual might differ from the picture shown on the display.

Software Version: 2.2.7 Date: 8 December, 2009 Page 6/46
2. Installation
2.1 Introduction
Purpose:
Installation of analyzer control unit, probe(s), cells, and cables.
2.2 Analyzer installation
The installation depends on the version. Whether you have purchased the split type, with
separate display and control unit on PCB, the Weatherproof or the Panel Mount version.
2.2.1 Split type installation
The split type version consists of 2 units, one of which is the controller PCB, which is
mounted in a steel / aluminium housing. To prepare the installation, please refer to the
figures below.
42
172
124.8 30.2
15.1
260
245
170
10
5
22.6
Touch screen /
RS 232
Midden Engweg 37A
NL-3882 TS Putten
The Netherlands
Phone: [phone]
Fax: [phone]
Email: [email protected]
Internet: www.rhosonics.nl
AC
100-240V
Fuse
1.6A
slow
Fuse
3.15A
slow
DC
18-36V
-
+
L
N
GND
-12V
+12V
Touch
screen
C
NC 2
NO
Alarm
Pt100 4 wire
Drain I ref -
Sense - Sense +
I ref +
4-20 mA
Out
Ch1 Ch2
+ - + -
US Probe
Check wiring before
applying power
To prevent electric shock,
do not remove cover !
WARNING
C
NC 1
NO
Type:
Voltage:
Power:
Fuse:
Freq:
Serial:
8500-SPLT-TOD-VAC
100-240 VAC 18-36 VDC
35 Watt
1.6A Slow 3.15A Slow
50/60 Hz
100506092
Made in Holland
PbPb
GNDGND
Figure 1: Steel / Aluminium housing for split unit analyzer
The above figure shows the dimensions of the housing of the PCB for installation.
2.2.1.1 Display installation.
The display is a Touch Screen type, which can be easily installed in a panel. For cut-out
details, please refer to the below figure.

Software Version: 2.2.7 Date: 8 December, 2009 Page 7/46
131+0.5
-0
174+0.5
-0
Figure 2: Panel cut-out for display installation
2.2.1.2 Touch Screen connections
The touch screen has 2 major connections, i.e. the 24 Volt power supply, and the connection
with the PCB control unit.
The connection with 24VDC is realized through screw-type terminals.
The connection with the PCB control unit must be established with the special cable.
NOTE: Do not use any other cables, like Ethernet cables, as they may cause malfunctioning
or damage to the analyzer.
Connect the 24 Volt DC to the display.
WARNING: DO NOT connect the ground to the display,
if the display is within 0.5 meter of the analyzer. If
possible do not place the display within a 0.5 meter
range of the analyzer.
Connector U-B is used for updating the display software.
Connector U-A is used for an USB stick connection
Connector MJ2 is not used.
U-A U-B
+ - GND
24 VDC MJ2 MJ1
Figure 3: Connection overview display

Software Version: 2.2.7 Date: 8 December, 2009 Page 8/46
WARNING: A TOO TIGHT FIT OF THE SCEEN MAY CAUSE DAMAGE AFTER
INSTALLATION
NOTE: There are two different types of displays, so the ports can be located at other places
on the display than is shown in the drawing.
2.2.2 Weather proof housing installation
120
Display
Cable gland holes (5x) for
M16x1.5 cable glands
300
300
SYS TEM
260
320
10
Figure 4: Weather proof housing
The general appearance of the PCB is given in figure 5.

Software Version: 2.2.7 Date: 8 December, 2009 Page 9/46
Ultrasonic
Channel 2
Communication
Temperature
inputs 4-20 mA
Alarm
Relays
Conductivity
Power supply
external devices
Mains
Power DC Power
External
Control
Chan.1
isolated
(option)
1 2
+ - + -
Output
+ -
Input
- - + +
GND
- - + +
GND
Temp 1
Temp 2
Drive +
Drive -
In -
In +
Gnd
Tmp
Tmp
Chan. 1
Chan. 2
Drive + Drive - In - In +
Gnd
Tmp Tmp
C
NO
NC
C
NC
NO
1
2
Density
meter Touch
screen
G
-12
+12
90-240
Volt
Fuse
1.6A
slow
Fuse
3.15A
slow 18-36
Volt
Gnd
-
+
Model
Serial No.
Ext. Hold
Liquid
select
Gnd
Input
Gnd
0
1
2
3
4
5
nd
S S
G
I2C Density meter
Binary I/O
RS 232 /
422 /485 Ethernet
Touch screen
RS 232/485
Channel 1
G
-12
+12
Figure 5: PCB layout with all cable connections.
2.3 Sensor installation
Preparation.
It is important that the sensor is installed in a straight pipe run, preferably with minimally 5
diameters of straight pipe run upstream, and 3 pipe diameters of straight pipe run
downstream.
In addition, the probe must be installed in a vertical pipe, or sidewise in a horizontal pipe.
This implies that the probe must not be installed on top of the pipe, nor on the bottom, as
eventual gas bubbles may accumulate on the sensor surface(s). Installation on a vertical
pipe section is preferred, as gas bubbles are always able to escape.
Summary:
•Install the probe or spool section with 5xD length of straight pipe length upstream and 3xD
of straight pipe length downstream.
•Avoid installation near dosing valves.
•Vertical pipe installation is preferred.
•Horizontal pipe installation: Sensors must be installed sidewise.
2.4 Installing the cables
Refer to the figures below for general mounting overview of the cables.

Software Version: 2.2.7 Date: 8 December, 2009 Page 10/46
Rhosonics Analyzer
1 Ultrasonic coax cables
2 Cat 6 patch cable (no standard cable)
Display
(Touch screen)
1
2
Process pipe
with flow and
ultrasonic
cell
9120
100506###
Density
calib.
Sensor
params.
Liquid
select
Gr aphs
Val ues
About
Factory
Comm.
config.
Display
config.
Cond.
calib.
Temp.
calib.
4-20mA
calib.
Diagn.
Assist
Alarm
config.
4-20 mA
config.
Field
calib.
MAIN
Liquid
da t abas e
Access
EN
Lang.
1SYSTEM
110-230 VAC

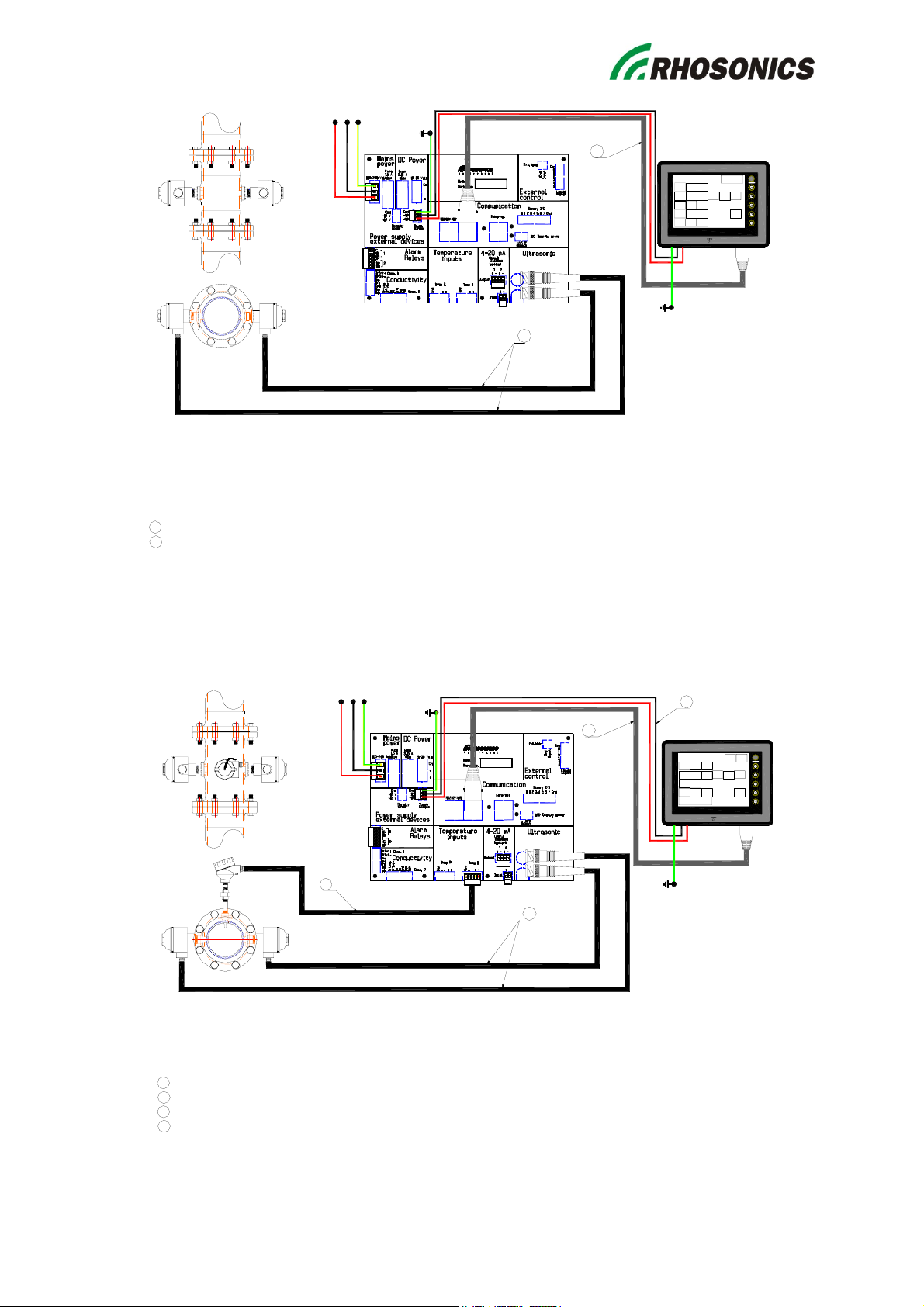

Figure 6: Schematic cabling overview analyzer with ultrasonic cell
NOTE: The ultrasonic sound path must be horizontal at all times. This implies that the
transducers must be installed at either side of the pipe, NEVER on the top and bottom.
Rhosonics Analyzer
1 Ultrasonic coax cables
2 Temperature sensor cable
3 Cat 6 patch cable (no standard cable)
4 Power cable 24 VDC
Display
(Touch screen
)
1
3
Process pipe
with flow and
ultrasonic
cell
9120
100506###
Density
calib.
Sensor
params.
Liquid
select
Gra phs
Values
About
Factory
Comm.
config.
Disp lay
config.
Cond.
calib.
Temp.
calib.
4-20 mA
calib.
Dia gn.
Assist
Alarm
config.
4-20 mA
config.
Field
calib.
MAIN
Liquid
database
Access
EN
Lang.
1SYSTEM
110-230 VAC 4
2
Figure 7: Schematic cabling overview analyzer with ultrasonic cell and temperature sensor

Software Version: 2.2.7 Date: 8 December, 2009 Page 11/46
NOTE: The ultrasonic sound path must be horizontal at all times. This implies that the
transducers must be installed at either side of the pipe, NEVER on the top and bottom.
Ultrasonic
Channel 2
Communication
Temperature inputs
4-20 mA
Alarm
Relays
Conductivity
Power supply
external devices
Mains
Power DC Power
External
Control
Chan.1
isolated
(option)
1 2
+ - + -
Output
+ -
Input
- - + +
GND
- - + +
GND
Temp 1
Temp 2
Drive +
Drive -
In -
In +
Gnd
Tmp
Tmp
Chan. 1
Chan. 2
Drive + Drive - In - In +
Gnd
Tmp Tmp
C
NO
NC
C
NC
NO
1
2
Density
meter Touch
screen
Gnd
-12 V
+12 V
90-240
Volt
Fuse
1.6A
slow
Fuse
3.15A
slow 18-36
Volt
Gnd
-
+
Model
Serial No.
Ext. Hold
Liquid
select
Gnd
Input
Gnd
0
1
2
3
4
5
0 1 2 3 4 5 6 7 Gnd
SCL SDA GND
I2C Density meter
Binary I/O
RS 232 /
422 /485 Ethernet
Touch screen
RS 232/485
Channel 1
Gnd
-12 V
+12 V
Connected to
cover
Power cable
Central earth
connection point
Figure 8: Schematic overview for earth cables inside WPF housing

Software Version: 2.2.7 Date: 8 December, 2009 Page 12/46
3. Configuration.
Configuration can be done through the
configuration menu, by pressing the exit icon on
the main measurement screen:
Figure 9: MAIN MENU page
NOTE: The shown icons depend on your access
level.
3.1 Introduction
Once you have chosen the configuration mode, you will be able to establish specific
operating parameters of the analyzer. These parameters include:
1. Sensors, including parameters of the probe
2. 4~20 mA output, including scaling, source choice and error handling
3. 4~20 mA input, for external compensation, i.e. CO2 compensation.
4. Display, i.e. choice of results to be displayed
5. Alarm output setting, i.e. type, trip points, and choice of source
3.1.1 Touch Screen Functions
NOTE: The backlight will automatically turn off after 30 minutes. To turn it on back again,
simply touch the screen at any location.
The touch screen display has the following functions:
•to display measurement results in values or graphics
•to change parameters and/or sources, like for instance the selected liquid
The LED located at the bottom side of the display area lights if the display is powered up.
At the right side of the display six buttons are located with the following functions:
•[SYSTEM] : NA
•[F1] : changes the access level to access level 1 and changes the page to
the first measurement page
•[F2] : turns the backlight OFF (touching the screen will turn the backlight on)
•[F3], [F4] : NA
•[F5] : saves the current page of the display to the USB stick
3.1.2 Preparations
Before attempting to configure the transmitter, define the following:
The desired output settings for the 2 4~20mA outputs, i.e.
•What measured value you wish to transmit through the 2 pcs 4~20 mA outputs.
•The scaling of these parameters.
•What to do when the system detects problems, i.e. gas bubbles.
Consider which parameters you wish to be viewed during normal operation.
•I.e. Concentration for 1st parameter shown
•I.e. Temperature for 2nd parameter shown
Consider which parameters need to be monitored by the alarms.

Software Version: 2.2.7 Date: 8 December, 2009 Page 13/46
•What measured value (i.e. concentration) you wish to check.
•Whether you wish to use 2 alarms for hi-hi lo-lo configuration.
•If the analyzer is used for several different products: alarm trip points for each
product.
3.2 Analog Output configuration
This section describes how you can configure your 4~20mA outputs:
With these settings, you can set the following:
•To choose the result to transmit through the 4~20 mA outputs.
•The scaling of these parameters.
•What the system should do when the system detects problems, i.e. gas bubbles.
Access level 2 is required (supervisor).
The access code is 7410.
3.2.1 Procedure
Through the main menu, chose configure, then
outputs.
Both outputs can be configured, as per below.
Figure 10: 4-20 mA OUT 1 page
3.2.2 Output source
►From the Configuration menu, press [4-20 mA
OUT ]
►Choose [Configuration] and [4-20 mA OUT 1
or 2]
►On the 4-20 mA OUT # menu, press [Source OUT # name] to go the Assignment page 1
menu
►Here you can choose between the Calculated polynomial (the concentration) and one of
the measured value’s
If you choose for Calculated Polynom:
►Press [Polynom 1 or 2 calculated]
You will be returned to the 4-20 mA OUT # menu.
If you chose for one of the Measured values:
►Press the button [More settings]
►Press the button of the desired value
You will be returned to the 4-20 mA OUT # menu.
Figure 11: ASSIGNMENT PAGE 1 page
3.2.3 Output Scaling
The analog output is of the 4~20 mA type.
When you wish to scale your output to a range of 10 to 15 wt%, the procedure is as follows:
►Press [4 mA Equals]
►Enter the value 10 (wt%), the lowest value, corresponding to 4 mA
►Press [Enter] (automatic return to the 4~20 mA OUT1 or 2 page)
►Press [20 mA Equals]
►Enter the value 15 (wt%), the highest value, corresponding to 20 mA
►Press [Enter] (automatic return to the 4~20 mA OUT 1 or 2 page)

Software Version: 2.2.7 Date: 8 December, 2009 Page 14/46
CAUTION:
Scaling the output to a high range, i.e. 0~100 wt%, results in loss of accuracy. The accuracy
of the output is 0,05 % of scale. Choosing a smaller range (difference between low and high
value) results in a better resolution. In the above example, the accuracy of the output is 0,1%
of (15-10), which equals 0,0025 wt%.
3.2.4 Error communication through analog outputs
During an inline analysis, conditions may not always be perfect to perform a correct
measurement. The analyzer automatically detects when the liquid is not homogeneous, or
when gas bubbles are present, generates errors and initially holds its last valid reading.
In most processes, upset conditions may occur incidentally, due to not completely dissolved
gases. The analyzer freezes the measurement during these conditions.
Too long freezing may lead to a constant output, which in turn may lead to the conclusion
that the process is perfect. To signal a too long duration of upset process conditions, the
analyzer can react to these errors in four different modes.
•Force Low: force output to 3mA after XXX seconds
•Force High: force output to 20mA after XXX seconds
•Force Update: force output to maintain measurement (only for Temp and Gain)
•Hold last: Hold last correct measured value
Determine first:
•How long do I allow the system not to signal any upset process conditions?
•What milli-Amp value do I wish to receive when erratic conditions continue for a too
long period of time?
From the analog output menu, press Error Mode

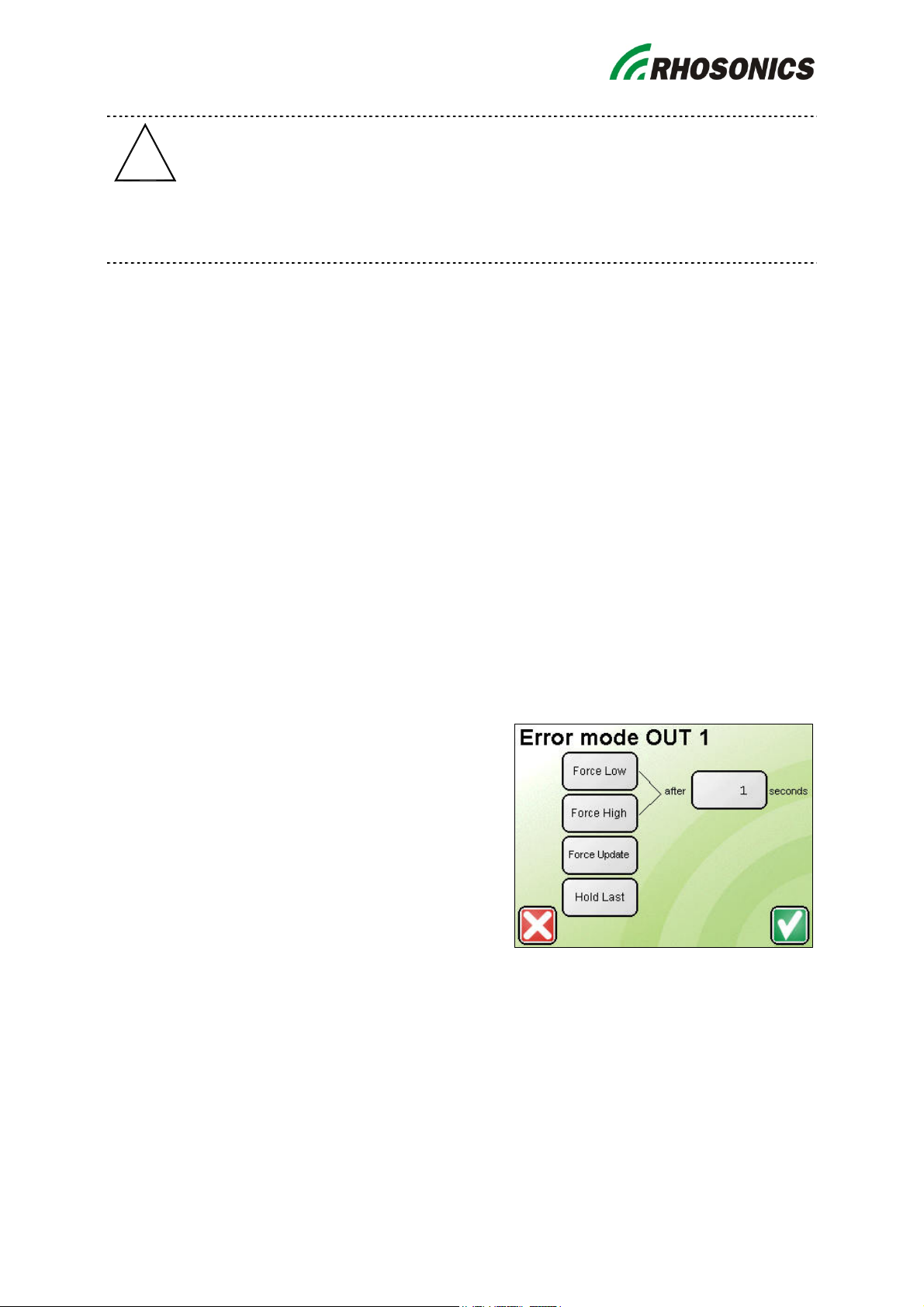

Figure 12: ERROR MODE OUT 1 page
Example: The output should force low when 120
seconds of continuous loss of signal occurs.
►Press [Error Mode] on the 4~20 mA output 1 or
2 menu.
►On the Error mode OUT 1 page, press the
button of your choice:
►Press the [Force Low]
►Enter “120” (via pop up keypad)
►Press [Enter]
►Press [Accept]
After the specified number of seconds, the 4~20 mA OUT will be forced to the specified level
(Low level is 3 mA, High level is 21 mA).
Repeat this procedure for 4~20 mA OUT 2
NOTE
When you wish to output temperature, set to “Force update” (no time can be set).
3.2.5 Decay time
Smoothing is strongly recommended, since it gives you more accuracy. In addition, rapid
changes in concentration are being smoothed, hence the output value more represents the

Software Version: 2.2.7 Date: 8 December, 2009 Page 15/46
“bulk” value of the liquid. When fast response is not required, we strongly recommend setting
the τ63 time between 5 and 20 seconds. Since smoothing affects the response time, the best
setting is a trade-off between accuracy and response time.
A decay rate of 5 seconds is recommended for most applications.
Figure 13: DECAY TIME page
3.3 Display configuration
Purpose:
•Define the parameters you wish to be viewed
during normal operation.
•Define damping.
•Define the resolution on the display.
3.3.1 Selecting the results
Normally, you wish to view the concentration as main parameter, and the temperature as
second parameter (shown small). Should your analyzer be capable of measuring more
chemical components, you may wish to select another component. In addition, it is possible
to view other, secondary parameters, such as sound speed or Ultrasonic attenuation, for
specific evaluations.
The procedure is as follows:
Example: Concentration, i.e. Original Extract in ºP must be the primary measurement result.
The temperature should be shown in smaller numbers, as secondary result.
NOTE: This procedure does not affect the output and alarm configurations.
►From the Configuration menu, press [Display]
►On the Display configuration menu, press [Source 1 name] to go the the Source 1 menu
►Here you can choose between the Calculated polynomial (the concentration) and one of
the measured value’s
If you choose for Calculated Polynom:
►Press [Polynom 1 or 2 calculated]
You will be returned to the Display configure menu.
If you chose for one of the Measured values:
►Press the button [More settings]
►Press the button of the desired value
You will be returned to the Display configure menu.
Figure 14: DISPLAY CONFIGURE page
NOTE: The same steps have to be followed to set Source 2
3.3.2 Setting the display resolution
This menu allows you to toggle between 2 digits and 3 digits resolution. This setting does not
affect the output resolution. The 3-digit resolution may be selected when additional readout
accuracy is required, which is useful during field calibrations. For additional readout
accuracy, it is recommended to apply some display smoothing too. See next section for
details.
►On the Display configuration menu, press [Resolution]

Software Version: 2.2.7 Date: 8 December, 2009 Page 16/46
►Press [2Digits] or [3 Digits] on the Resolution page (automatic return to the Display
configuration page)
3.3.3 Display smoothing
This setting is the same as the decay time for the analog outputs. The result is that
concentration values are smoothened before they are sent to the output.
A decay rate of 5 seconds is recommended for most applications.
3.3.4 Graph scaling
Purpose:
During normal operation of the analyzer, you can activate additional screens, such as the
graphs, allowing you to see the trend of the results as configured in the previous section. The
graphs show the trend of the results over the last 15 minutes of operation.
The scaling of the graph is done in this section.
•Define the scales of the 2 graphs (Y-axis starting and ending points).
•The plotted results are those which were configured in the display menu.
Once you have reached the menu through Configuration – Display:
►Press [Trend configuration]
►Press [Min/Max value y-axis 1/2]
Now you can enter the values that should
correspond to minimum and maximum of the y-axis
1 and y-axis 2 (via pop-up keypad)
►Press [Trendline sampling time]
Now you can enter the time that should correspond
to the time a trend value is written on the graph.
NOTE: The graph will plot the results which are
monitored by the display. Should you wish to plot
other results, then this is only possible by changing
the display source value.
Figure 15: DISPLAY CONFIGURATION GRAPH 1 page
3.3.5 Backlight turn off time
This setting allows you to set the time that the backlight has to be turned OFF automatically.
If the backlight doesn’t have to be turned OFF, enter 0 minutes. Touching the screen will turn
the backlight ON. The set time has a fixed cycle
and starts when the display is powered ON, so it
can happen that if you touched the screen the
backlight is turned OFF within the set time.
3.4 Sensor parameters
3.4.1 Introduction
When replacing a probe, it is necessary to enter
the probe constants as supplied on the Probe
Calibration Data Sheet (PCDS).
Figure 16: SENSOR page
3.4.2 Procedure
•Obtain the Probe Calibration Data Sheet. The serial number of the probe is indicated
on the sheet.

Software Version: 2.2.7 Date: 8 December, 2009 Page 17/46
•From the main menu, choose Configuration – Sensor – US sensor
•Check or modify the data as indicated on the data sheet
NOTE: If a probe is replaced, the previous data sheet is no longer valid.
3.4.3 Instructions:
►On the Configuration menu, press [Sensor]
►On the Sensor menu Press [Ultrasonic]
The following menu appears:
►Enter the appropriate values and confirm with
[Enter] to return to this page.
►Press [Auto Dead time Cal.] to choose ON or
OFF (see next section for details)
►Press [Accept] (automatic return to the
Sensor parameters page)
Figure 17: ULTRASONIC PROBE
CONFIGURATION page
3.4.4 Auto dead time
3.4.4.1 Introduction
The auto dead time function takes care of variations in the “dead time”, a probe-specific
variable which is determined in the factory and is used to measure precisely the actual transit
time in the liquid. The dead time is an important value and may change in time.
The instrument has a built-in feature that performs this vital calibration automatically during
normal process conditions, carefully checking that the necessary circumstances are meeting
the same conditions as in the factory, during the final calibration and quality control
procedure.
When leaving the “Ultrasonic Probe Configuration” page the setting of the auto dead time is
automatically set to “OFF”.
3.4.4.2 Advantages.
The Auto-dead-time enhances the reliability of the measurement, as it continuously checks
and adapts the dead time value without operator attention and the need to return the probe
to the factory for recalibration. When the Ultrasonic connecting cable is replaced with the
same, a longer or a shorter cable, there is no need to manually adjust the dead time.
3.4.4.3 Procedure.
►With the sensor in water, free of gas bubbles, with a low concentration solids and
dissolved components.
►Press Auto Dead Time and select ON.
When the probe is installed in a filled pipe line, and process conditions are considered to be
stable, which is determined by the analyzer, it will perform continuous measurement of the
system dead time. You are still able to enter a number in the Dead Time field, however the
instrument will automatically correct the entered value to the correct value. The Auto Dead
Time is only working if the “Ultrasonic Probe Configuration” page is displayed.
►When the number in the field is giving a stable value (normally between 1100 and 1200),
Press Auto Dead Time and select OFF or leave the page.
3.5 Alarm configuration.
3.5.1 Introduction
Alarm relays are provided for monitoring specific measured concentrations. The analyzer
allows you to define which parameters are monitored, and at what values the relays should

Software Version: 2.2.7 Date: 8 December, 2009 Page 18/46
be possible. In addition, you may select whether the alarms are activated during fault
conditions (Normal) or activated when no alarm is present (inverted operation).
3.5.2 Preparation.
•Determine which value you wish to monitor with each alarm.
•Determine whether you wish the alarm relay contacts to be activated during normal
operation (no alarm) or during a fault condition. This decision has consequence for
the alarm wiring, as a Normally Open (NO) contact will be closed when the value falls
within the low and high limit.
•Determine high and low trip points for each alarm.
NOTE
The analyzer has a database with specific set points for each individual beer type. As the
adjustment of the set points is liquid type dependant, the procedure for changing the set
points is covered in chapter “Liquid selection and editing”, paragraph “Editing liquids”.
3.5.3 Procedure
►Through the Configuration menu, press [Alarm]
►After choosing Alarm 1 or Alarm2, press [Alarm 1/2 name/unit] to choose the parameter
to be monitored.
►Here you can choose between the Calculated polynomial (the concentration) and one of
the measured value’s
If you choose for Calculated Polynom:
►Press [Polynom 1/2 calculated]
You will be returned to the Alarm 1 or 2 menu.
If you chose for one of the Measured values:
►Press the button [More settings]
►Press the button of the desired value
You will be returned to the Alarm 1 or 2 menu.
Figure 18: ALARM 1 page
NOTE: Usually this would be the main parameter, i.e. concentration in %w/w.
►Press [Low Alarm]
►Enter the value that should correspond to low alarm (via pop up keypad)
►Press [Enter] (automatic return to the Alarm 1 page)
►Press [High Alarm]
►Enter the value that should correspond to high alarm (via pop up keypad)
►Press [Enter] (automatic return to the Alarm 1 page)
►Press [Accept] (after pressing Accept it may take up to 10 seconds to return to the Alarm
configuration page)
Repeat these steps for Alarm 2 if desired.
IMPORTANT:
Changes made to the alarm settings of an individual liquid will remain valid until the alarm
settings for this liquid are changed again.
3.6 Trouble shooting
3.6.1 Preparation.
•For trouble shooting, it is important to record as much data as possible

Software Version: 2.2.7 Date: 8 December, 2009 Page 19/46
•Use of the memory stick feature allows you to log measurement data
•The memory stick can be used to download all settings of the analyzer
•The memory stick can be used to download a typical waveform, which can be useful
for trouble shooting
•Record other observations, i.e. pipe full/empty and/or laboratory gathered samples
with results and time tag, in order to compare with the analyzer results
•For factory back-up, you can send stored files with your comments, facilitating fast
response from the factory
3.6.2 Memory Stick Logging
XSlide the empty USB memory stick in the U-A connector of the display
XCheck that the USB memory stick flashes, indicating write/read actions
XWait until the continuous flashing stops (the display is making folders on the USB
stick, this should take about 5 minutes)
XOpen “Logging” in the Information /
Diagnostics menu
XEnter the log sampling time
XPress “Start logging”. The main
measurement page should indicate that the
logging process is active.
All main data, detail data, and a time tag is
recorded in a temporary file on the memory
stick.
Figure 19: LOGGING page
IMPORTANT
Never take out the memory stick without stopping the log process first
ALWAYS wait until the memory stick stops flashing (may take several minutes)
The data will be stored in the following folder: RHO\SAMPLE\. In this folder, you will find
folders, indicating the day in the format YYMMDD. After day, the last data is assembled in a
.CSV file, and a new folder is created for the next day of logging.
The .CSV files can be easily opened with Excel. The stored .BIN files are temporary files and
cannot be opened, converted or used otherwise.
3.6.3 Procedure to stop logging on USB memory stick
XPress “Stop & Save Log to USB”
XWait until the page “Saving data to USB” is disappeared from the screen, this may
take up to 5 minutes
XRemove USB stick and check the log data with Excel

Software Version: 2.2.7 Date: 8 December, 2009 Page 20/46
The following table shows the data arrangement in the CSV-file on the USB stick.
Name Description
Value @ Normal
operation
Polynoom 1 Calculated value 1 (i.e.
Concentration) 0-100 %w/w, 0-350 g/l Salt, etc.
Temperature sensor 1 Temperature sensor 1 [°C] In between the Min. temp and Max. temp on
the Liquid Datasheet
Sound speed sensor 1 Sound speed sensor 1 [m/s] In between the Min. speed and Max. speed
on the Liquid Datasheet
Attenuation sensor 1 Attenuation sensor 1 [dB] <60 dB
Polynoom 2 Calculated value 2 (i.e. Concentration second
component)
0-100 %w/w, 0-250 g/l
Acid, etc.
Conductivity sensor 1 Conductivity sensor 1
[mS/cm] 0-1000 mS/cm
Frequency Density-meter Frequency Density-meter
[Hz] NA
Density at T°C Density at measured
temperature [g/dm3] 800-1200 g/dm3
Alcohol Vol% Alcohol Vol% 0-15 Vol%
Real Extract Real Extract 0-25 %w/w
Original Extract Original Extract 0-25 %w/w
Temperature sensor 2 Temperature sensor 2 [°C] In between the Min. temp and Max. temp on
the Liquid Datasheet
Sound speed sensor 2 Sound speed sensor 2 [m/s] In between the Min. speed and Max. speed
on the Liquid Datasheet
Attenuation sensor 2 Attenuation sensor 2 [dB] <60 dB
Conductivity sensor 2 Conductivity sensor 2
[mS/cm] 0-1000 mS/cm
Amplitude Amplitude of the signal NA
Attenuation per metre sensor 1 Calculated attenuation per
centimetre sensor 1 [dB/m] > 0.002 dB/m
Attenuation per metre sensor 2 Calculated attenuation per
centimetre sensor 2 [dB/m] > 0.002 dB/m
Temperature sensor 3 Temperature sensor 3 [°C] In between the Min. temp and Max. temp on
the Liquid Datasheet
Temperature sensor 4 Temperature sensor 4 [°C] In between the Min. temp and Max. temp on
the Liquid Datasheet
Error number Error number 0
Reference echo amplitude Amplitude of the reference
echo 1000-1400
Interface echo amplitude Amplitude of the interface
echo 2000-2600
Near gate amplitude Amplitude of the near gate 0-800
Far gate amplitude Amplitude of the far gate 0-50
Figure 20: USB data arrangement in *.csv file
NOTE: The data which are not applicable for the analyzer will be “0”.
