Rice Lake TP Series User manual

. TP SeriesBalance
Tuning Fork Precision Electronic Balance
Technical Manual
PN 107251 Rev B
November 20, 2017

An ISO 9001 registered company
© Rice Lake Weighing Systems. All rights reserved.
Rice Lake Weighing Systems®is a registered trademark of
Rice Lake Weighing Systems.
All other brand or product names within this publication are trademarks or
registered trademarks of their respective companies.
All information contained within this publication is, to the best of our knowledge, complete and
accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make
changes to the technology, features, specifications and design of the equipment without notice.
The most current version of this publication, software, firmware and all other product
updates can be found on our website:
www.ricelake.com

Contents
© Rice Lake Weighing Systems ●All Rights Reserved i
Contents
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com/training
or obtained by calling 715-234-9171 and asking for the training department.
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Component Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.4 Tuning Fork Precision Electronic Balance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 LCD Indicator Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 4
1.6 Operating Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.0 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.0 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Basic Startup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Tare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Counting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3.1 Sampling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3.2 Increasing the Counting Accuracy (Memory Update Method) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 10
3.4 Measuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5 Battery Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5.1 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5.2 Charging Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5.3 User Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 12
4.0 Functions Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1 Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1.1 Interface Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Switching Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2.1 Setup of Units of Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Limit Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.1 Limit Value Input Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.2 Indication of Judgment Result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.3 Limit Function Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.4 Setup of Limit Values by Actual Quantity Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.3.5 Setting up Limit Values by Inputting Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4 Input/Output Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.4.1 Connection Between Balances and Personal Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.4.2 Interface Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.4.3 Output Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.4.4 Input commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.4.5 Response Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.0 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.1 Calibration of TP Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.0 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2.1 Common Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2.2 Minimum Display by Unit of Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2.3 Conversion Table of Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.3 NTEP Sealing and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

TP Series Balance
ii Visit our website www.ricelake.com
Rice Lake continually offers web-based video training on a growing selection
of product-related topics at no cost. Visit www.ricelake.com/webinars

© Rice Lake Weighing Systems ●All Rights Reserved 1
Introduction
1.0 Introduction
The simple, straightforward design of Rice Lake’s TP Series balance creates for an effortless user experience. Equipped with
the unique Mono-Metal Tuning Fork Sensor (MMTS), this balance series brings remarkable response time and exceptional
stability to any setting.
Functions that are easy to use and understand come standard with the TP Series balance.Enhance productivity with modes
such as unit countingand percentage weighing. Adapt to any type of standard with the ability to weigh in 12 different
measurement units.
The compact and manageable size of the TP Series balance is suitable for even the mostlimited of space. A footprint smaller
than a sheet of paper makes it perfect for crowded work environments.
Each balance performs with incredible sensitivity and stability byrelying on its dynamic tuning fork sensor. Plug in and start
weighing without waiting for stabilization.
Manuals are available for viewing and/or downloading from the Rice Lake Weighing Systems website at
www.ricelake.com/manuals
Warranty information can be found on the website at www.ricelake.com/warranties
1.1 Standard Features
• External weight calibration
• Large 16.5 mm high liquid crystal backlight display
• Selectable modes: weight,unit, count and percentage
• 12 units of measurement
• Mono-Metal TuningFork Sensor (MMTS) provides quick responseand stability
• 20-step bar graph display
• 115 VAC adapter included (230 VAC optional)
• RS-232 bidirectional
• Plastic housing onmodels less than 1000 g; plastic top and diecast housing on models greater than 1000 g
Table 1-1. Part Number Information
Part No. Model No. Description NTEP Resolution
108155 TP-420NT 420g x 0.001g (e=0.01g)
163604 TP-1200NT 1200g x 0.01g (e=0.1g)
108154 TP-4200NT 4200g x 0.01g (e=o.1g)
163606 TP-6200NT 6200g x 0.01g (e=0.1g)
1.2 Component Parts
Round-pan types: TP-220, TP-320, TP-420, TP-620, TP-220, TP-420, TP-620
Square-pan types: TP-820, TP-1200, TP-2200, TP-3200, TP-4200, TP-6200, TP-8200, TP-12K, TP-2200, TP-4200

TP Series Balance
2 Visit our website www.RiceLake.com
1.3 Safety
DANGER
Safety Signal Definitions:
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes
hazards that are exposed when guards are removed.
WARNING
Indicates a potentially hazardous situation that, if not avoided could result in serious injury or death. Includes
hazards that are exposed when guards are removed.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.
IMPORTANT
Indicates information about procedures that, if not observed, could result in damage to equipment or
corruption to and loss of data.
General Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood.
Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake
Weighing Systems dealer for replacement manuals.
Failure to heed could result in serious injury or death.
Before attempting to operate this unit, make sure every individual who operates or works with this unit has read and understands
the following safety information.
Failure to heed may result in serious injury or death.
Do not allow minors (children) or inexperienced persons to operate this unit.
Do not operate without all shields and guards in place.
Do not jump on the scale.
Do not use for purposes other than weight taking.
Do not place fingers into slots or possible pinch points.
Do not use any load bearing component that is worn beyond 5% of the original dimension.
Do not use this product if any of the components are cracked.
Do not exceed the rated load limit of the unit.
Do not make alterations or modifications to the unit.
Do not remove or obscure warning labels.
Do not use near water.
Before opening the unit, ensure the power cord is disconnected from the outlet.
Keep hands, feet and loose clothing away from moving parts.
Use only AC power (rated value) and the dedicated AC adapter.
WARNING

© Rice Lake Weighing Systems ●All Rights Reserved 3
Introduction
1.4 Tuning Fork Precision Electronic Balance

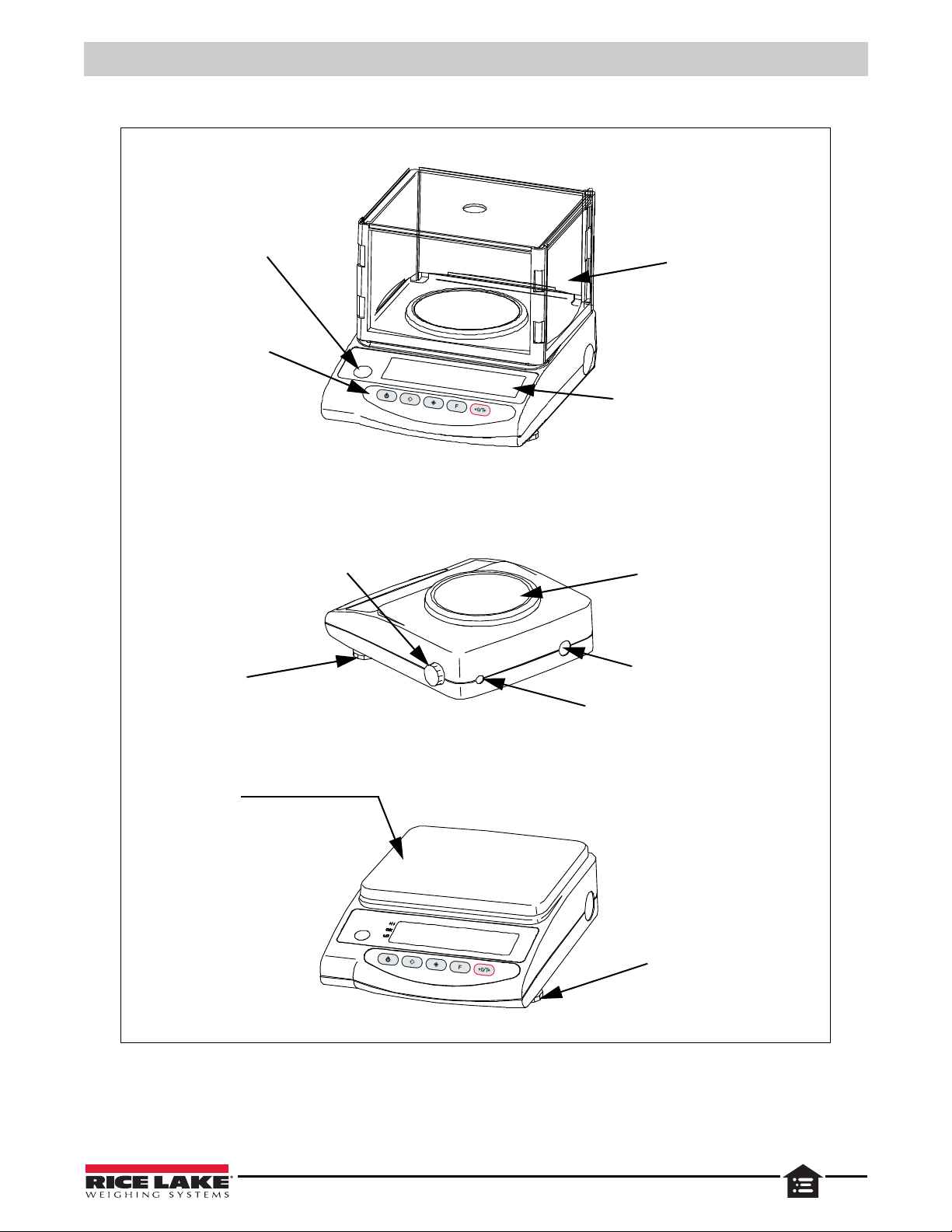

Figure 1-1. Component Locations
Function Zero/Tare
Memory
On/Off Target
Function Zero/Tare
Memory
On/Off Target
Windshield
Supplied only with the
round-pan balances.
Top lid is detachable.
Liquid Crystal Display (LCD)
See page 4.
Operating Keys
See page 5.
Measurement Pan
Level
For checking the level of the
balance.
Turn the adjusters until the
bubblerestsinthecenterofthe
RS-232C Connector
AC Adapter Connector
Adjusters (2)
Round Pan – One on each side
of the front.
Round Pan Type
Rear View
Calibration Knob
(TP-220, TP-420 and TP-620)
Used for span adjustment of the
balance.
Square Pan Type
Measurement Pan
TP-820, 1200: 170 mm x 140 mm
TP-2200, TP-12K: 180 mm x 160 mm
Adjusters
Square Pan – One on each
corner

TP Series Balance
4 Visit our website www.RiceLake.com
1.5 LCD Indicator Display
Table 1-2. Symbols Descriptions
Display Description
Grams
Zero point
Tare being subtracted
Indication of stable balance (if the light is off, the balance is unstable)
Balance powered up (lights up when the power is turned off) or data transmitted
Counting mode
Percentage mode
Indication of judgment result (HI/OK/LO) when the limit function is active
Display of set values from memory (If a value is flashing, it is being saved)
Stays on and flashes while span adjustment is in progress
Bar graph
 (ct) carat
 (oz) ounce
 (lb) pound
 (ozt) troy ounce
 (dwt) penny weight*
Upper right grain
 (tl) tael (Hong Kong)*
 Upper right (tl Upper right) tael (Singapore, Malaysia)*
 Lower right (tl Lower right) tael (Taiwan)*
 (to) tola*
Momme
Lit when the balance is battery operated. indicates the battery needs to be
charged.
*Available on NTEP models
Figure 1-2. LCD Symbols
g
→0←
→T←
Pcs
%
M
CAL
Units selection
HI
OK
LO
㻜
㻜 㻲
㻼㼏㼟
㼙㼛㼙
㻏
㼓䠂
0
F

© Rice Lake Weighing Systems ●All Rights Reserved 5
Introduction
1.6 Operating Keys
Non-NTEP
Operating Key NTEP Operating Key Operating Key
Definition Function
ON/OFF
ON/OFF
On/Off Key Key to turn on/off the unit power.
Memory
Memory
Memory Key Brief press – Initiates print or output.
Brief press – Saves the settings of the number of pieces
or percentages (%) or the limit value when using the limit function.
Target
Set
Target/Set Key Brief press – Starts setting the number of pieces or percentages (%).
Continuous press – Starts setting the limit value when using the limit function.
Function
Function
Function Key
Brief press – Toggle switches the units to be displayed in succession (g, Pcs, %, etc).
Brief press – Moves the flashing digit in the setup of a limit value when using the value input
method.
Brief press – Selects an parameter when setting the function.
Continuous press – Invokes various functions.
Longer Continuous press – Invokes span adjustment.
Zero/Tare
Zero
Zero/Tare Key Brief press – Resets the indication to zero when using zero-point setup or tare subtraction.
Brief press – Selects a value with the value input method when using the limit function.
Brief press – Selects a function when operating the balance in the function mode.
Table 1-3. Operation Keys

TP Series Balance
6 Visit our website www.RiceLake.com
2.0 Assembly
Use the following steps to assemble a TP Series Balance.
1. Mount the panbase on the mainunit of the balanceand place the measurement panon top of it. Besure to mount the
pan base in the correct direction as illustrated.

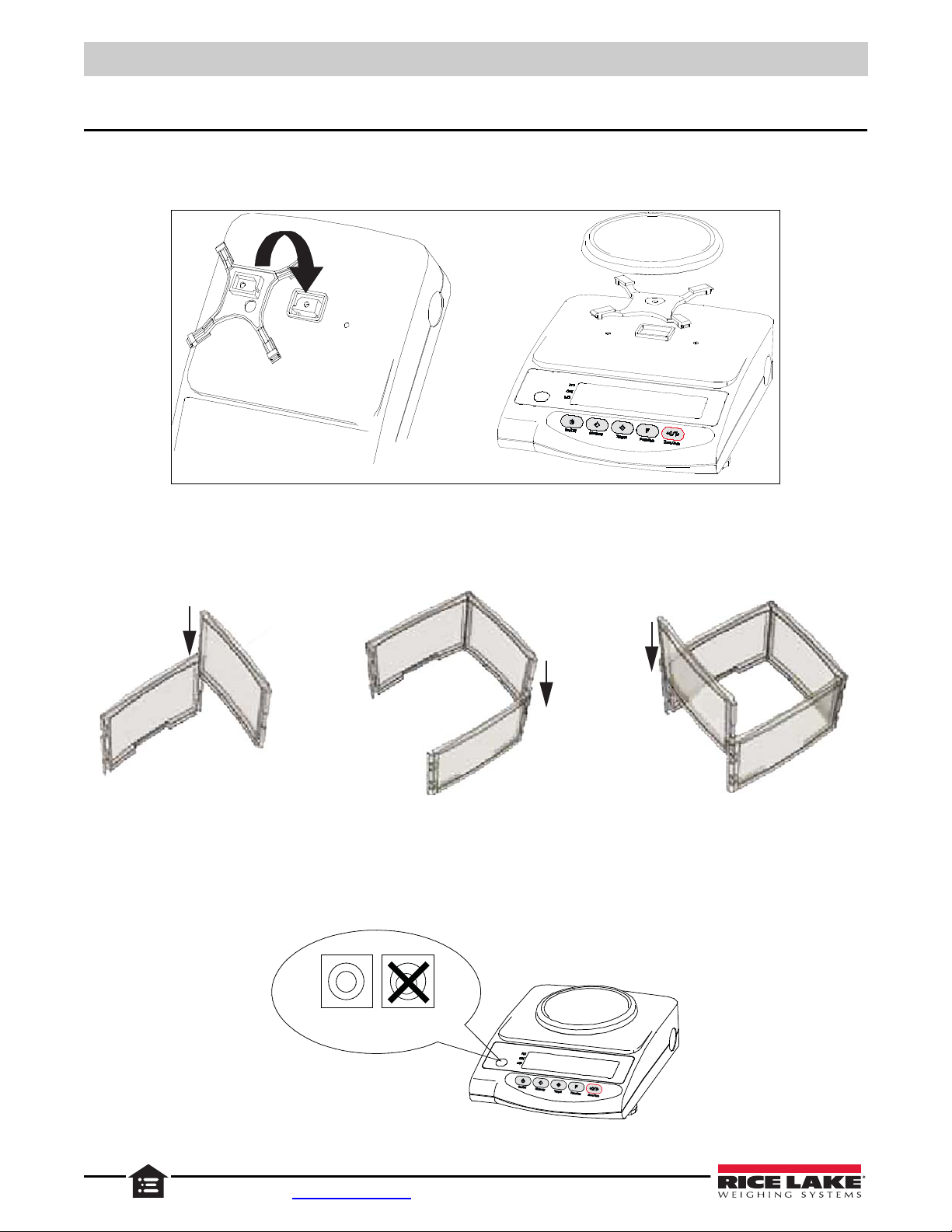

Figure 2-1. Mount Pan Base with Measurement Pan
2. Insert a small panel into a large panel – the edge with the step should face the same side.
3. Connect the otherlarge panel to the two that are assembled.
4. Connect the last panel to the assembly.
Figure 2-2. Assemble Guard
5. Put the cover on top of the balance and place the complete assembly along the guide.
6. Level the balance by turning the adjustable feet until the bubble rests in the center of the red circle.
• Round-pan type: two adjustable feet, one on each side at the front of balance.
•Square-pan type: four adjustable feet, one on each side at the front and rear of balance
Position of air bubble in
the level
.
Figure 2-3. Level Balance

CAUTION
Assembly
© Rice Lake Weighing Systems ●All Rights Reserved 7
Use caution when turning the feet on the square-pan model to prevent them from lifting up.
7. Connect the AC adapter to the balance.

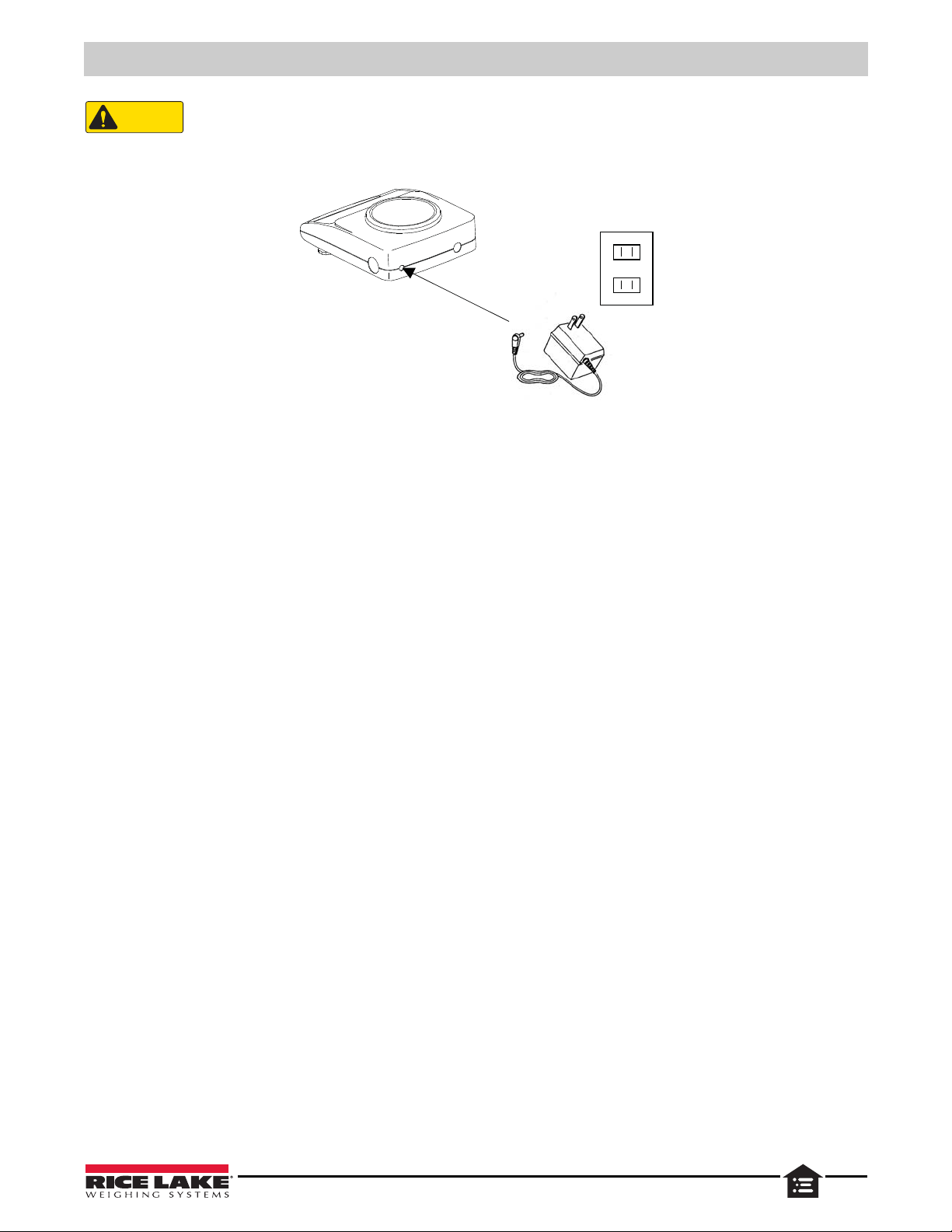

Figure 2-4. Connect AC Adapter

TP Series Balance
8 Visit our website www.RiceLake.com
3.0 Operation
Note
Key representations may differ depending on whether the NTEP or non-NTEP version of the scale is in use.
3.1 Basic Startup
Once the AC adapter is connected to the balance, displays.
1. Press . The display section lights up and the balance is ready for operation.
2. Check the indicator display for missing or unlit icons. A few seconds after startup the display resets to zero.
㻜
㻜 㻲 㻼㼏㼟
㼙㼛㼙
㻏
㼓䠂
Figure 3-1. Display Icons
3. Press to switch the measurementmode.The unit of measurement changes each time the key is pressed.
Note
The balance is shipped from the factory with the following unit sequence:
[g] [ct] [Pcs] [%] [g] ...
4. Press the measurement pan lightly and ensure that the display changes.
5. Release and ensure that the read-out indicator resets to zero.
3.2 Tare
1. Place a container on the balance. The balance indicates theweight of the item.
2. Press to tare the weight of the item. The weight (tare) is subtracted and the balance indicates zero.
3. Load the sample to be weighed. The balance indicates only the weight of the sample loaded in the container.
Determining the weight of an added sample:
4. Press toreset theindication tozero.Thetotalweightofthe sampleloadedonthe measurementpanistared.
5. Load the additional sample. The balance indicates the weight of only the added sample.
Note
When the weight of a sample currently loaded on the measurement pan is reset to zero with the Zero/Tare key, only
the weight of the newly added sample is measured.

© Rice Lake Weighing Systems ●All Rights Reserved 9
Operation
Key Points of the Procedure
The following applies to all measurement modes for weight measurement, counting and percentages.
• After the balance is switched off, there is still enough current to display . This indicates that the AC adapter is
connected to an electrical outlet, but the balance is turned off. When the balance is switched on again, turns off.
Note
If the balance is running on batteries and the unit is switched off, does not display.
• The bar graph shows the current load status withrespect to the capacity of the balance.As the F annunciator draws
near, the smaller the measurable weightbecomes.
Note
A subtracted tare weight is indicated on the bar even when though the display may indicate zero.
• The stability indicator is on as long as the balance is stable. It does not display if the balance becomes unstable.
When a displayed value flickers or the stability annunciator flashes on and off, it is likely that the balance is being
affected by wind or other vibrations. Use the windshield or vibration dampers to protect against such adverse effects.
• When the read-out indicatoris reset to zero or the tare is subtracted, the balance displays
0
.
If the tare is subtracted, the indicator displays T.
• When the tare is present, the measurable range is reduced. The measurable range is the capacity minus the tare weight.
•If0-Err displays when a sample is loaded, the measurable range has been exceeded.
• In counting or percentage mode, the indicator does not change, even when the measurement pan is pressed, if no
sample is stored in the memory.
• The active measurement mode on startup is the mode that was active when the balance was last switched off. For
example, if the balance was switched offwhile in counting mode, the balance starts in countingmode the next time it is
switched on.
3.3 Counting
To implement piece counting, the specified samplesare loaded on the balance and their average unit weight (hereafter,
referred as unit weight) is entered and saved. The procedure for saving unit weights is called sampling.
The counting procedure consists of loading articles that have already been sampled onto thebalance. The number ofpieces is
then calculated by dividing the total weight of the loaded articles by the unit weight saved in memory. Piece counting cannotbe
implemented unless sampling has already taken place.
Note
If samples to be counted deviate widely in weight, or a higher measure of accuracy is desired, seeSection 3 on page
10. This procedure results in greater precision by increasing the number of samples used in the sampling operation.
3.3.1 Sampling
1. Press to display Pcs.
2. Place the tare (measurement pan) and press . The tare is subtractedand the balance now indicates zero.
3. Press . The display flashes a number signifying the number of samples to be loaded. The sampling number
that was used in the previous sampling is displayed.
4. Press . Eachpressof thekey changesthevalue ontherightend.Select thedesiredvalue. Continue tostep
5 if the sampling number need not to be changed.
Note
If samples to be counted widely deviate in weight, or a higher measure of accuracy is desired, it is recommended
that users change the sampling number to a larger value.

TP Series Balance
10 Visit our website www.RiceLake.com
5. Count the samples carefully and load them inthe center of the measurement pan.
6. Press . The balance saves the unit weight and reverts to measurement mode.
Key Points of the Procedure
• The value indication turns off and M flashes to indicate that memory saving is underwaywhen samples are being saved.
If the balance is affected by wind or other vibrations during this process, the saving time may be prolonged.
•If  displays, it indicates one of the following states:
• The weight of one sample (measurable unit weight) is insufficient. For the range of unit weights that can be
measured and saved.
• In the sampling of Operation Step 3, press with the samples loaded on the balance.
Note
 displays if the sampling is interrupted and the data in progress is not saved.
3.3.2 Increasing the Counting Accuracy (Memory Update Method)
The operation for increasing counting accuracy is referred to as the MemoryUpdate Method. This procedure updates the
memorywithaunitweightthatrepresentsa morepreciseaveragebygraduallyincreasingthe samplingnumber.Thisoperation
improves counting accuracy and is recommended for the following cases:
• When the samples to be counted deviate widely in weight or the number of samples displayed.
• When greater accuracy is desired.
Note
If  displays in Memory Update Method, it indicates that a counting error is likely due to the small number of the
samples loaded on the balance. illuminates at LO. As the memory update continues, counting accuracy improves
and the above indication is no longer illuminated.
If the sampling number is changed, subsequent sampling starts from the new sampling number.
Note
This procedure is the same as the sampling procedure described on the previous page, to the point at which the
sampling number is changed.
1. Count the samples carefully and load them on to the centerof the measurement pan.
2. Press .The unit weight of the sample is saved, and a flashing value displays. Thisflashing value denotes
that the Memory Update method is currently active.
3. Add an approximately equal number of samples as the amount displayed. Add them in groups of about the same
number, until the number of samples is approximately double. The additional samples need not be counted.
4. Press . After the unit weight of the samples has been saved, the display begins to flash, indicating that the
Memory Update Method is still running.
5. Repeat steps 3 and 4. The total number of samples to be saved should be approximately 1/5 to 1/2 of the number of
samples to be measured.
6. Press . The balance saves the unit weight and returns to measurement mode.

© Rice Lake Weighing Systems ●All Rights Reserved11
Operation
3.4 Measuring
The percentage measurement function operates by weighing a reference sample and saving its weight as a reference value
and indexing it as 100% . When a measurement sample loaded on the balance is lighter or heavier than the reference, its
weight is indicated as a percentage (%) value relative to the reference weight.
1. Press to display % .
2. Press . flashes on the display. The balance is now ready for reference value setup.
3. Load the reference sample.
4. Press . The balance indexes the weight value of the reference sample as 100% and returns to
measurement mode.
5. The balance now indicates the weight of the loaded sample as a percentage (%) value relative to thereference value.
Key points of the procedure
• Whilesamplesarebeingsaved,thevalueindicationturnsofftemporarilyandonly Mflashes.Ifthebalanceis affectedby
wind or other vibrations during this process, the saving time may be prolonged.
• The minimum intervals between percentages in the unit switch from 1% to 0.1% to 0.01% depending on the reference
weight from the sampling.
•If displays briefly, it indicates one of the following states:
• The weight of the reference sample is insufficient. For the limit weight that can be saved (% limit weight).
• While setting up the reference value in Step 2, was pressed when the samples were loaded on the
balance.
Note
If  displays, sampling has been interrupted and the sample value being processed is not saved.
3.5 Battery Operation
Information in this section applies only when the balance is battery operated.
3.5.1 Specifications
Built-in nickel-cadmium battery
Charging time Approximately 12 hours
Drive time Approximately 24 continuous hours
Number of charge/discharge cycles 300 or more
3.5.2 Charging Method
While the balance is battery-operated, the full battery indicator stays on. The charging required indicator flashes
when the battery capacity decreases. If the balance flashes , charge the battery by following these steps:
1. Connect the dedicated AC adapter to the balance.
2. Turn off the balance.
3. Charge the battery for approximately 12 hours, with the power switched off.
Note
Charging the battery longer than 12 hours decreases battery life.

TP Series Balance
12 Visit our website www.RiceLake.com
3.5.3 User Precautions
• Once charging is complete, use the balance without the AC adapter to avoid over-charging. This can occur since the
balance continues to charge the battery with a weak current when the power is switched on. Overcharging also
decreases battery life.
• When the balance is used for the first time after purchase, the operating time maybe shorter than when using a fully
chargedbattery.Thisis duetonaturaldischargeofthebattery.Althoughthebalancecan beused while isflashing,
it should be recharged as soon aspossible.
• When the battery displays no indication, oran indication turns off quickly after the balance is switched on, battery
capacity is low. In these cases, either charge the battery immediately, or plug in the AC adapter.
• Charging the battery while is displayed reduces battery life.
CAUTION
Observe the following to operate the balance safely; failure to do so could result in malfunctions, breakage,
burst batteries, or fire:
Do not disassemble or modify the battery.
Do not reverse the balance connection or short-circuit the positive and negative polarities of the balance.
Use only the supplied AC adapter.
Do not incinerate used batteries. Dispose as hazardous material only.

© Rice Lake Weighing Systems ●All Rights Reserved 13
Functions Setup
4.0 Functions Setup
4.1 Functions
1. Pressandhold untilFuncdisplays,thenreleasethekey.Thefunctionsetupmodeisactivatedandthefirst
parameter, (Bar graph) displays. See Table 4-1.
2. Press .  (Limit Function) displays.
3. Press to advance through the function parameters.
4. Select the parameter to be changed with . Each press of changes the digit on the right end.
Select the desired digit.
5. Press . The balance terminates theFunction setup and returns to measurement mode.
Parameter Settings Description
Bar graph display 

0Disable
*Enable
Limit function  *Disable
1Enable
Judgment Condition
Displayed only when limit func-
tion is activated
 *Always judge (judges even when the balance is unstable).
2Judge only when the balance is stable (does not judge if the balance is unstable).
Judgment Range
Displayed only when limit func-
tion is activated
 0Ranges beyond +5 graduationis judged (ranges +5 graduation or below, including negative ranges,
are not judged.).
*The entire range is judged (the entire range, including the negative, is judged).
Number of points for Judgment
Displayed only when limit func-
tion is activated
 *One-point setup (judges between OK and LO).
2Upper-limit and lower-limit values are set up (judges among HI, OK and LO).
Auto-zero (zero-tracking)
 0Disable
This function automatically sets the zero point exactly to zero to prevent slight deviations.
*Enable
This function automatically sets the zero point exactly to zero to prevent slight deviations.
Auto power-off
 0Disable (balance operates continuously)
This function is available only when the balance is battery-operated.
*Enable (balance powers off in approximately three minutes)
This function is available only when the balance is battery-operated.
Response speed
 0Measurement by consecutive weighings.
1Fast
Slow
2
*
4
5
Table 4-1. Description of Functions

TP Series Balance
14 Visit our website www.RiceLake.com
*Default factory settings
1*-5*: Default settings  ~ 
*Not available on NTEP models.
Stability parameters
 1Wide (mild)
Narrow (strict)
*

4
Interface
.0Disable input/output.
*Six-digit numeric format.
2Seven-digit numeric format.
Setupofmeasurementunits to
be displayed
Register selected measuring
units with .


.


*  g
*   (ct)
  (oz)
  (lb)
  (ozt)
  (dwt)*
 Lower right] (grain)
Setup of measurement units
Register measurement units
by selecting


.
85.S.u.
1A  (t1_Hong Kong)*
1b ►Upper right (t1_Singapore, Malaysia)*
1C ►Lower right (t1_Taiwan)*
1d mom
1E  (to)*
3 Pcs *
4 % *
5 Until not set *
Parameter Settings Description
Table 4-1. Description of Functions (Continued)

© Rice Lake Weighing Systems ●All Rights Reserved 15
Functions Setup
4.1.1 Interface Section
Displayed when 
Table 4-1. Interface Settings
Parameter Settings Description
Output
Control 
0Stop output.
1Output continuous at all times.
2Output continuous if stable (stops output if unstable).
3Outputs once by pressing (irrespective of whether stable).
4Outputs once, if stable. Outputs if the balance is stable when a sample is loaded after
the preceding sample has been removed and the balance indicated zero, or less.
5Outputs once if stable, and stops output when unstable.
6Outputs once if stable, and outputs continuously when unstable. Even if the sample is
not replaced, output of the balance stops when it stabilizes after being output once.
*
Pressing causes the balance to output once when stable.
Baud Rate 
*1200 bps
22400 bps
34800 bps
49600 bps
Parity 
*None Displayed only when 7. I.F. 2.
(7-digit numeric format) is specified.
Odd
Even
is set to or 
* Denotes a factory setting
** The data interval in continuous output mode is 0.1 to 1 second (the interval varies depending on weighing conditions and
other factors).
4.2 Switching Functions
Pressing allows the user to switch the unit of measurement to g, ct, % , and so on. During setup, a maximum of five
different units can be registered for use in function setup mode.
Toswitchthe unitsof measurement tobe displayed, press .Eachpressadvancesthroughtheunitsofmeasurement
to be displayed.
4.2.1 Setup of Units of Measurement
When values . to  are entered prior to use, the desired unit of measurement to be displayed can be chosen
simply by pressing .
Example:
To change the default factory settings to pound units, use  in the factory settings.
1. Press and hold down .
2. Release the key as  displays. The function setup mode is now activated and thefirst parameter is displayed.

TP Series Balance
16 Visit our website www.RiceLake.com
3. Press several more times, until  displays.
4. Press several times to specify .
5. Press to reset the measurement mode.
6. Press . Each press of the key changes the units of measurement to be displayed as follows: g, lb, Pcs, % ,
g...
Key Points of the Procedure
• When set values are entered in the function parameters  to  prior to use, the desired unit of
measurement to be displayed can be selected by simply pressing the Function key.
• The units are displayed in the same sequence as the settings made from  to .
•If is set, no unit of measurement is displayed, even when units of measurement are set in subsequent parameters.
• cannot be set in .
• If the same unit of measurement is set multiple times, the second time (and all subsequent times) the unit(s) occurs, it is
ignored when the display switches.
4.3 Limit Function
Thelimitfunction judgesmeasurementsaccordingtoa limitvaluesavedin thebalance.Thefunctionshows thejudgmentresult
by displaying the annunciator as either HI (excessive), OK (appropriate), or LO (insufficient). This function is useful when
discriminating between conforming and nonconforming articles. It is also useful when measuring agiven constant quantity
consecutively, in conjunction with a range ofreference weights defined by upper- and lower-limit values.
This function can be used in weight mode, counting mode, or percentage mode.
4.3.1 Limit Value Input Methods
Either of the following two methods can be used in the different modes:
• Actual Quantity Setup Method - An actual sample is loaded on the balance; its weight is saved as the limit value.
• Numeric Value Setup Method - The limit value is entered with any key stroke.
Note
The limit values entered are held in memory, even when the balance is powered down. The respective limit values for
weight mode, counting mode and percentage mode are set up independently.
4.3.2 Indication of Judgment Result
The annunciator lights up as either HI, OK or LO on the left side of thedisplay, indicating the result of judgment.
Judgment Results Upper/Lower Limit Setting One-Point Setting
HI (excessive) Upper-limit value < measurement value No indication
OK (appropriate) Upper-limit value ≥measurement value ≥lower-limit value Limit value ≤measurement value
LO (insufficient) Lower-limit value > measurement value Limit value > measurement value
4.3.3 Limit Function Setup
1. To start the function, press and hold down until  displays. The display changes to thefunction setup
and the first parameter is displayed.
2. To select a function parameter, press . The display changes to the next parameter, Limit Function.
